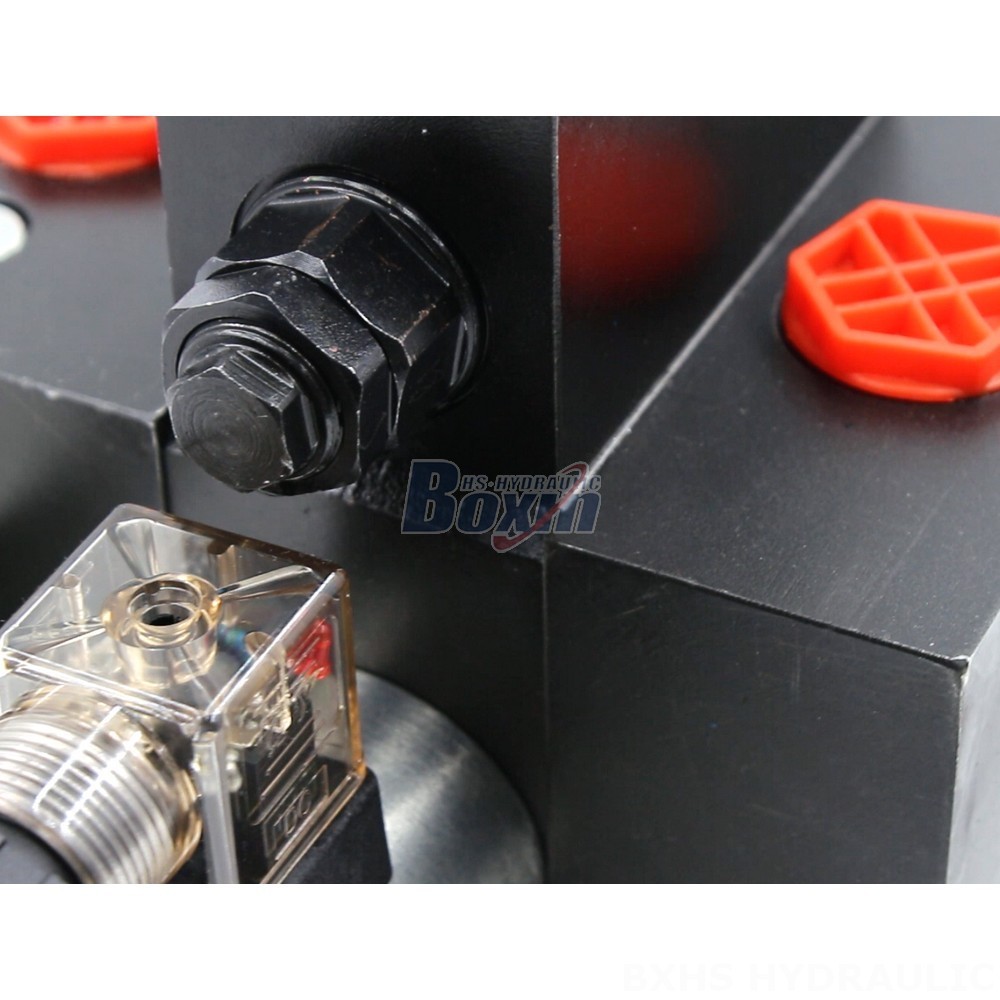

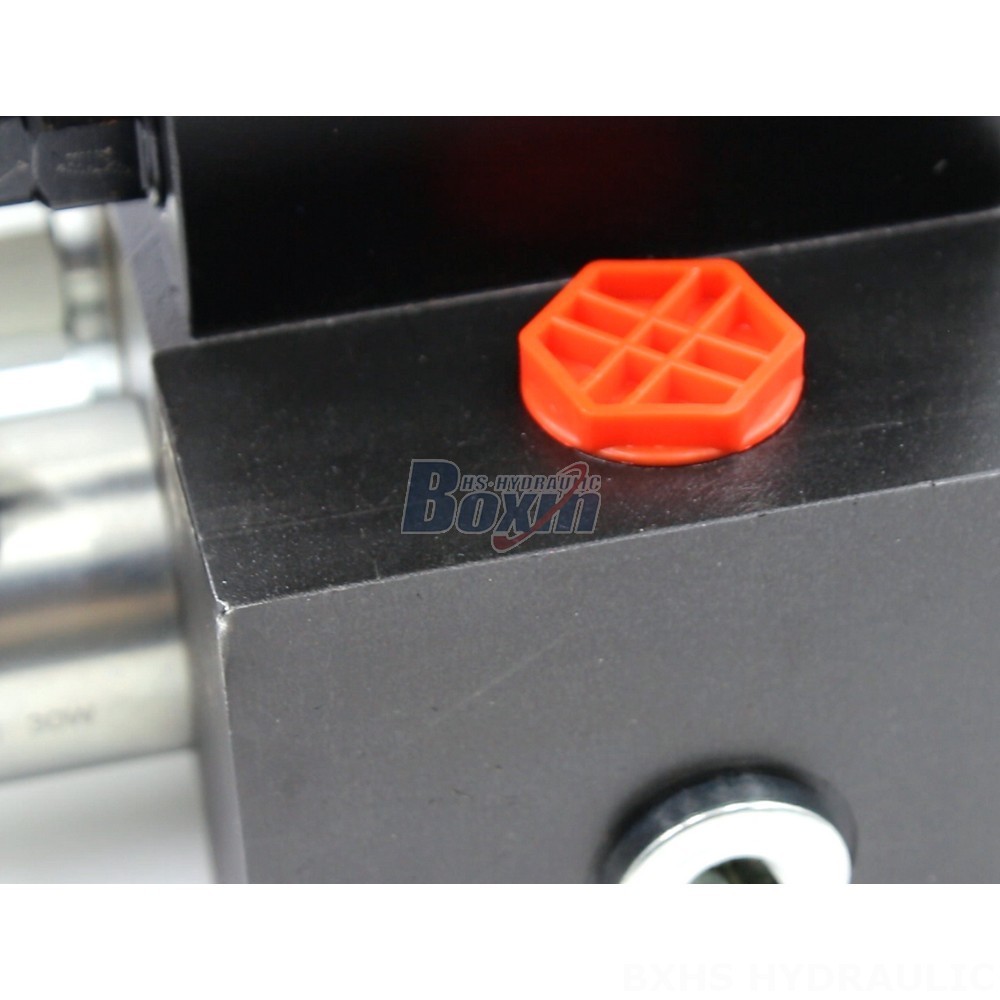

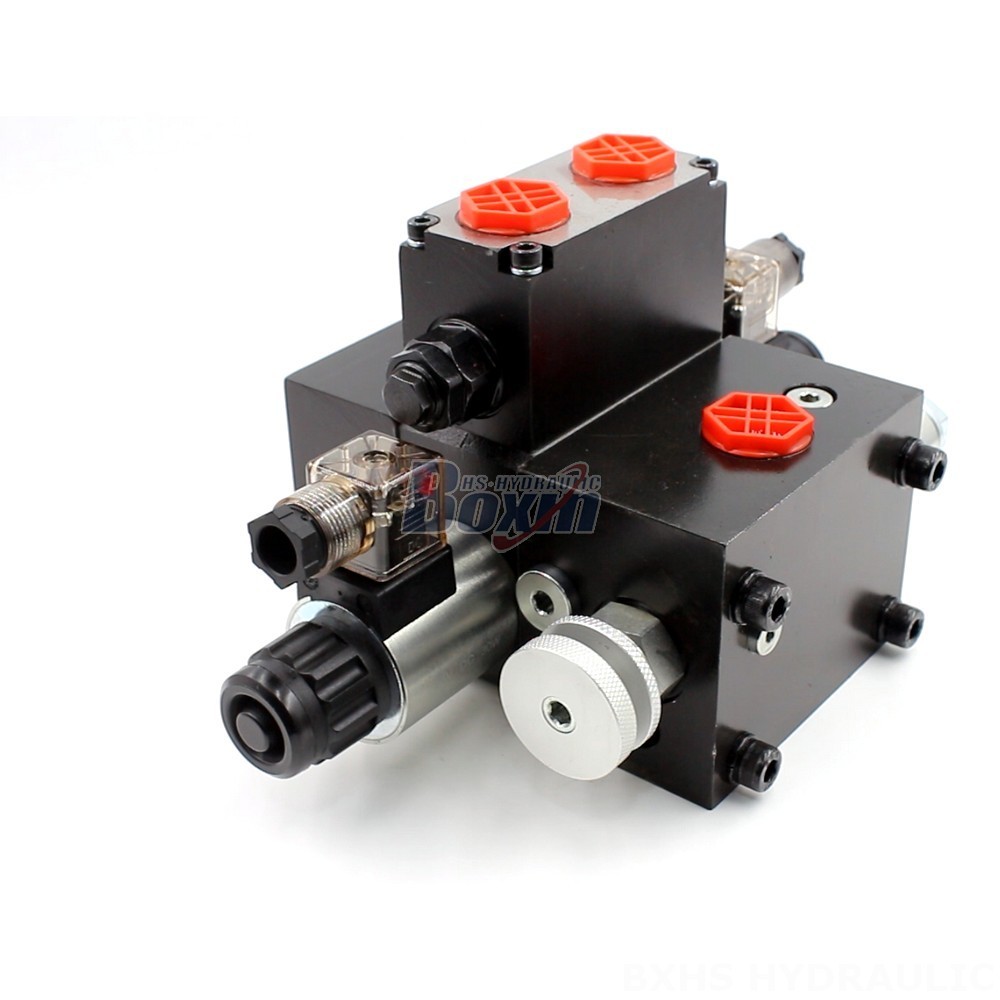

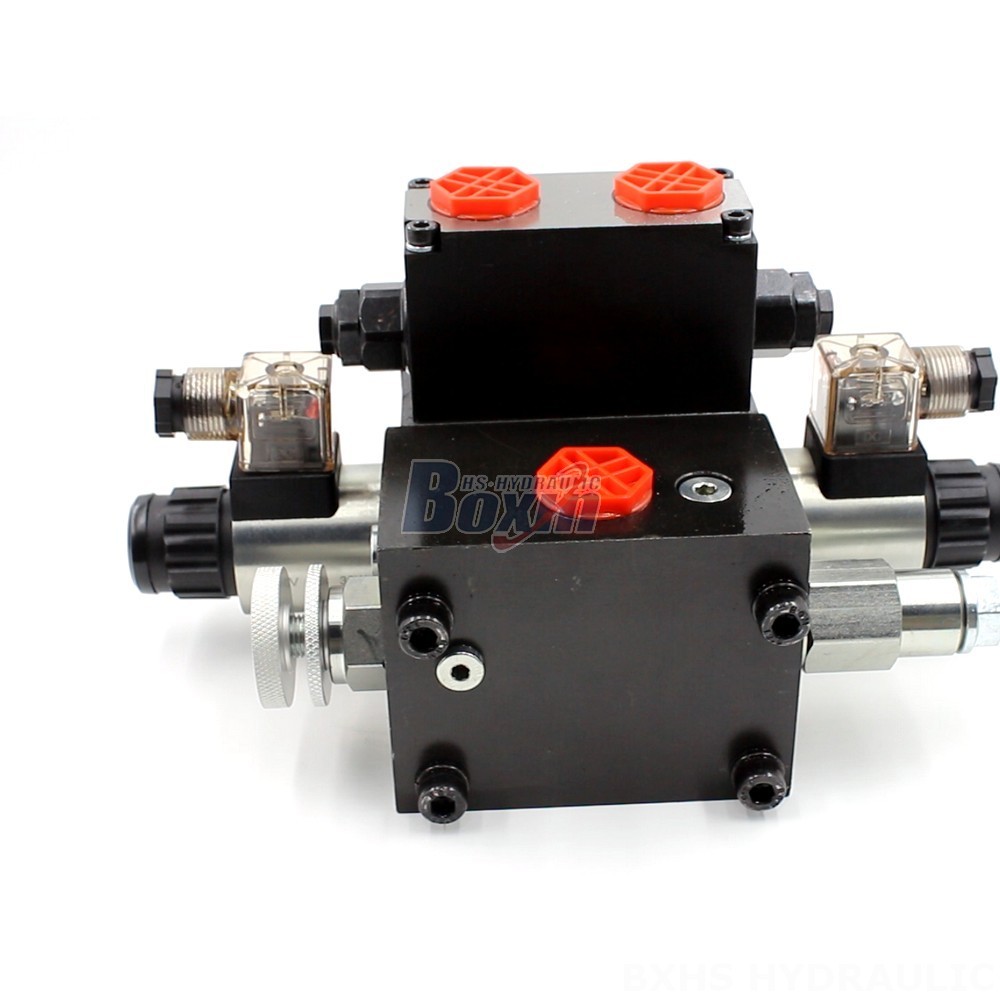

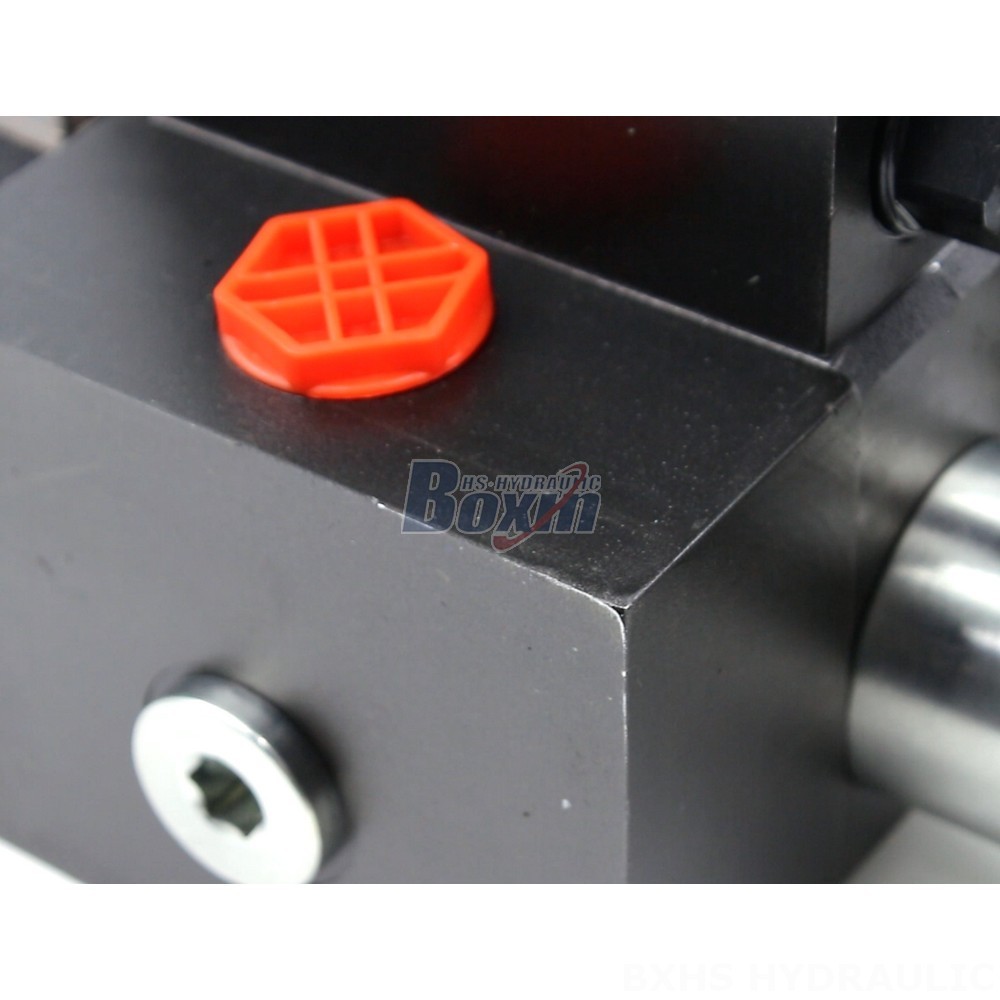

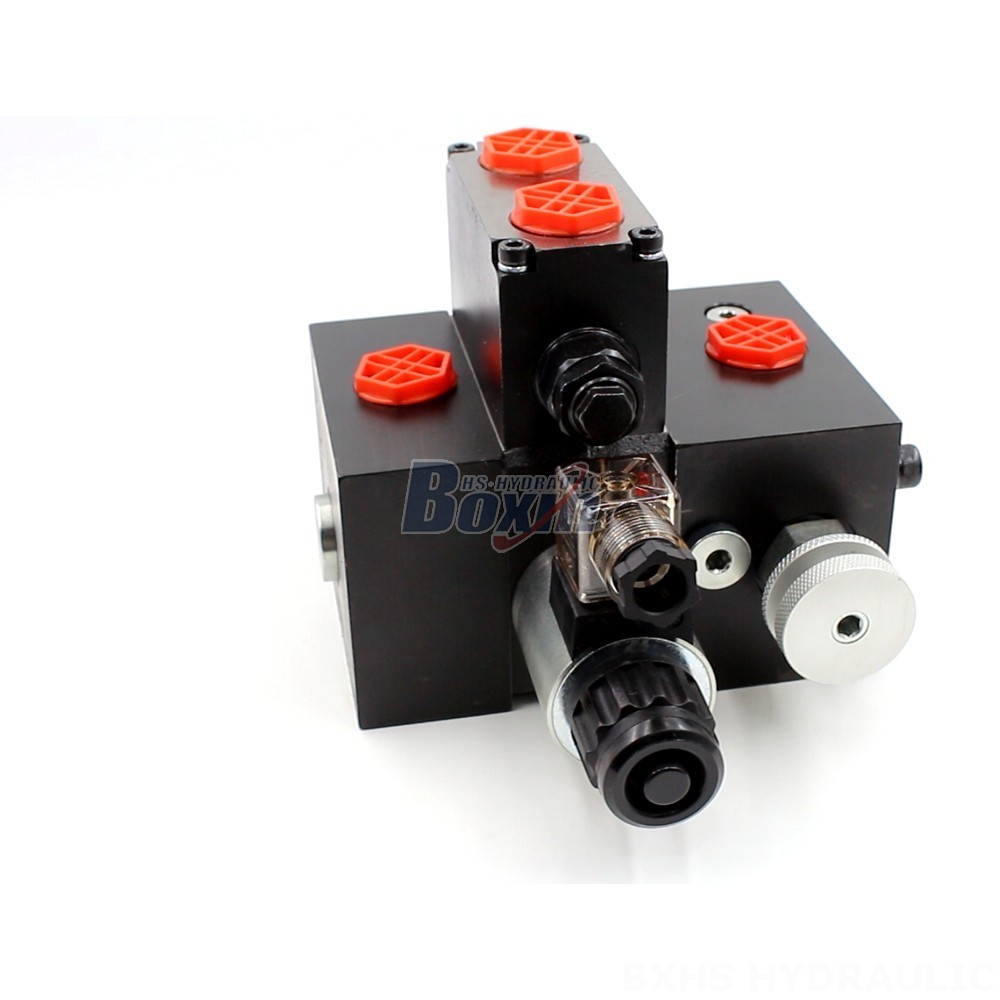

The DCV58F Series Hydraulic Directional Control Valve is a 12v solenoid-operated valve designed for heavy-duty applications in construction, agriculture, and material handling equipment. With a rated flow of 60 L/min and a maximum pressure of 350 bar, this valve is suitable for controlling hydraulic actuators in various machinery, including telehandlers, forklifts, excavators, and loaders.
| Serie DCV58F Válvula direccional seccional Parámetros | |
|---|---|
| Método de control | Solenoide, 在这里输入键名的翻译 |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes, 8 carretes, 9 carretes, 10 carretes, 11 carretes, 12 carretes |
| Flujo Nominal | 60 l/min (15,8 gal EE. UU./min) |
| Presión Máxima | 350 bar (5100 psi) |
| Puerto de Entrada | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Puerto de Salida | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Tamaño de Puerto | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones, 8 secciones, 9 secciones, 10 secciones, 11 secciones, 12 secciones |
| Tipo de estructura | Válvulas seccionales |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
This 1-section sectional valve features a single spool and operates with a control method of solenoid. It is designed for high-performance applications, offering a flow rate of 60 L/min and a maximum pressure rating of 350 bar. Its robust construction allows for reliable operation across a wide range of ambient temperatures, from -40°C to +80°C. The DCV58F Series valve is specifically designed for demanding applications in construction, material handling, agriculture, and industrial vehicles, including telehandlers, forklifts, cranes, excavators, loaders, and dumpers.
