Hydraulic Monoblock Directional Valve - P40-G12 Series: Wholesale & OEM

Método de control:Manual

Carrete:3 carretes

Flujo Nominal:40 l/min (10,5 gal EE. UU./min)

Presión Máxima:250 bar (3600 psi)

Puerto de Entrada:G1/2

Puerto de Salida:G1/2

Tamaño de Puerto:G1/2

Marca:BXHS

Tipo de producto:Válvula Direccional Monobloque

Serie de productos:Serie P40 Válvula Direccional Monobloque

Tamaño del embalaje:24*21*13

Peso bruto:6.60 kg

Disponibilidad: En stock

1020 personas están viendo este producto

Hydraulic Monoblock Directional Valve - P40-G12 Series: Wholesale & OEM

Hydraulic Monoblock Directional Valve - P40-G12 Series: Wholesale & OEM

Hydraulic Monoblock Directional Valve - P40-G12 Series: Wholesale & OEM drawing image

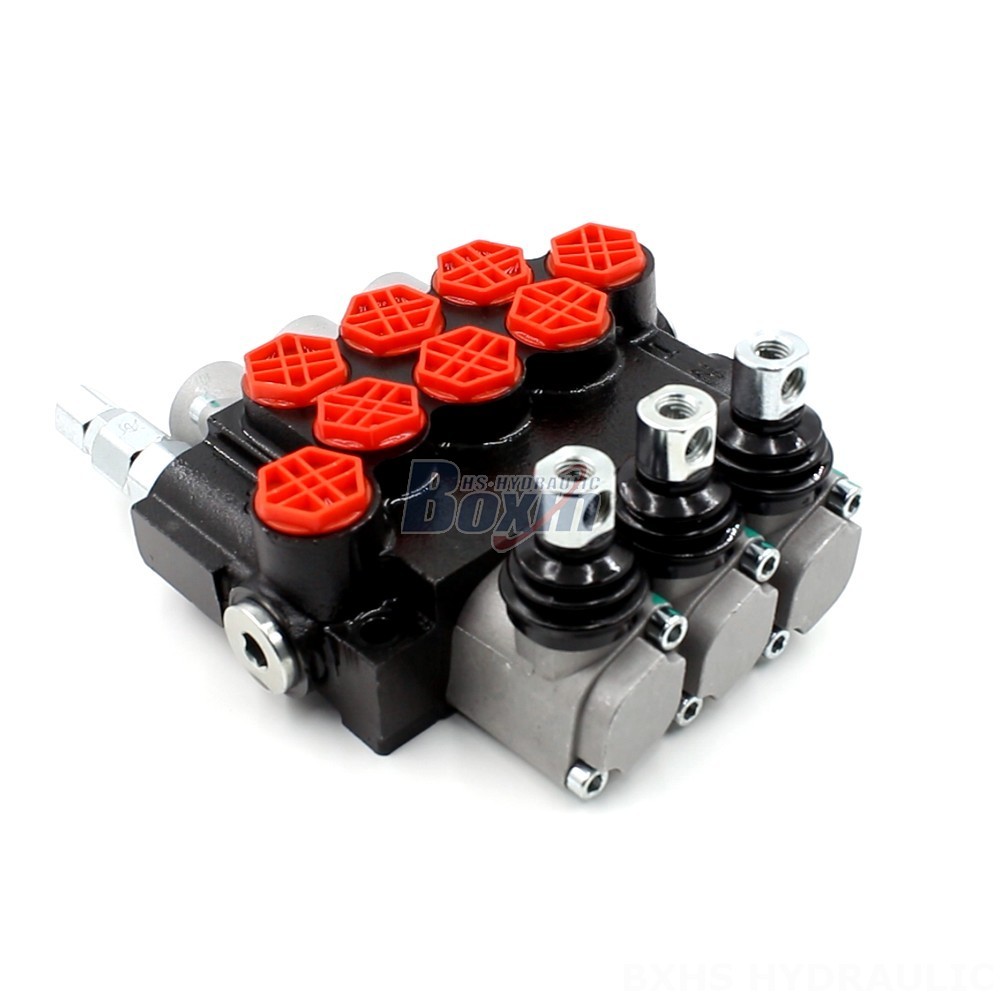

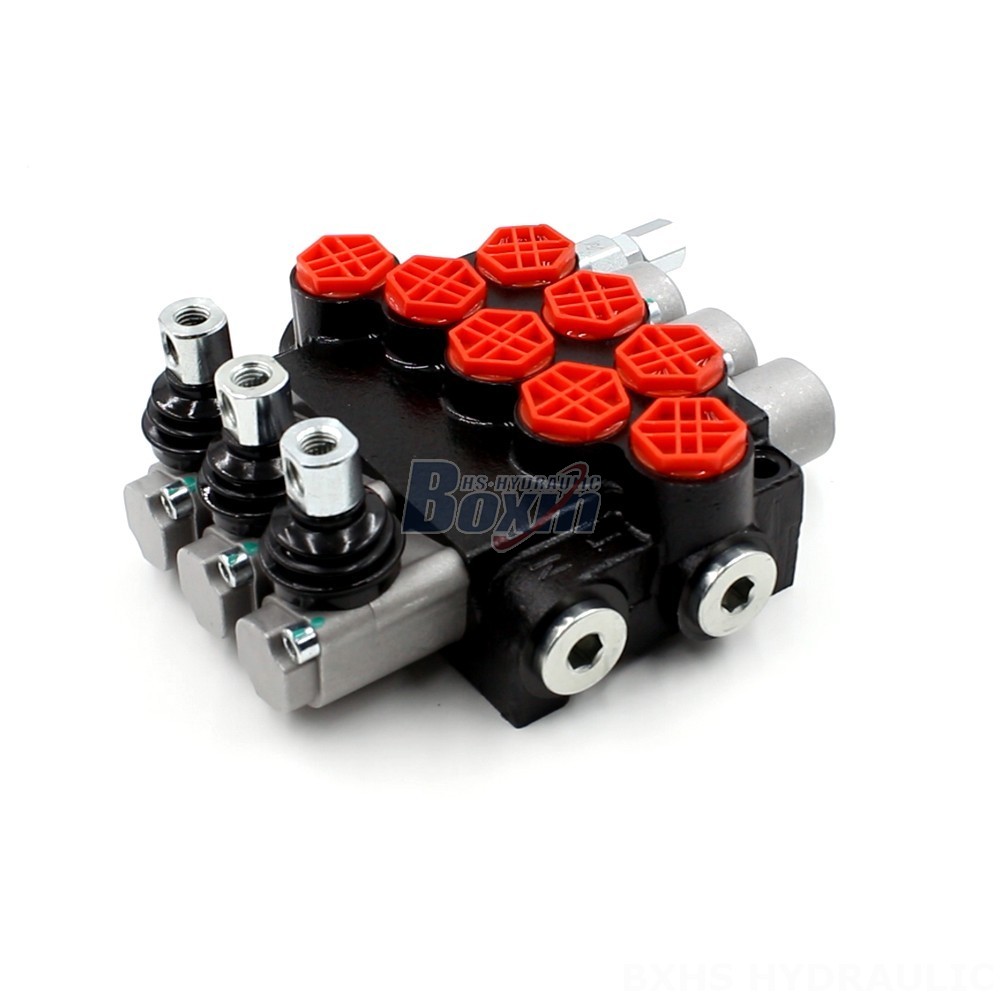

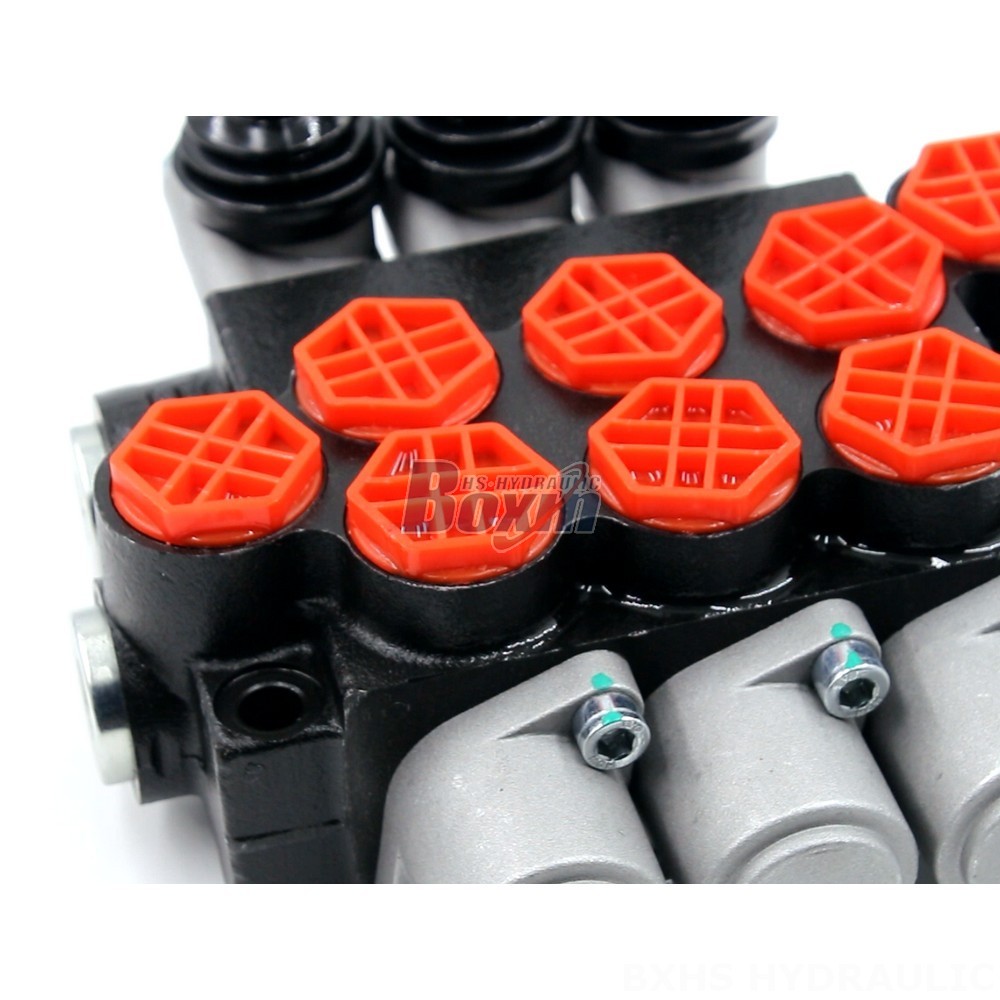

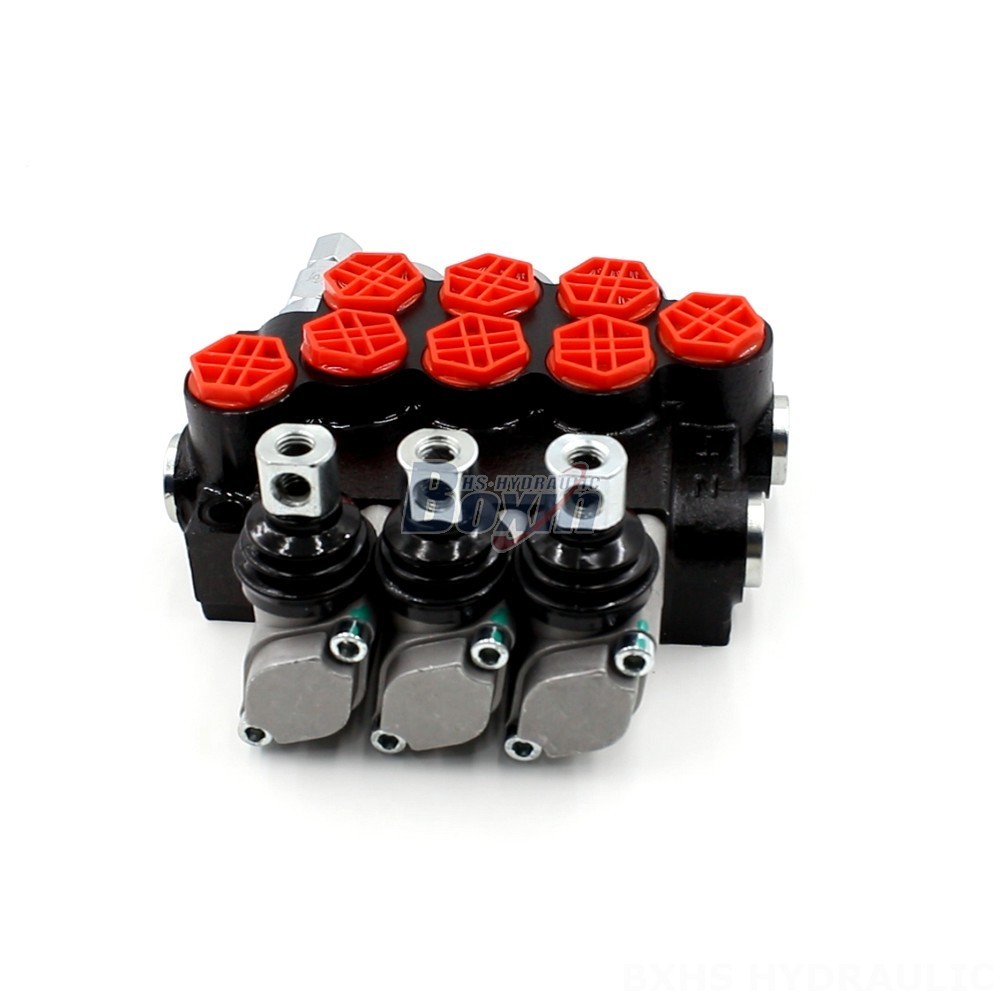

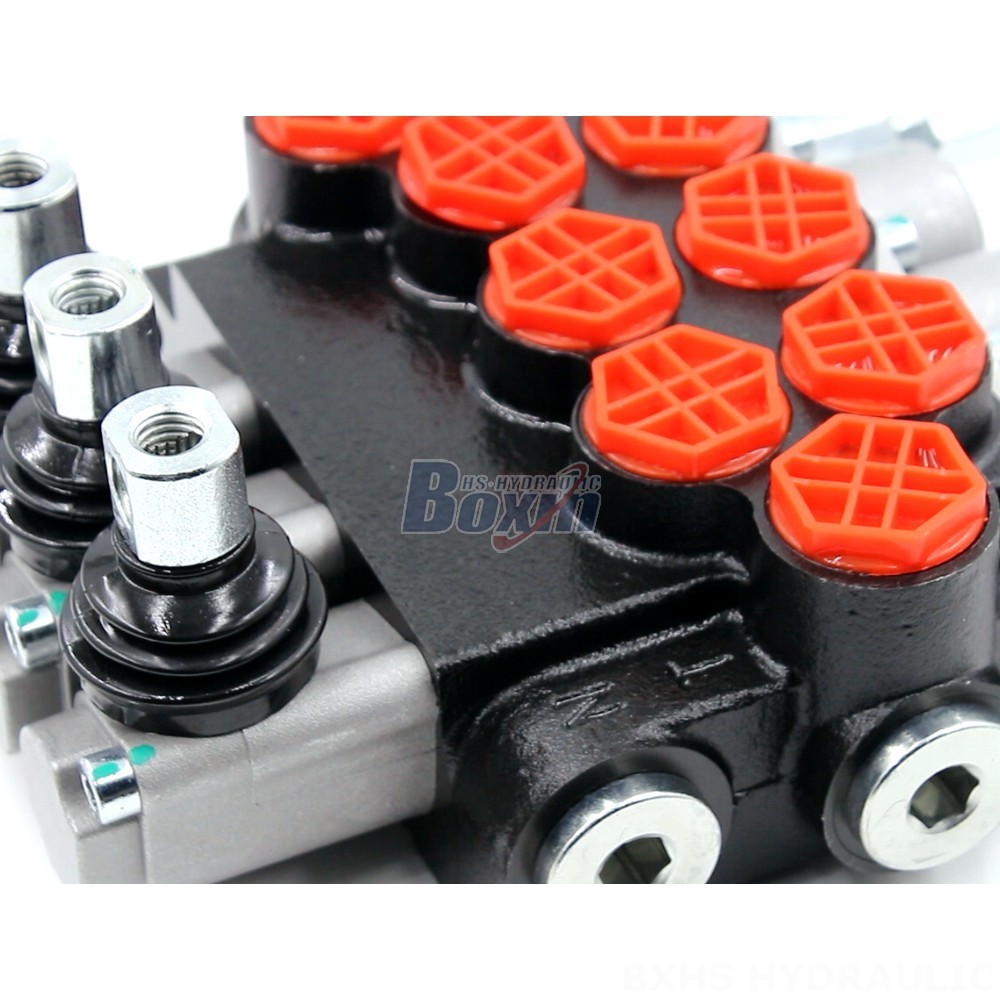

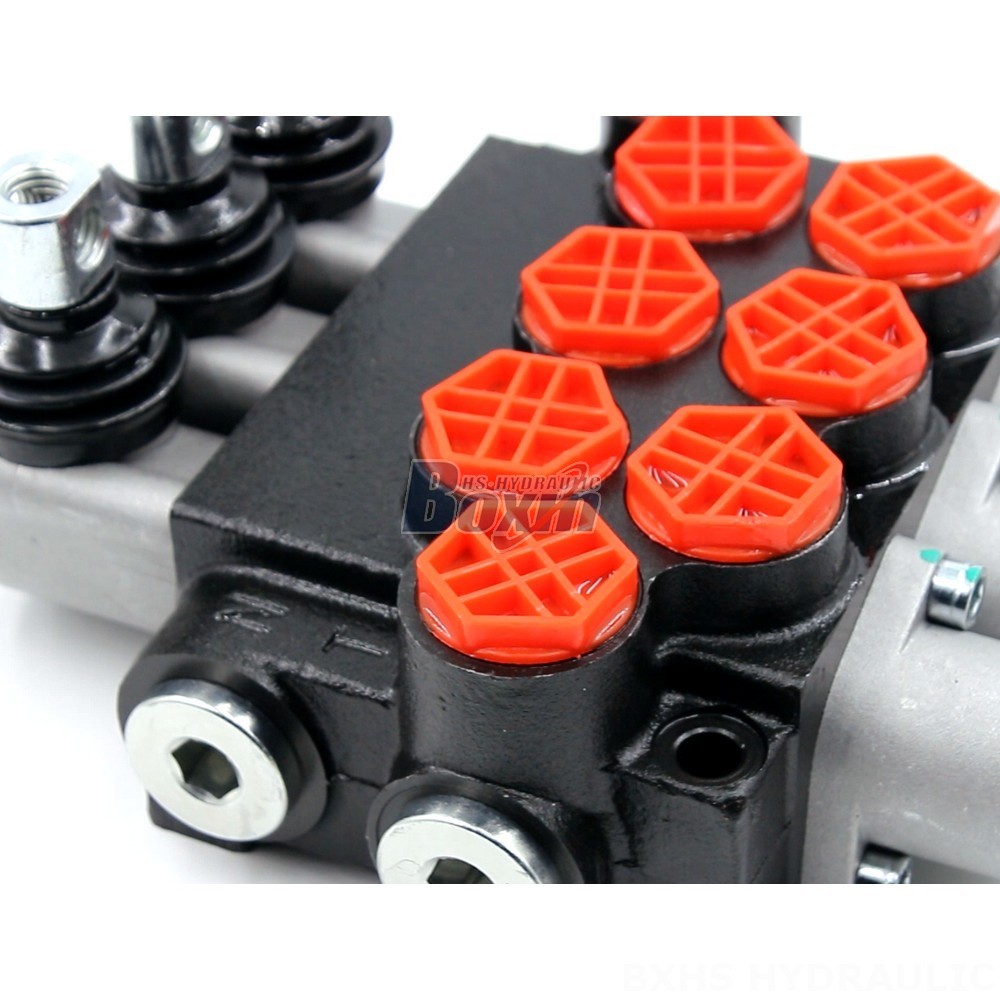

The P40-G12 Series Hydraulic Monoblock Directional Valve is a high-performance, versatile valve designed for various applications in material handling, construction, agriculture, and industrial vehicles. This manual control valve features a 3-section monoblock structure with a rated flow of 40 L/min and a maximum pressure of 250 bar. It's perfect for telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders.

Serie P40 Válvula Direccional Monobloque Parámetros
Método de control Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable
Carrete 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes
Rango de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estructura Válvulas monobloc
Sección 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones
Rango de viscosidad de funcionamiento 15 - 75 mm²/s (15 cSt a 75 cSt)
Flujo Nominal 40 l/min (10,5 gal EE. UU./min)
Presión Máxima 250 bar (3600 psi)
Puerto de Entrada G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Puerto de Salida G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Tamaño de Puerto G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This P40-G12 Series Hydraulic Monoblock Directional Valve is a robust and reliable solution for controlling hydraulic systems in various applications. It features a 3-section monoblock structure, offering superior strength and durability. The valve is equipped with a 3-spool design and has a rated flow of 40 L/min, making it suitable for various demanding applications. It can withstand pressures up to 250 bar, ensuring efficient operation in high-pressure environments. With an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C, this valve can handle diverse operating conditions. This valve is specifically designed for use in various applications including material handling, construction and earth moving, agriculture, and industrial vehicles. It is compatible with a range of machines like telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
