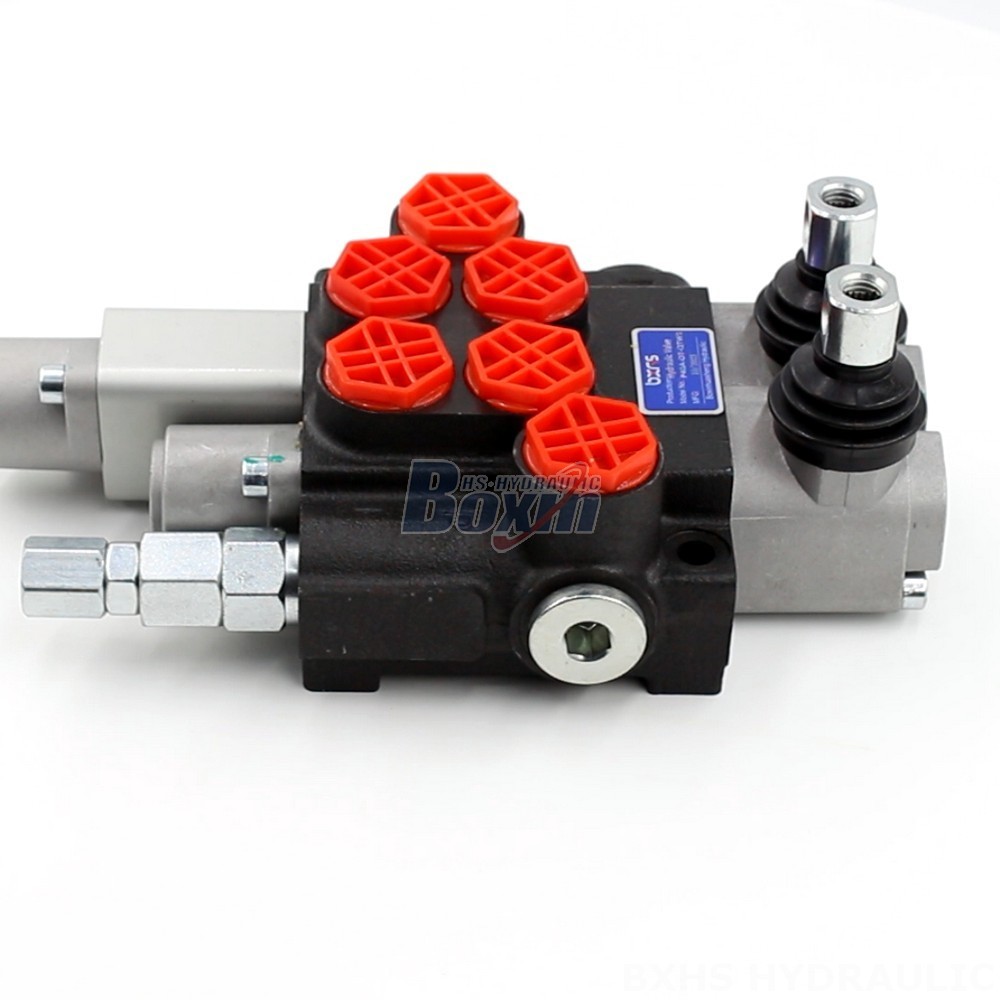

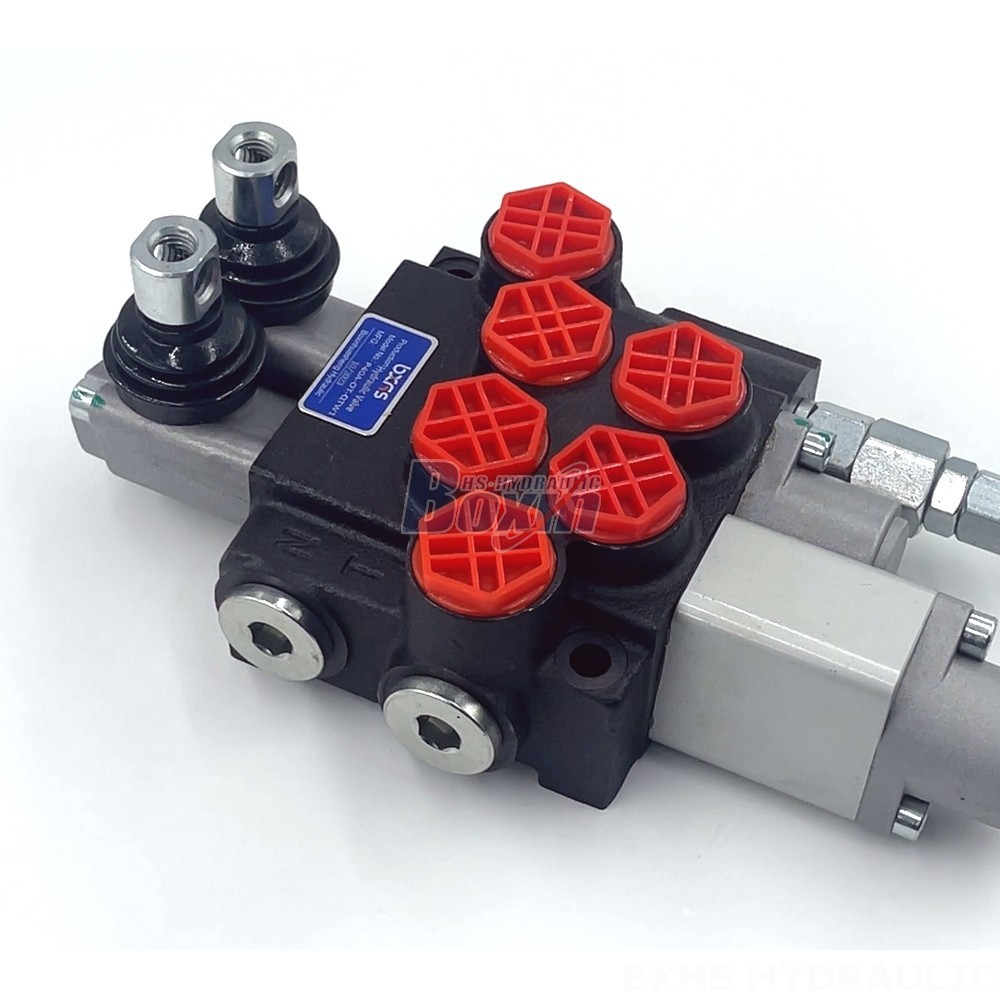

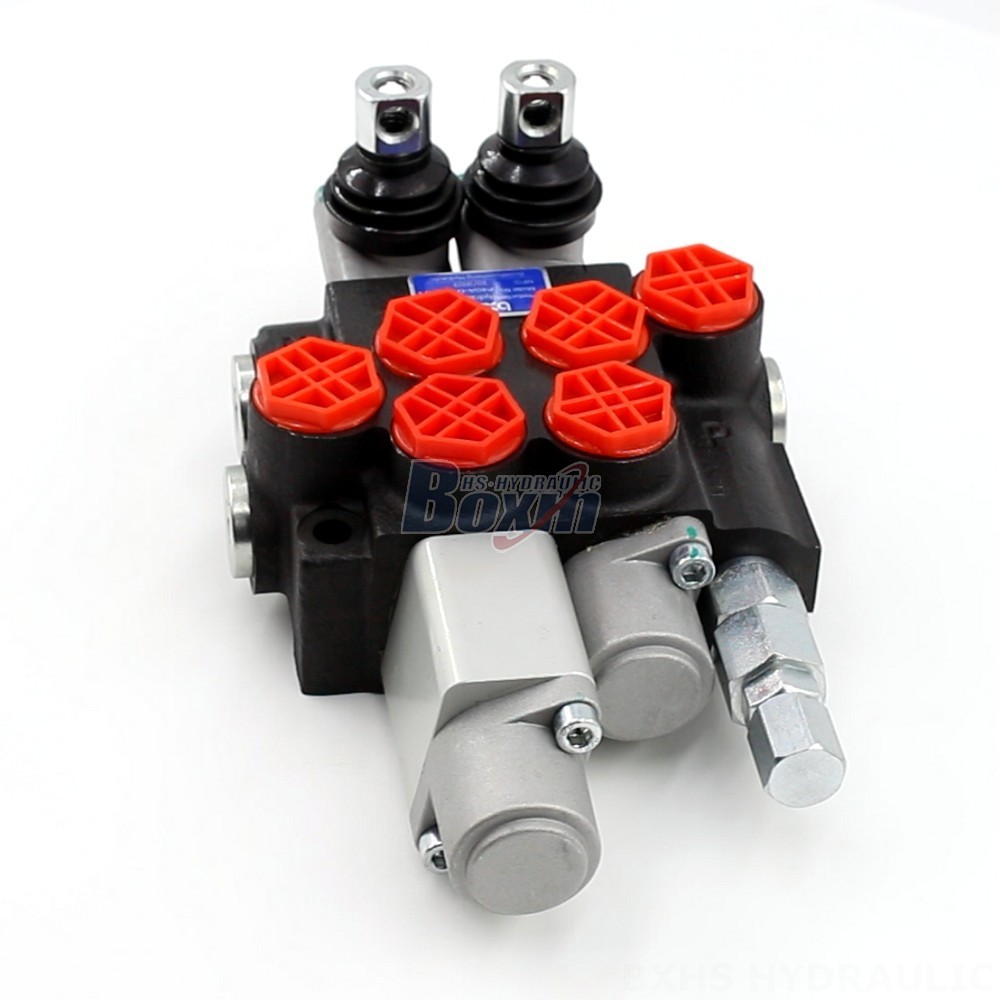

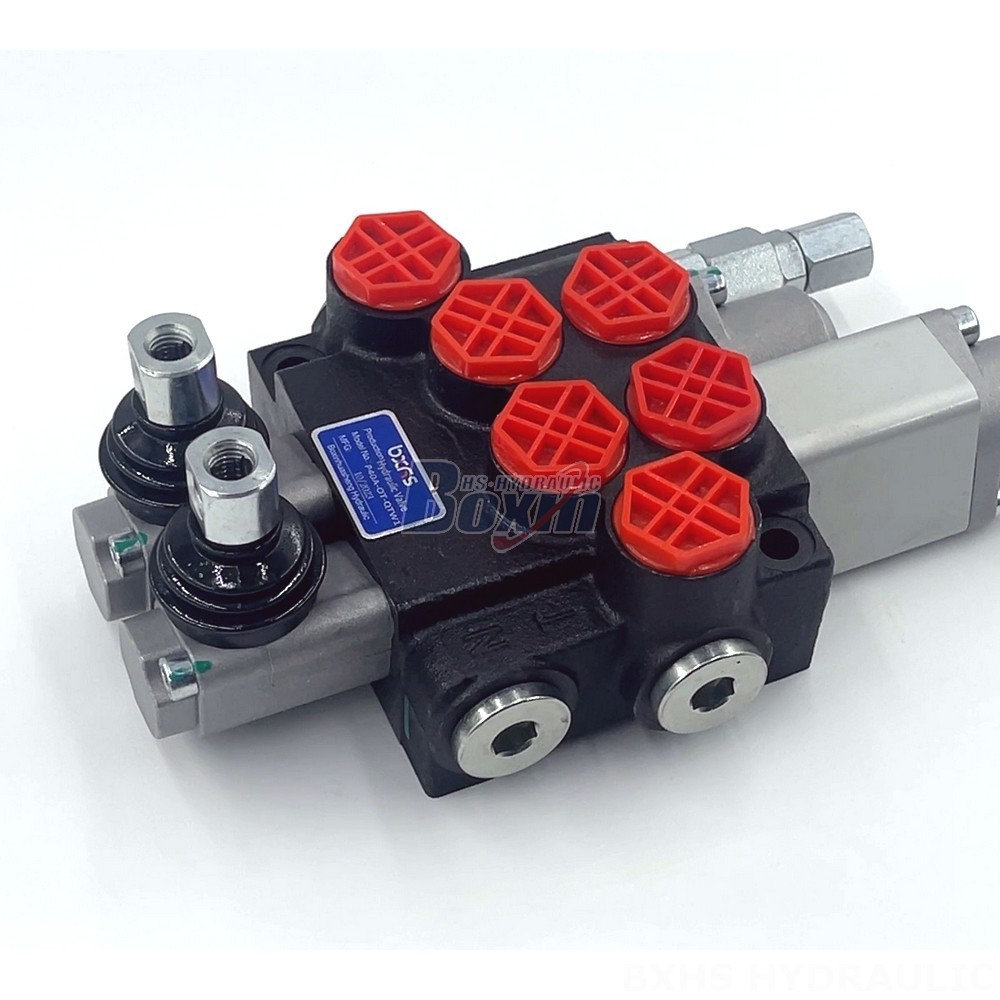

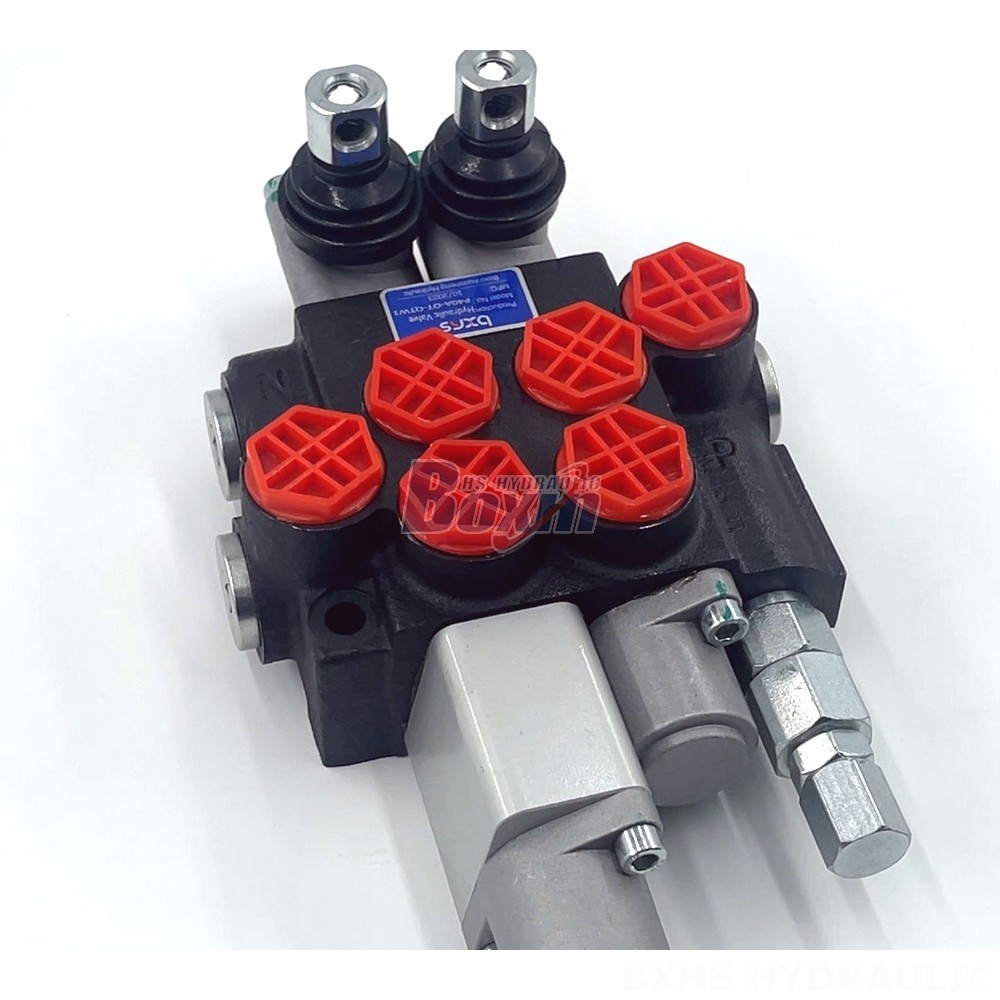

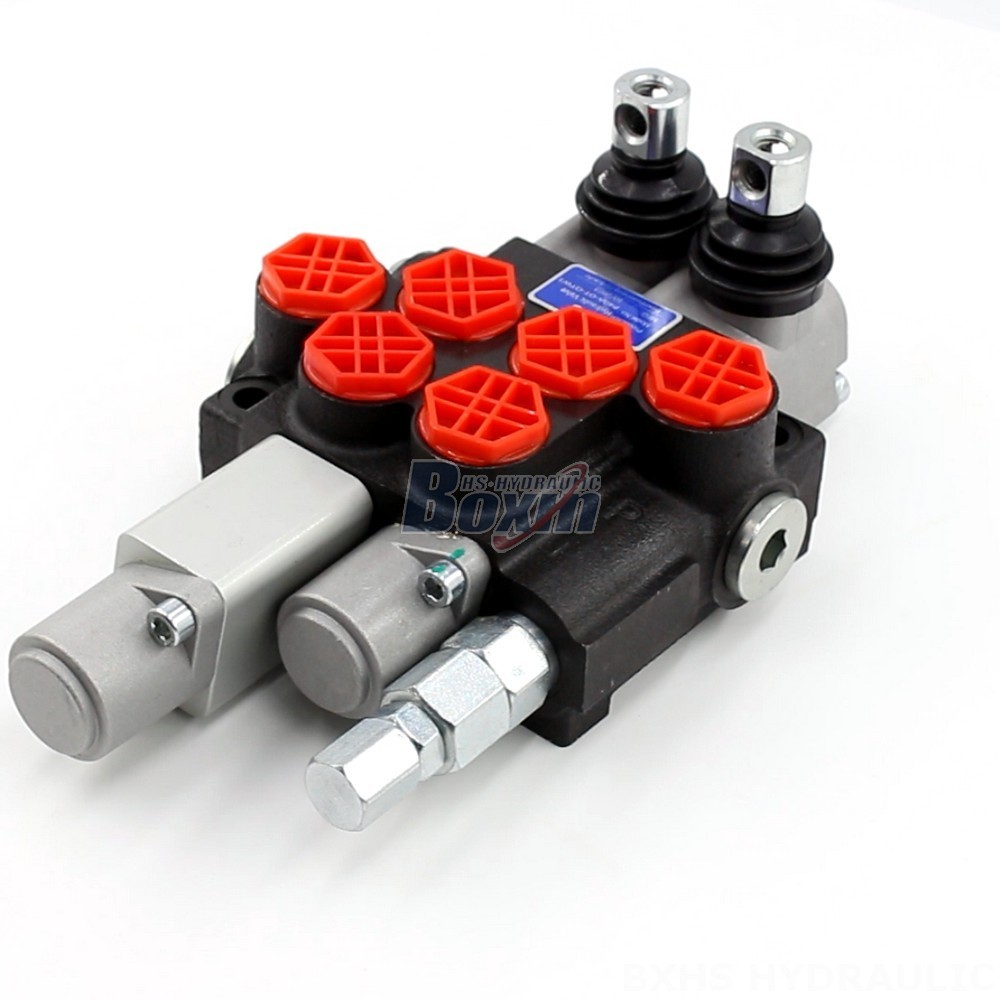

The P40A Manual 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of industrial applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve provides reliable and efficient flow control in demanding operating conditions. Its compact monoblock design ensures durability and reduces installation time, making it an ideal choice for applications where space and weight are critical.
| Serie P40A Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Tipo de estructura | Válvulas monobloc |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
**Key Features:**
* Manual control for precise flow adjustment
* 2 spool design for independent control of two hydraulic circuits
* Monoblock construction for durability and reduced installation time
* Rated flow of 40 L/min for efficient performance
* Maximum pressure of 250 bar for handling high-pressure systems
* Wide operating viscosity range of 15 - 75 mm²/s for compatibility with various hydraulic fluids
* Ambient temperature range of -40°C to +80°C for operation in challenging environments
**Applications:**
* Material handling equipment
* Construction and earth moving machinery
* Agricultural machinery
* Industrial vehicles
* Material handling equipment: Forklifts, telehandlers, aerial platforms
* Construction and earth moving machinery: Excavators, skid steer loaders, compact wheel loaders, motor graders
