Producción y entrega
Plazo de ejecución de producción de 15 a 30 días
La innovación impulsa el desarrollo; tecnología forja futuro
1139 personas están viendo este producto
CBHST1-ISO-63 Hydraulic Gear Pumps offer exceptional quality, efficiency, and reliability. With various displacement options and industry-standard mounting, they cater to diverse applications across material handling, construction, agriculture, and industrial vehicles.
| Serie CBHST1-ISO Bomba hidráulica de engranajes Parámetros | |
|---|---|
| Desplazamiento | 50 cc/rev, 63 cc/rev, 80 cc/rev, 100 cc/rev, 110 cc/rev, 34 cc/rev, 43 cc/rev, 90 cc/rev, 120 cc/rev, 82 cc/rev |
| Presión Nominal | 20 MPa, 23 MPa, 25 MPa |
| Presión Máxima | 23 MPa, 25 MPa, 28 MPa (4061 psi) |
| Velocidad Nominal | 2000 r/min |
| Velocidad Máxima | 2500 r/min |
| Rotación | /: (Bidireccional) |
| Material | Hierro fundido |
| Estructura | Bomba de engranajes externos |
| Versión de brida | ISO-4 Orificios de montaje |
| Tipo eje | H: Estría rectangular |

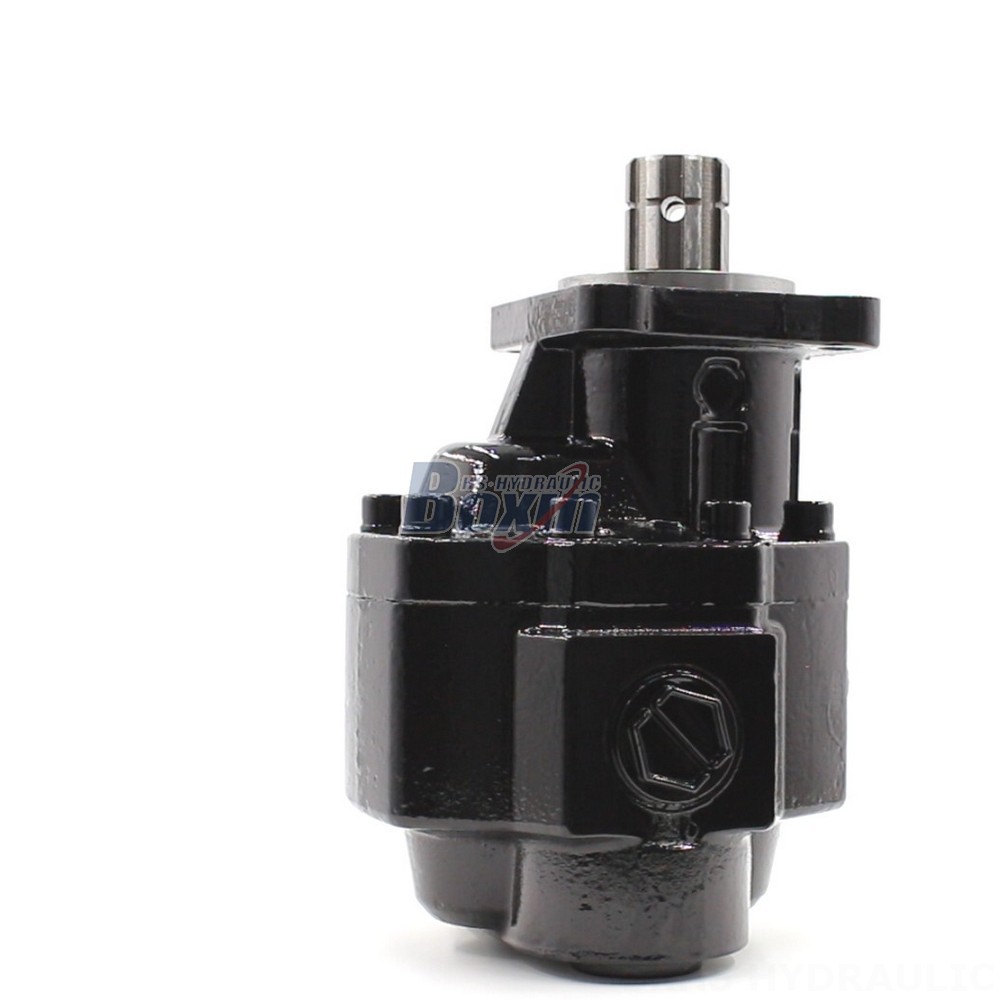

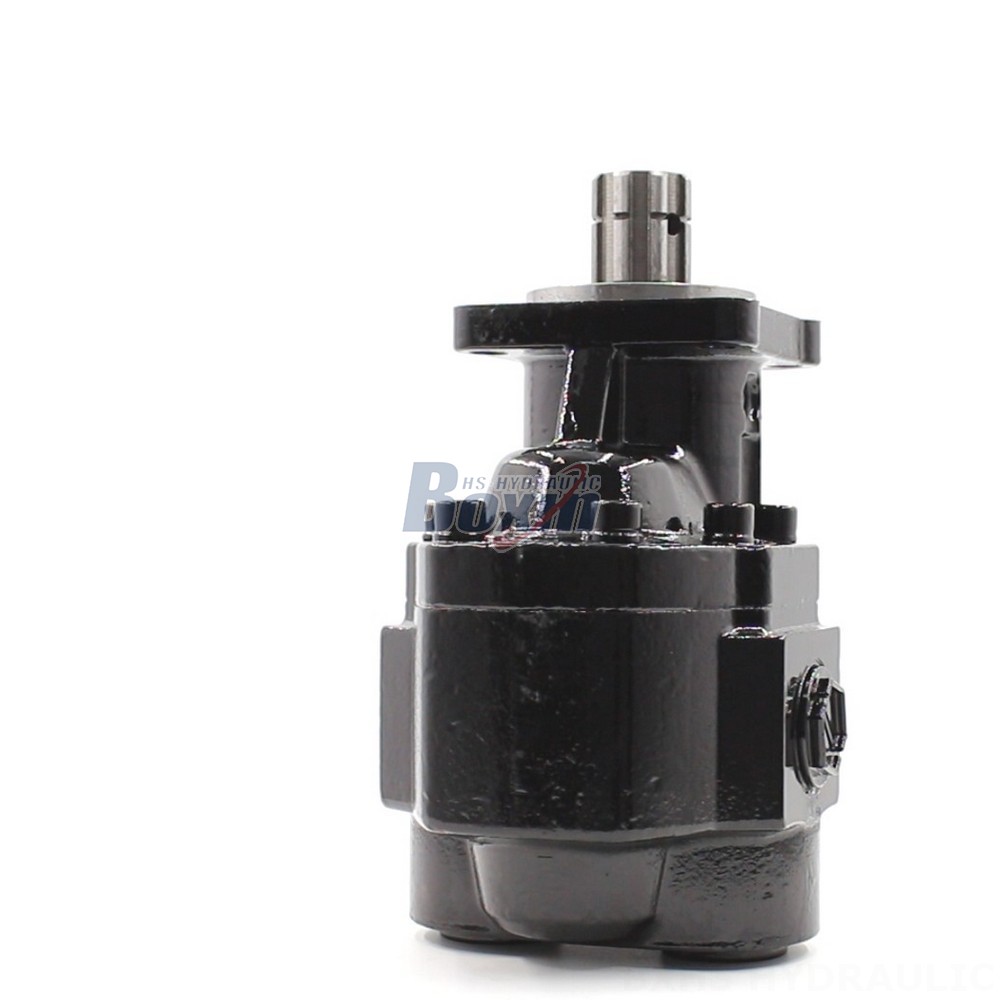

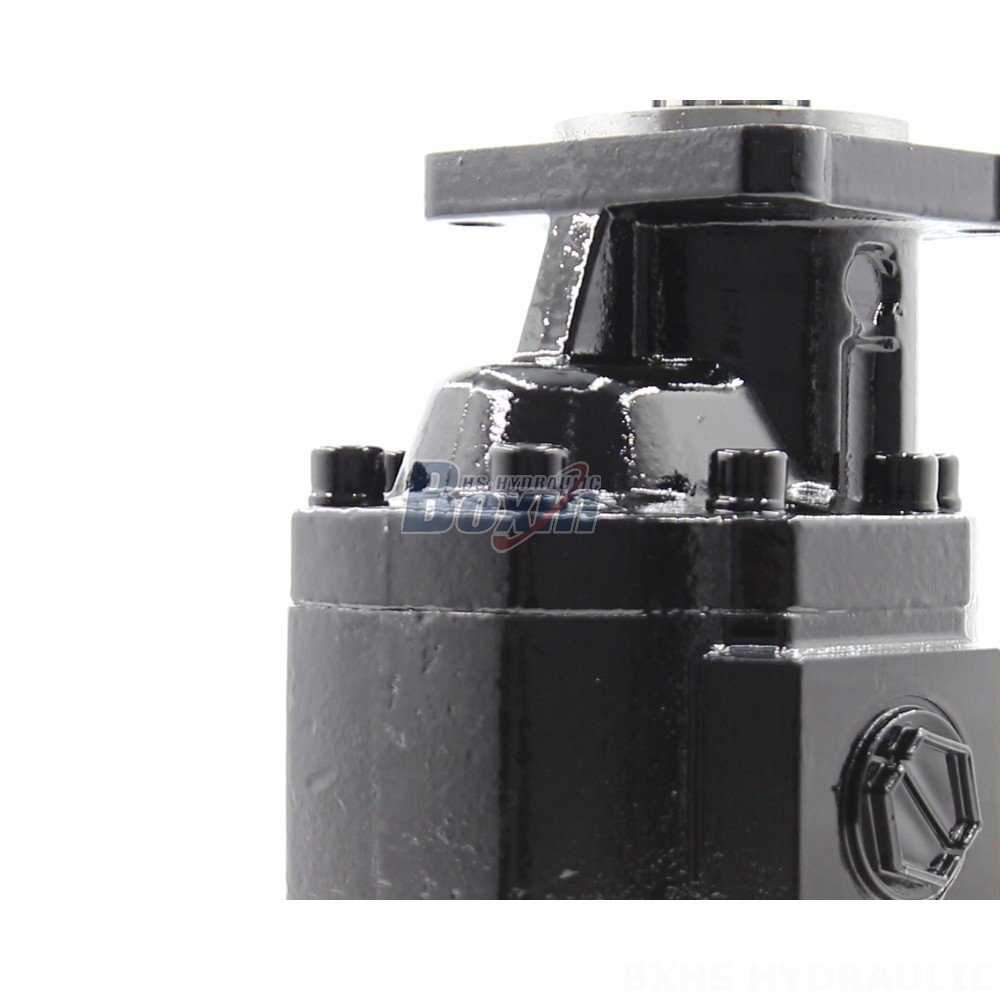

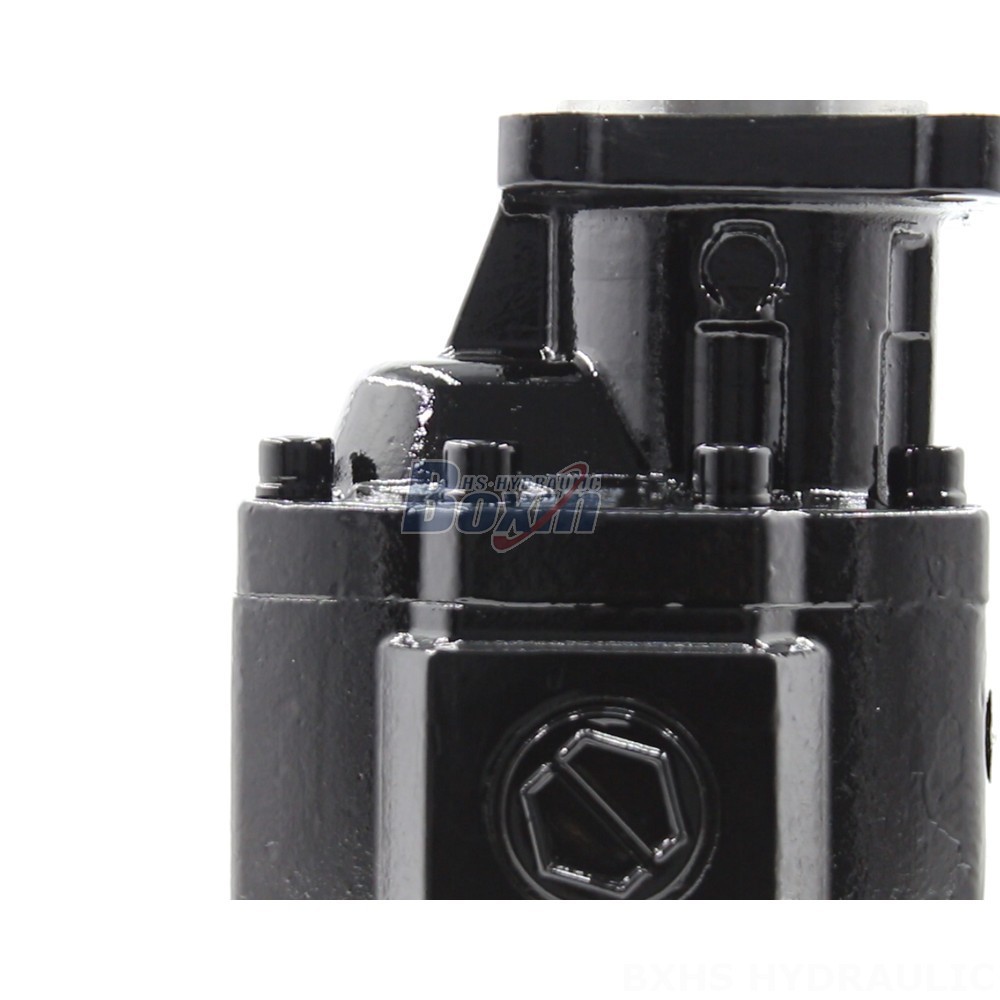

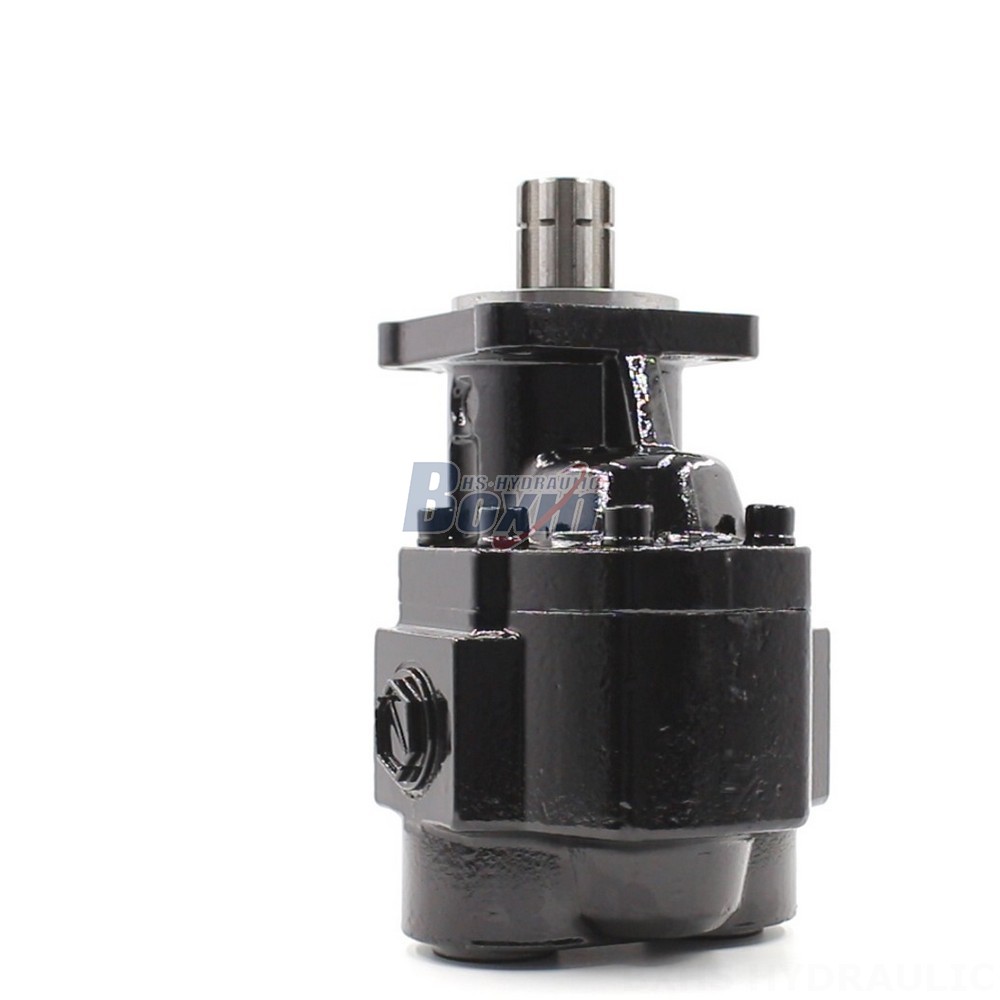

**CBHST1-ISO-63 Hydraulic Gear Pumps**
**Overview:**
CBHST1-ISO-63 Hydraulic Gear Pumps are precision-engineered to provide optimal performance and durability in demanding applications. Their robust cast iron construction ensures longevity, while the swashplate design delivers smooth and efficient operation.
**Key Features:**
* Displacement: 32-110 cc/rev
* Rated Pressure: 23 MPa (3335 psi)
* Rated Speed: 2000 r/min
* Maximum Speed: 2500 r/min
* Rotation: Bidirectional
* Structure: Swashplate
* Material: Cast Iron
* Flange Version: ISO-4 Mounting Holes
* Shaft Type: Rectangle Spline
**Applications:**
CBHST1-ISO-63 Hydraulic Gear Pumps are widely used in various industries, including:
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Applicable Models:**
These pumps are compatible with a range of equipment, such as:
* Telehandlers
* Forklifts
* All Terrain Cranes
* Stackers
* Aerial Platforms
* Motor Graders
* Midi-Excavators
* Mini-Excavators
* Skid Steer Loaders
* Compact Wheel Loaders
CBHST1-ISO-63 Hydraulic Gear Pumps are the ideal solution for applications demanding high performance, reliability, and efficiency in hydraulic systems.
