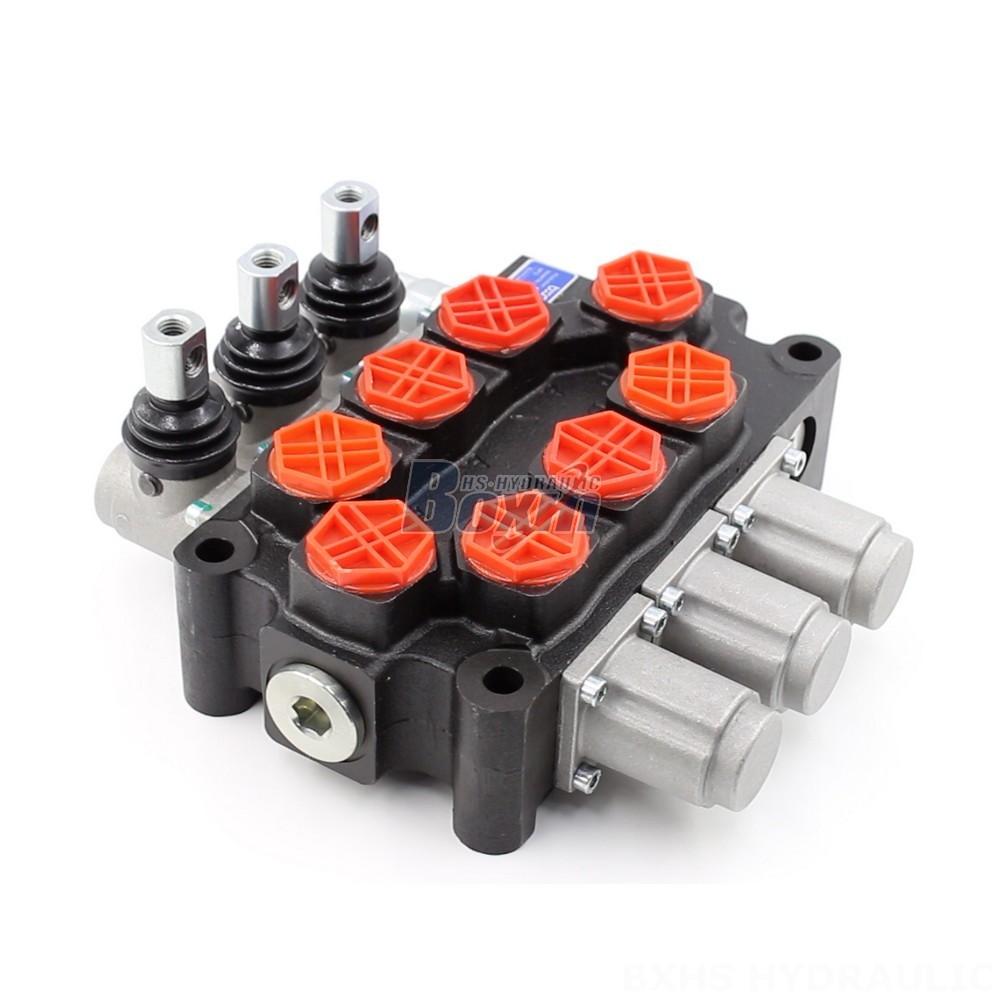

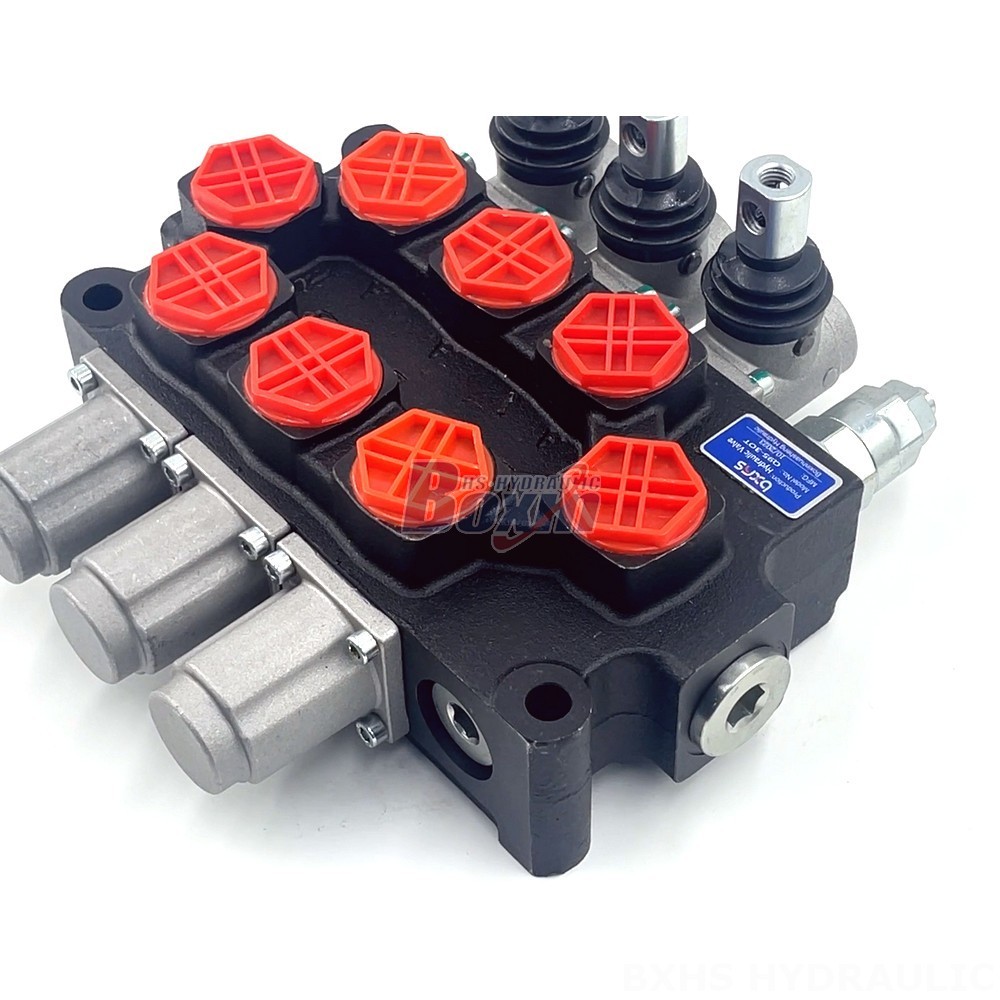

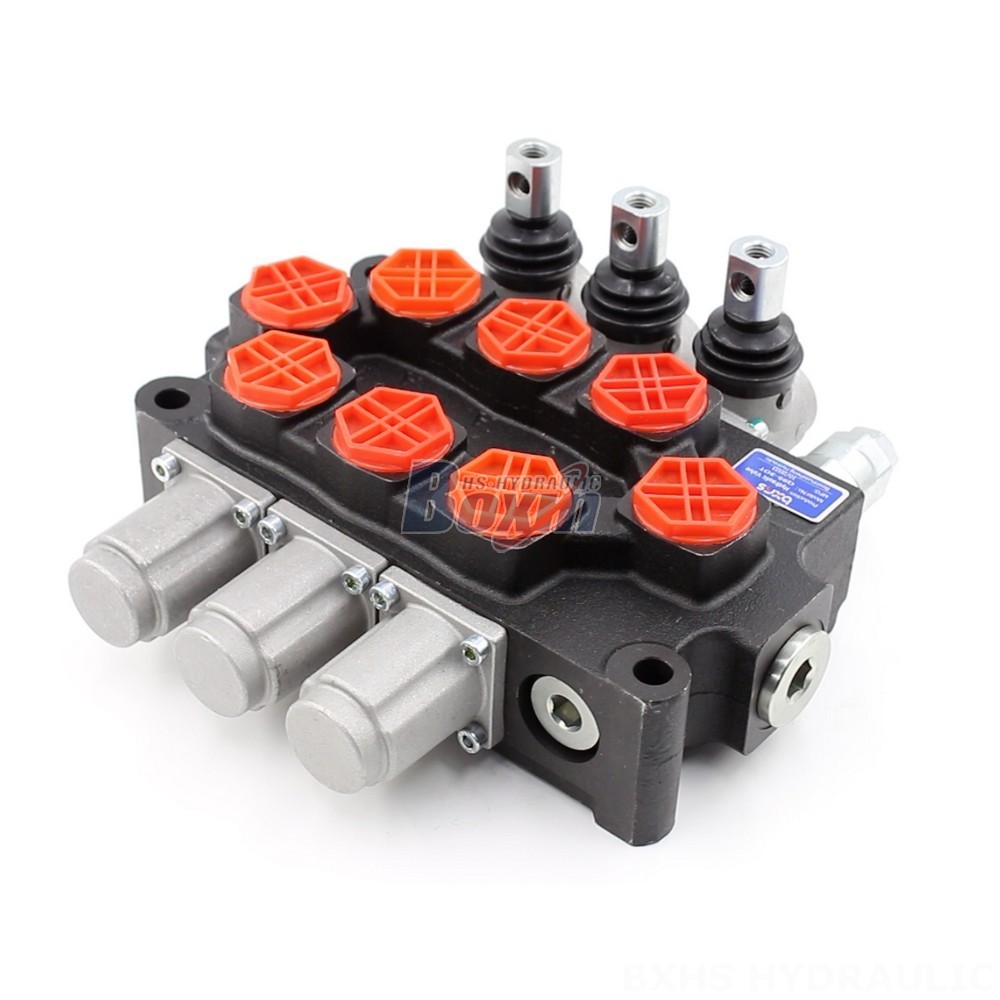

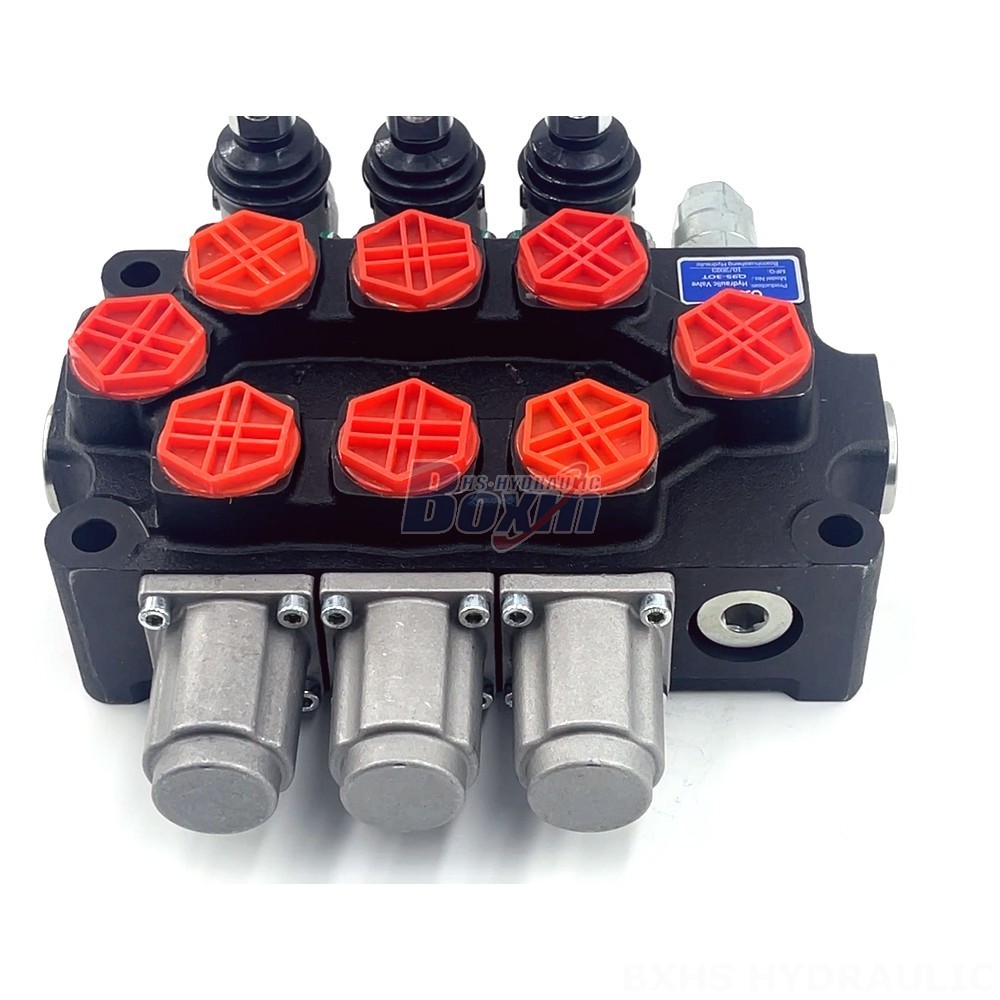

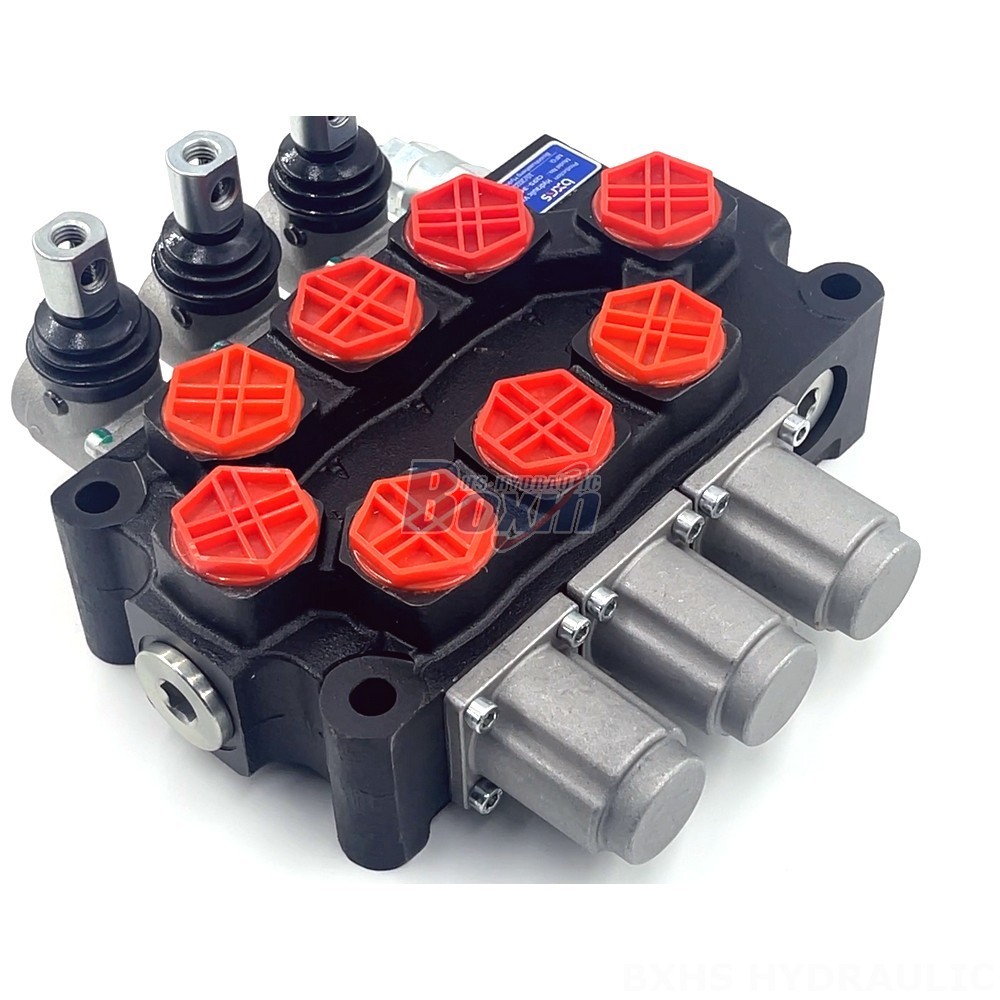

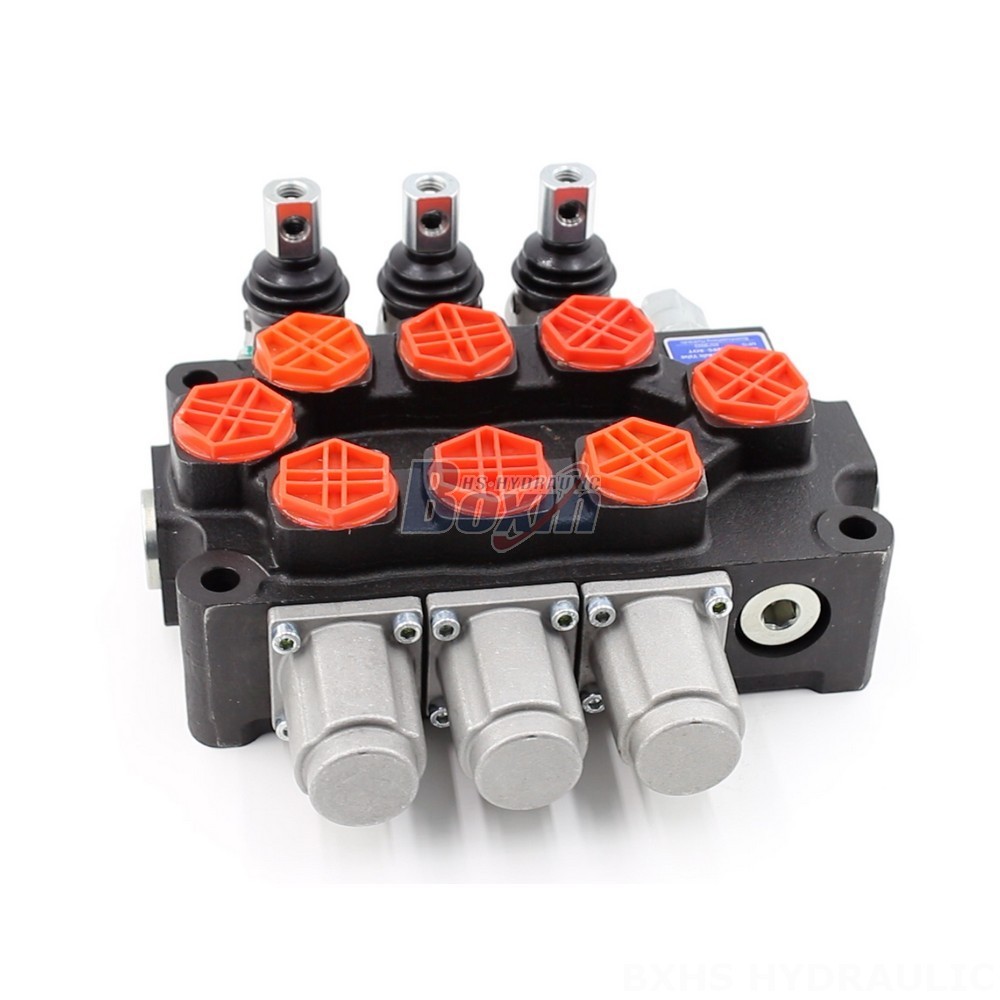

Introducing the Q95 Monoblock Valve, a revolutionary solution for fluid distribution. Engineered for exceptional performance, it boasts a rated flow of 95 L/min, a maximum pressure of 315 bar, and a wide operating viscosity range. Its compact design and versatile applications make it ideal for various industries, including material handling, construction, agriculture, and industrial vehicles.
| Serie Q95 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Flujo Nominal | 95 l/min (25,1 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G3/4 |
| Puerto de Salida | G3/4 |
| Tamaño de Puerto | G3/4 |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Tipo de estructura | Válvulas monobloc |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
The Q95 Monoblock Valve is meticulously crafted with a 3-section, monoblock structure, ensuring durability and precision. Its 3-spool design allows for versatile flow control, while the wide operating viscosity range of 15 - 75 mm²/s accommodates diverse fluid types. Engineered to withstand extreme temperatures from -40°C to +80°C, this valve guarantees reliable operation in challenging environments. Its compatibility with various applications, including telehandlers, forklifts, all-terrain cranes, and agricultural machinery, makes it a versatile solution for fluid distribution needs.
