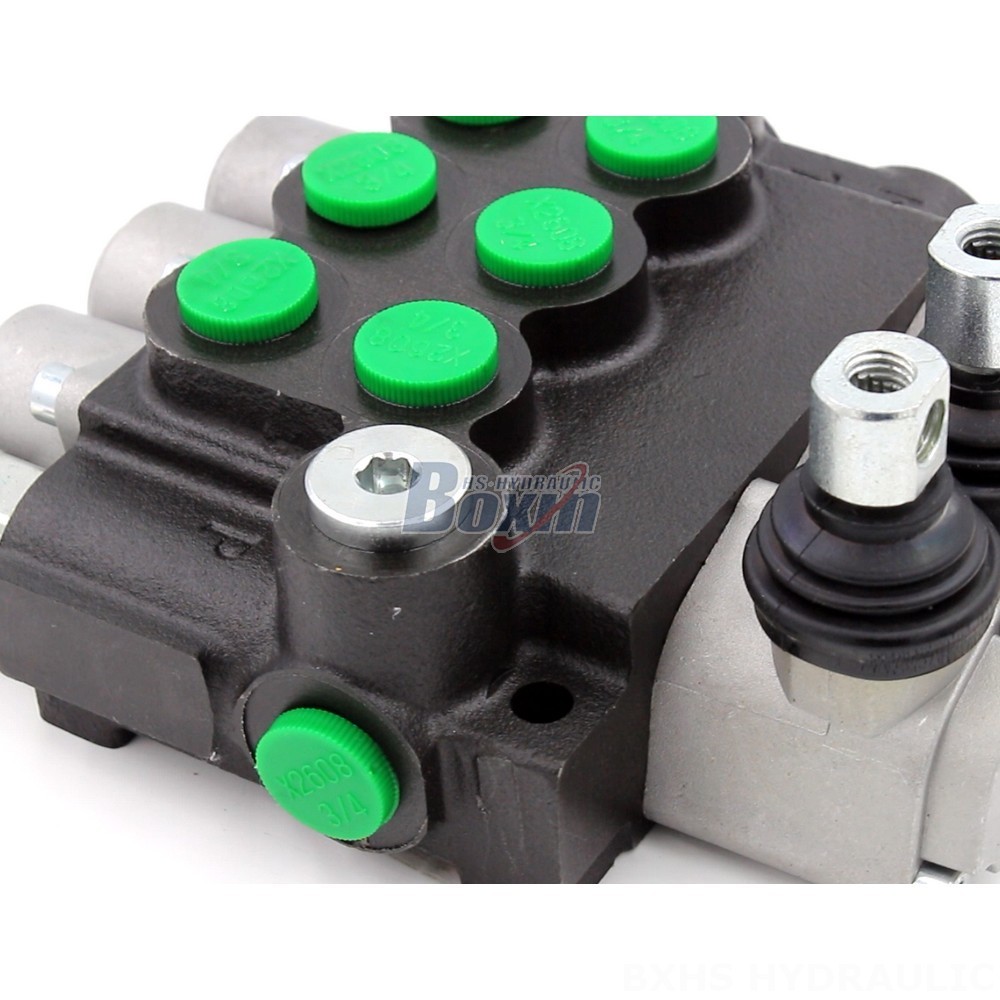

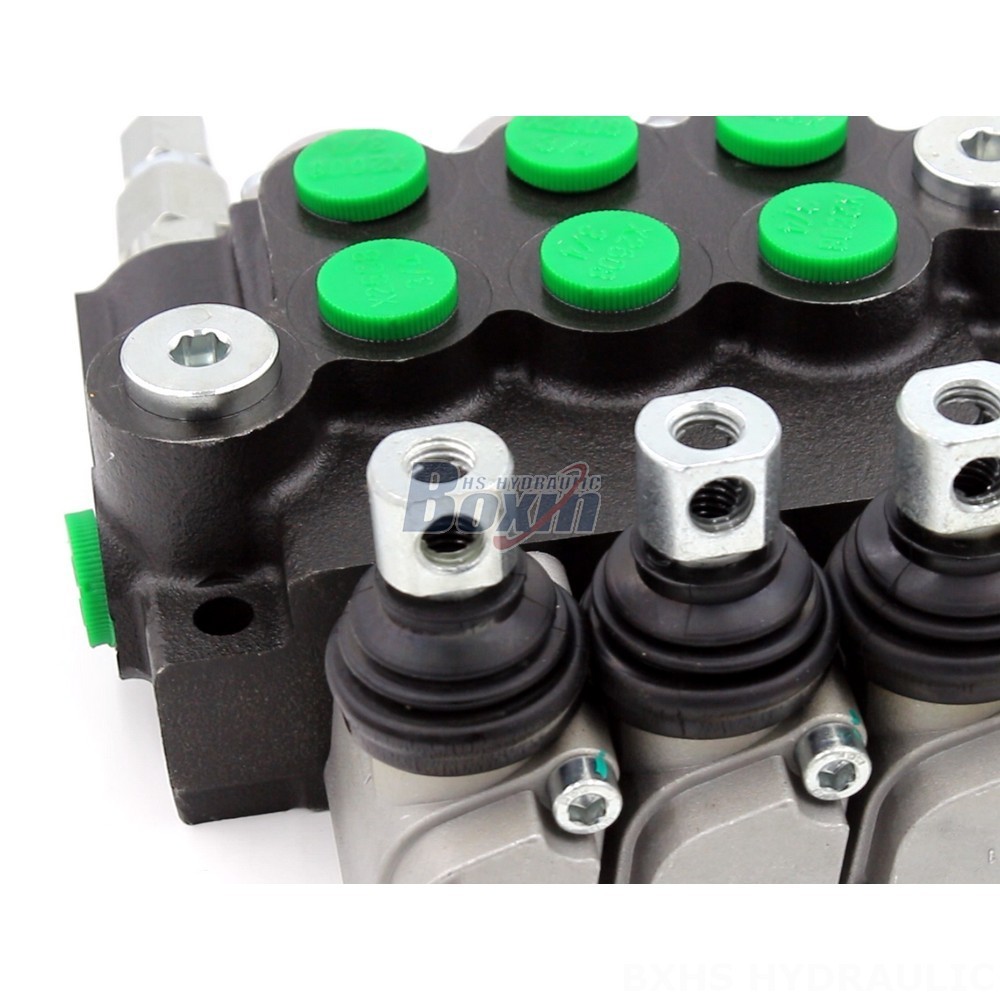

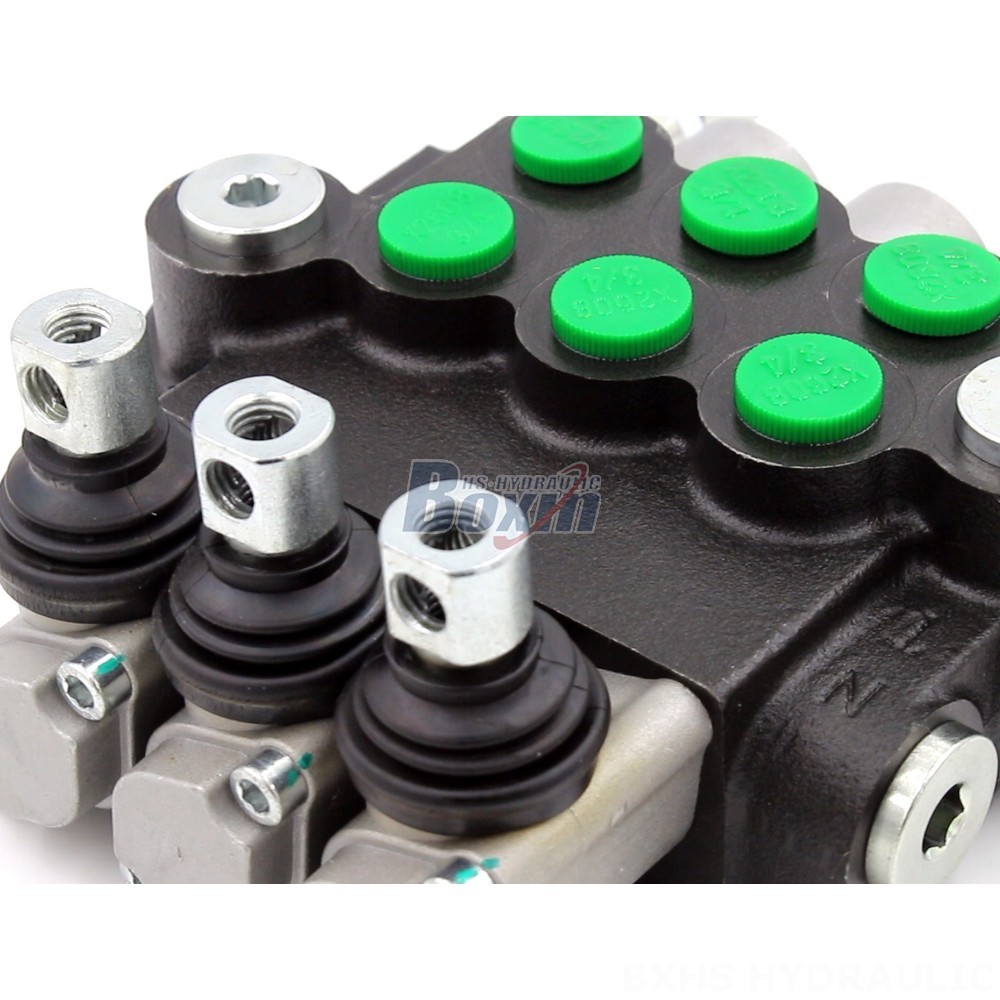

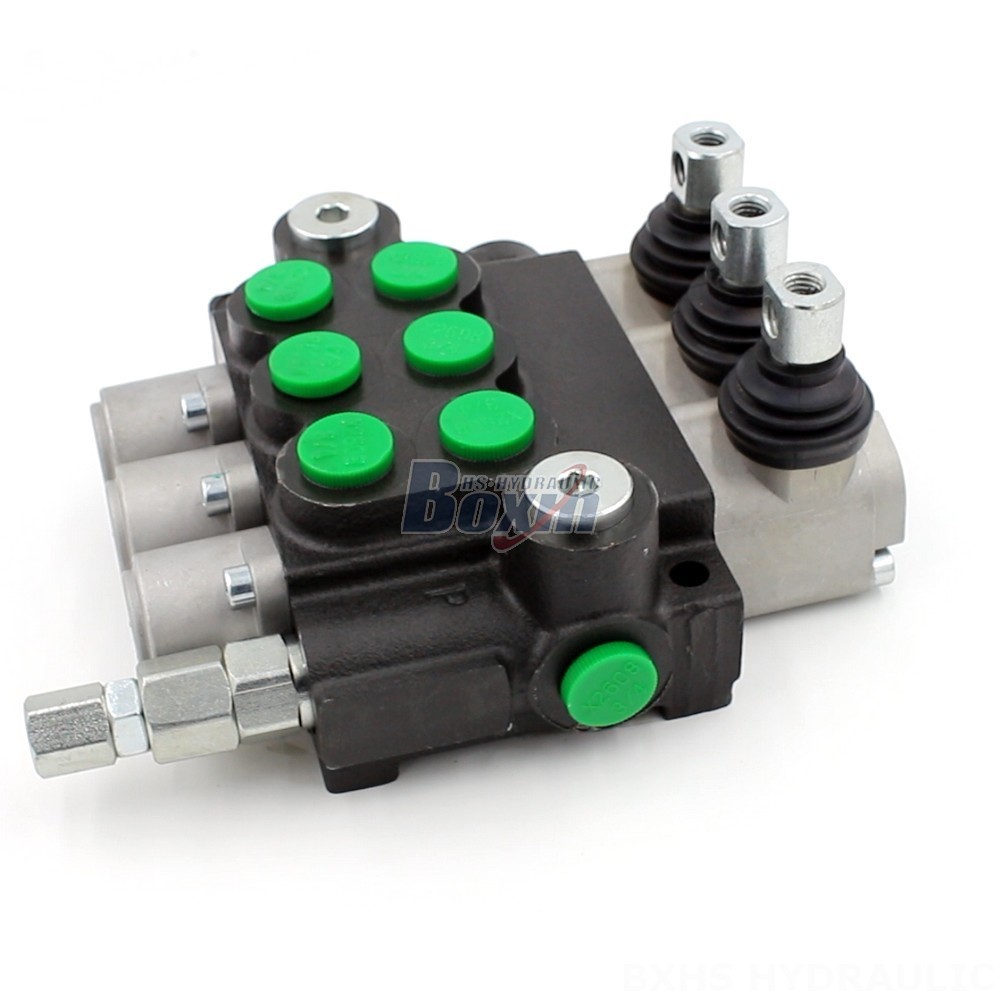

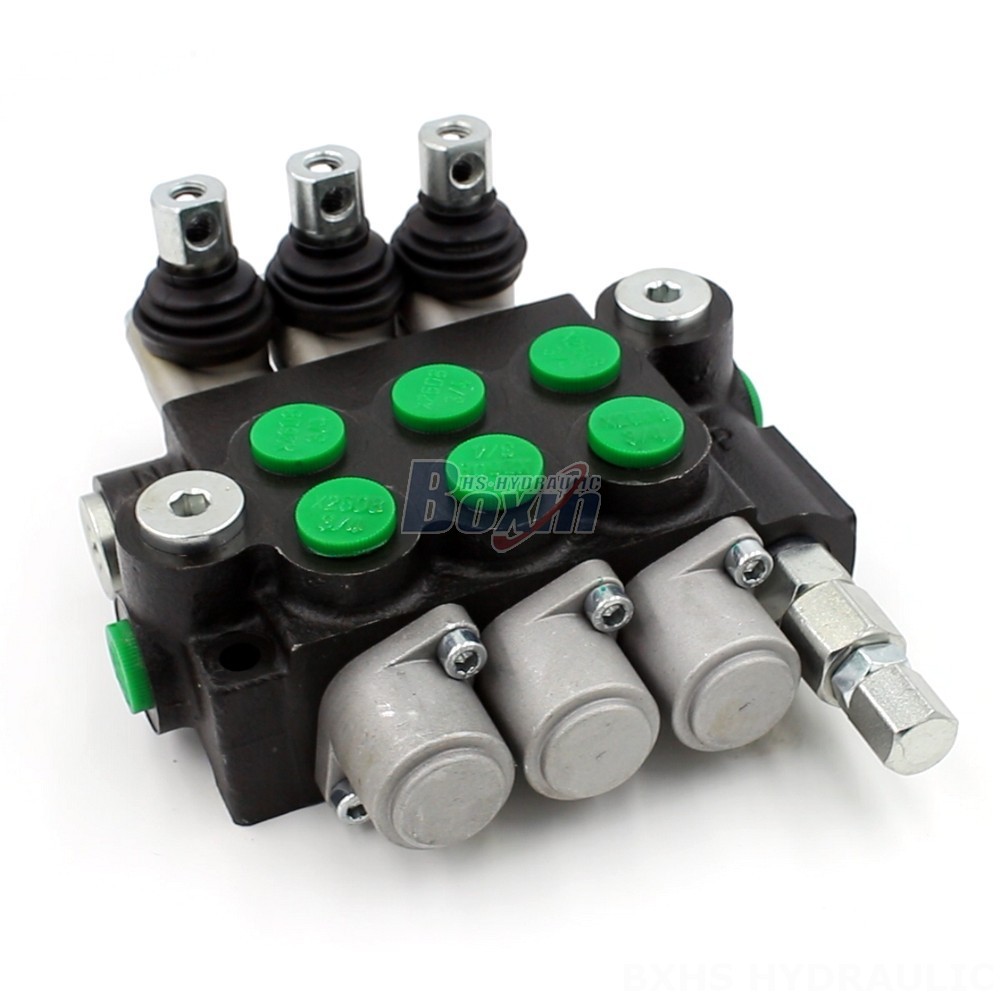

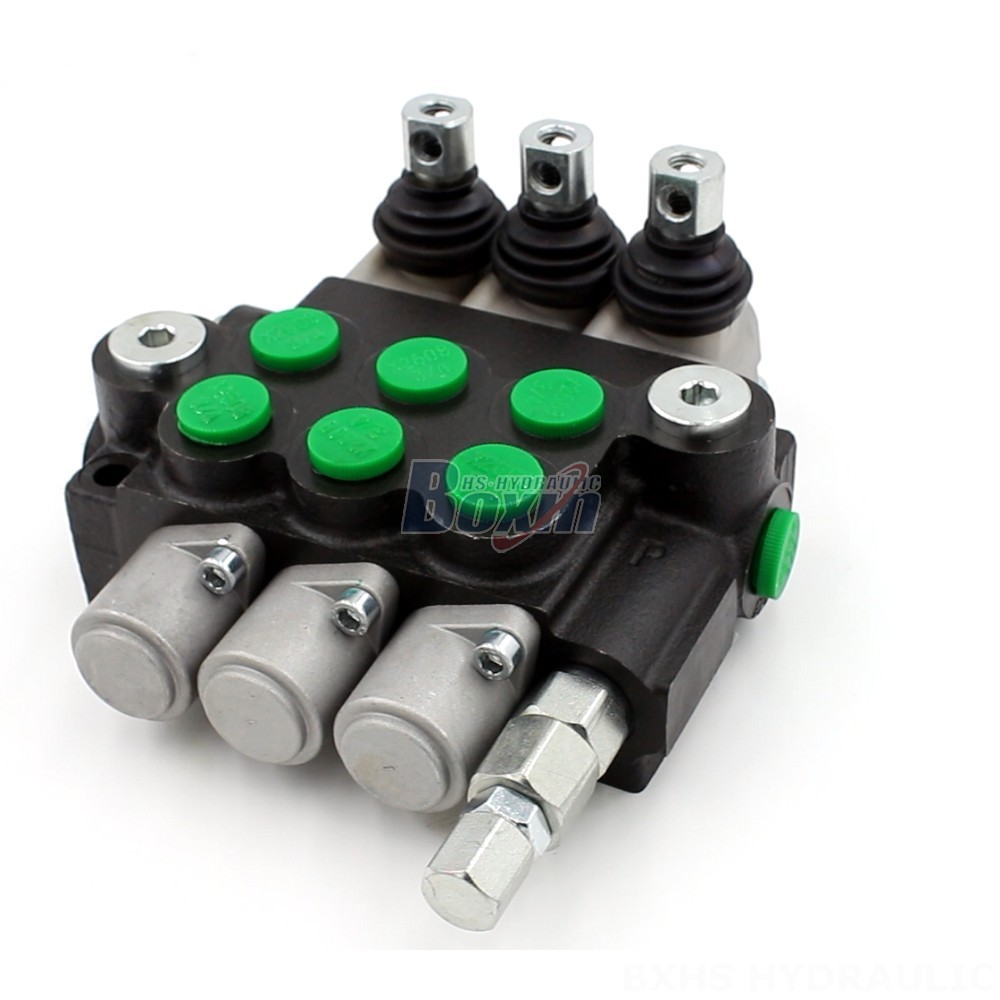

The P40-U34-OT hydraulic directional valve is a manually operated, 3-section, monoblock valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. It has an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C. The valve is suitable for use in a variety of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-U34-OT hydraulic directional valve is a high-quality, durable valve that is designed to meet the demands of the most challenging applications. It is constructed from high-strength materials and features a precision-machined spool for smooth, reliable operation. The valve is also equipped with a variety of features that make it easy to install and maintain, including:
- Manual control for precise operation
- 3-section design for versatility
- Monoblock construction for strength and durability
- 40 L/min rated flow for high performance
- 250 bar maximum pressure for demanding applications
- 15 - 75 mm²/s operating viscosity range for compatibility with a wide range of fluids
- -40°C to +80°C ambient temperature range for use in a variety of environments
- 3 spool for increased control
- P40 series for compatibility with other P40 series valves
- Suitable for use in a variety of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles
- Compatible with a variety of models, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders
