The SD5-G38 Series Hydraulic Directional Valve is a 4 section monoblock valve with manual control. It has a rated flow of 40 L/min, a maximum pressure of 305 bar, and an operating viscosity range of 15 - 75 mm²/s. The ambient temperature range is -40°C to +60°C. The valve has 4 spools and is suitable for use in MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, and INDUSTRIAL VEHICLES applications.
| Serie SD5 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +60 °C (-40 °F a +140 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 305 bar (4400 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |

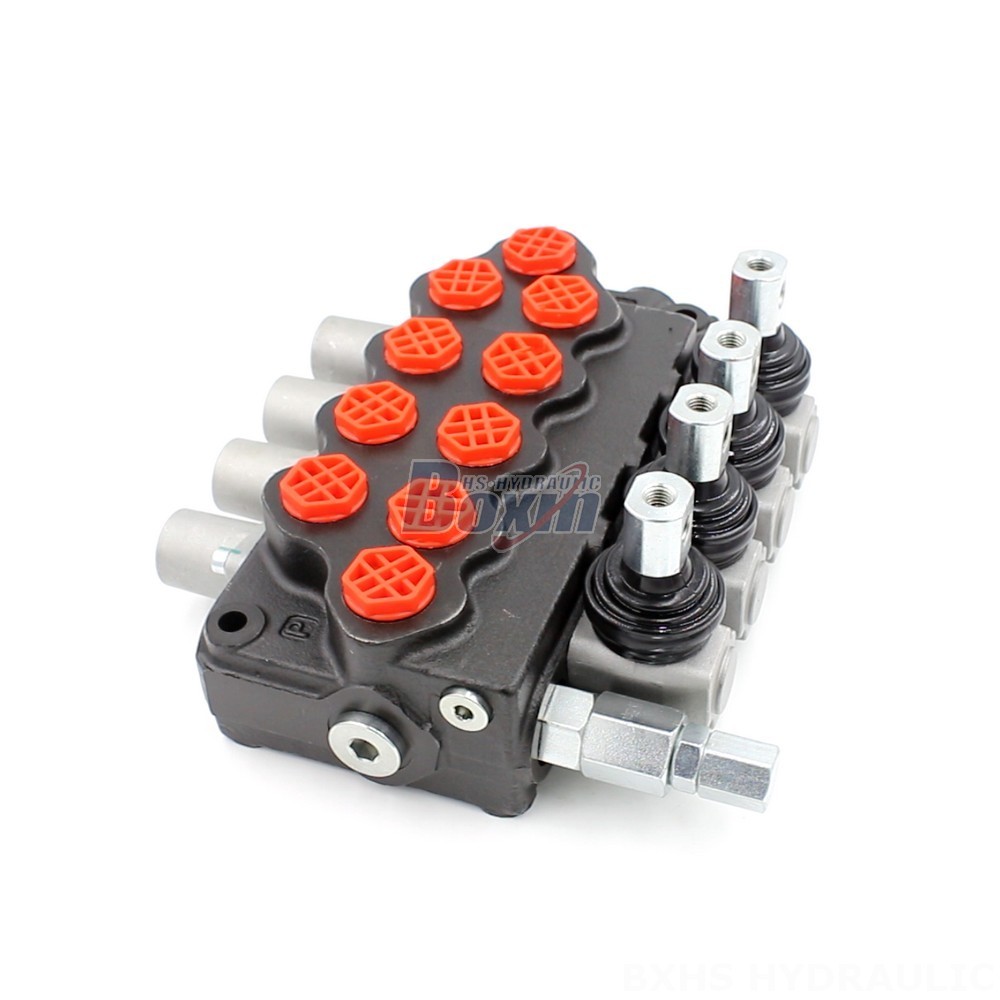

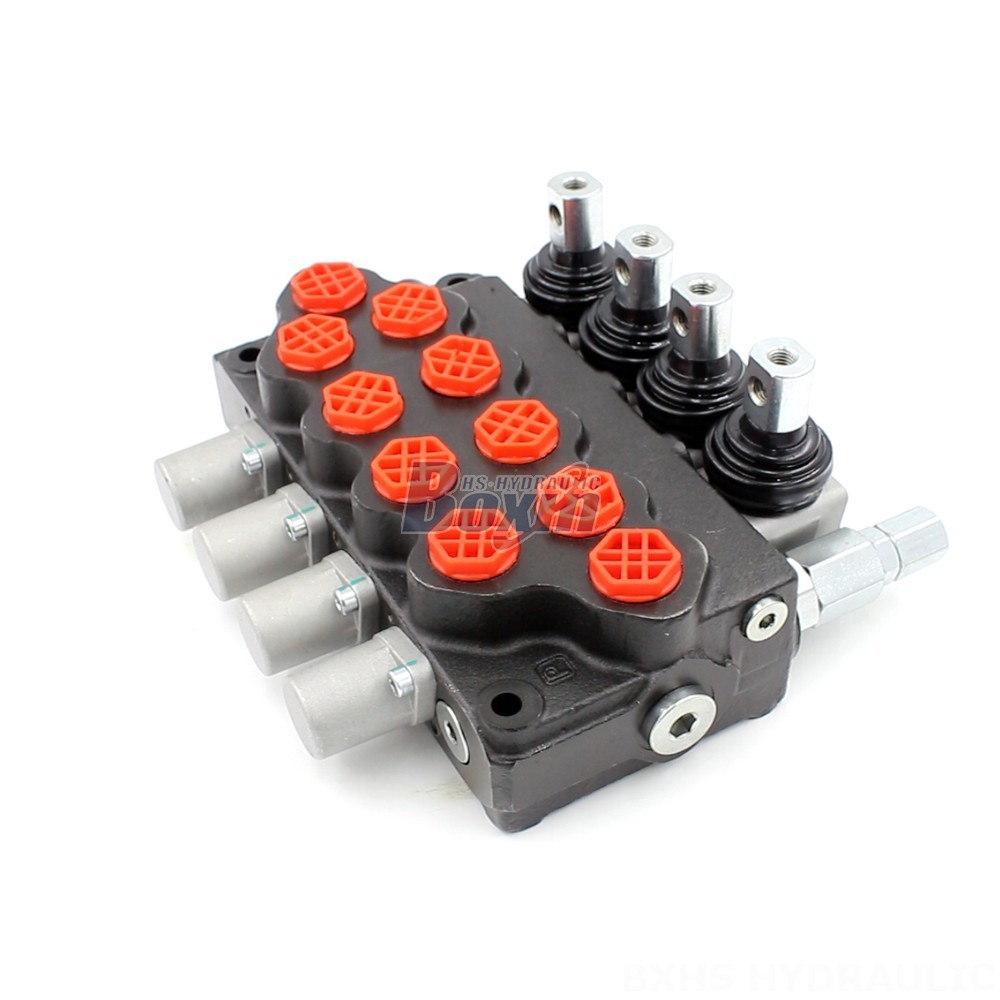

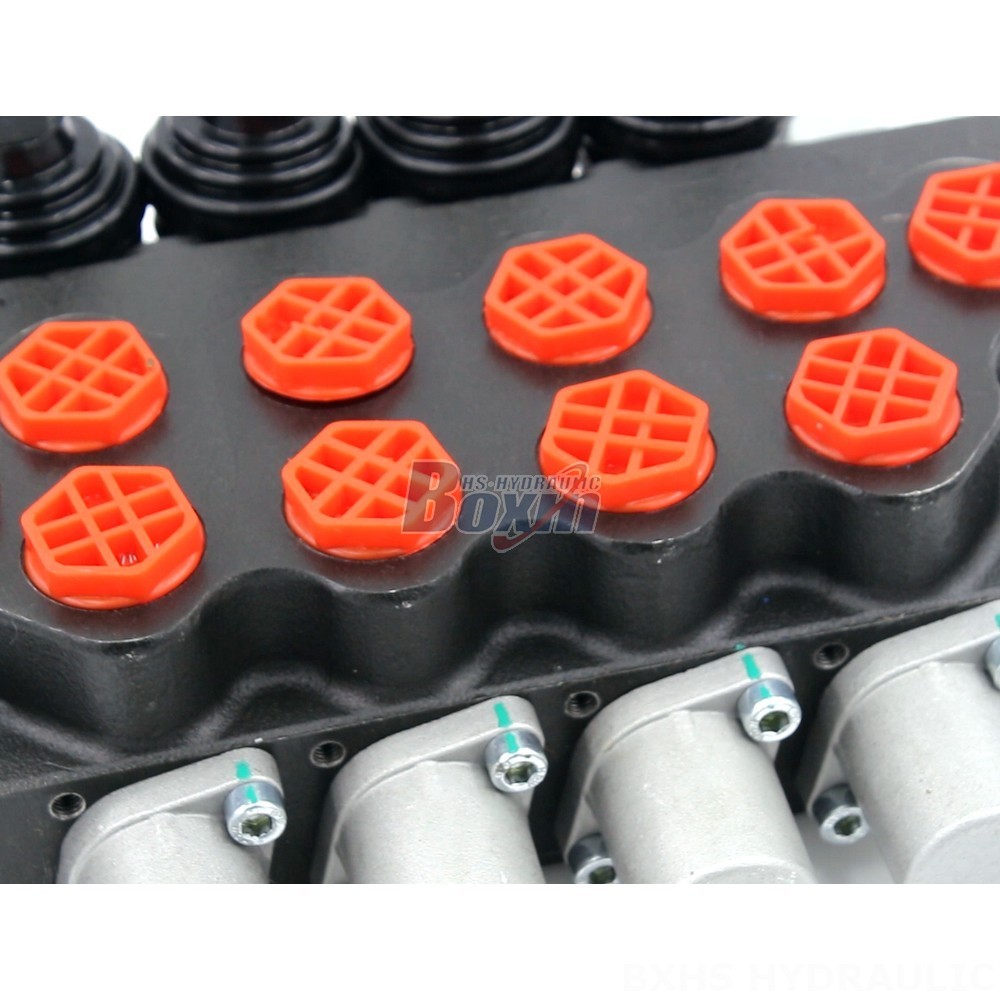

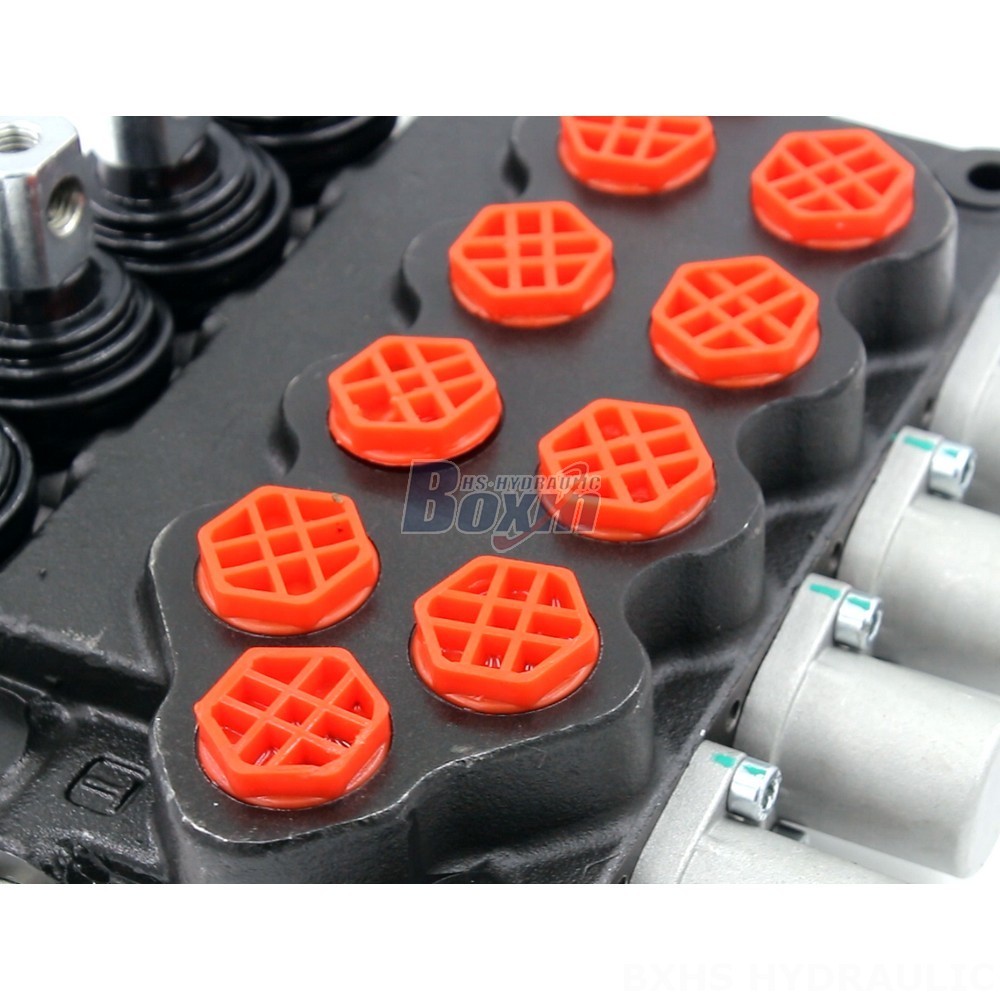

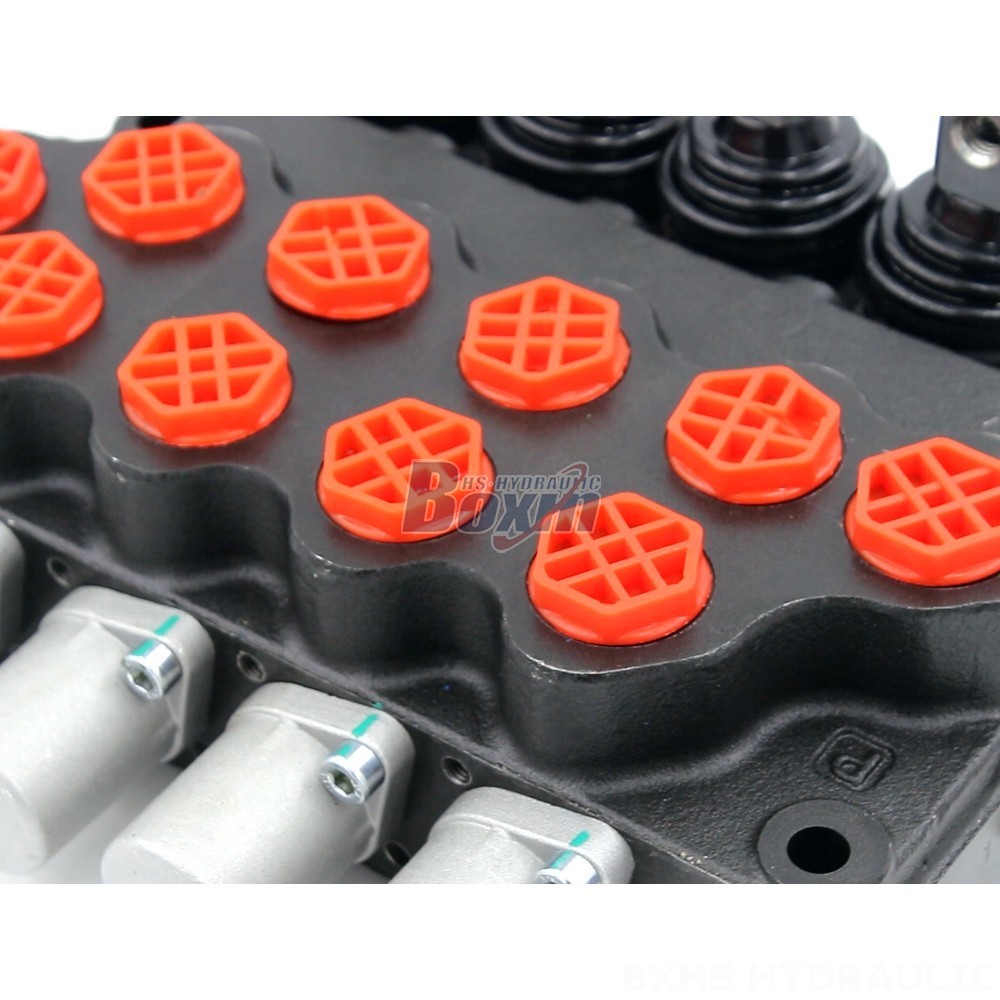

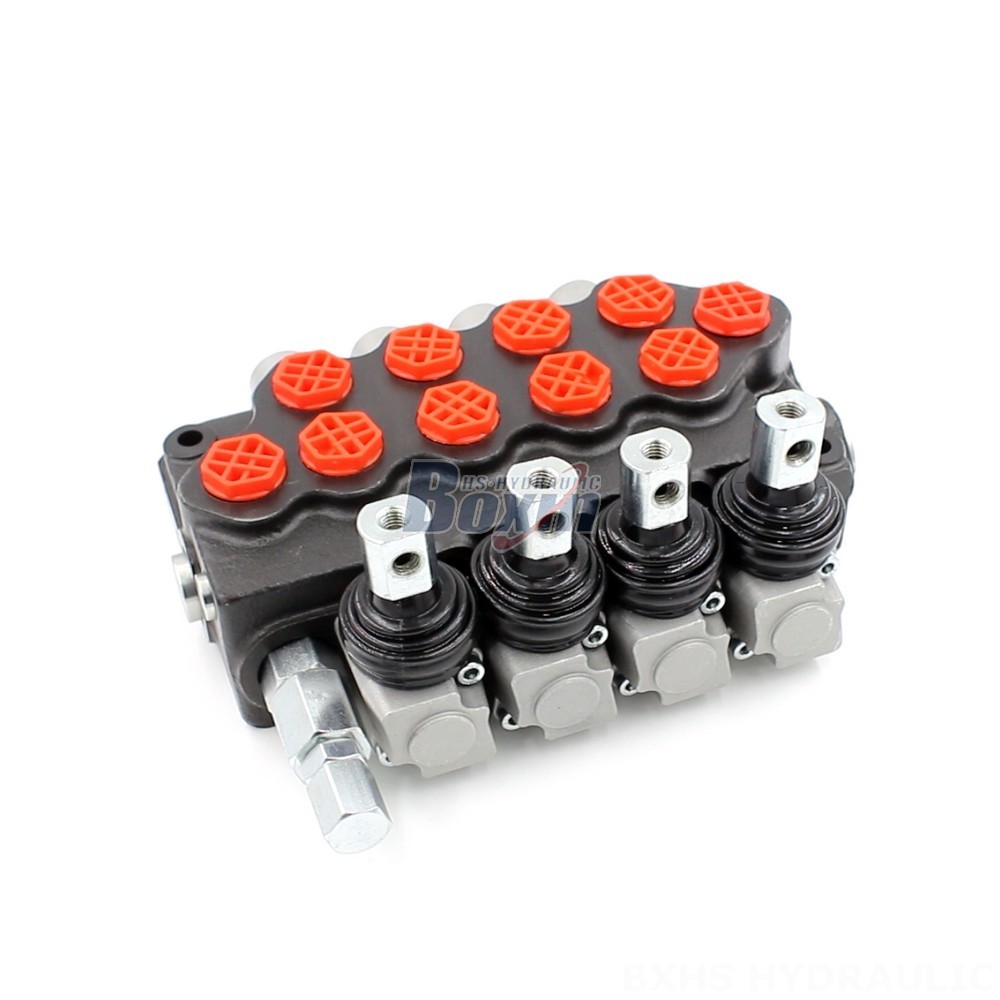

**SD5-G38 Series Hydraulic Directional Valve**
The SD5-G38 Series Hydraulic Directional Valve is a 4 section monoblock valve with manual control. It has a rated flow of 40 L/min, a maximum pressure of 305 bar, and an operating viscosity range of 15 - 75 mm²/s. The ambient temperature range is -40°C to +60°C. The valve has 4 spools and is suitable for use in MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, and INDUSTRIAL VEHICLES applications.
**Key Features:**
* 4 section monoblock valve
* Manual control
* Rated flow of 40 L/min
* Maximum pressure of 305 bar
* Operating viscosity range of 15 - 75 mm²/s
* Ambient temperature range of -40°C to +60°C
* 4 spools
* Suitable for use in MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, and INDUSTRIAL VEHICLES applications
