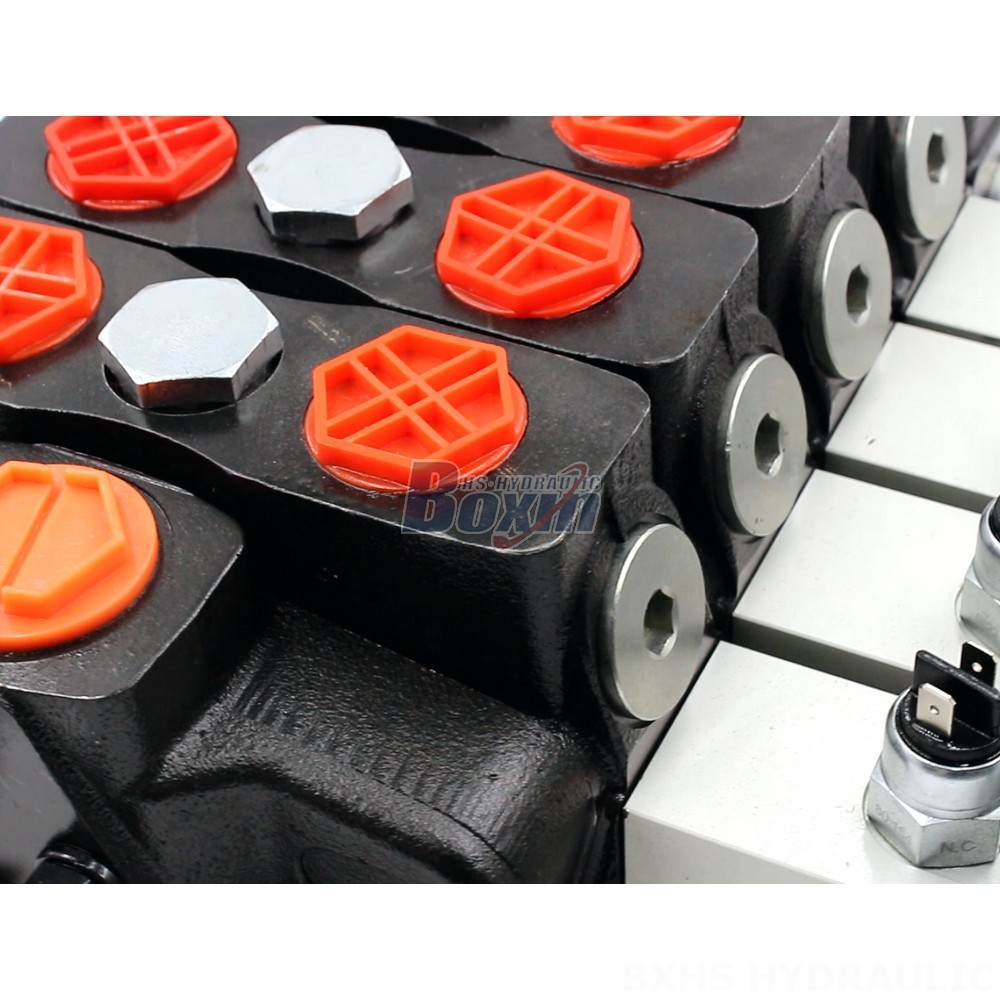

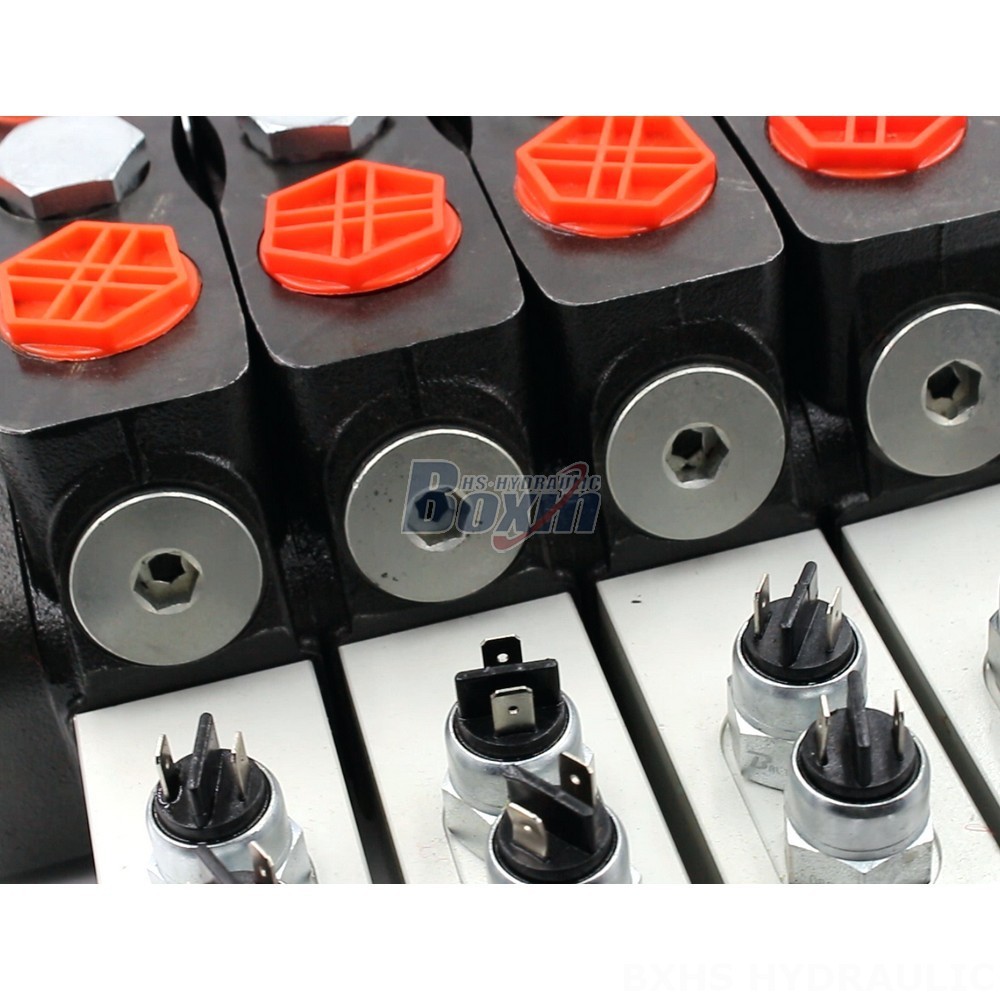

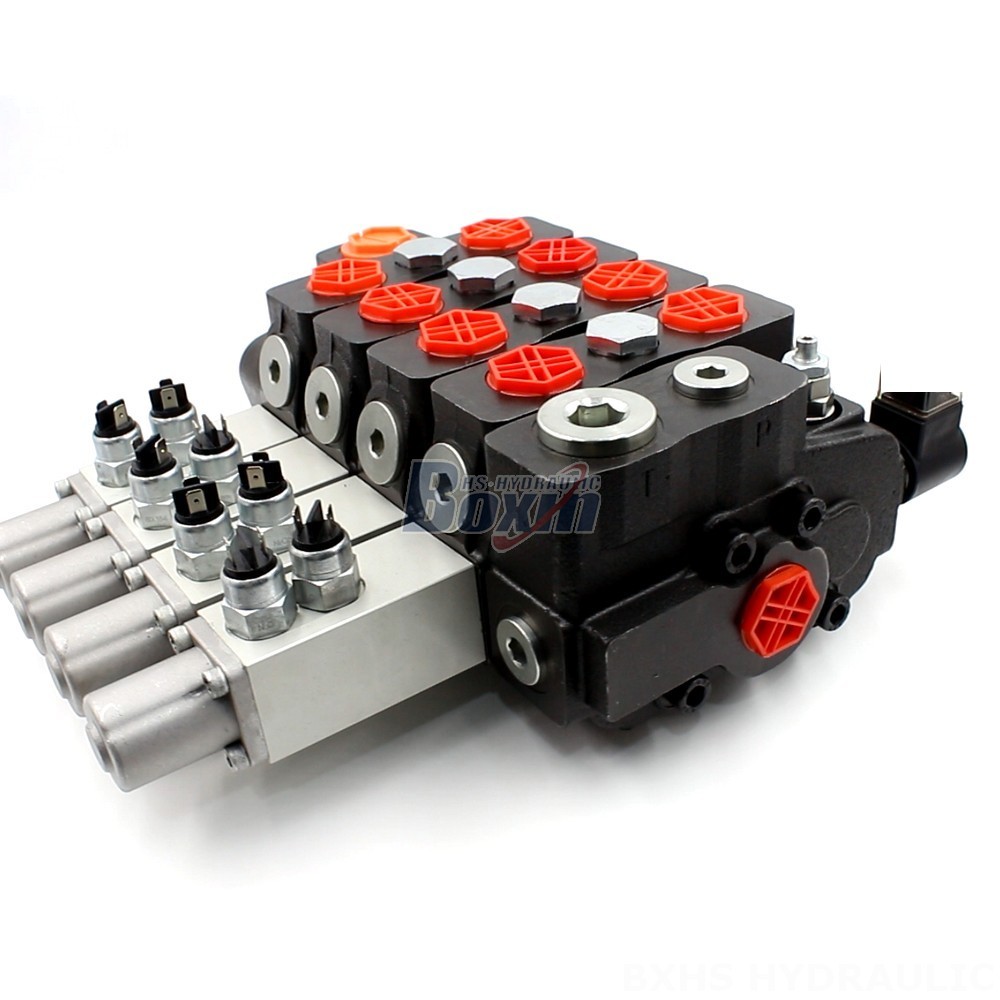

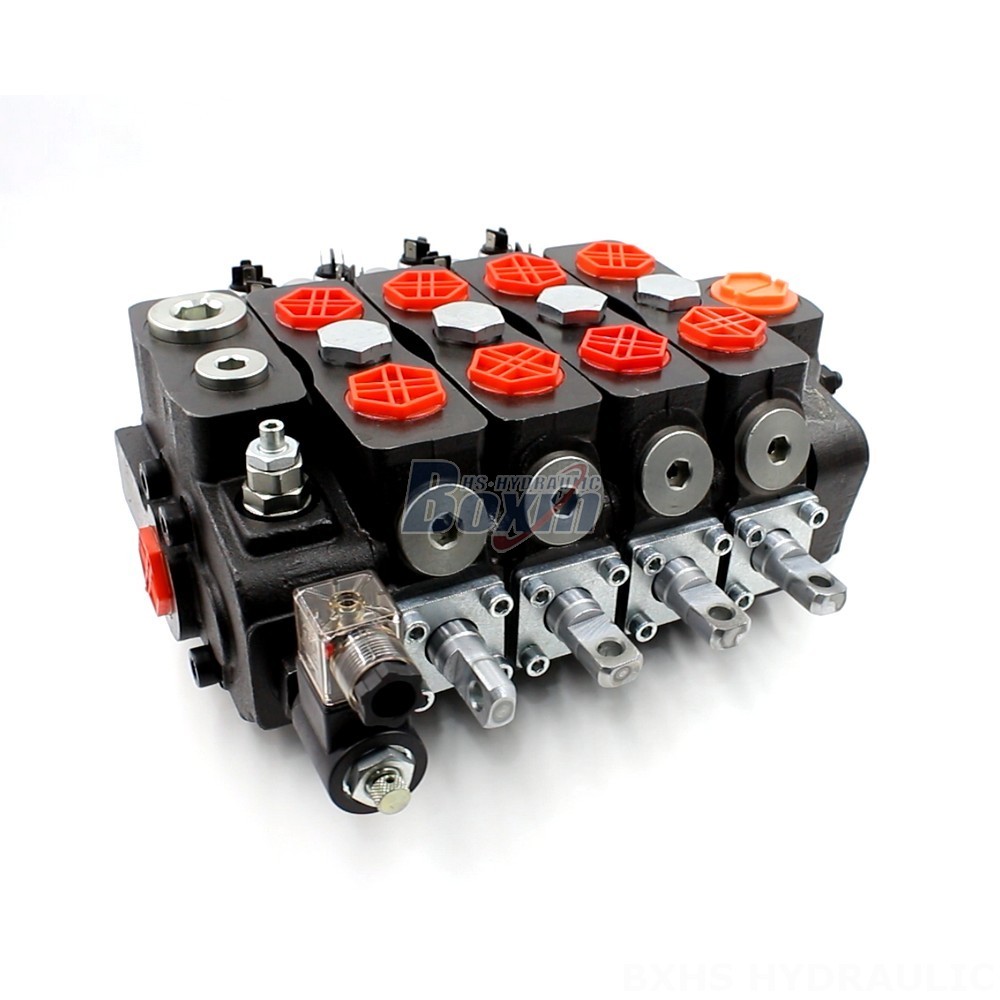

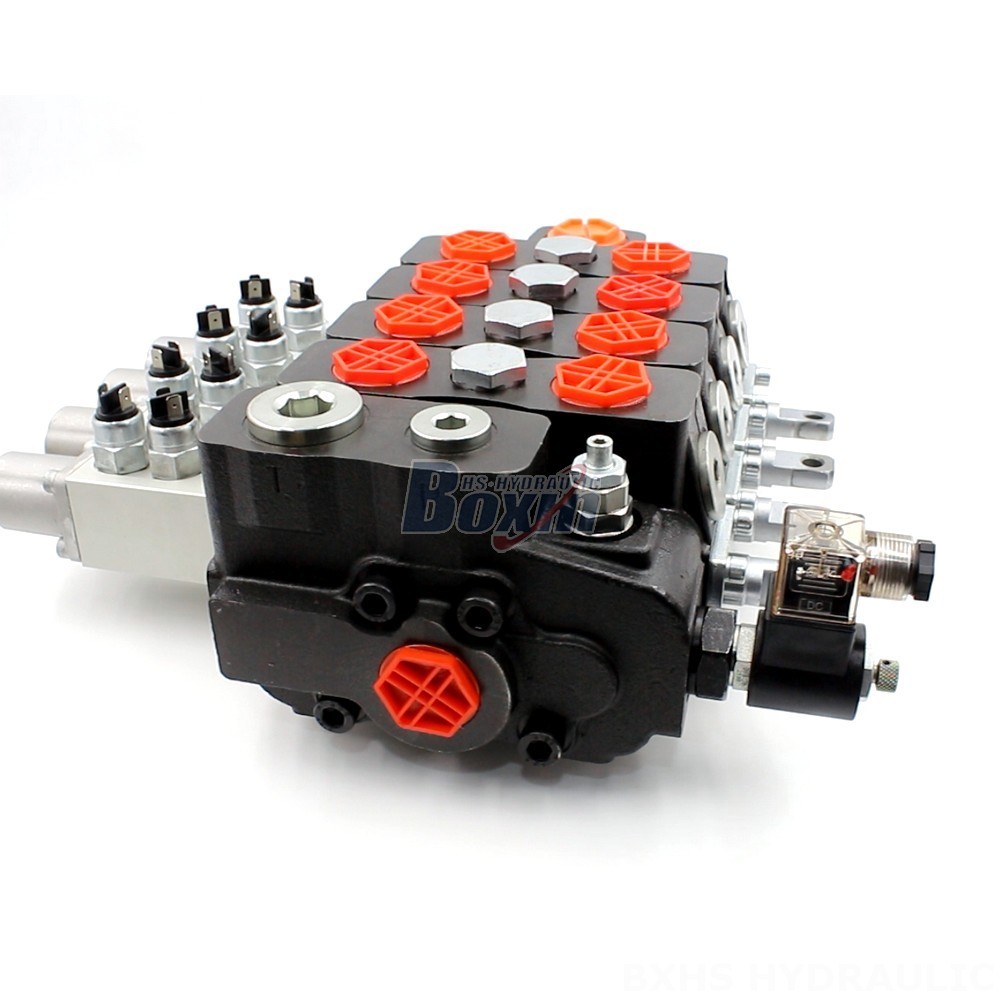

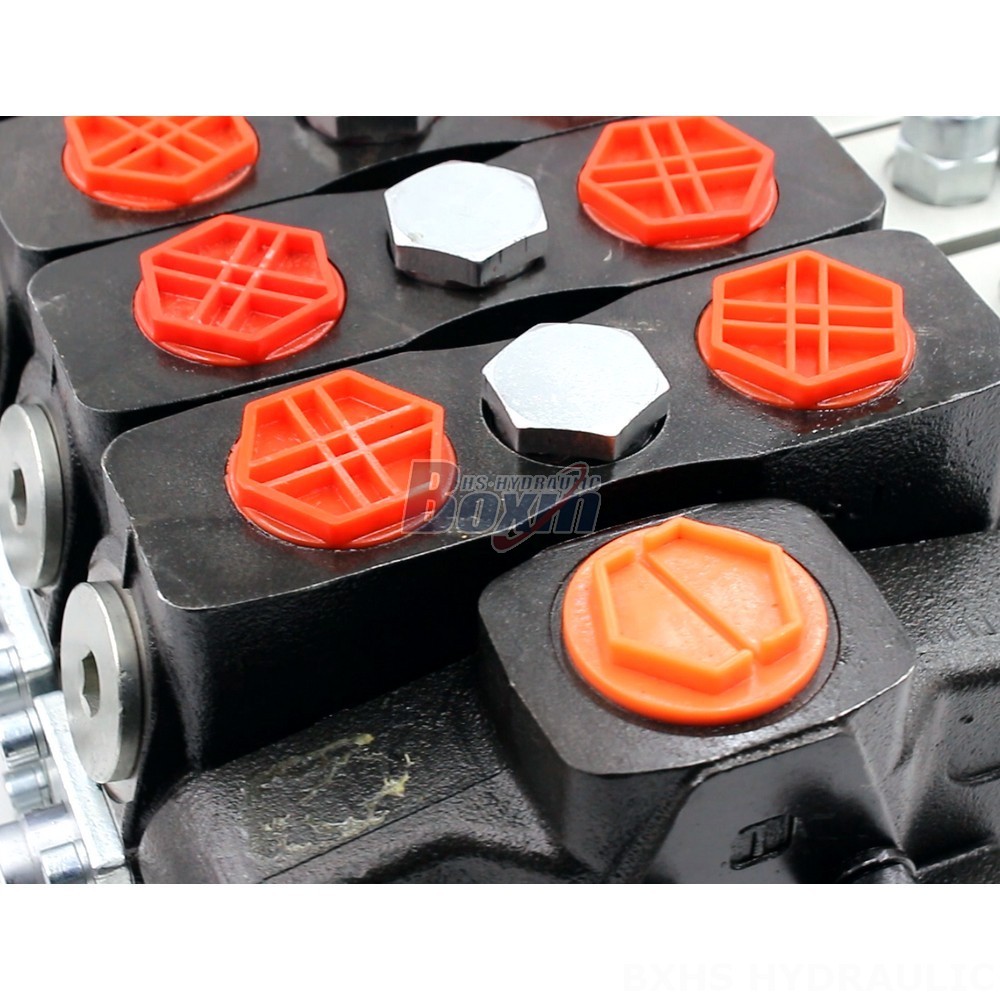

The DLS180 Micro Switch Manual 4 Spool Hydraulic Directional Valve is a high-performance, heavy-duty hydraulic valve designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. With a rated flow of 160 L/min (42.2 US gpm) and a maximum pressure of 350 bar (5100 psi), this valve provides reliable and efficient hydraulic control.
| Serie SDS180 Válvula direccional seccional Parámetros | |
|---|---|
| Método de control | Manual, Hidráulico |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas seccionales |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones, 8 secciones, 9 secciones, 10 secciones |
| Rango de viscosidad de funcionamiento | 12 - 400 mm²/s (12 cSt a 400 cSt) |
| Flujo Nominal | 160 l/min (42,2 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi), 350 bar (5100 psi) |
| Puerto de Entrada | G3/4, G1, SAE 12 |
| Puerto de Salida | G1, SAE 16 |
| Tamaño de Puerto | G3/4, G1, SAE 12 |
This SDS180 Series 4-spool hydraulic directional valve features manual control with a micro switch for precise operation. It is suitable for various applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders. The valve is designed for demanding environments, with a rated flow of 160 L/min (42.2 US gpm) and a maximum pressure of 350 bar (5100 psi). It features a sectional valve structure and operates within a viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt). Choose this durable and reliable hydraulic directional valve for optimal performance in your heavy-duty equipment.
