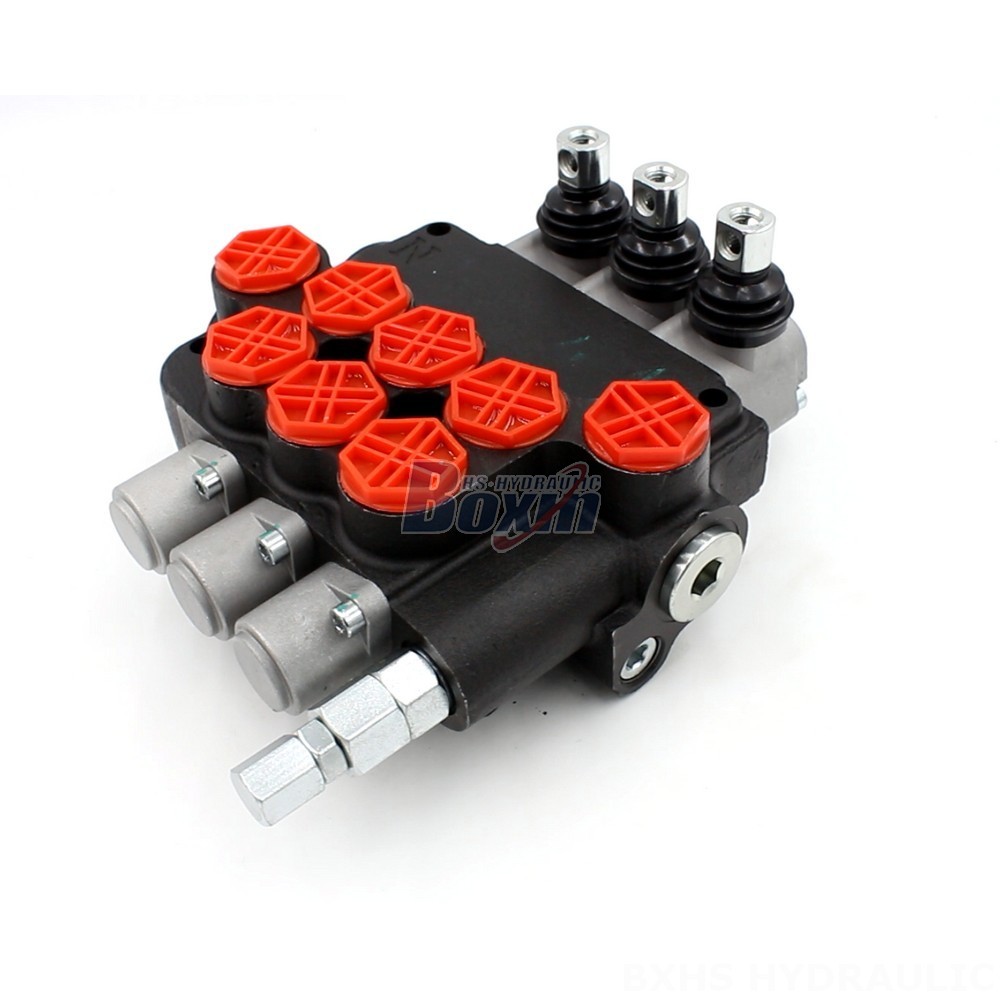

Hydraulic Directional Control Valve

Método de control:Manual

Carrete:3 carretes

Flujo Nominal:80 l/min (21,2 gal EE. UU./min)

Presión Máxima:250 bar (3600 psi)

Puerto de Entrada:G3/4

Puerto de Salida:G3/4

Tamaño de Puerto:G3/4

Marca:BXHS

Tipo de producto:Válvula Direccional Monobloque

Serie de productos:Serie P80 Válvula Direccional Monobloque

Tamaño del embalaje:26*23*11

Peso bruto:10.70 kg

Disponibilidad: En stock

1100 personas están viendo este producto

Hydraulic Directional Control Valve

Hydraulic Directional Control Valve

Hydraulic Directional Control Valve drawing image

This high-performance P80 Series Electro Pneumatic Directional Control Valve is a 3-section monoblock valve designed for heavy-duty applications in material handling, construction, and agriculture. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it offers reliable control for a wide range of equipment.

Serie P80 Válvula Direccional Monobloque Parámetros
Método de control Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick
Carrete 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes
Rango de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estructura Válvulas monobloc
Sección 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones
Rango de viscosidad de funcionamiento 15 - 75 mm²/s (15 cSt a 75 cSt)
Flujo Nominal 80 l/min (21,2 gal EE. UU./min)
Presión Máxima 315 bar (4600 psi)
Puerto de Entrada G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Puerto de Salida G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Tamaño de Puerto G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The P80 Series Electro Pneumatic Directional Control Valve is a robust and efficient solution for demanding hydraulic applications. Its monoblock structure provides durability and reliability, while the manual control method allows for easy operation. This 3-section valve features a rated flow of 80 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of equipment, including telehandlers, forklifts, cranes, excavators, loaders, and dumpers. Its operating viscosity range of 15-75 mm²/s and ambient temperature range of -40°C to +80°C ensure optimal performance in diverse environments. The P80 Series valve is engineered for long-lasting performance and minimal maintenance requirements, providing a cost-effective and reliable hydraulic control solution.
