Producción y entrega
Plazo de ejecución de producción de 15 a 30 días
La innovación impulsa el desarrollo; tecnología forja futuro
927 personas están viendo este producto

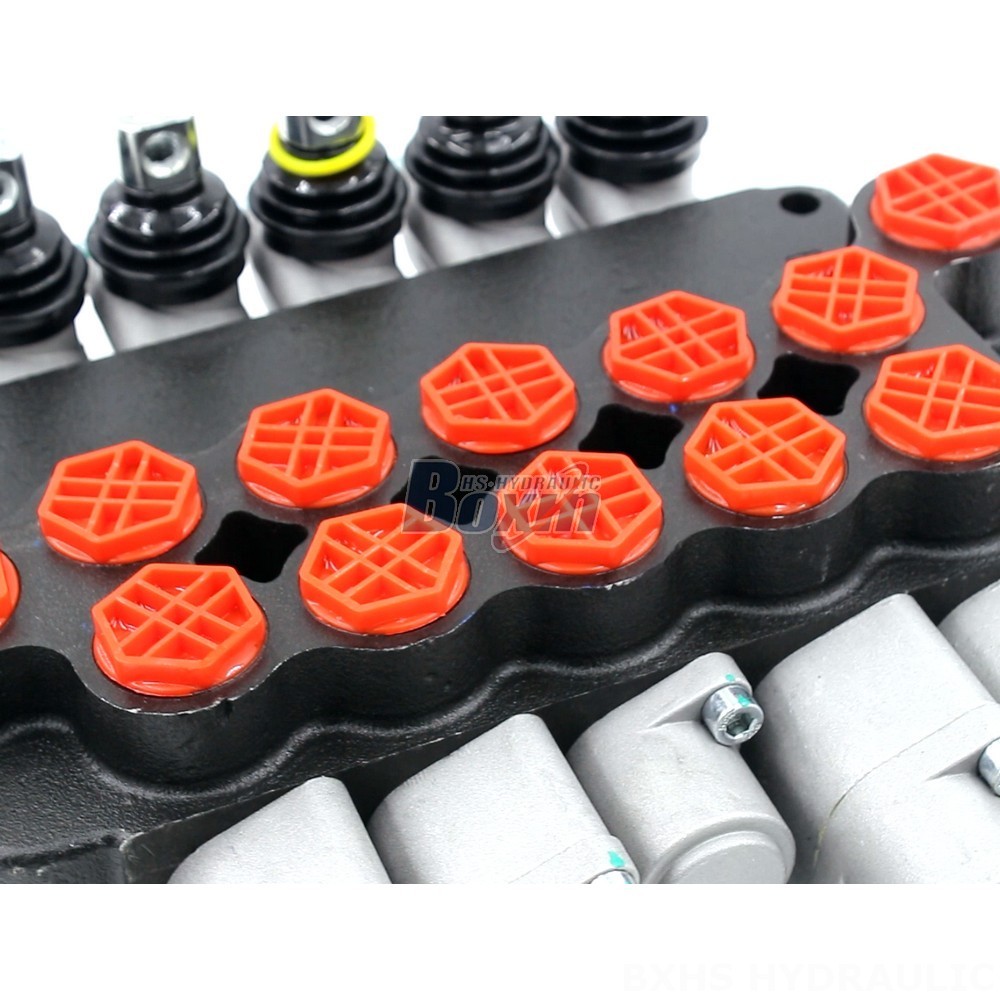

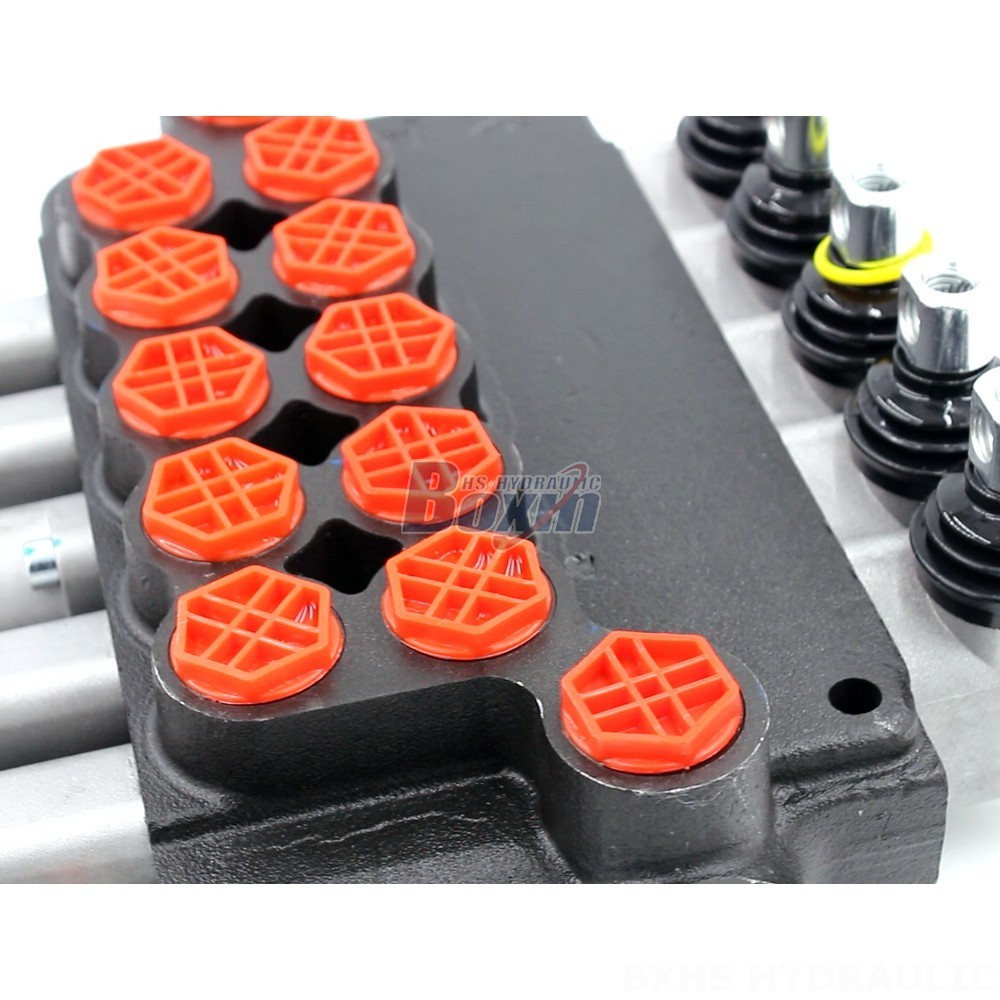

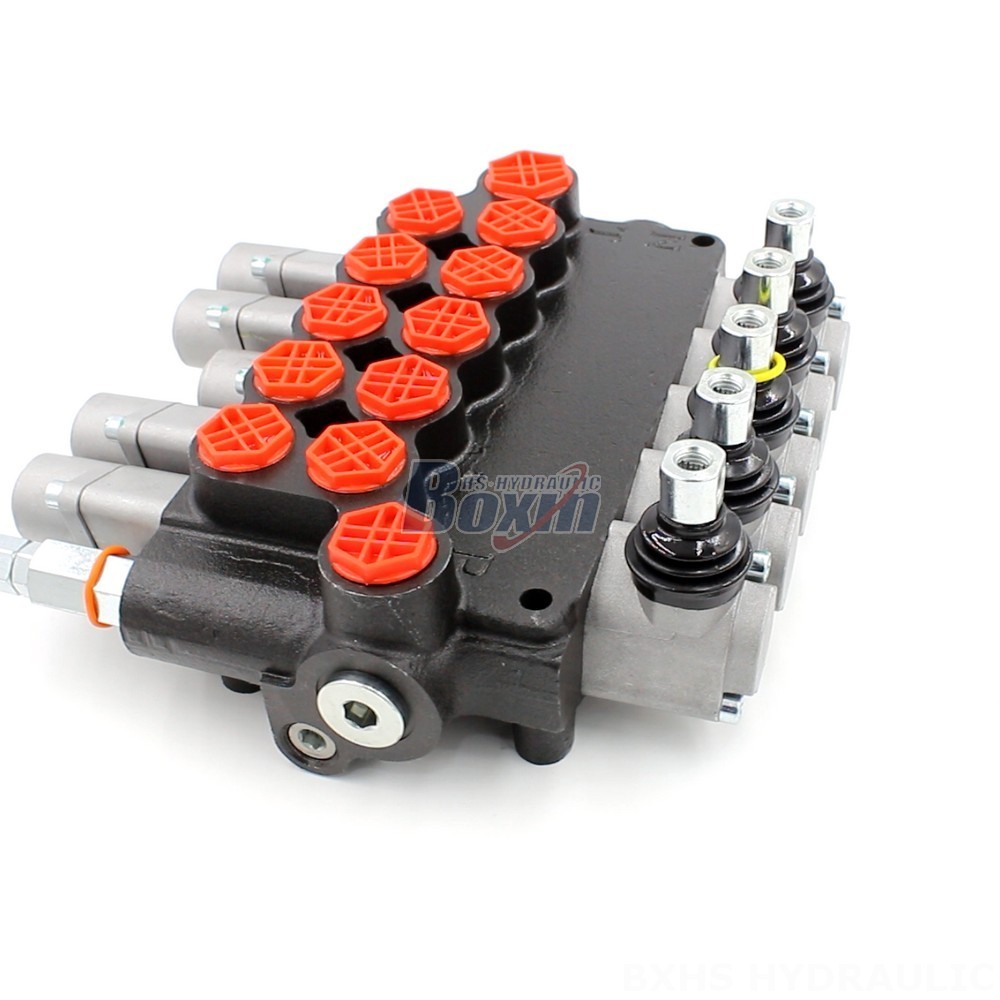

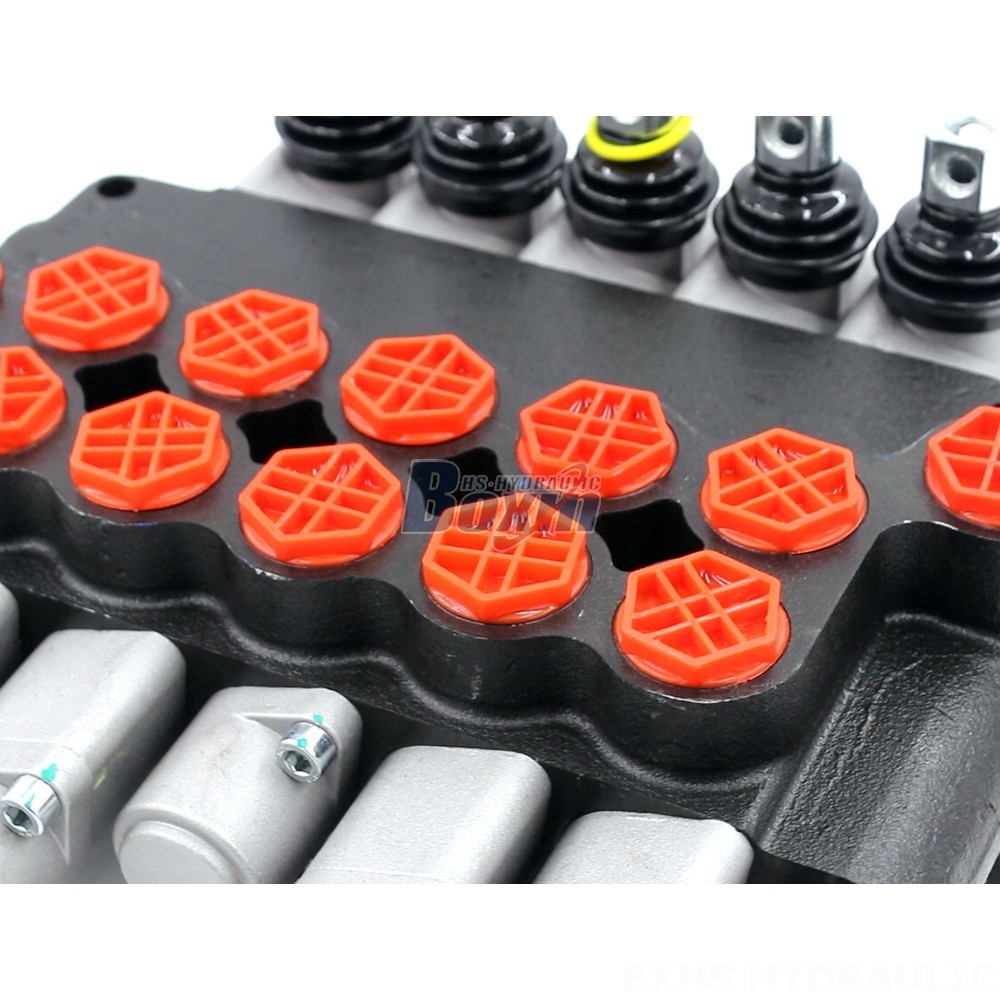

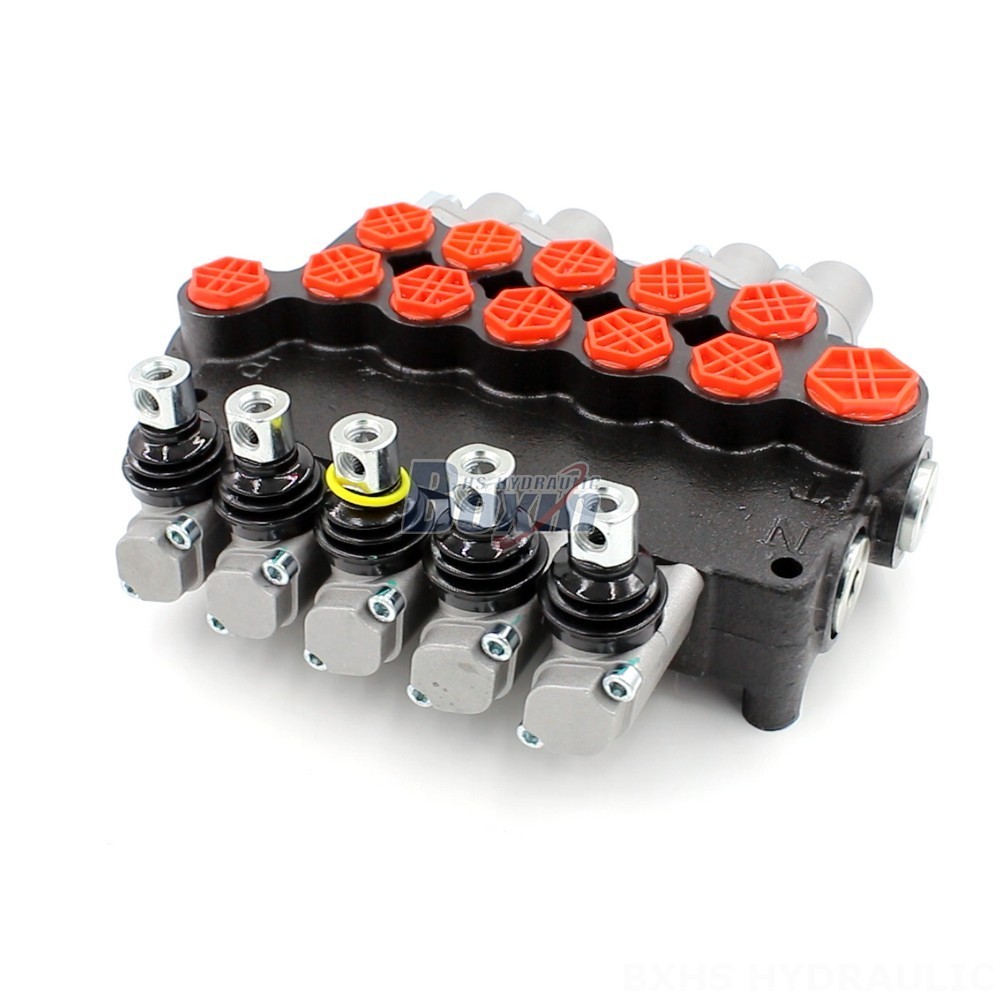

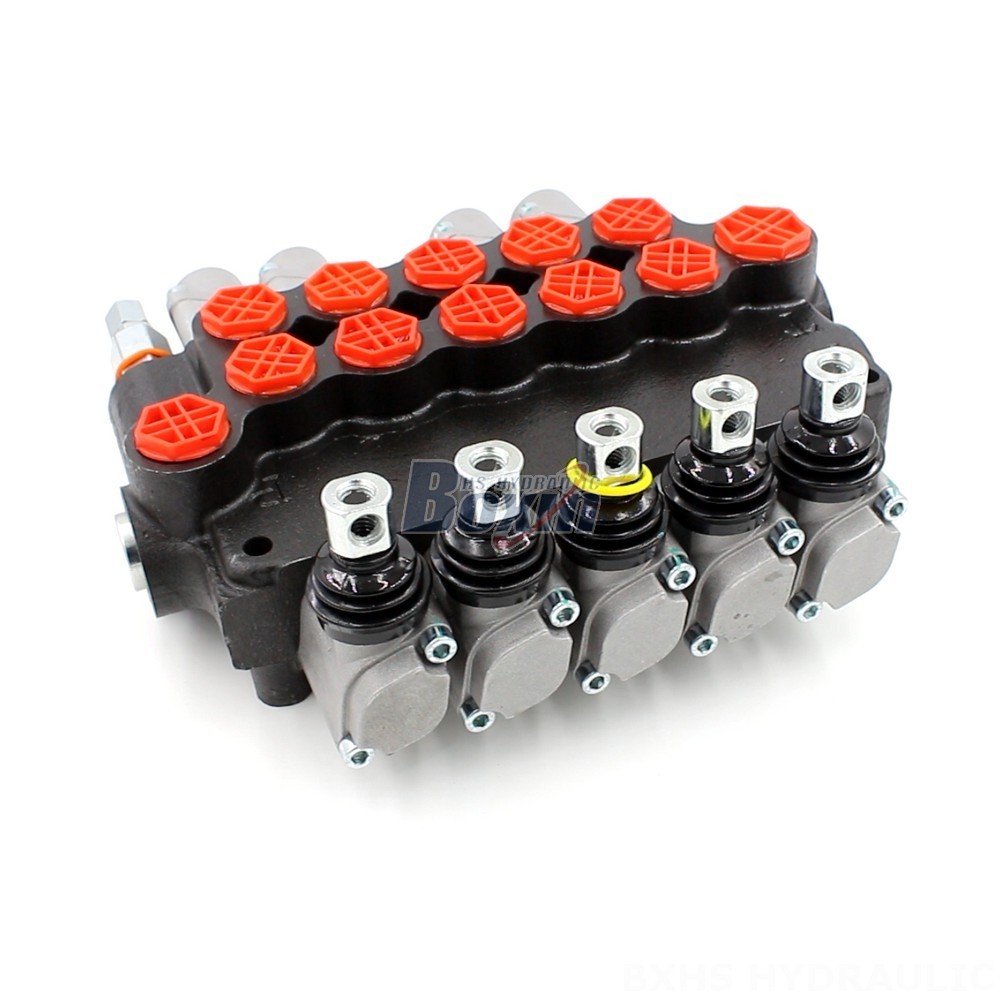

The P80-G34-G12-2OT-YW-2OT Series Hydraulic Directional Control Valve is a high-performance valve designed for demanding applications in various industries. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve ensures precise and efficient control of hydraulic systems. Its monoblock construction provides superior strength and durability, making it ideal for applications where reliability is critical. The valve features manual control and is suitable for a wide range of hydraulic systems, including those used in material handling, construction, agriculture, and industrial vehicles.
| Serie P80 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 80 l/min (21,2 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Puerto de Salida | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamaño de Puerto | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**P80-G34-G12-2OT-YW-2OT Series Hydraulic Directional Control Valve**
**Product Highlights:**
- Rated Flow: 80 L/min (21.2 US gpm)
- Max Pressure: 250 bar (3600 psi)
- Control Method: Manual
- Section: 5 Section
- Structure Type: Monoblock valve
- Spool: 5 Spool
- Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
- Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
**Applications:**
- Material Handling
- Construction and Earth Moving
- Agriculture
- Industrial Vehicles
**Applicable Models:**
- Telehandler
- Forklift
- All Terrain Crane
- Stacker
- Aerial Platform
- Motor Grader
- Midi- Excavator
- Mini- Excavator
- Skid Steer Loader
**Benefits:**
- High flow capacity and pressure rating for demanding applications
- Monoblock construction for superior strength and durability
- Manual control for precise and reliable operation
- Suitable for a wide range of hydraulic systems
- Customization available to meet specific requirements
