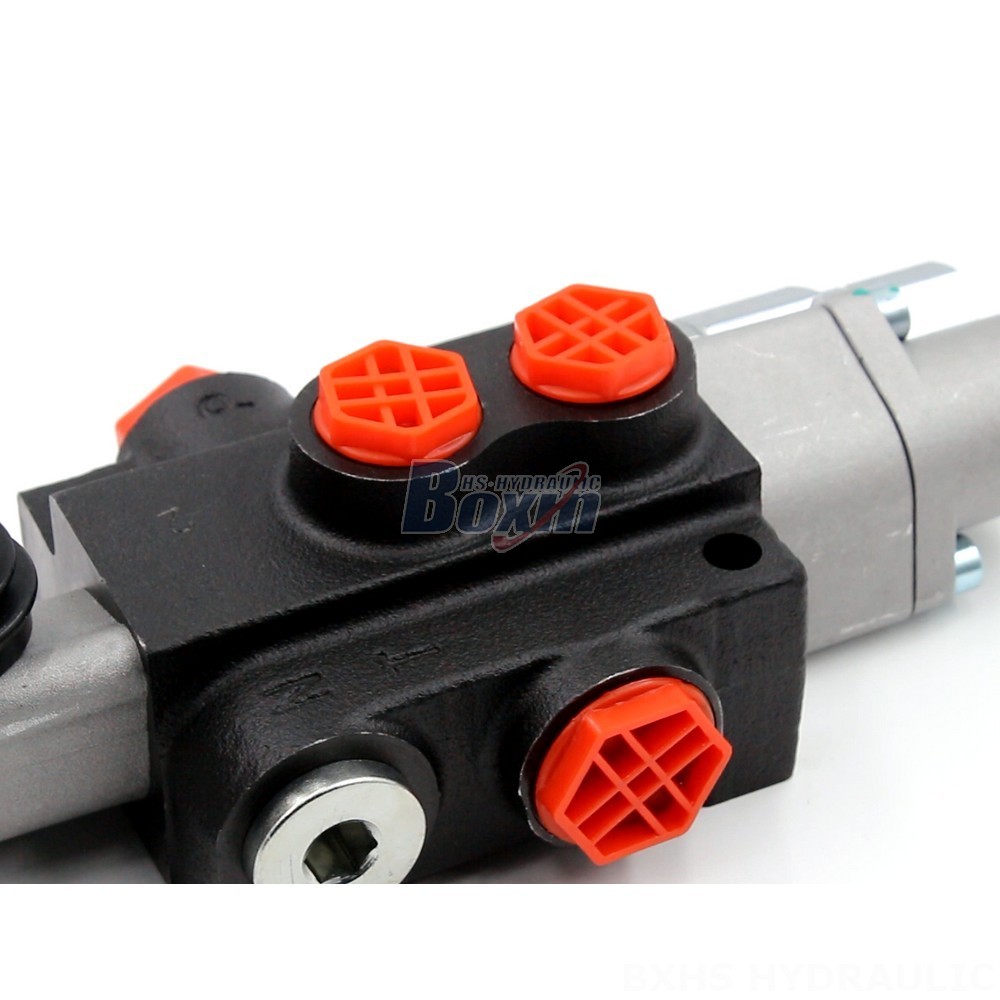

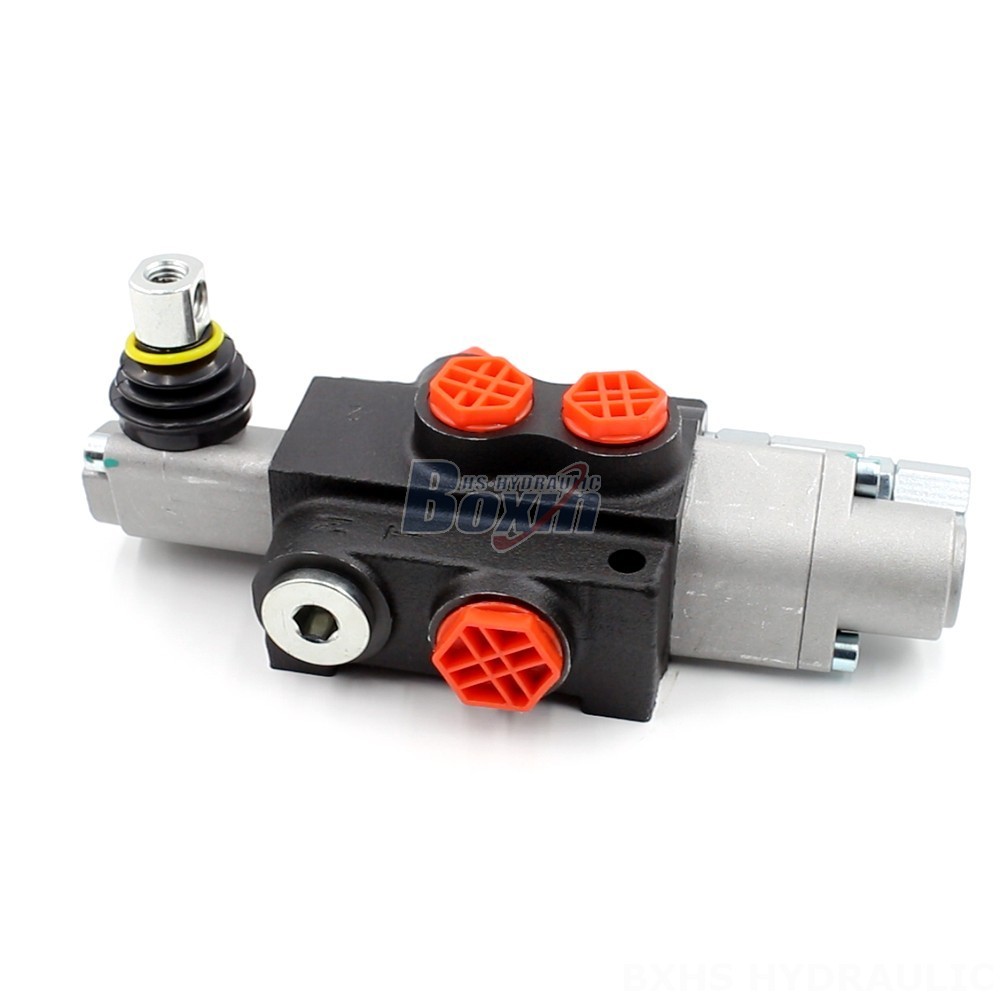

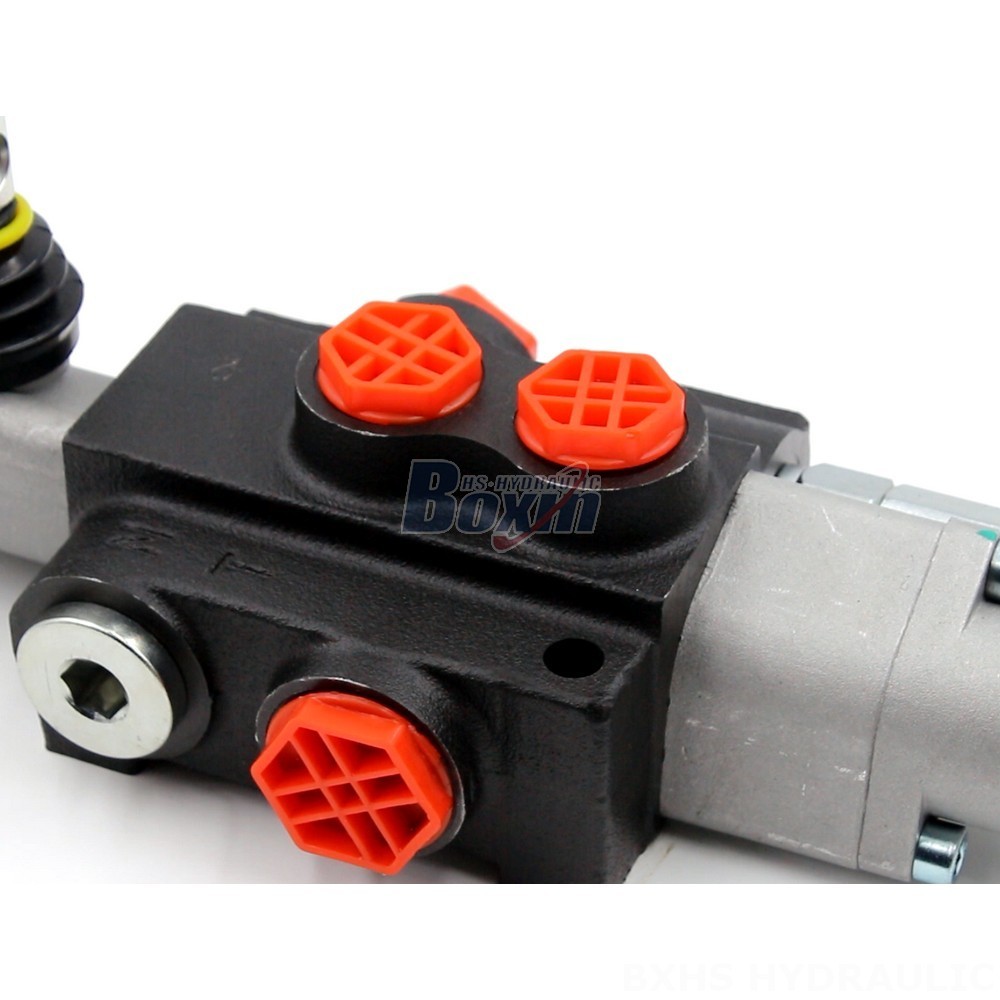

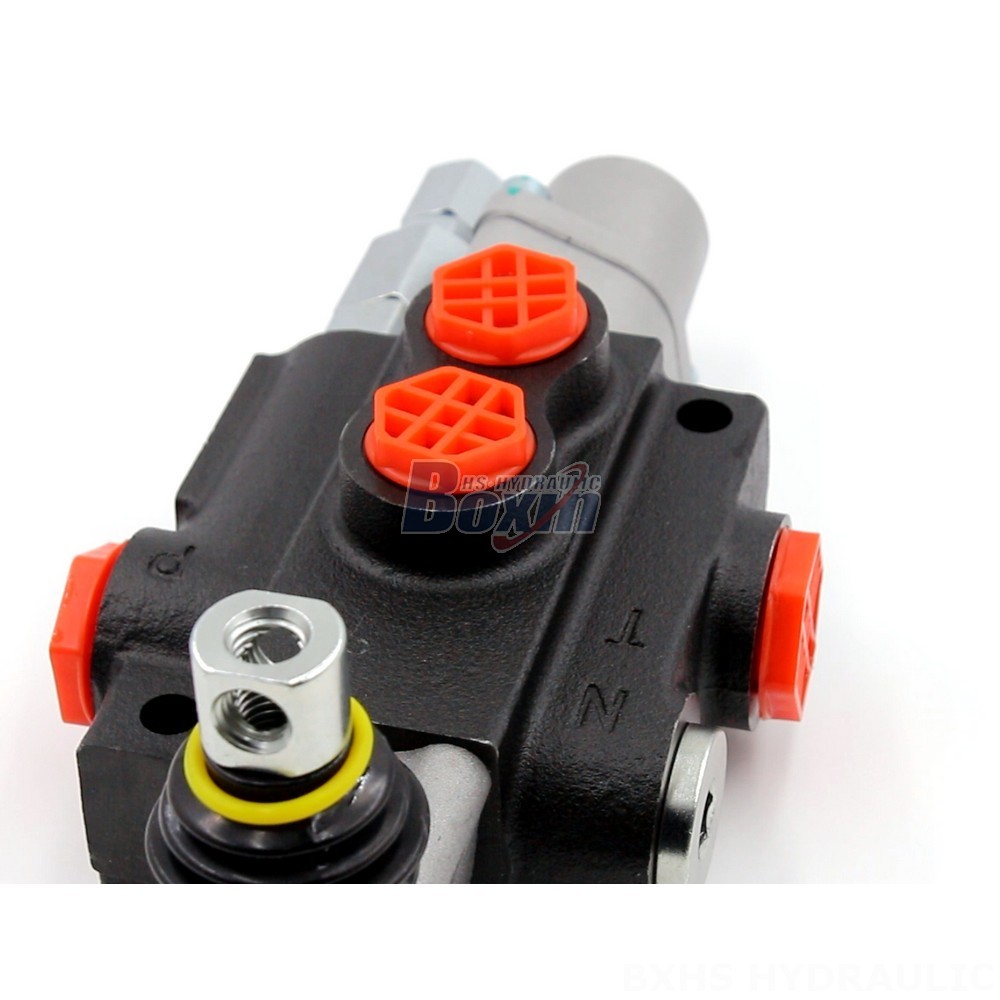

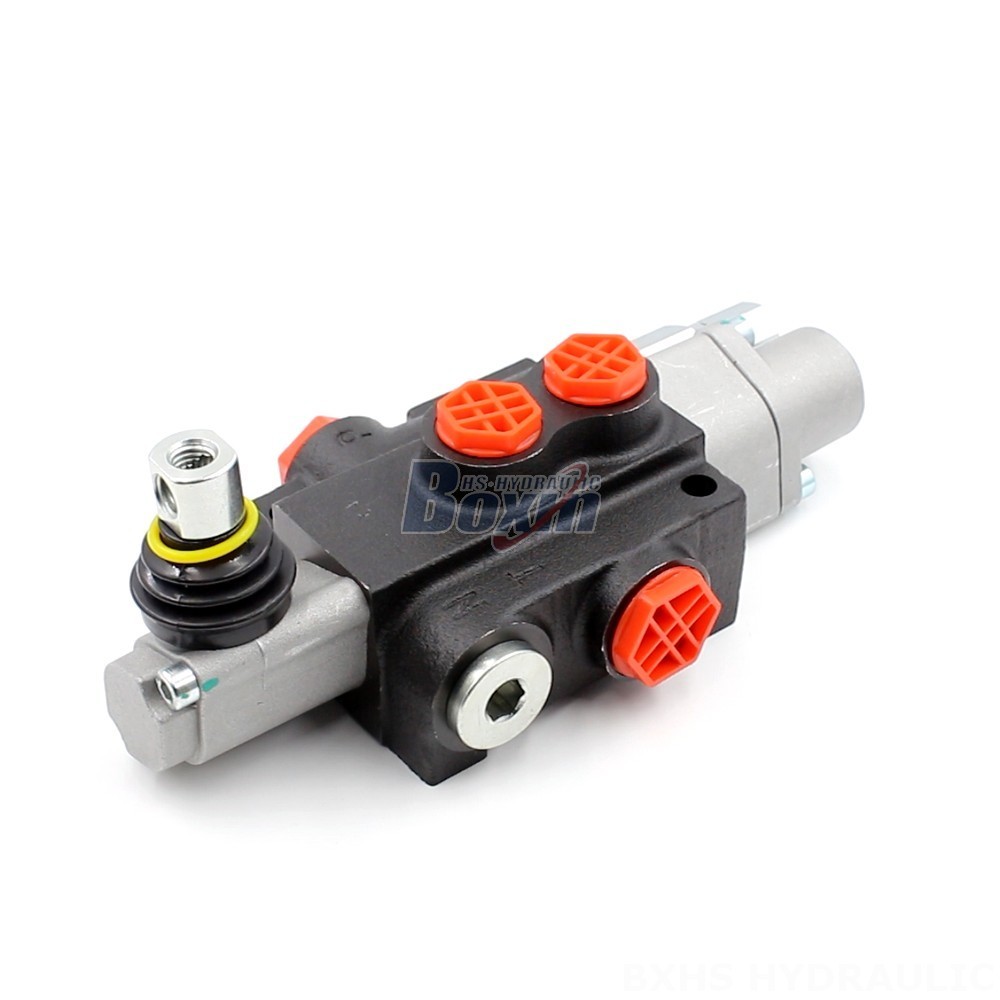

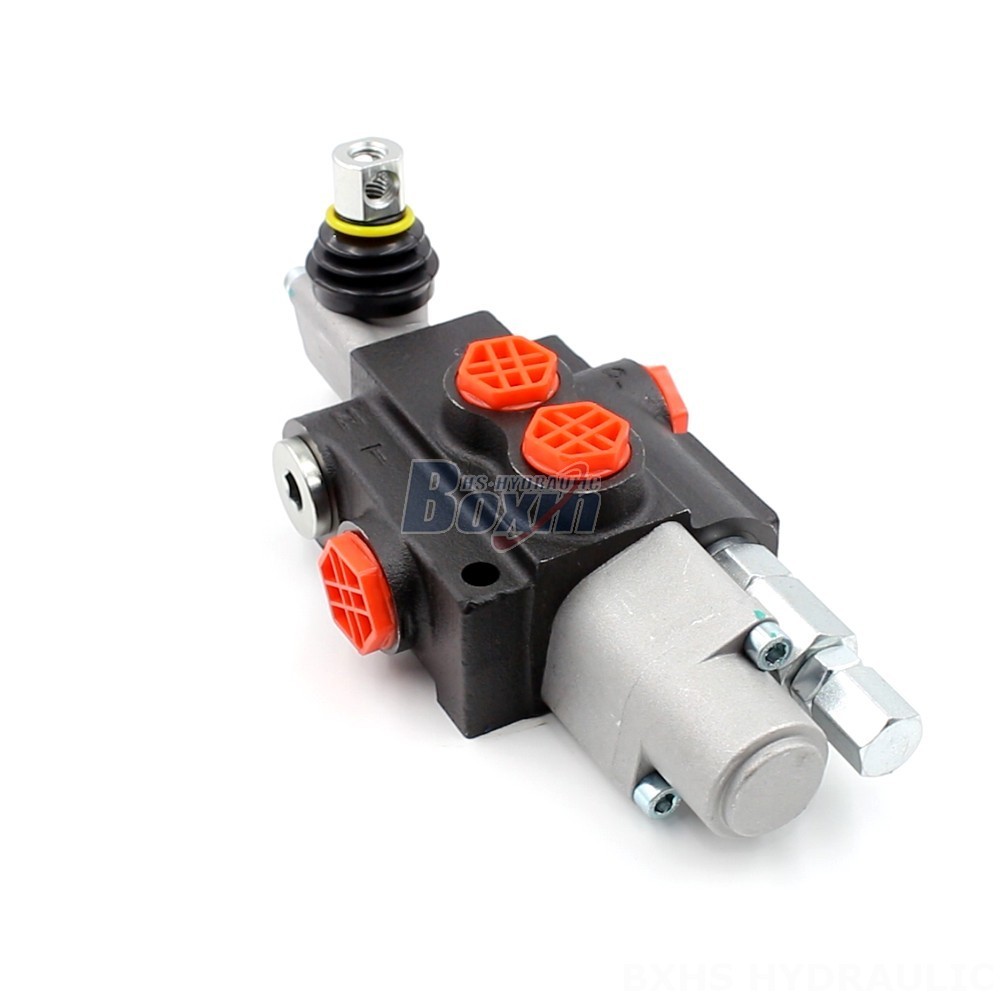

The P40 Series Auxiliary Valve is a high-performance hydraulic valve designed for directional control in tractors and other heavy-duty applications. This manual, monoblock valve features a rated flow of 40 L/min, a maximum pressure of 250 bar, and a wide operating temperature range. It is ideal for use in material handling, construction, agriculture, and industrial vehicles.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40 Series Auxiliary Valve is a robust and reliable hydraulic valve designed for directional control in various applications, including tractors, telehandlers, forklifts, all-terrain cranes, stackers, and aerial platforms. It features a manual control method, a monoblock valve structure, and a single spool. With a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve offers excellent performance in demanding environments. The operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) ensures reliable operation across a wide range of hydraulic fluids. The P40 Series is designed for a wide ambient temperature range of -40°C to +80°C (-40°F to +176°F), making it suitable for use in diverse climates. We offer wholesale and OEM options to meet your specific needs. Contact us for more information.
