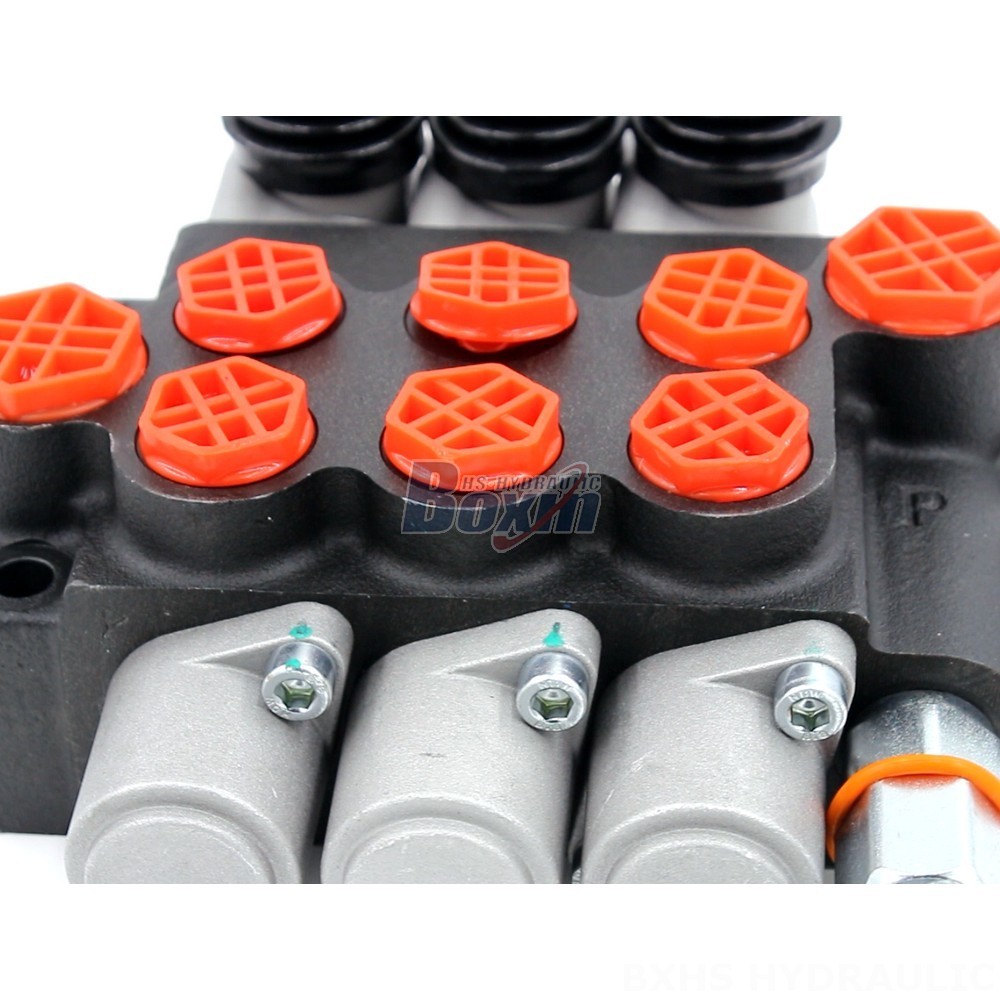

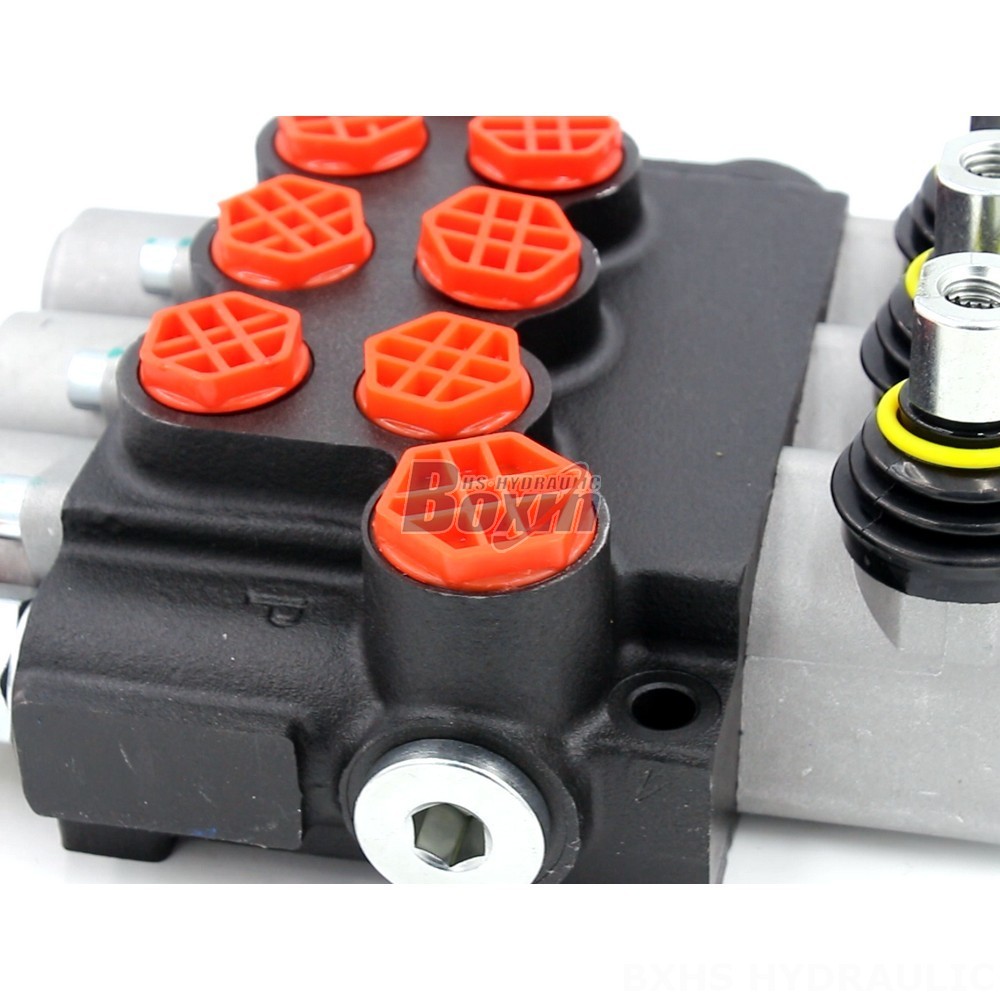

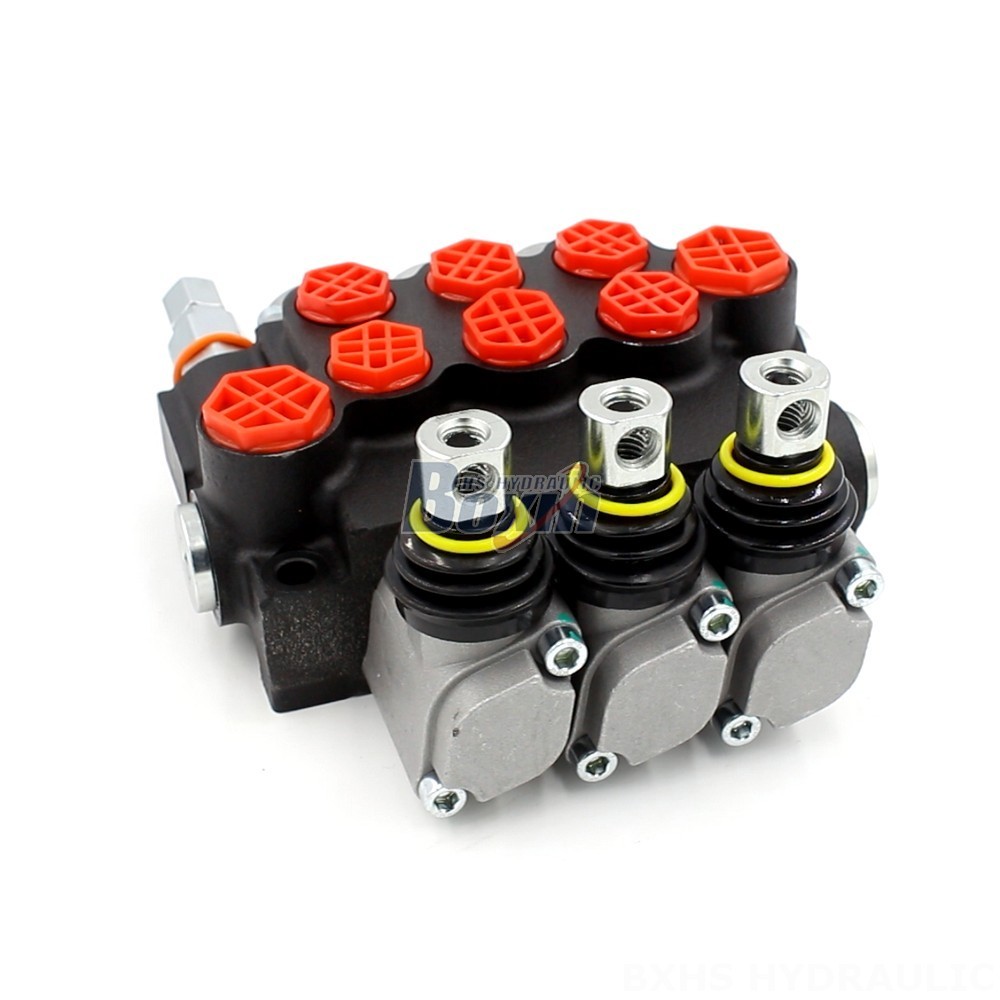

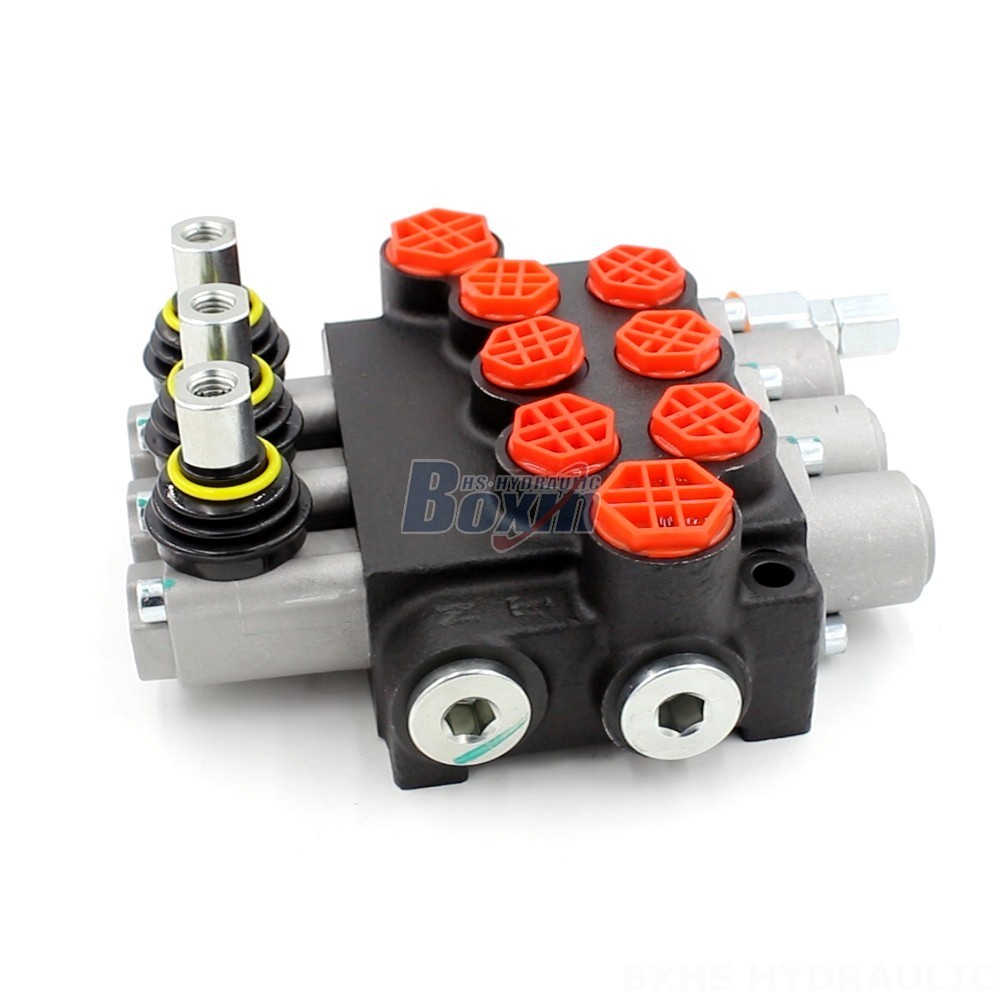

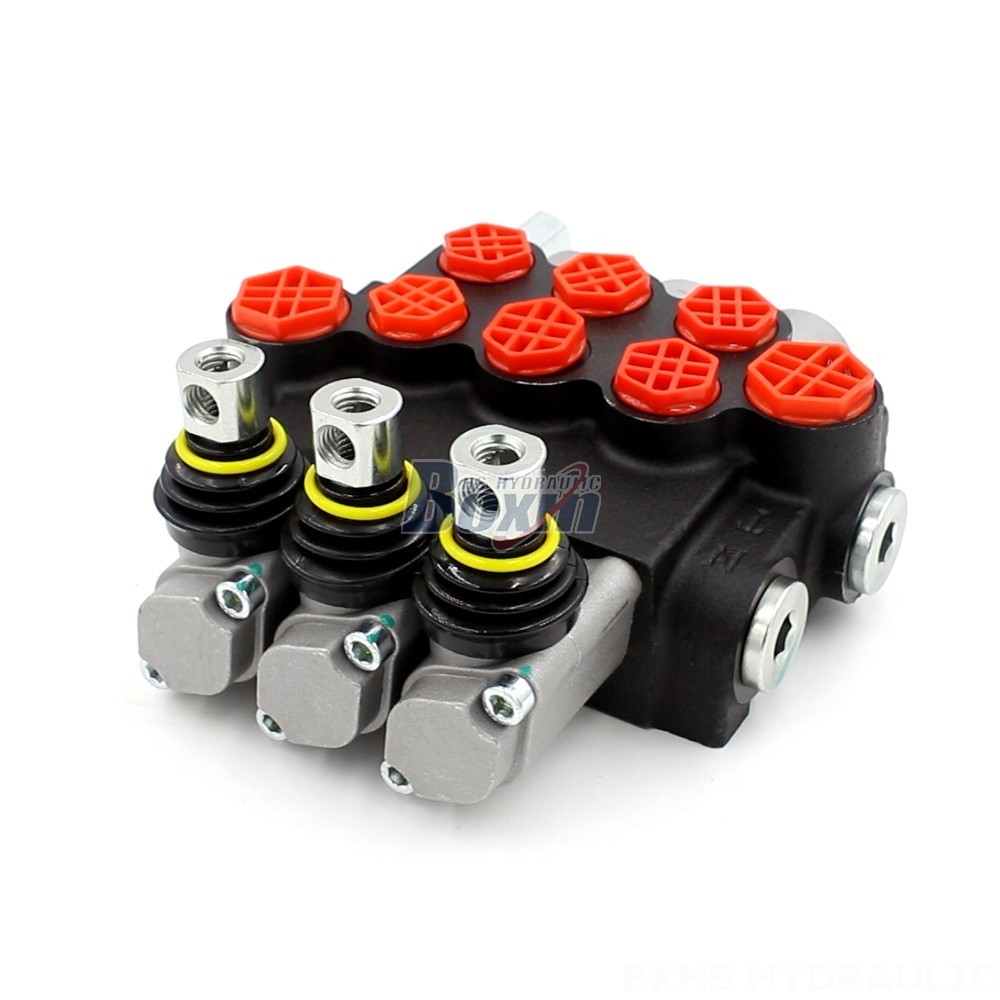

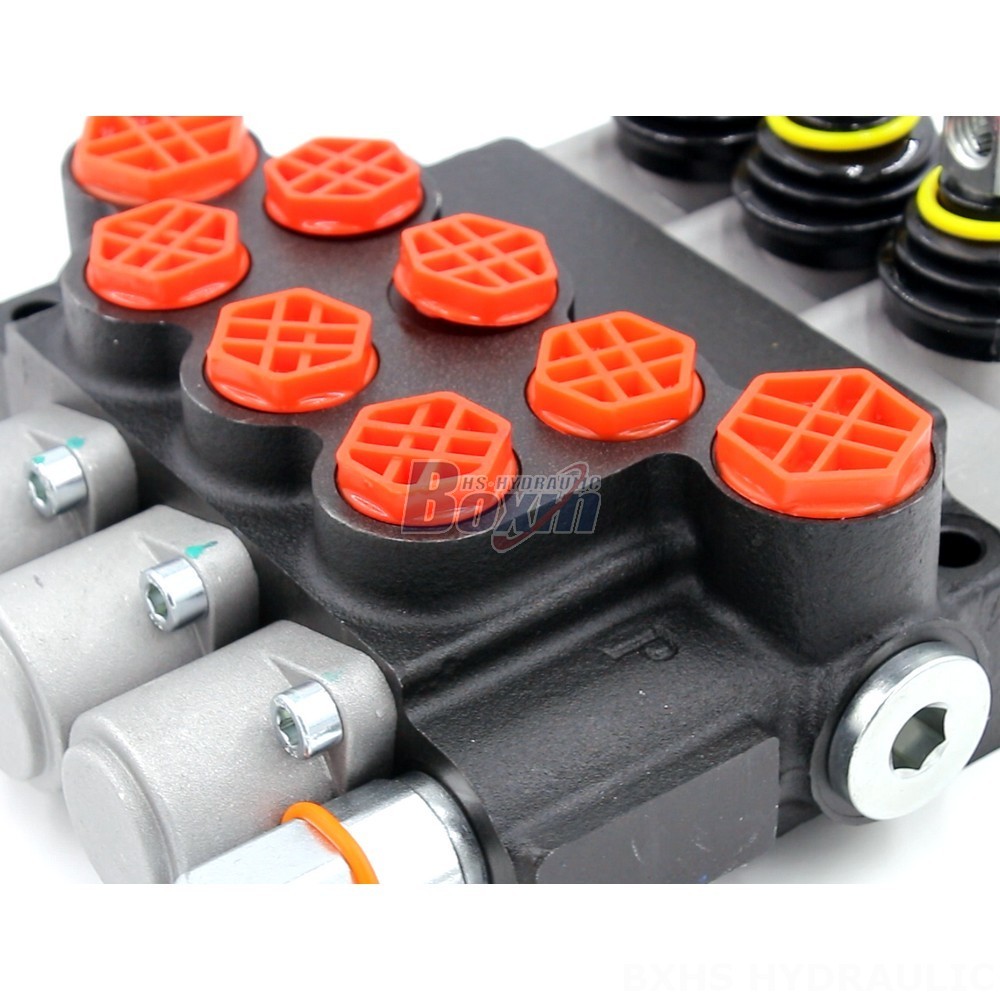

The Hydraulic Directional Control Valve: P40-G12-G38-OW is a high-quality valve designed for use in a variety of applications. It features manual control, a 3-section design, and a monoblock valve structure. The valve has a rated flow of 40 L/min and a maximum pressure of 250 bar. It can be used in a wide range of operating viscosities and ambient temperatures. The valve is also available in a variety of spool configurations to meet the specific needs of your application.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Hydraulic Directional Control Valve: P40-G12-G38-OW**
The Hydraulic Directional Control Valve: P40-G12-G38-OW is a high-performance valve designed for use in a wide range of applications. It features:
* **Manual control** for precise operation
* **3-section design** for versatility
* **Monoblock valve structure** for durability
* **Rated flow of 40 L/min** for high efficiency
* **Maximum pressure of 250 bar** for demanding applications
* **Operating viscosity range of 15 - 75 mm²/s** for compatibility with a variety of fluids
* **Ambient temperature range of -40°C to +80°C** for use in extreme environments
* **3 spool configurations** to meet the specific needs of your application
The Hydraulic Directional Control Valve: P40-G12-G38-OW is the perfect choice for a variety of applications, including:
* **Material handling**
* **Construction and earth moving**
* **Agriculture**
* **Industrial vehicles**
If you are looking for a high-quality, reliable hydraulic directional control valve, the P40-G12-G38-OW is the perfect choice.
