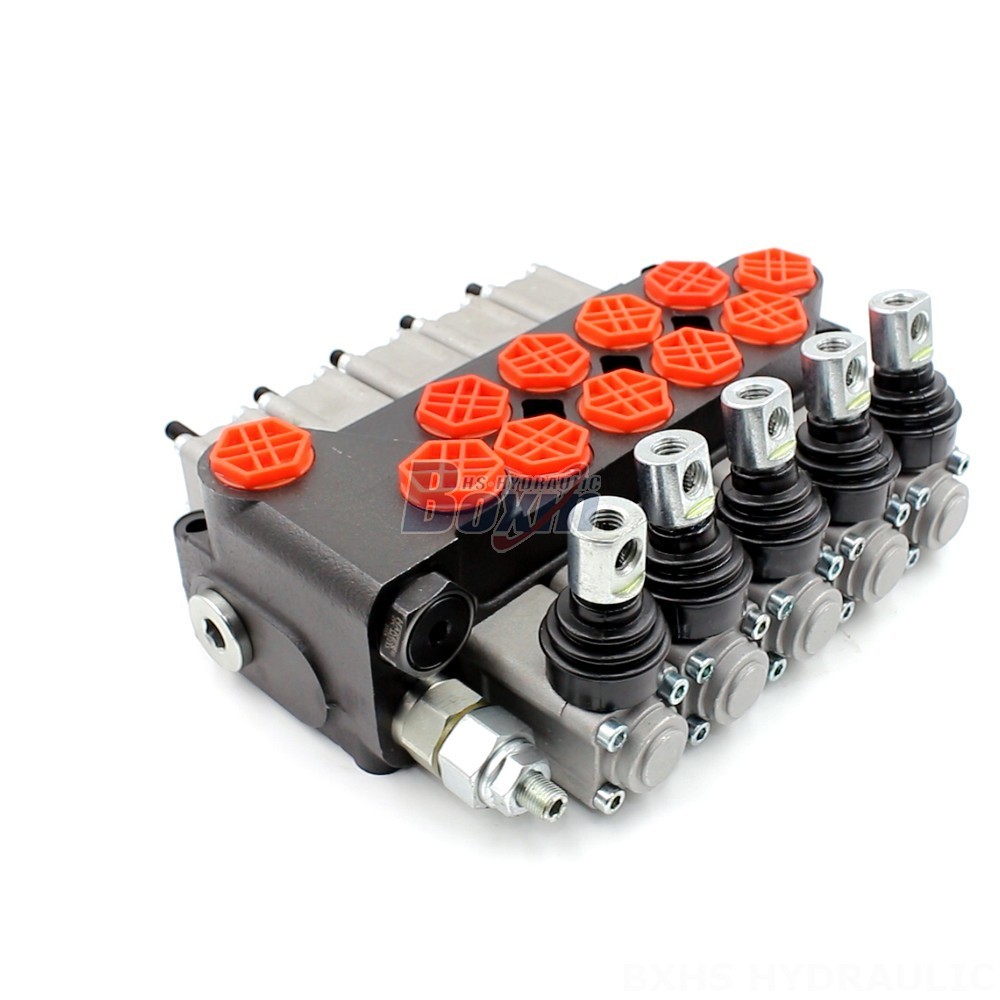

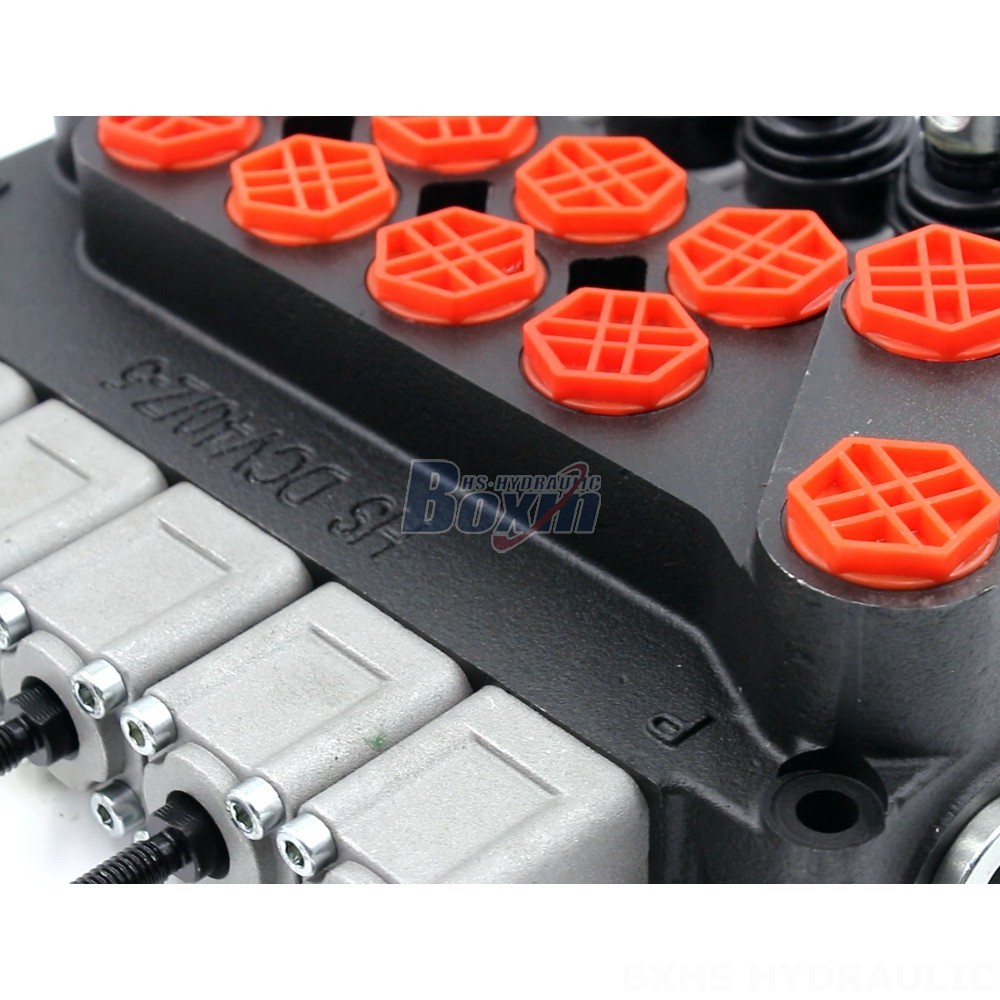

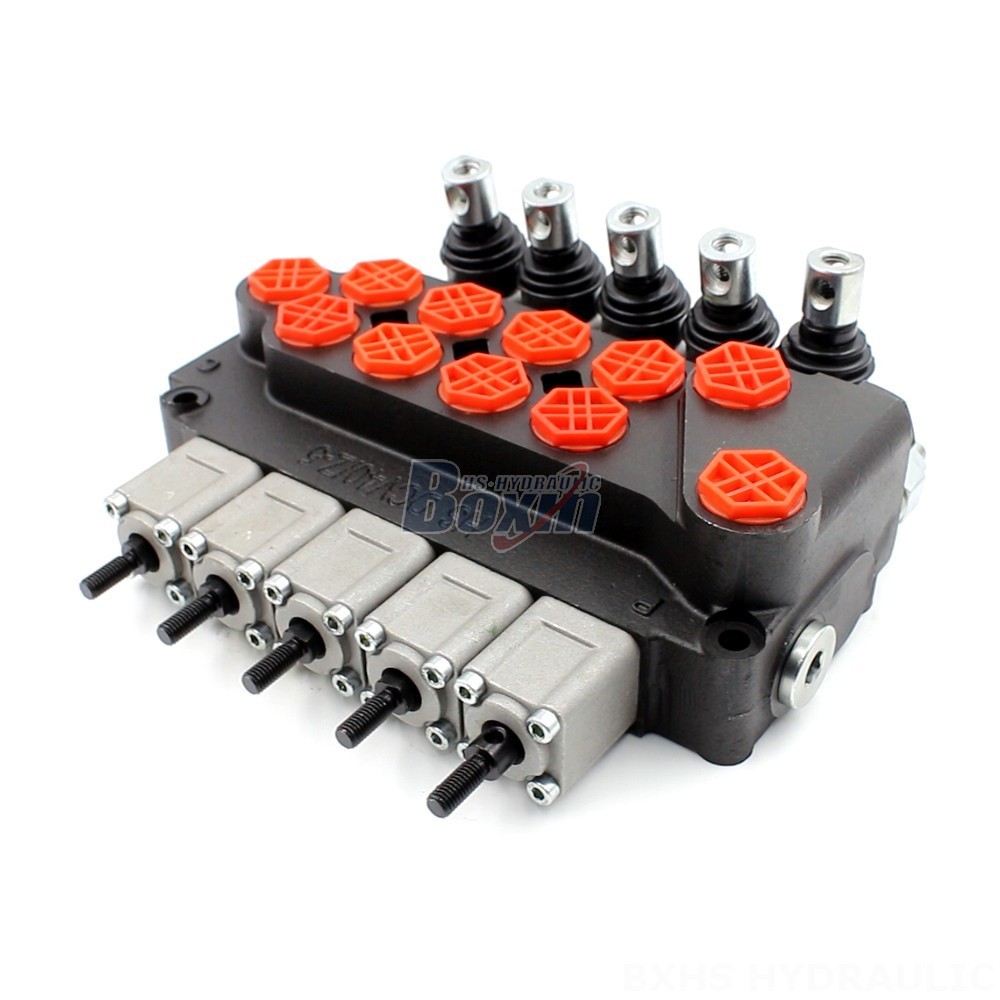

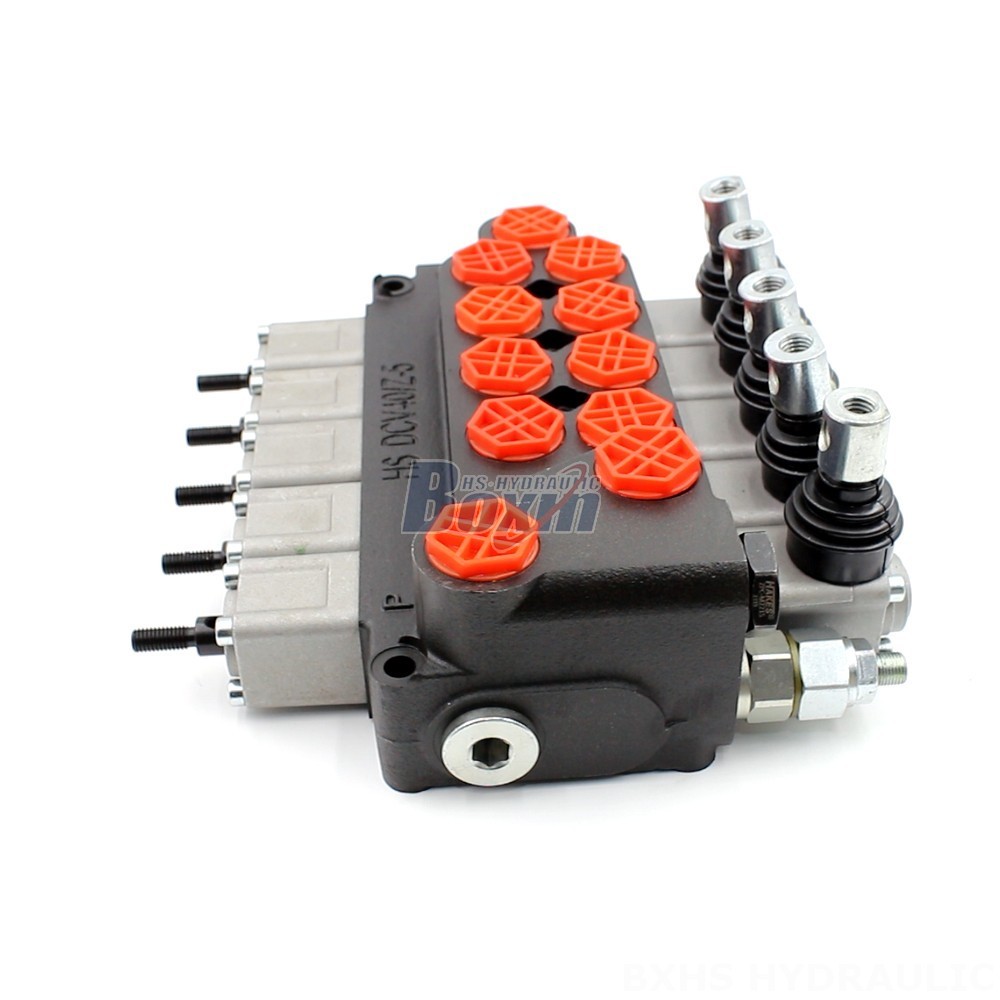

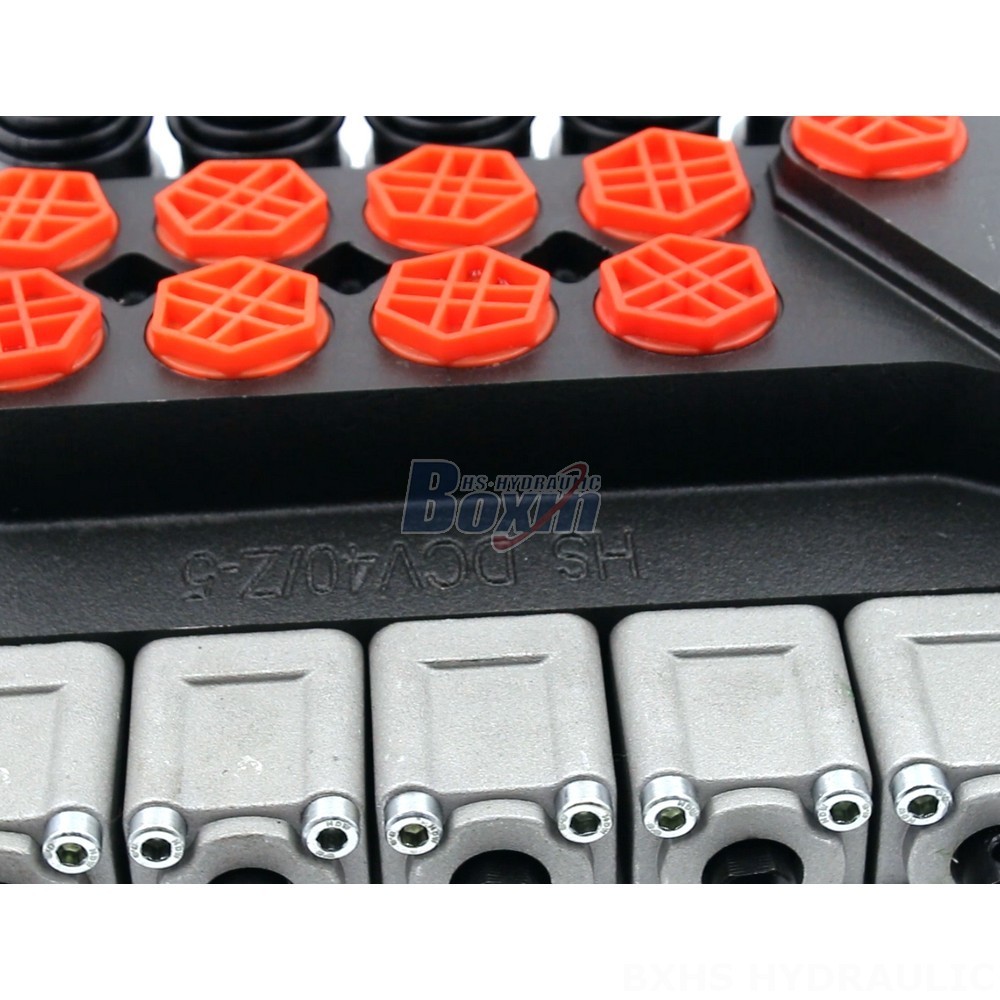

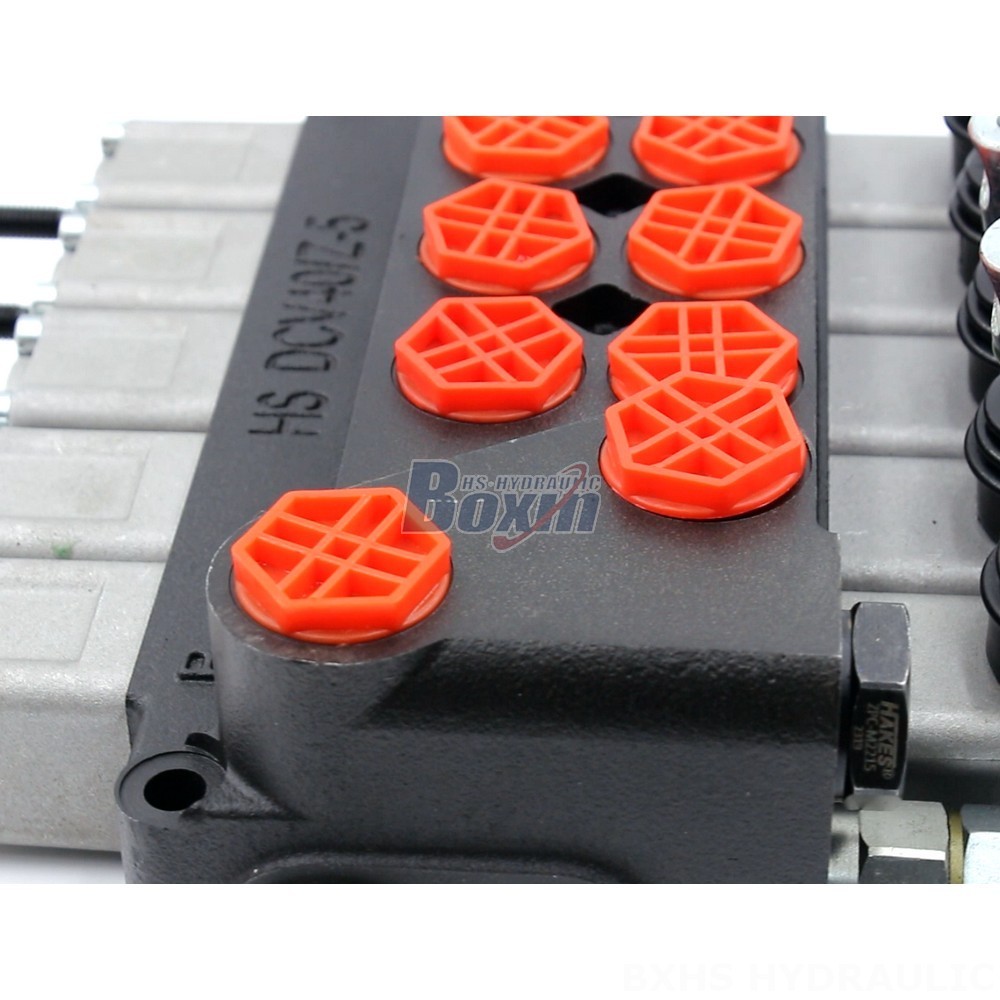

The DCV40Z Series is a 5-section, manual control, monoblock hydraulic directional control valve with a rated flow of 40 L/min and a maximum pressure of 350 bar. It is ideal for a wide range of applications including material handling, construction, agriculture, and industrial vehicles.
| Serie DCV40Z Válvula de Control de Estabilizadores Parámetros | |
|---|---|
| Método de control | Manual, Electrohidráulico, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 350 bar (5100 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The DCV40Z Series is a high-performance, reliable hydraulic directional control valve designed for demanding applications. It features a robust monoblock construction with a 5-section spool for precise control of hydraulic flow. The valve offers a rated flow of 40 L/min and a maximum operating pressure of 350 bar. Its manual control allows for easy operation and adjustment. The DCV40Z series is perfect for various applications in material handling, construction, agriculture, and industrial vehicles. This includes telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. We offer this product as OEM, wholesale, and customized solutions. Contact us today for more details and pricing.
