BKQF34-A Hydraulic Directional Control Valve is a manual control, monoblock valve with a rated flow of 40 L/min and a max pressure of 160 bar. It has an operating viscosity range of 12 - 400 mm²/s and an ambient temperature range of -40°C to +80°C. This valve is commonly used in material handling, construction and earth moving, agriculture, and industrial vehicles such as telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
| Serie BKQF34 Válvula de control neumática Parámetros | |
|---|---|
| Método de control | Neumático |
| Carrete | 1 carrete |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección |
| Rango de viscosidad de funcionamiento | 12 - 400 mm²/s (12 cSt a 400 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | Presión |
| Puerto de Entrada | G1/4 |
| Puerto de Salida | G1/4 |
| Tamaño de Puerto | G1/4 |

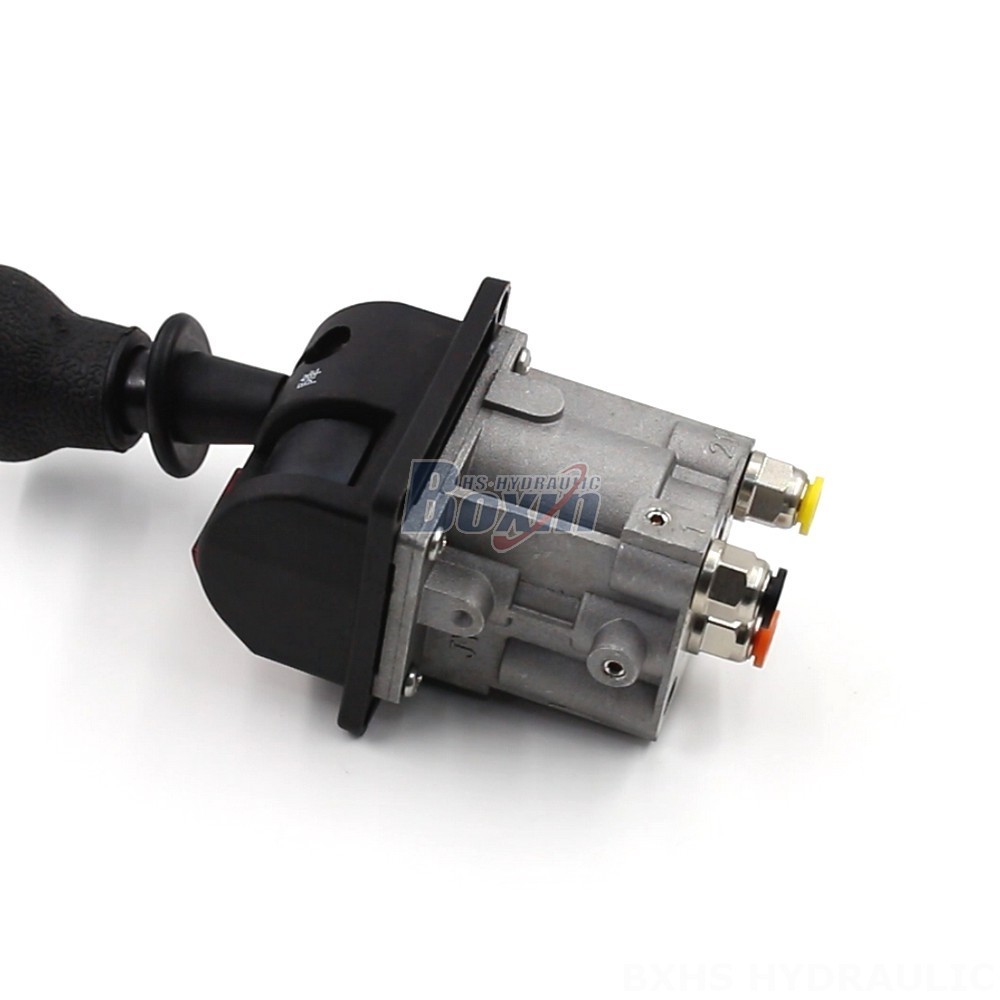

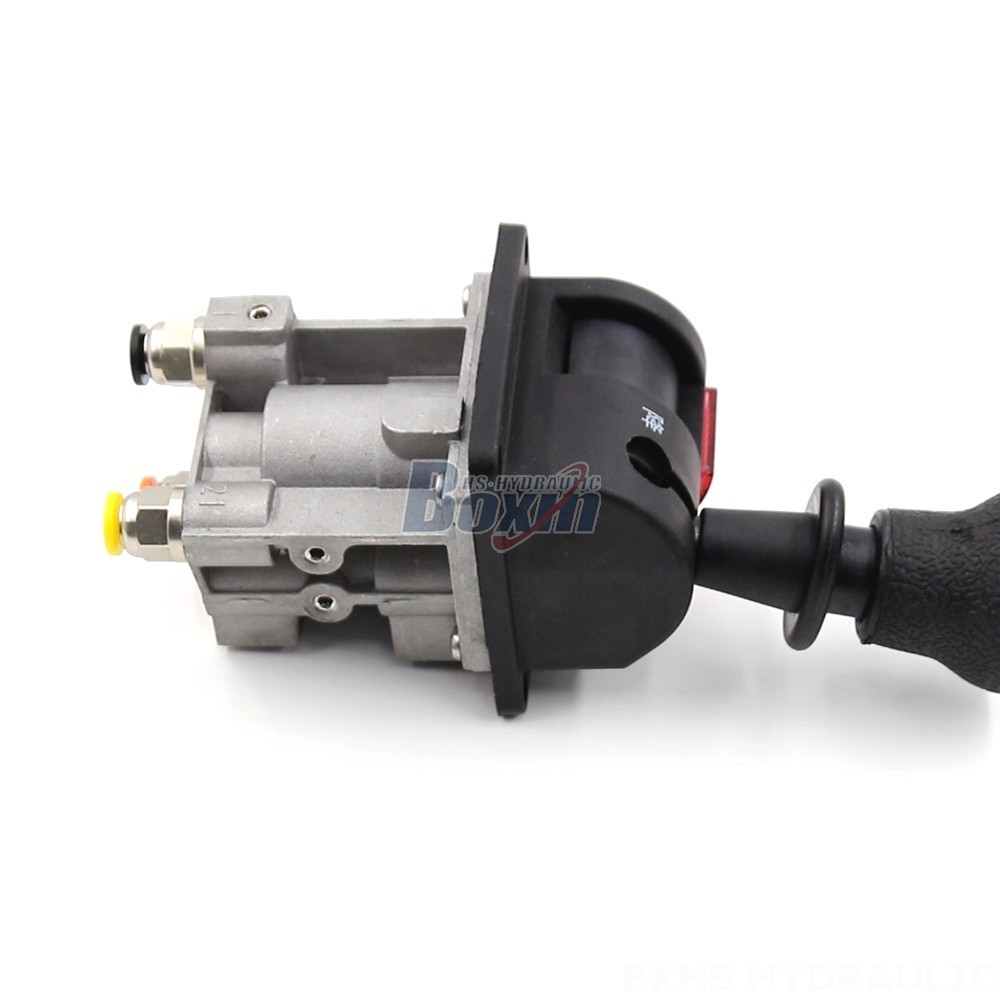

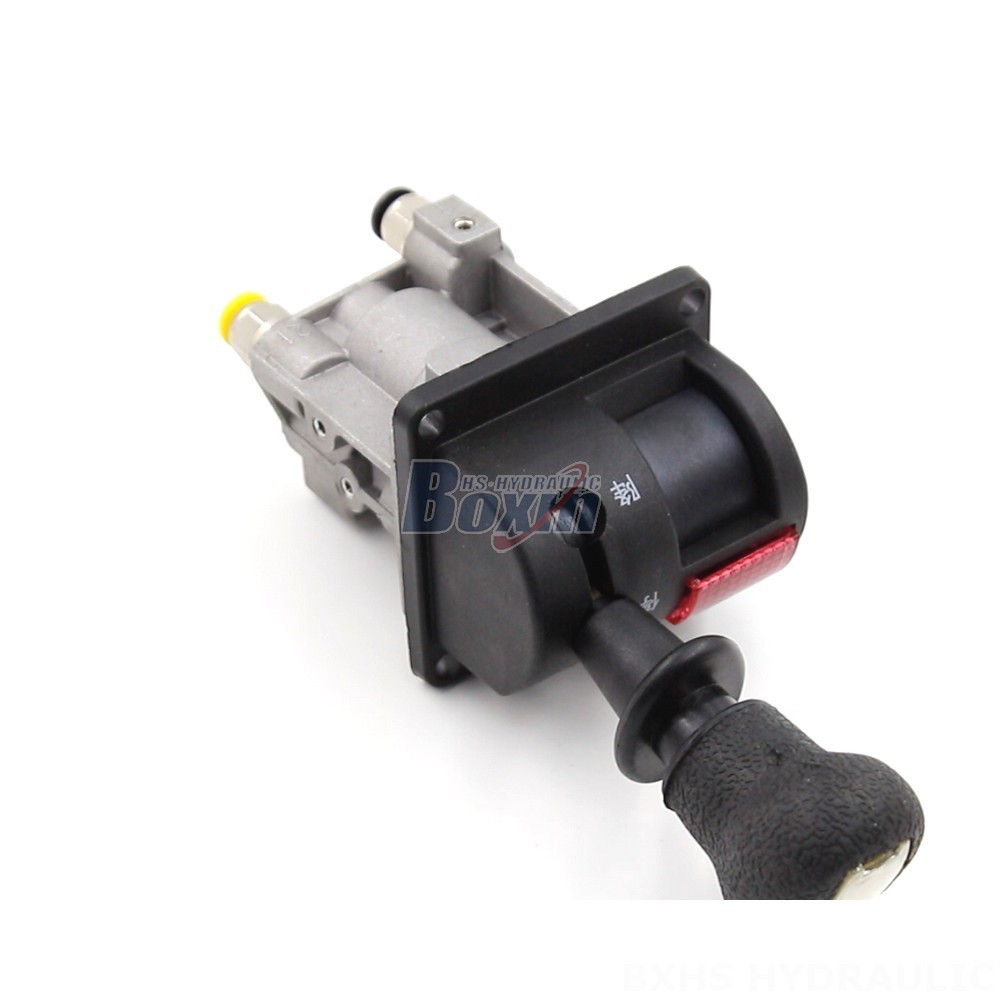

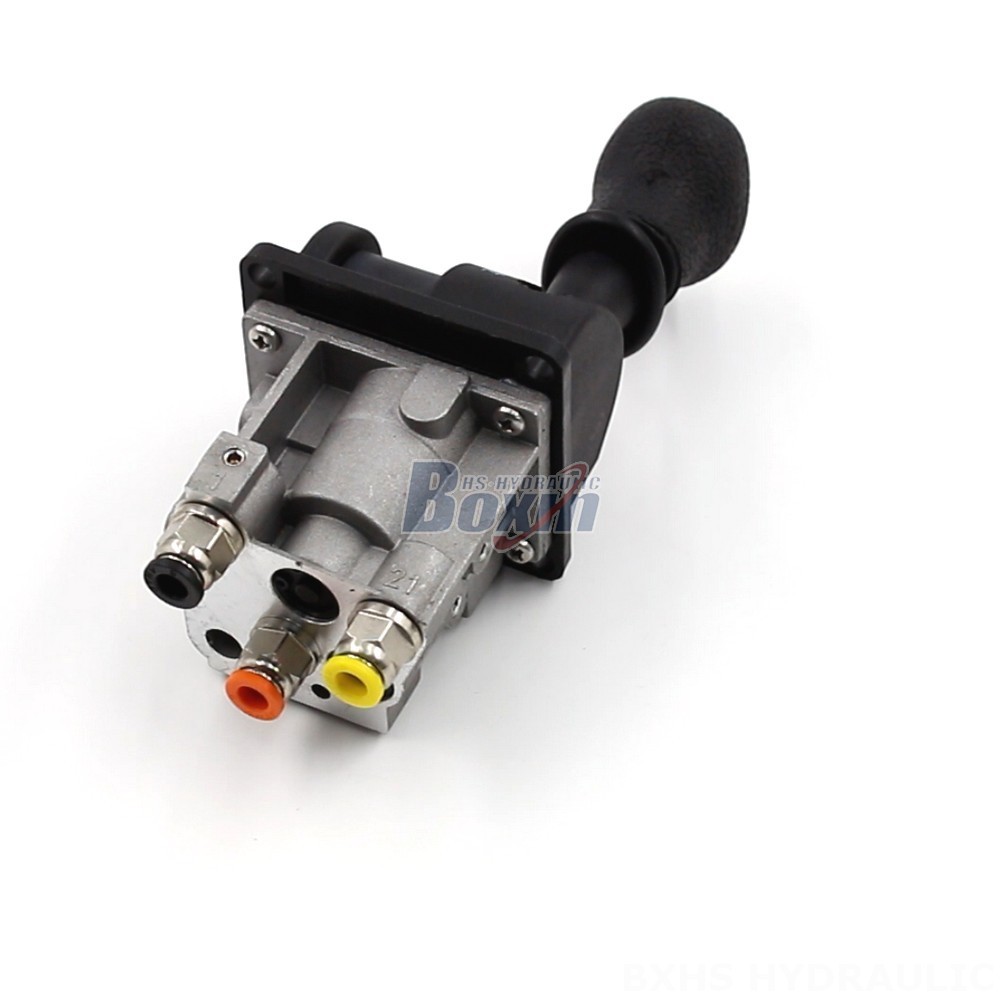

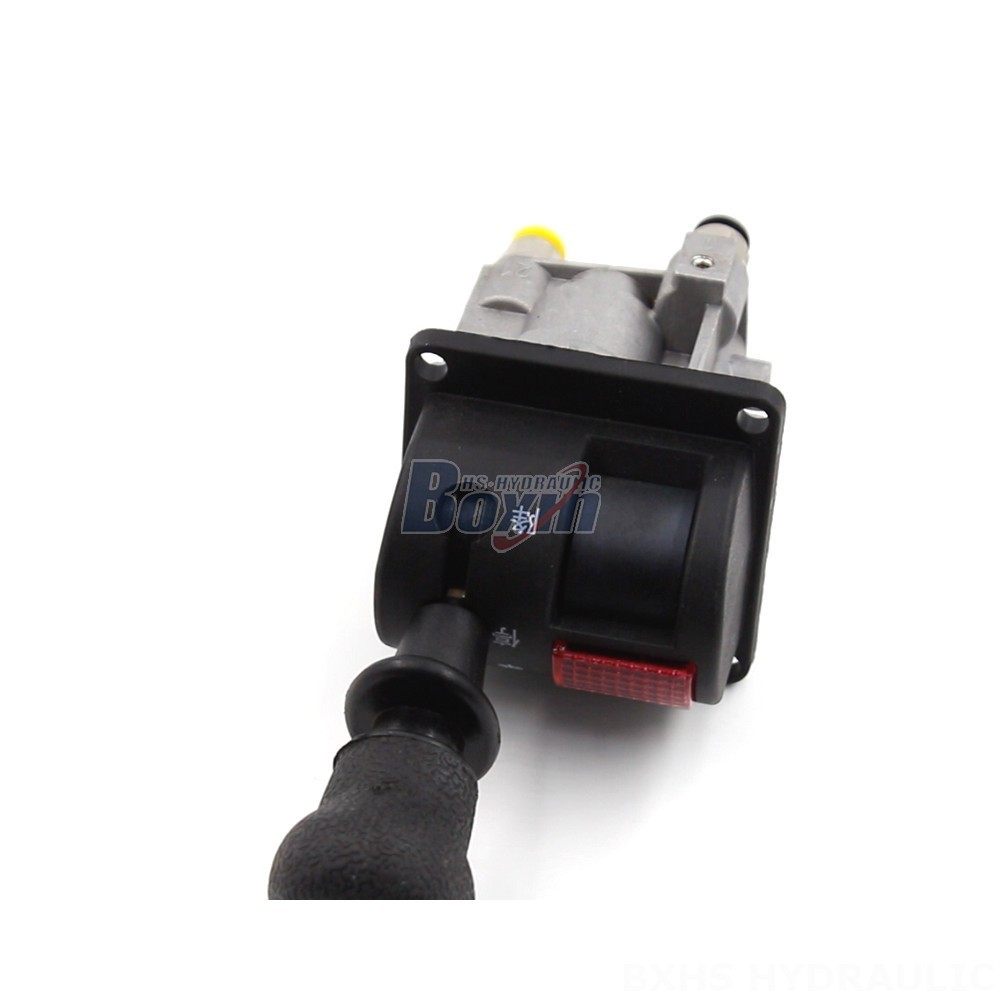

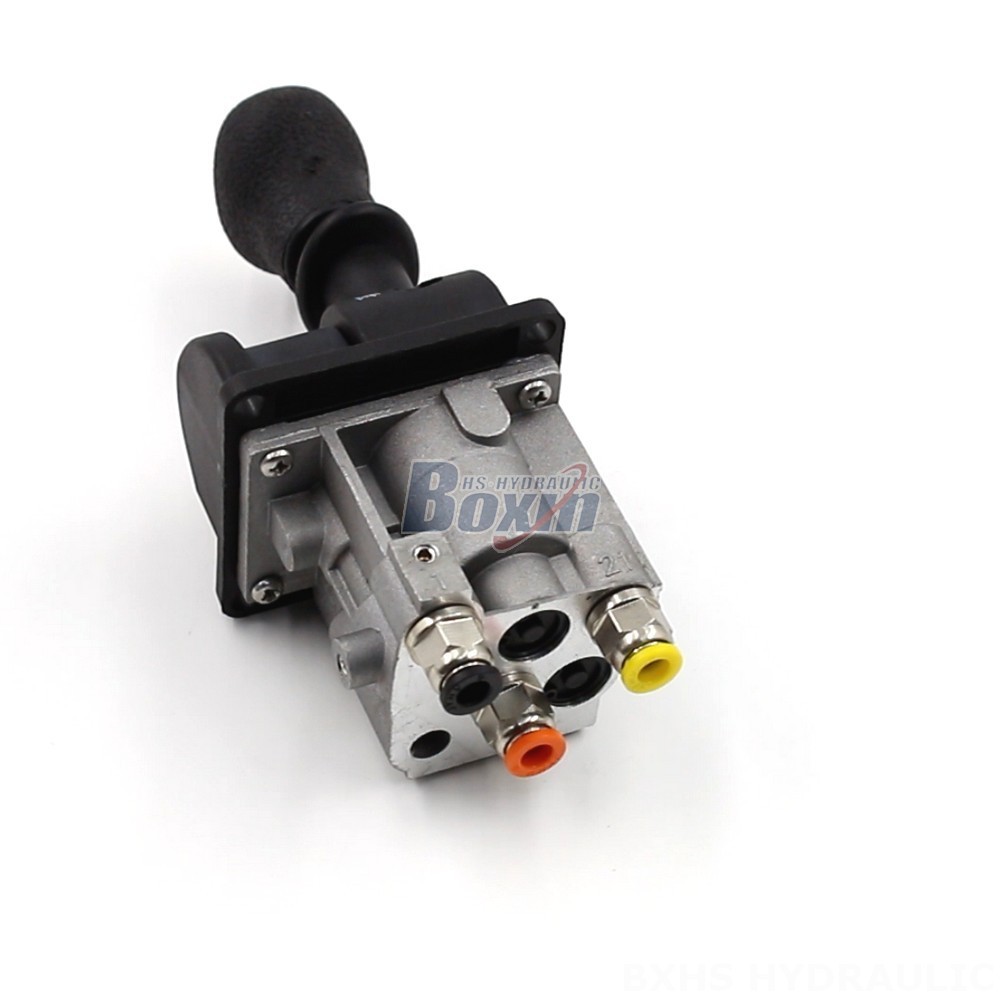

**Product Name:** Hydraulic Directional Control Valve | BKQF34-A Model | Factory Direct & Customizable
**Control Method:** Manual
**Section:** 1 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 40 L/min (10.5 US gpm)
**Max Pressure:** 160 bar (2300 psi)
**Operating Viscosity Range:** 12 - 400 mm²/s (12 cSt to 400 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Series:** BKQF34-A Series
**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER
The BKQF34-A Hydraulic Directional Control Valve is a high-quality, durable valve that is designed to meet the demands of a variety of applications. It is manufactured using high-quality materials and components, and it is backed by our satisfaction guarantee.
If you are looking for a reliable, high-performance hydraulic directional control valve, the BKQF34-A is the perfect choice. Order yours today!
