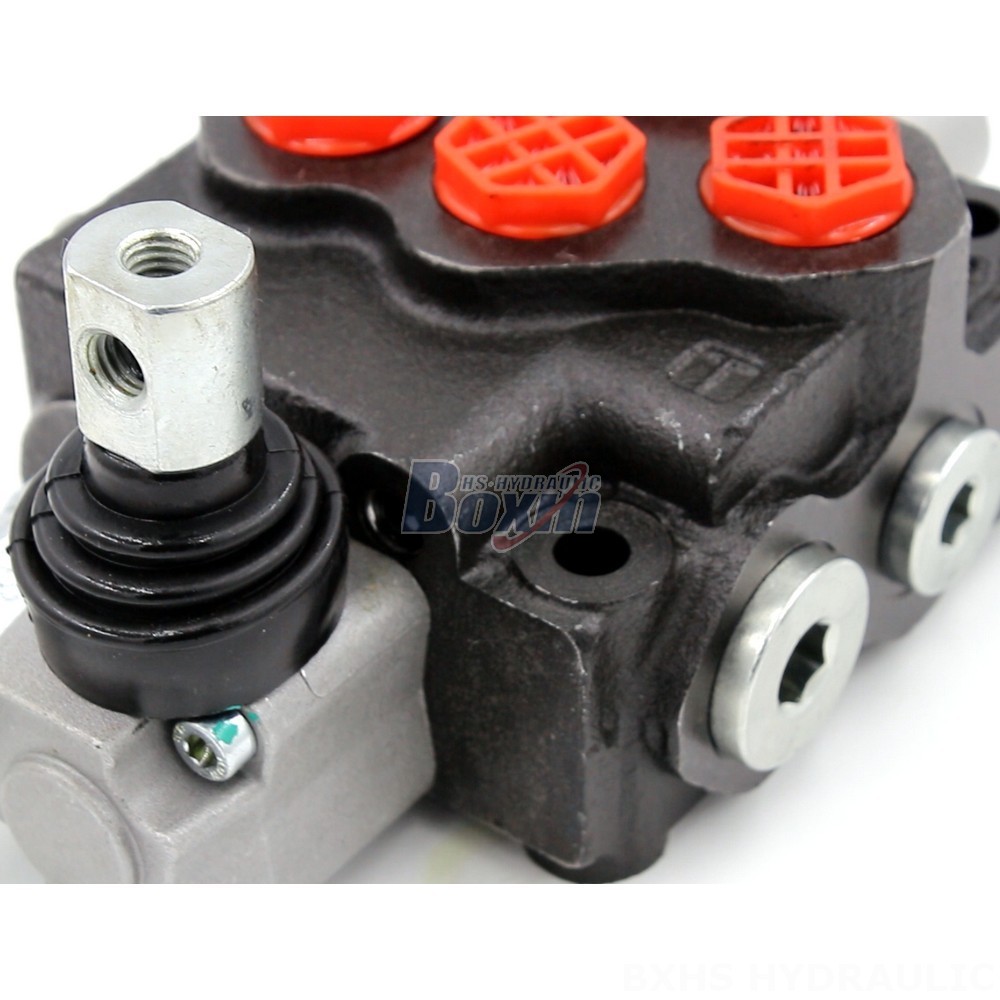

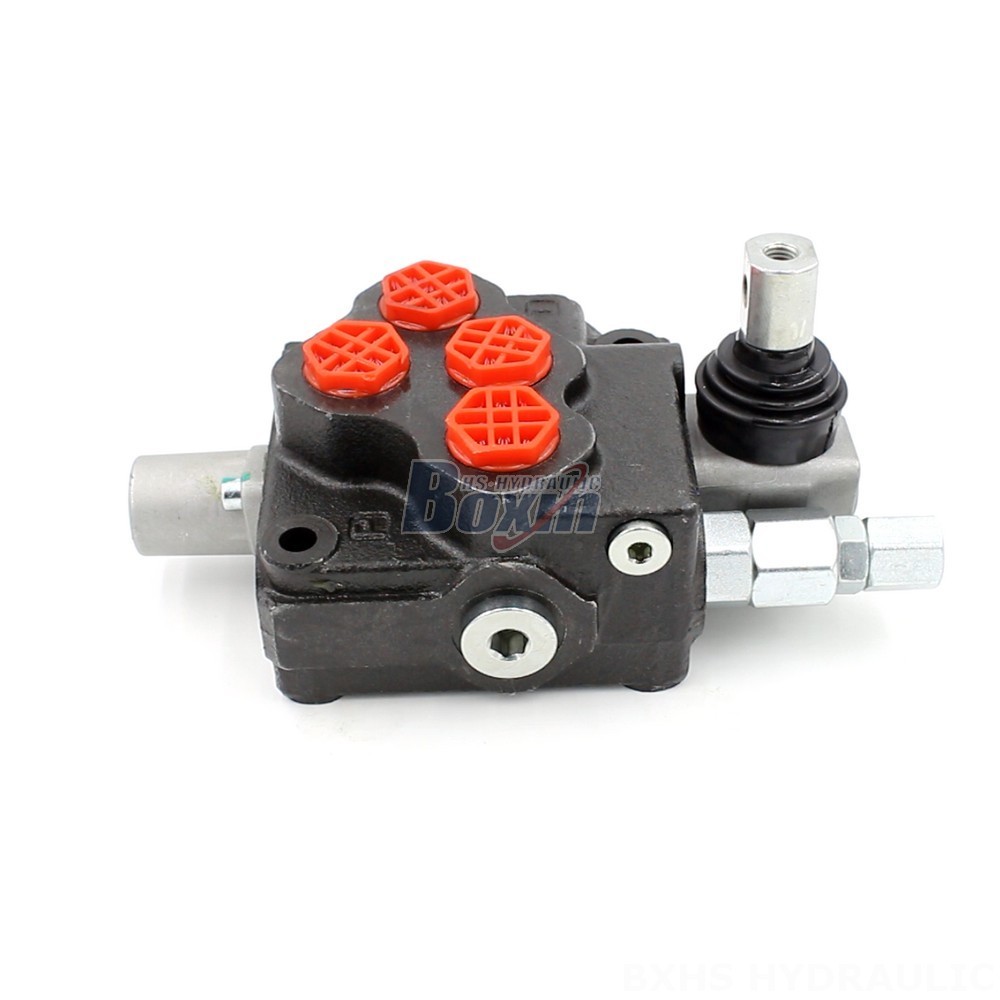

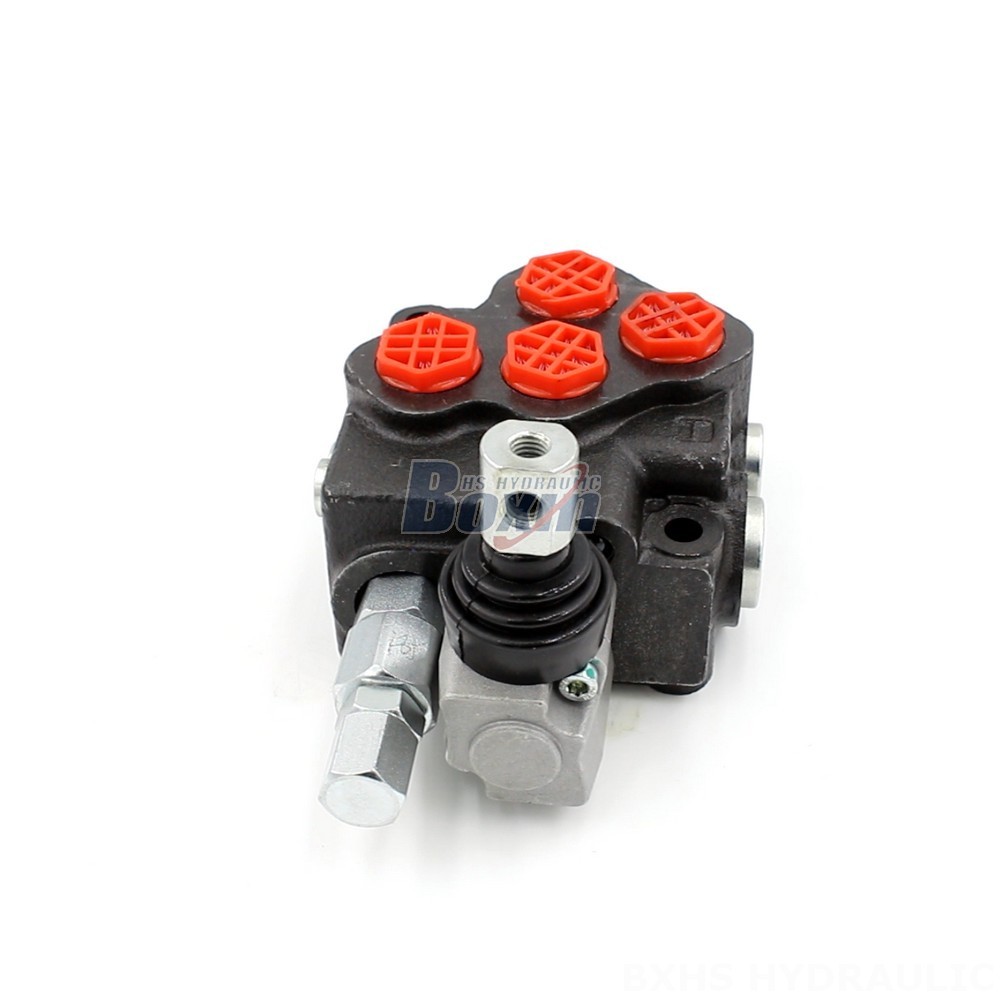

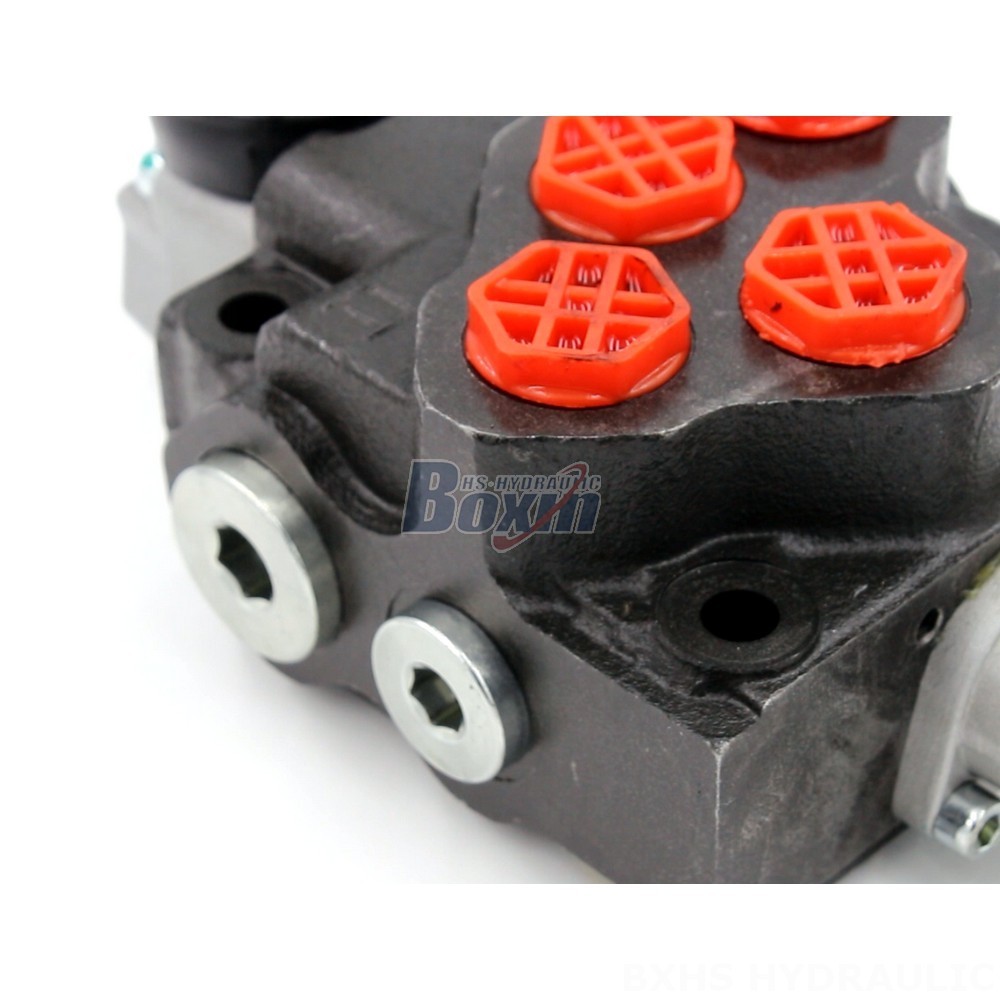

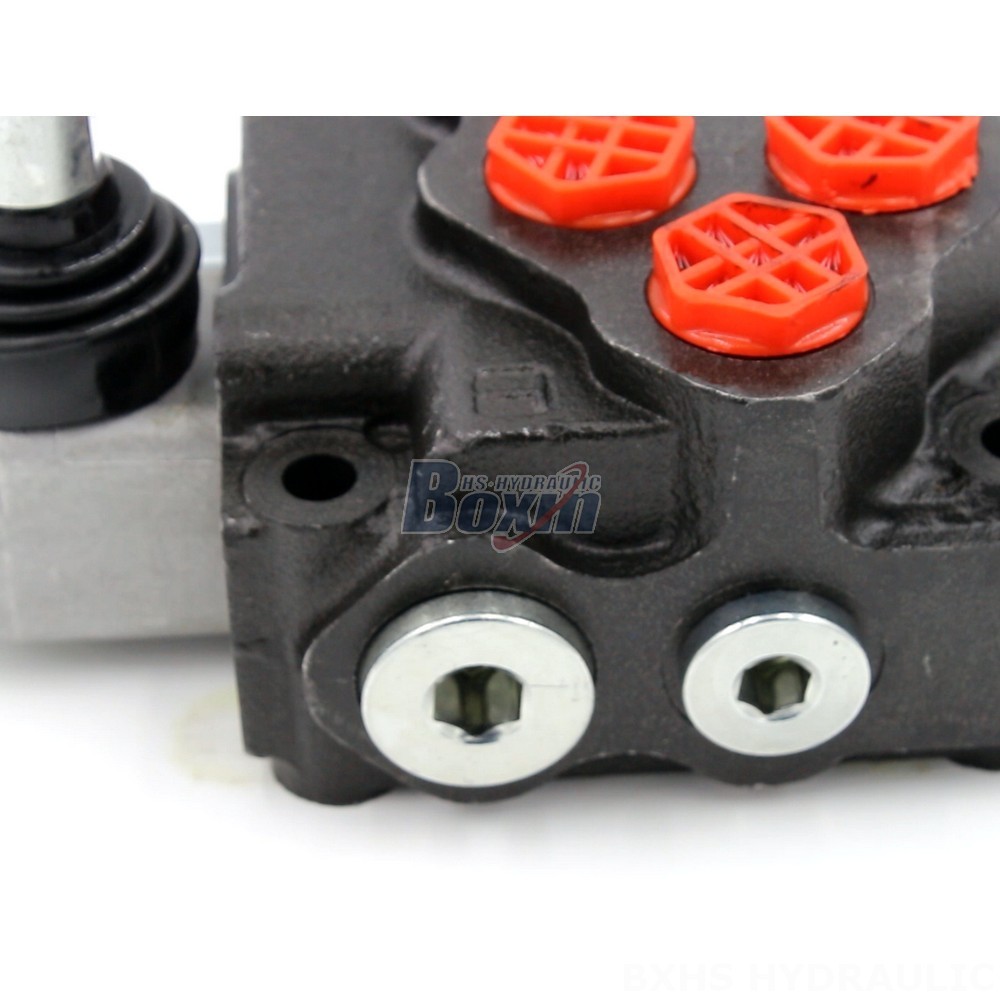

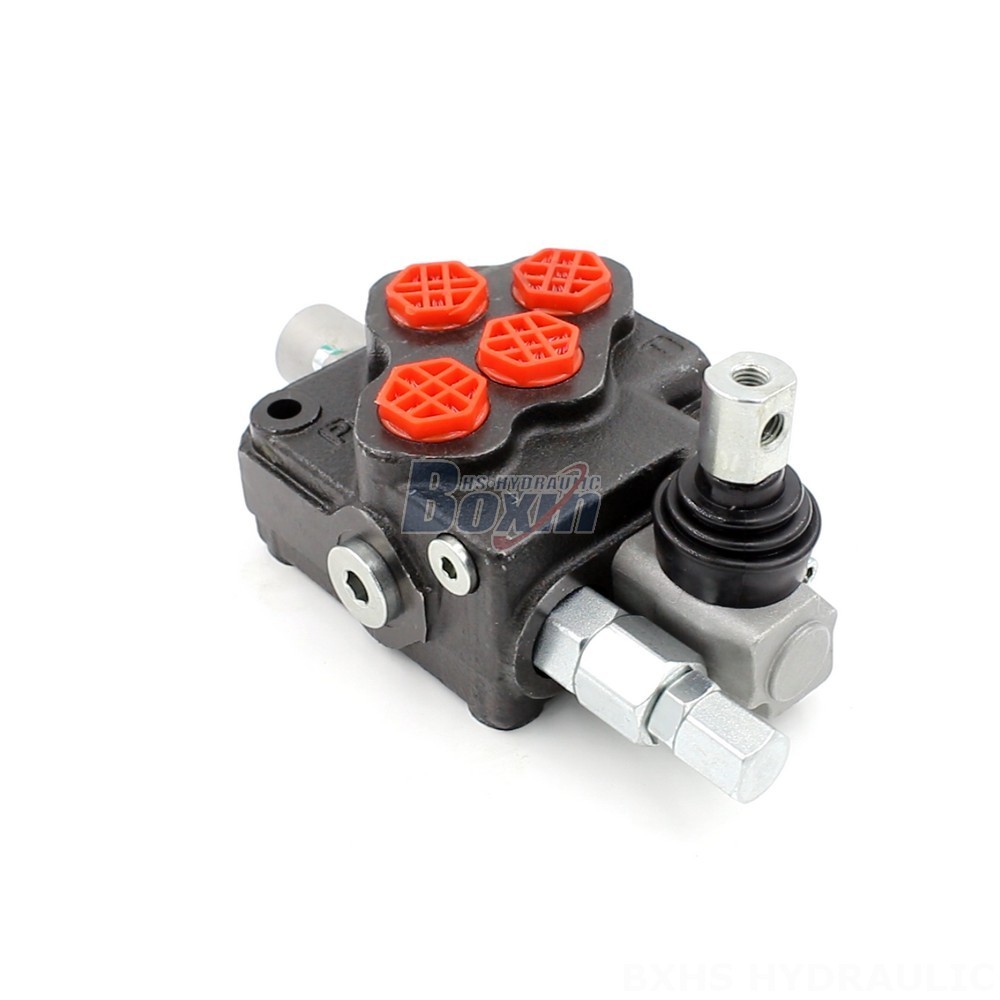

The SD5-G38 is a manual, 1-section, monoblock hydraulic directional control valve designed for various applications including material handling, construction, agriculture, and industrial vehicles. With a rated flow of 40 L/min and a max pressure of 305 bar, it is a reliable and durable solution for controlling hydraulic systems in diverse equipment like telehandlers, forklifts, mini-excavators, and more.
| Serie SD5 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +60 °C (-40 °F a +140 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 305 bar (4400 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
This manual, 1-section, monoblock valve, part of the SD5 series, offers reliable directional control for a wide range of applications. It features a single spool with a rated flow of 40 L/min and a maximum pressure rating of 305 bar, ensuring smooth and efficient operation. The valve is designed to handle a viscosity range of 15 - 75 mm²/s, operating effectively in temperatures ranging from -40°C to +60°C. Its compact and durable design makes it ideal for use in material handling equipment, construction machinery, agricultural implements, and industrial vehicles like telehandlers, forklifts, mini-excavators, skid steer loaders, and various other applications.
