Hydraulic Control Valve

Método de control:Manual

Carrete:3 carretes

Flujo Nominal:40 l/min (10,5 gal EE. UU./min)

Presión Máxima:250 bar (3600 psi)

Puerto de Entrada:G1/2

Puerto de Salida:G1/2

Tamaño de Puerto:G3/8

Marca:BXHS

Tipo de producto:Válvula Direccional Monobloque

Serie de productos:Serie P40 Válvula Direccional Monobloque

Tamaño del embalaje:23*20*12

Peso bruto:6.60 kg

Disponibilidad: En stock

1277 personas están viendo este producto

Hydraulic Control Valve

Hydraulic Control Valve

Hydraulic Control Valve drawing image

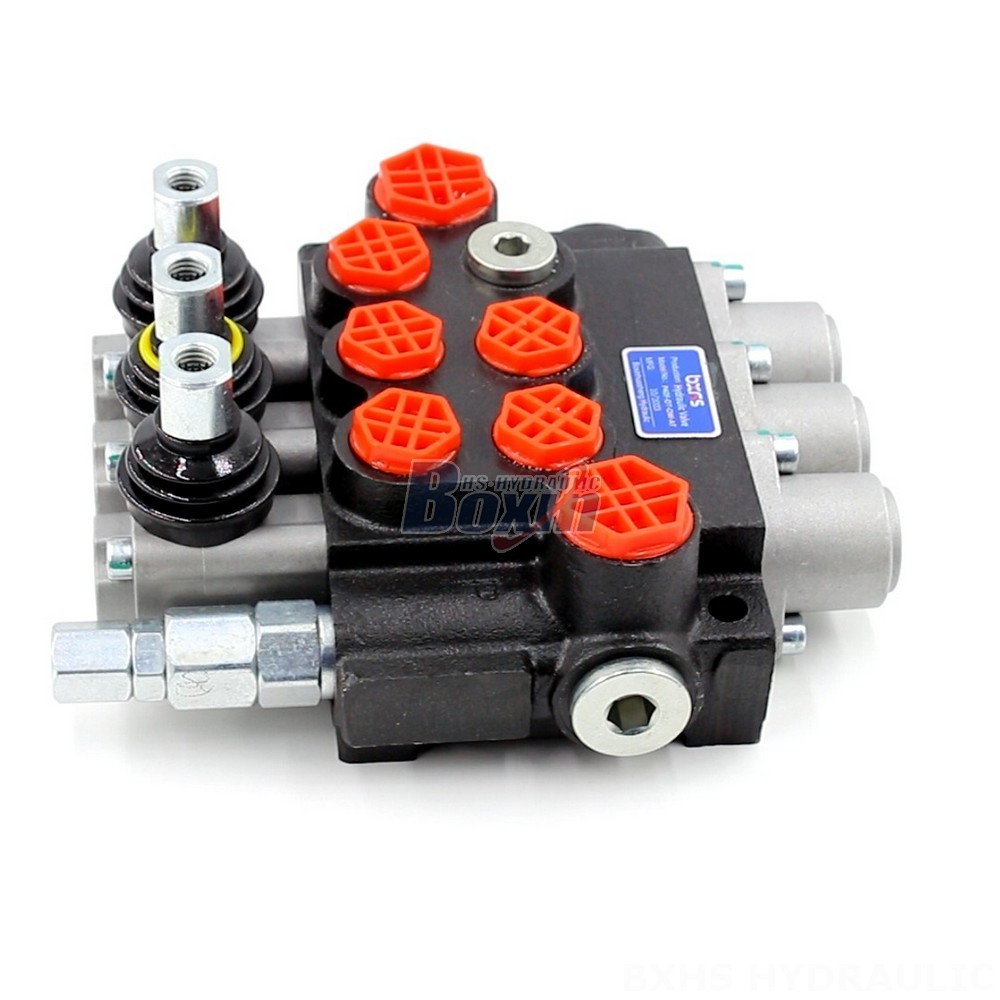

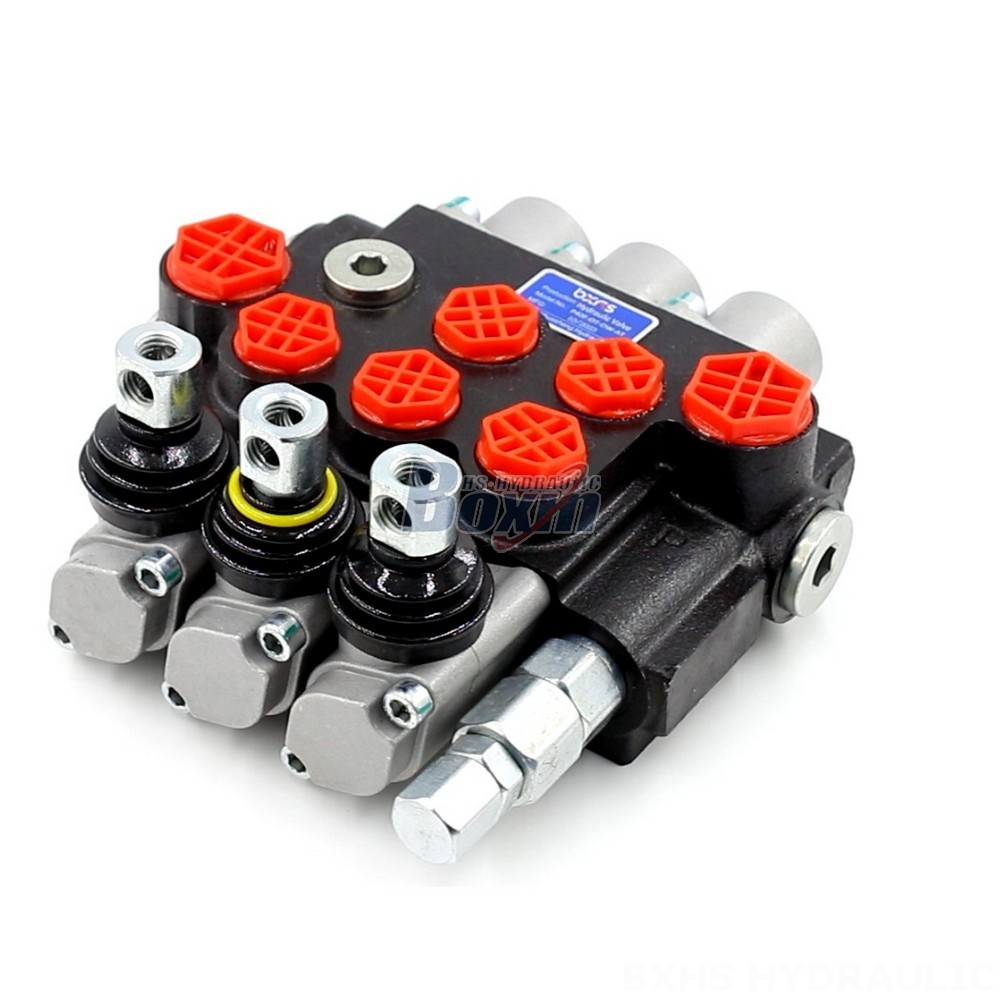

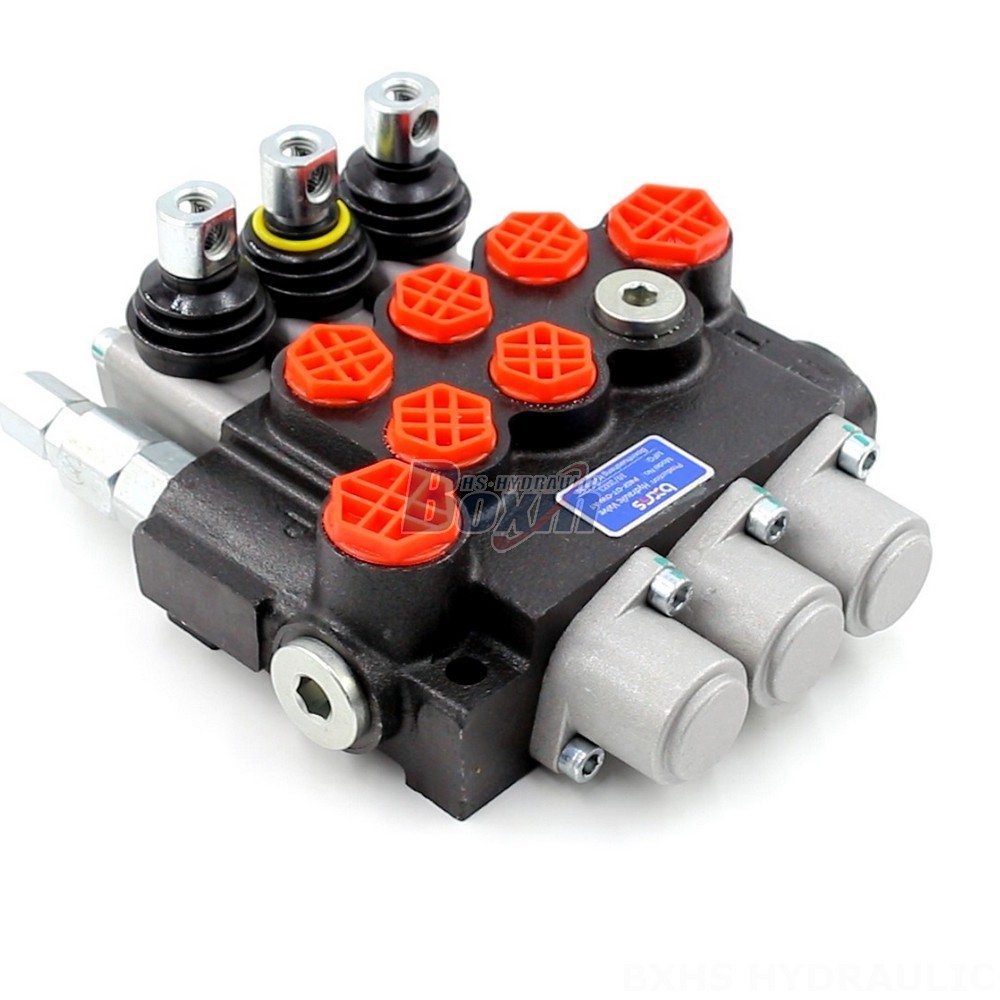

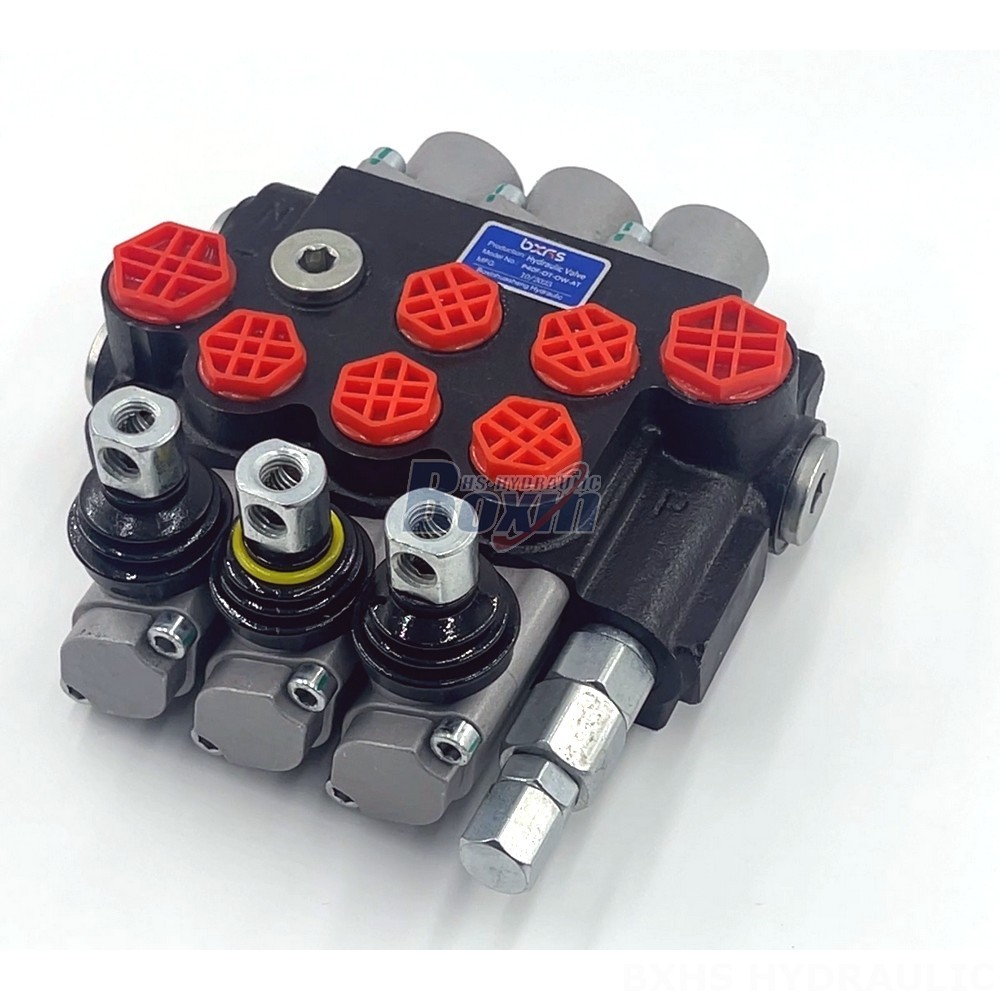

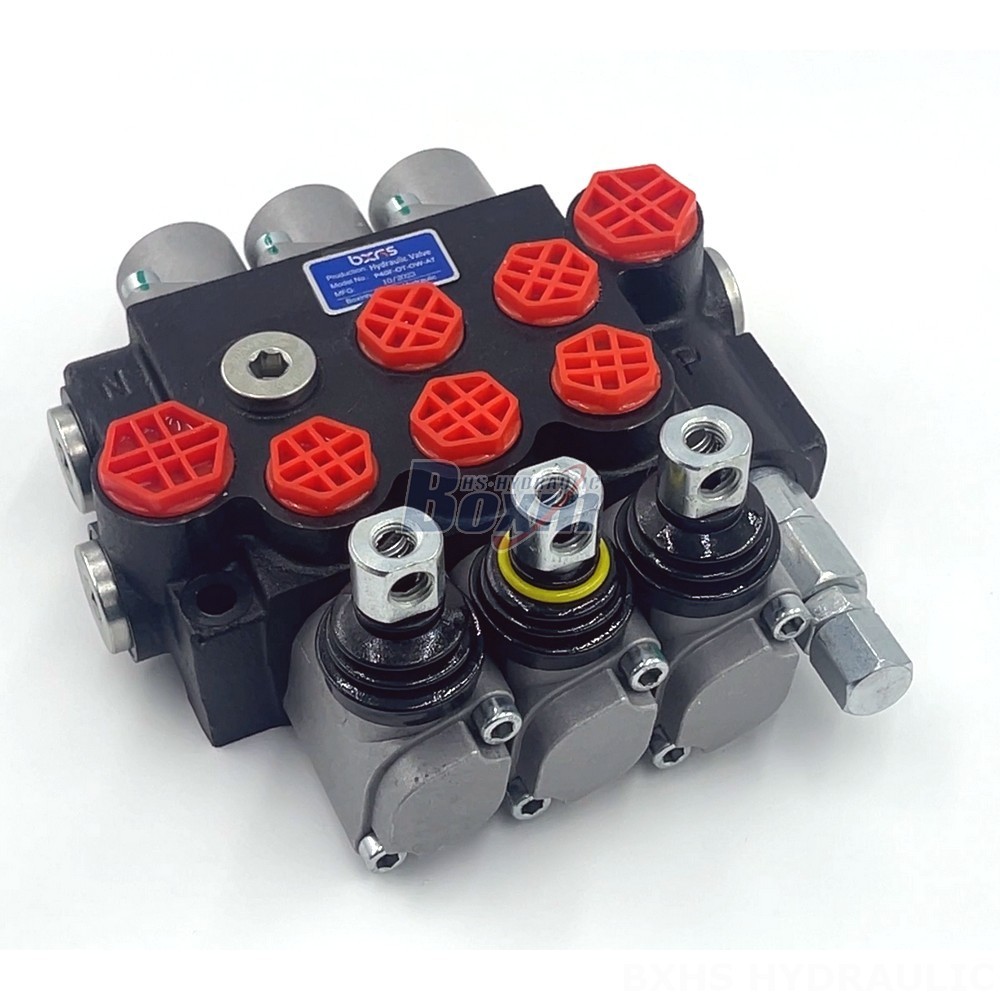

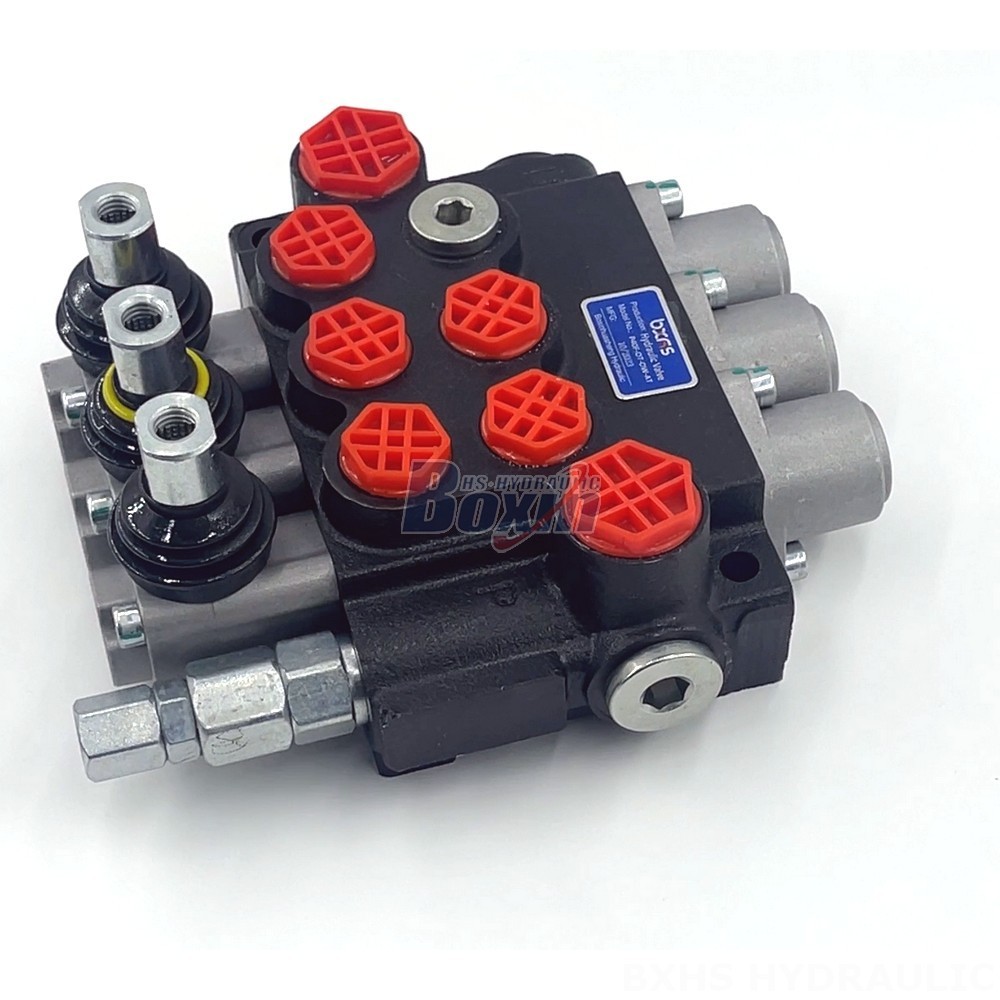

This hydraulic control valve is designed for use in tractor front end loaders and other material handling, construction, and agricultural equipment. It features a 3-section monoblock design with a rated flow of 40 L/min and a maximum pressure of 250 bar. This valve is suitable for a variety of applications, including telehandlers, forklifts, all terrain cranes, and more.

Serie P40 Válvula Direccional Monobloque Parámetros
Método de control Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable
Carrete 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes
Rango de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estructura Válvulas monobloc
Sección 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones
Rango de viscosidad de funcionamiento 15 - 75 mm²/s (15 cSt a 75 cSt)
Flujo Nominal 40 l/min (10,5 gal EE. UU./min)
Presión Máxima 250 bar (3600 psi)
Puerto de Entrada G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Puerto de Salida G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Tamaño de Puerto G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This high-quality hydraulic control valve is specifically designed for tractor front end loader applications. It features a 3-section monoblock valve construction, providing a compact and reliable solution for controlling hydraulic functions. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it offers robust performance for demanding operations. The valve is manually controlled, allowing for precise and intuitive operation. This P40 Series valve is suitable for a wide range of equipment used in material handling, construction, earth moving, agriculture, and industrial vehicles, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
