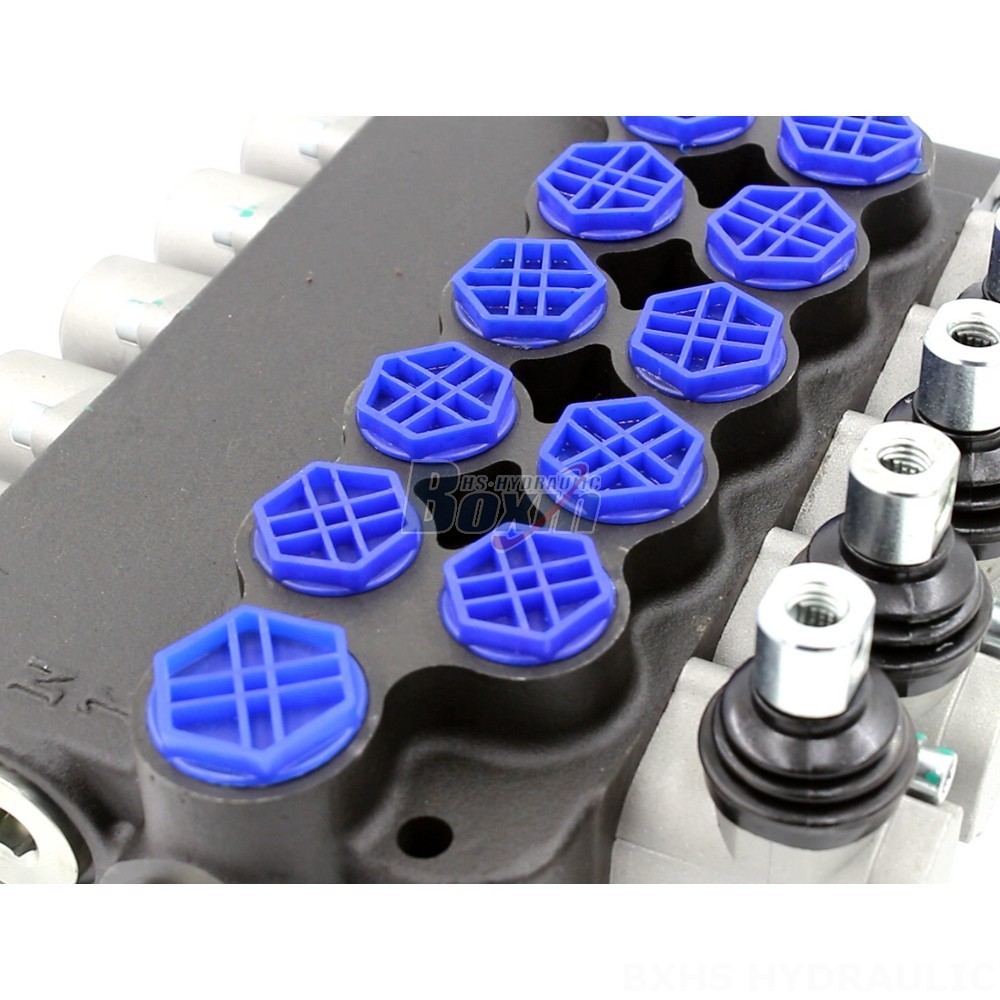

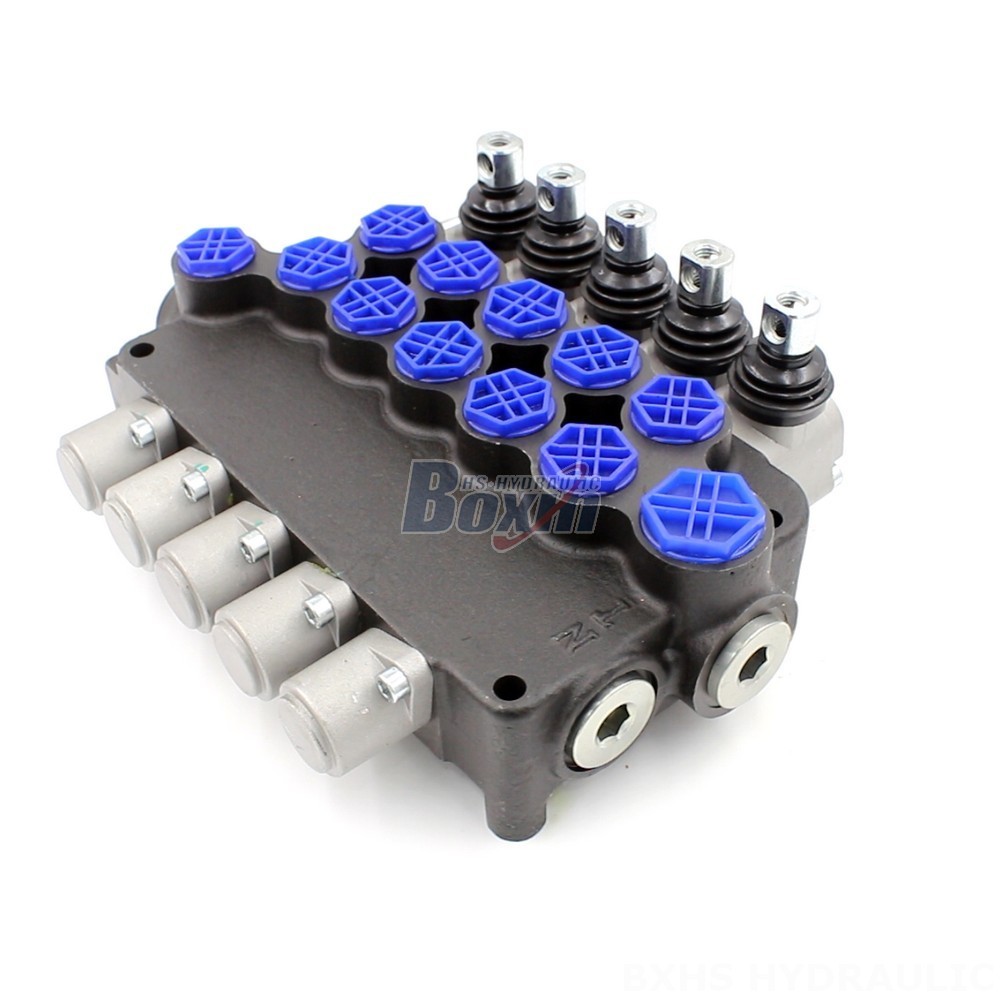

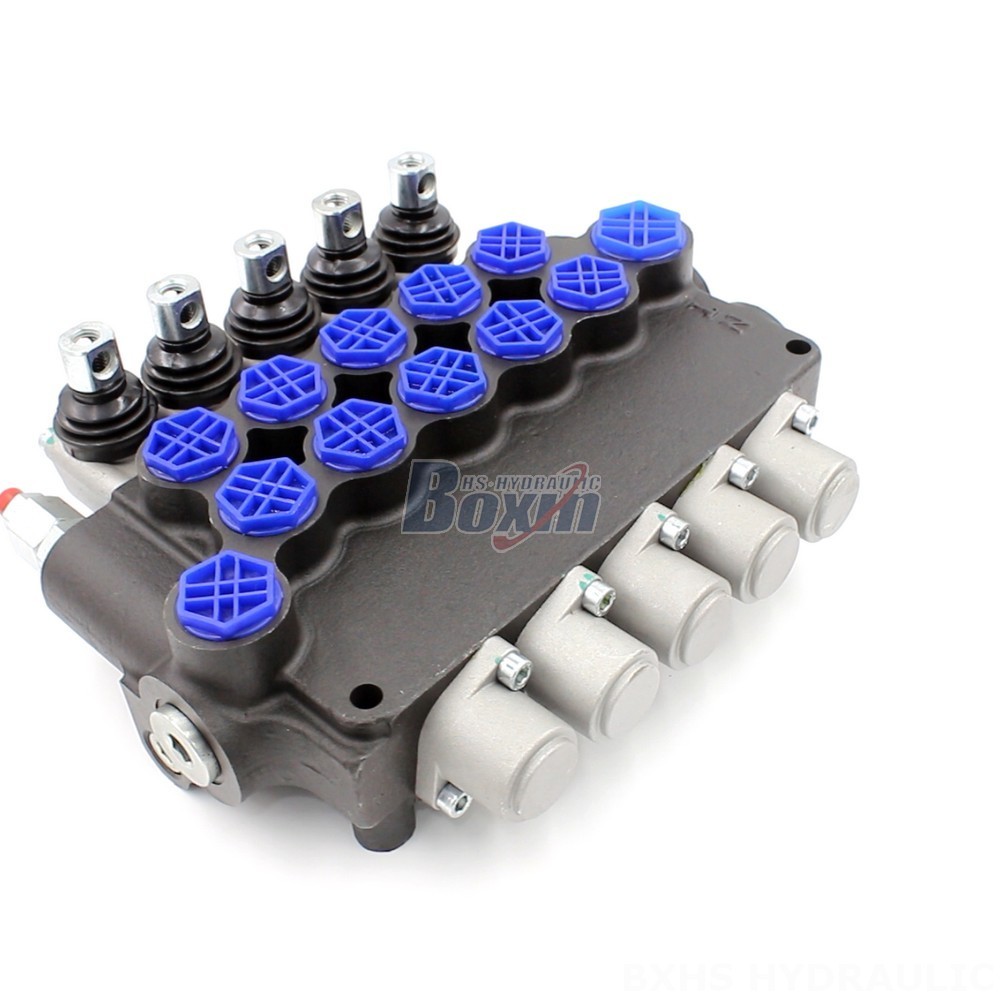

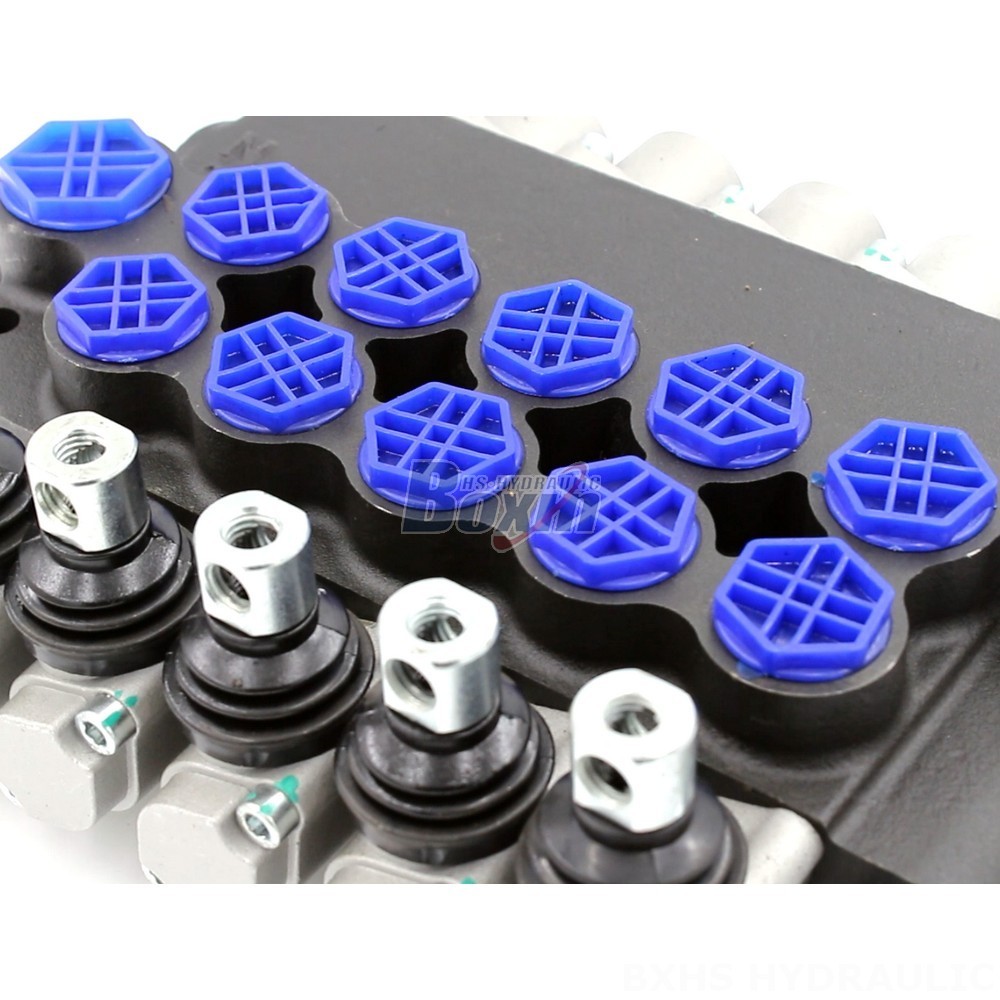

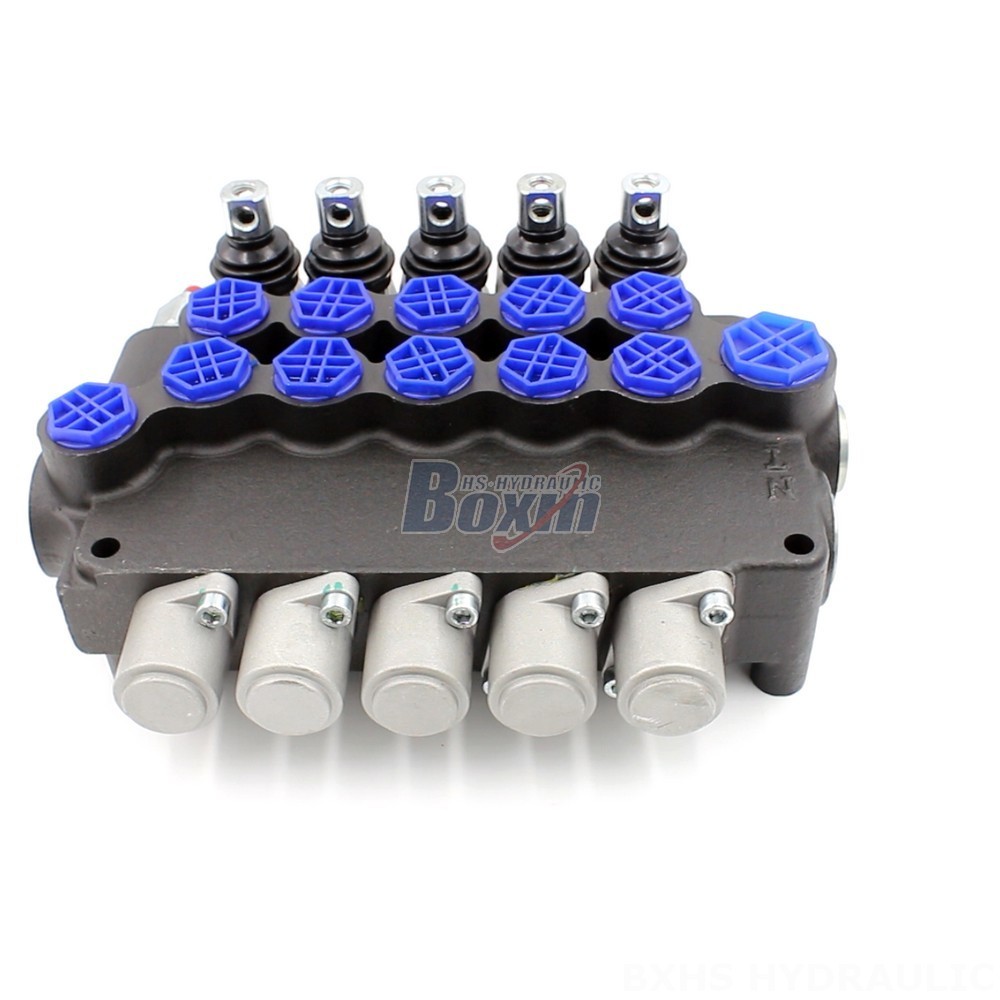

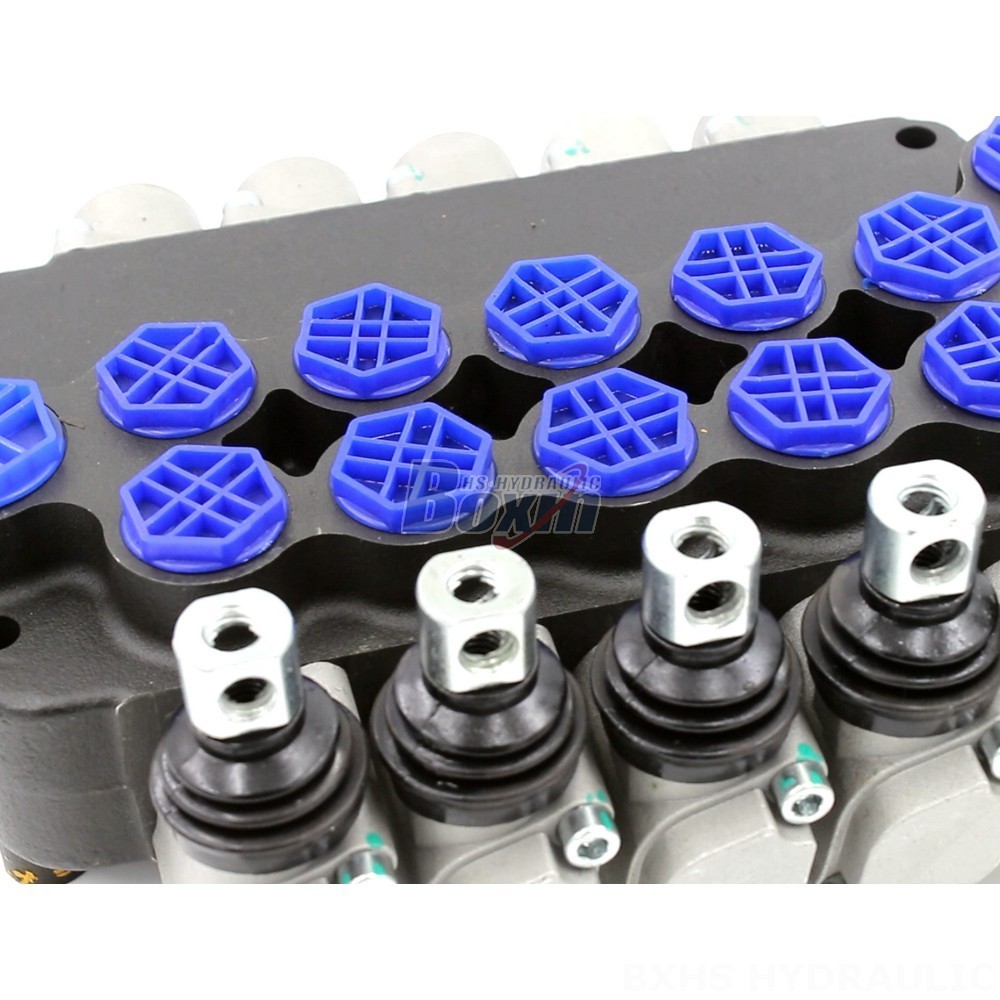

Hydraulic Control Valve | P80F-G34-OT Series Manufacturer

Método de control:Manual

Carrete:5 carretes

Flujo Nominal:80 l/min (21,2 gal EE. UU./min)

Presión Máxima:250 bar (3600 psi)

Puerto de Entrada:G3/4

Puerto de Salida:G3/4

Tamaño de Puerto:G3/4

Marca:BXHS

Tipo de producto:Válvula Direccional Monobloque

Serie de productos:Serie P80F Válvula Direccional Monobloque

Tamaño del embalaje:26*30*11

Peso bruto:16.00 kg

Disponibilidad: En stock

1223 personas están viendo este producto

Hydraulic Control Valve | P80F-G34-OT Series Manufacturer

Hydraulic Control Valve | P80F-G34-OT Series Manufacturer

Hydraulic Control Valve | P80F-G34-OT Series Manufacturer drawing image

The P80F-G34-OT Series Electro Hydraulic Proportional Valve is a high-performance, 5-section, monoblock valve designed for heavy-duty applications in material handling, construction, and industrial vehicles. This valve features a rated flow of 80 L/min (21.2 US gpm), a maximum pressure of 250 bar (3600 psi), and a wide operating viscosity range. With its manual control and robust design, it provides reliable and precise control for a variety of applications.

Serie P80F Válvula Direccional Monobloque Parámetros
Carrete 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes
Método de control Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick
Tamaño de Puerto G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Sección 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones
Rango de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Rango de viscosidad de funcionamiento 15 - 75 mm²/s (15 cSt a 75 cSt)
Puerto de Salida G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT
Presión Máxima 315 bar (4600 psi)
Flujo Nominal 80 l/min (21,2 gal EE. UU./min)
Tipo de estructura Válvulas monobloc
Puerto de Entrada G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

The P80F-G34-OT Series Electro Hydraulic Proportional Valve is a high-performance, 5-section, monoblock valve designed for heavy-duty applications in material handling, construction, and industrial vehicles. This valve features a rated flow of 80 L/min (21.2 US gpm), a maximum pressure of 250 bar (3600 psi), and a wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). Its manual control allows for precise operation, while its robust construction ensures durability and reliability in demanding environments. The P80F Series is suitable for a wide range of applications, including telehandlers, forklifts, all terrain cranes, stackers, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, backhoe loaders, harvesters, and bale wrappers. With its customizable features and high performance, this valve is an ideal choice for manufacturers and users seeking reliable and efficient hydraulic control solutions.
