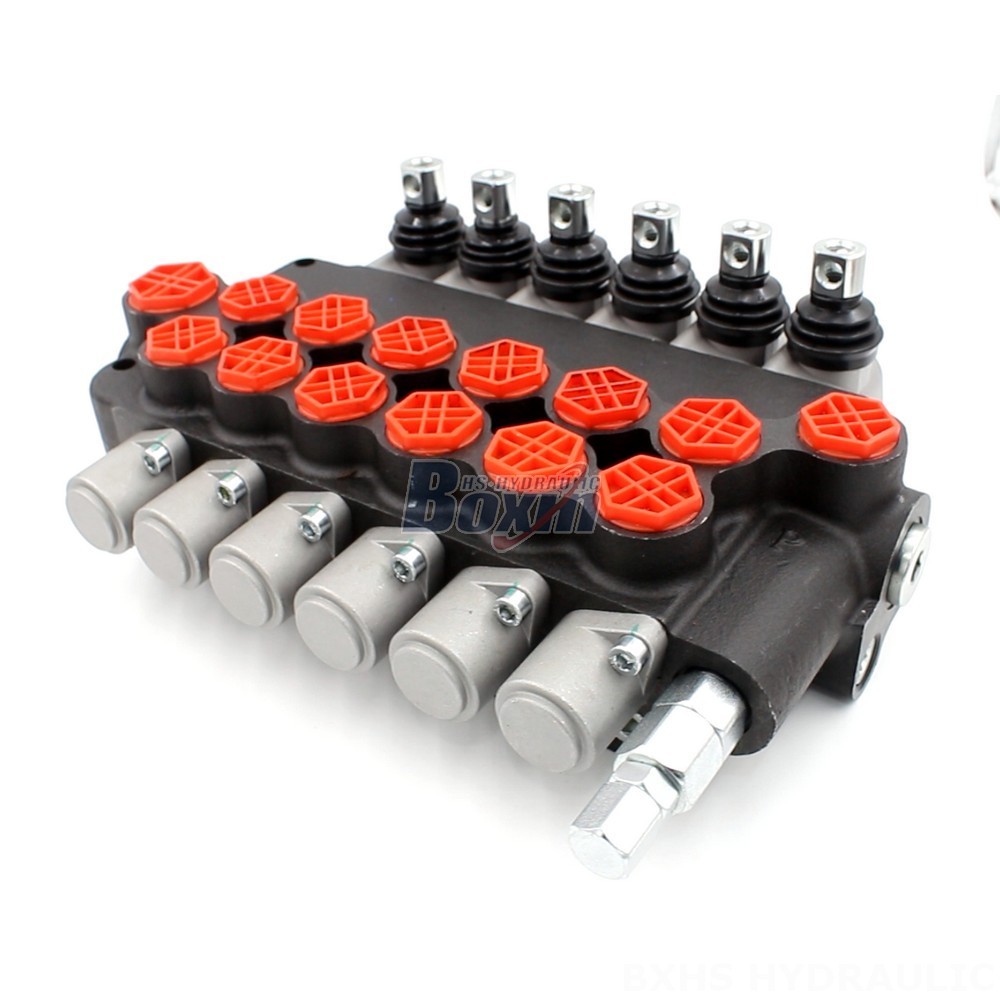

The P80-G12-G34-OT is a high-performance 6-spool hydraulic directional control valve designed for demanding applications in material handling, construction, and agriculture. Featuring a robust monoblock design, it offers high flow rates and pressure capabilities for efficient operation.
| Serie P80 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 80 l/min (21,2 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Puerto de Salida | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamaño de Puerto | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This 6-section, manually controlled directional control valve from the P80 series is a powerful solution for various mobile equipment. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it is suitable for applications in telehandlers, forklifts, motor graders, excavators, skid steers, wheel loaders, backhoe loaders, tractors, front-end loaders, and harvesters. The valve's robust monoblock construction ensures high reliability and durability even in challenging environments. It is designed for operating temperatures ranging from -40°C to +80°C, making it suitable for diverse climates. Its efficient design and high performance make it an ideal choice for demanding hydraulic applications.
