High-Performance P81 Valve for Demanding Hydraulic Applications

Método de control:Manual

Carrete:1 carrete

Flujo Nominal:80 l/min (21,2 gal EE. UU./min)

Presión Máxima:Presión máxima

Puerto de Entrada:G1/2

Puerto de Salida:G3/4

Tamaño de Puerto:G3/4

Marca:BXHS

Tipo de producto:Válvula para divisor de troncos

Serie de productos:Serie P81 Válvula para divisor de troncos

Tamaño del embalaje:27*16*12

Peso bruto:4.80 kg

Disponibilidad: En stock

1685 personas están viendo este producto

High-Performance P81 Valve for Demanding Hydraulic Applications

High-Performance P81 Valve for Demanding Hydraulic Applications

High-Performance P81 Valve for Demanding Hydraulic Applications drawing image

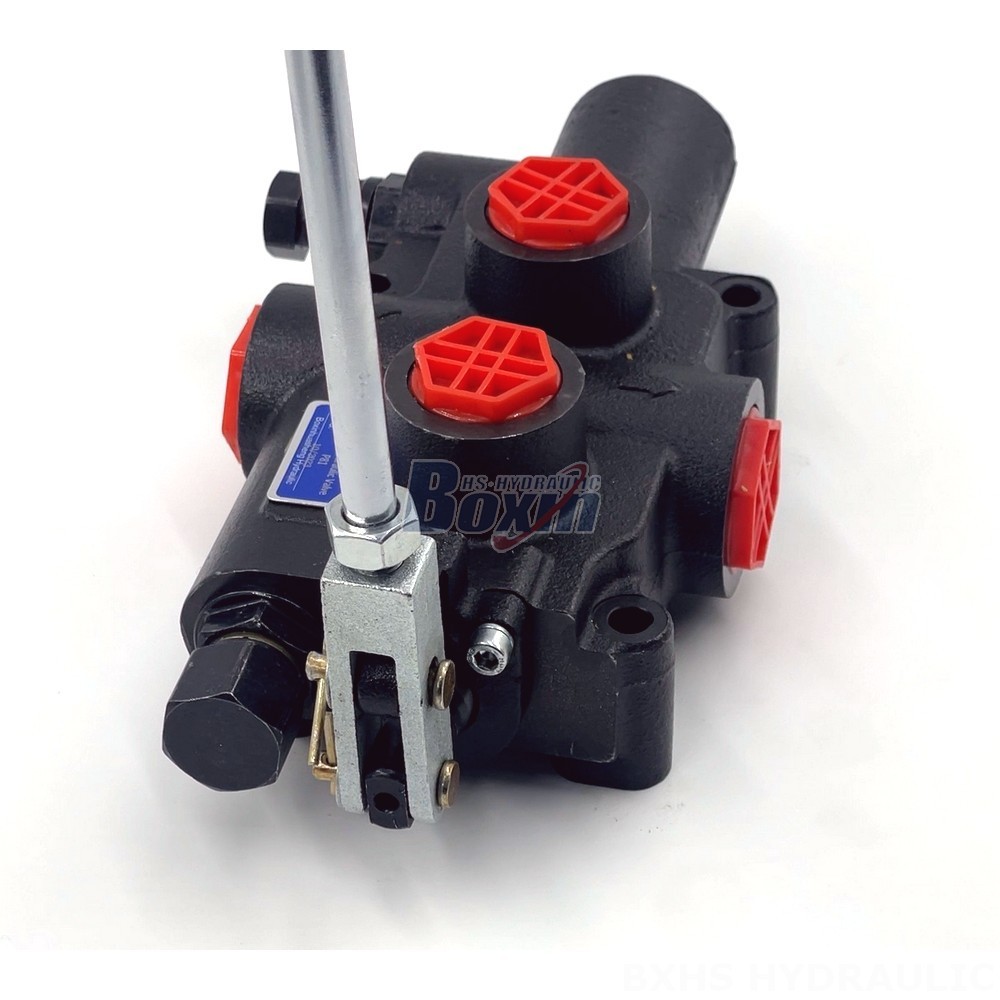

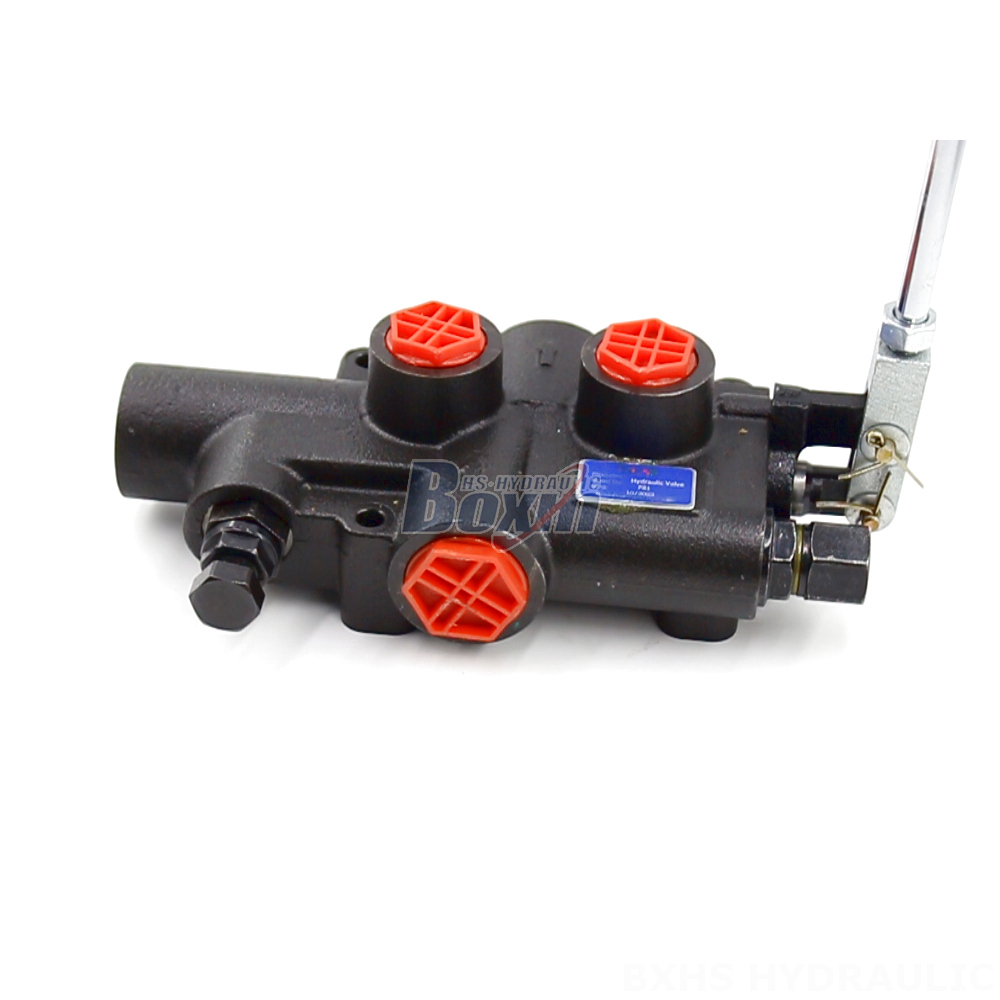

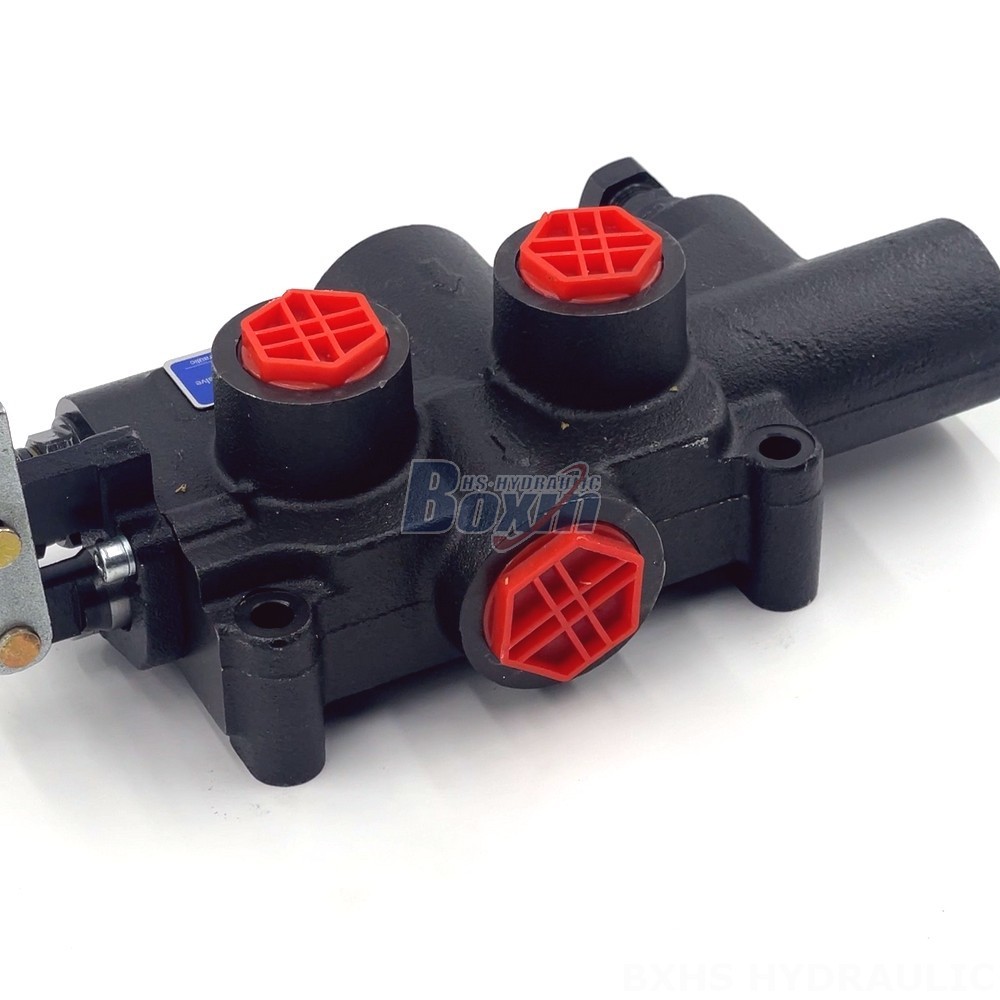

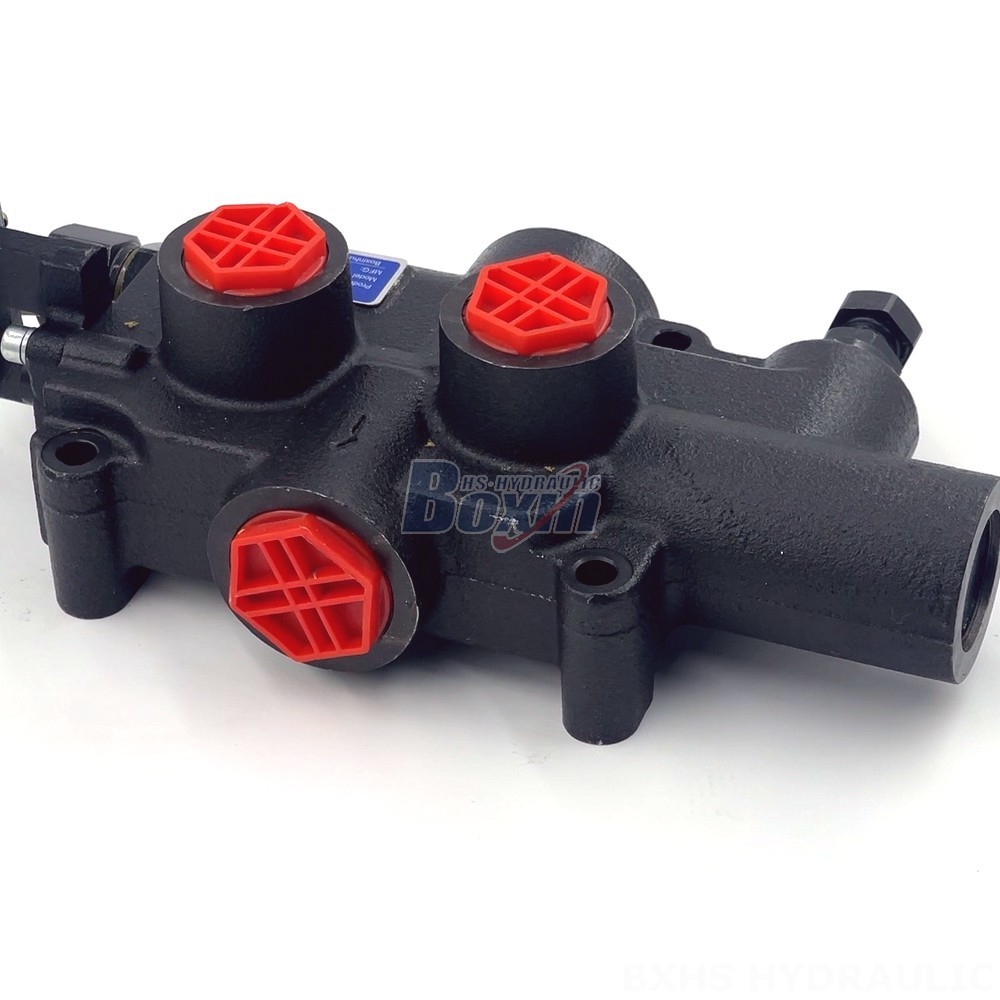

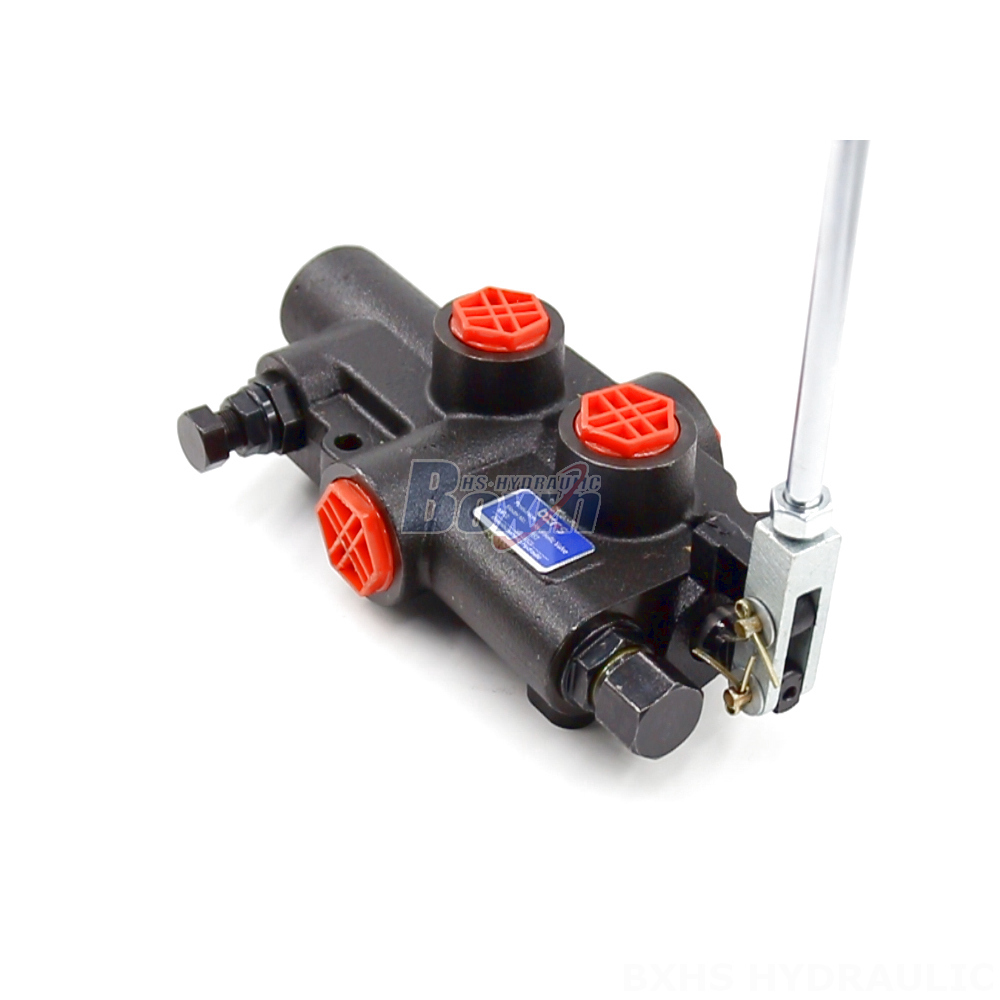

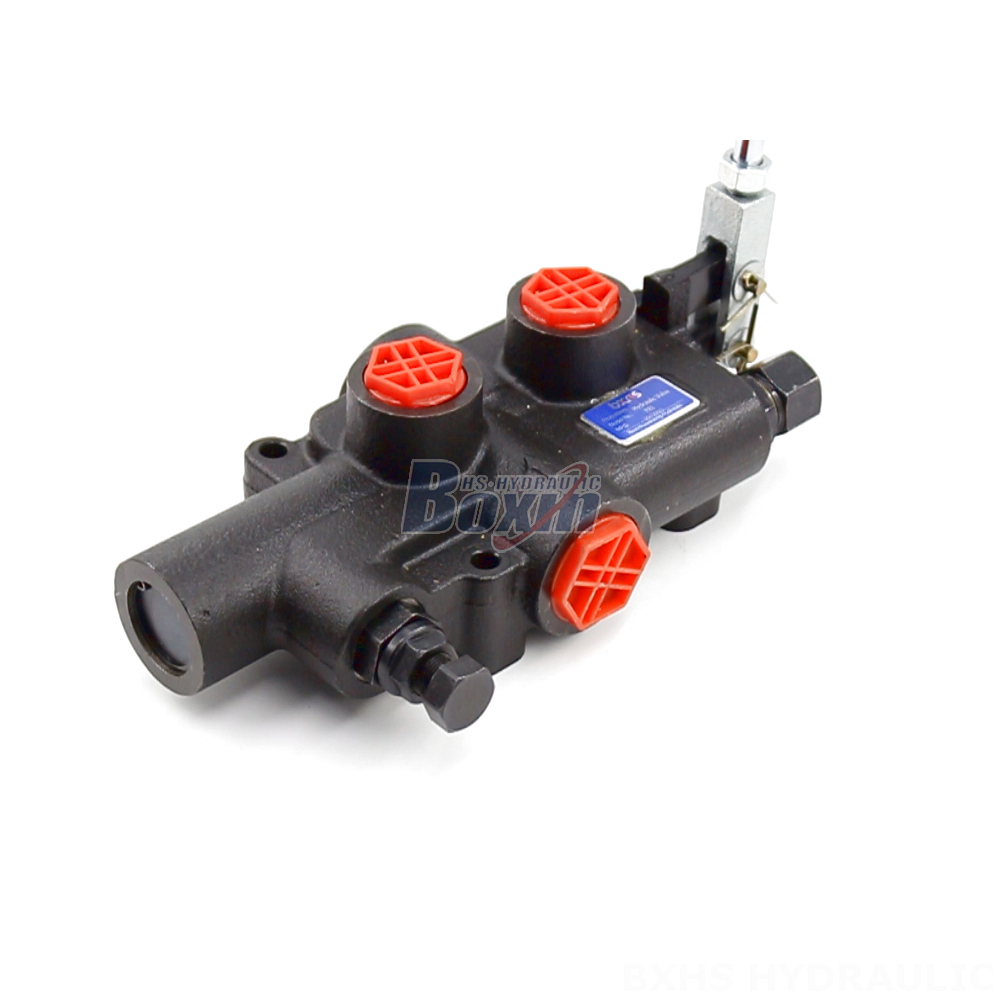

The P81 Series Multiway Directional Valve is a high-performance hydraulic valve designed for demanding applications in industrial vehicles, particularly wood splitters. This manual control valve features a monoblock structure and delivers a rated flow of 80 L/min (21.2 US gpm) at a maximum pressure of 250 bar (3600 psi).

Serie P81 Válvula para divisor de troncos Parámetros
Método de control Manual
Carrete 1 carrete
Rango de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estructura Válvulas monobloc
Sección 1 sección
Rango de viscosidad de funcionamiento 15 - 75 mm²/s (15 cSt a 75 cSt)
Flujo Nominal 80 l/min (21,2 gal EE. UU./min), 95 l/min (25,1 gal EE. UU./min)
Presión Máxima Presión máxima
Puerto de Entrada G1/2
Puerto de Salida G1/2
Tamaño de Puerto G3/4

The P81 Series Multiway Directional Valve is a robust and reliable solution for controlling hydraulic systems in demanding industrial applications. This high-performance valve is specifically designed for wood splitters, offering superior control and efficiency. Its monoblock construction provides durability and strength, ensuring long-lasting performance. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure rating of 250 bar (3600 psi), the P81 valve is capable of handling high-pressure hydraulic systems. The valve operates within a wide viscosity range (15 - 75 mm²/s) and can withstand temperatures from -40°C to +80°C. Its kick-out setting pressure is adjustable between 70~140bar (1015-2030psi), providing precise control and safety. The P81 Series Multiway Directional Valve is an ideal choice for manufacturers and users of industrial vehicles and equipment requiring a high-performance, reliable, and durable hydraulic valve solution.
