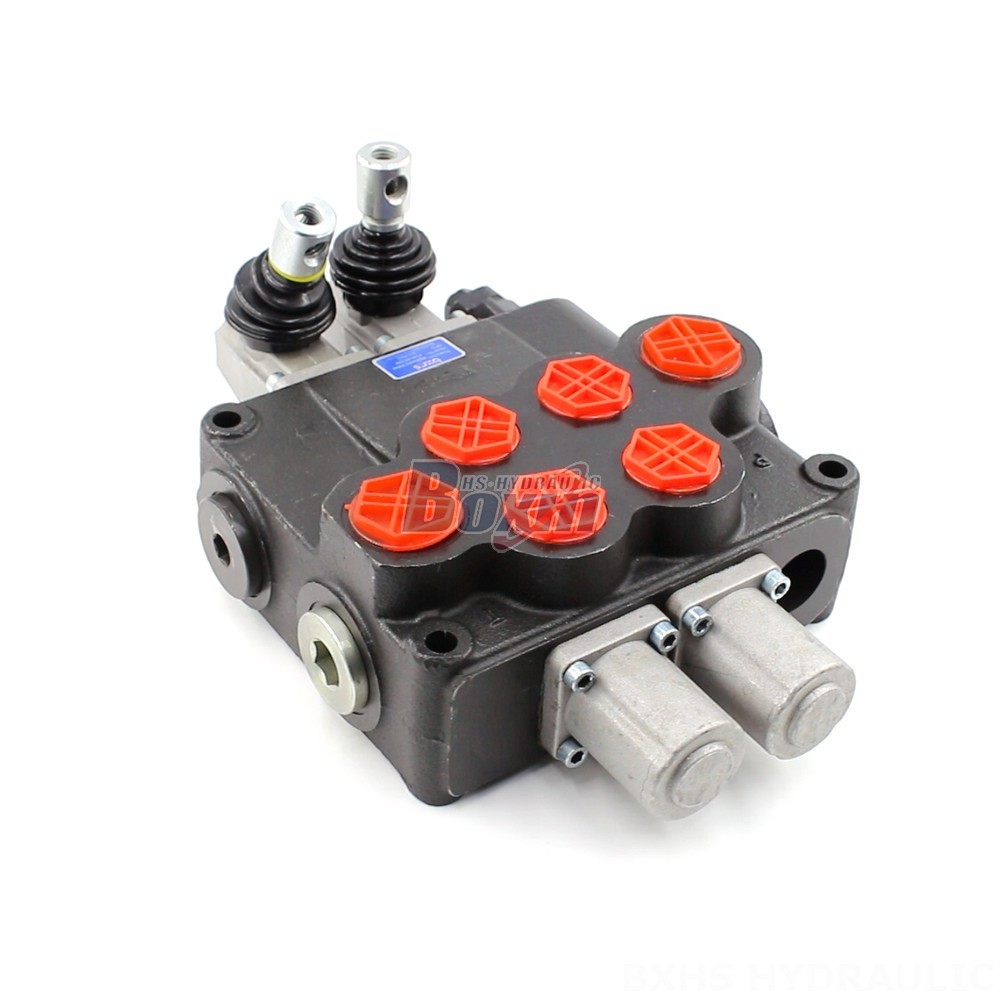

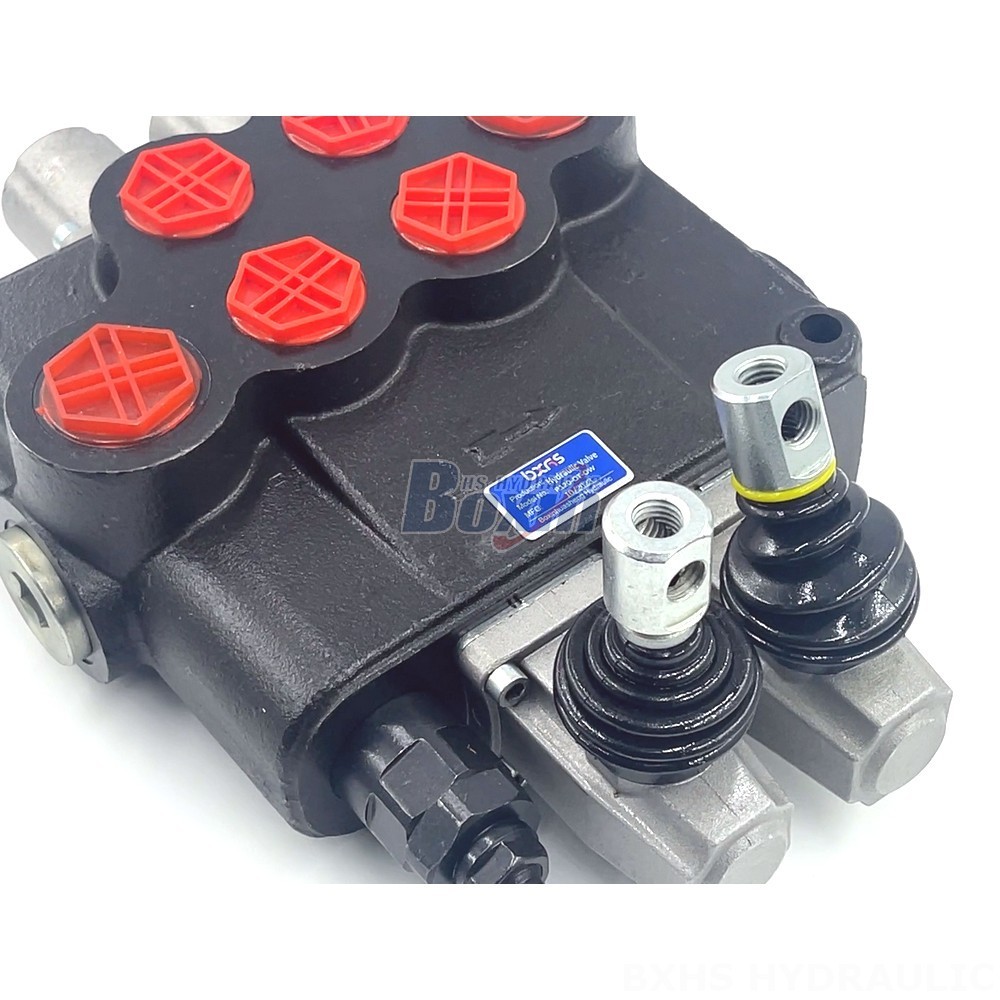

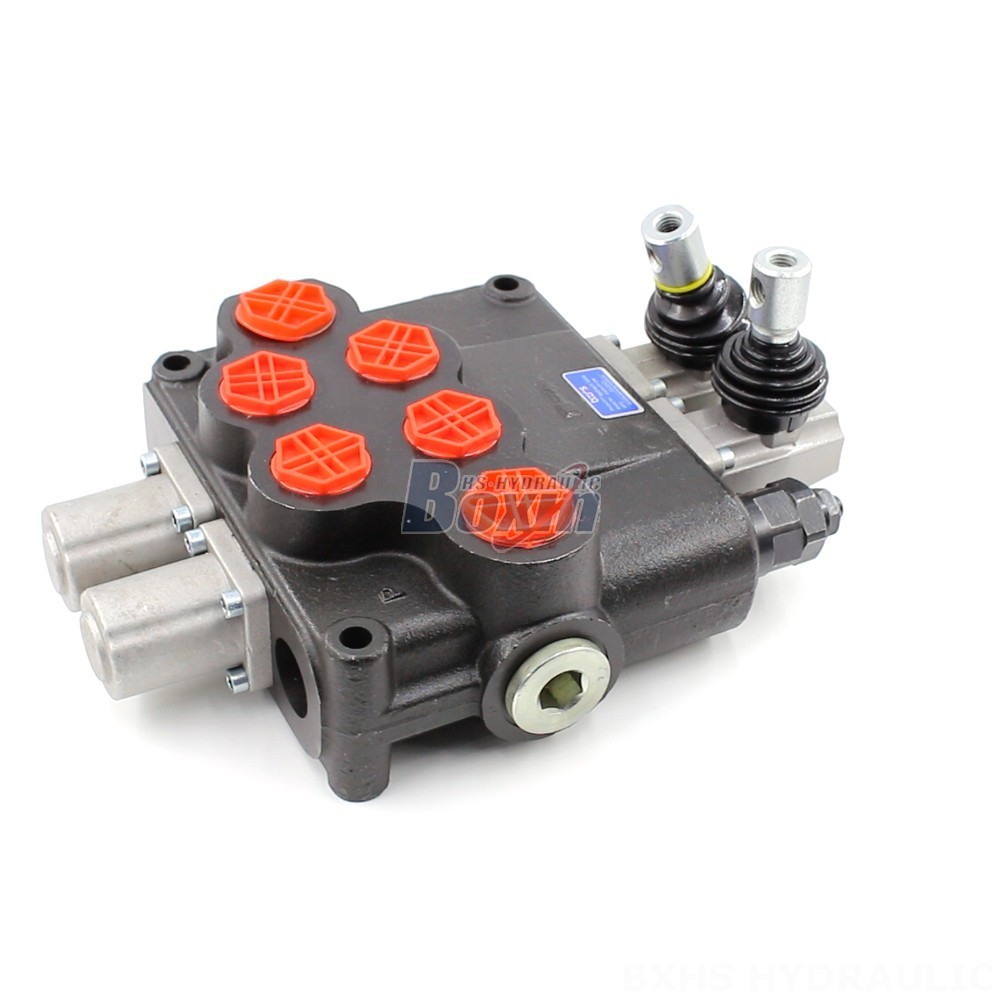

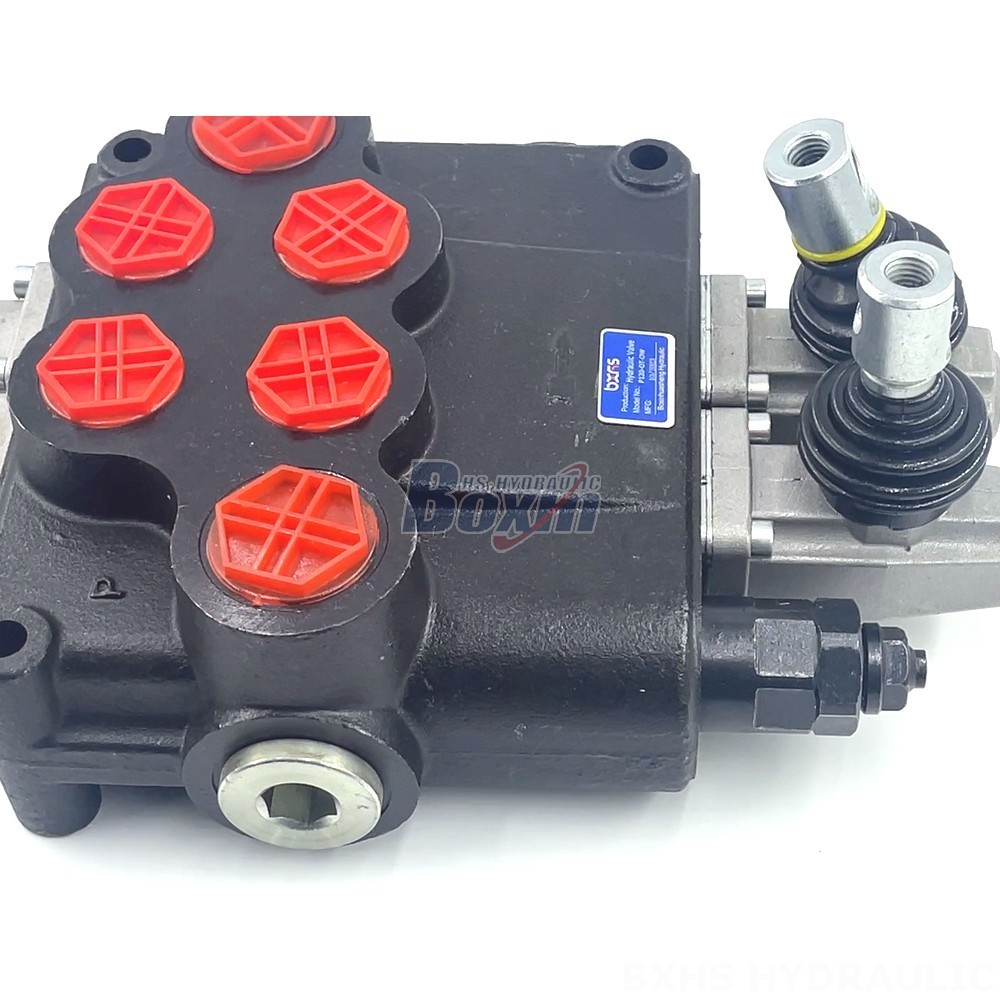

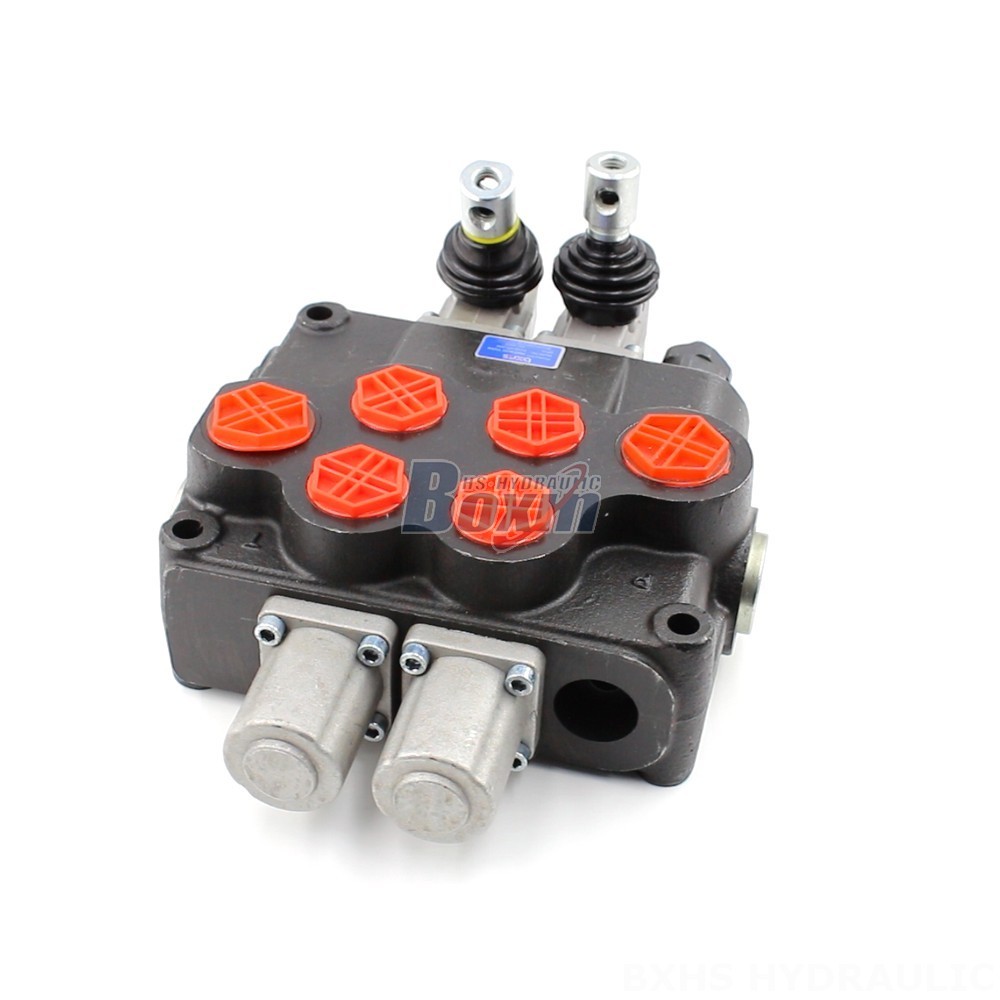

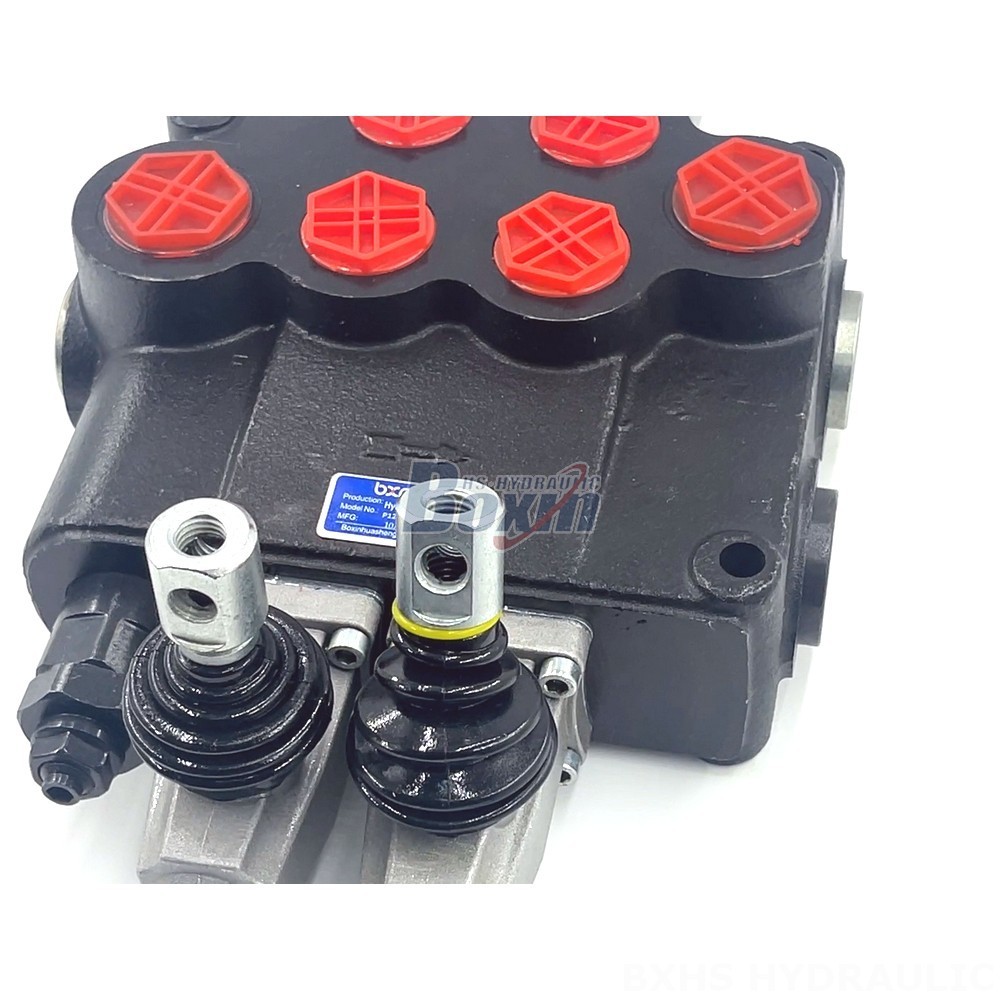

The Rexroth P120 Directional Spool Valve is a high-performance hydraulic valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. This 2-section monoblock valve offers a rated flow of 120 L/min and a maximum pressure of 250 bar.
| Serie P120 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes |
| Flujo Nominal | 120 L/min (31.7 US gpm) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Puerto de Salida | G1, SAE 16, 1 NPT, M36×2 |
| Tamaño de Puerto | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones |
| Tipo de estructura | Válvulas monobloc |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
The Rexroth P120 Directional Spool Valve is a robust and reliable hydraulic valve ideal for a variety of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. This high-performance valve features a manual control method, a 2-section design, and a monoblock structure for increased durability. With a rated flow of 120 L/min and a maximum pressure of 250 bar, the P120 valve is designed to handle demanding hydraulic applications. The valve also features a wide operating viscosity range (15-75 mm²/s) and an ambient temperature range of -40°C to +80°C, making it suitable for use in a variety of climates and environments.
