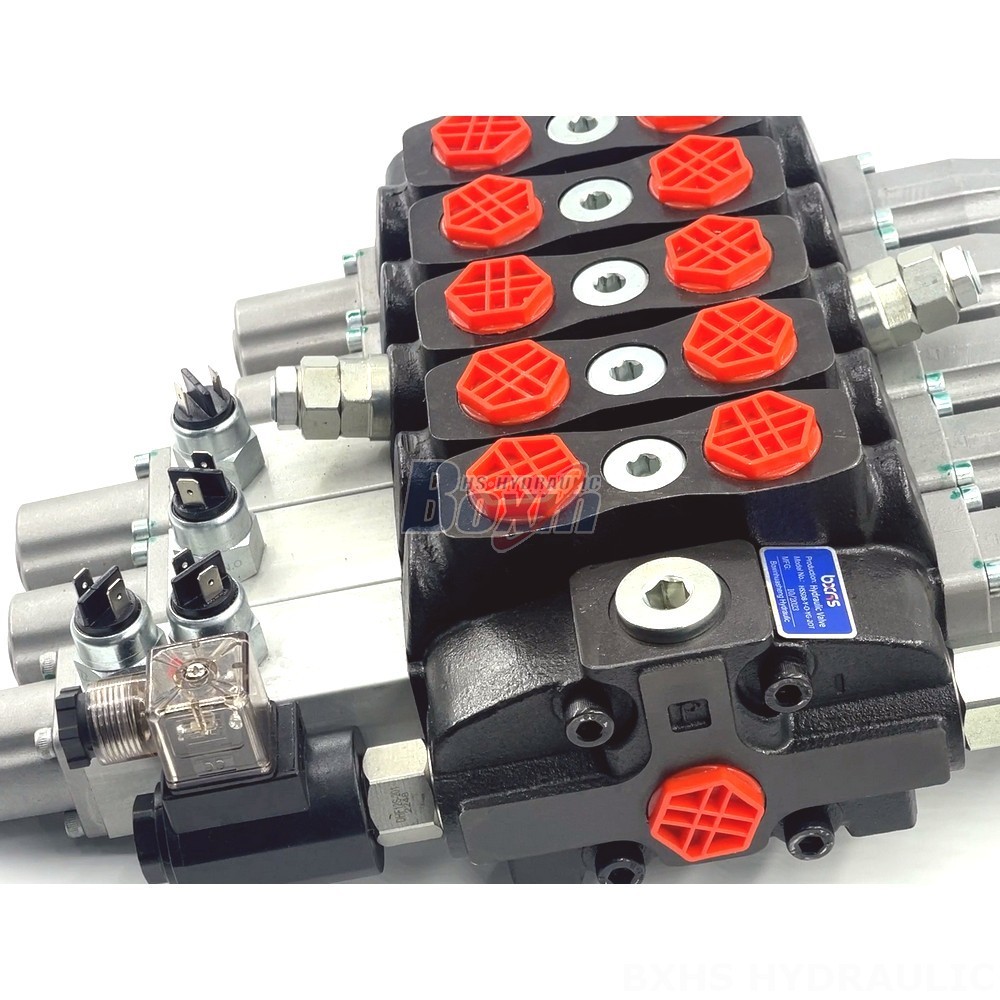

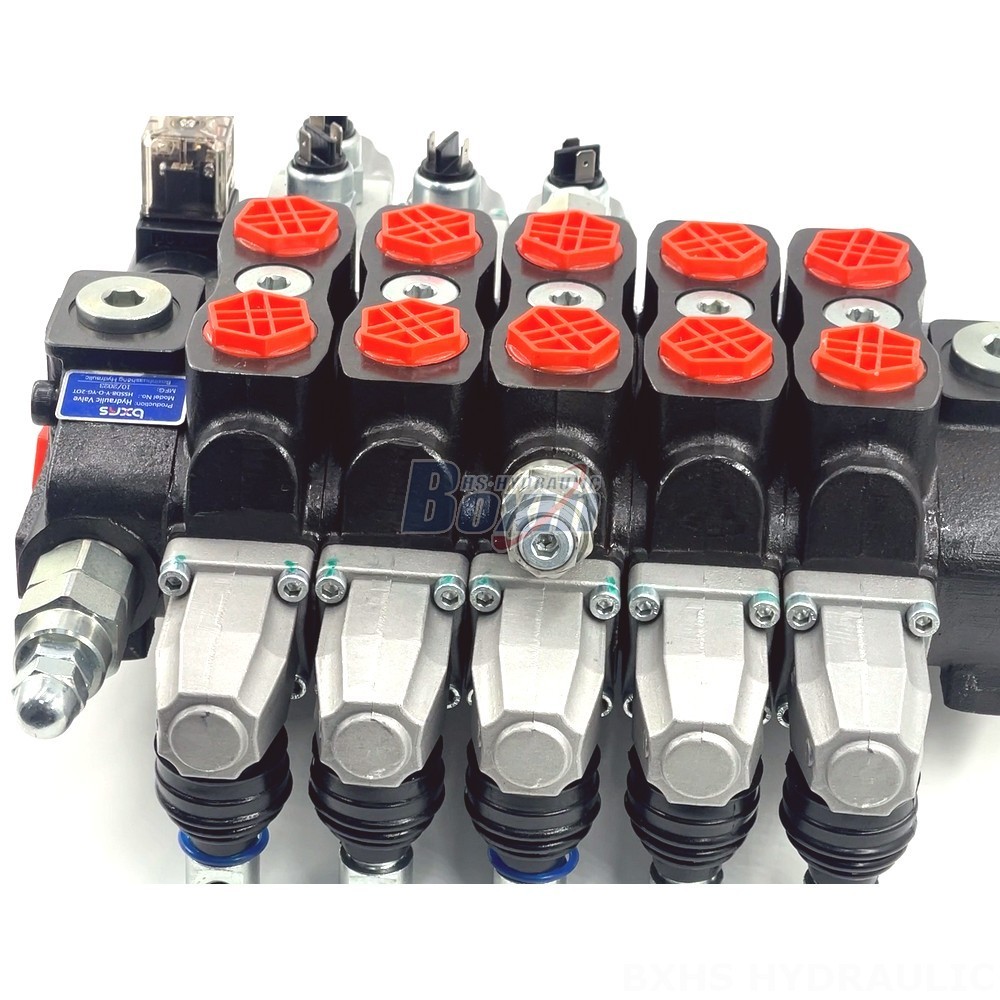

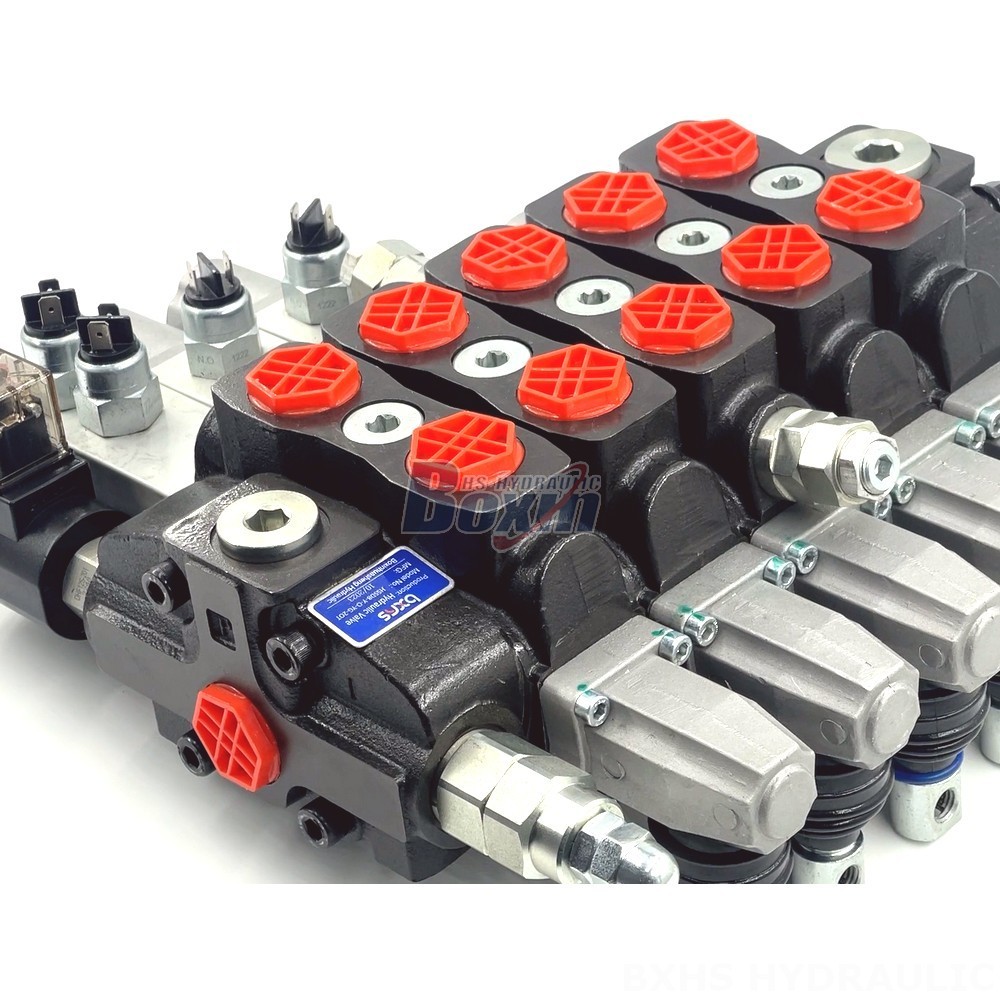

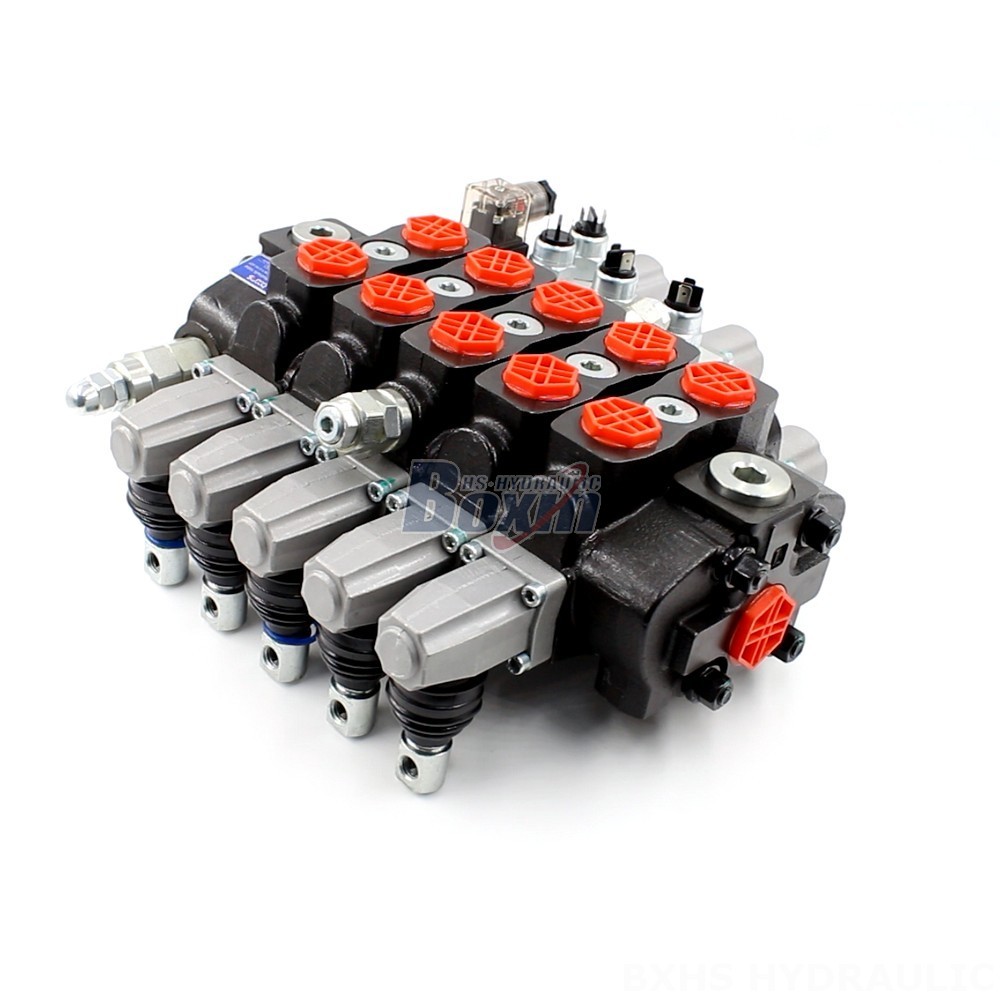

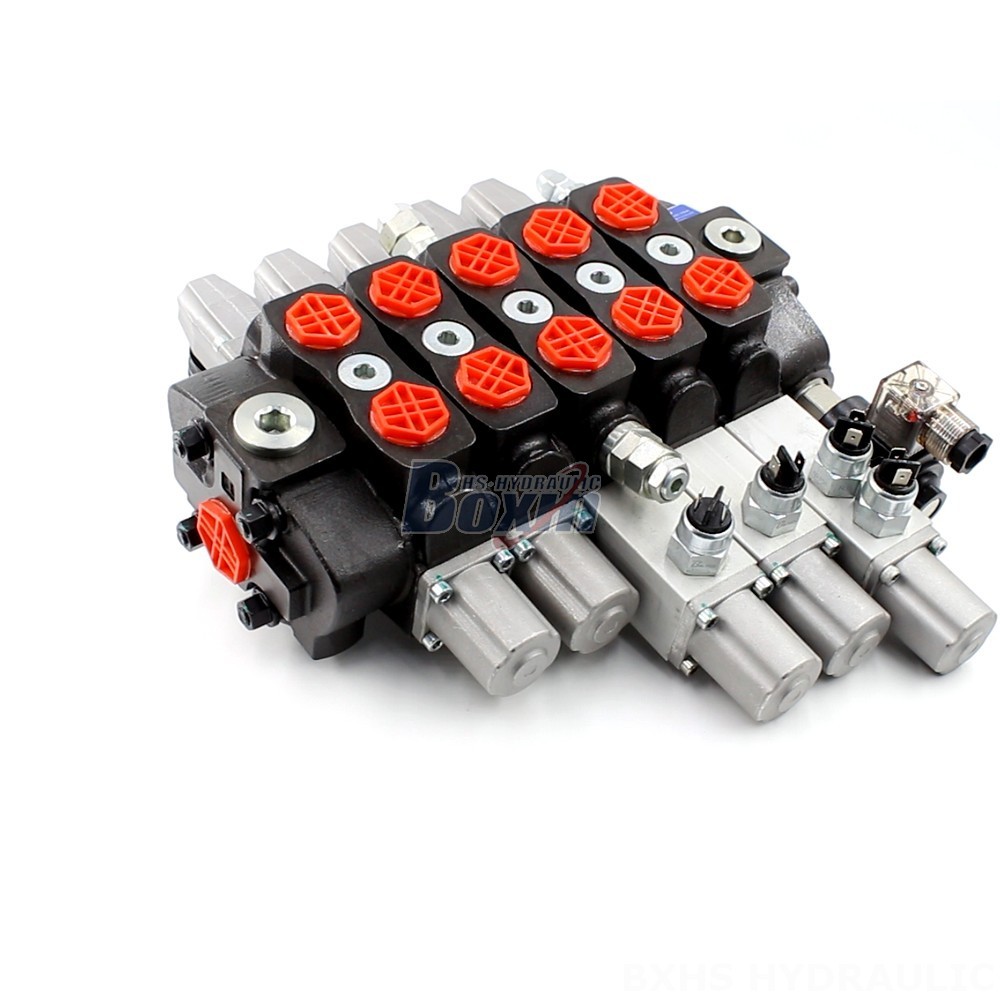

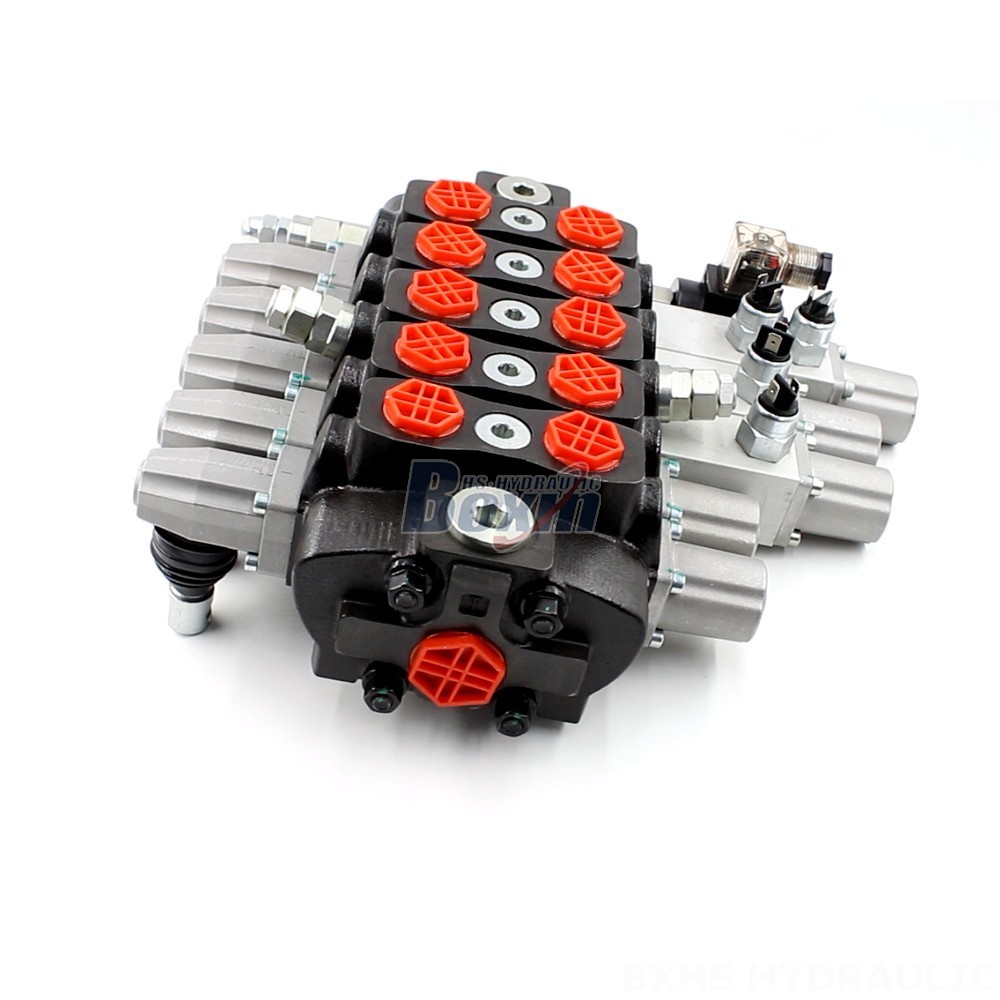

High-Performance Manual 5 Spool Sectional Directional Valve

Método de control:Manual

Carrete:5 carretes

Flujo Nominal:90 l/min (23,8 gal EE. UU./min)

Presión Máxima:315 bar (4600 psi)

Puerto de Entrada:G1/2

Puerto de Salida:G3/4

Tamaño de Puerto:G1/2

Marca:BXHS

Tipo de producto:Válvula direccional seccional

Serie de productos:Serie SD8 Válvula direccional seccional

Tamaño del embalaje:35*40*17

Peso bruto:25.00 kg

Disponibilidad: En stock

2090 personas están viendo este producto

High-Performance Manual 5 Spool Sectional Directional Valve

High-Performance Manual 5 Spool Sectional Directional Valve

High-Performance Manual 5 Spool Sectional Directional Valve drawing image

This is a high-performance manual 5 spool sectional directional valve designed for excavators and other heavy equipment. It features a rated flow of 90 L/min and a maximum pressure of 350 bar, making it ideal for demanding applications.

Serie SD8 Válvula direccional seccional Parámetros
Método de control Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Motor eléctrico
Carrete 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes, 8 carretes, 9 carretes, 10 carretes
Rango de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estructura Válvulas seccionales
Sección 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones, 8 secciones, 9 secciones, 10 secciones
Rango de viscosidad de funcionamiento 12 - 400 mm²/s (12 cSt a 400 cSt)
Flujo Nominal 90 l/min (23,8 gal EE. UU./min)
Presión Máxima 315 bar (4600 psi)
Puerto de Entrada G1/2, G3/4, M22×1.5, SAE 10
Puerto de Salida G1/2, G3/4, M27×2.0, SAE 10, 3/4 NPT
Tamaño de Puerto G1/2, M22×1.5, SAE 10

Our Excavator Joystick Hydraulic Valve is a high-performance, manually controlled, 5 spool sectional directional valve. It is designed for demanding applications in the construction, material handling, agriculture, and industrial vehicle sectors. This valve offers a rated flow of 90 L/min and a maximum pressure of 350 bar. It is suitable for a wide range of applications, including excavators, forklifts, telehandlers, mini-excavators, midi-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, and harvesters. The valve features a robust construction and reliable performance, ensuring long-lasting operation. With its 5 spool design, it offers precise control and responsiveness. This valve is an excellent choice for any application requiring high performance and reliable hydraulic control.
