Producción y entrega
Plazo de ejecución de producción de 15 a 30 días
La innovación impulsa el desarrollo; tecnología forja futuro
1424 personas están viendo este producto

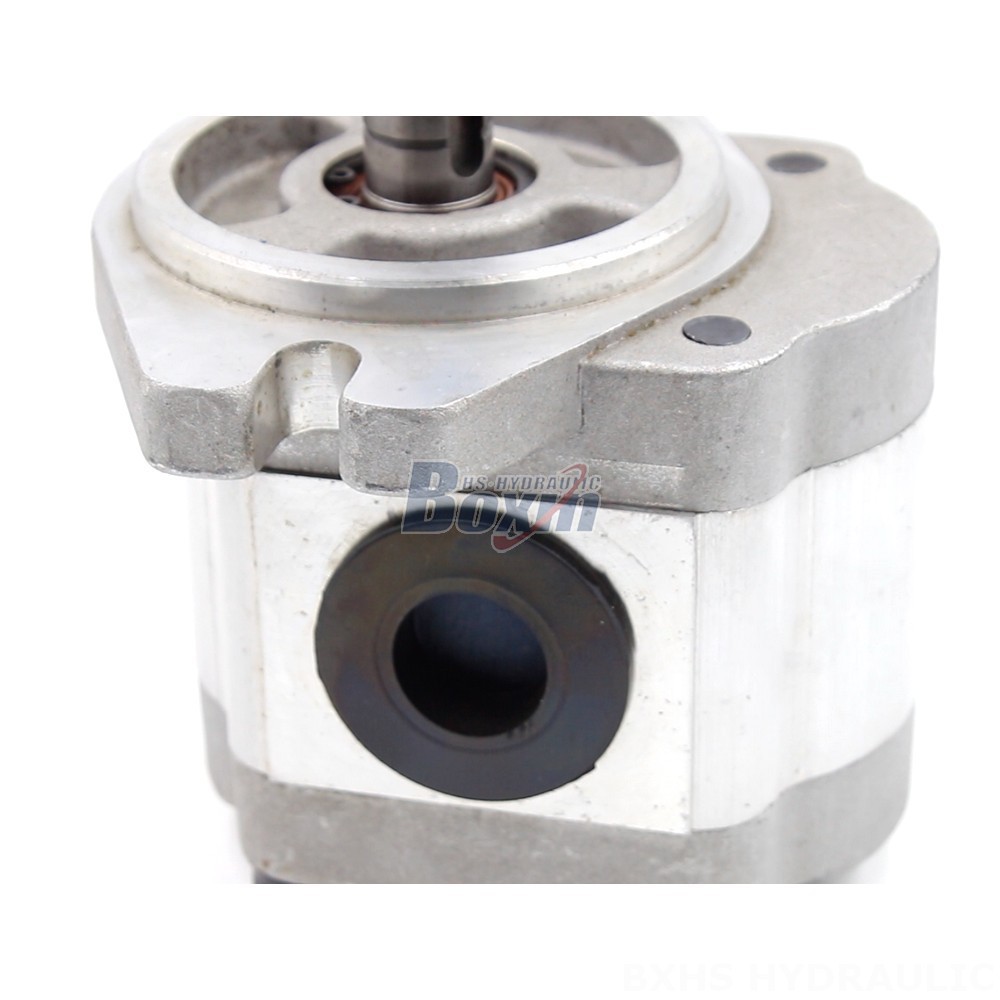

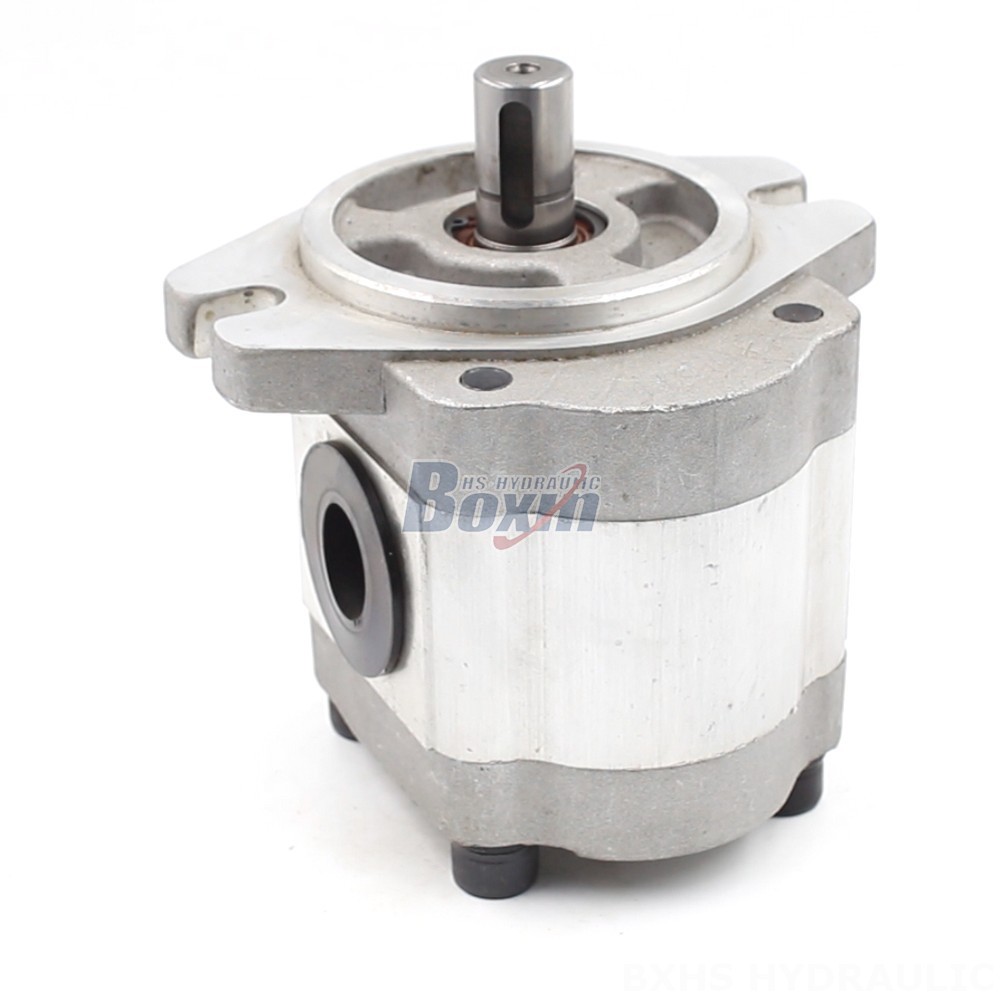

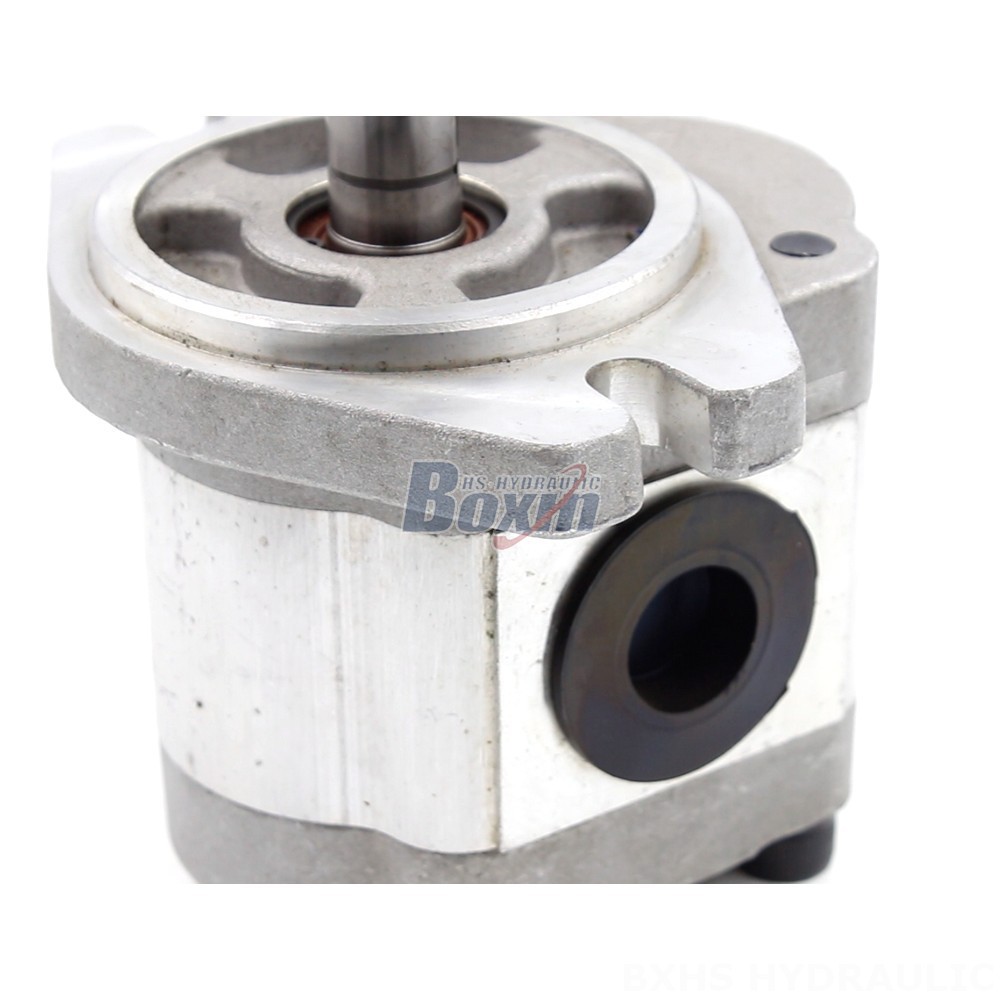

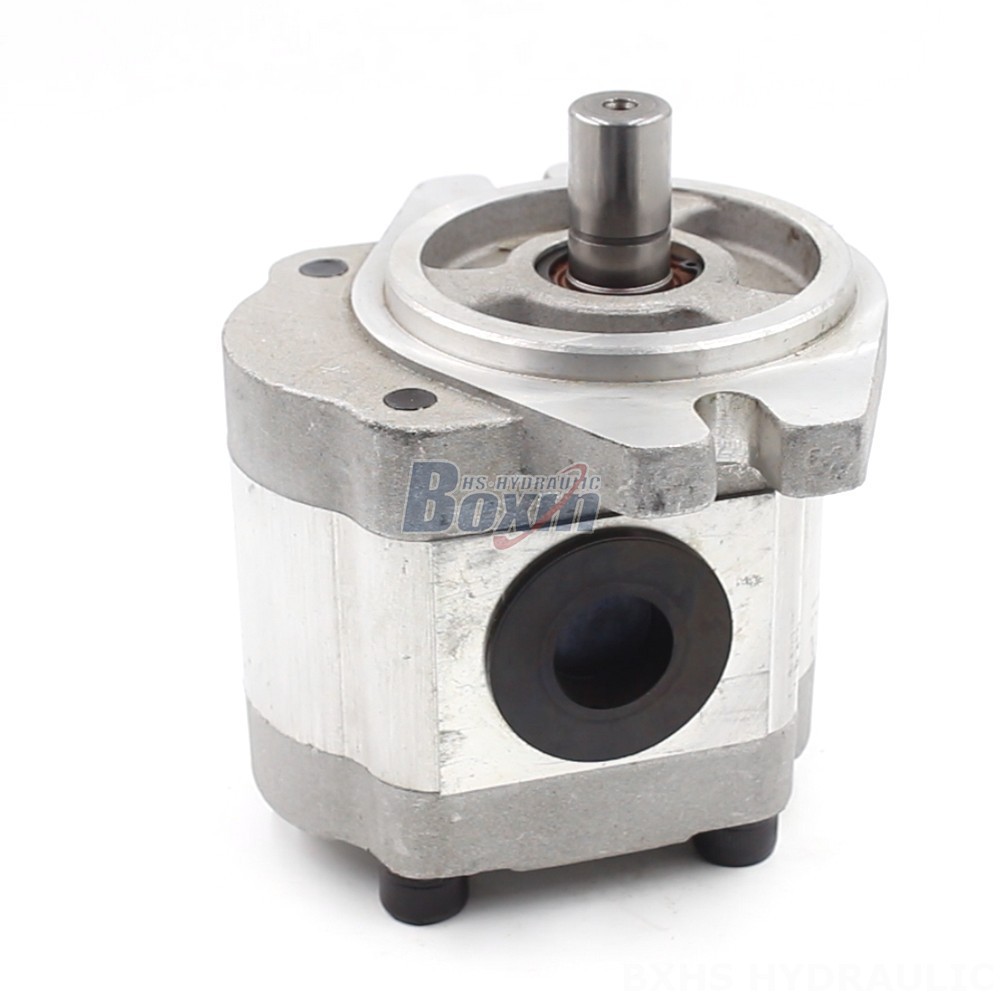

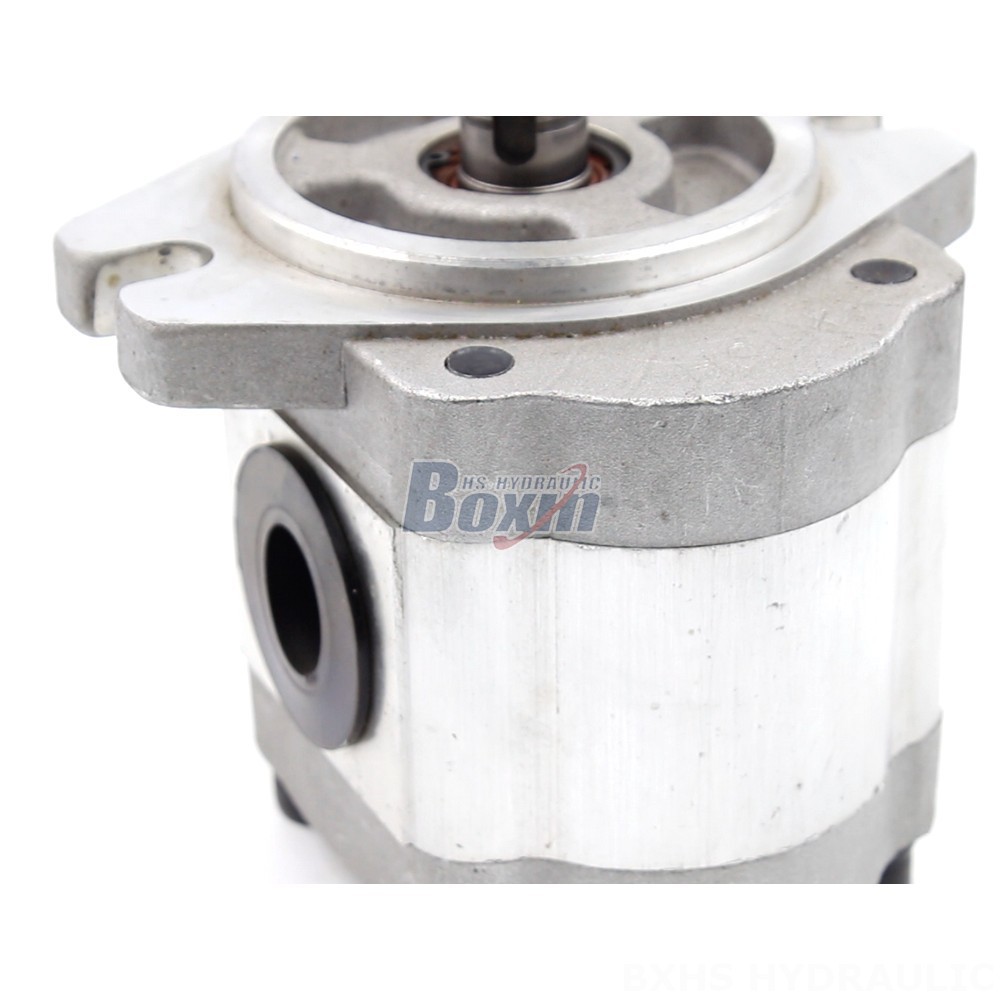

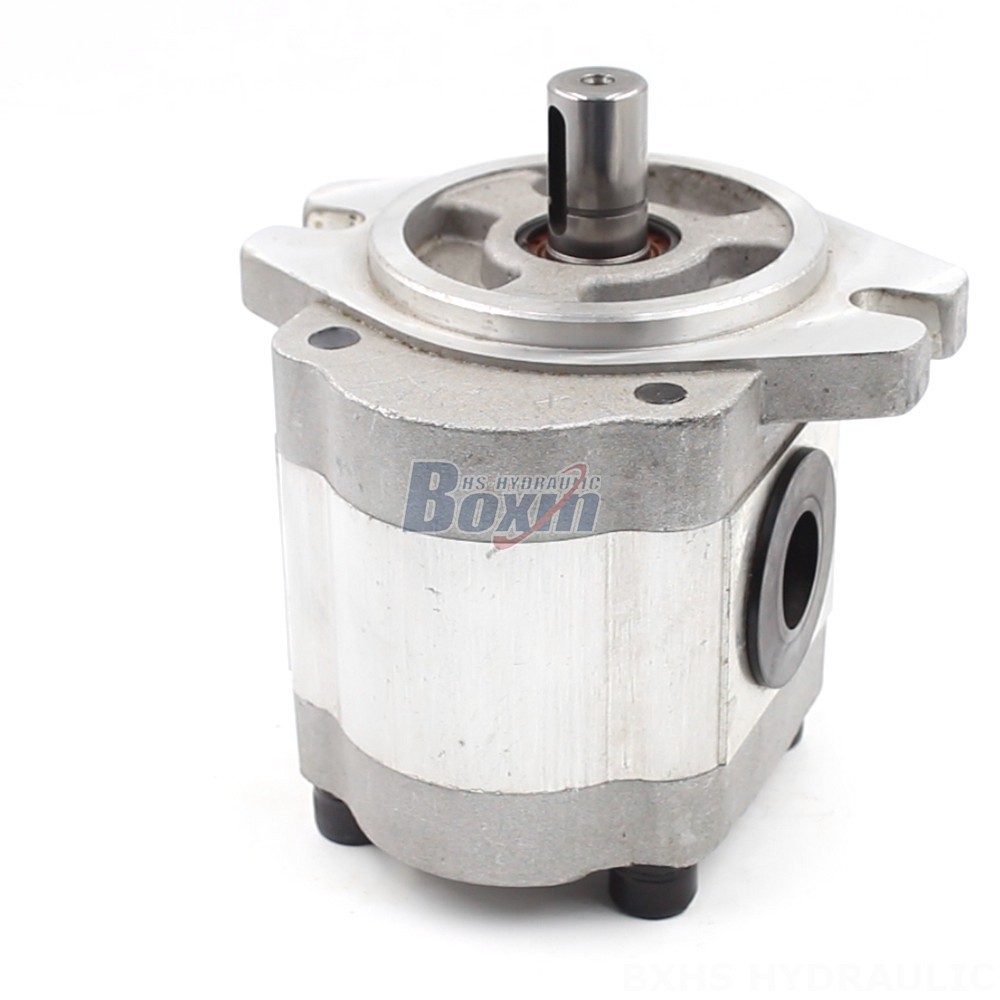

This is a high-performance 6 cc/rev hydraulic gear pump designed for various applications including construction, agriculture, industrial vehicles, and material handling. It features a 10 cc/rev displacement, 20 MPa rated pressure, and 2000 r/min rated speed, making it suitable for demanding tasks.
| Serie CBHS-FL3 Bomba hidráulica de engranajes Parámetros | |
|---|---|
| Desplazamiento | 10 cc/rev, 4 cc/rev, 20 cc/rev, 16 cc/rev, 14 cc/rev, 6 cc/rev |
| Presión Nominal | 20 MPa |
| Presión Máxima | 25 MPa |
| Velocidad Nominal | 2000 r/min |
| Velocidad Máxima | 3000 r/min |
| Rotación | L: Izquierda (antihorario), R: Derecha (horario) |
| Material | Aluminio |
| Estructura | Bomba de engranajes externos |
| Versión de brida | A-Brida ovalada |
| Tipo eje | H: Estría rectangular, X: Estría involuta, P: Llave simple |
This high-performance 6 cc/rev hydraulic gear pump is a robust and reliable solution for various applications. It features a 10 cc/rev displacement, 20 MPa (2900 psi) rated pressure, and 2000 r/min rated speed. The pump can withstand a maximum speed of 3000 r/min. It's available in both left (counter-clockwise) and right (clockwise) rotations. The pump features an internal gear design, is constructed from aluminium, and comes with an A-Oval flange and a plain key shaft. This pump is part of the CBHS-FL3 Series, making it ideal for applications such as telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, tractors and front-end loaders, harvesters, balers, and sprayers.
