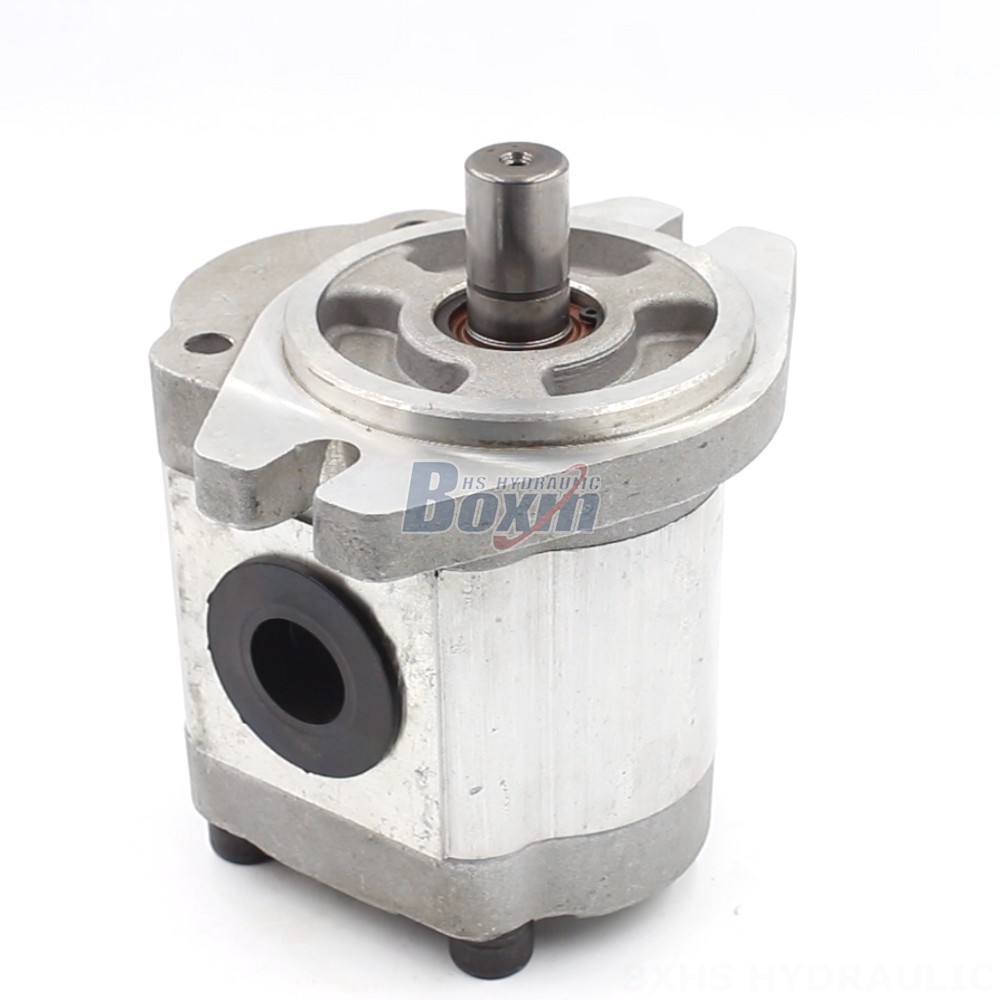

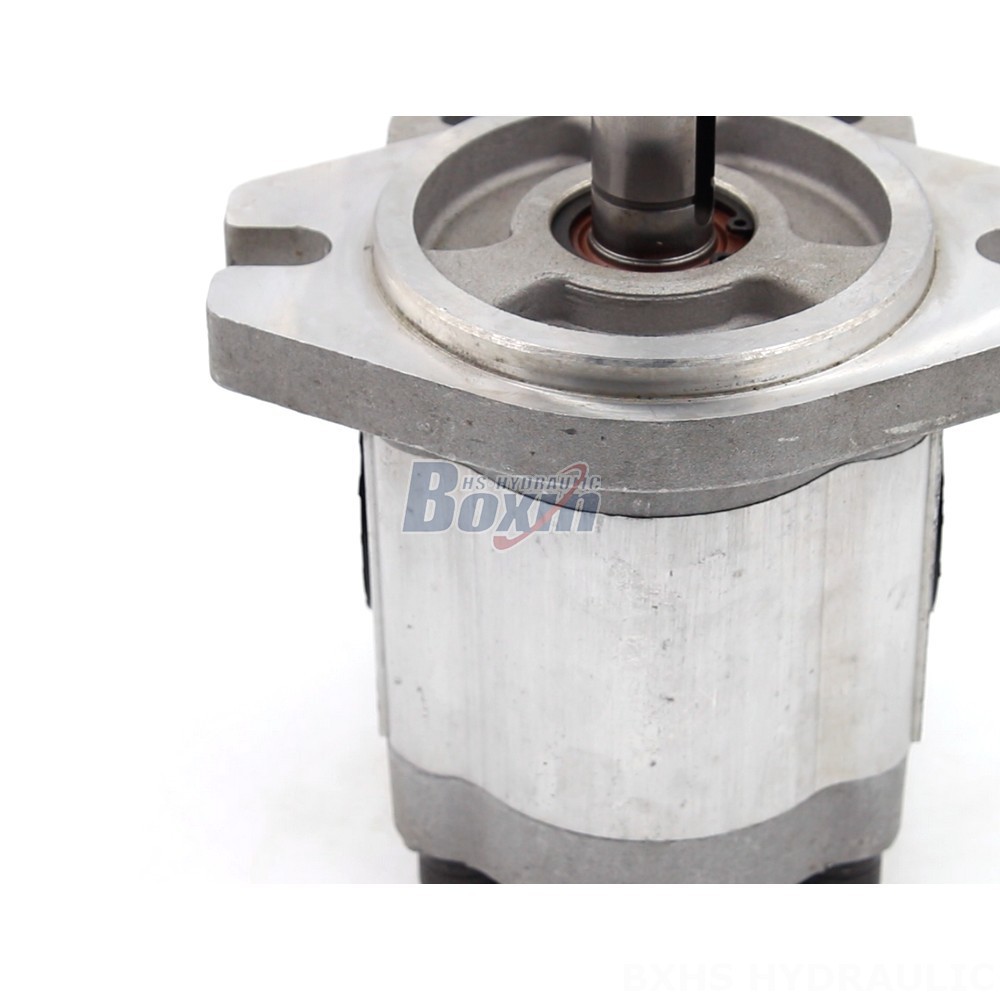

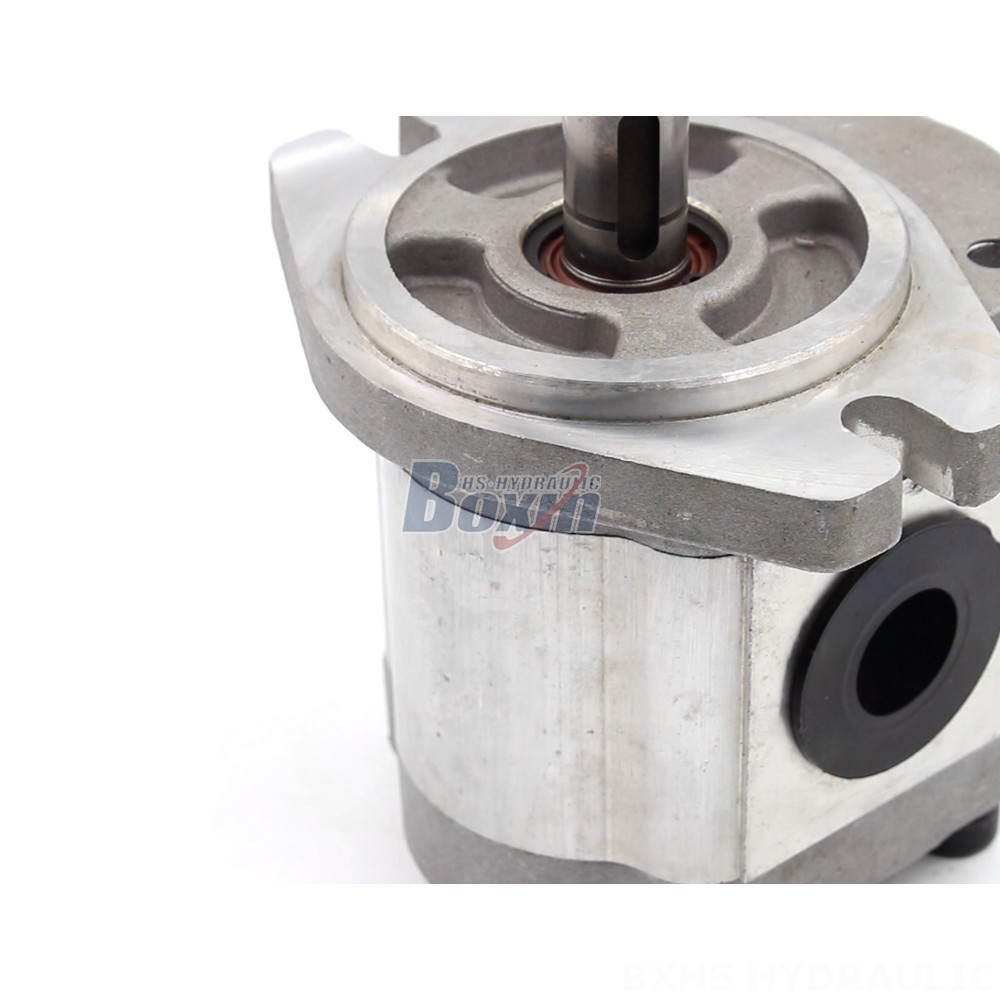

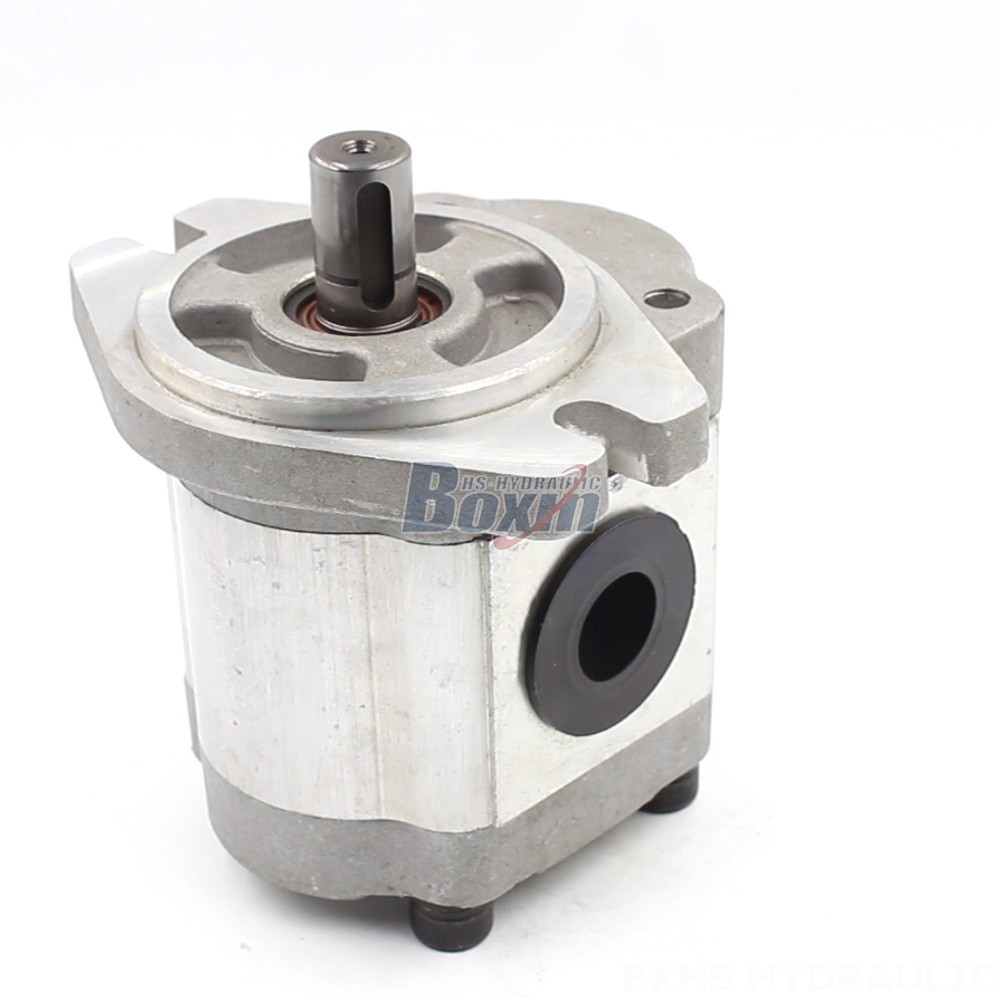

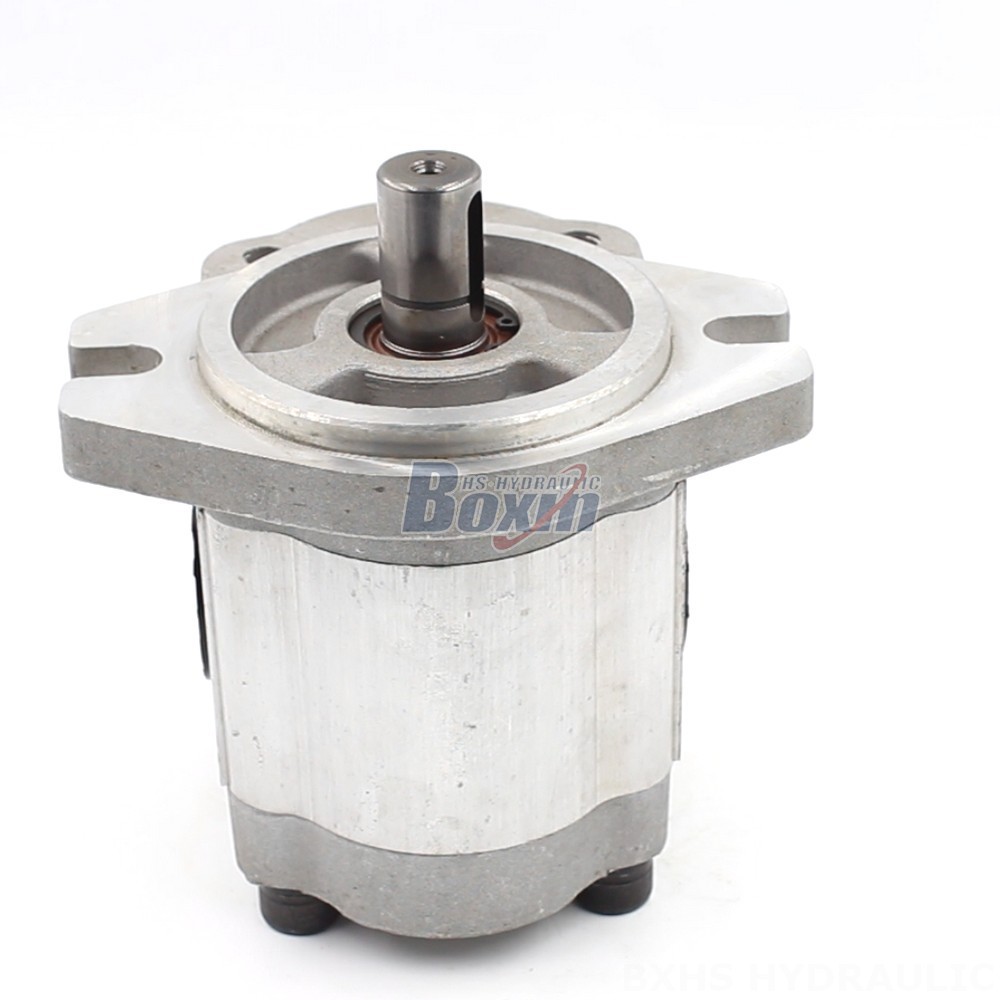

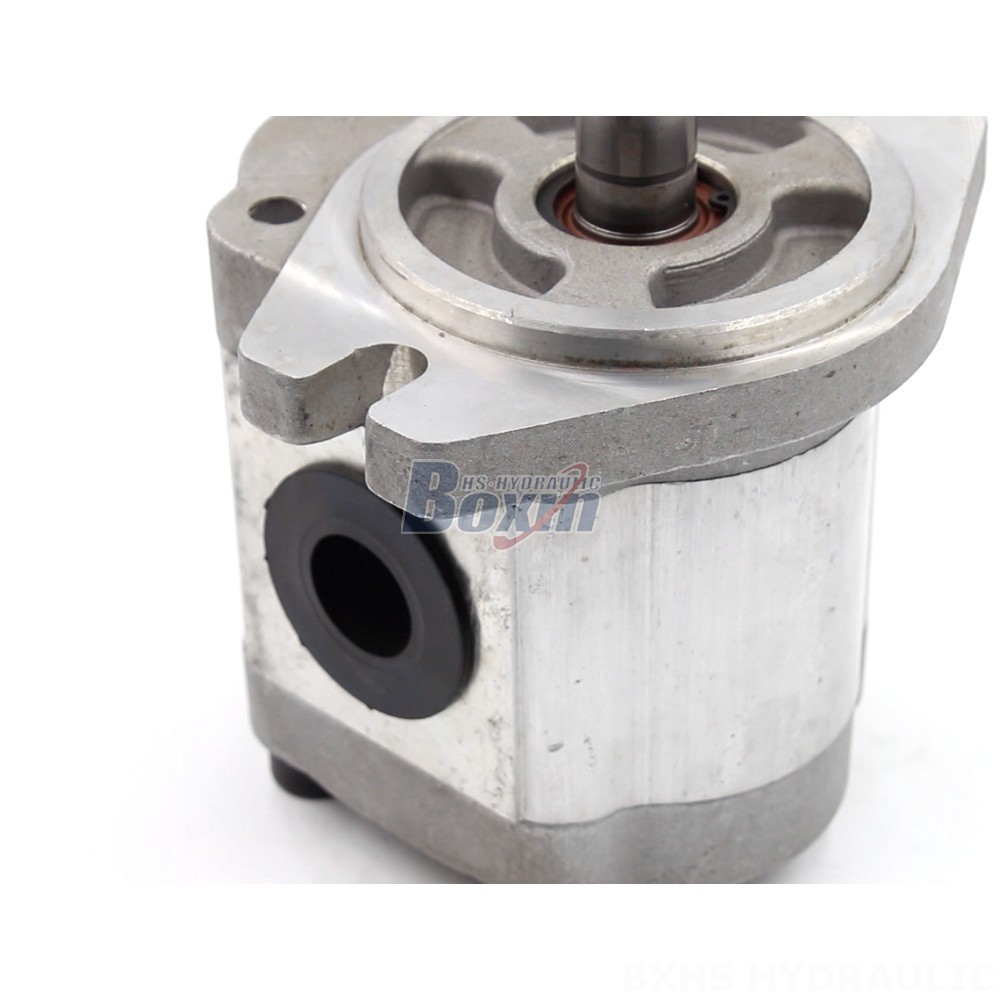

High-Performance 14 cc/rev Hydraulic Gear Pump | Factory Direct

Desplazamiento:14 cc/rev

Presión Nominal:20 MPa

Presión Máxima:25 MPa

Velocidad Máxima:3000 r/min

Rotación:L: Izquierda (antihorario)

Marca:BXHS

Tipo de producto:Bomba hidráulica de engranajes

Serie de productos:Serie CBHS-FL3 Bomba hidráulica de engranajes

Tamaño del embalaje:20*20*20

Peso bruto:7.00 kg

Disponibilidad: En stock

1336 personas están viendo este producto

High-Performance 14 cc/rev Hydraulic Gear Pump | Factory Direct

High-Performance 14 cc/rev Hydraulic Gear Pump | Factory Direct

High-Performance 14 cc/rev Hydraulic Gear Pump | Factory Direct drawing image

This high-performance, 14 cc/rev hydraulic gear pump is manufactured directly from our factory and is ideal for various applications in material handling, construction, earth moving, agriculture, and industrial vehicles. With a durable aluminium construction and A-oval flange, this pump is built to last and perform reliably in demanding environments.

Serie CBHS-FL3 Bomba hidráulica de engranajes Parámetros
Desplazamiento 10 cc/rev, 4 cc/rev, 20 cc/rev, 16 cc/rev, 14 cc/rev, 6 cc/rev
Presión Nominal 20 MPa
Presión Máxima 25 MPa
Velocidad Nominal 2000 r/min
Velocidad Máxima 3000 r/min
Rotación L: Izquierda (antihorario), R: Derecha (horario)
Material Aluminio
Estructura Bomba de engranajes externos
Versión de brida A-Brida ovalada
Tipo eje H: Estría rectangular, X: Estría involuta, P: Llave simple

This robust hydraulic gear pump delivers exceptional performance with a displacement of 14 cc/rev. It is designed for high-pressure applications, boasting a rated pressure of 20 MPa (2900 psi) and a rated speed of 2000 r/min, with a maximum speed of 3000 r/min. The pump features an internal gear design and is constructed from durable aluminium. It comes with an A-oval flange and a plain key shaft, making it compatible with a wide range of applications. This versatile pump is part of the CBHS-FL3 series and is specifically designed for use in forklifts, telehandlers, mini-excavators, skid steer loaders, and tractors. Its high performance and reliability make it a suitable choice for various industries including material handling, construction, earth moving, agriculture, and industrial vehicles.
