Heavy Duty P51A646TEYR25-25 Hydraulic External Gear Pump

Desplazamiento:104.5 cc/rev

Presión Nominal:16 MPa

Presión Máxima:17 MPa

Velocidad Máxima:2400 r/min

Rotación:/: (Bidireccional)

Marca:BXHS

Tipo de producto:Bomba hidráulica de engranajes

Serie de productos:Serie P51 Bomba hidráulica de engranajes

Tamaño del embalaje:34*17*17

Peso bruto:24.00 kg

Disponibilidad: En stock

150 personas están viendo este producto

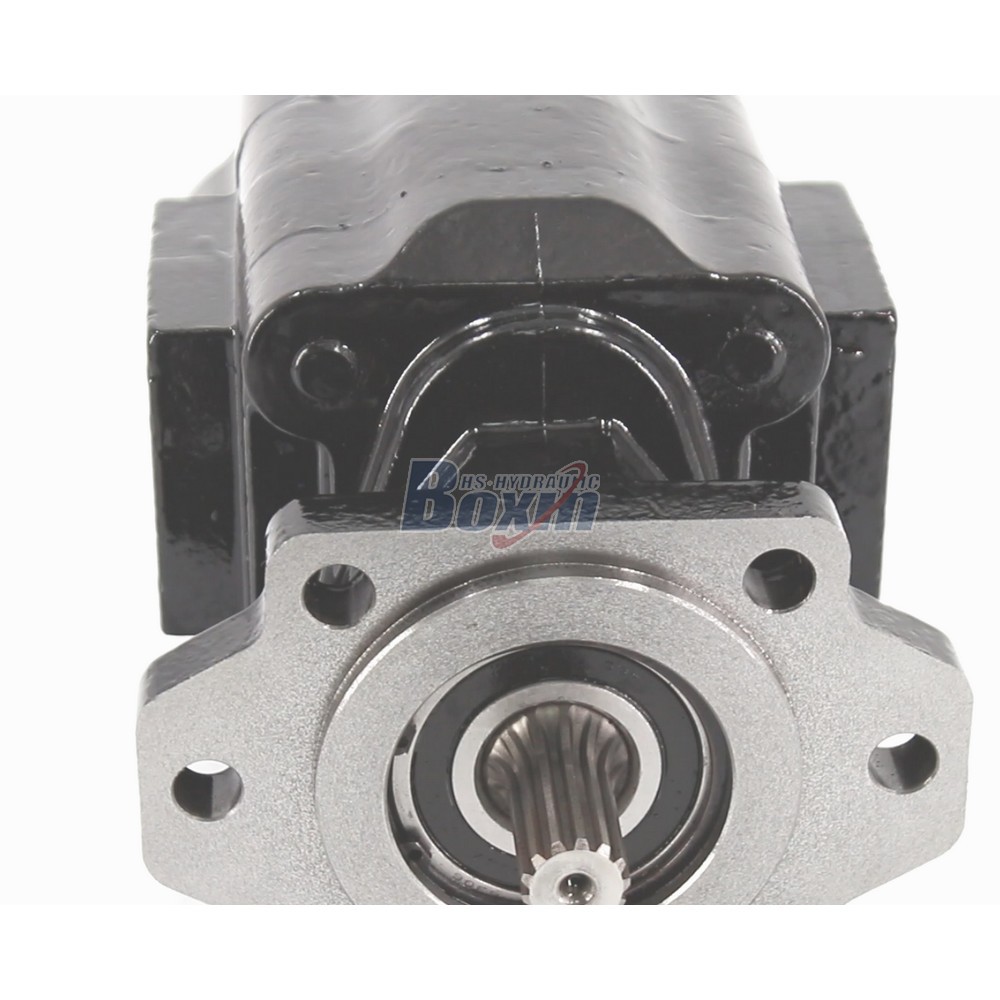

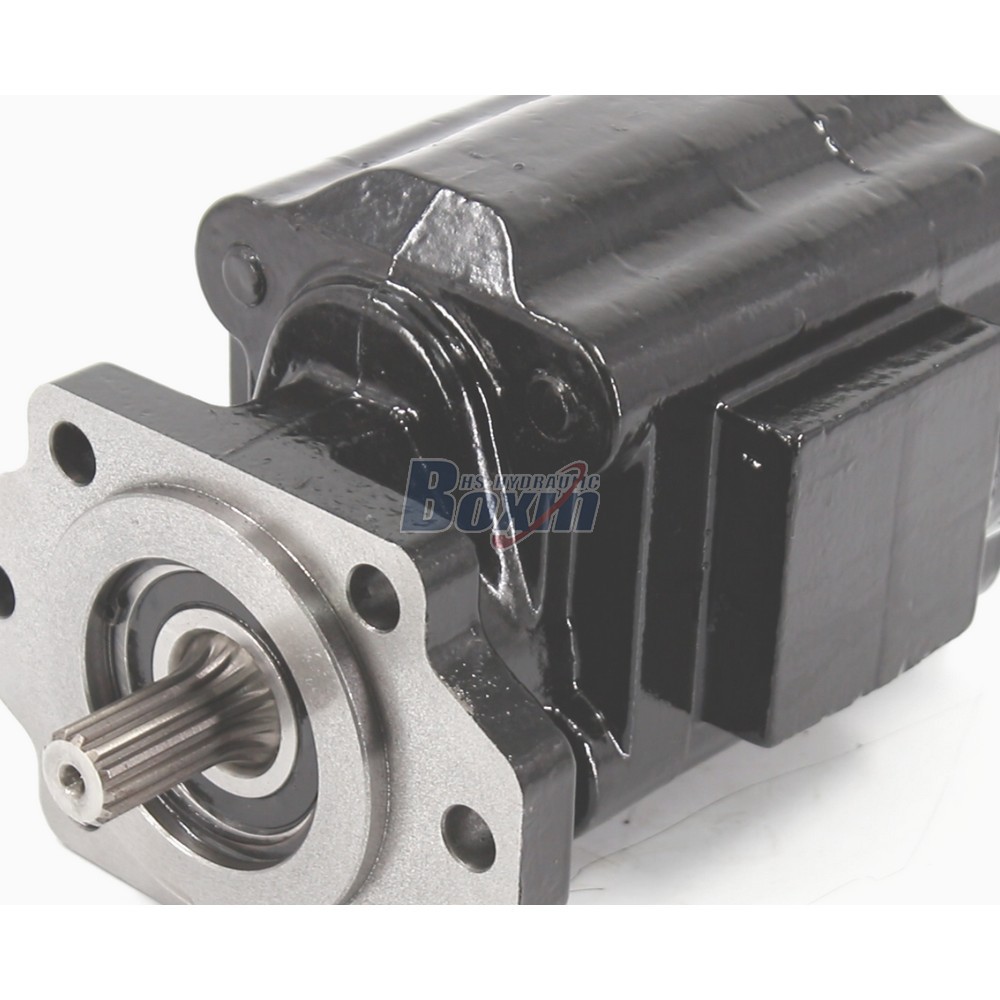

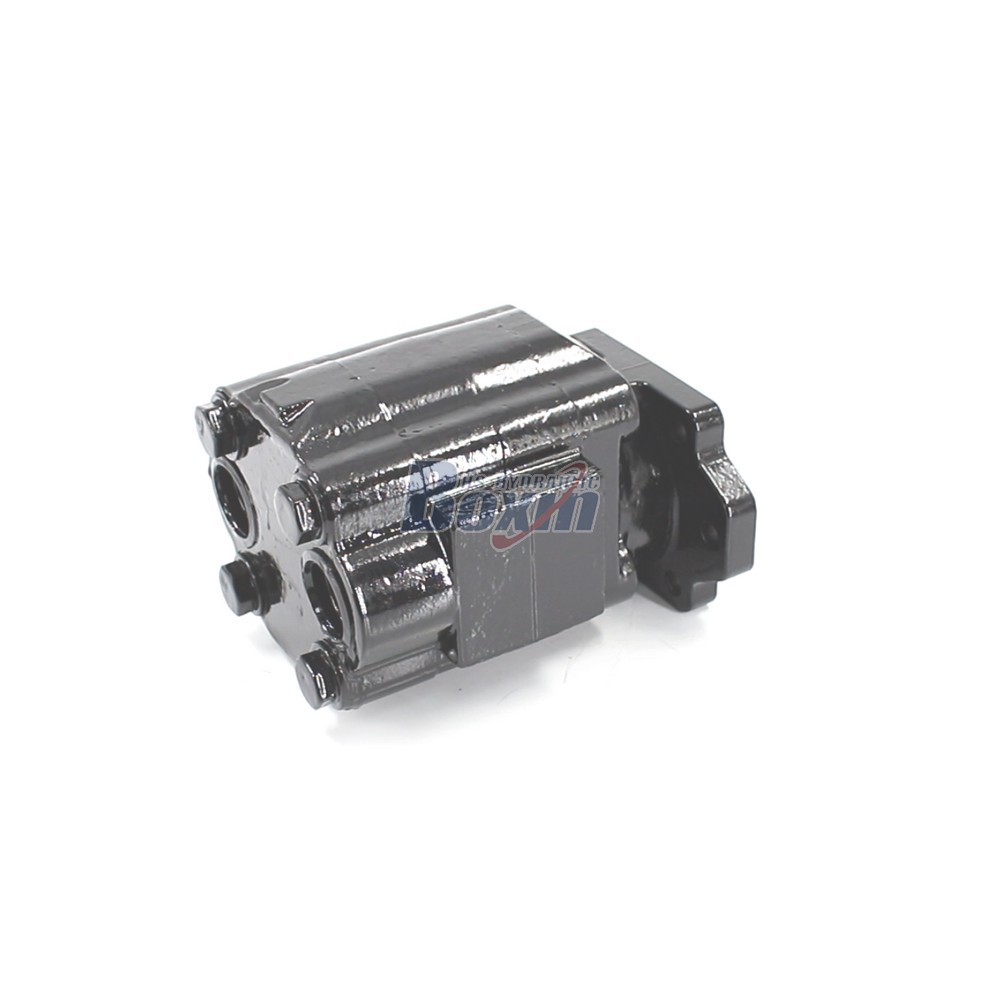

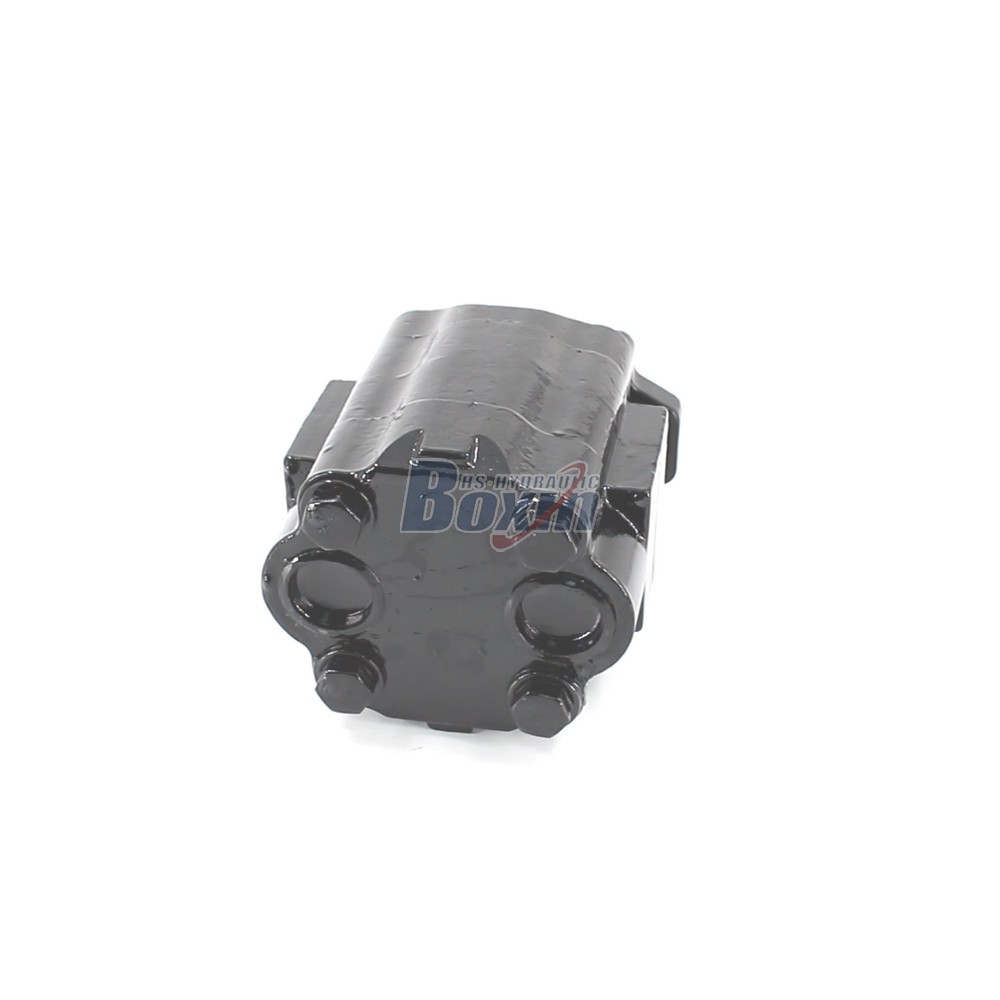

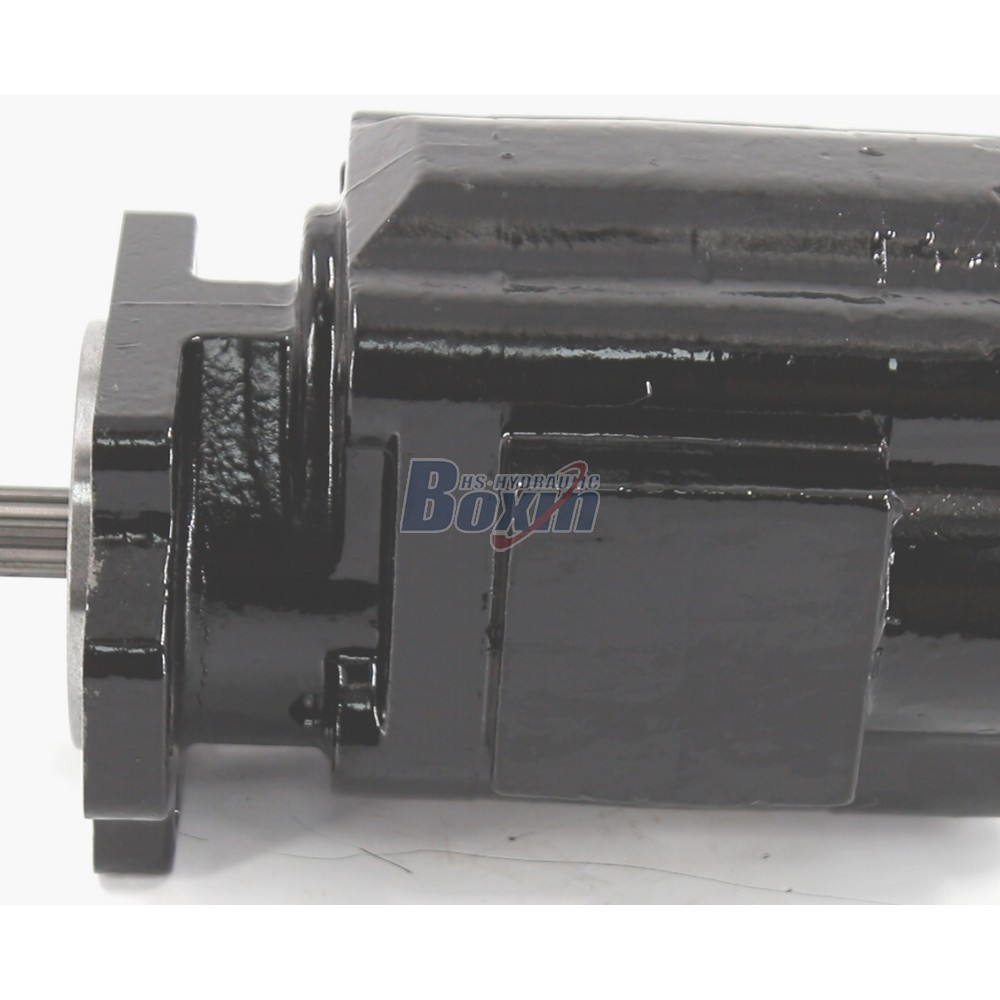

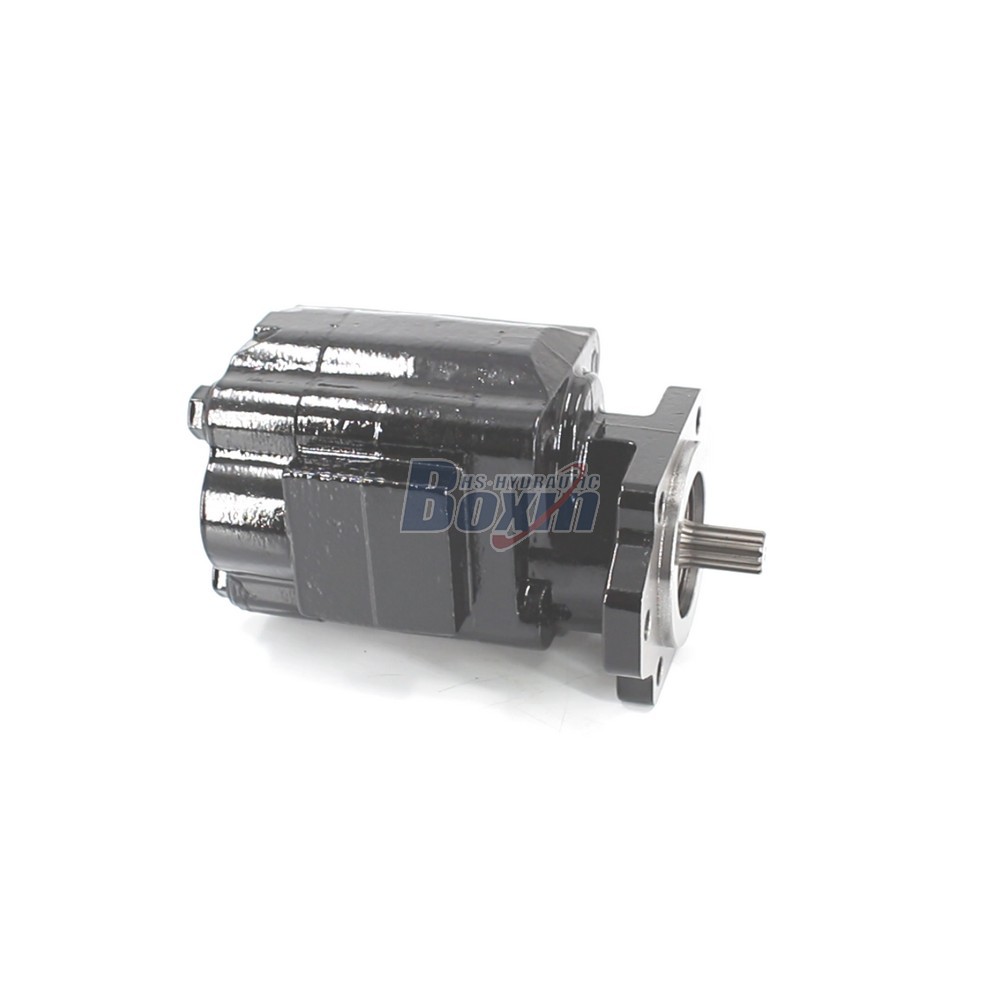

Heavy Duty P51A646TEYR25-25 Hydraulic External Gear Pump

Heavy Duty P51A646TEYR25-25 Hydraulic External Gear Pump

Heavy Duty P51A646TEYR25-25 Hydraulic External Gear Pump drawing image

As a leading manufacturer of large-scale hydraulic solutions, we offer the high-performance P51A646TEYR25-25 Hydraulic External Gear Pump. This heavy-duty series features a 104.5 cc/rev displacement and bidirectional rotation, designed for stable power transmission in demanding industrial and mobile applications.

Serie P51 Bomba hidráulica de engranajes Parámetros
Desplazamiento 104.5 cc/rev, 21 cc/rev, 41.8 cc/rev, 52.3 cc/rev, 62.7 cc/rev, 64.6 cc/rev
Presión Nominal 16 MPa
Presión Máxima 17 MPa
Velocidad Nominal 2200 r/min
Velocidad Máxima 2400 r/min
Rotación /: (Bidireccional)
Material Hierro fundido
Estructura Bomba de engranajes externos
Versión de brida A-Brida ovalada, ISO-4 Orificios de montaje, Brida SAE
Tipo eje X: Estría involuta

Our factory specializes in the mass production of the P51A646TEYR25-25 Heavy Duty Hydraulic External Gear Pump, delivering 104.5 cc/rev displacement with a rated pressure of 16 MPa (2320 psi). Engineered for versatility, this bidirectional model supports speeds ranging from 600 to 2400 r/min, making it suitable for a wide variety of construction, agricultural, and industrial machinery. As a global manufacturing partner, we provide comprehensive services including OEM, private labeling, and custom engineering to meet specific technical requirements. We are currently expanding our international network and actively seeking long-term cooperation with distributors, wholesalers, agents, and professional traders. By sourcing directly from our facility, partners benefit from reliable factory supply, competitive wholesale pricing, and rigorous quality control. Whether you need bulk orders for retail or specialized units for large-scale equipment, our manufacturing expertise ensures performance and durability in every pump.
