Factory Wholesale Supply: P80-G34 Hydraulic Valves from the Manufacturer

Método de control:Manual

Carrete:6 carretes

Flujo Nominal:80 l/min (21,2 gal EE. UU./min)

Presión Máxima:250 bar (3600 psi)

Puerto de Entrada:G3/4

Puerto de Salida:G3/4

Tamaño de Puerto:G3/4

Marca:BXHS

Tipo de producto:Válvula Direccional Monobloque

Serie de productos:Serie P80 Válvula Direccional Monobloque

Tamaño del embalaje:26*36*11

Peso bruto:18.60 kg

Disponibilidad: En stock

1900 personas están viendo este producto

Factory Wholesale Supply: P80-G34 Hydraulic Valves from the Manufacturer

Factory Wholesale Supply: P80-G34 Hydraulic Valves from the Manufacturer

Factory Wholesale Supply: P80-G34 Hydraulic Valves from the Manufacturer drawing image

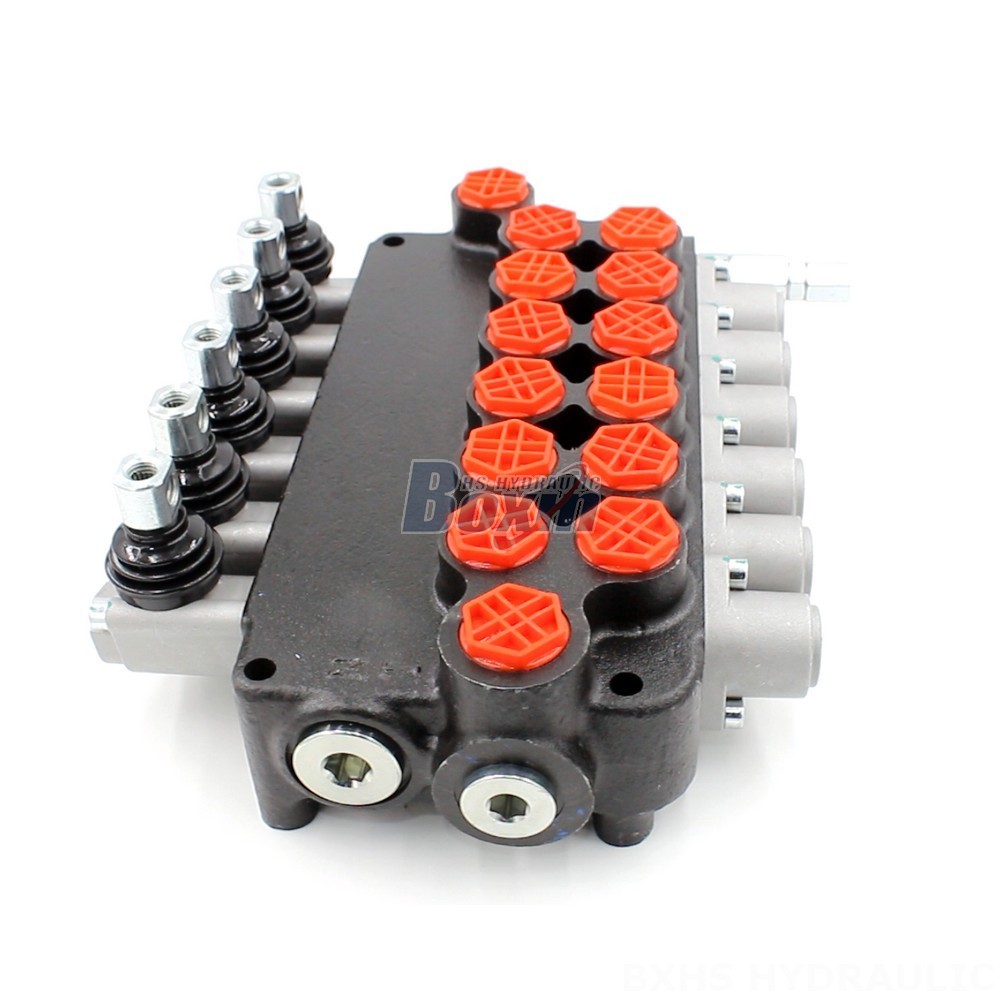

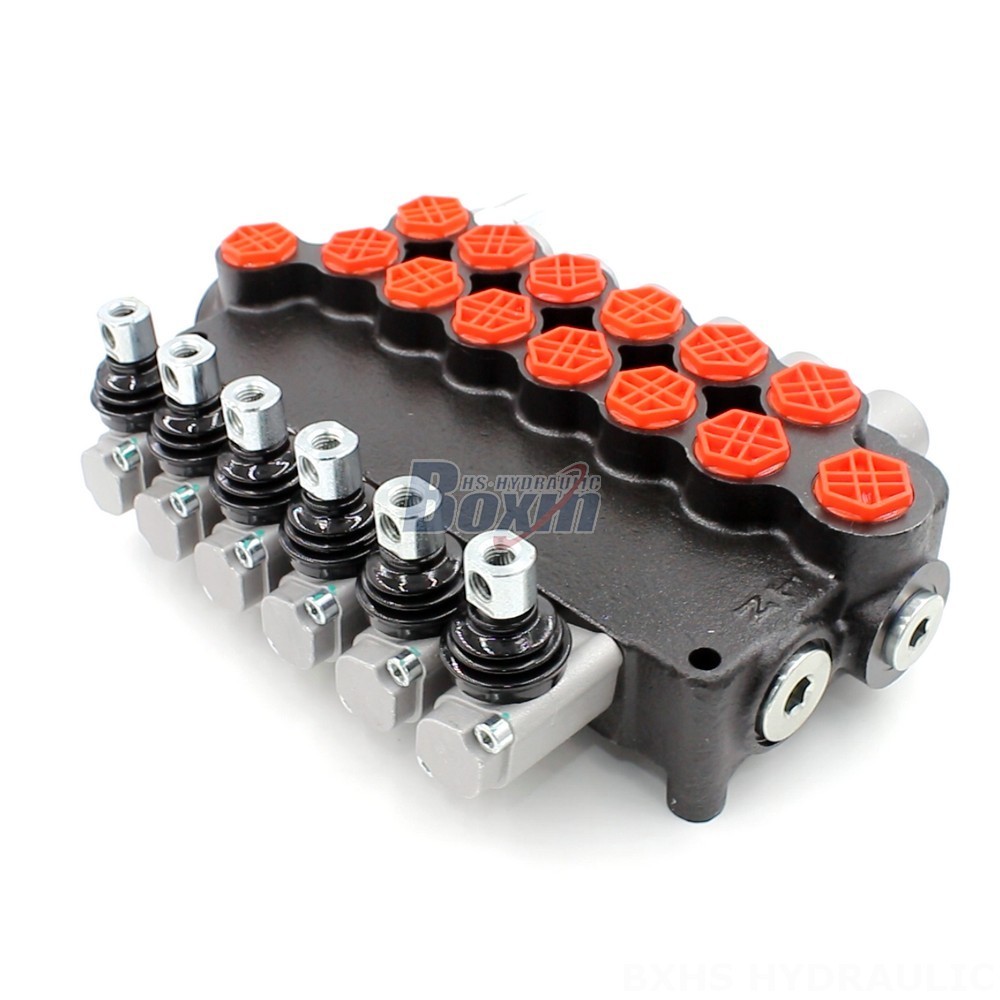

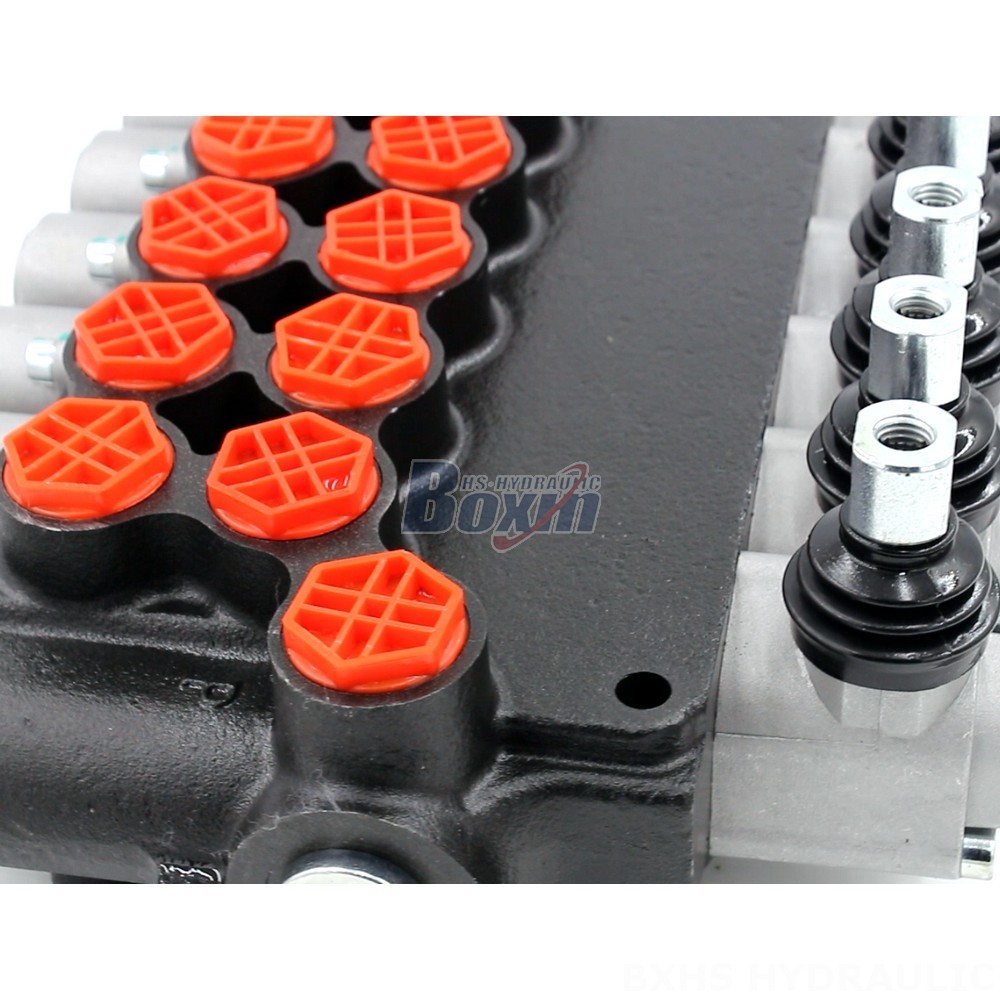

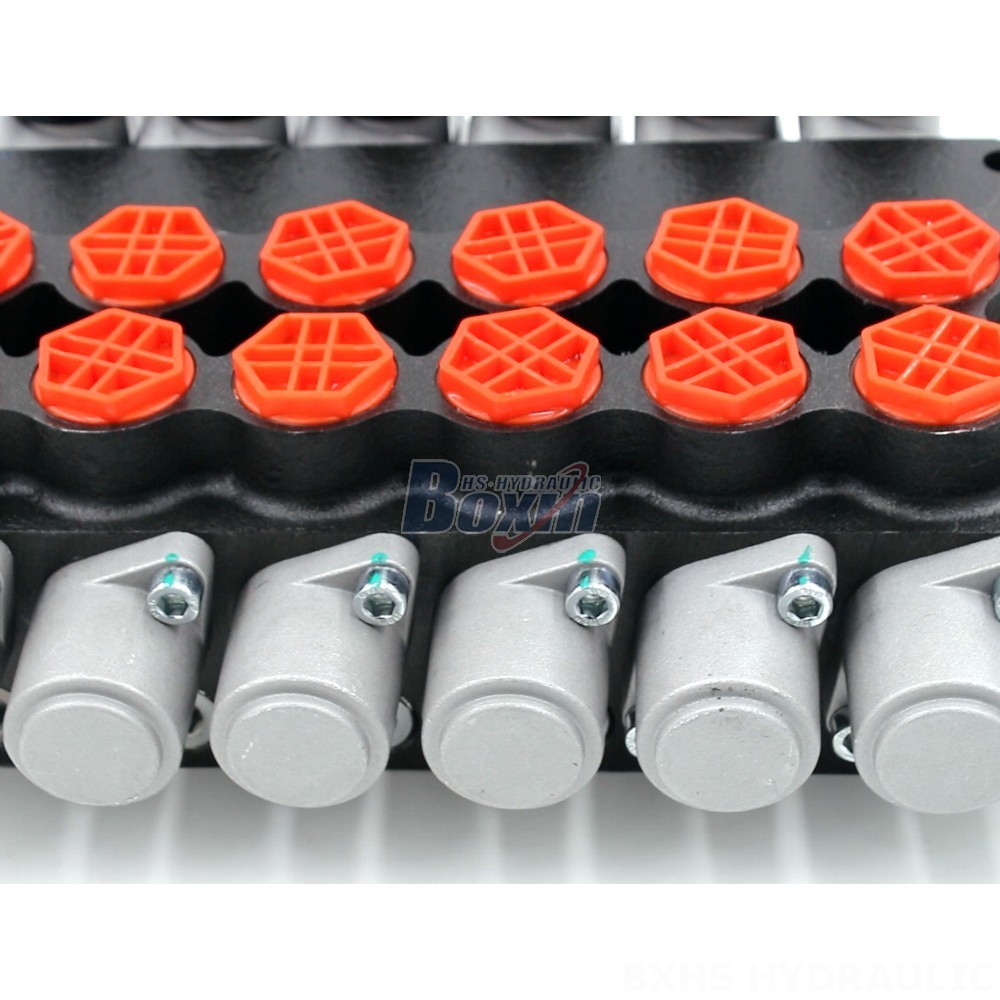

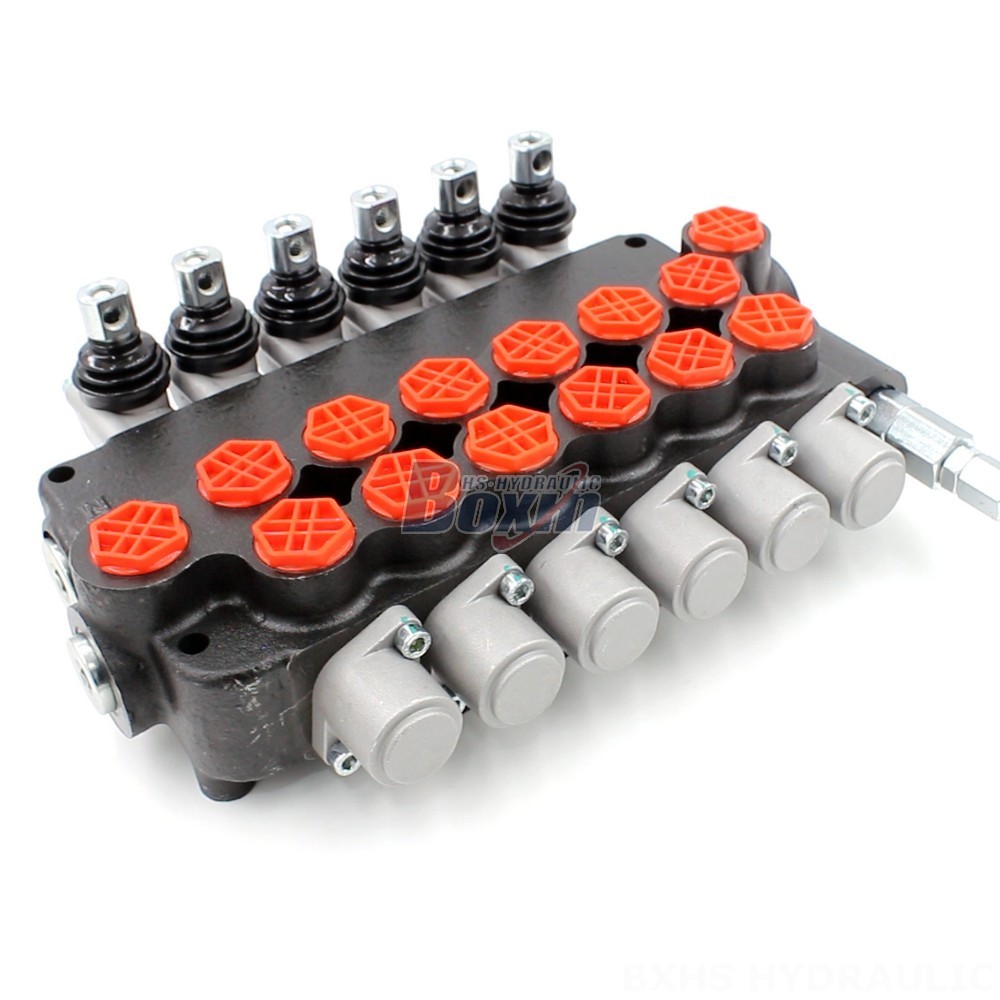

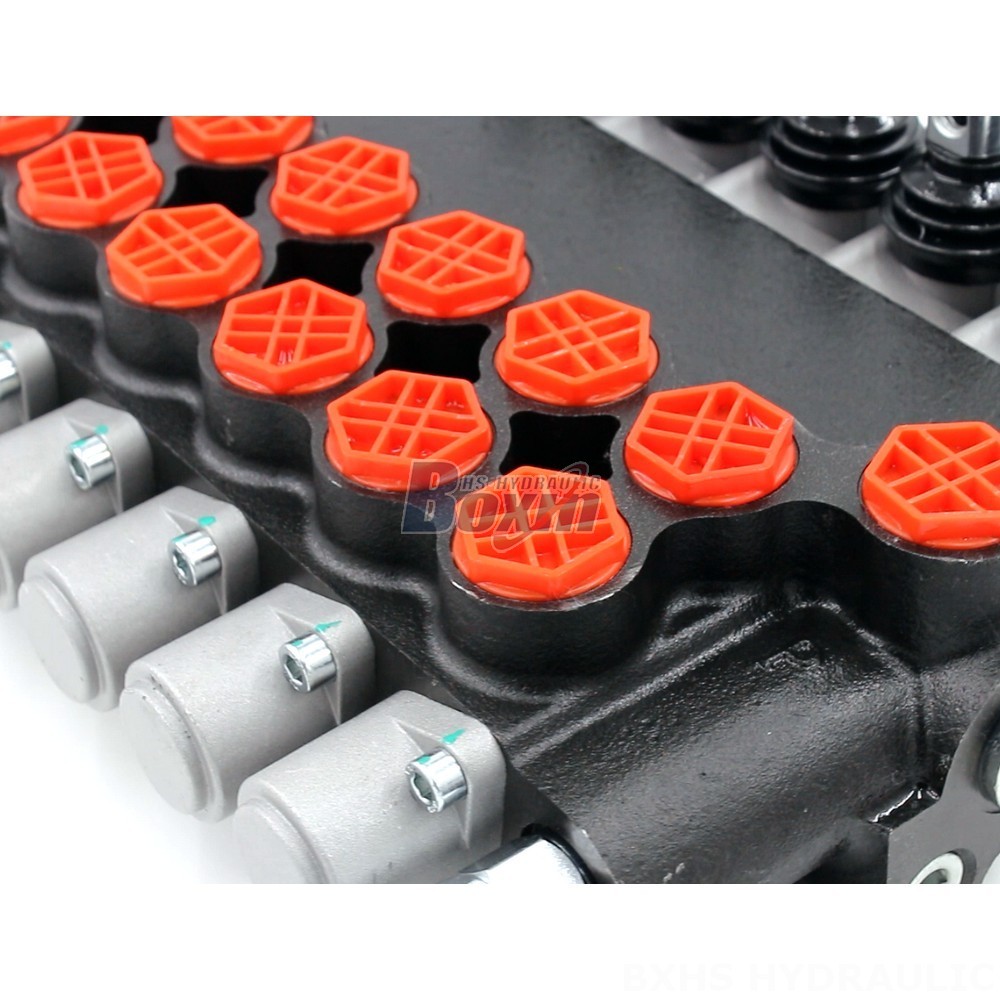

The P80-G34 Hydraulic Valve is a high-performance, 6-section monoblock valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. It offers a rated flow of 80 L/min, a maximum pressure of 250 bar, and a manual control method. We offer OEM, ODM, and private label options, as well as custom designs to meet your specific needs.

Serie P80 Válvula Direccional Monobloque Parámetros
Método de control Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick
Carrete 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes
Rango de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estructura Válvulas monobloc
Sección 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones
Rango de viscosidad de funcionamiento 15 - 75 mm²/s (15 cSt a 75 cSt)
Flujo Nominal 80 l/min (21,2 gal EE. UU./min)
Presión Máxima 315 bar (4600 psi)
Puerto de Entrada G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Puerto de Salida G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Tamaño de Puerto G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This P80-G34 Hydraulic Valve is a robust and reliable solution for demanding applications. Its 6-section design provides precise control and versatility. The valve features a rated flow of 80 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of equipment. It operates with a manual control method for easy and intuitive operation. As a manufacturer, we offer flexible options, including OEM, ODM, and private label services. We also provide custom design and manufacturing capabilities to meet your unique requirements. Whether you need a standard valve or a tailored solution, we are here to support your needs. Contact us today to discuss your specific application and explore our comprehensive range of services.
