Producción y entrega
Plazo de ejecución de producción de 15 a 30 días

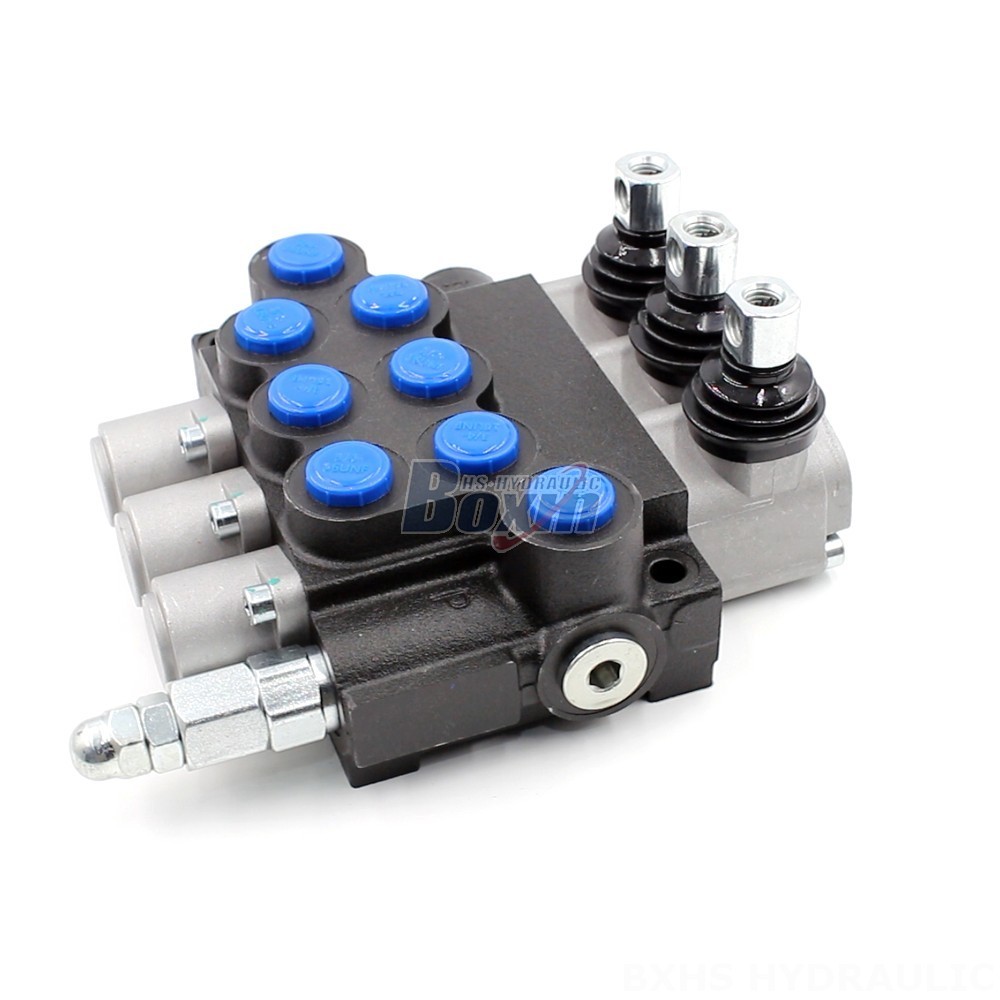

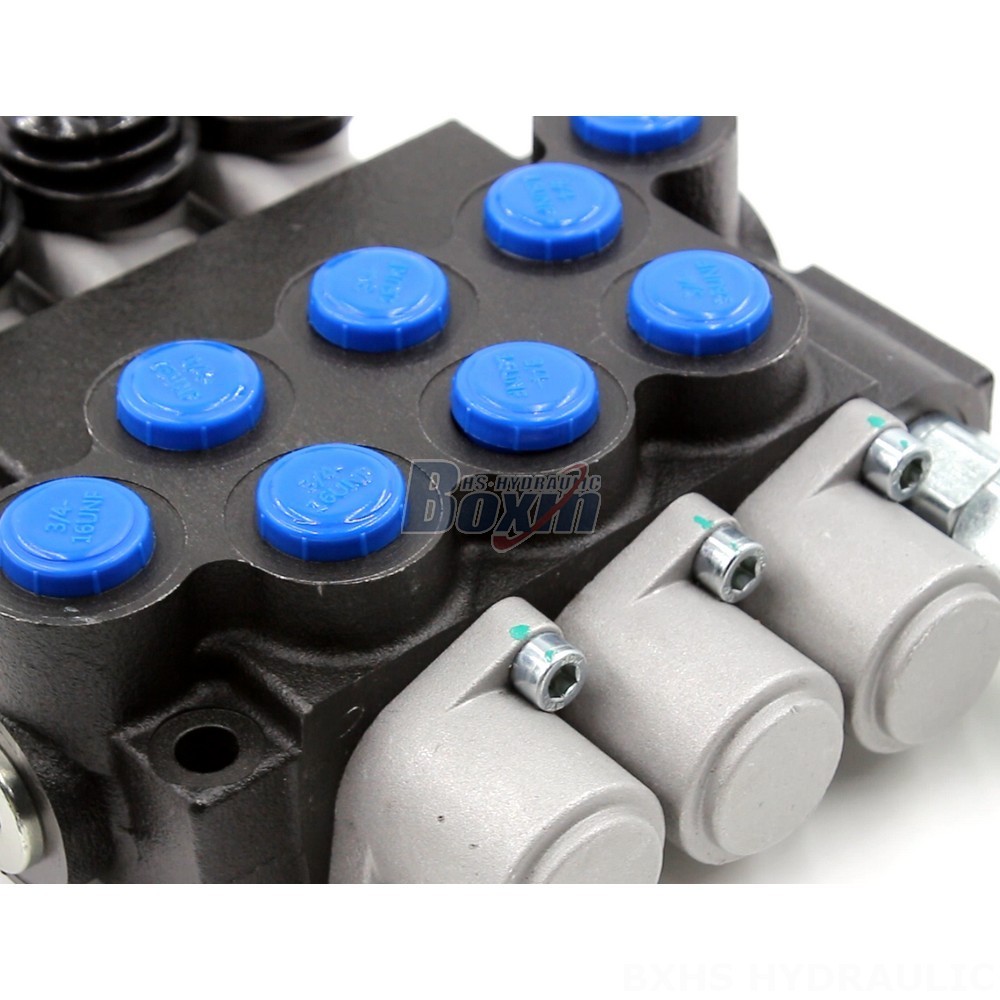

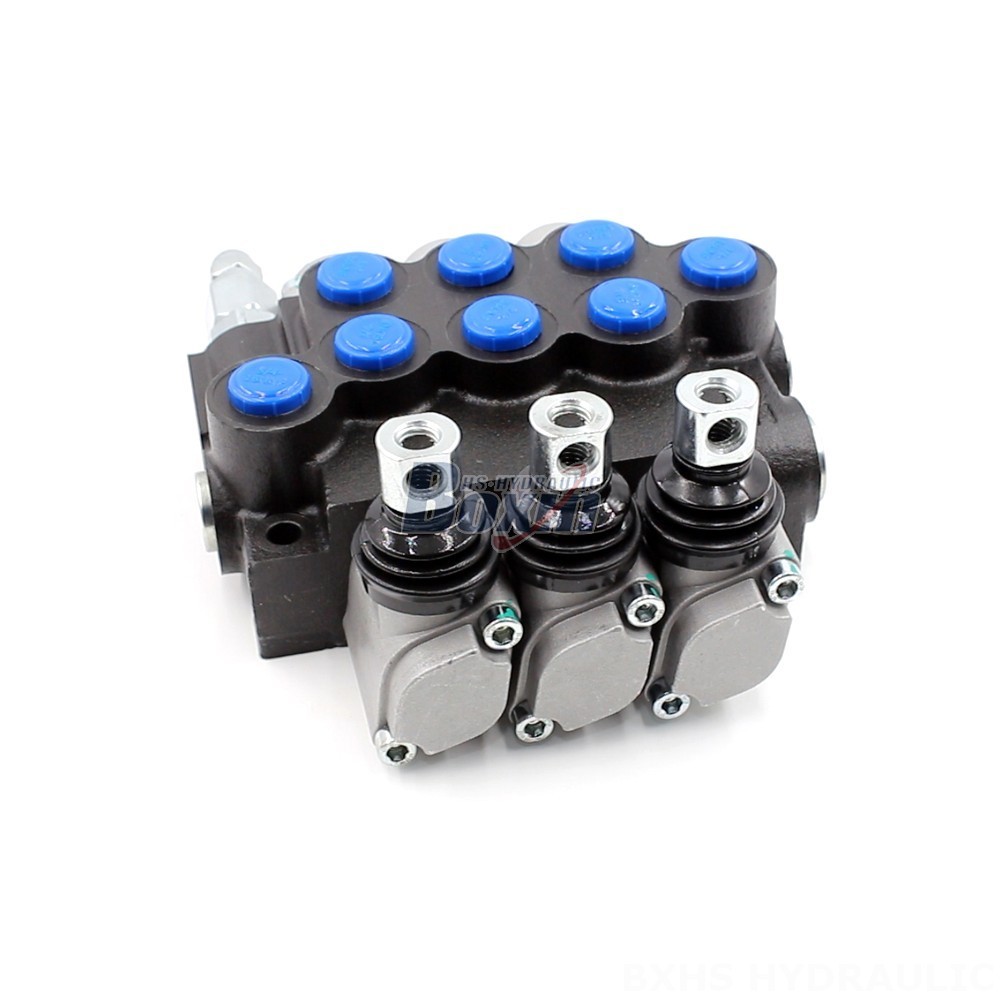

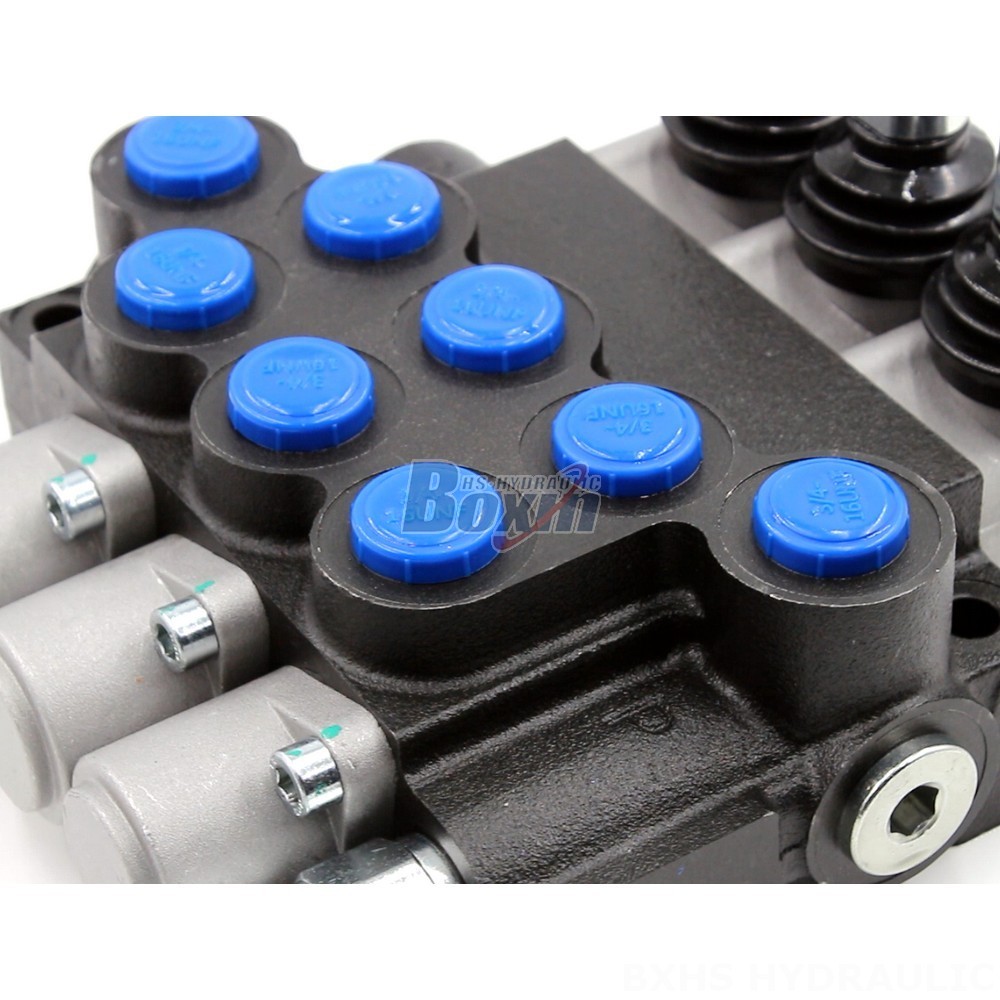

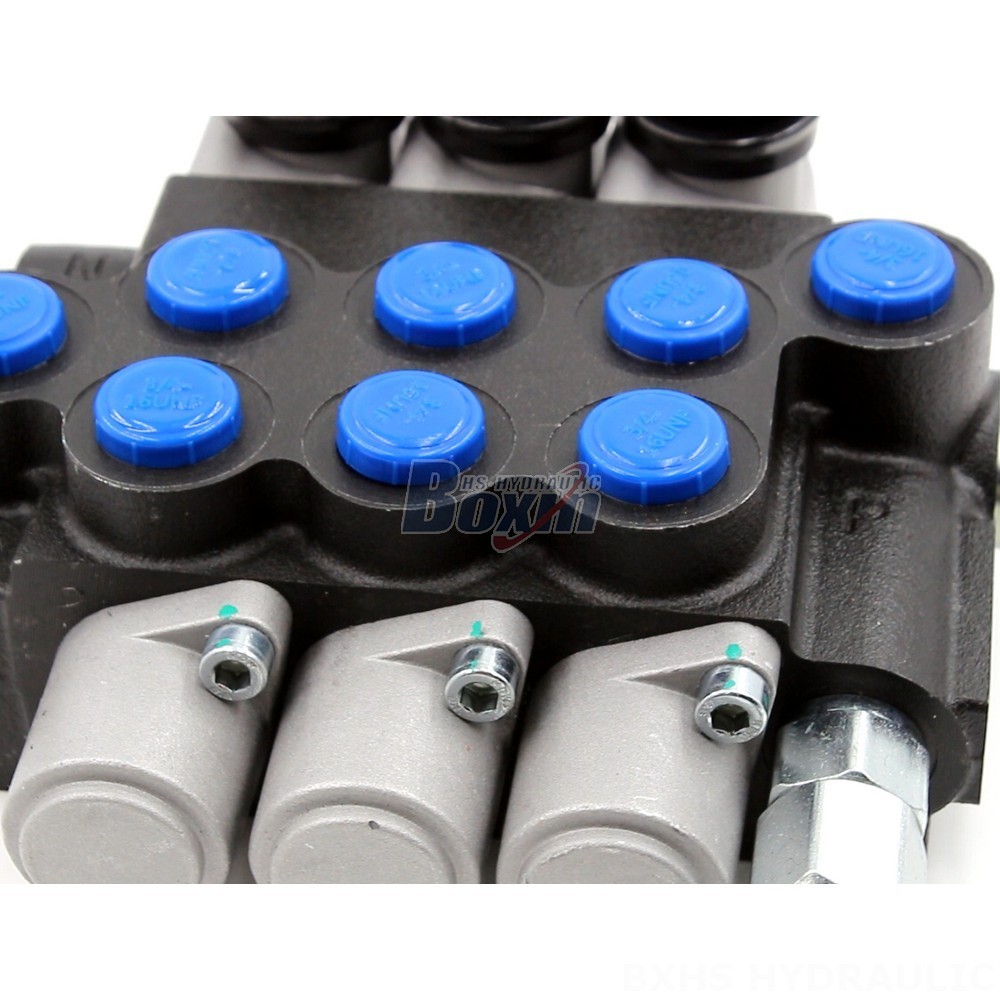

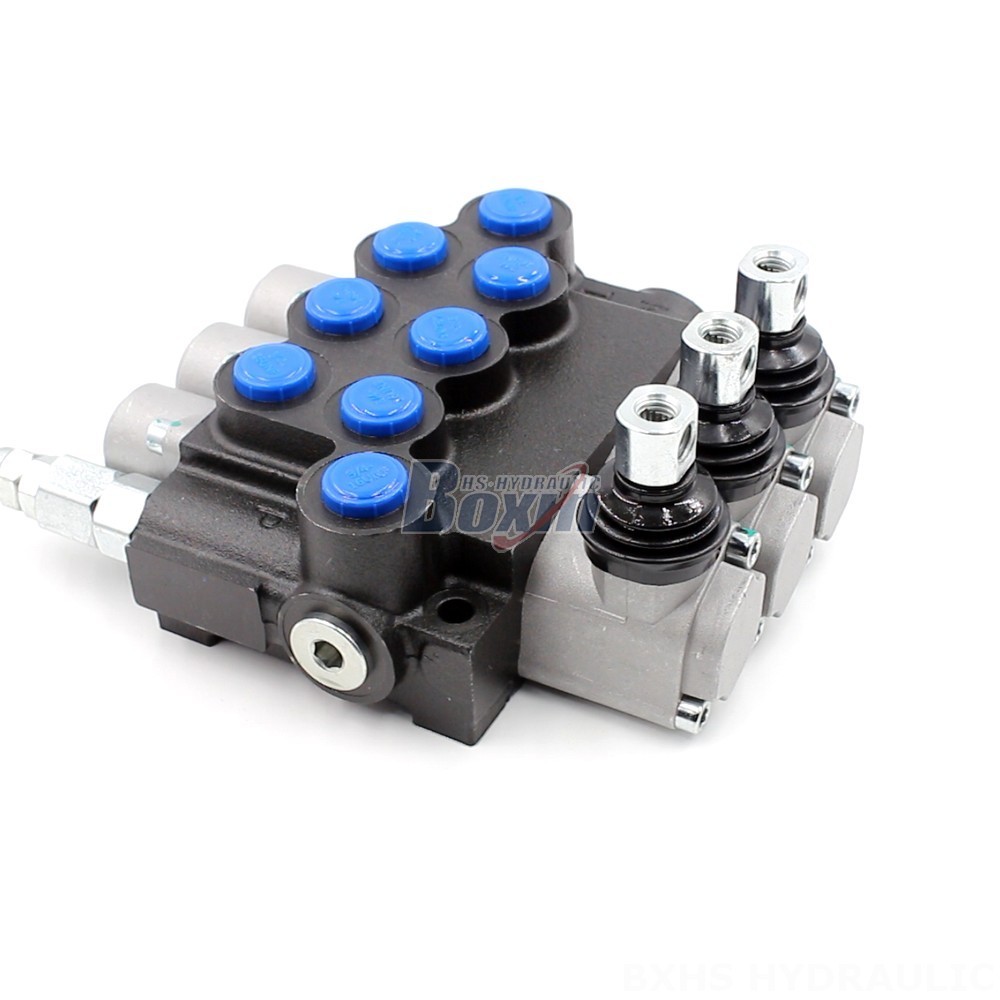

This P40-U78 Hydraulic Valve is a 3-section monoblock valve designed for manual control in various applications, including material handling, construction, and agriculture. It features a rated flow of 40 L/min, a max pressure of 250 bar, and is suitable for a wide range of operating temperatures.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
Our factory directly supplies this high-quality P40-U78 Hydraulic Valve, a 3-section monoblock valve with manual control. This valve is designed for applications in material handling, construction, and agriculture, and is suitable for various machines such as telehandlers, forklifts, cranes, and excavators. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve offers reliable performance in demanding conditions. It is also engineered for a wide operating temperature range of -40°C to +80°C, ensuring durability and longevity. We are a global supplier offering manufacturing, OEM, private labeling, customization, and wholesale services. Contact us today to learn more about our products and find the perfect solution for your needs.
