The P40-U34-OT hydraulic valve is a high-performance, manually controlled monoblock valve designed for use in a wide range of demanding applications. With a rated flow of 40 L/min, a maximum pressure of 250 bar, and an operating viscosity range of 15-75 mm²/s, this valve is capable of handling even the most challenging hydraulic systems. The valve's robust construction and durable components ensure long-lasting performance and reliability.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

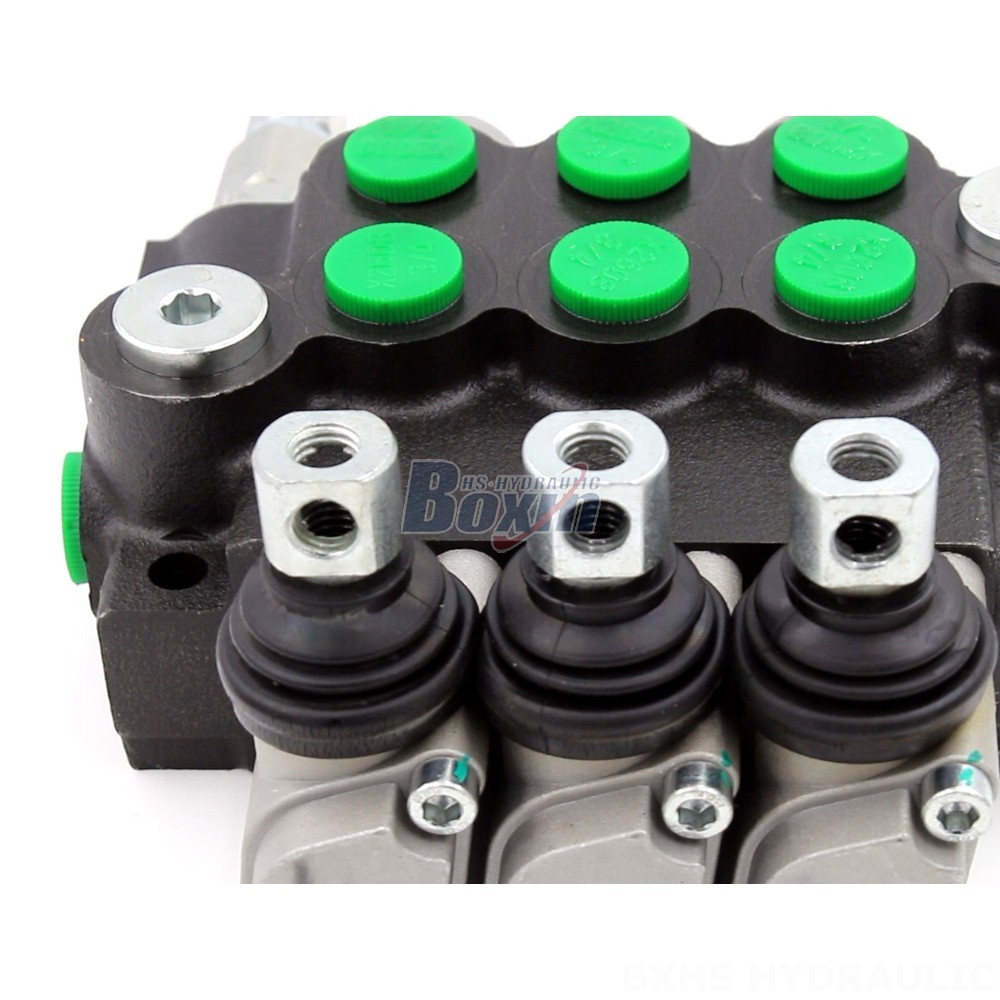

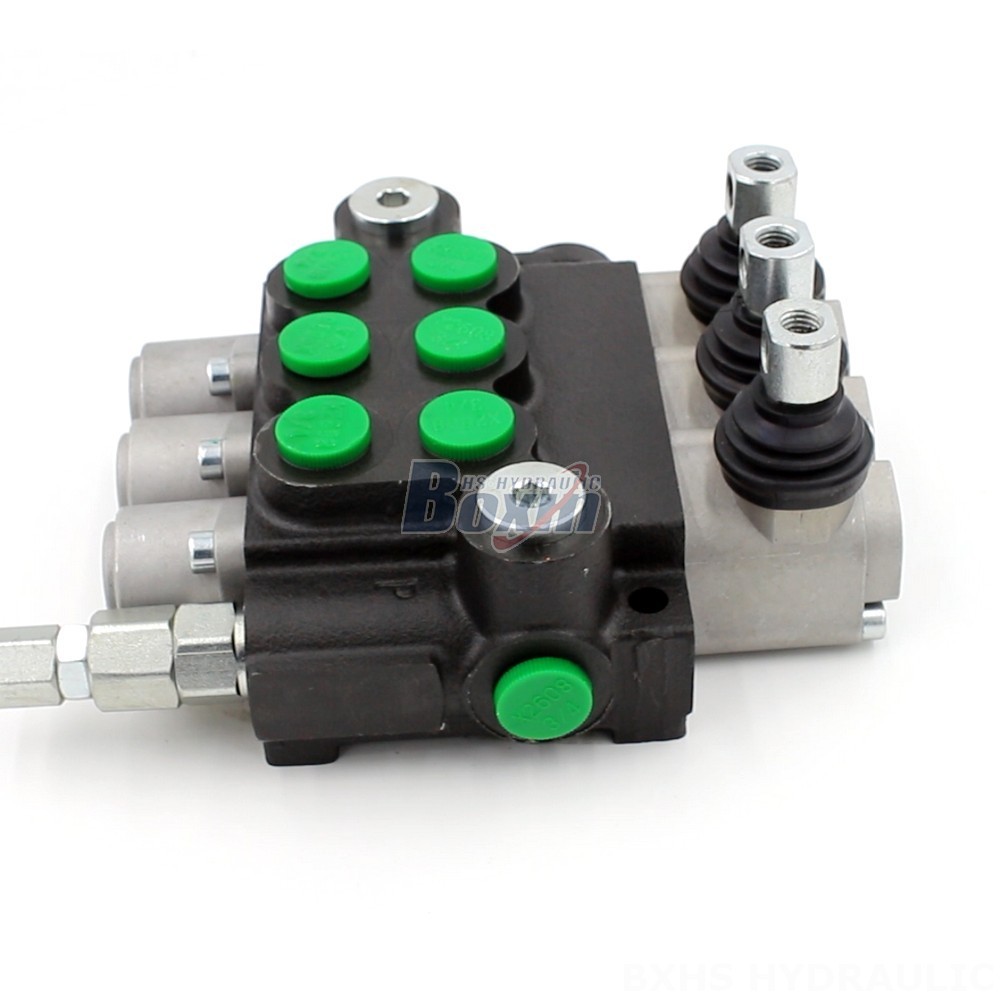

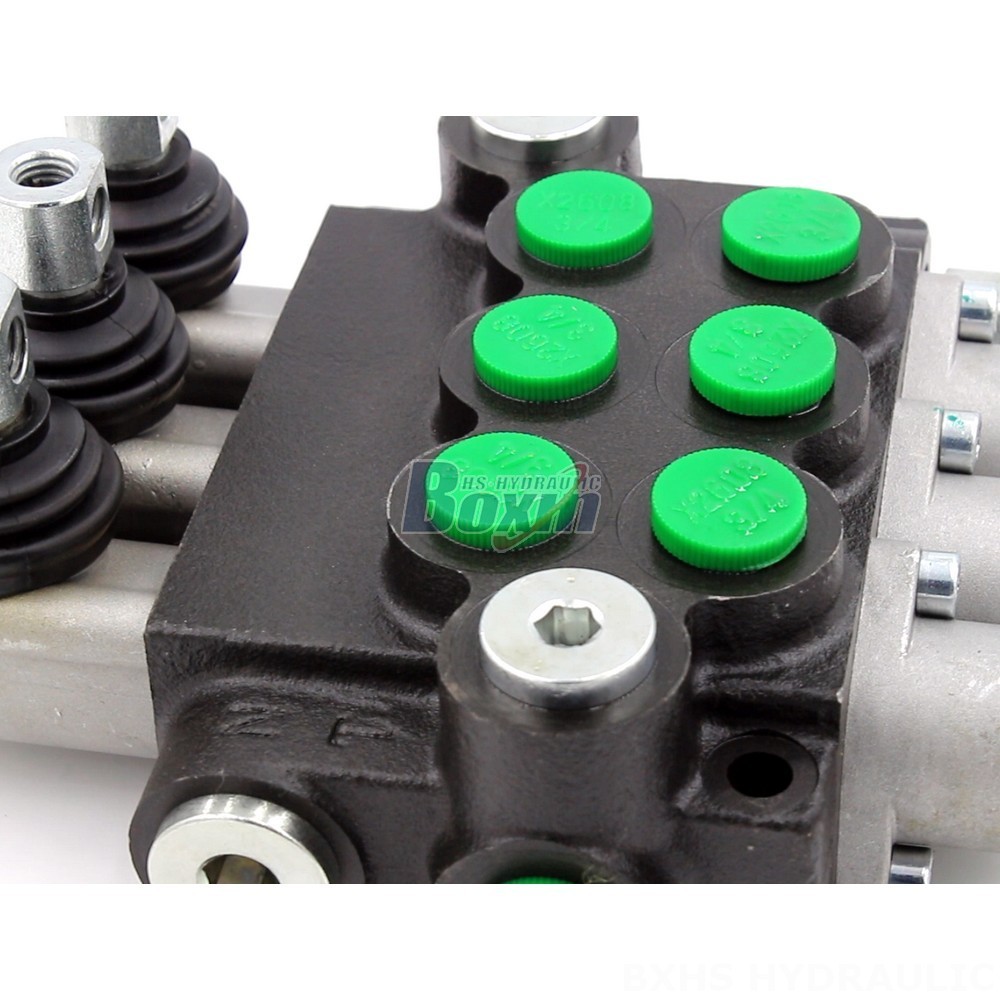

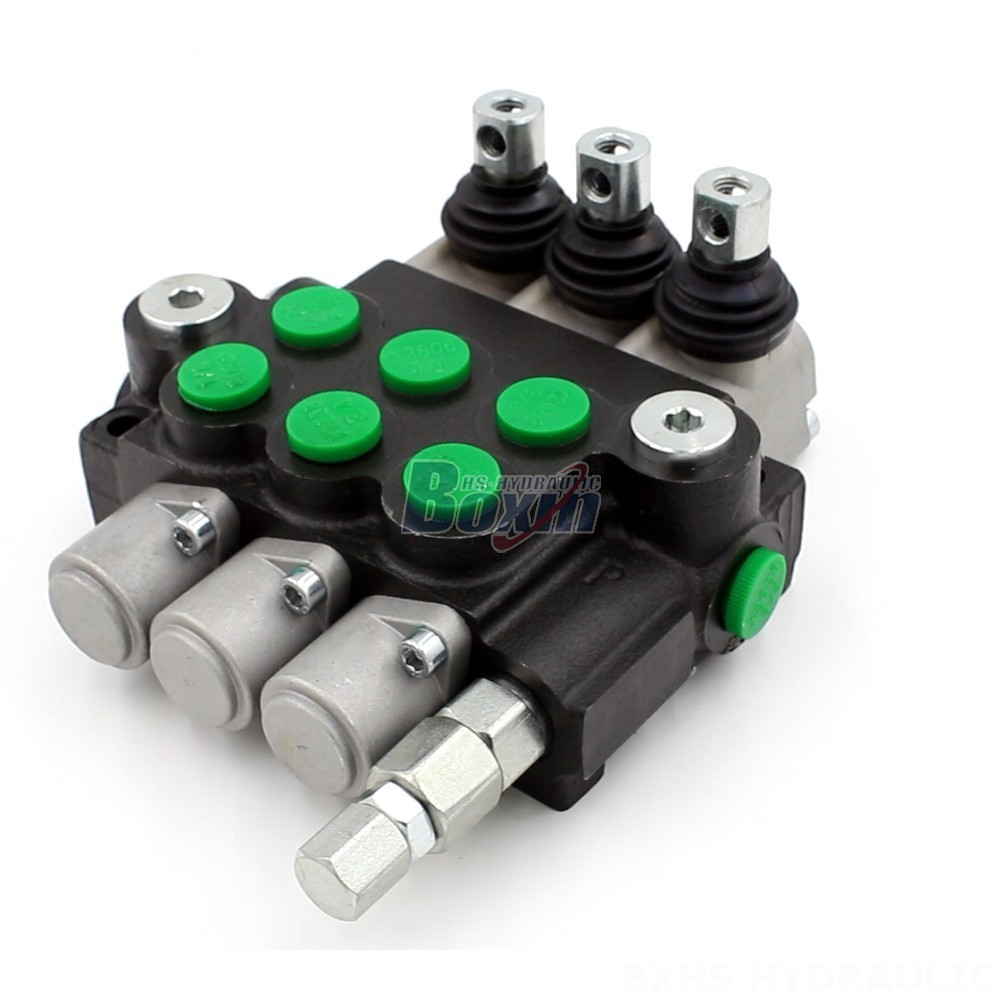

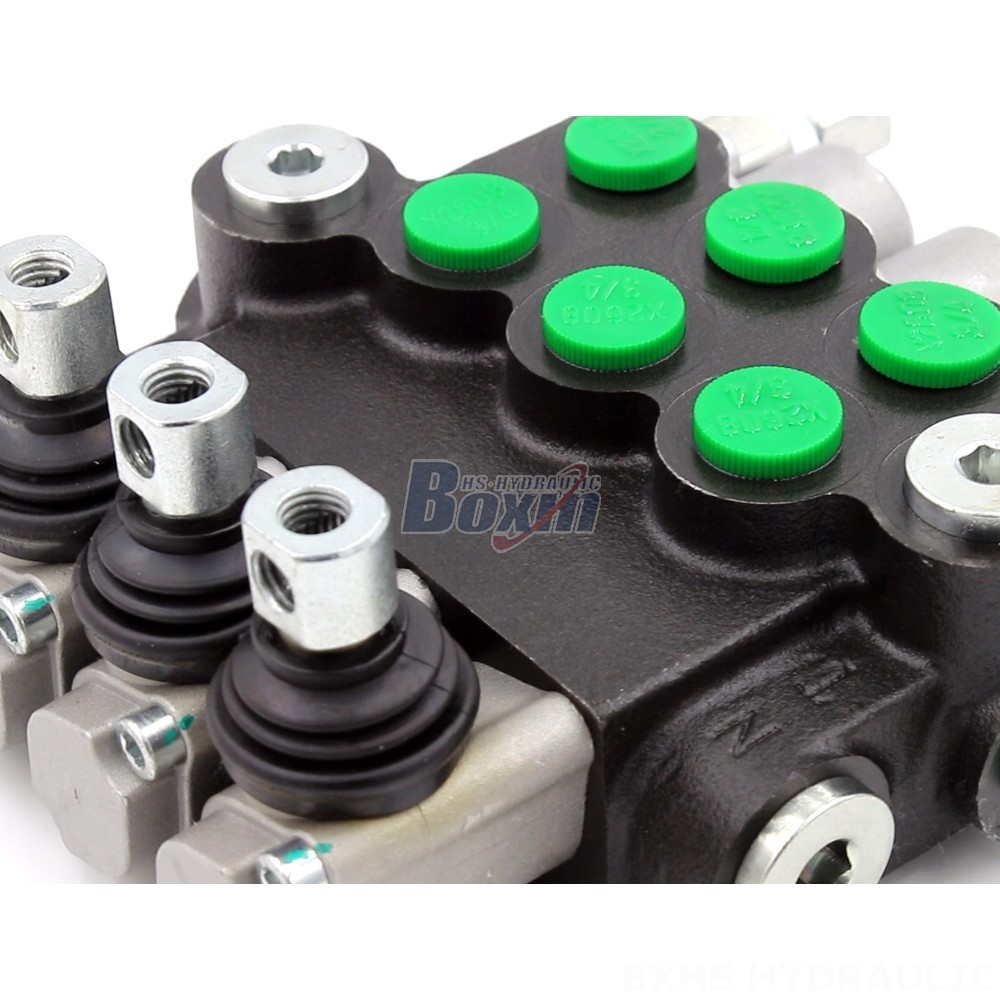

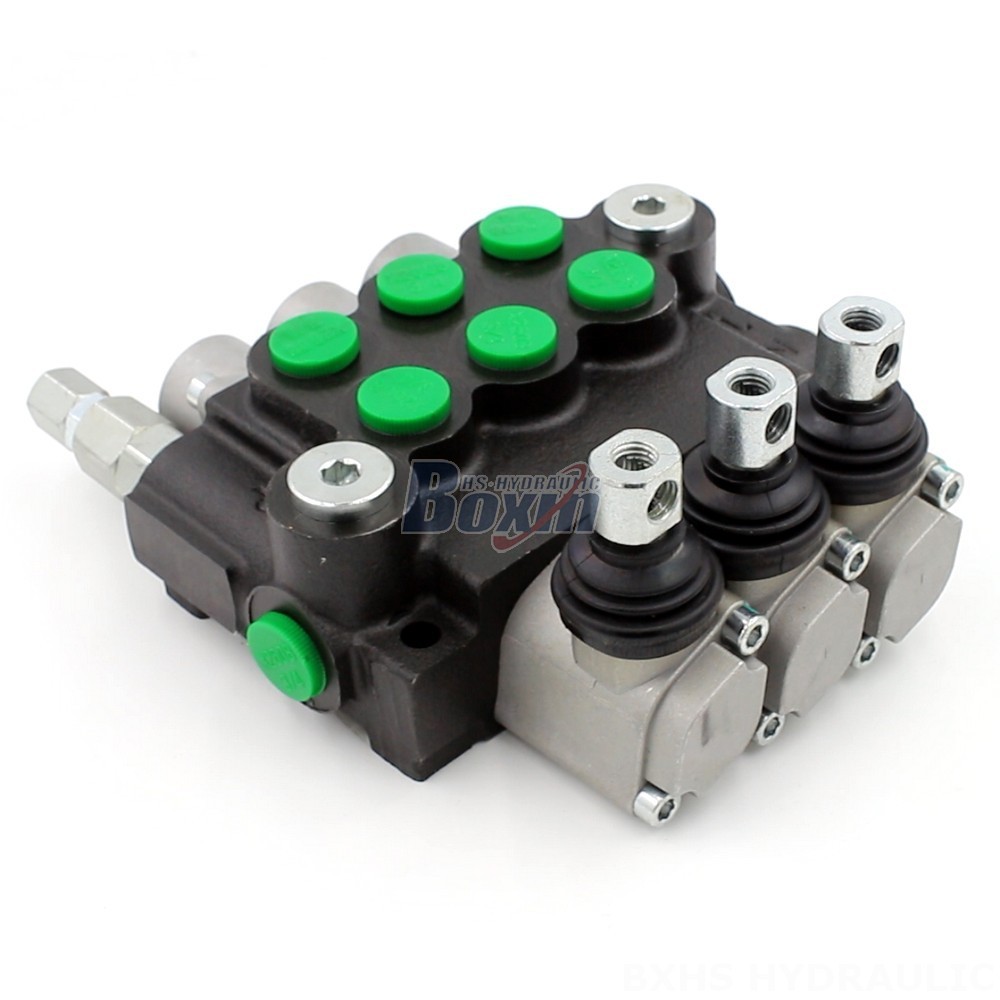

**Factory Wholesale Supply: P40-U34-OT Hydraulic Valves from the Manufacturer**
**Product Description:**
The P40-U34-OT hydraulic valve is a 3-spool, monoblock valve designed for use in a variety of applications, including material handling, construction, agriculture, and industrial vehicles. The valve is manufactured by a leading hydraulic component manufacturer and is available for factory wholesale supply.
**Key Features:**
* Manual control
* 3-section design
* Rated flow: 40 L/min (10.5 US gpm)
* Max pressure: 250 bar (3600 psi)
* Operating viscosity range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range: -40°C to +80°C (-40°F to +176°F)
* 3 spool
* P40 Series
**Applications:**
The P40-U34-OT hydraulic valve is suitable for use in a wide range of applications, including:
* Telehandlers
* Forklifts
* All terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Midi-excavators
* Mini-excavators
* Skid steer loaders
**Benefits:**
* High performance and reliability
* Durable construction
* Factory wholesale pricing
* Fast delivery
* Excellent customer service
If you are looking for a high-quality hydraulic valve for your application, the P40-U34-OT is an excellent choice. Contact us today to learn more about this product and to get a quote.
