Plazo de ejecución de producción de 15 a 30 días
La innovación impulsa el desarrollo; tecnología forja futuro
944 personas están viendo este producto

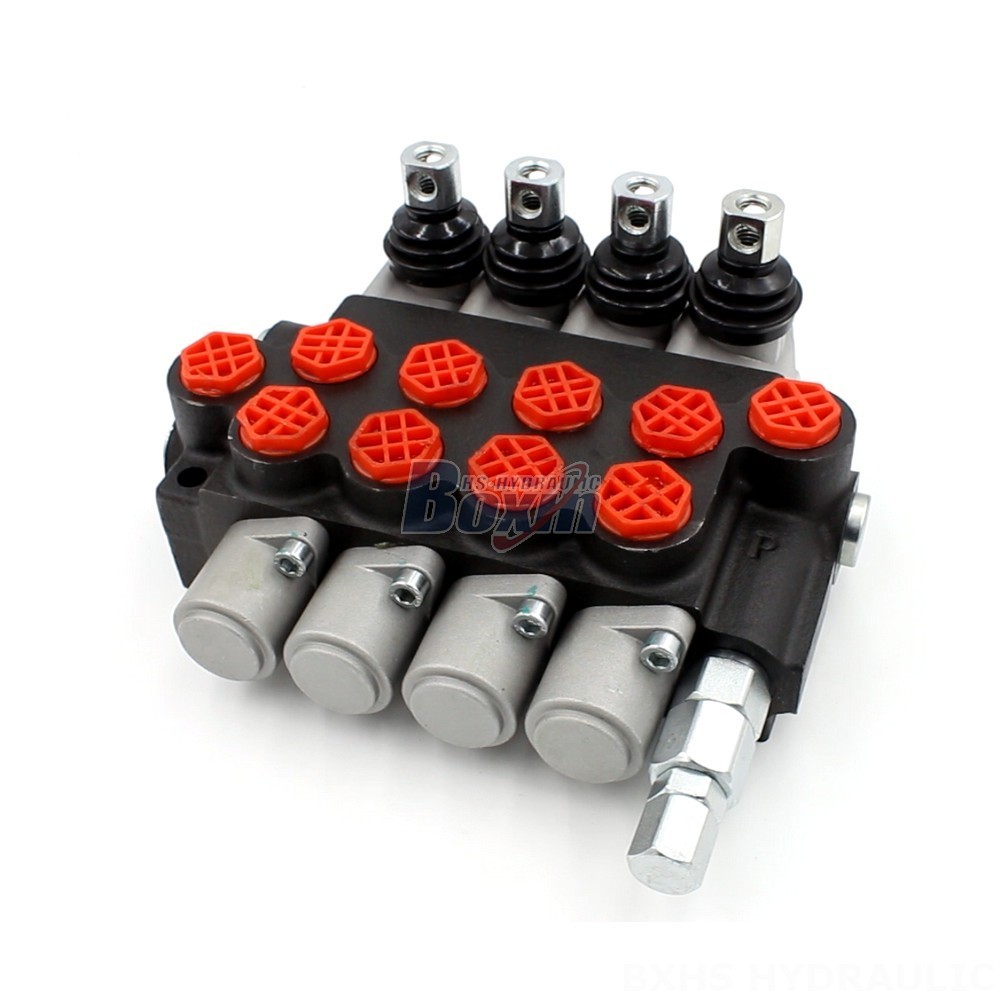

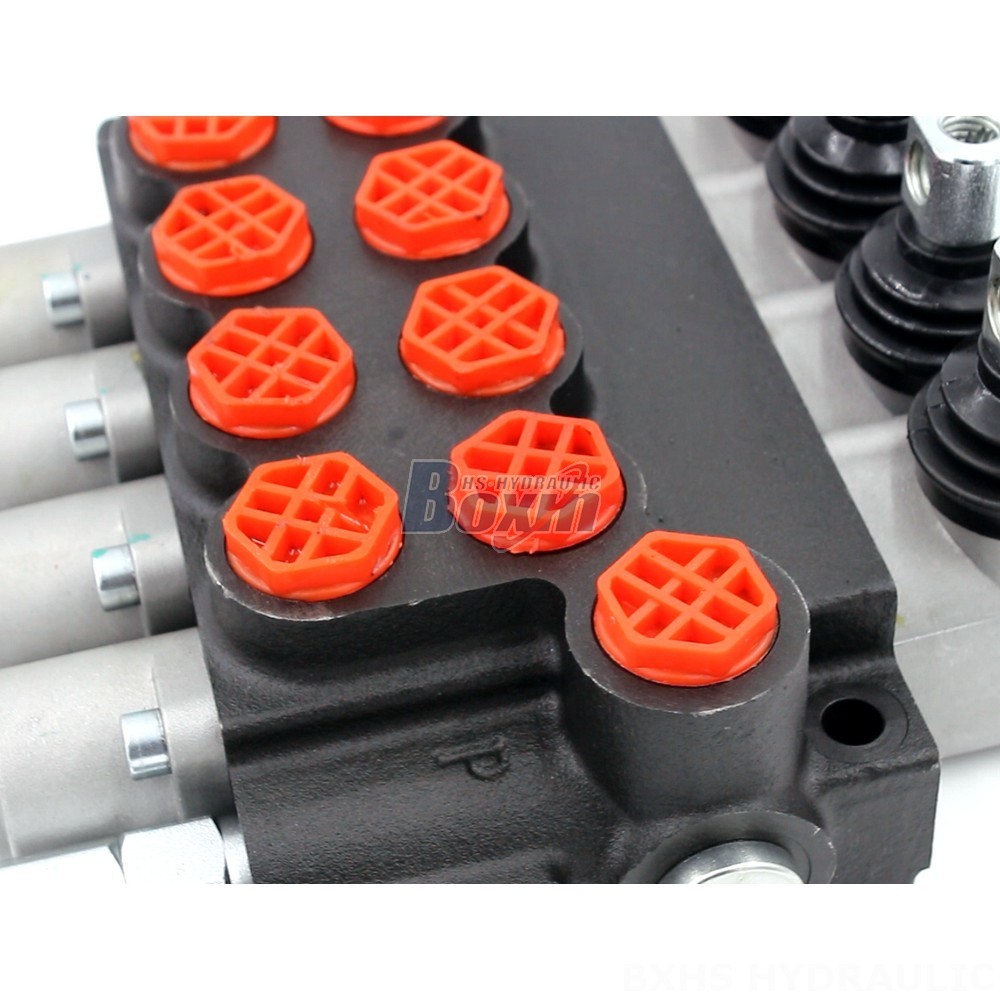

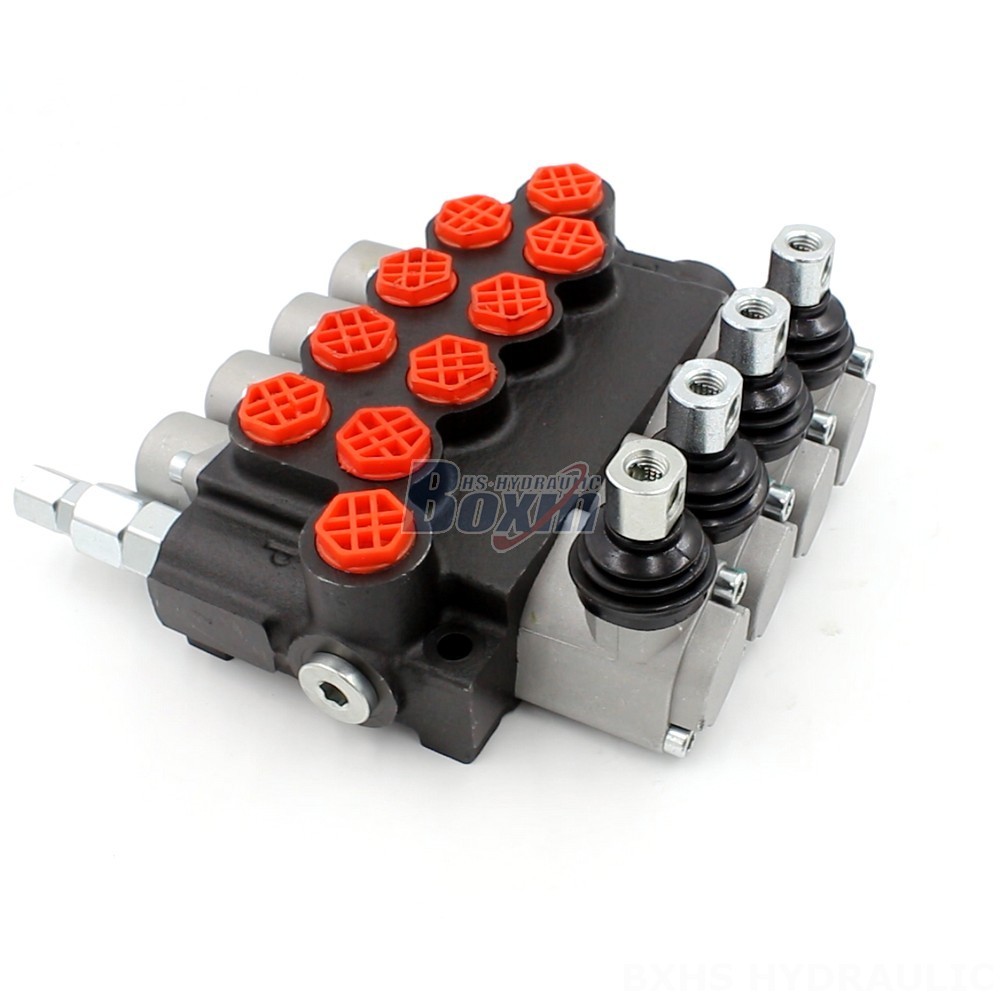

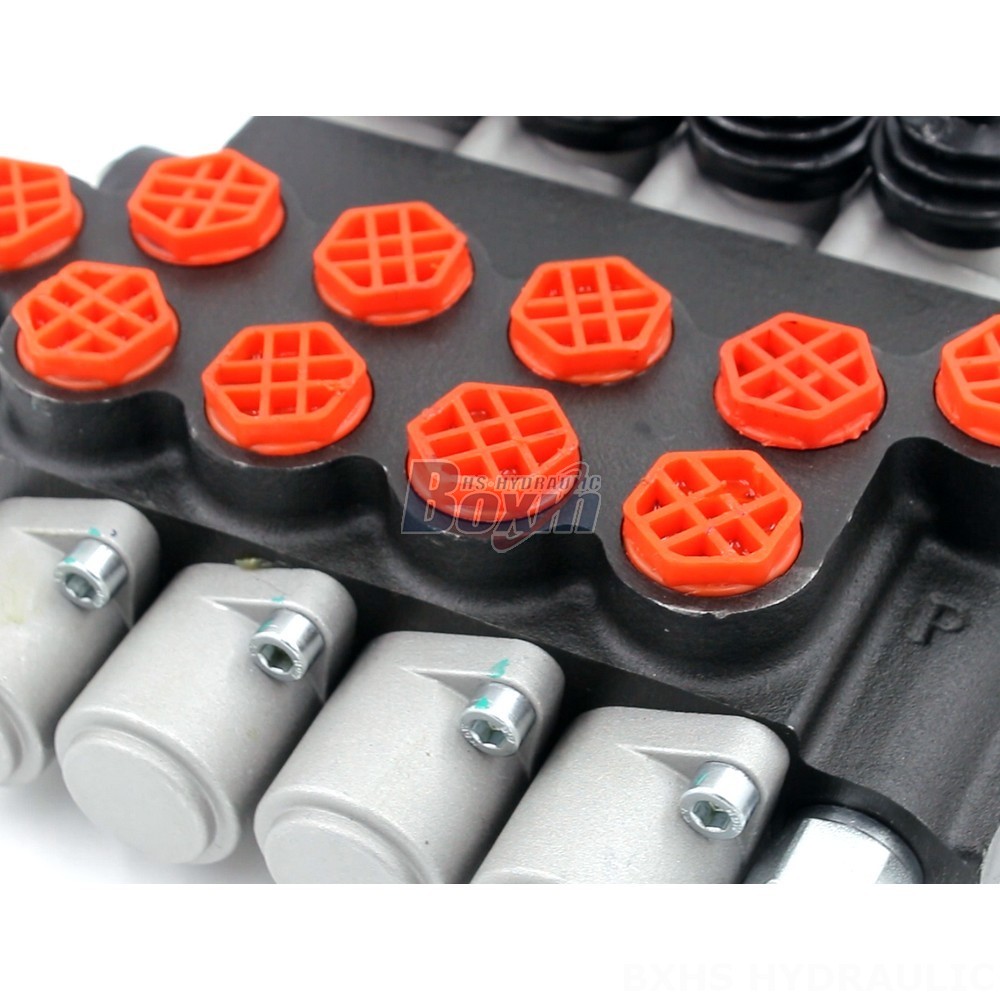

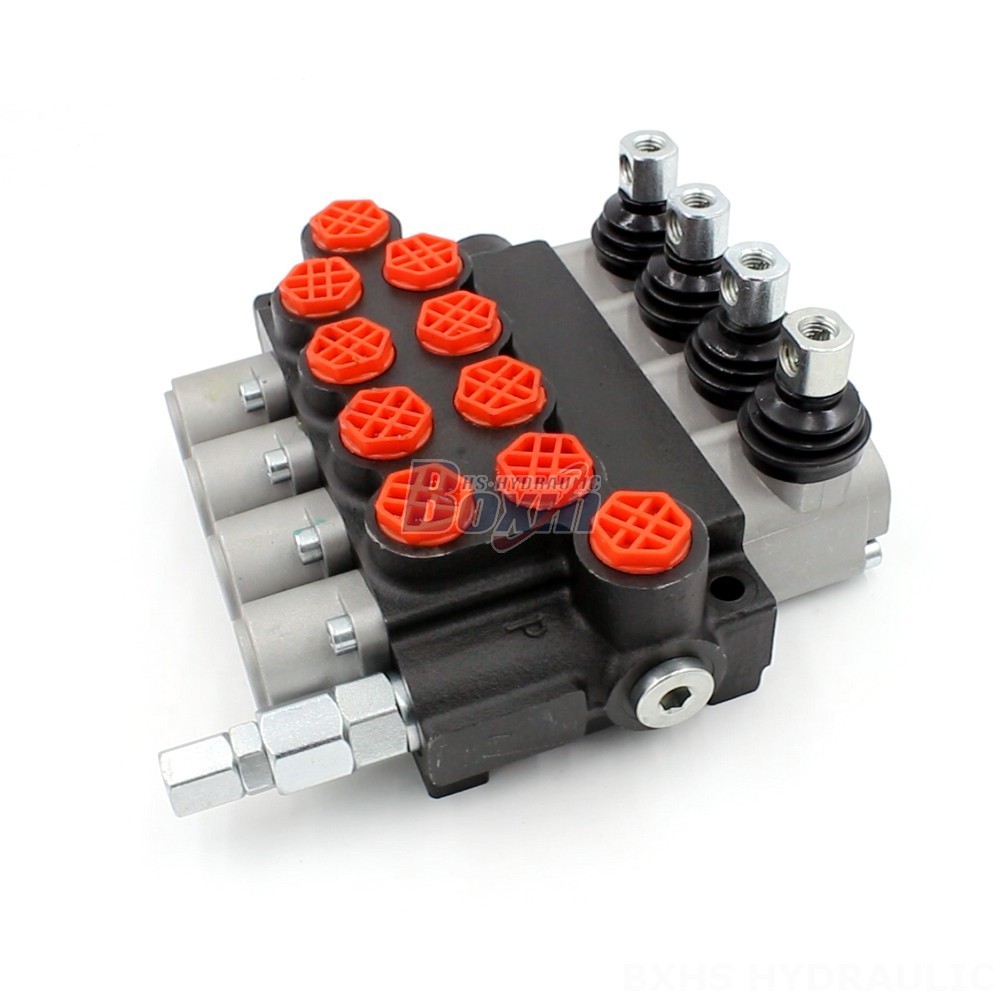

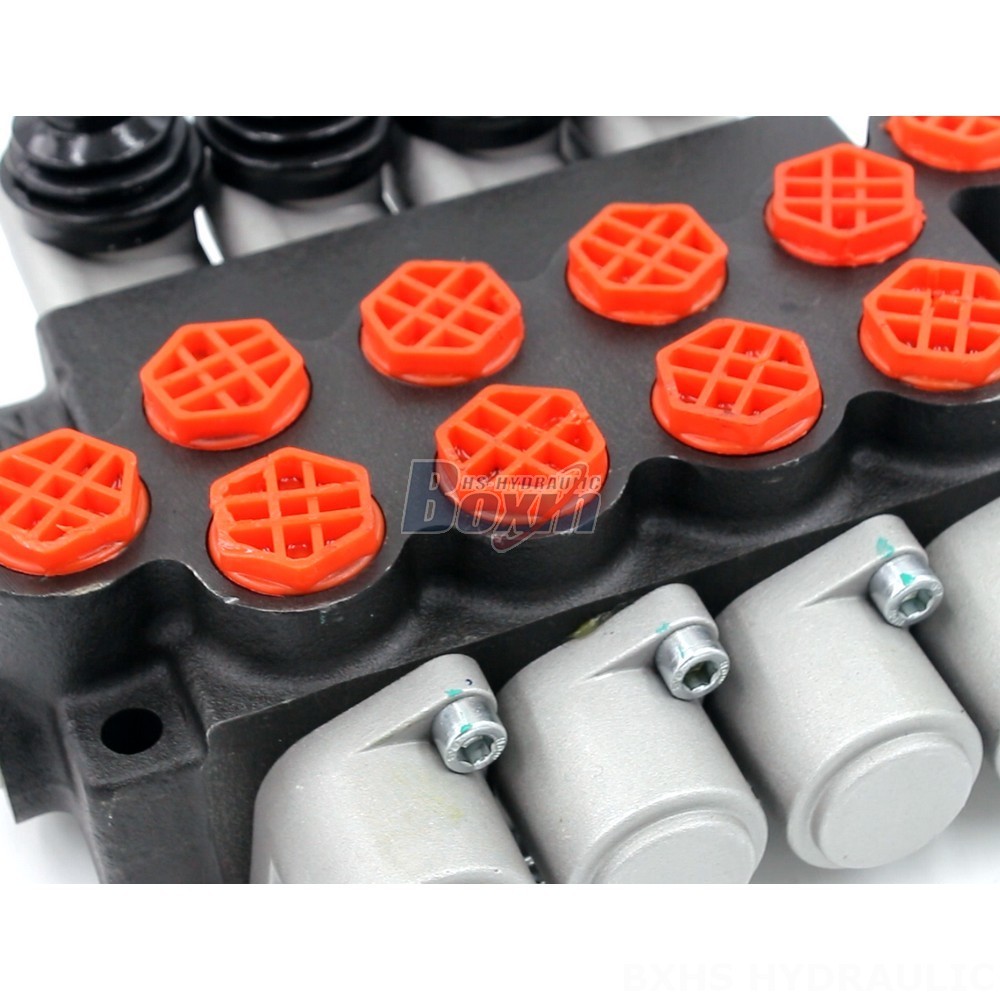

The P40-G38 4 Section Monoblock Valve is a high-performance hydraulic valve designed for use in various applications including construction, material handling, and agriculture. This 4-spool valve offers a rated flow of 40 L/min and a maximum pressure of 250 bar, making it a reliable choice for demanding environments.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
We are a manufacturer of hydraulic products supplying to global markets. We offer manufacturing, OEM, private labeling, customization, and wholesale. This P40-G38 4 Section Monoblock Valve is a high-performance hydraulic valve designed for various applications. This manual control valve features a 4-spool design, rated flow of 40 L/min, and a maximum pressure of 250 bar. It is suitable for use in demanding environments with an operating viscosity range of 15 - 75 mm²/s and ambient temperature range of -40°C to +80°C. We are a factory supplier and wholesaler offering competitive pricing for bulk purchases. Contact us today to learn more about our products and services.
