Factory Discounts on P80F-G34-OT Hydraulic Directional Control Valves

Método de control:Manual

Carrete:5 carretes

Flujo Nominal:80 l/min (21,2 gal EE. UU./min)

Presión Máxima:250 bar (3600 psi)

Puerto de Entrada:G3/4

Puerto de Salida:G3/4

Tamaño de Puerto:G3/4

Marca:BXHS

Tipo de producto:Válvula Direccional Monobloque

Serie de productos:Serie P80F Válvula Direccional Monobloque

Tamaño del embalaje:26*30*11

Peso bruto:16.00 kg

Disponibilidad: En stock

1249 personas están viendo este producto

Factory Discounts on P80F-G34-OT Hydraulic Directional Control Valves

Factory Discounts on P80F-G34-OT Hydraulic Directional Control Valves

Factory Discounts on P80F-G34-OT Hydraulic Directional Control Valves drawing image

Our factory manufactures high-quality 4 Way Valve P80F-G34-OT hydraulic directional control valves. These manual control, 5 section, monoblock valves are designed for heavy-duty applications and offer a rated flow of 80 L/min and a maximum pressure of 250 bar. We offer competitive factory prices and direct supply options for bulk orders.

Serie P80F Válvula Direccional Monobloque Parámetros
Carrete 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes
Método de control Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick
Tamaño de Puerto G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Sección 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones
Rango de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Rango de viscosidad de funcionamiento 15 - 75 mm²/s (15 cSt a 75 cSt)
Puerto de Salida G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT
Presión Máxima 315 bar (4600 psi)
Flujo Nominal 80 l/min (21,2 gal EE. UU./min)
Tipo de estructura Válvulas monobloc
Puerto de Entrada G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

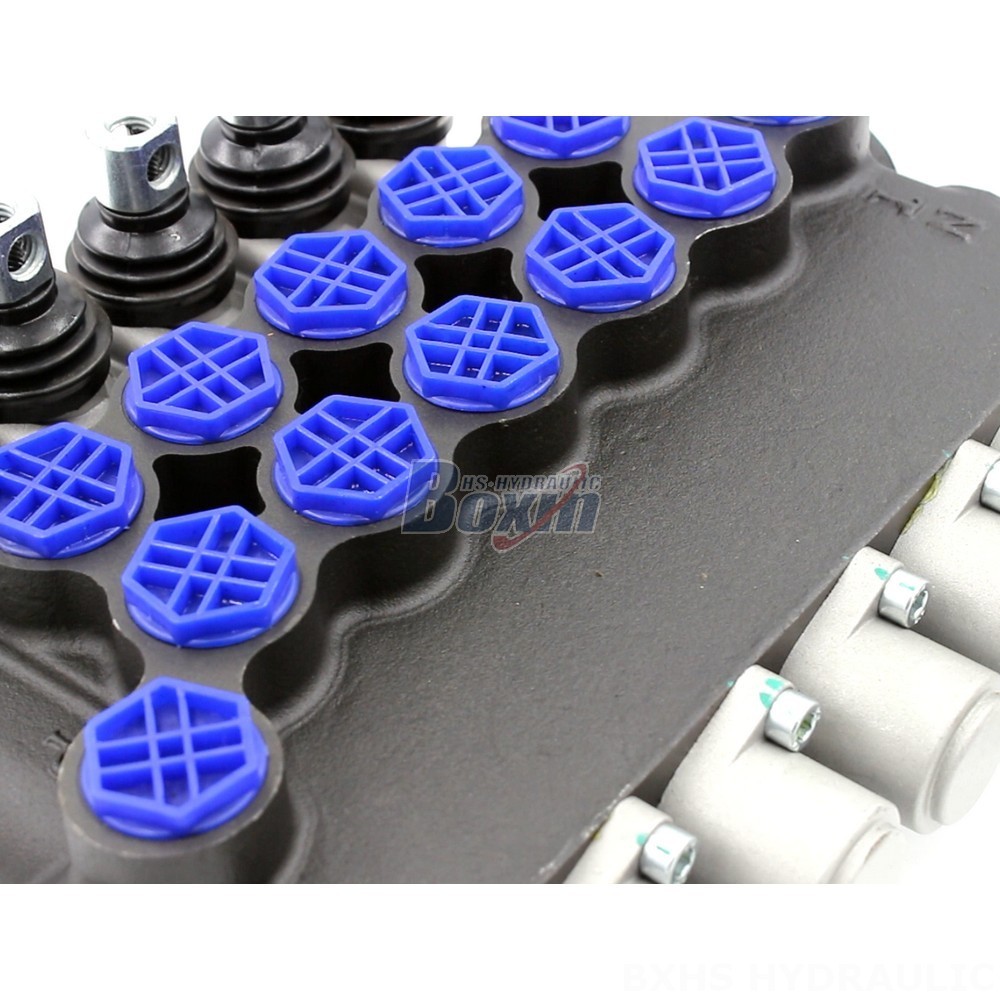

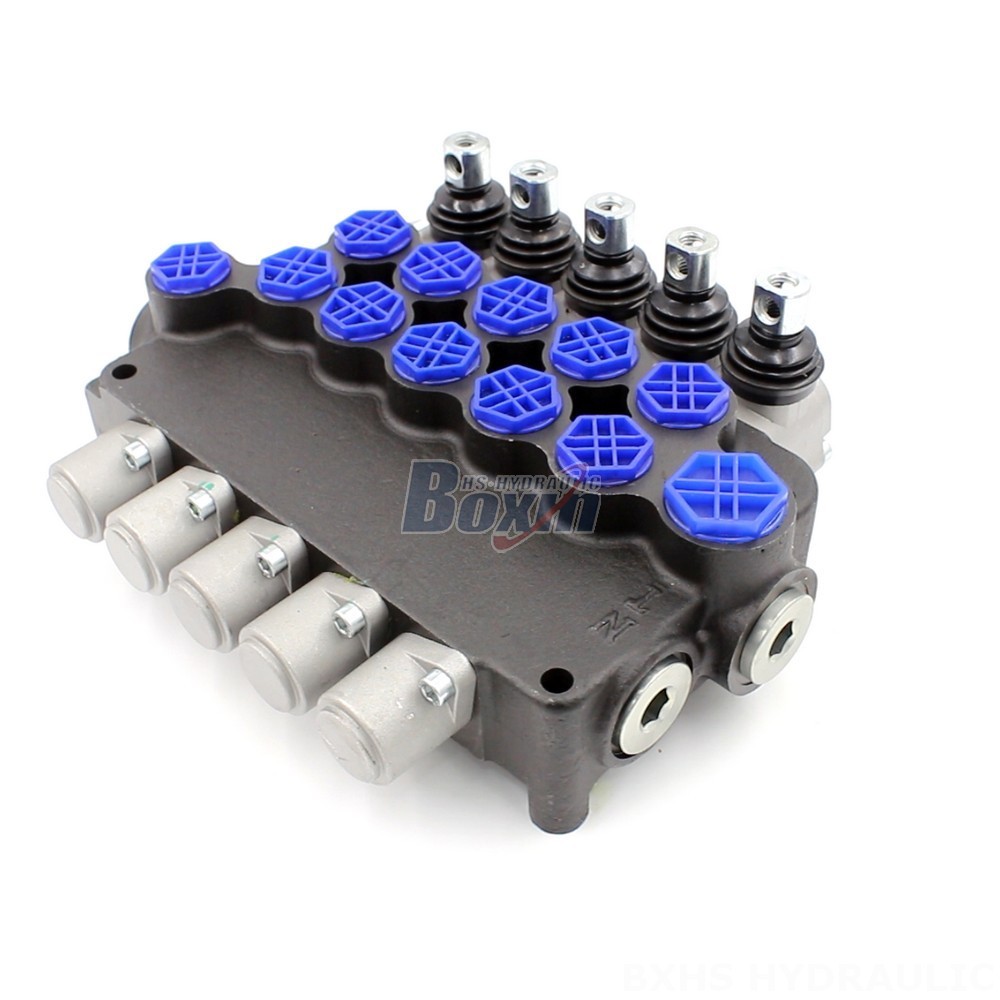

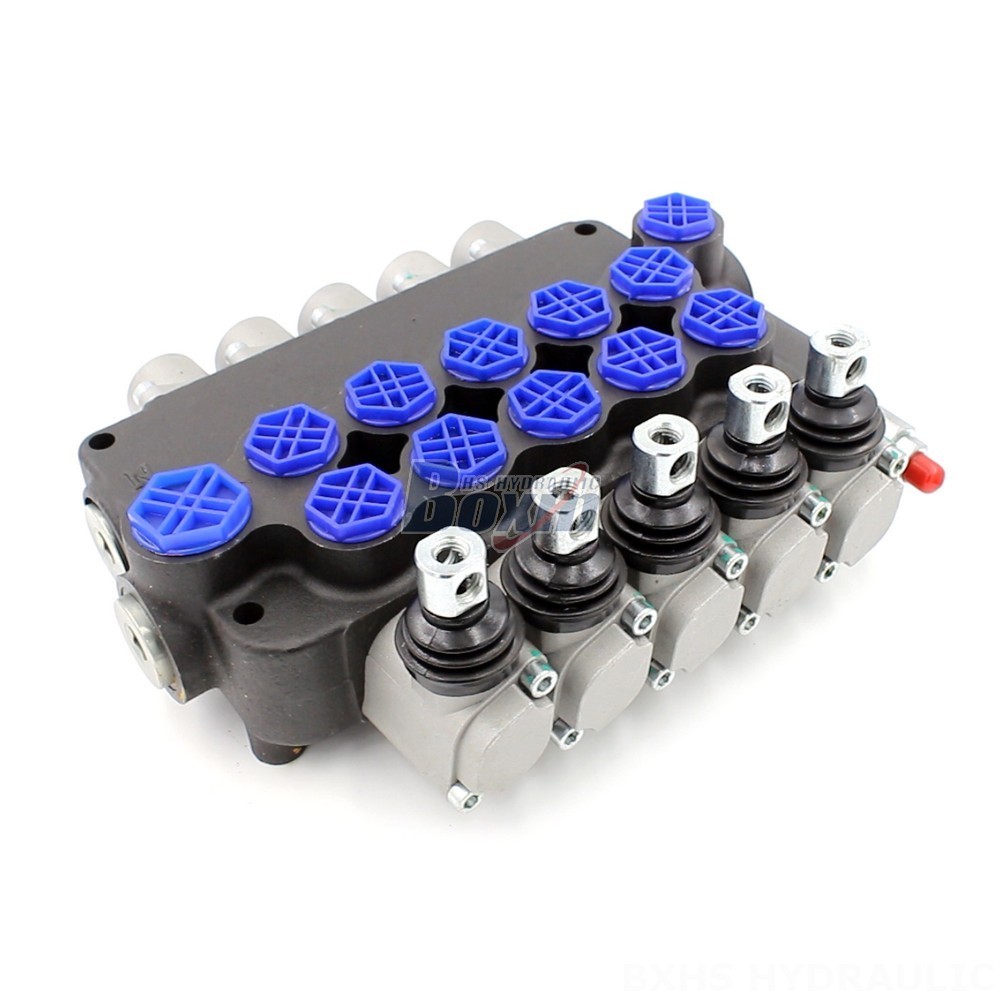

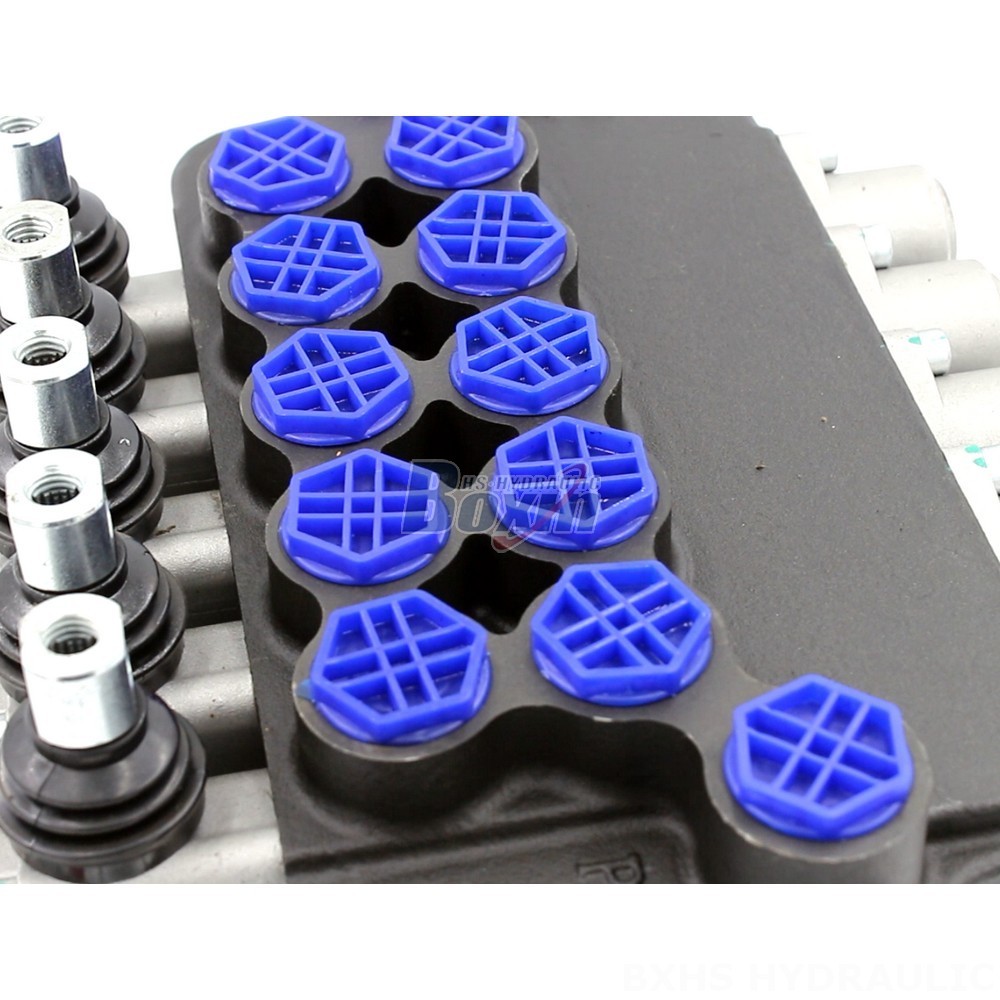

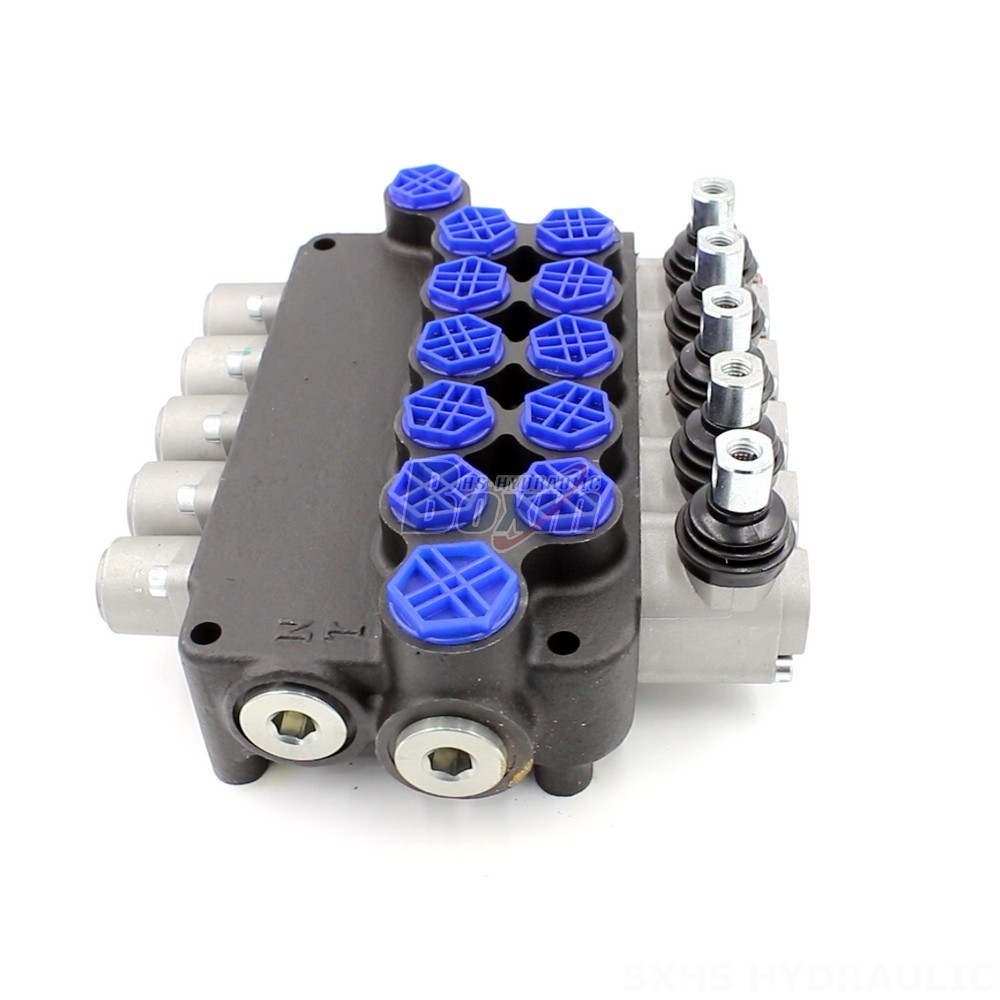

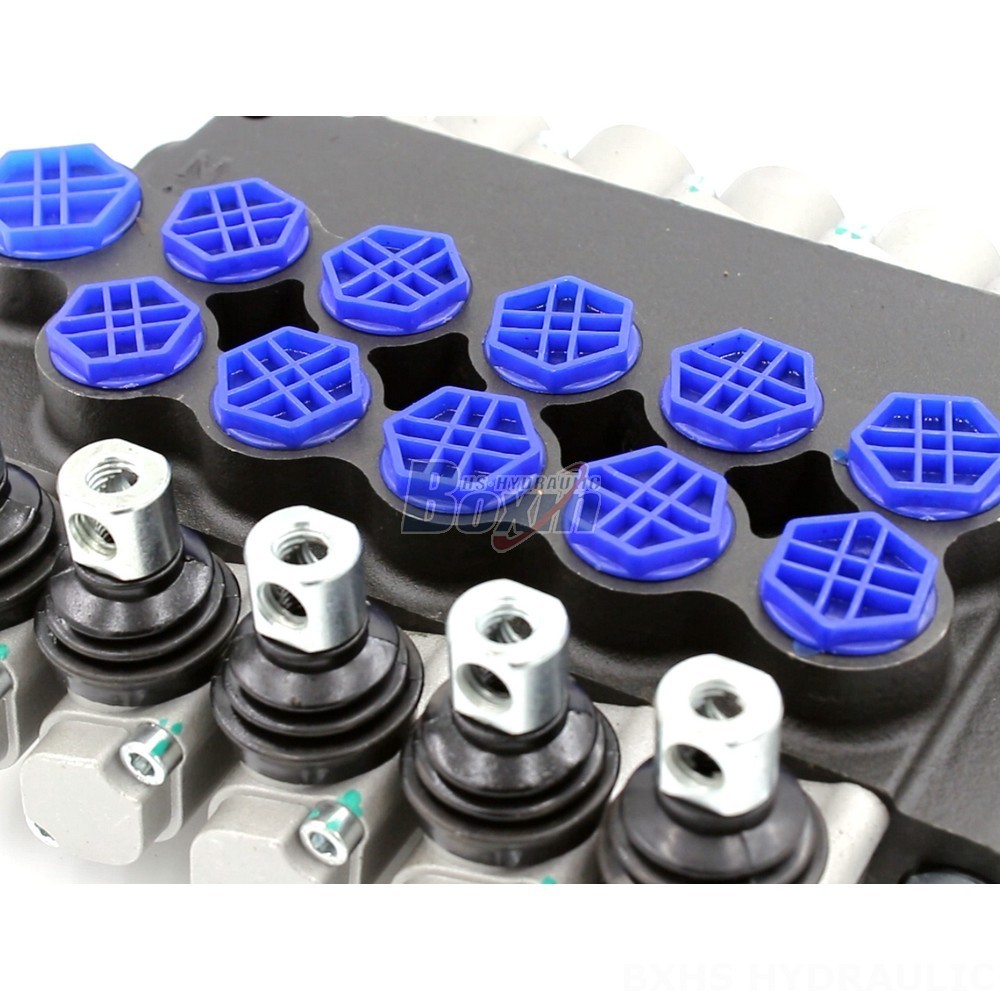

This P80F-G34-OT 4 Way Valve is a high-performance hydraulic directional control valve manufactured in our factory. It features manual control, a 5 section design, and a monoblock structure. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve is ideal for heavy-duty applications in various industries. The valve operates within a viscosity range of 15-75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). It is equipped with a 5 spool design and falls under the P80F series. This valve is specifically suitable for material handling, construction and earth moving, and industrial vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, backhoe loaders, harvesters, and bale wrappers. As a manufacturer, we offer competitive factory prices and direct supply options for bulk orders. We welcome inquiries from distributors, wholesalers, agents, and traders worldwide.
