Factory Direct Supply: SD11-PG2 Electro-hydraulic Monoblock Valves

Método de control:Electrohidráulico

Carrete:4 carretes

Flujo Nominal:70 l/min (18,5 gal EE. UU./min)

Presión Máxima:315 bar (4600 psi)

Puerto de Entrada:G3/4

Puerto de Salida:G3/4

Tamaño de Puerto:G1/2

Marca:BXHS

Tipo de producto:Válvula Direccional Monobloque

Serie de productos:Serie SD11 Válvula Direccional Monobloque

Tamaño del embalaje:29*30*20

Peso bruto:17.90 kg

Disponibilidad: En stock

539 personas están viendo este producto

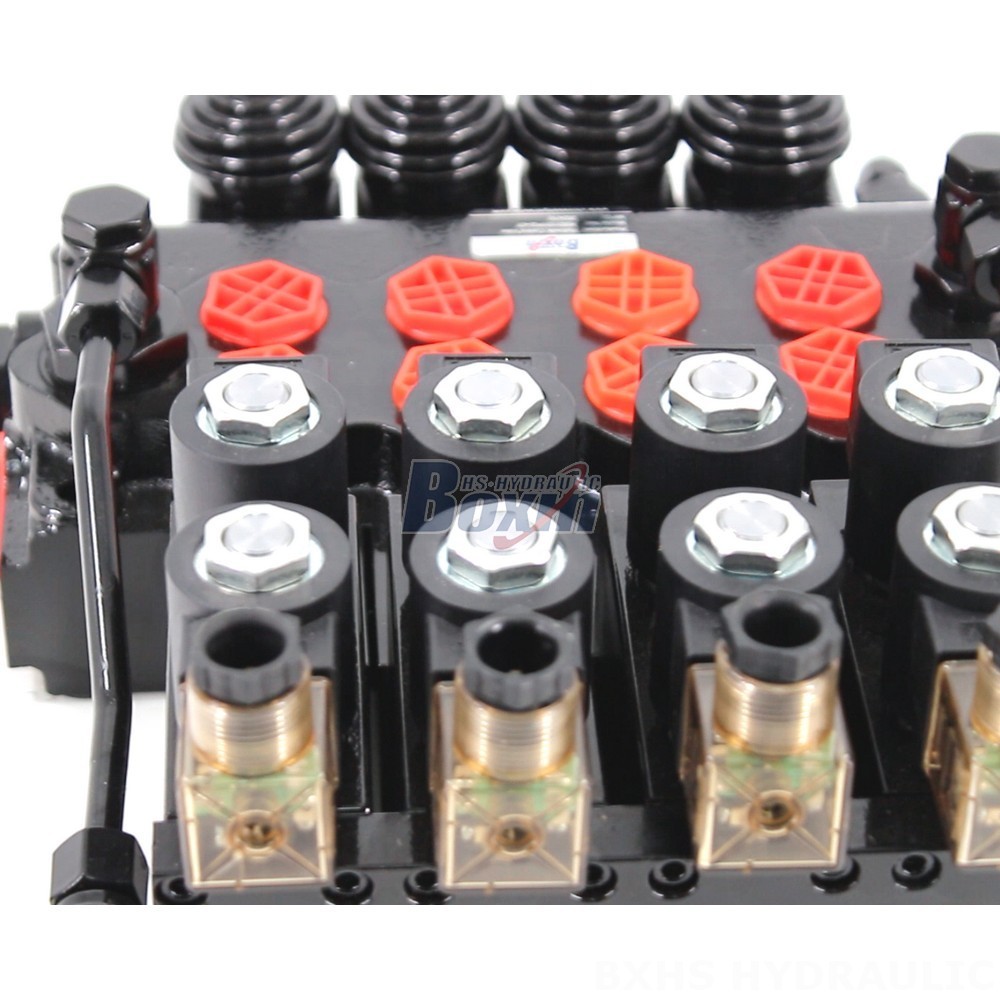

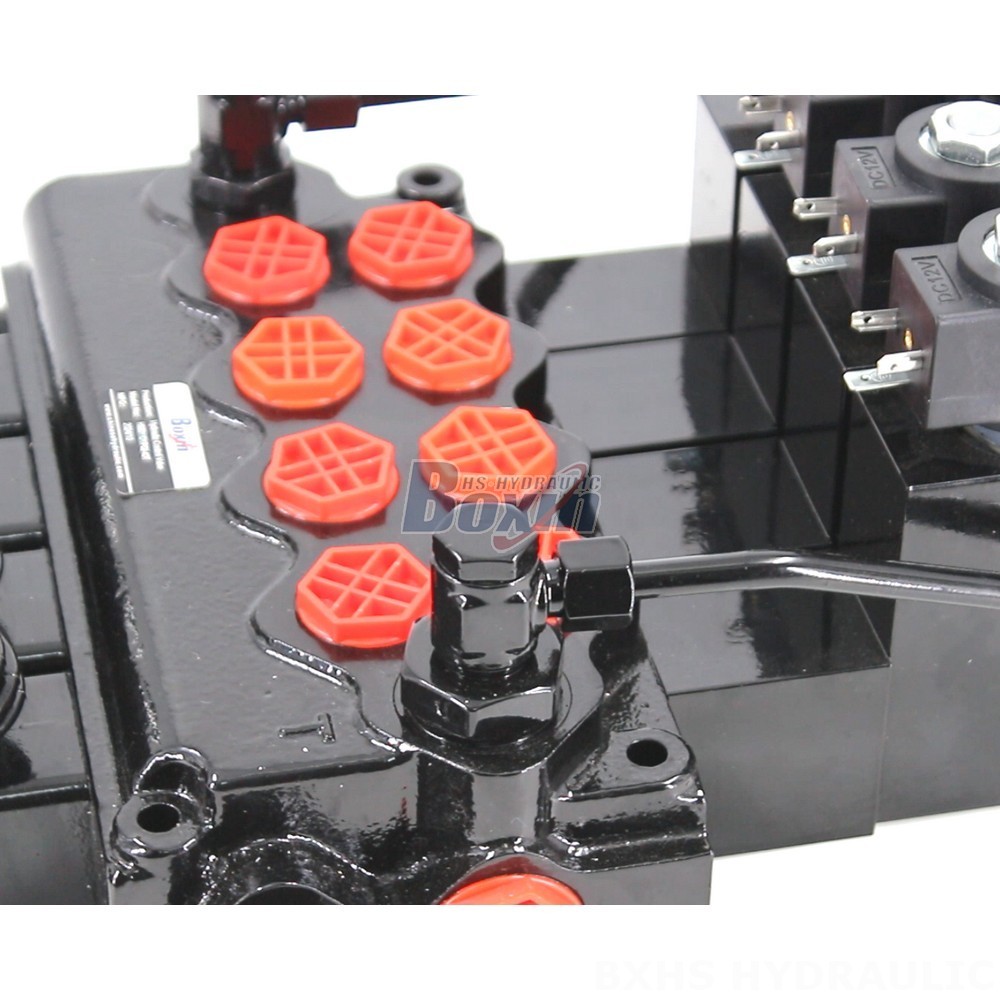

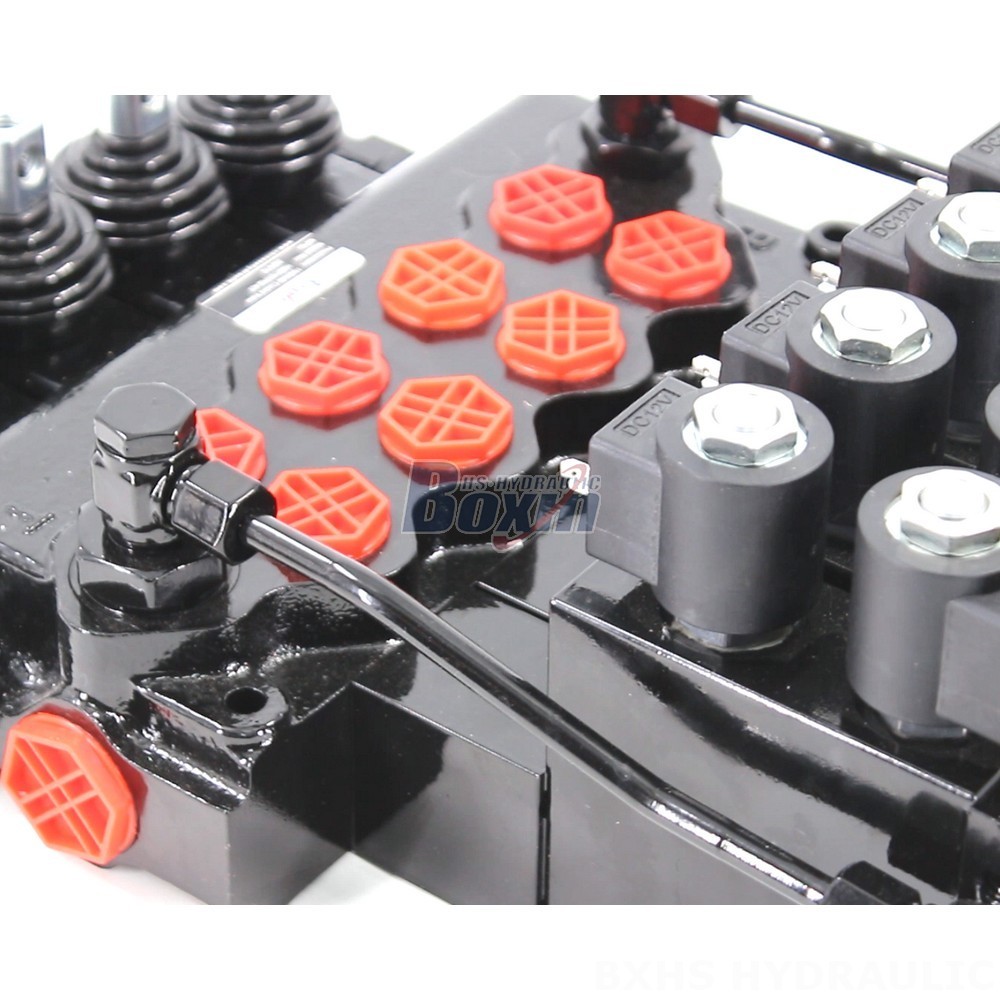

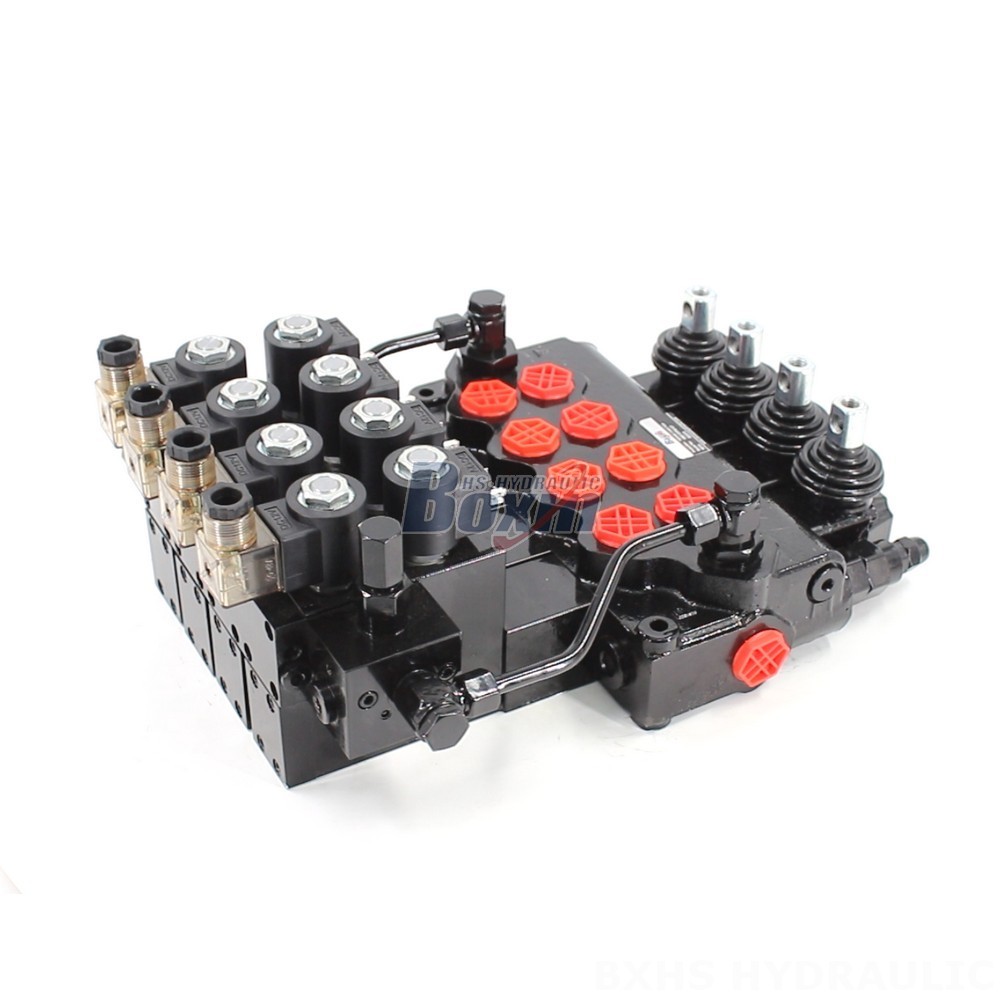

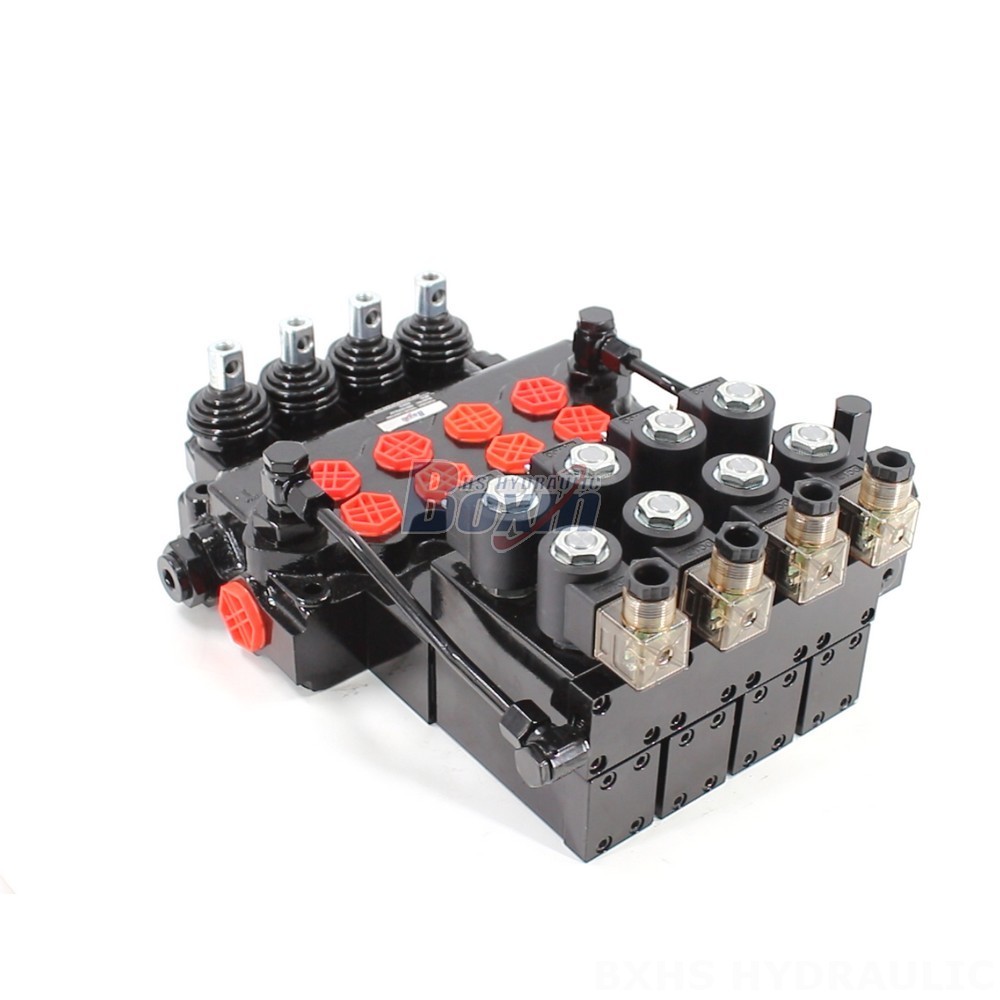

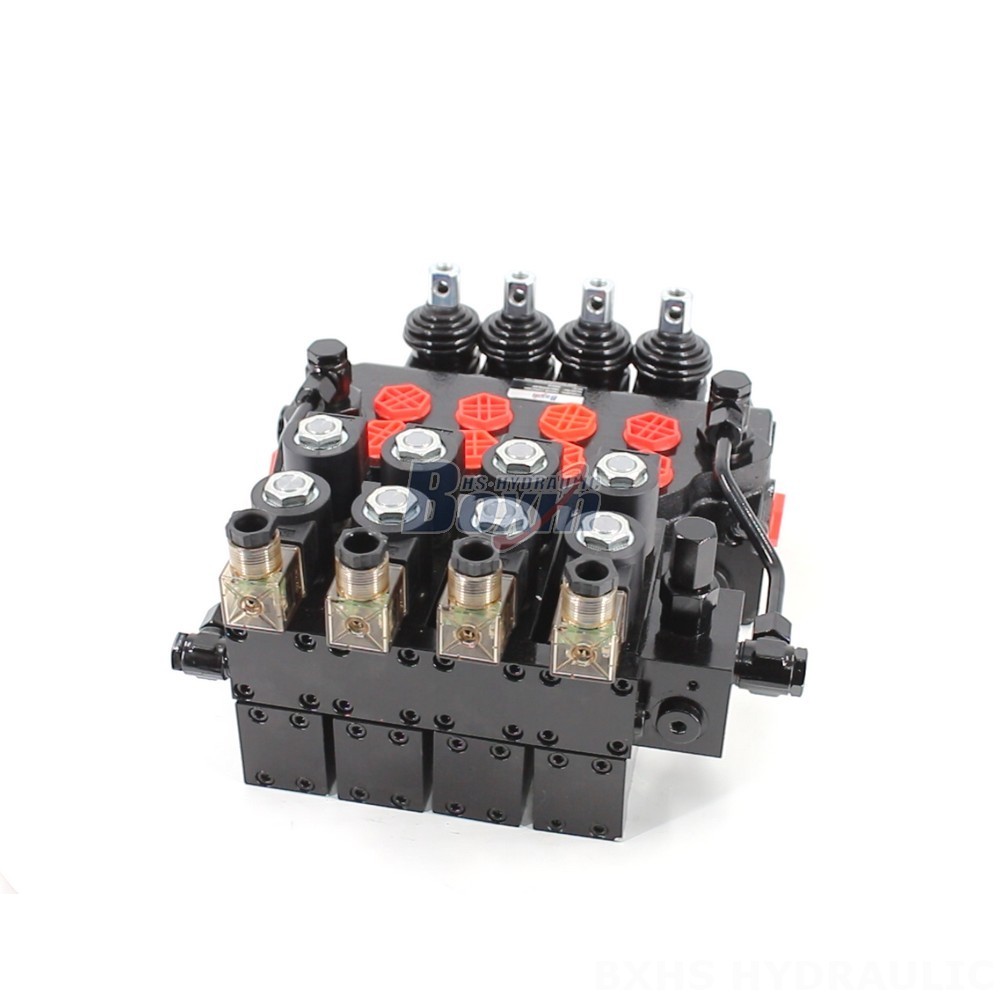

Factory Direct Supply: SD11-PG2 Electro-hydraulic Monoblock Valves

Factory Direct Supply: SD11-PG2 Electro-hydraulic Monoblock Valves

Factory Direct Supply: SD11-PG2 Electro-hydraulic Monoblock Valves drawing image

Factory direct supply of high-quality SD11-PG2 electro-hydraulic monoblock valves. 4-section, 70 L/min rated flow, 315 bar max pressure. Ideal for material handling, construction, and industrial applications. Wholesale and OEM/ODM opportunities available.

Serie SD11 Válvula Direccional Monobloque Parámetros
Método de control Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Eléctrico, Neumático y manual
Carrete 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes
Rango de temperatura ambiente -40 °C a +60 °C (-40 °F a +140 °F)
Tipo de estructura Válvulas monobloc
Sección 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones
Rango de viscosidad de funcionamiento 15 - 75 mm²/s (15 cSt a 75 cSt)
Flujo Nominal 70 l/min (18,5 gal EE. UU./min)
Presión Máxima 305 bar (4400 psi), 315 bar (4600 psi)
Puerto de Entrada G3/4, SAE 12
Puerto de Salida G3/4, SAE 12
Tamaño de Puerto G3/4, SAE 12

We are a leading manufacturer of high-performance electro-hydraulic monoblock valves, offering factory direct supply, OEM/ODM services, private labeling, customization, and wholesale options to global markets. Our SD11-PG2 valve is a robust 4-section unit boasting a 70 L/min rated flow and a maximum pressure of 315 bar (4600 psi). It's engineered for demanding applications in material handling, construction, and industrial vehicles, including forklifts, telehandlers, skid steer loaders, mini-excavators, tractors, harvesters, and balers.

This electro-hydraulic valve operates within a wide viscosity range (15-75 mm²/s) and ambient temperature range (-40°C to +60°C). Its durable monoblock construction ensures reliable performance in diverse environments. We are actively seeking distributors, wholesalers, agents, and trading companies to partner with us and expand our global reach.

**Key Features:**
* **Electro-hydraulic Control:** Precise and efficient operation.
* **Monoblock Design:** Robust and compact construction.
* **High Flow Rate (70 L/min):** Handles high-volume applications.
* **High Pressure Rating (315 bar):** Suitable for heavy-duty machinery.
* **Wide Operating Range:** Adaptable to various conditions.

**Business Opportunities:**
* **Factory Direct Supply:** Benefit from competitive pricing and shorter lead times.
* **OEM/ODM:** We can manufacture valves to your exact specifications.
* **Private Labeling:** Offer your own branded valves to your customers.
* **Customization:** Tailor the valve's features to your unique requirements.
* **Wholesale:** Take advantage of bulk purchasing discounts.

**Contact us today to explore partnership opportunities. We are a reputable manufacturer committed to providing high-quality products and exceptional customer service. Factory direct supply and factory wholesale are our strengths. Let's grow together!**
