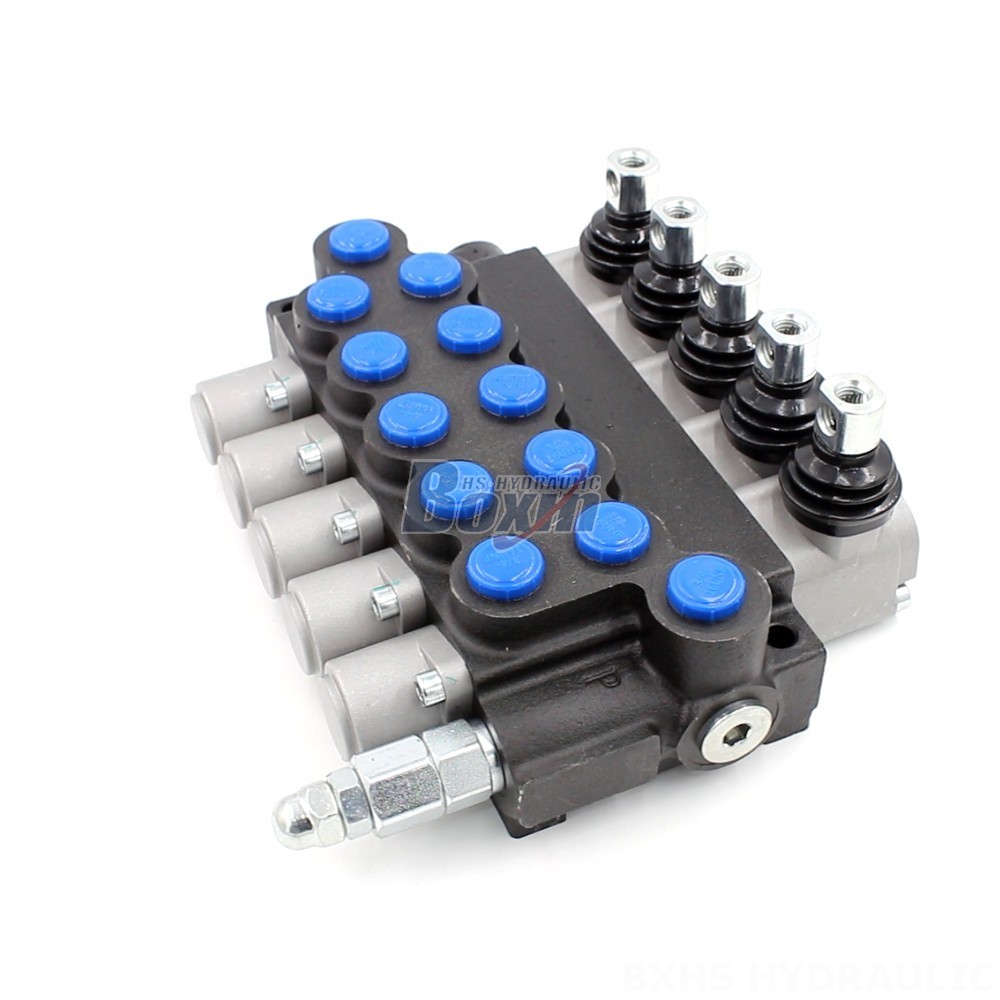

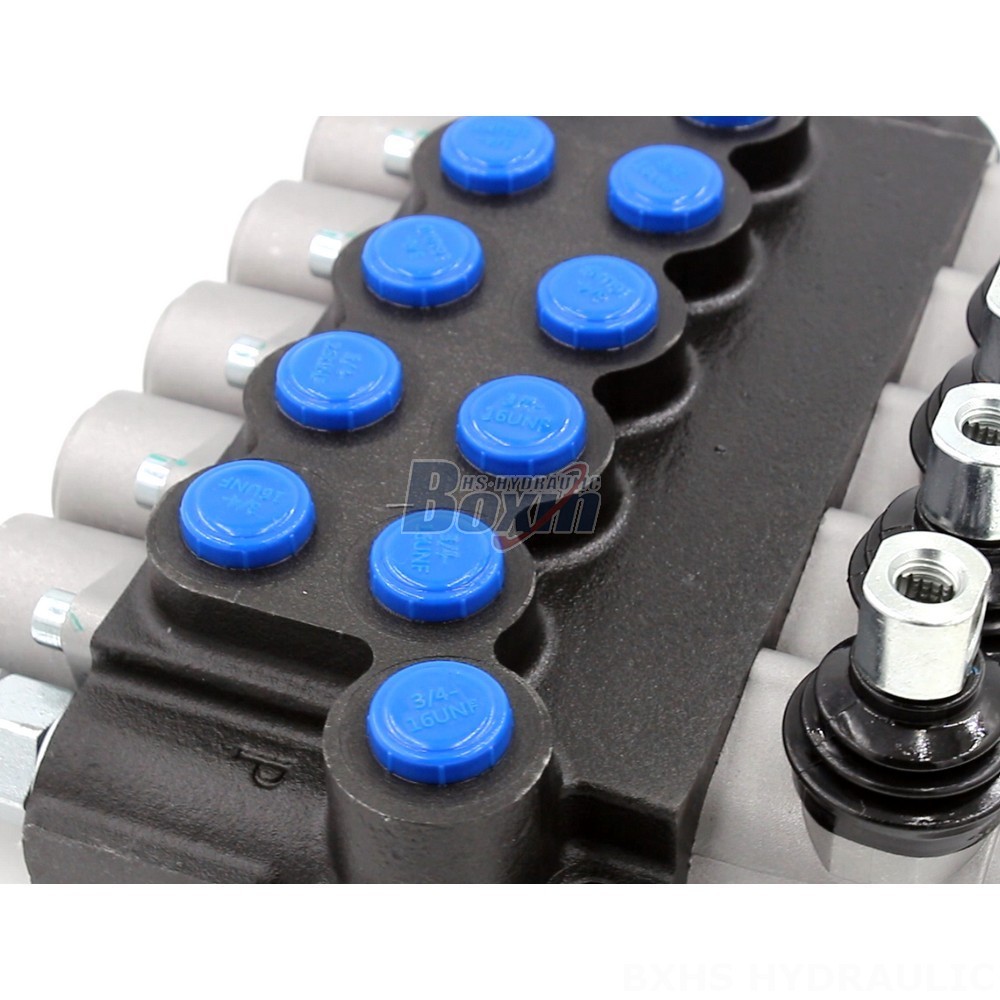

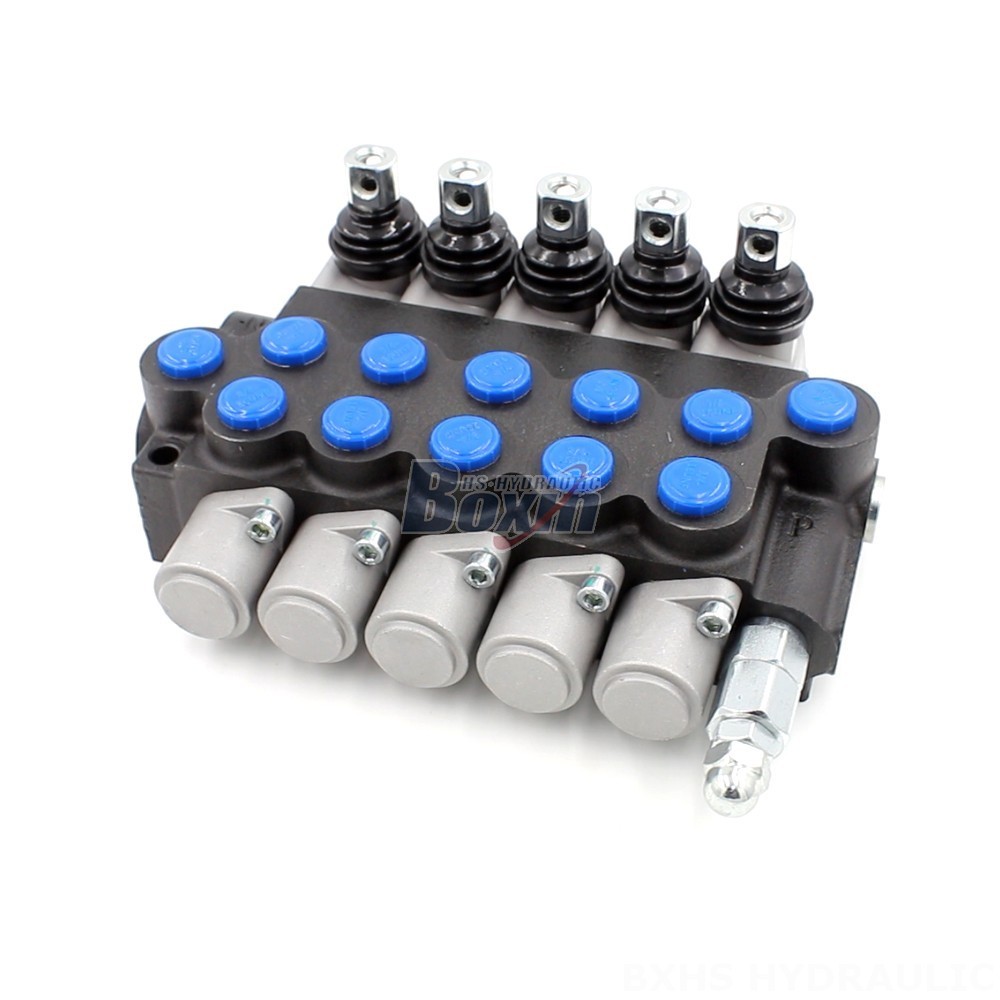

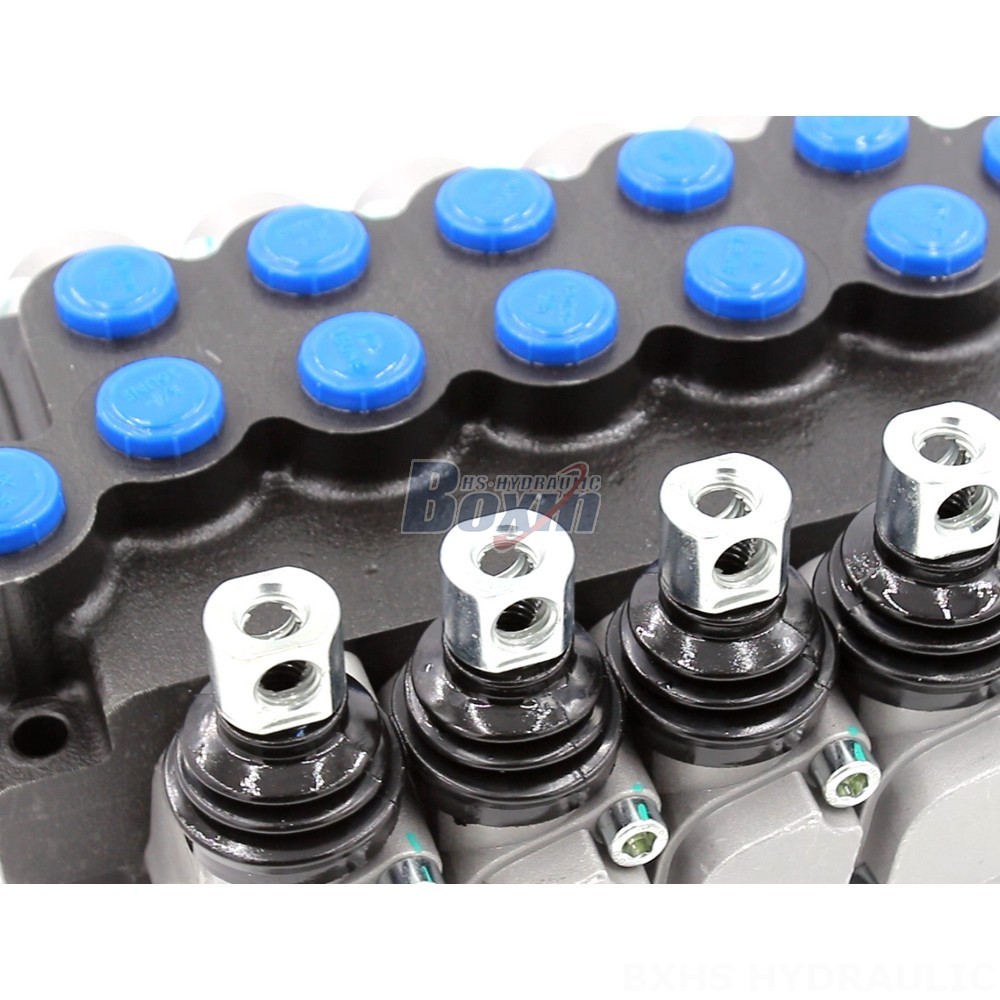

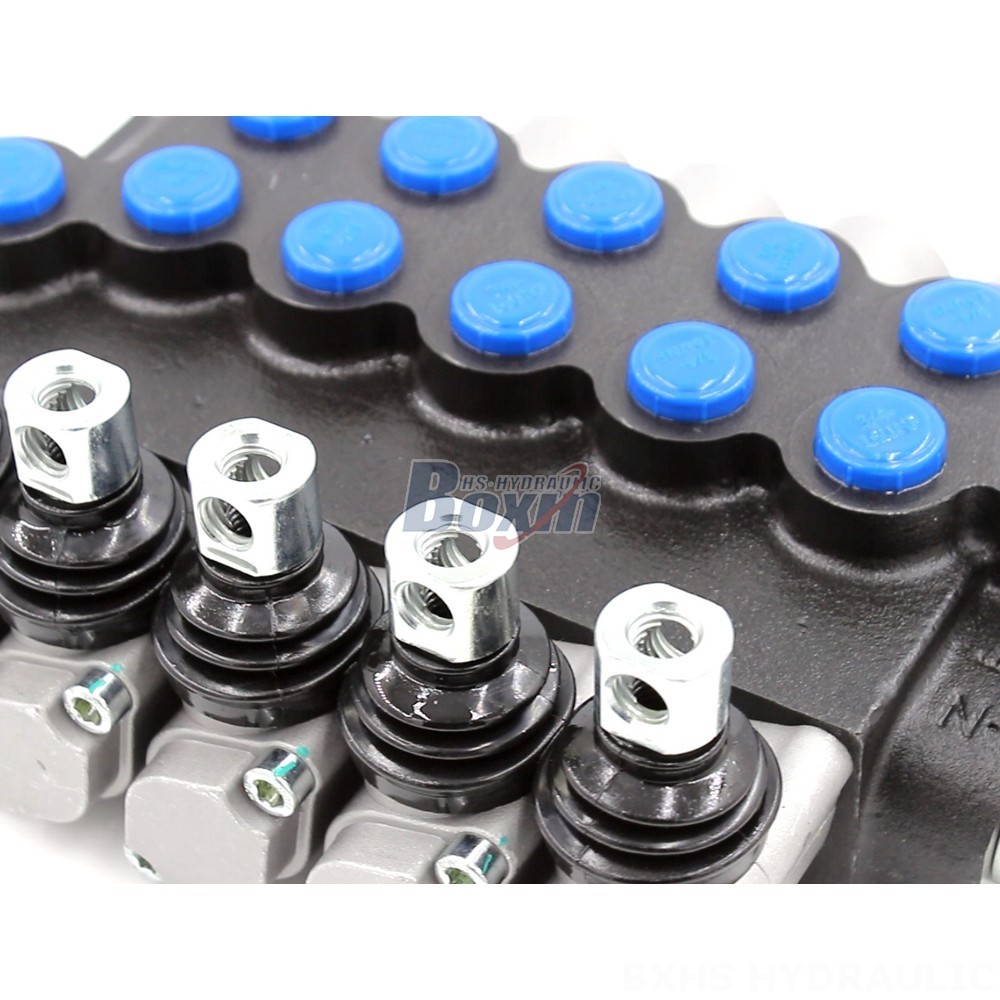

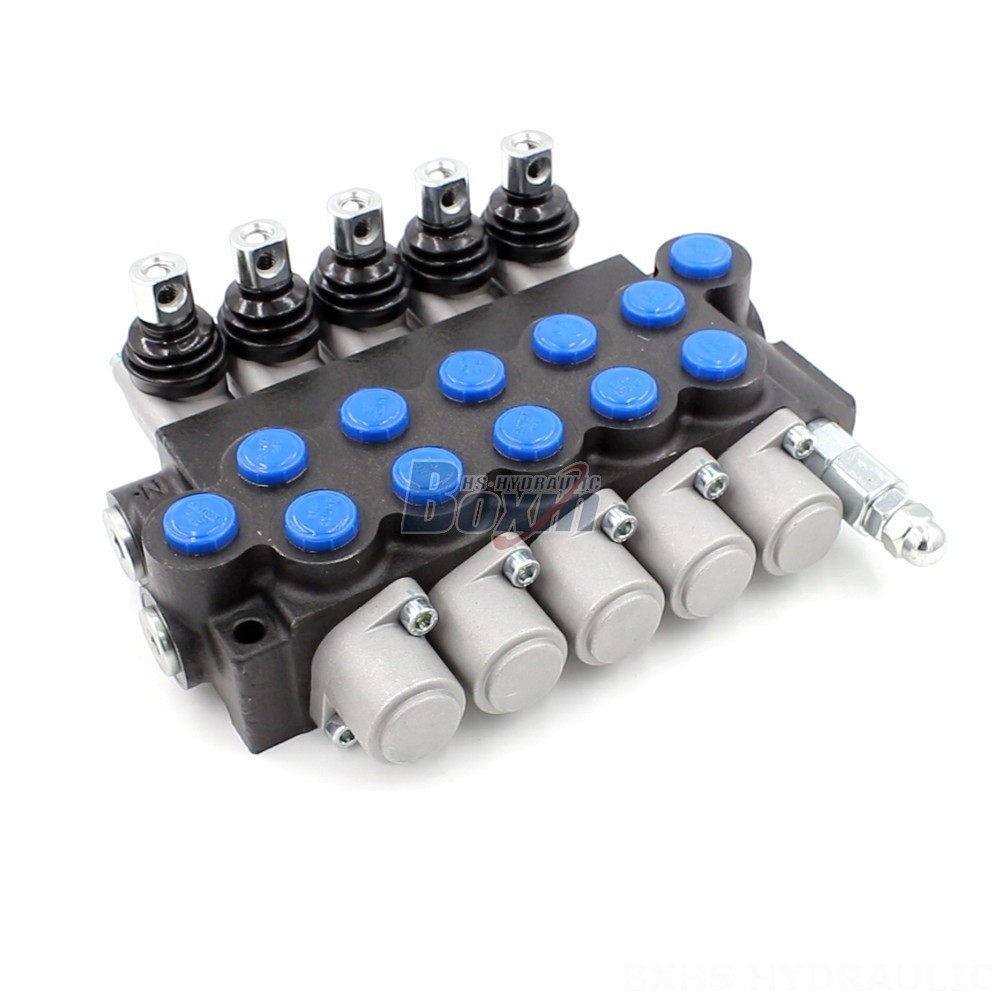

The P40-U78 hydraulic directional valve is a high-quality, 5-section, monoblock valve designed for heavy-duty applications in construction, material handling, agriculture, and industrial vehicles. It offers reliable performance with a rated flow of 40 L/min and a maximum pressure of 250 bar. This valve is available directly from the manufacturer, providing competitive prices and factory wholesale options.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40-U78 hydraulic directional valve is a robust and efficient solution for controlling hydraulic systems in a variety of applications. It features manual control for easy operation, a 5-section design for versatility, and a compact monoblock structure for durability. The valve is rated for a flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for demanding tasks. Manufactured with high-quality materials and precision engineering, this valve ensures reliability and long-lasting performance. As a manufacturer, we offer factory direct prices and wholesale options to distributors, wholesalers, and dealers. Contact us today to learn more about this high-performance hydraulic directional valve.
