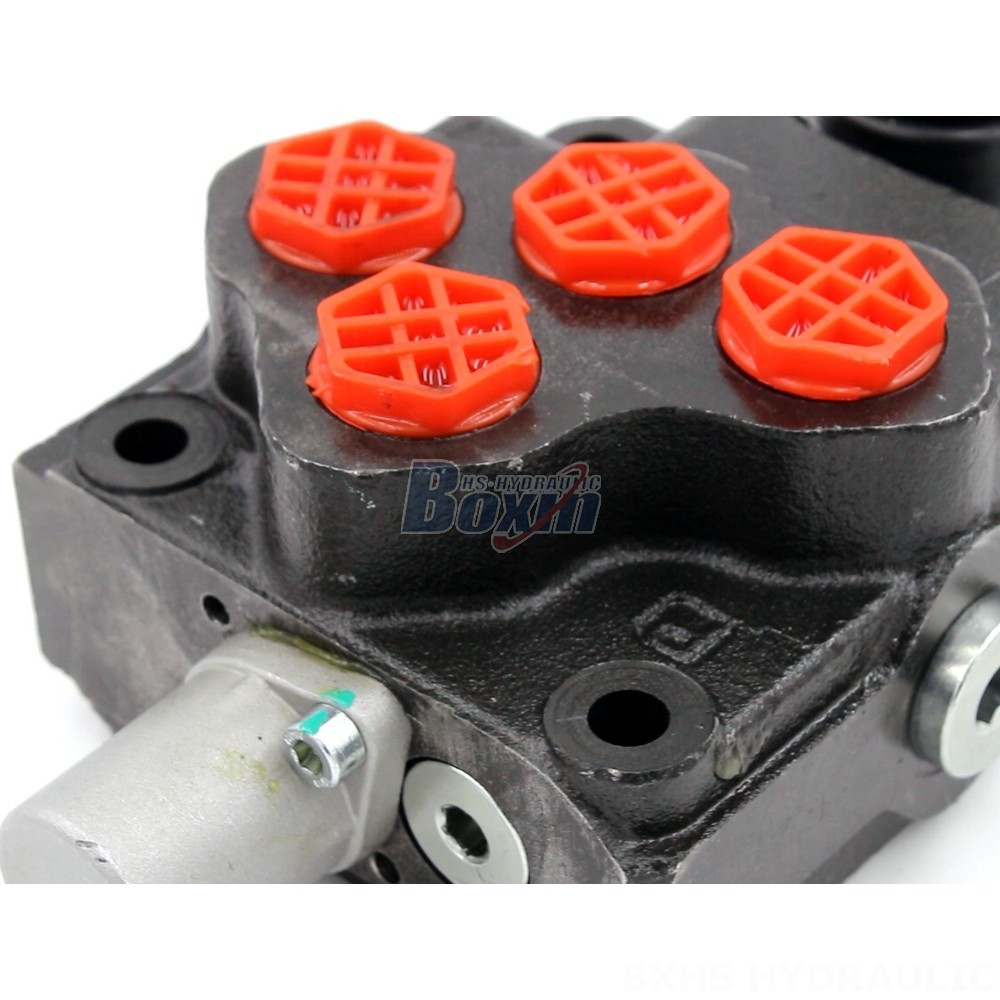

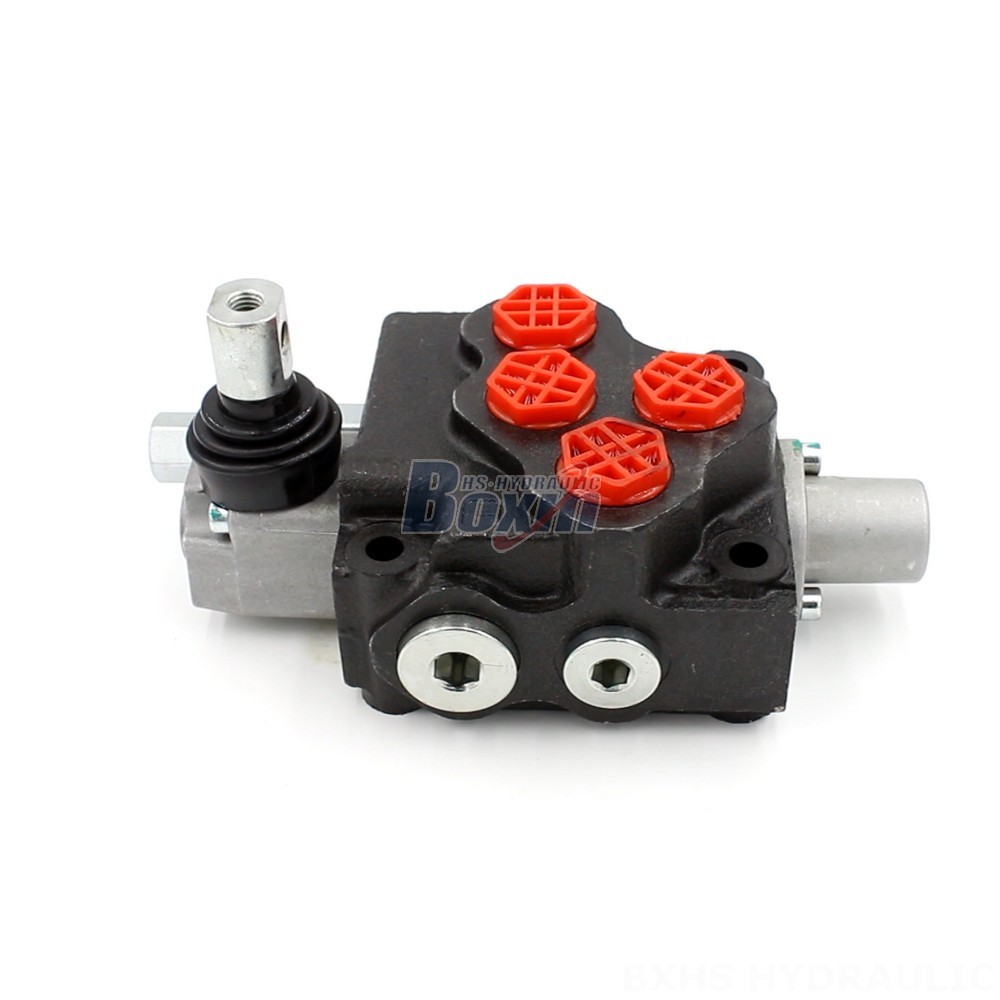

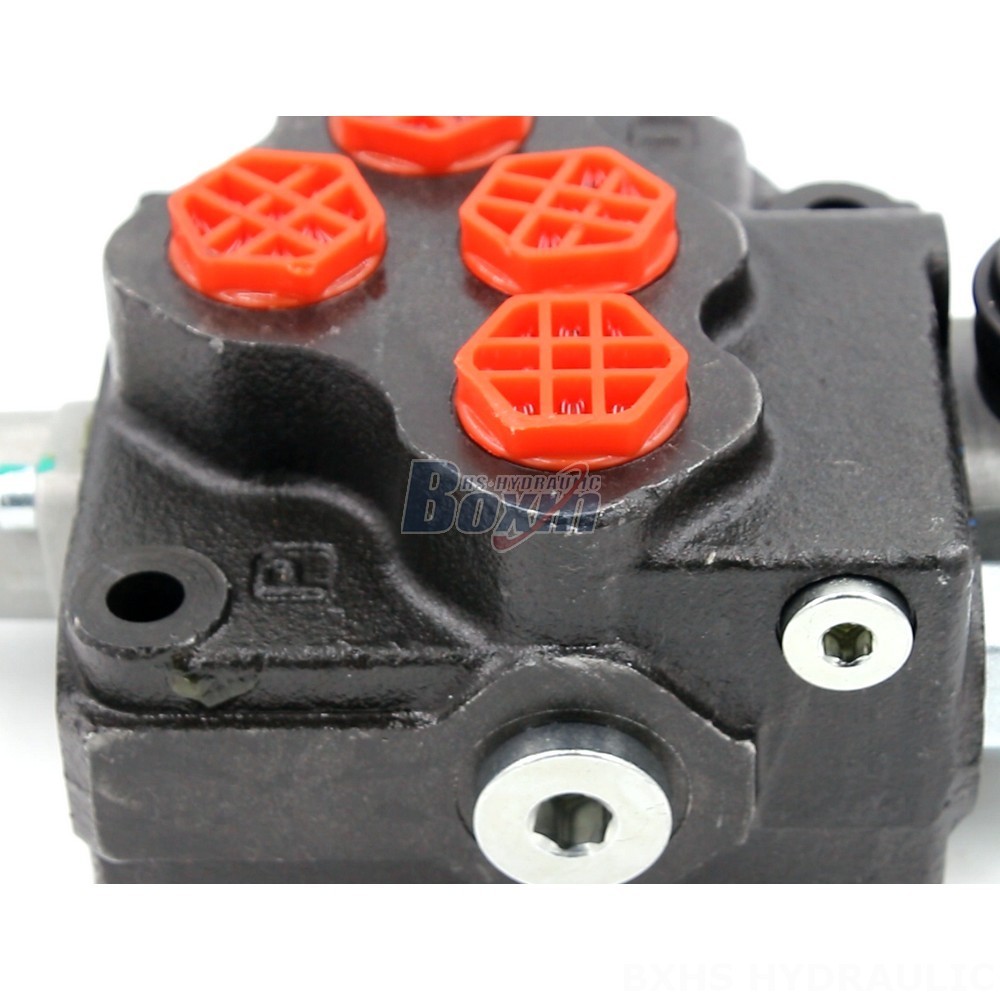

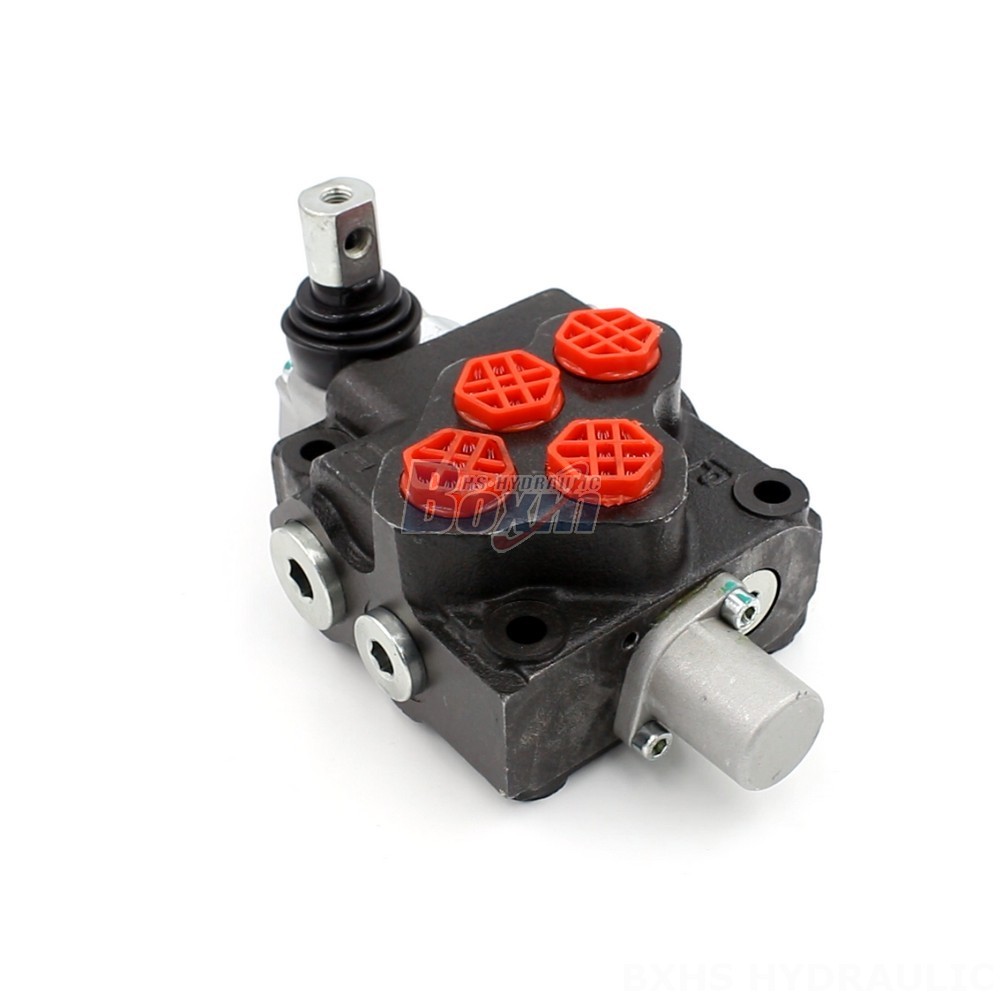

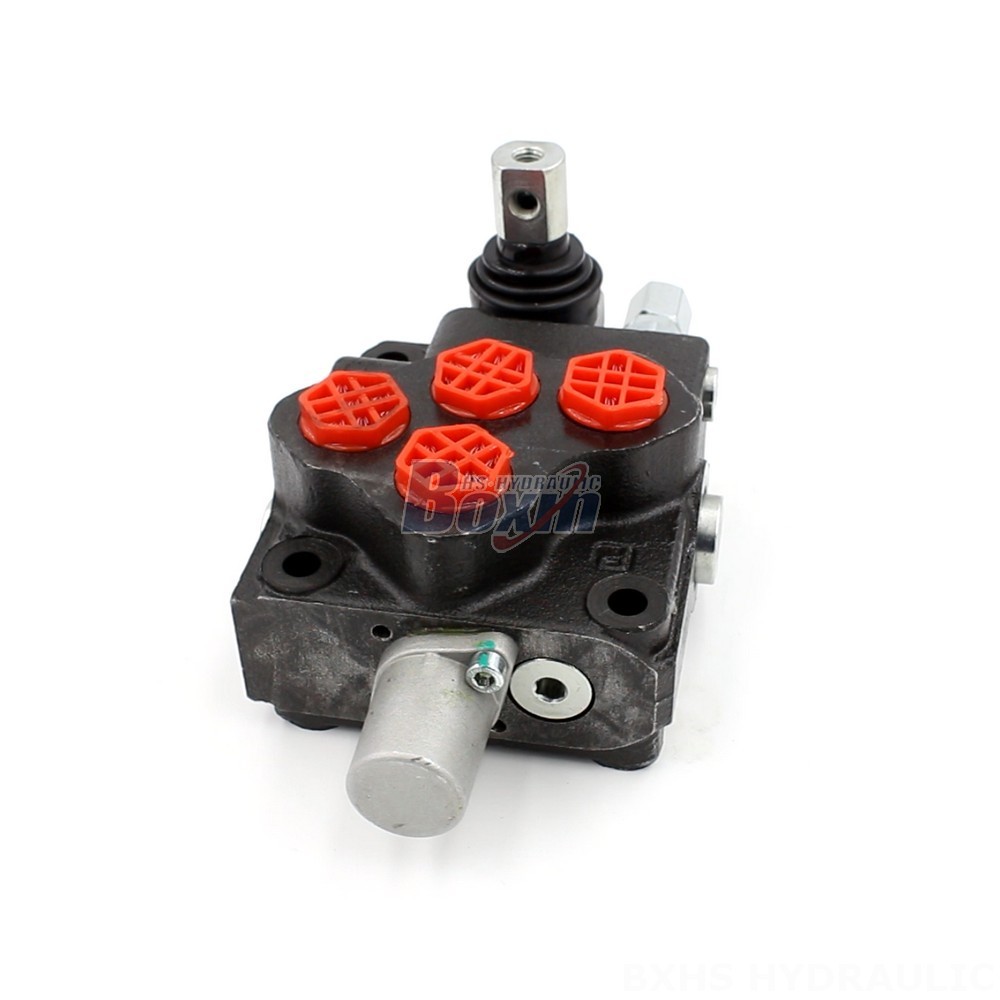

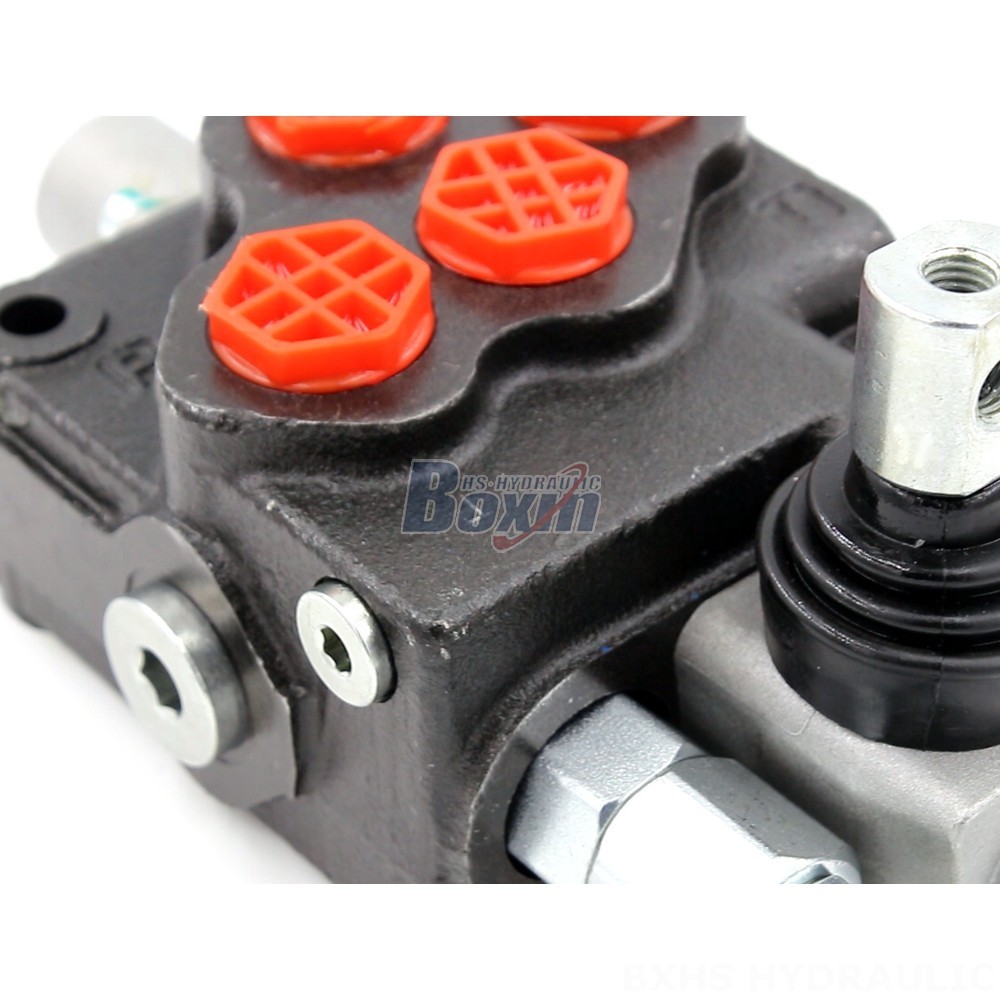

Introducing the Factory-Direct Distribution: SD5-G38 Monoblock Valve! Our state-of-the-art valve offers exceptional performance with a rated flow capacity of 40 L/min and a maximum pressure of 305 bar. Designed to meet the demands of various industries, including material handling, construction, agriculture, and industrial vehicles.
| Serie SD5 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +60 °C (-40 °F a +140 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 305 bar (4400 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
Experience the benefits of direct factory distribution:
**Cut Out the Middleman:** Get your hands on high-quality products straight from the source, eliminating unnecessary markups and ensuring competitive pricing.
**Unmatched Quality:** As the manufacturer, we maintain strict quality control standards, ensuring the reliability and longevity of our valves.
**Customization Options:** Whether you need OEM, ODM, or custom solutions, we have the expertise and capabilities to meet your specific requirements.
**Excellent Customer Support:** Our dedicated team is here to provide technical assistance, product support, and personalized service throughout the partnership.
**Global Reach:** We cater to customers worldwide, ensuring timely and efficient order fulfillment regardless of your location.
The SD5-G38 Monoblock Valve is ideal for a wide range of applications, including:
* Telehandlers
* Forklifts
* All-terrain cranes
* Stackers
* Aerial platforms
* Mini-excavators
* Skid steer loaders
* Compact wheel loaders
* Wheel loaders
* Backhoe loaders
* Tractors and front-end loaders
* Harvesters
* Bale wrappers
* Backhoes
* Seeding machines
Choose Factory-Direct Distribution and elevate your business with the superior quality, cost-effectiveness, and personalized service we offer.
