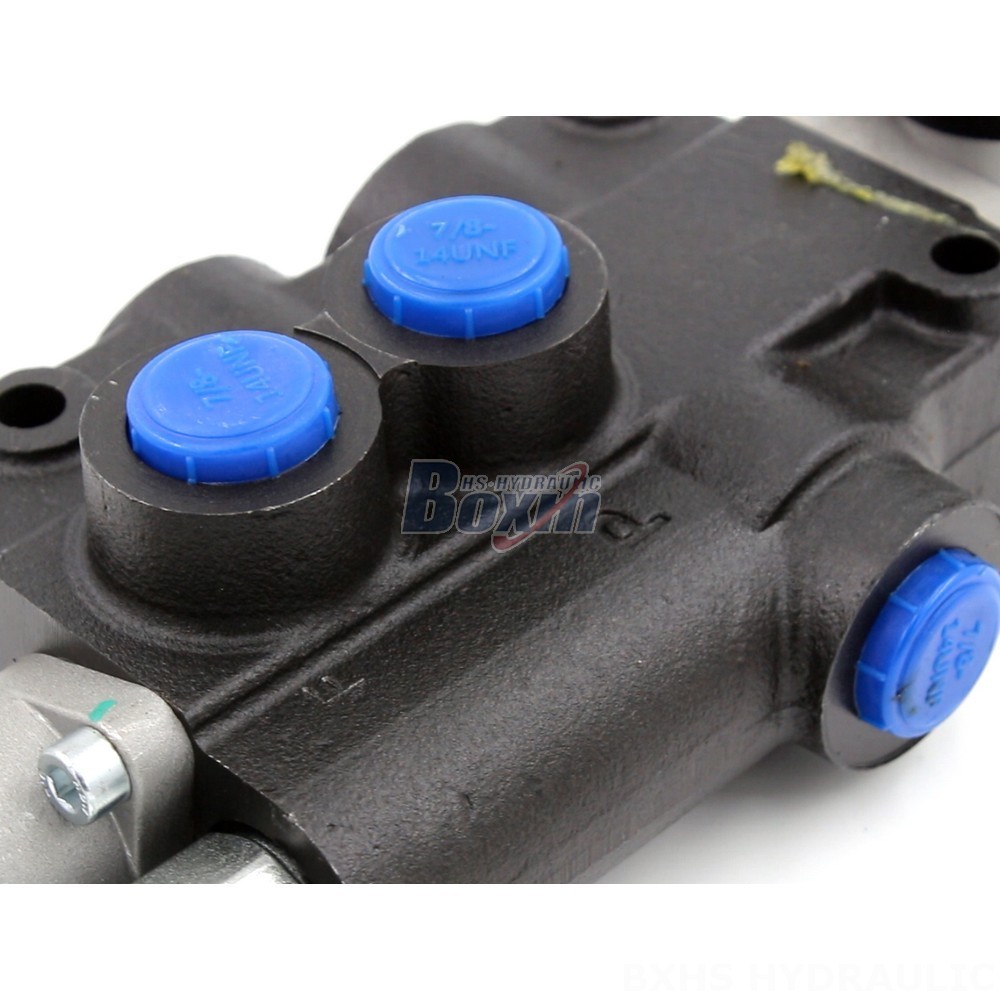

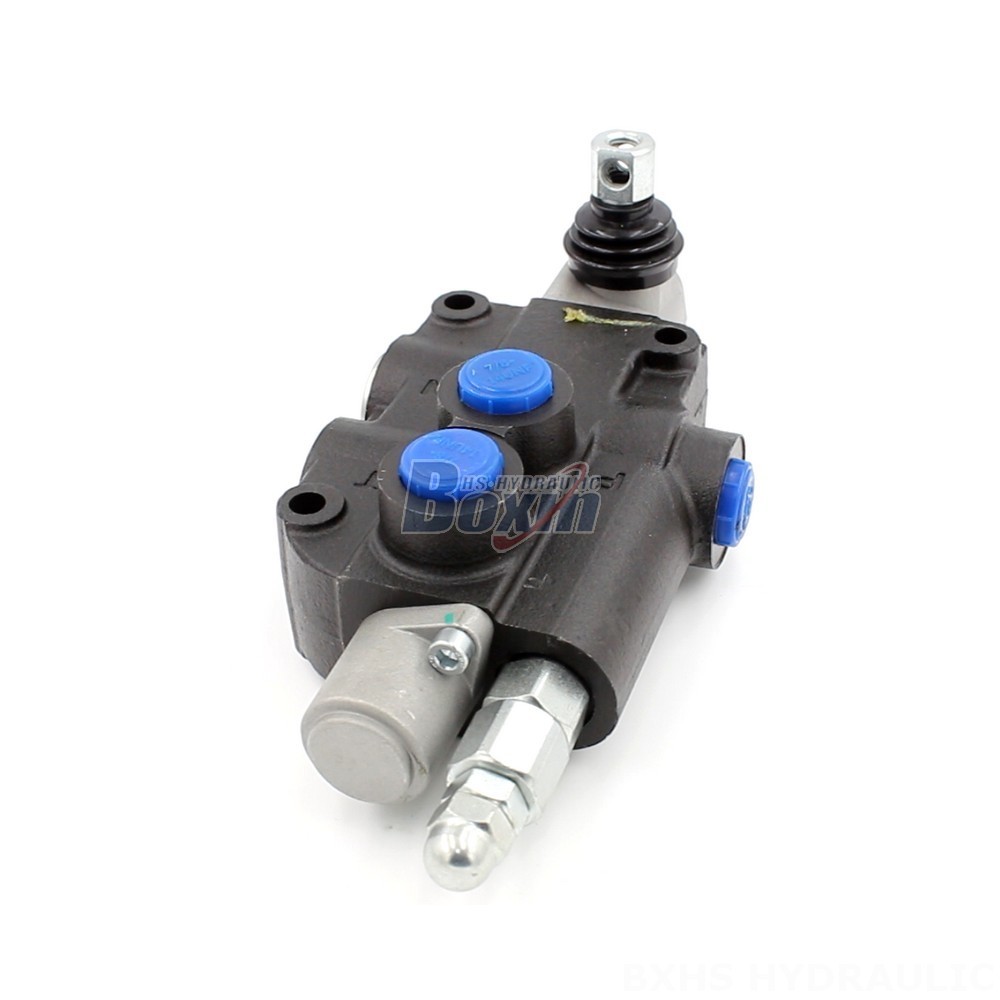

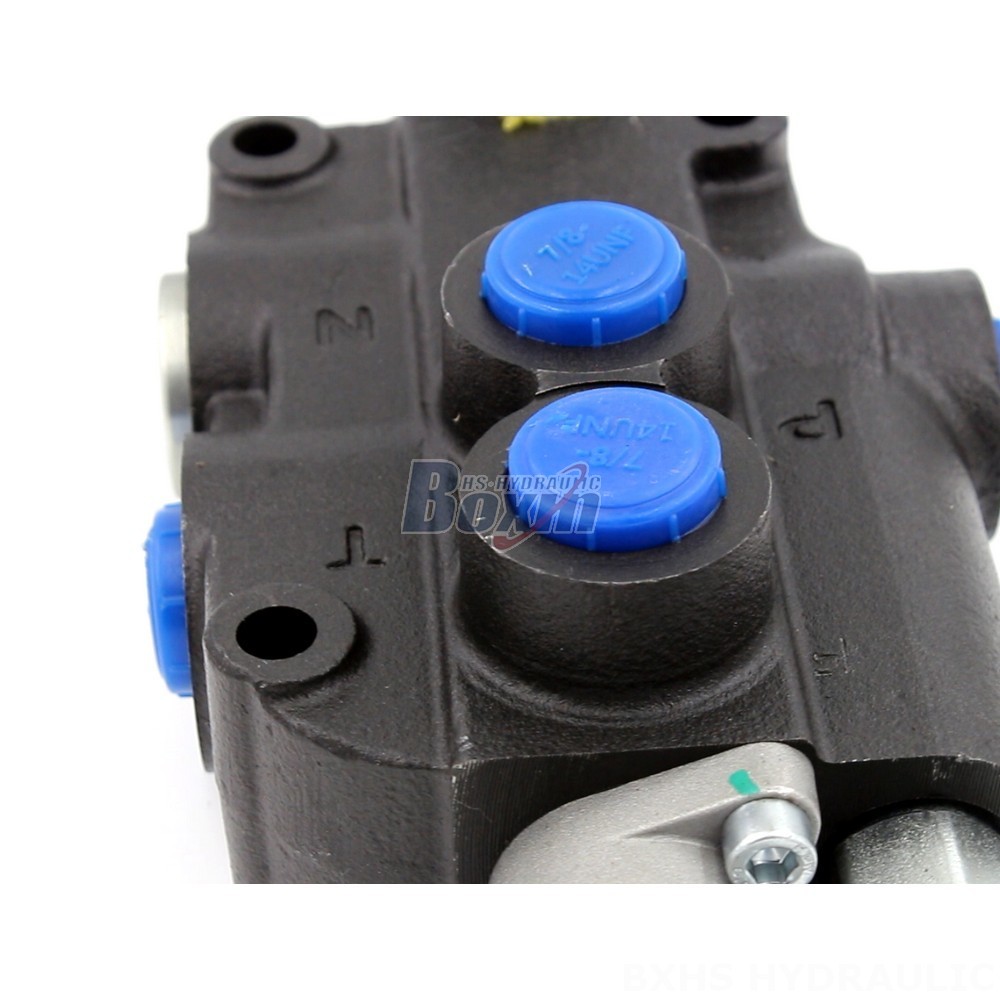

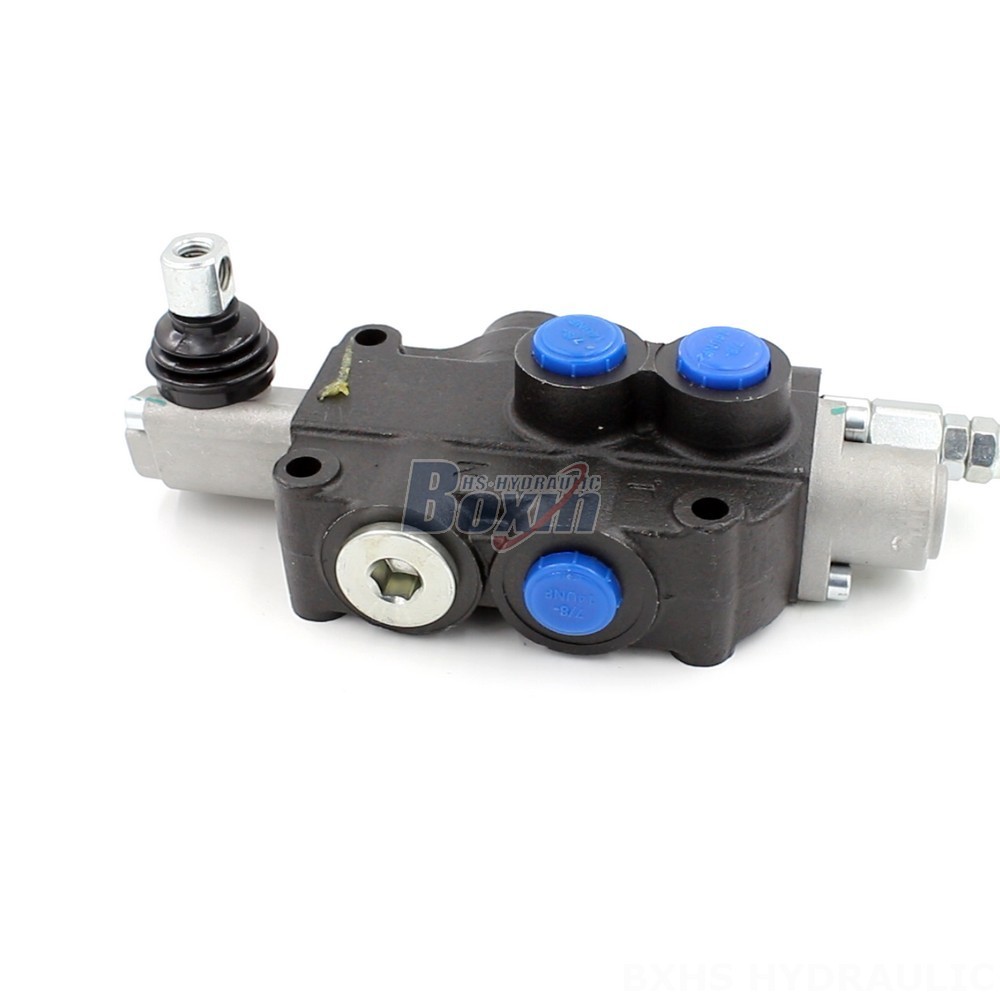

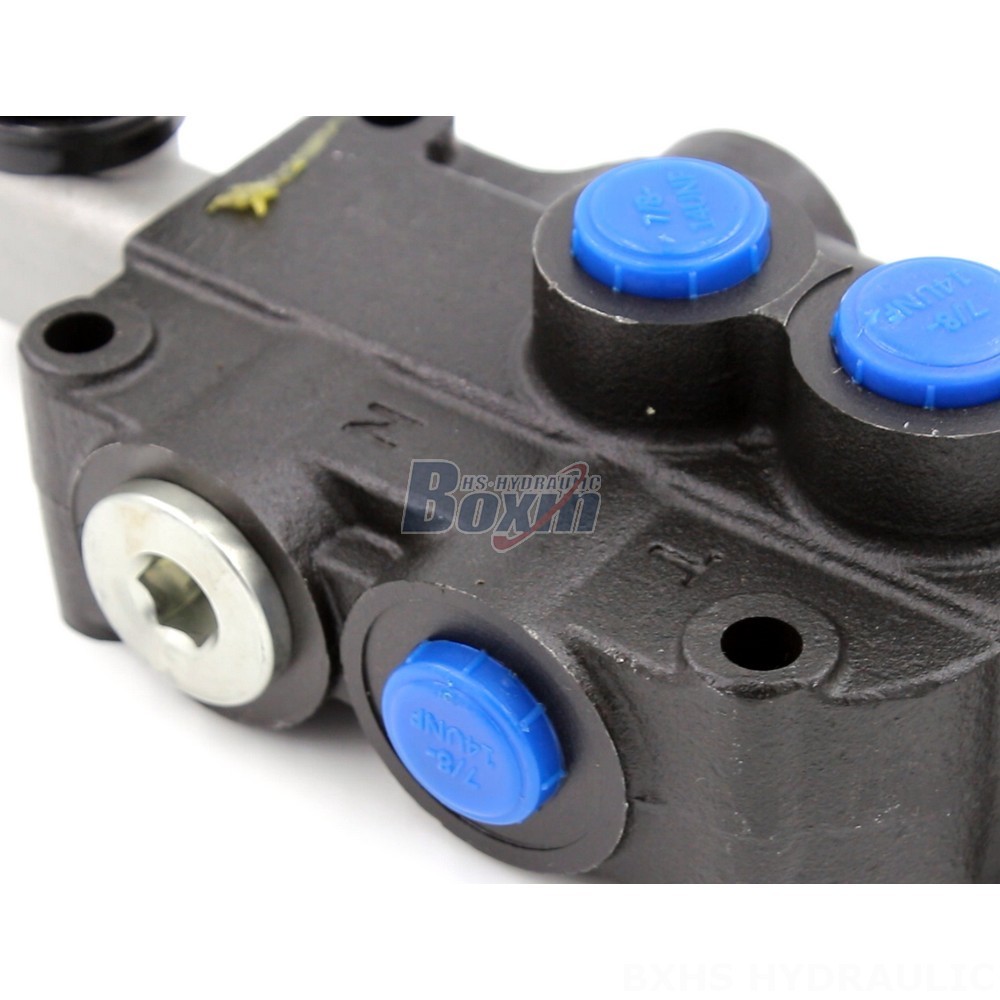

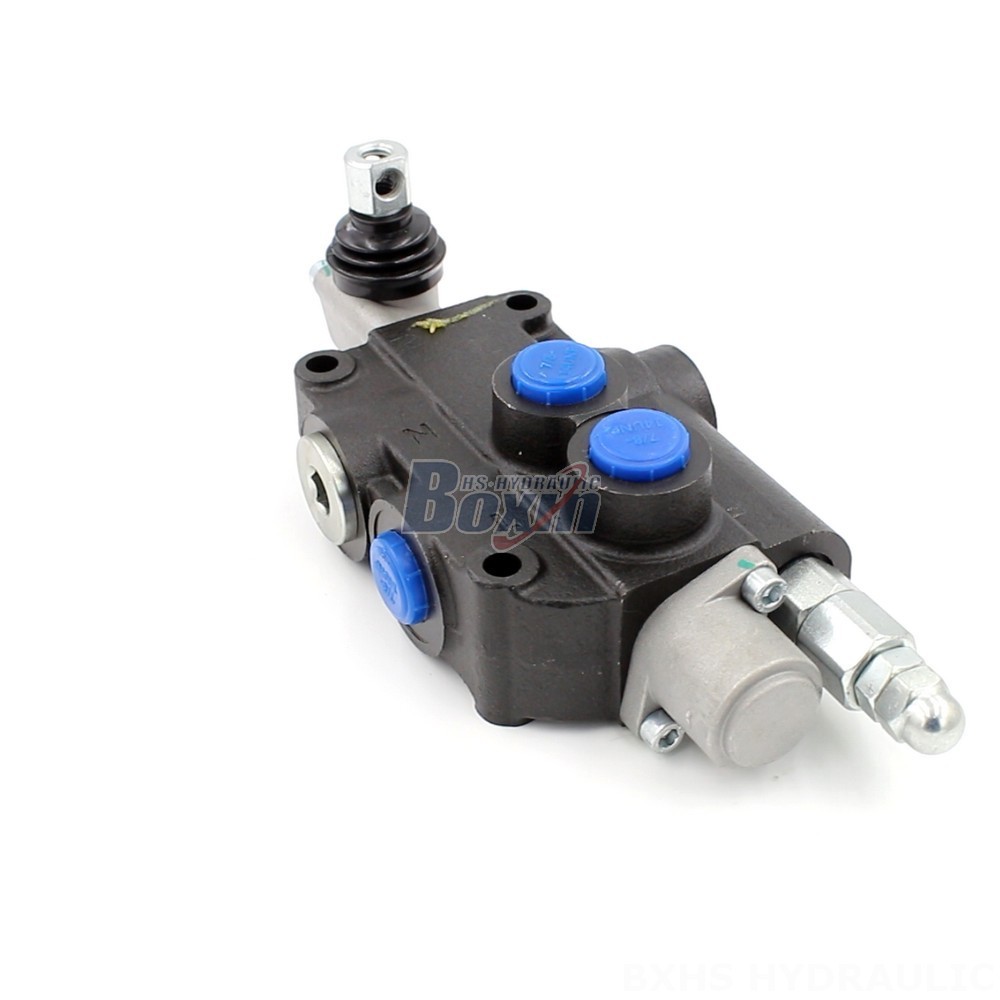

Introducing our exclusive factory-priced P80-U78-1OT Hydraulic Directional Valve, the ultimate solution for your hydraulic system needs. Manufactured with the highest standards of precision and reliability, this valve features a robust monoblock design, manual control, and exceptional performance capabilities.
| Serie P80 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 80 l/min (21,2 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Puerto de Salida | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamaño de Puerto | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
Our P80-U78-1OT Hydraulic Directional Valve is meticulously engineered to deliver exceptional performance in demanding applications. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), it ensures efficient and reliable operation in a wide range of hydraulic systems. The valve's operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and ambient temperature range of -40°C to +80°C (-40°F to +176°F) make it suitable for diverse operating conditions.
As a leading hydraulic products manufacturer, we offer exclusive factory pricing on our P80-U78-1OT Hydraulic Directional Valve. By sourcing directly from our state-of-the-art production facilities, you can enjoy significant cost savings while ensuring the highest quality standards. Our commitment to excellence extends beyond manufacturing; we also provide comprehensive support, including technical assistance and after-sales services, to ensure your complete satisfaction.
