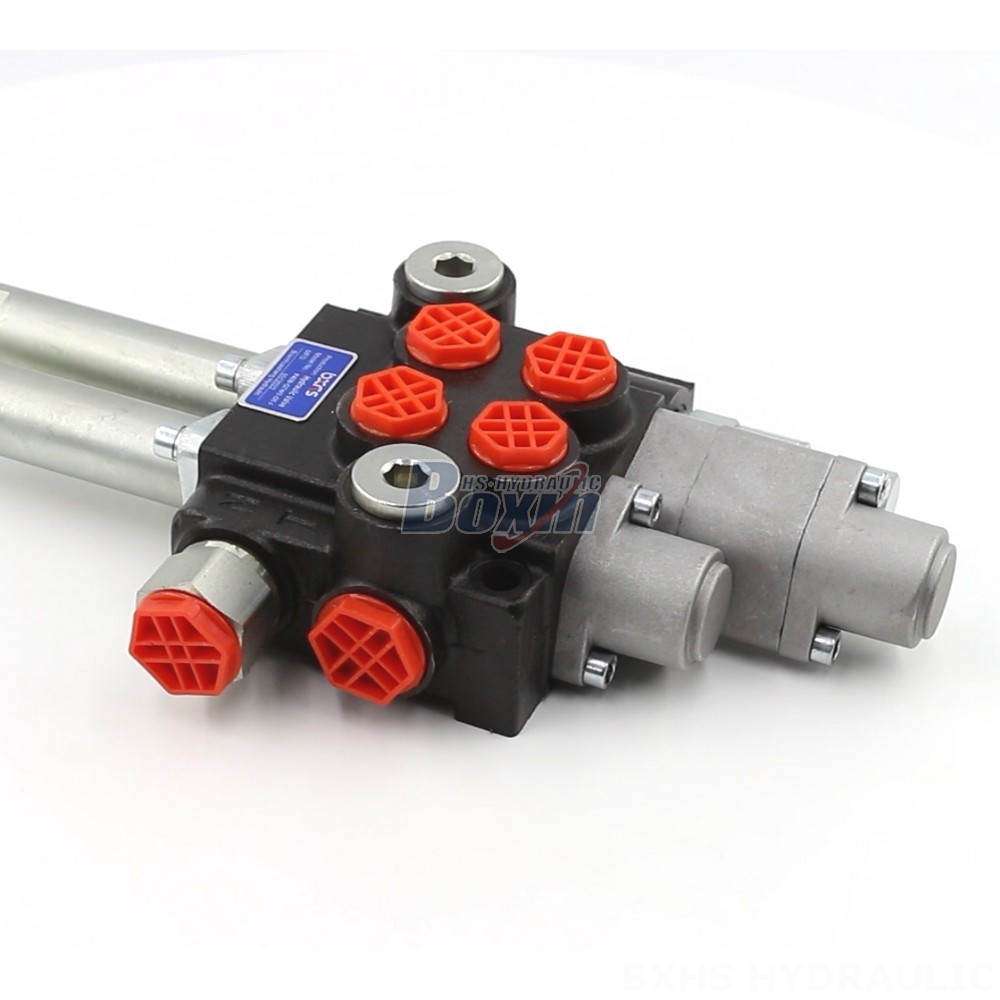

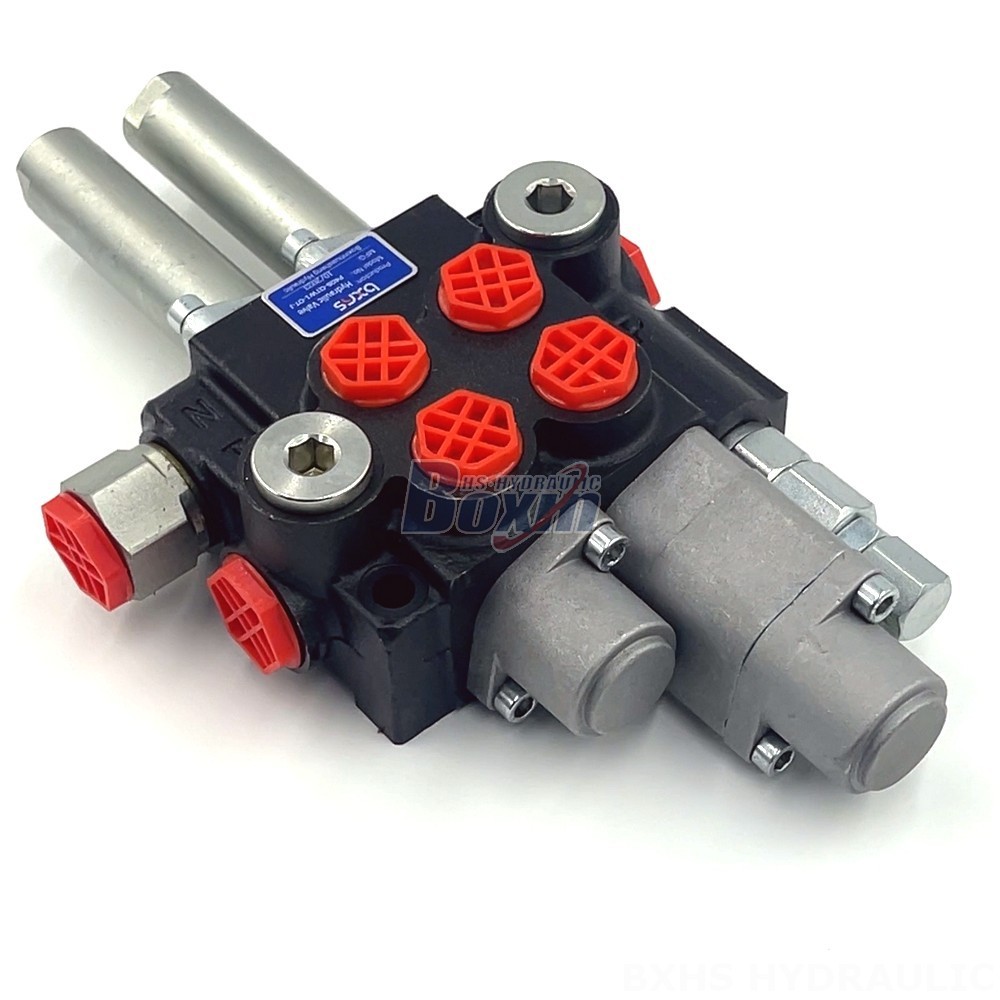

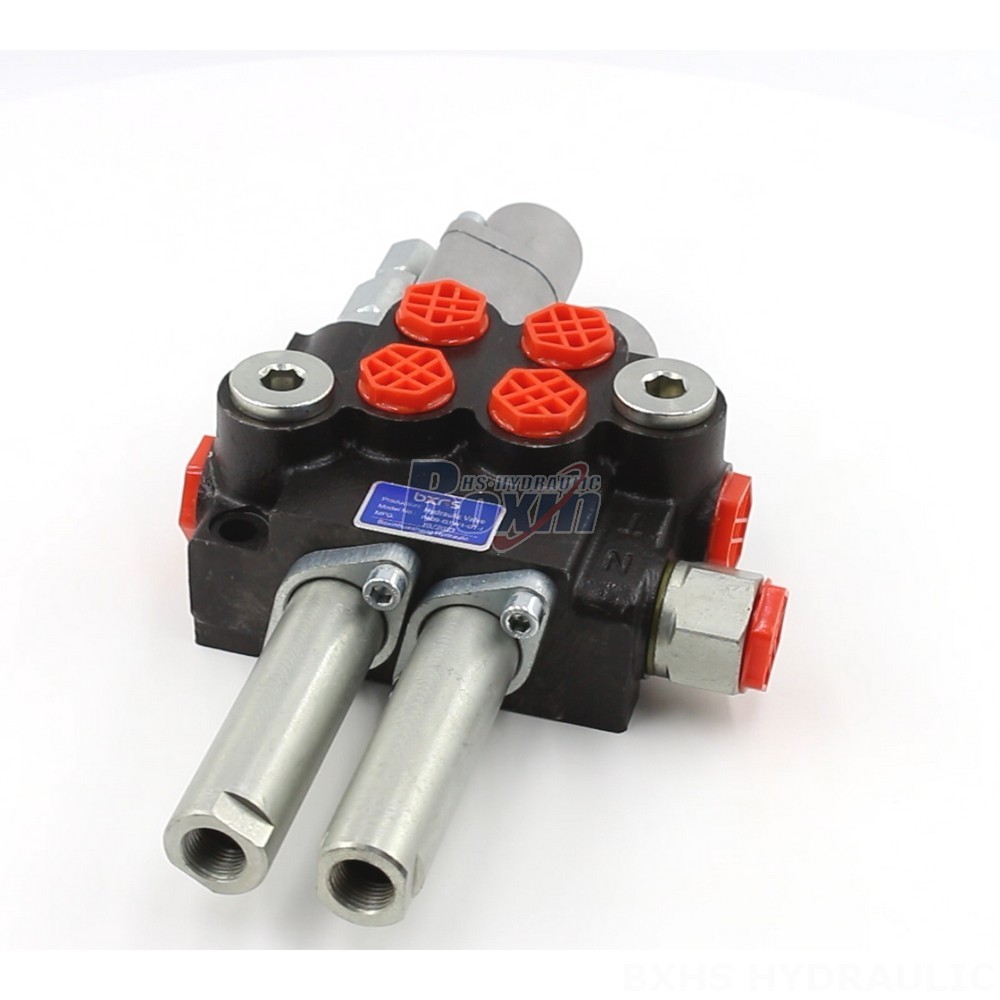

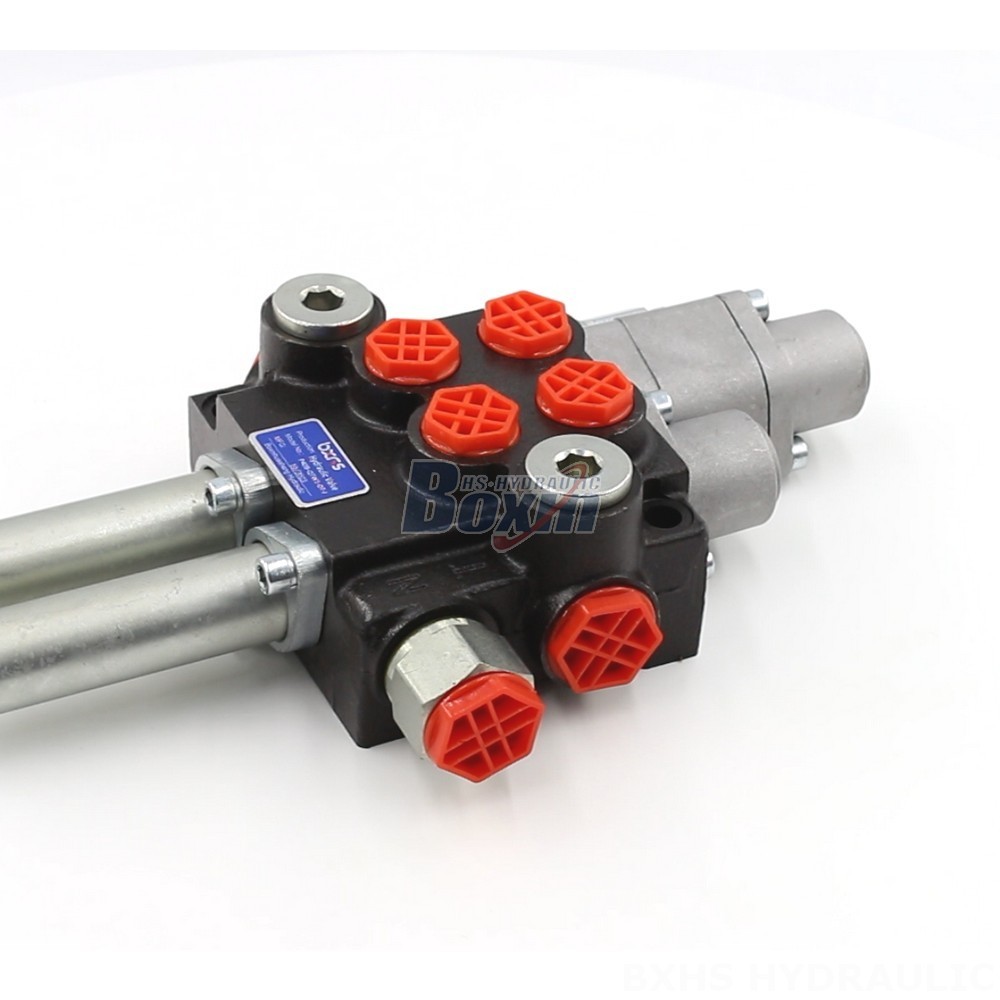

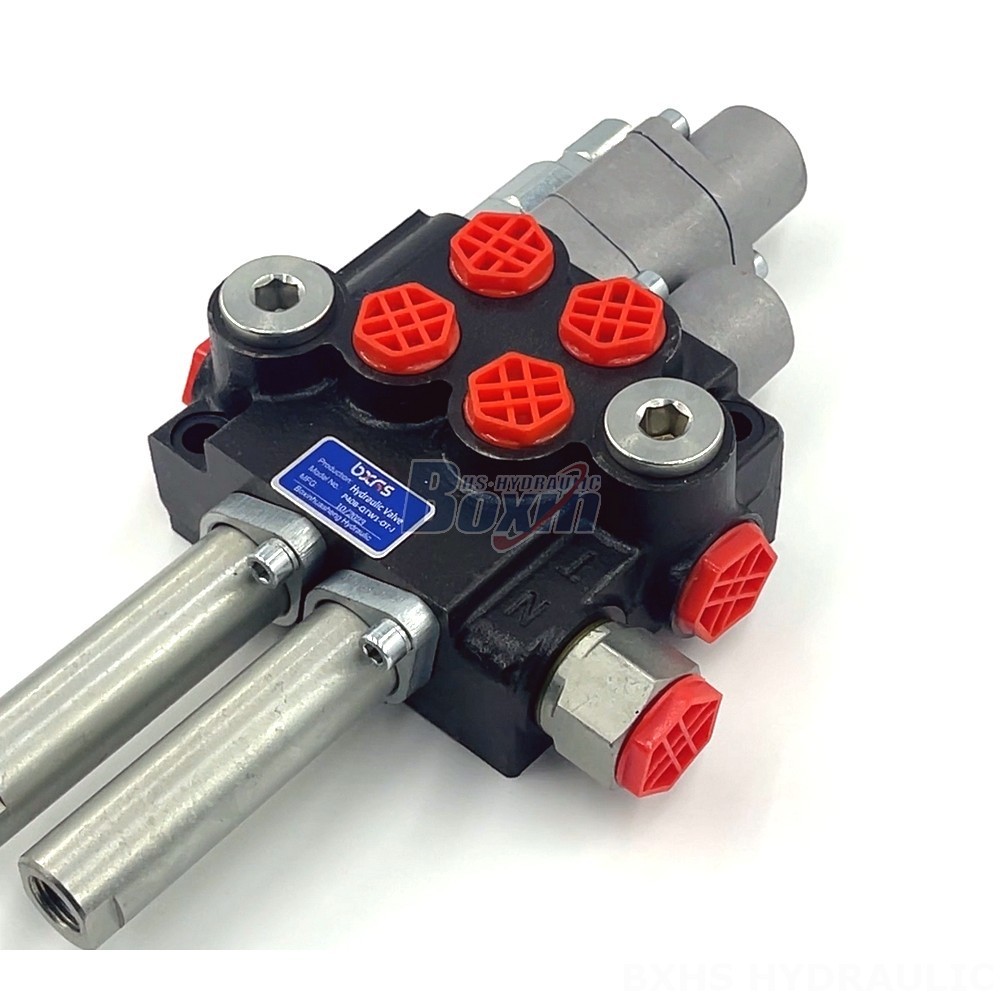

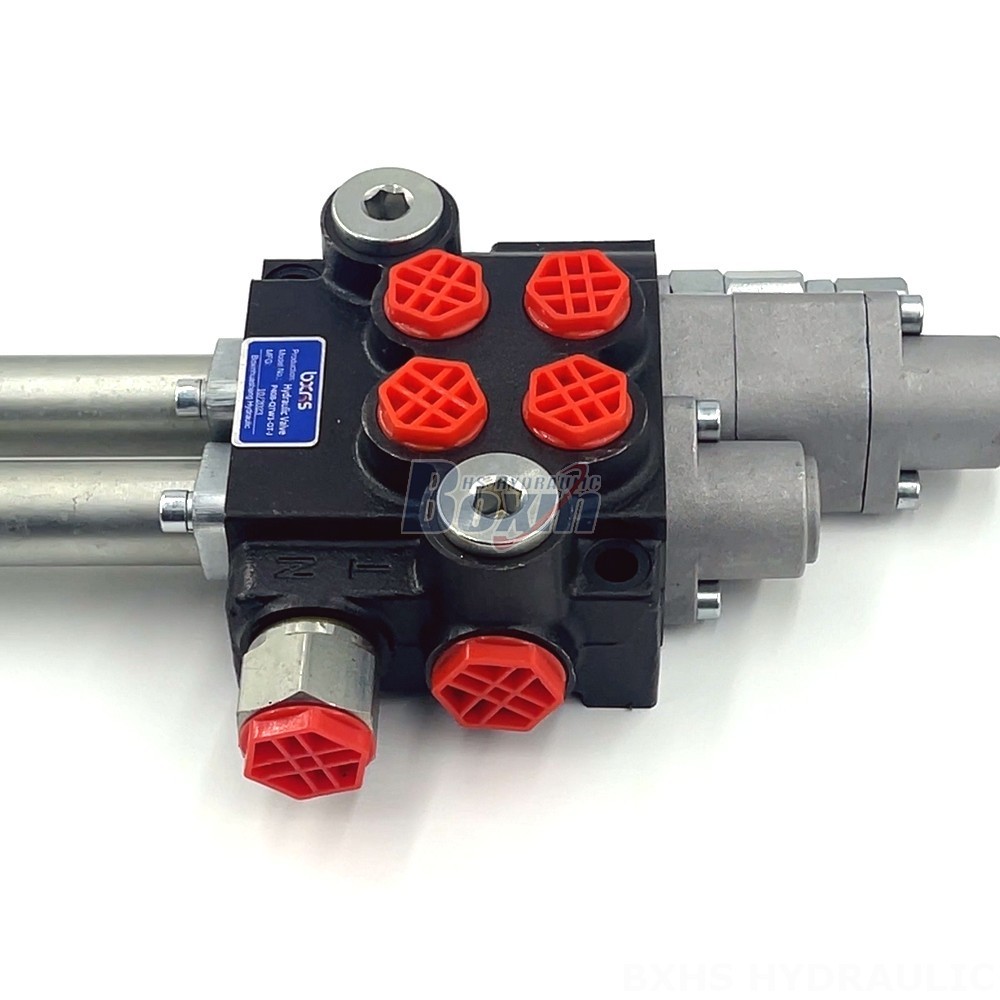

Introducing our exclusive factory deals on high-performance P40 Floating Cable 2 Spool Monoblock Directional Valves. These valves are meticulously engineered for seamless operation, providing precise flow control in demanding hydraulic applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, our valves excel in diverse industries, including material handling, construction, agriculture, and industrial vehicles. Their flexible 2-spool design and compatibility with various applications make them a versatile choice for your hydraulic system requirements.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
Our P40 series valves feature a rugged monoblock construction, ensuring durability and leak-free performance. The floating cable control mechanism offers precise spool actuation, while the 2-spool design allows for independent control of two separate hydraulic circuits. These valves operate within a wide viscosity range of 15 - 75 mm²/s and ambient temperature range of -40°C to +80°C, ensuring reliable operation in challenging conditions. As a leading manufacturer, we offer these valves at competitive factory deals, enabling you to optimize your hydraulic system performance without breaking the bank. Whether you're a distributor, wholesaler, or end-user, we invite you to explore our exclusive factory deals on P40 Floating Cable Directional Valves.
