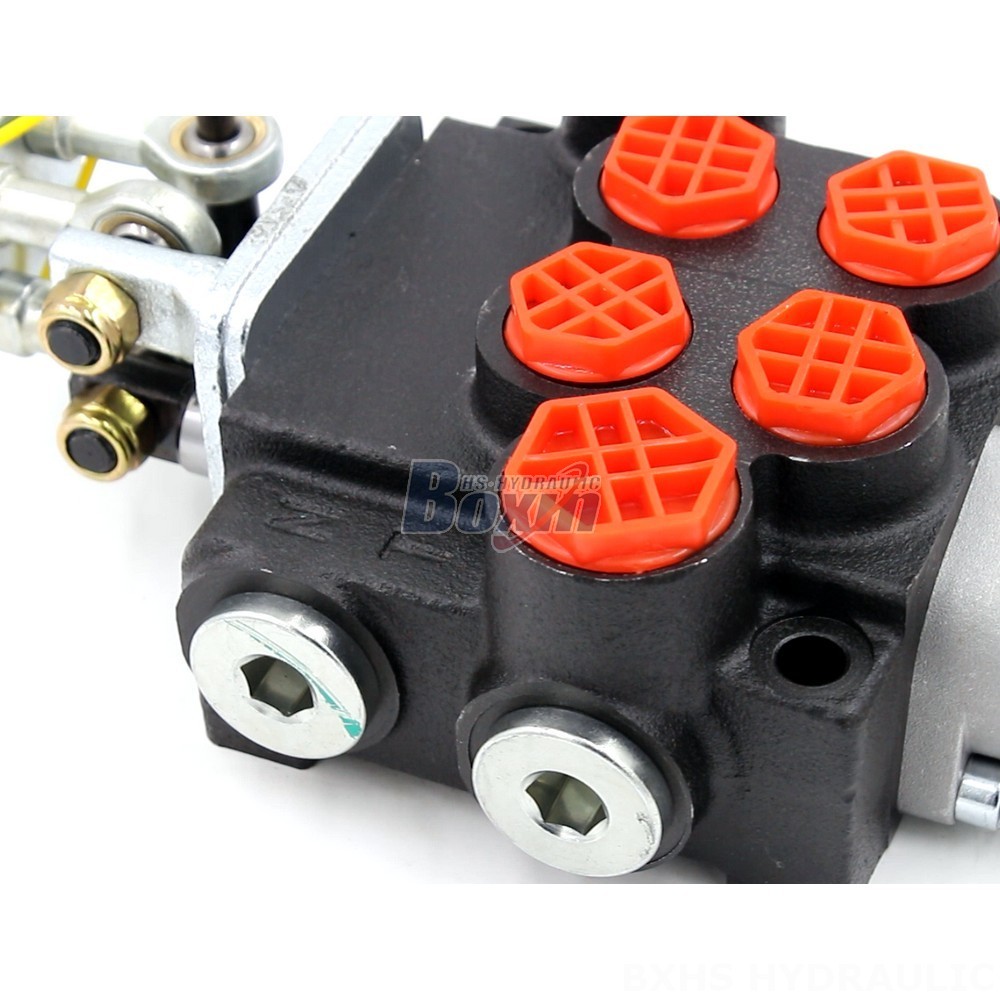

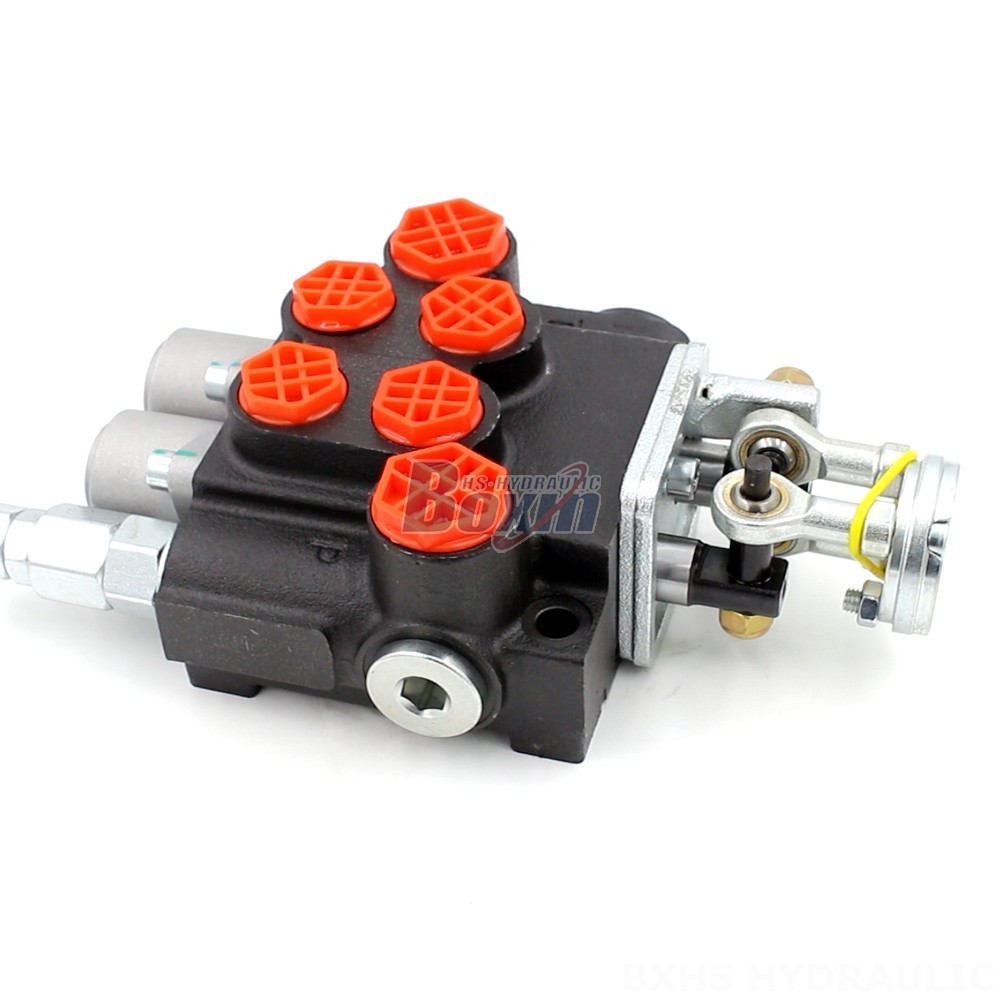

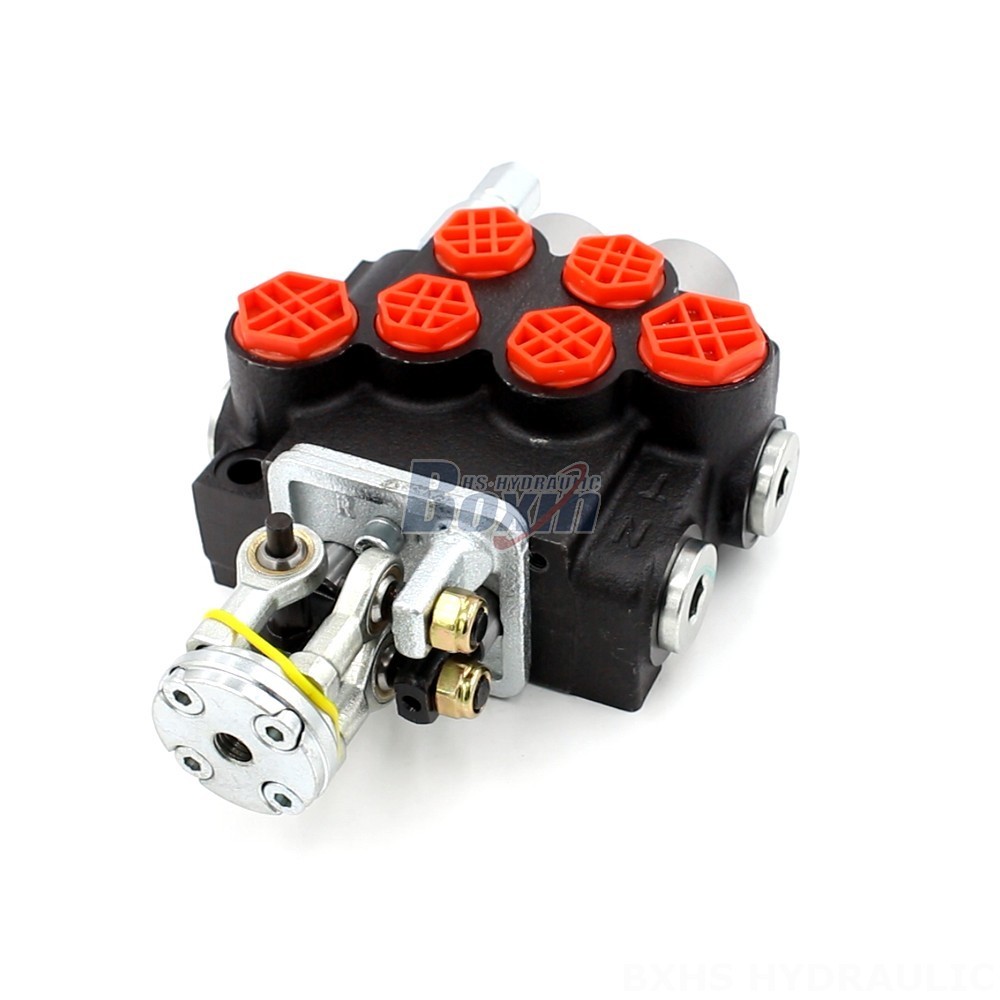

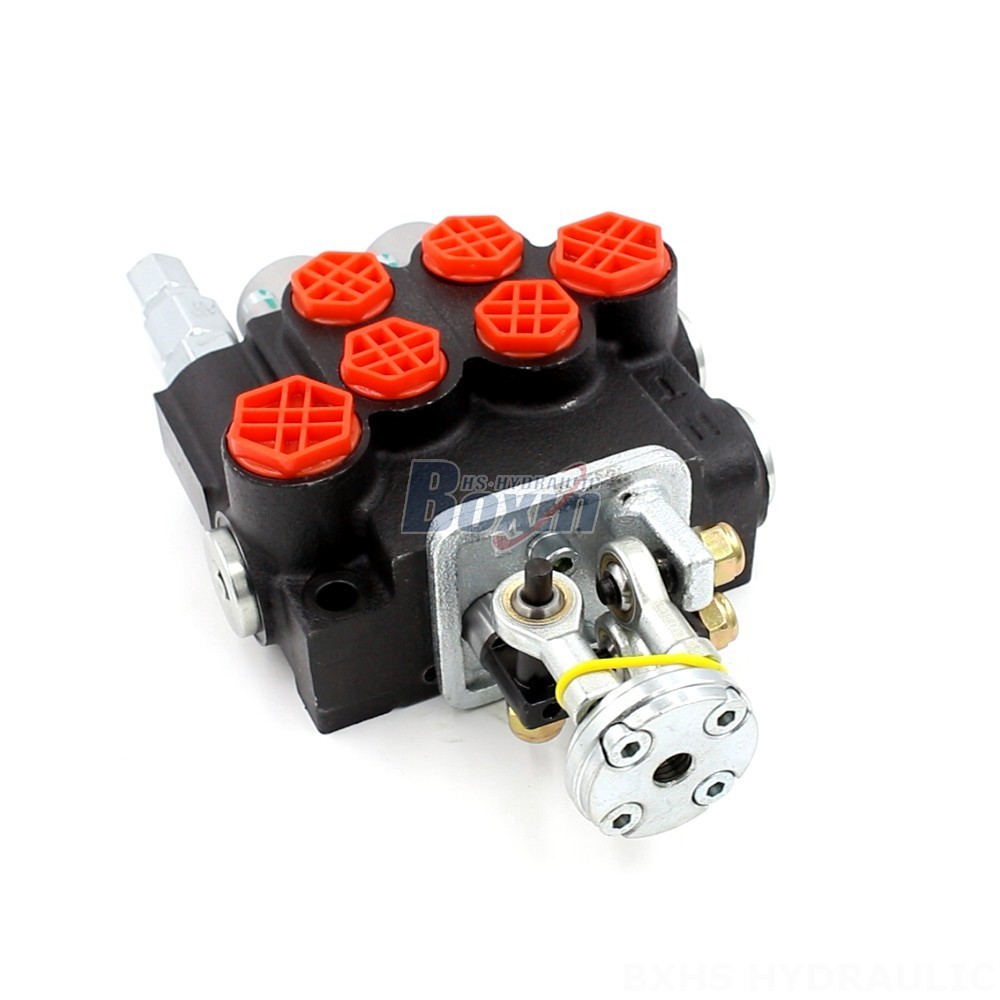

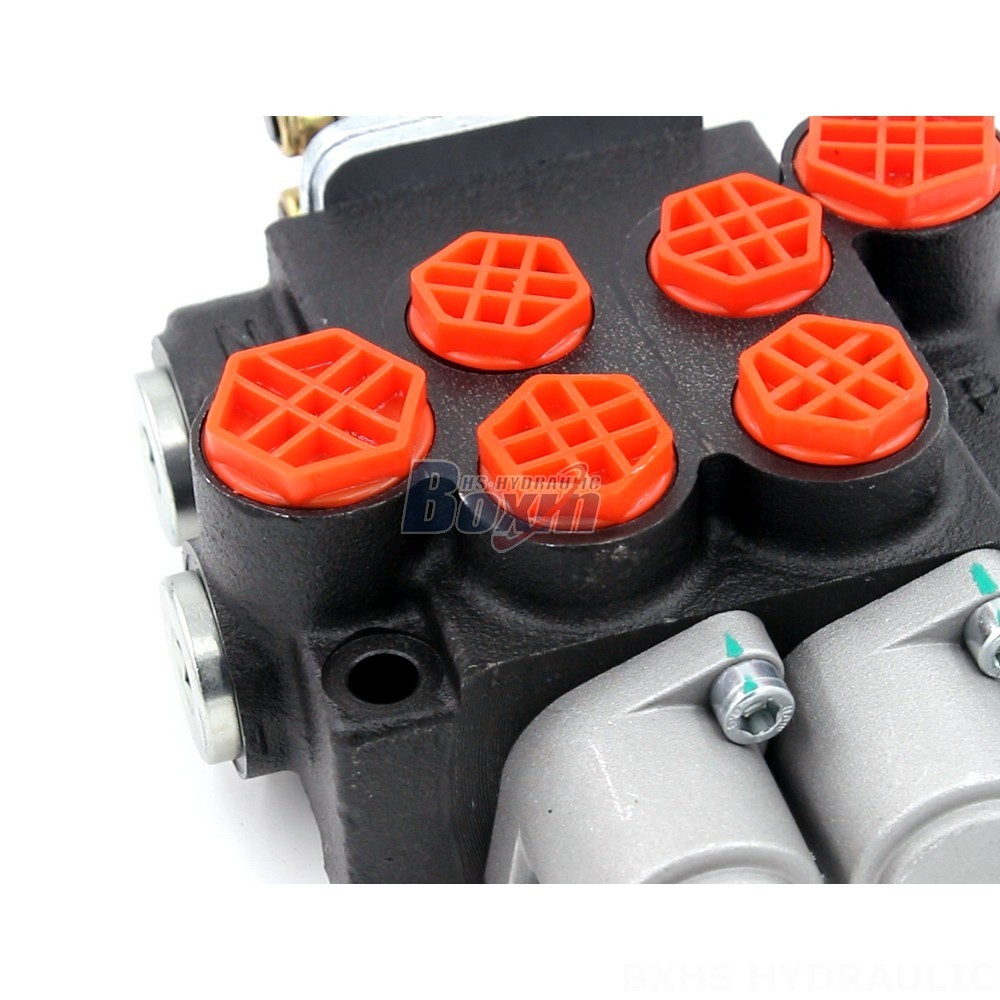

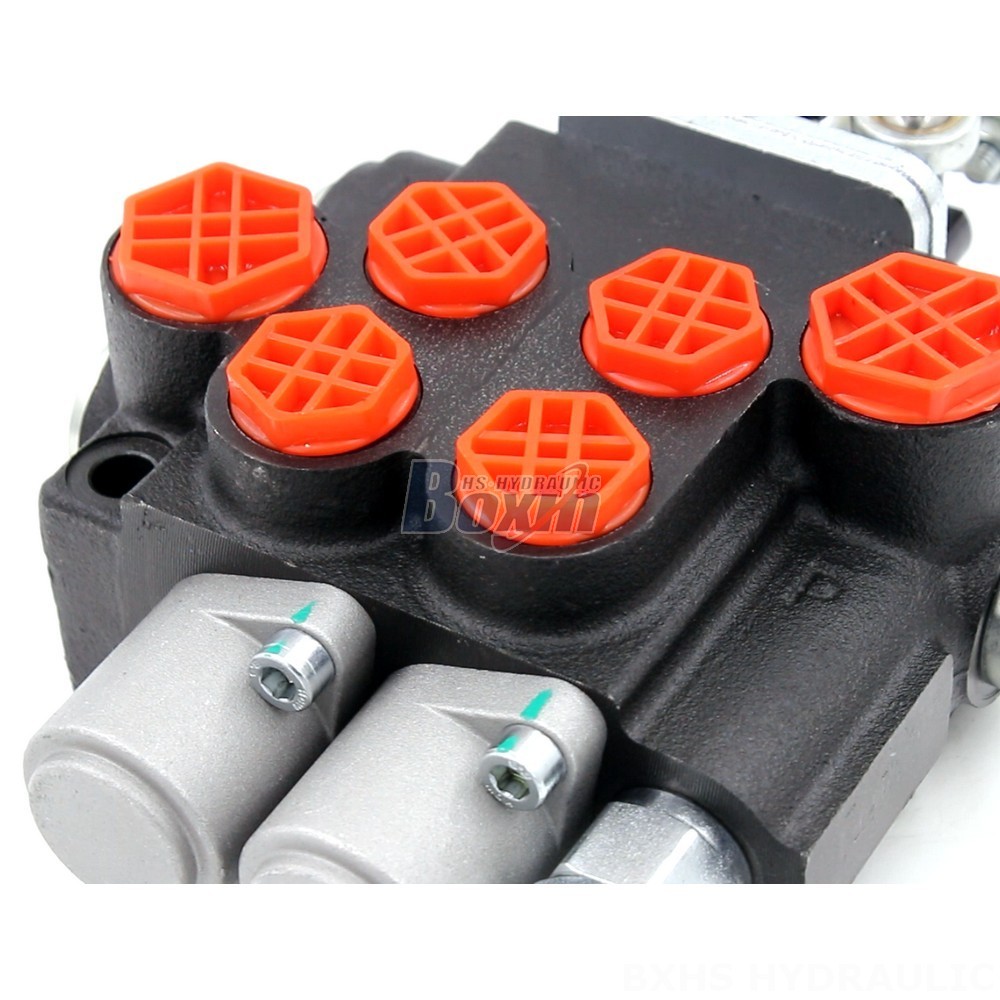

Exceptional Quality at Factory Prices: P40-2OT Hydraulic Directional Valves. Control Method: Manual and Joystick, Section: 2 Section, Structure Type: Monoblock valve, Rated Flow: 40 L/min (10.5 US gpm), Max Pressure: 250 bar (3600 psi), Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt), Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F), Spool: 2 Spool, Series: P40 Series, Application Area: MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES, Applicable Model: TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-2OT Hydraulic Directional Valves are manufactured by a leading hydraulic products manufacturer and are available at factory prices. These valves are designed for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. The valves are available in manual and joystick control methods, and feature a monoblock valve structure, 40 L/min rated flow, 250 bar max pressure, and 2 spool. The valves are also suitable for use in a wide range of ambient temperatures, from -40°C to +80°C (-40°F to +176°F). If you are looking for high-quality hydraulic directional valves at factory prices, the P40-2OT series is an excellent option.
