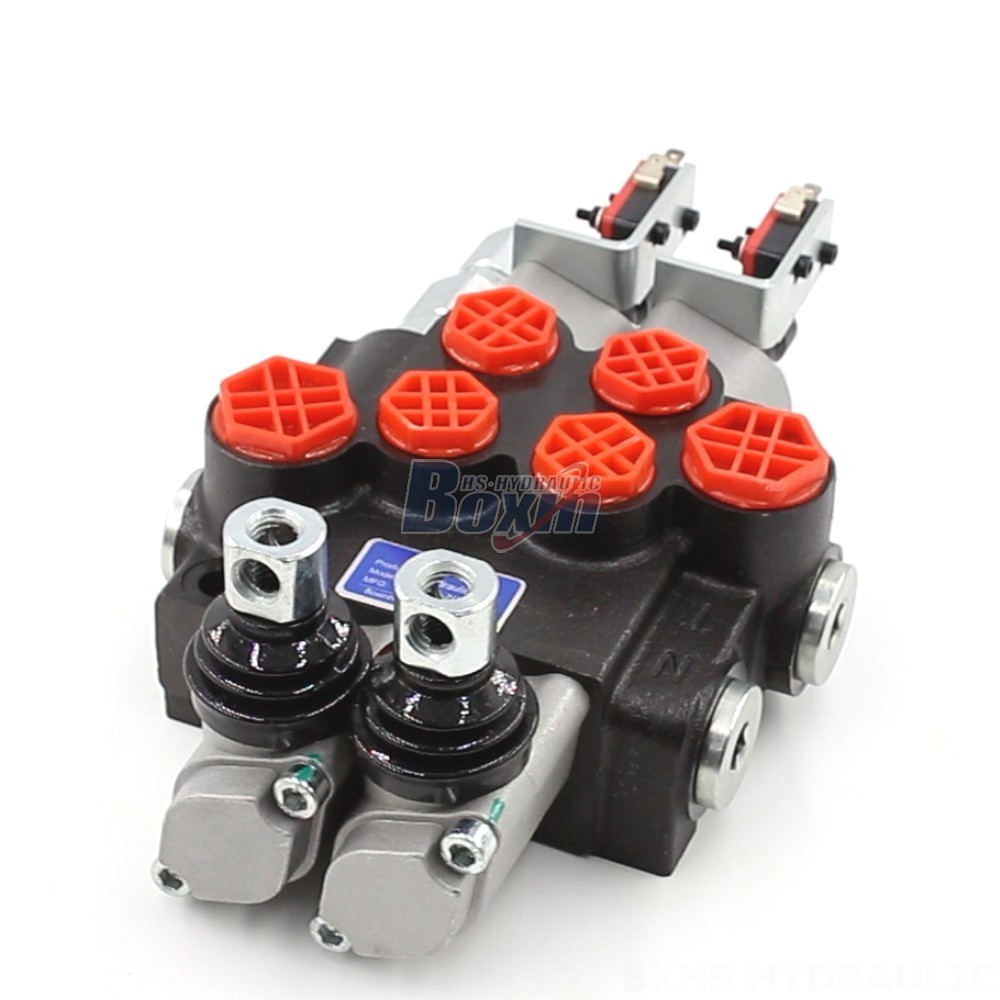

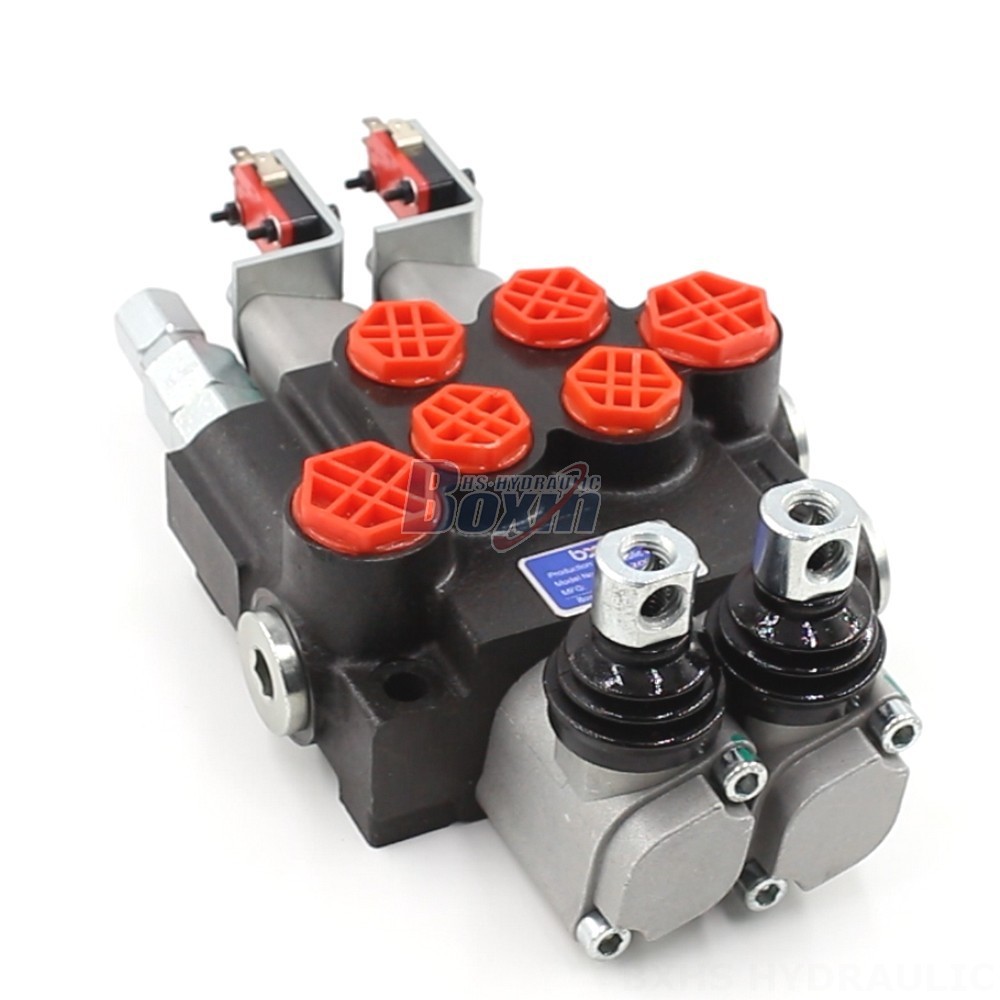

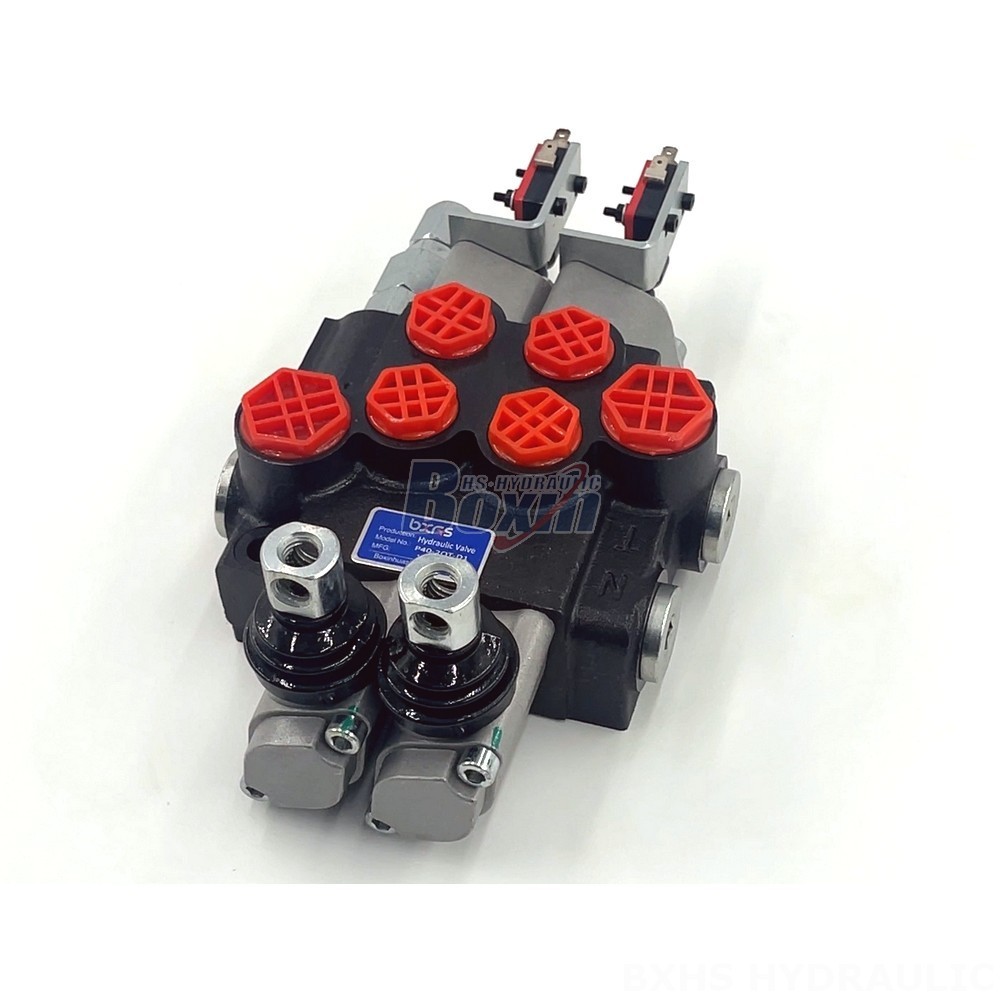

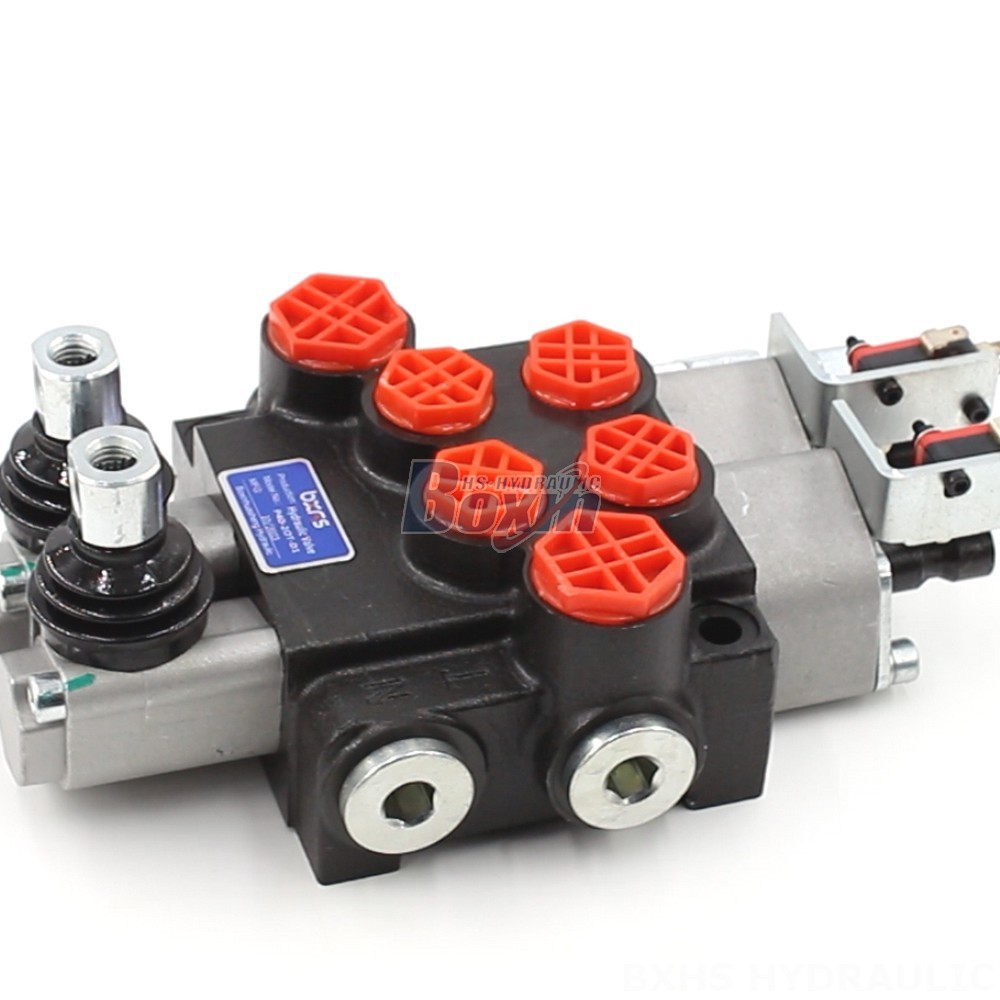

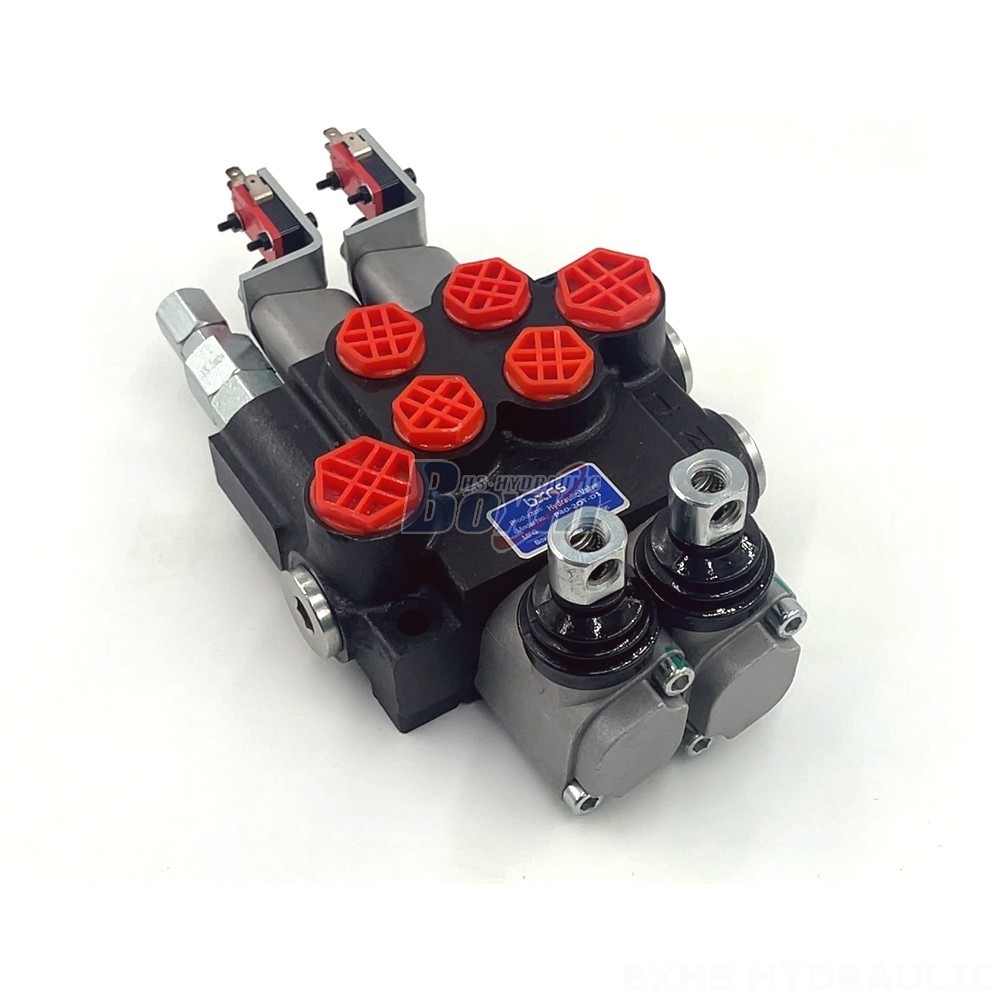

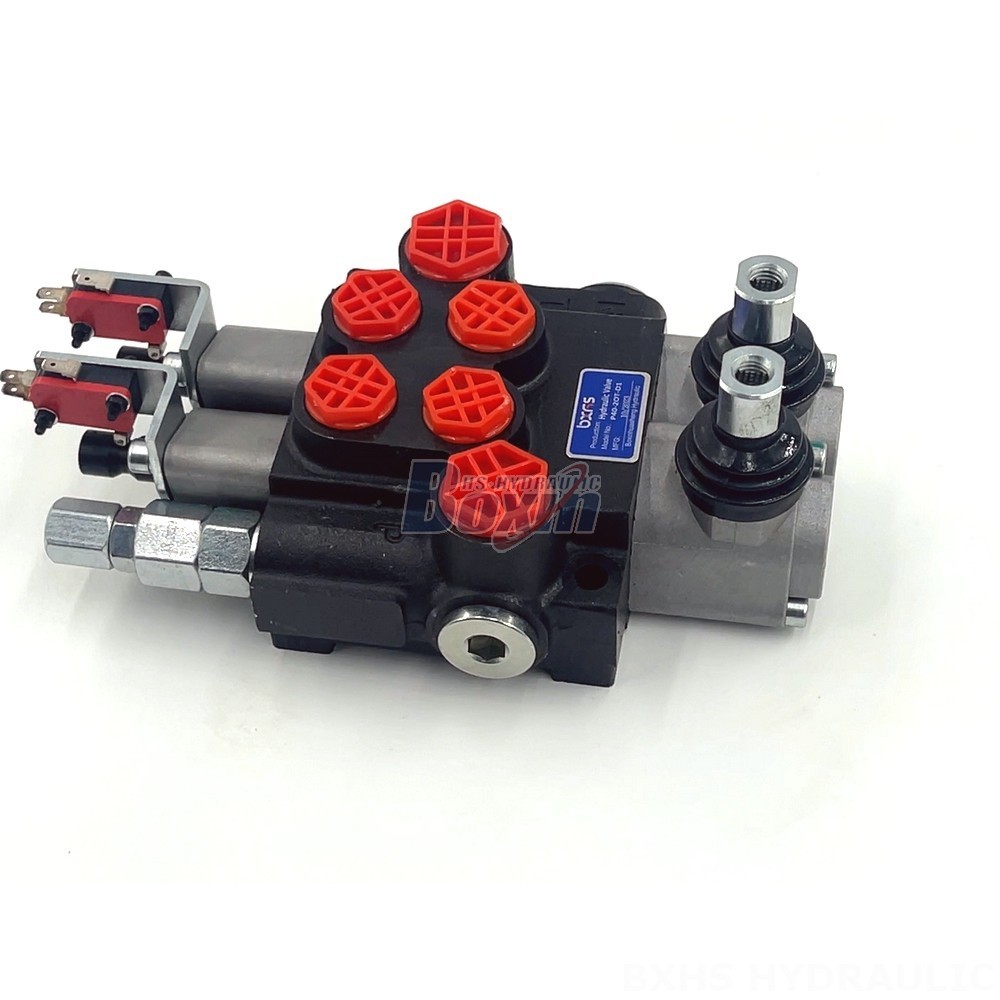

The P40 Micro Switch Directional Valve is a high-quality, durable, and reliable valve designed for use in a wide range of applications, including material handling, construction and earth moving, agriculture, industrial vehicles, and forestry. The valve features a manual control method, 2 section monoblock structure, 40 L/min rated flow, 250 bar max pressure, and a wide operating viscosity range of 15 - 75 mm²/s. It also has a wide ambient temperature range of -40°C to +80°C, making it suitable for use in a variety of environments. The valve is available in 2 spool configurations and is part of the P40 Series.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40 Micro Switch Directional Valve is manufactured by a leading hydraulic products manufacturer and is available for factory wholesale, OEM, ODM, and private label services. The valve is made from high-quality materials and is rigorously tested to ensure durability and reliability. It is also backed by a comprehensive warranty. The valve is available in a variety of configurations to meet the specific needs of your application. Contact us today to learn more about the P40 Micro Switch Directional Valve and how it can benefit your business.
