The Electro-hydraulic Valve for Industrial Applications (SD25 Model) is a high-performance valve designed for demanding industrial applications. With a rated flow of 240 L/min and a maximum pressure of 315 bar, it delivers exceptional flow and pressure capabilities. Its monoblock construction ensures durability and reliability, while its wide temperature range (-40°C to +80°C) allows for operation in various environments. The SD25 Series valve is ideal for material handling, construction, earth moving, agriculture, and industrial vehicle applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, and excavators.
| Serie SD25 Válvula direccional seccional Parámetros | |
|---|---|
| Método de control | Manual, Electrohidráulico, Hidráulico |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas seccionales |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones, 8 secciones, 9 secciones, 10 secciones |
| Rango de viscosidad de funcionamiento | 12 - 400 mm²/s (12 cSt a 400 cSt) |
| Flujo Nominal | 240 l/min (63,4 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1, SAE 16 |
| Puerto de Salida | G1-1/4, SAE 16 |
| Tamaño de Puerto | G1, G1-1/4, SAE 12 |

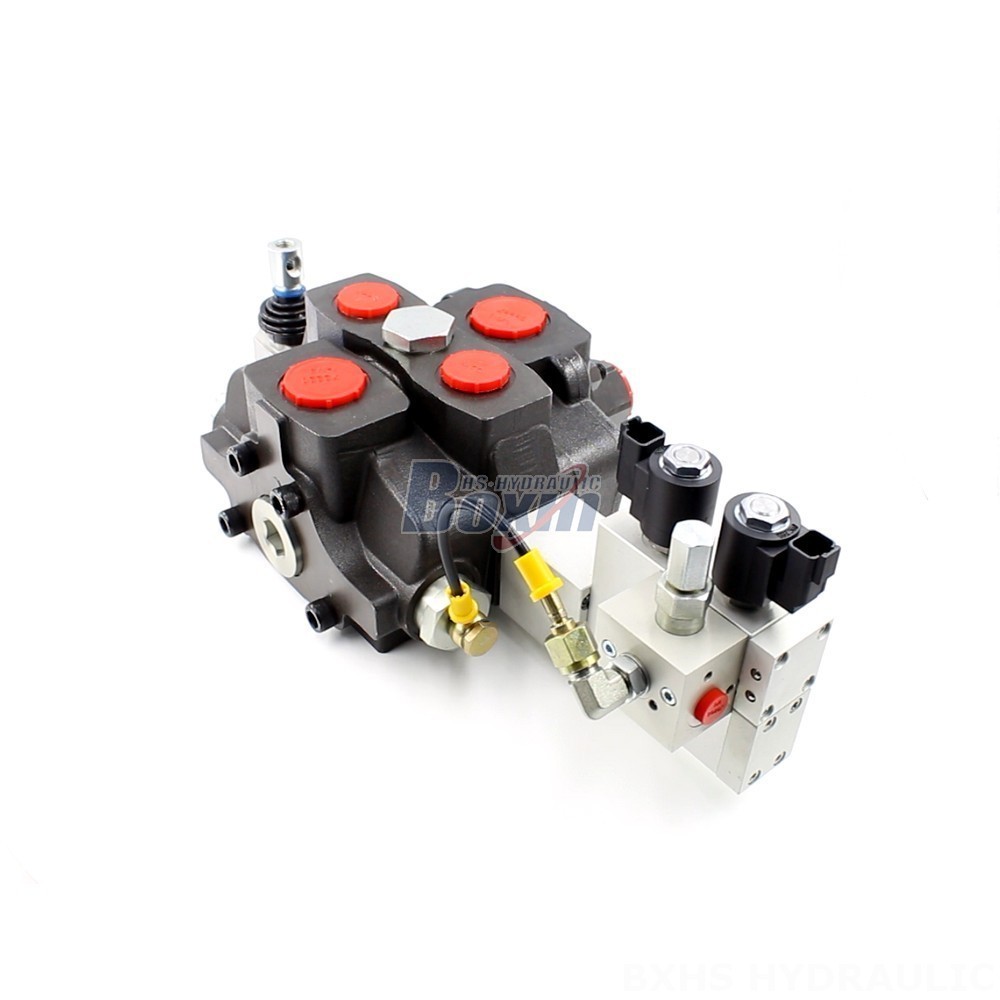

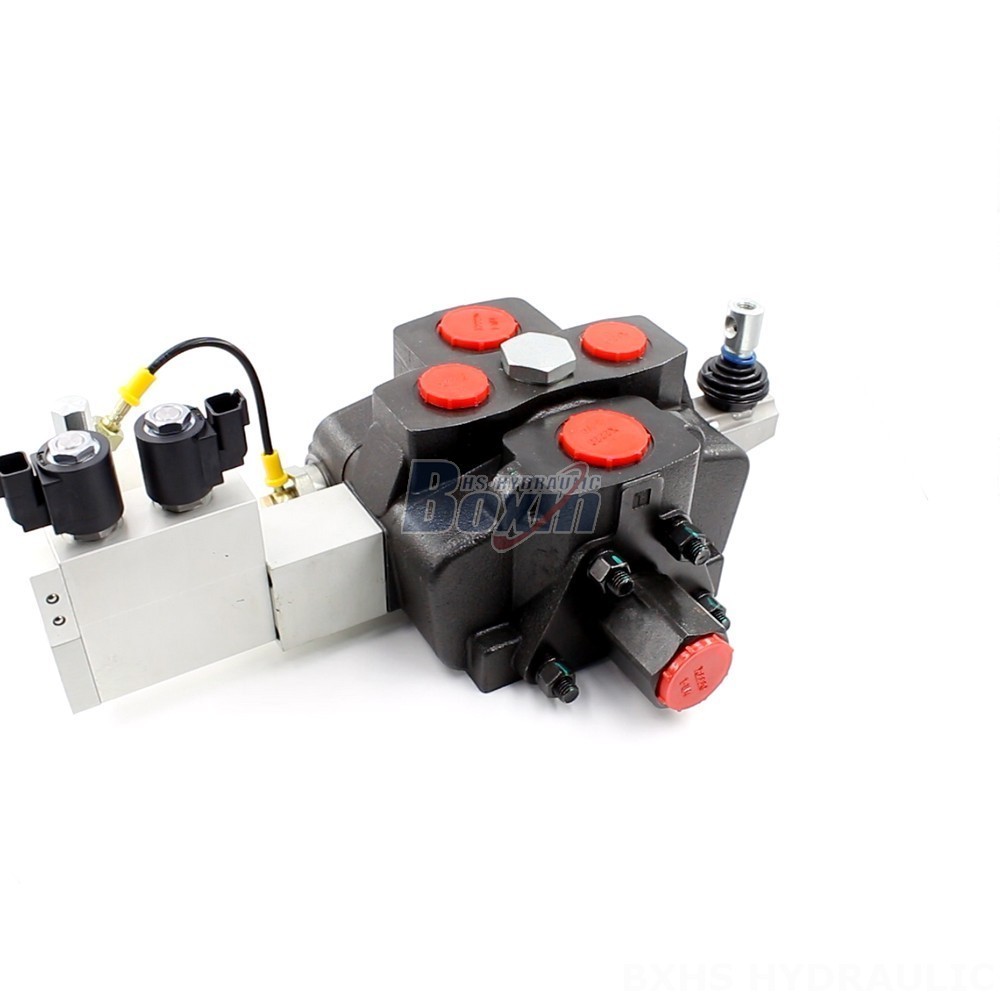

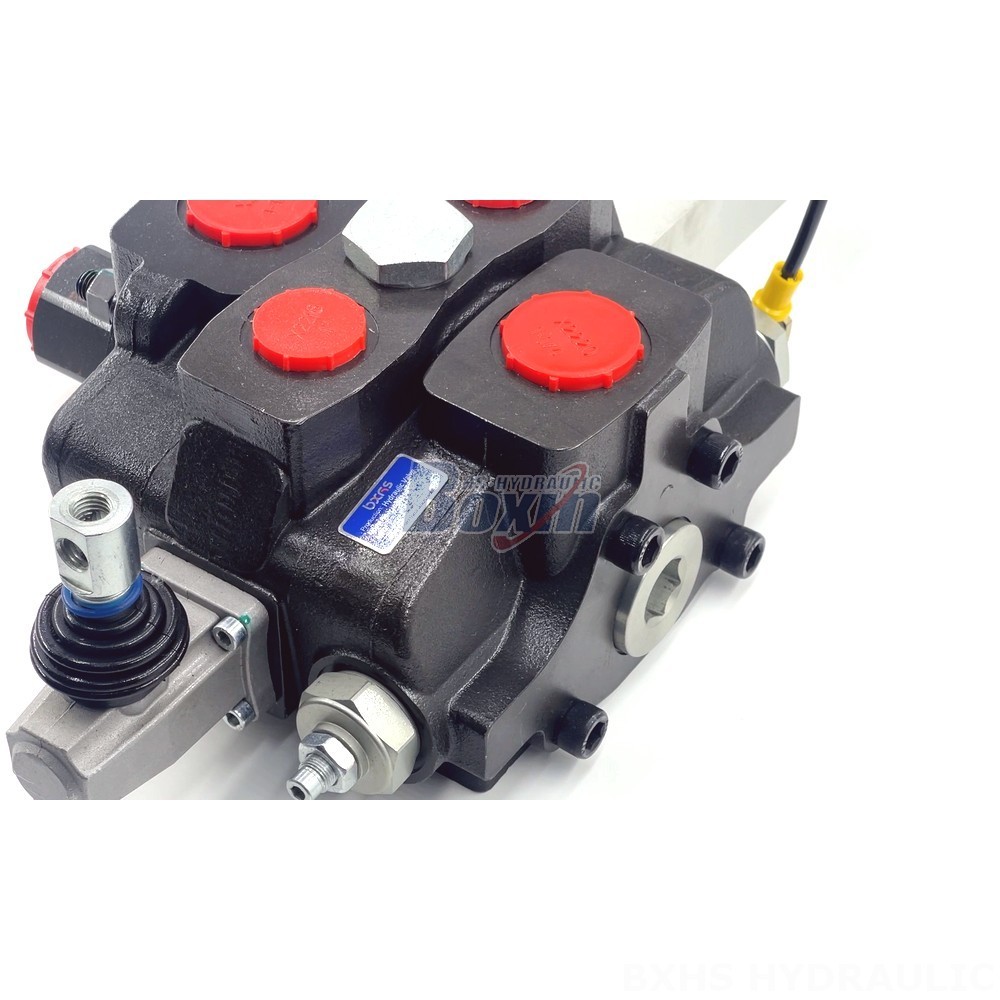

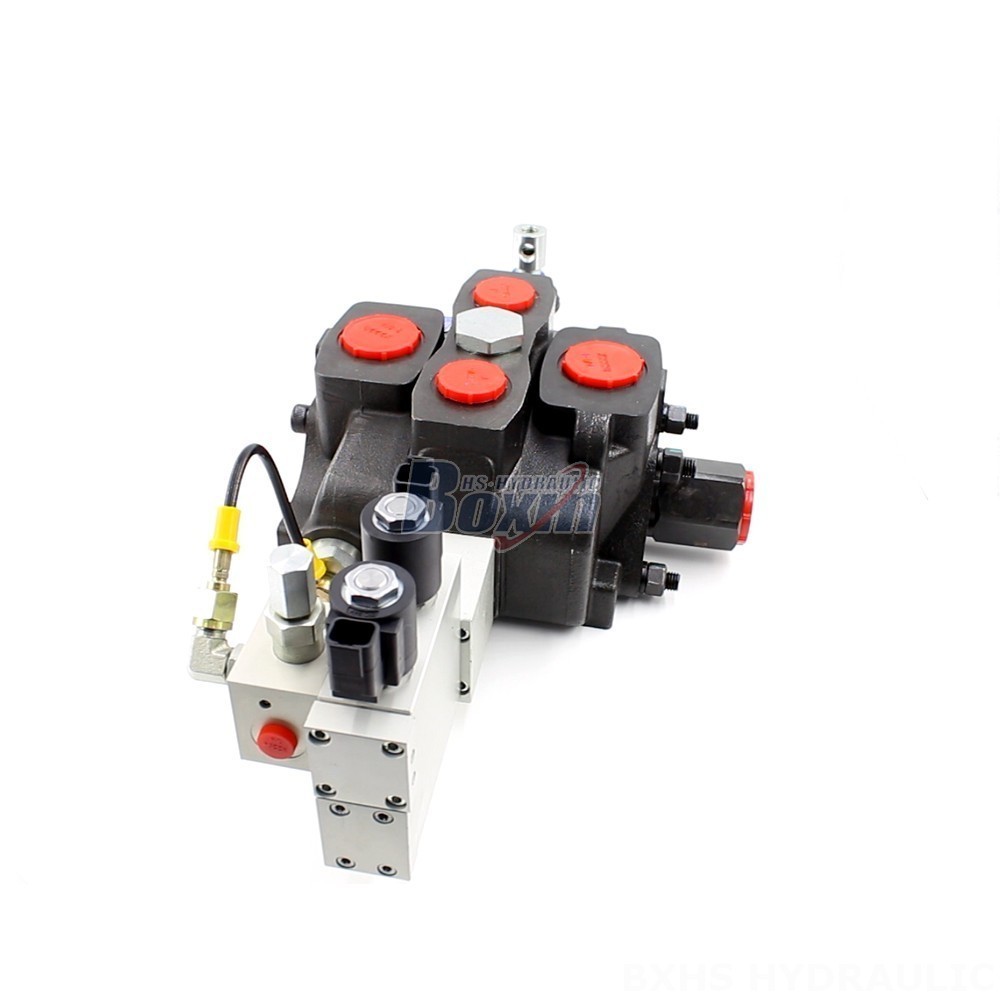

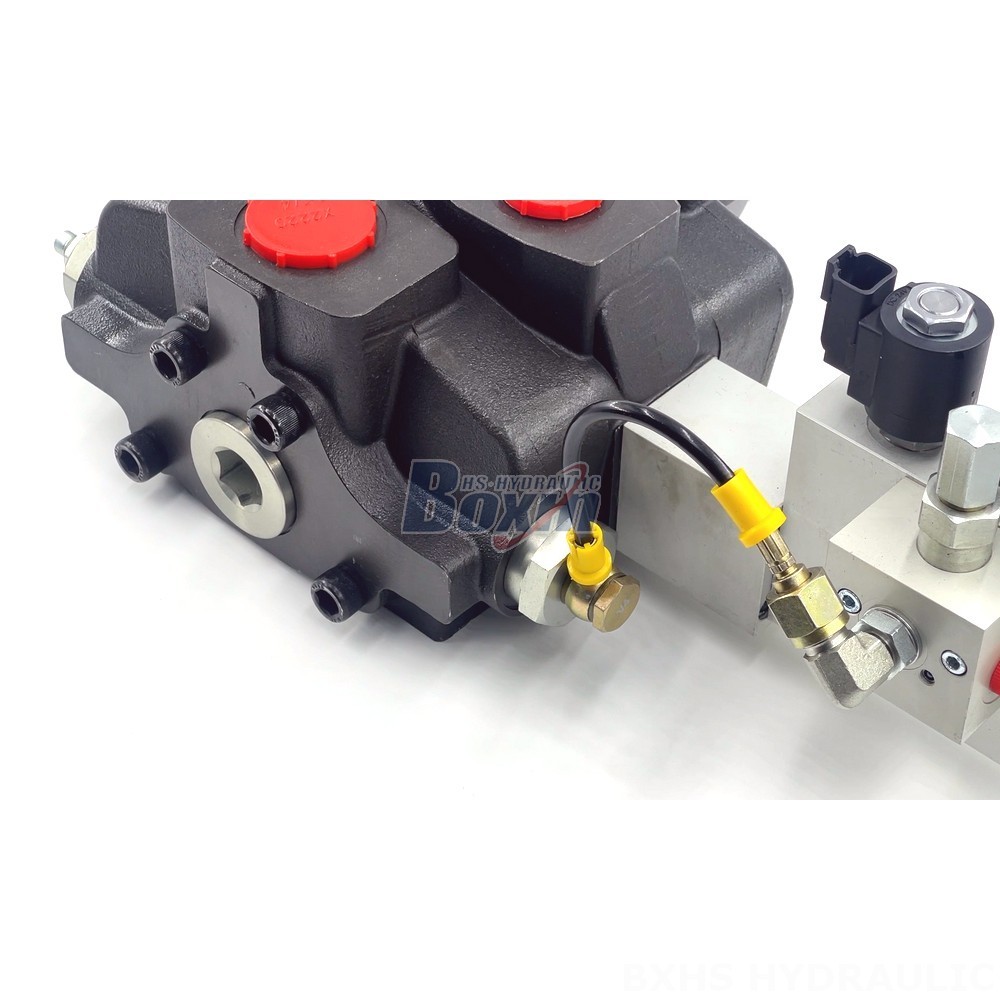

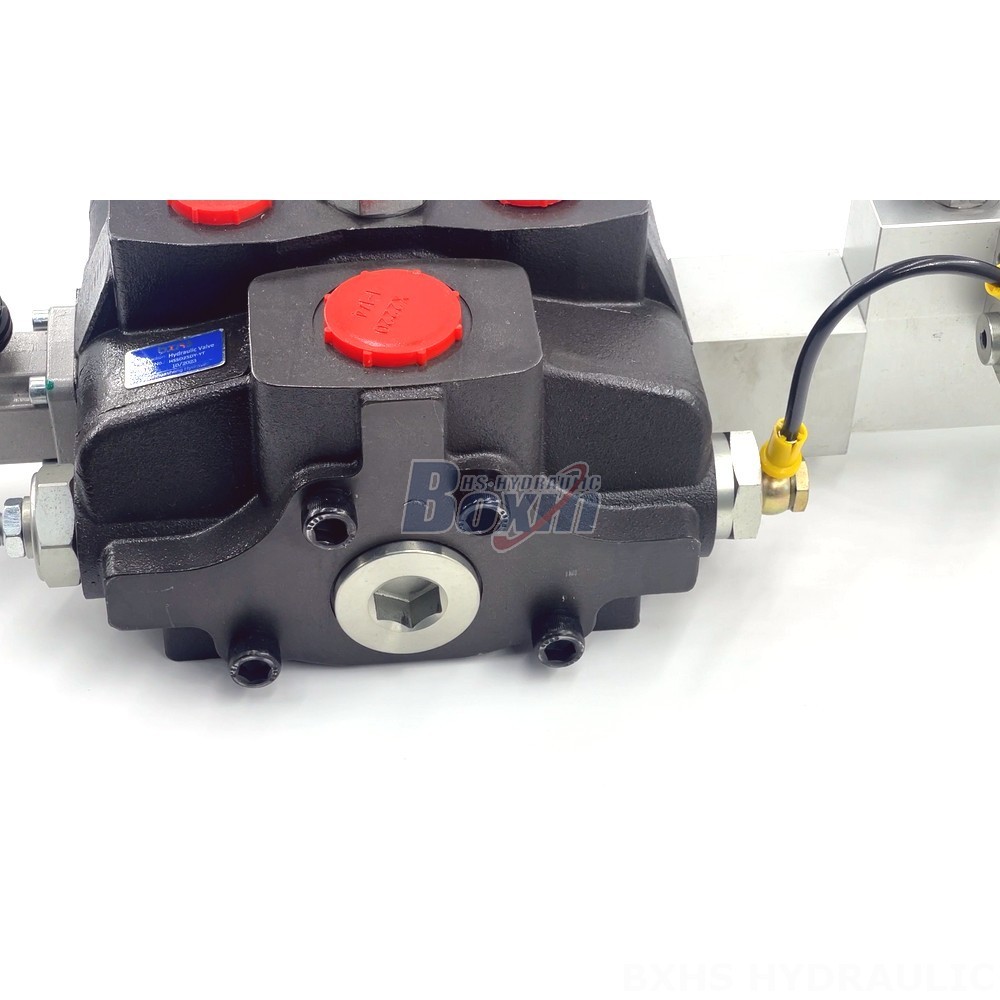

**Electro-hydraulic Valve for Industrial Applications (SD25 Model)**
**Control Method:** Electro-hydraulic
**Section:** 1 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 240 L/min (63.4 US gpm)
**Max Pressure:** 315 bar (4600 psi)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 1 Spool
**Series:** SD25 Series
**Key Features:**
* High flow capacity (240 L/min)
* High pressure capability (315 bar)
* Wide temperature range (-40°C to +80°C)
* Monoblock construction for durability
* Single spool for simple operation
**Applications:**
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
* Telehandlers
* Forklifts
* All terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Excavators
