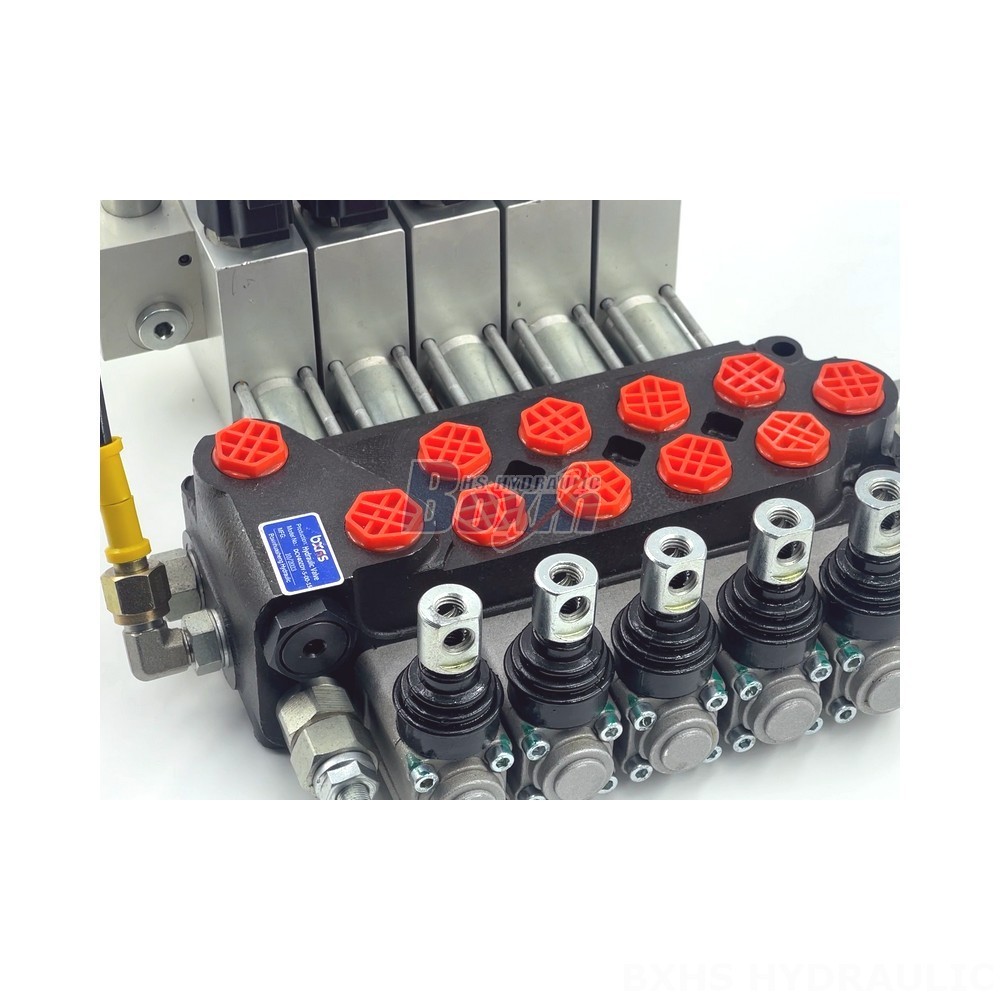

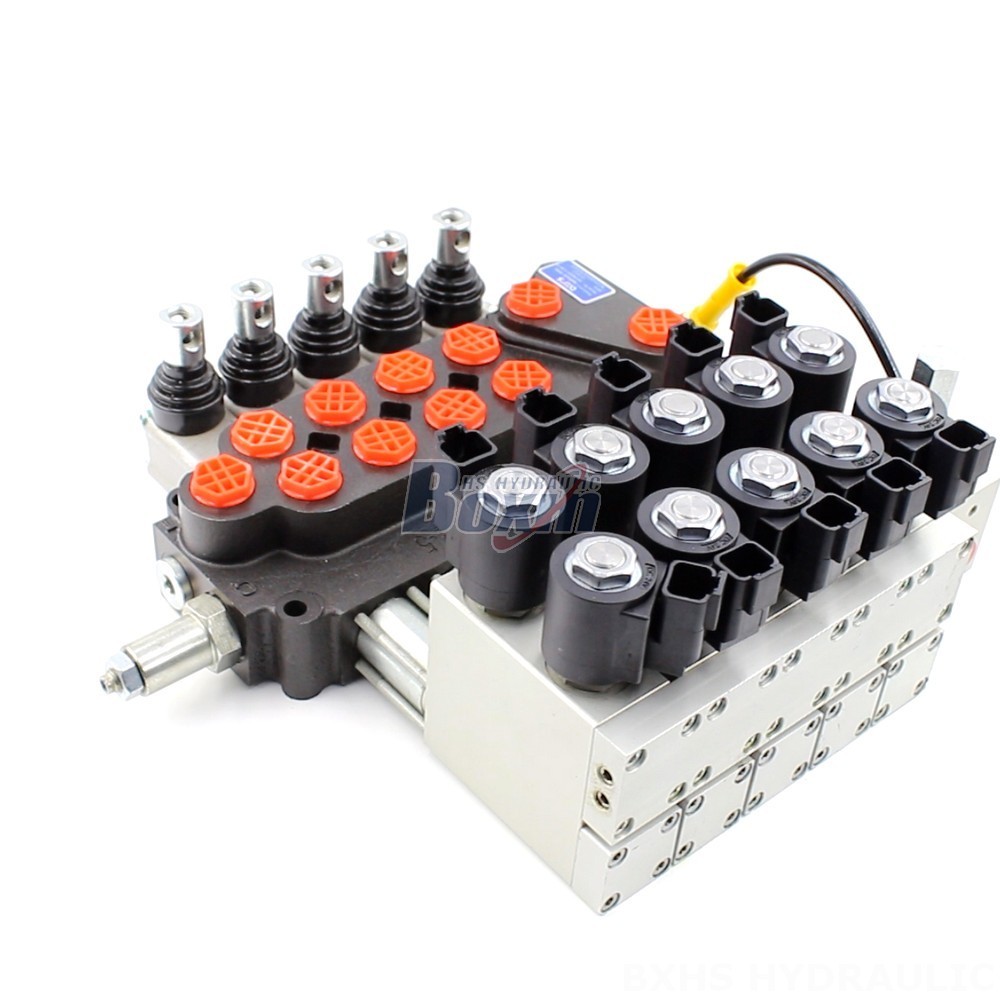

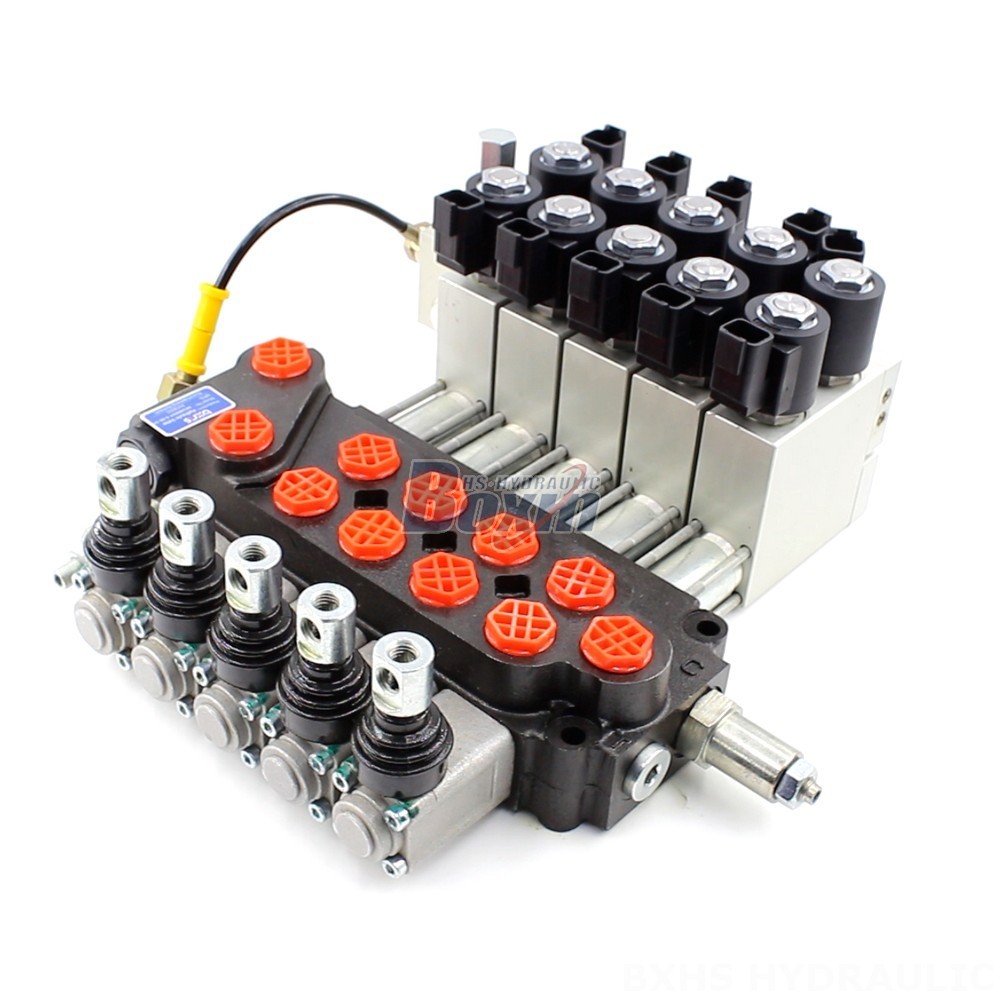

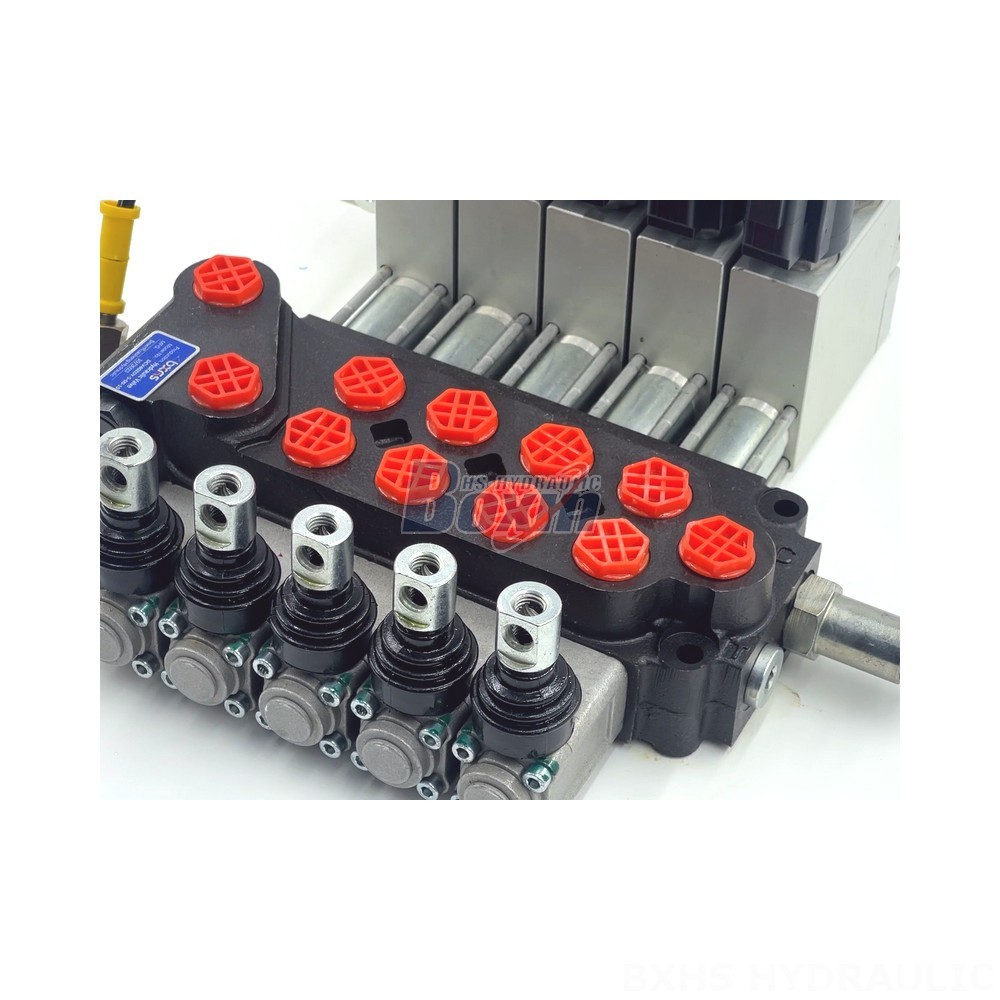

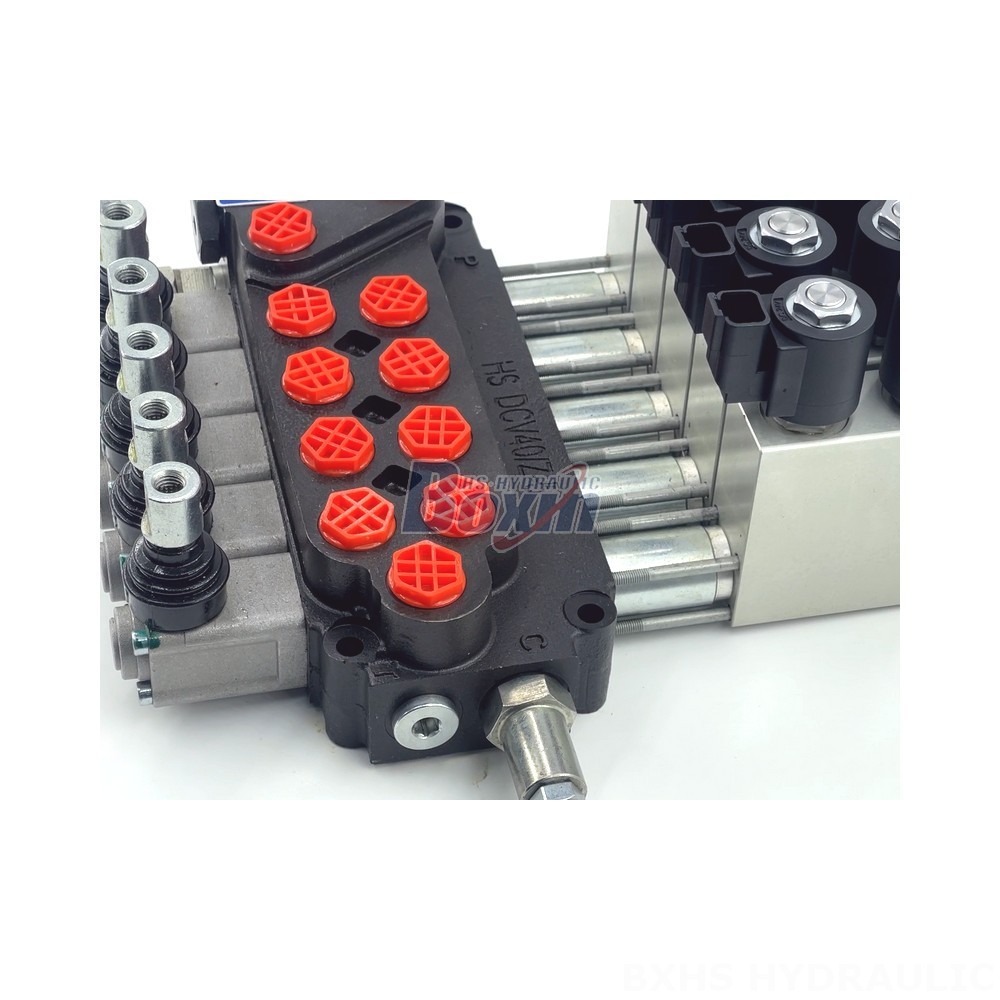

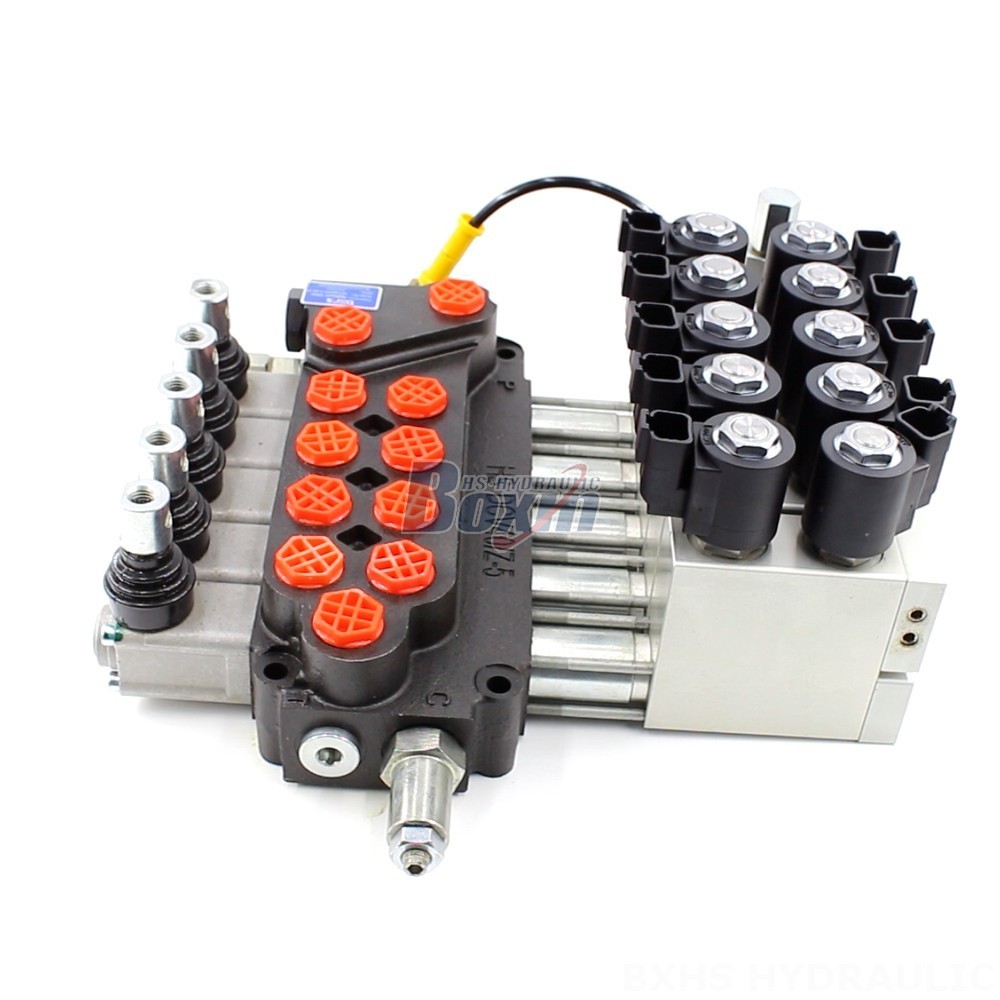

The Zt 12 Hydraulic Valve DCV40Z is a 5-section monoblock electro-hydraulic valve designed for heavy-duty applications in material handling, construction, agriculture, and industrial vehicles.
| Serie DCV40Z Válvula de Control de Estabilizadores Parámetros | |
|---|---|
| Método de control | Manual, Electrohidráulico, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 350 bar (5100 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The Zt 12 Hydraulic Valve DCV40Z is a robust and reliable electro-hydraulic valve designed for demanding applications. This 5-section monoblock valve features a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 350 bar (5100 psi). Its operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt), and it can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). The DCV40Z series is suitable for a wide range of applications including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, and compact wheel loaders. It is customizable to meet specific requirements, making it an ideal choice for manufacturers and OEMs.
