Production & Delivery
15-30 Days Production Lead Time
La innovación impulsa el desarrollo; tecnología forja futuro
880 personas están viendo este producto

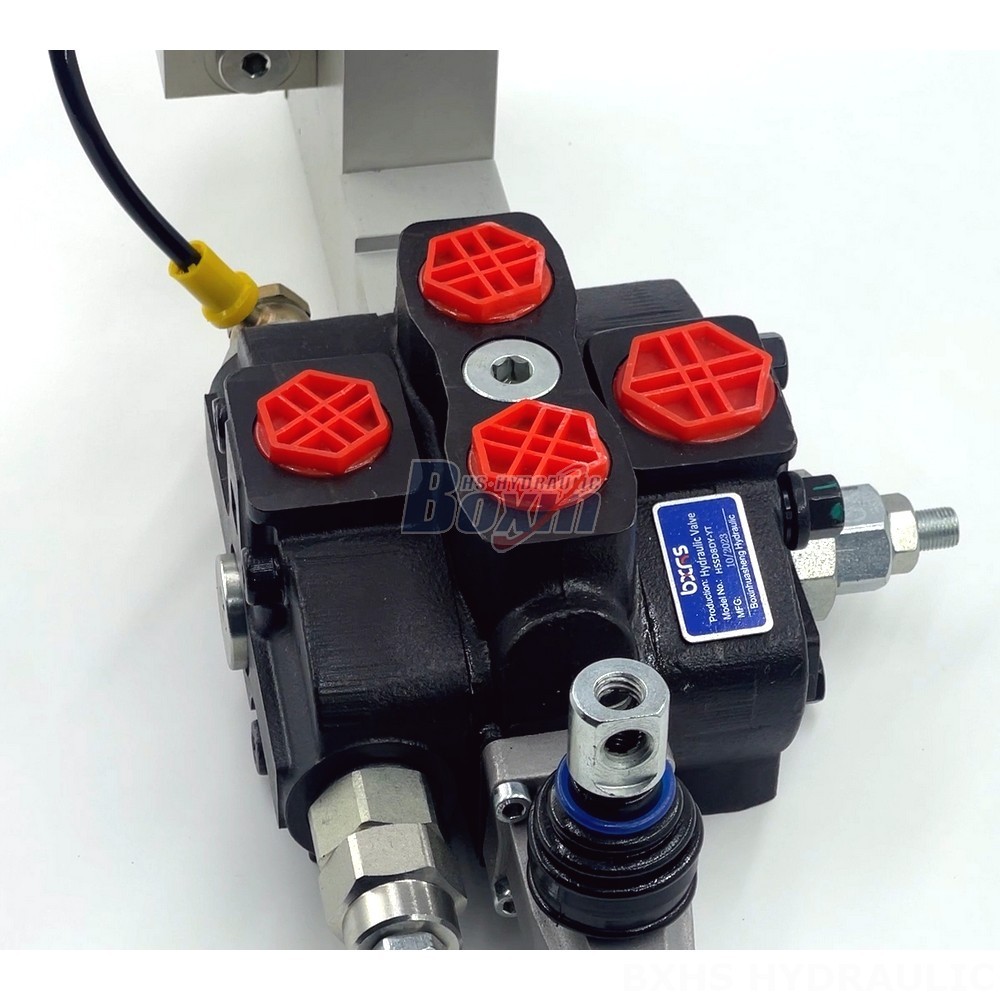

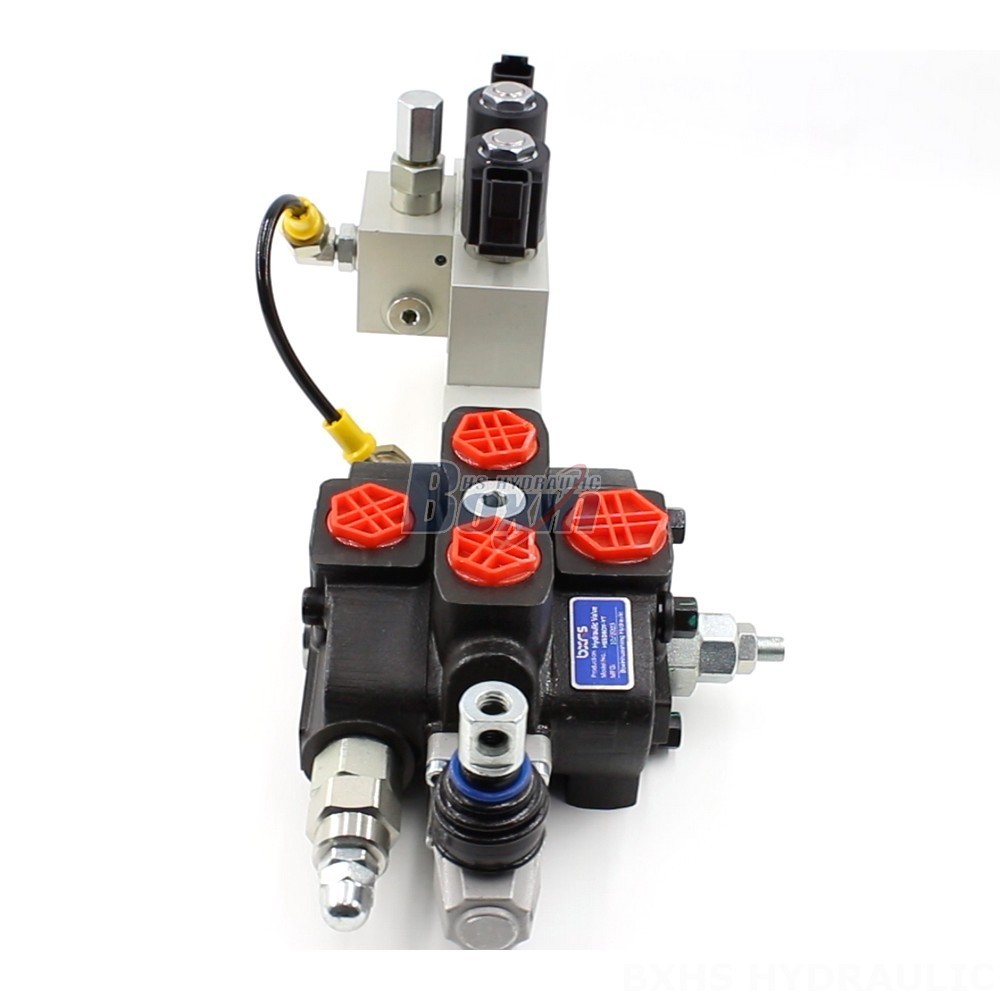

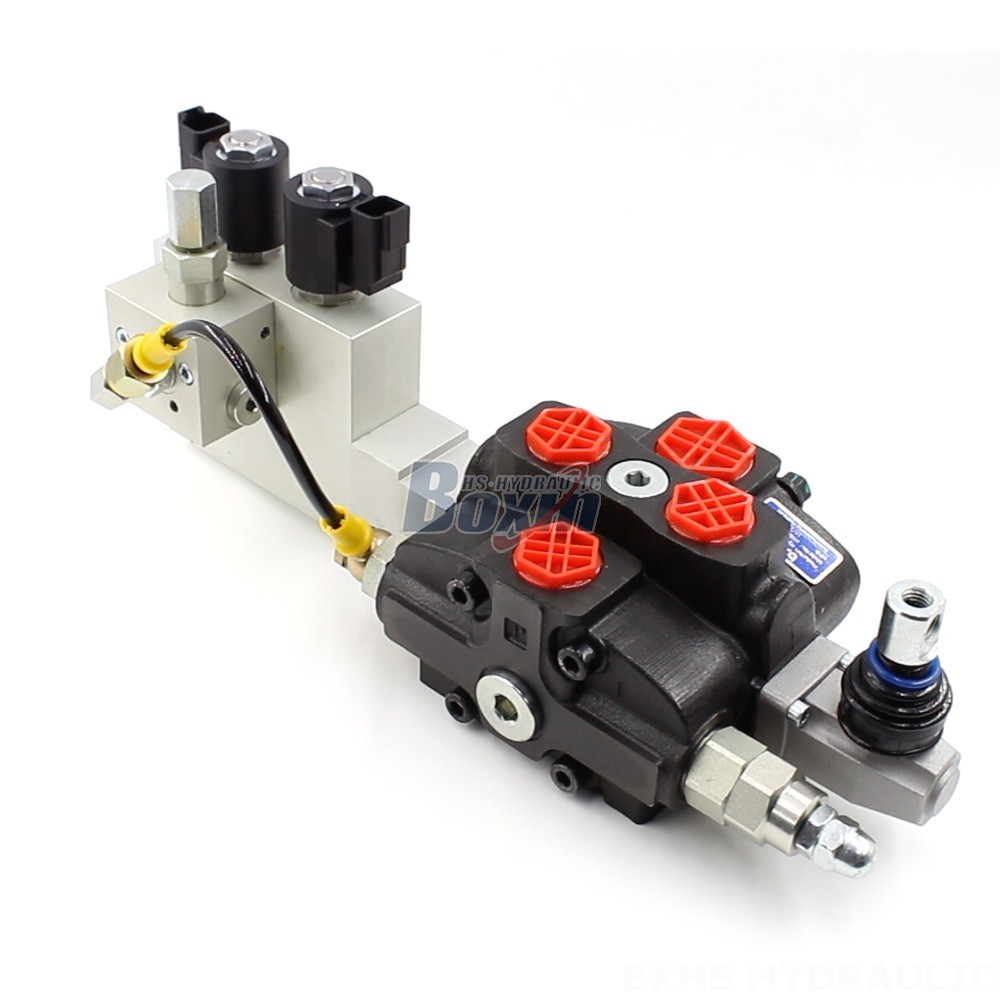

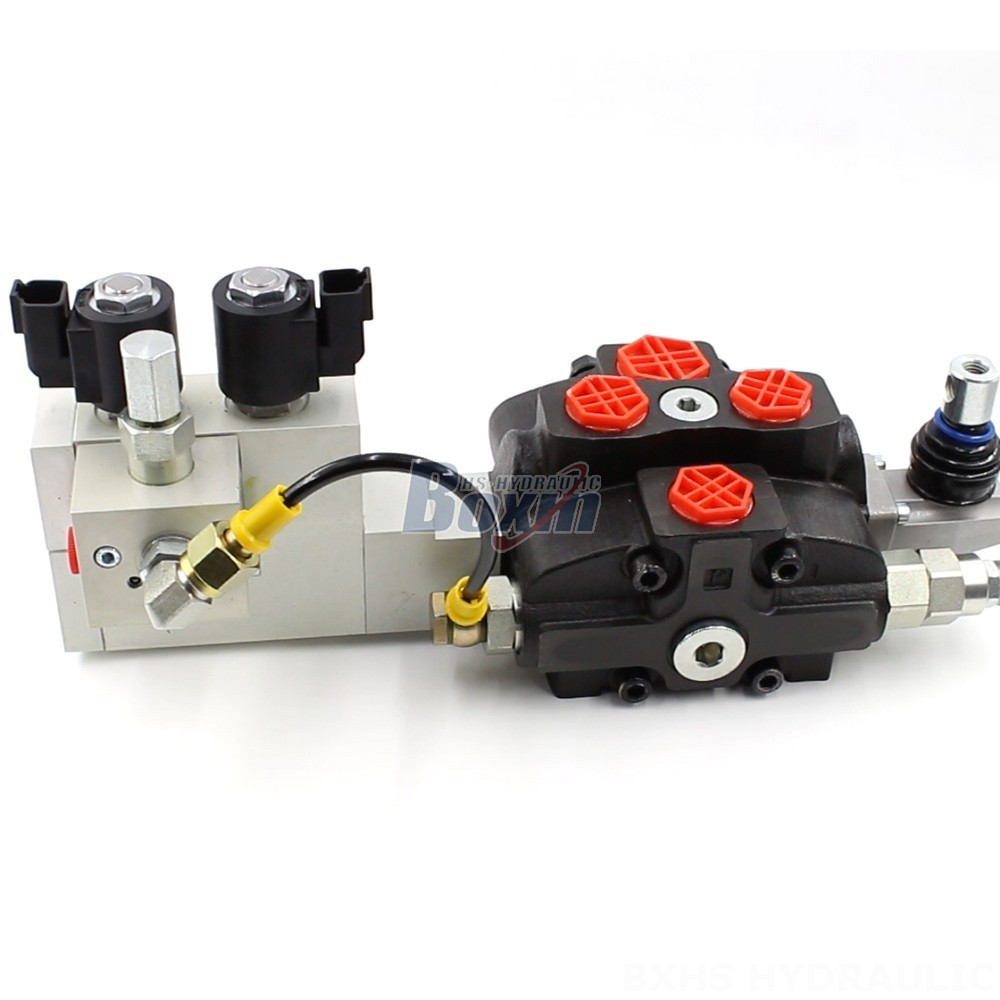

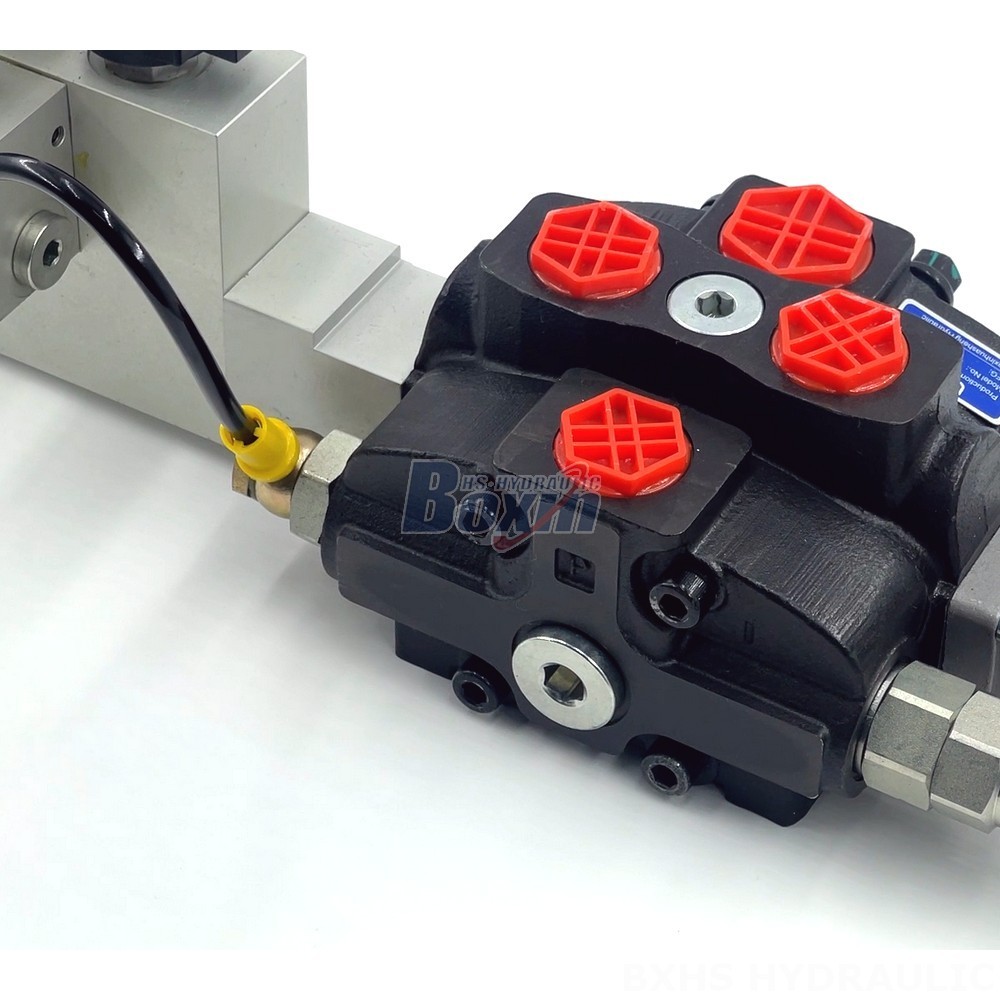

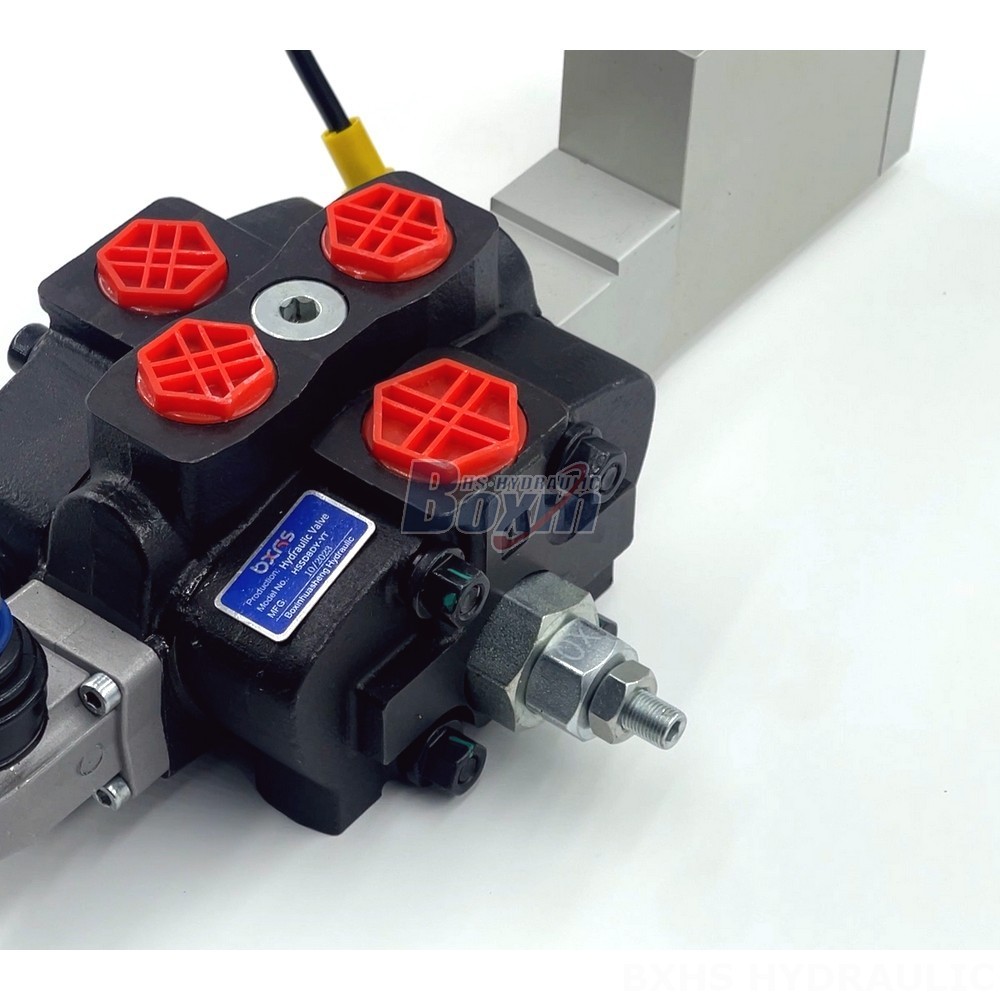

Introducing our Electro-hydraulic Sectional Directional Valve, the ultimate solution for precision control in your hydraulic applications. With its 1 section, sectional valve design, and exceptional performance parameters, this valve delivers unmatched precision and reliability.
| Serie SD8 Válvula direccional seccional Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes, 8 carretes, 9 carretes, 10 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas seccionales |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones, 8 secciones, 9 secciones, 10 secciones |
| Rango de viscosidad de funcionamiento | 12 - 400 mm²/s (12 cSt a 400 cSt) |
| Flujo Nominal | 90 l/min (23,8 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, SAE 10 |
| Puerto de Salida | G1/2, G3/4, SAE 10, 3/4 NPT |
| Tamaño de Puerto | G1/2, SAE 10 |
**Key Features and Benefits:**
- **Electro-hydraulic control:** Ensures precise and responsive operation.
- **1 Section:** Allows for independent control of fluid flow in a single circuit.
- **Sectional valve:** Modular design enables easy configuration and customization.
- **High Rated Flow (90 L/min):** Handles demanding flow requirements effortlessly.
- **Max Pressure (350 bar):** Withstands high system pressures.
- **Wide Operating Viscosity Range (12 - 400 mm²/s):** Accommodates various fluid viscosities.
- **1 Spool:** Provides precise flow control with minimal leakage.
- **SD8 Series:** Part of our premium valve range, known for durability and performance.
**Applications:**
- Material Handling: Forklifts, telehandlers, stackers
- Construction and Earth Moving: Motor graders, excavators, skid steer loaders
- Agriculture: Tractors, harvesters
- Industrial Vehicles: Aerial platforms, compact wheel loaders
