Introducing the robust P80 Series Electro-Hydraulic Monoblock Directional Valve, meticulously engineered for diverse hydraulic applications across industries. With its electro-hydraulic control, 2-section monoblock structure, and impressive flow rate of 80 L/min, this valve delivers exceptional performance in demanding conditions. Its wide operating temperature range (-40°C to +80°C) and compatibility with various applications, including forklifts, telehandlers, and construction machinery, make it an ideal choice for OEMs and distributors seeking reliable hydraulic solutions.
| Serie P80 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 80 l/min (21,2 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Puerto de Salida | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamaño de Puerto | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

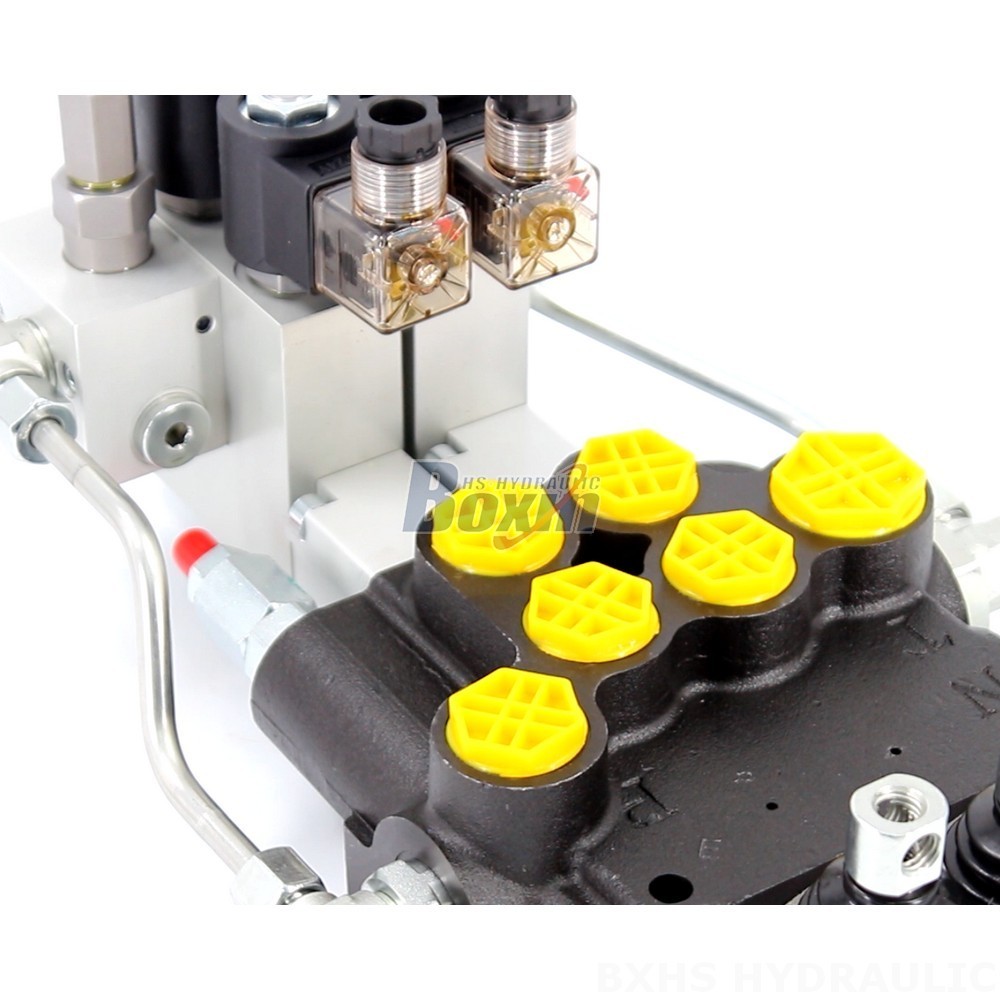

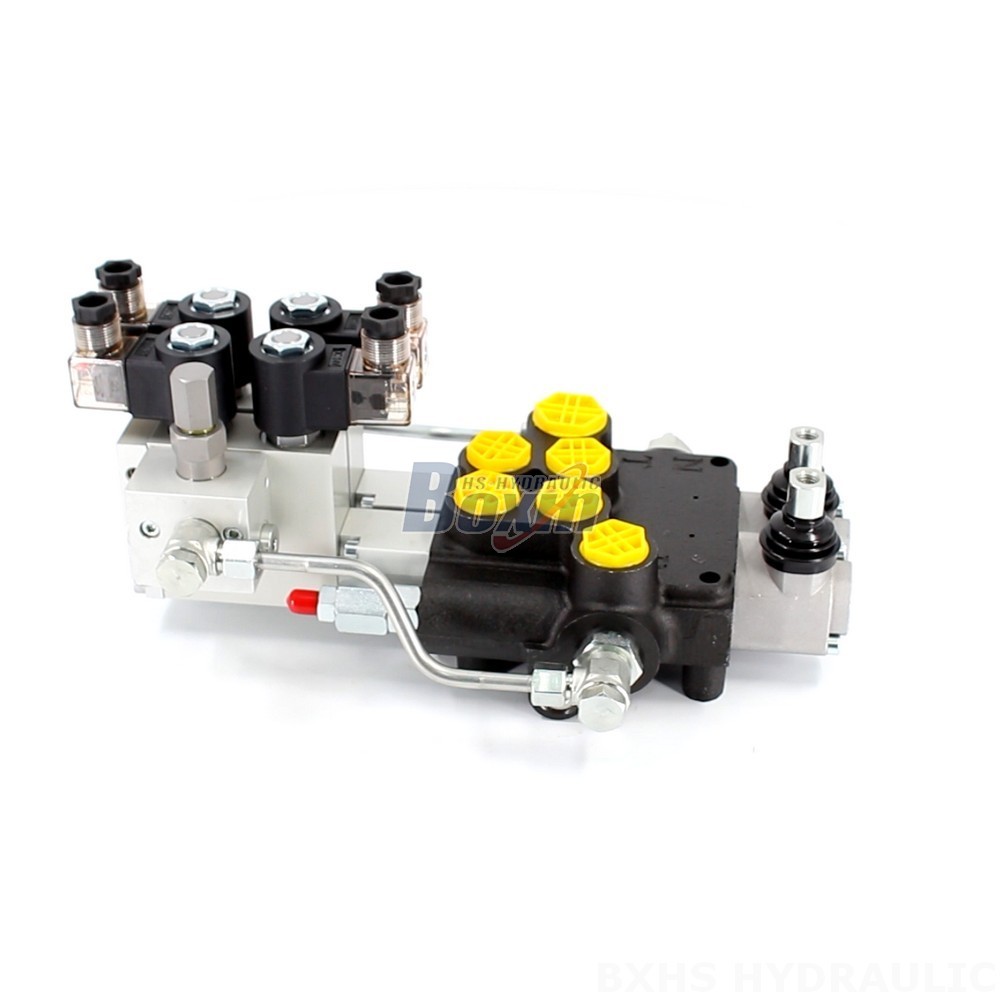

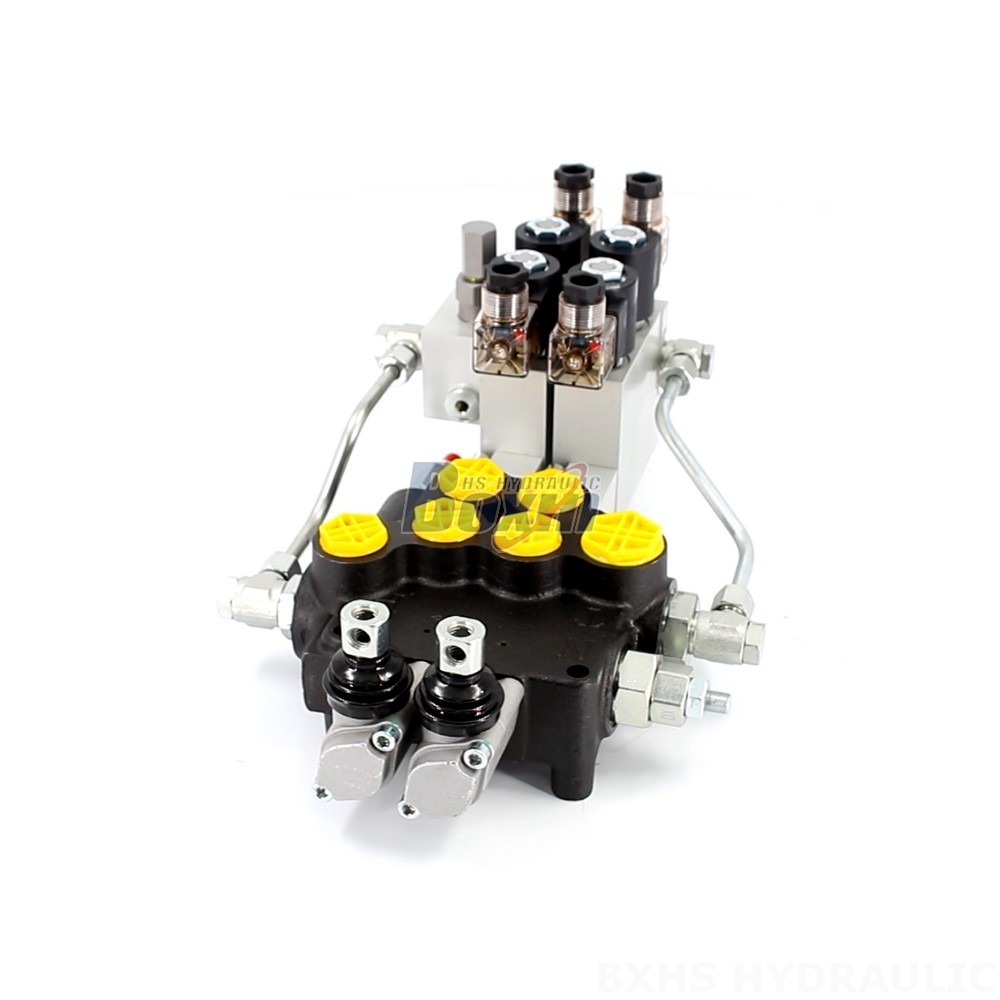

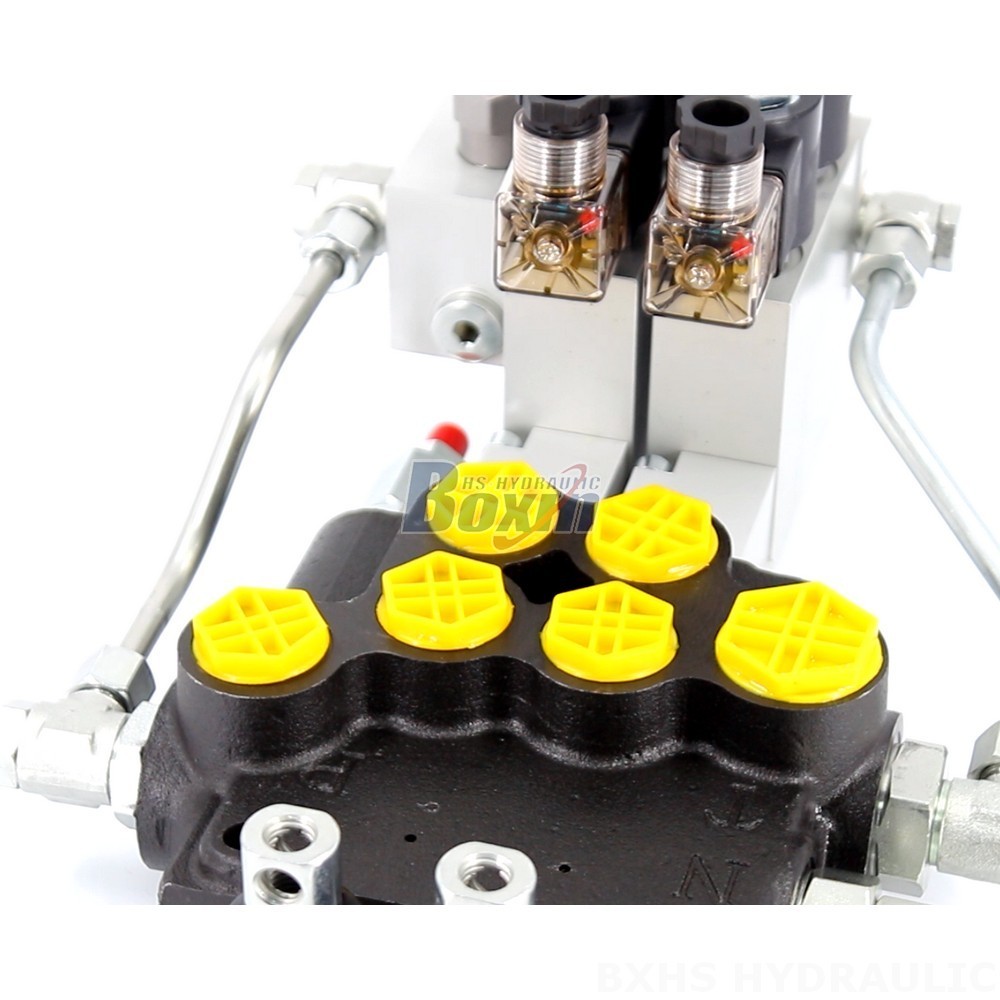

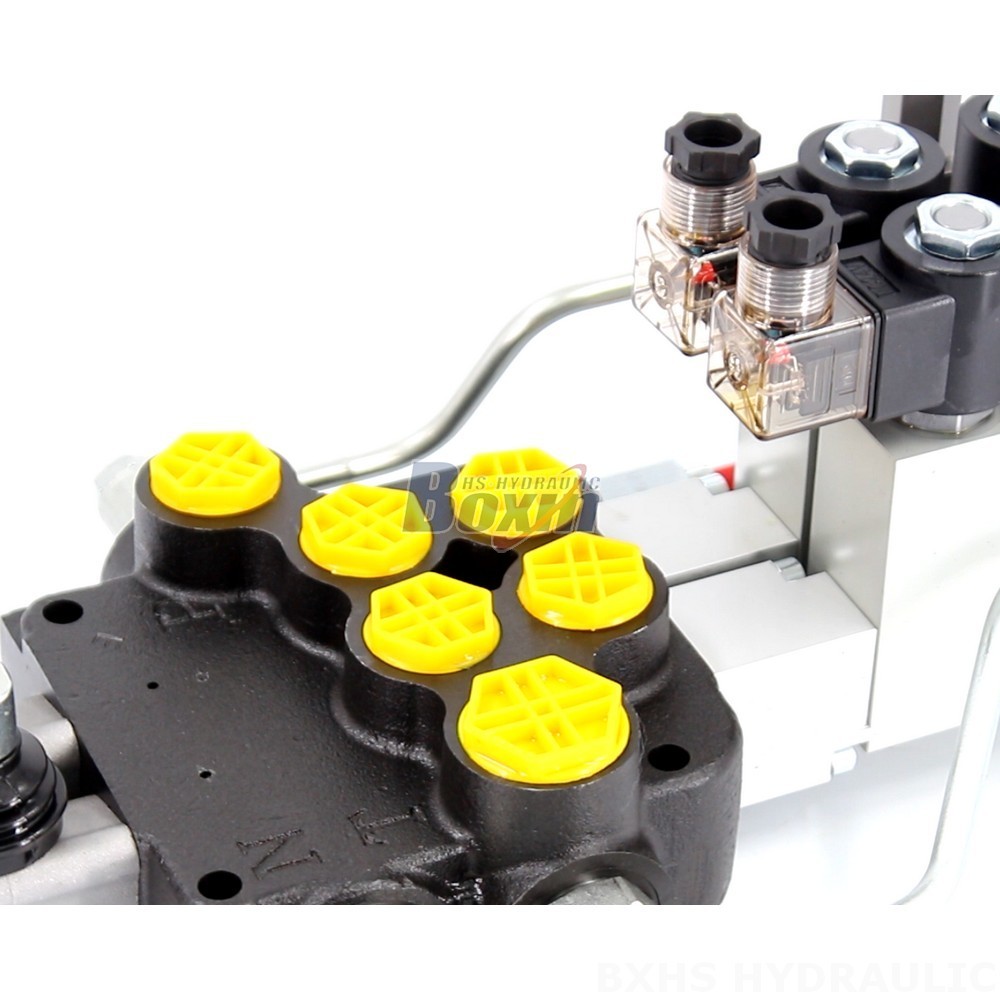

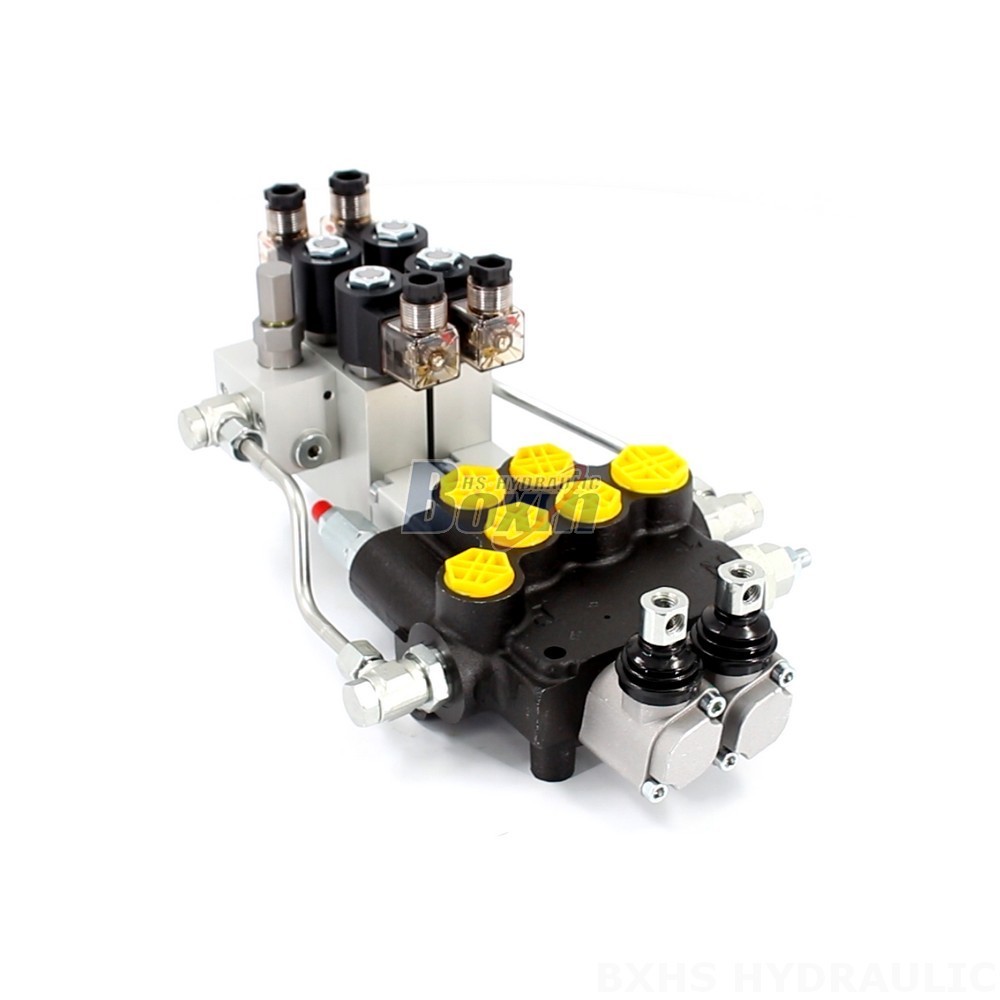

**Electro-Hydraulic Monoblock Directional Valve - P80 Series**
**Control Method:** Electro-hydraulic
**Section:** 2 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 80 L/min (21.2 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 2 Spool
**Series:** P80 Series
**Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, TELEHANDLER, MIDI-EXCAVATOR, MINI-EXCAVATOR, SKID STEER LOADER
The P80 Series Electro-Hydraulic Monoblock Directional Valve is designed for applications requiring precise control of hydraulic flow. It features a compact and robust monoblock construction, providing excellent durability in harsh operating conditions. The valve's electro-hydraulic control mechanism allows for remote or automated operation, enhancing efficiency and reducing maintenance requirements.
With a maximum pressure capacity of 250 bar and a flow rate of 80 L/min, the P80 Series valve is suitable for a wide range of hydraulic systems. Its operating viscosity range of 15 - 75 mm²/s ensures compatibility with various hydraulic fluids. Additionally, the valve's wide ambient temperature range (-40°C to +80°C) allows for reliable operation in diverse climatic conditions.
The P80 Series Electro-Hydraulic Monoblock Directional Valve is an ideal solution for manufacturers and distributors seeking high-performance hydraulic components. Its versatility, durability, and ease of integration make it a preferred choice for demanding applications in industries such as material handling, construction, agriculture, and industrial vehicles.
