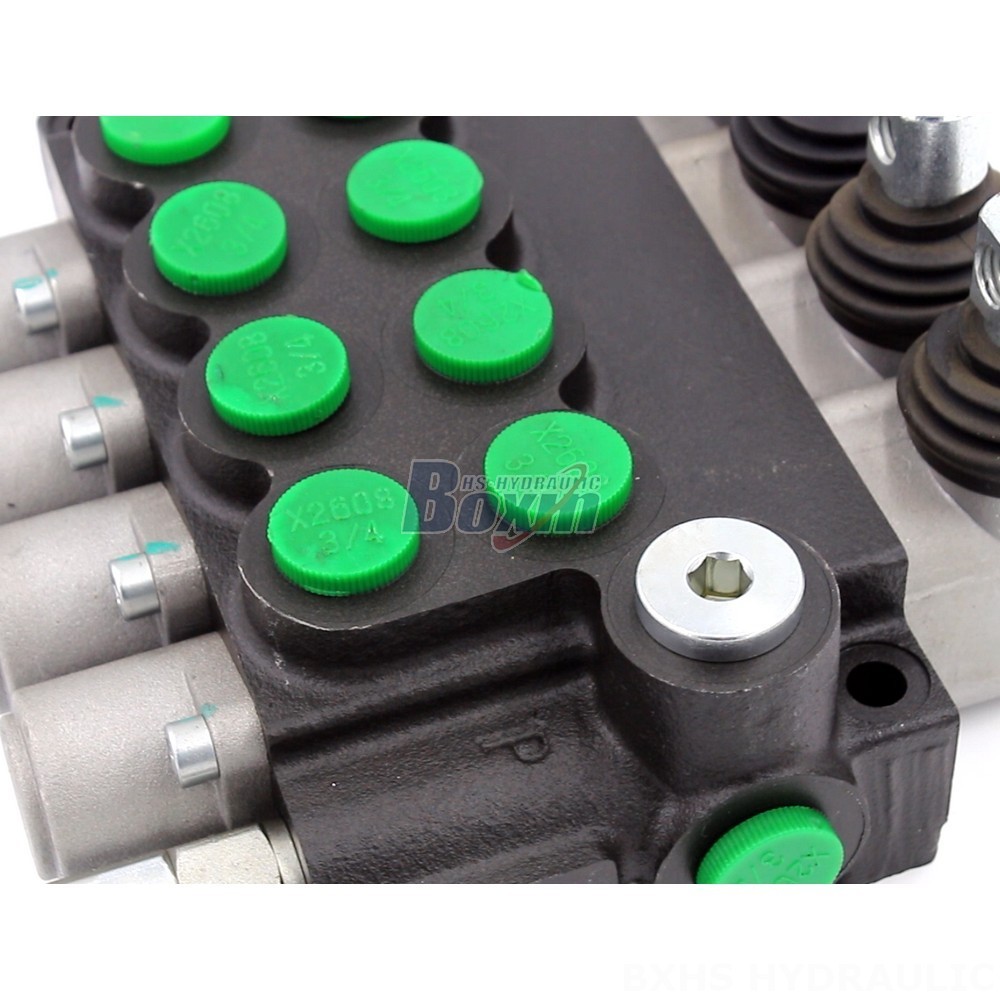

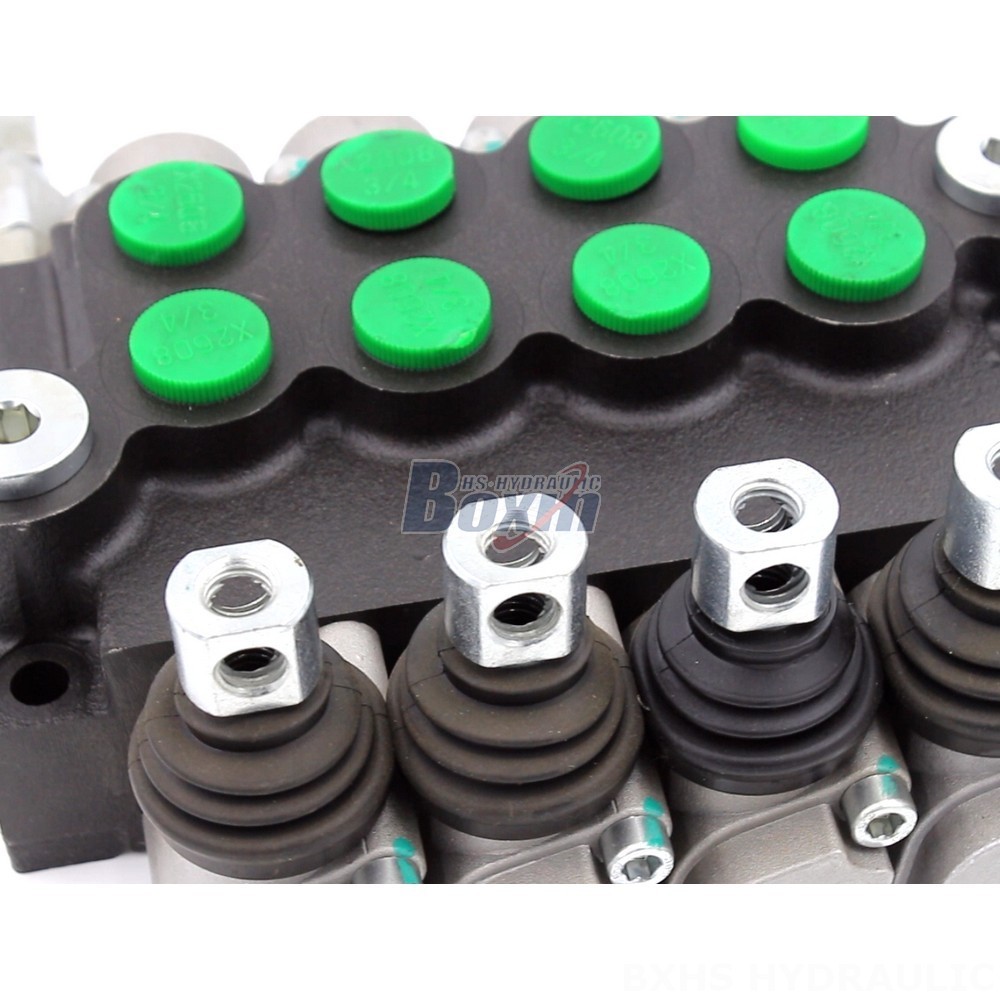

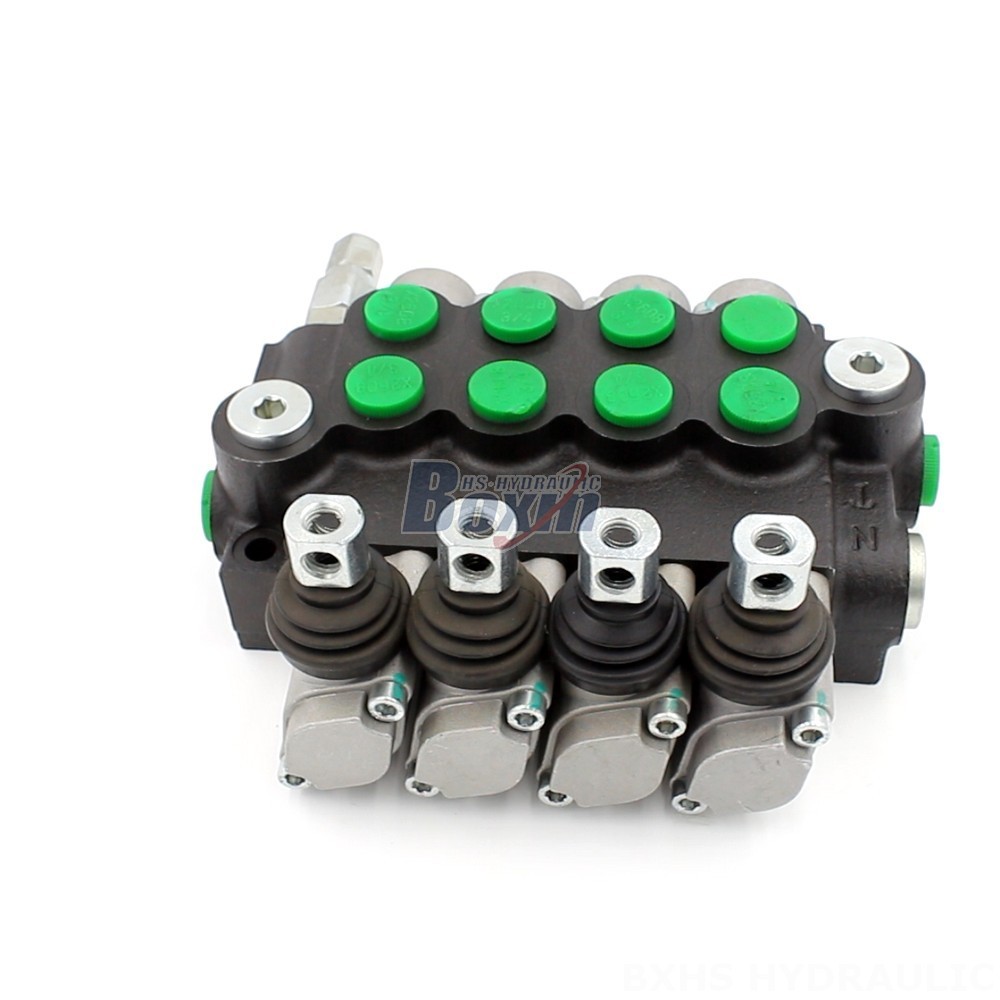

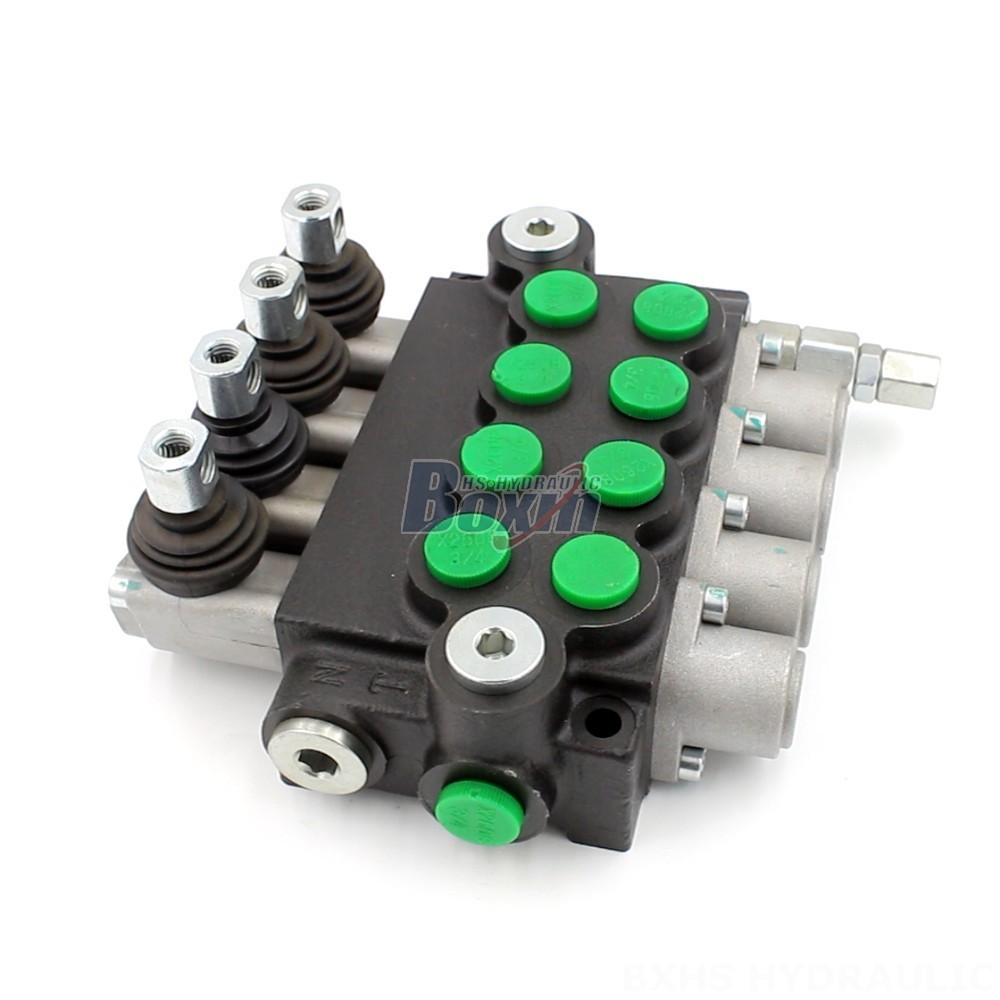

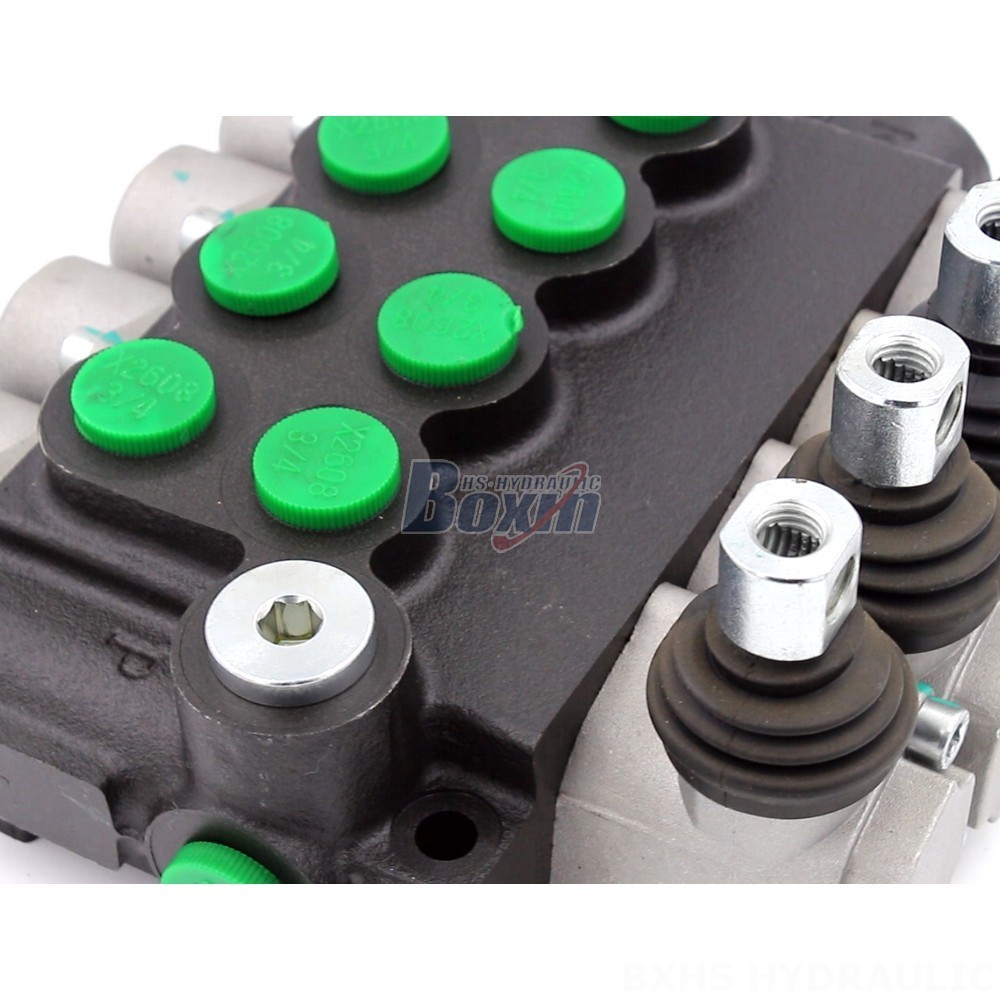

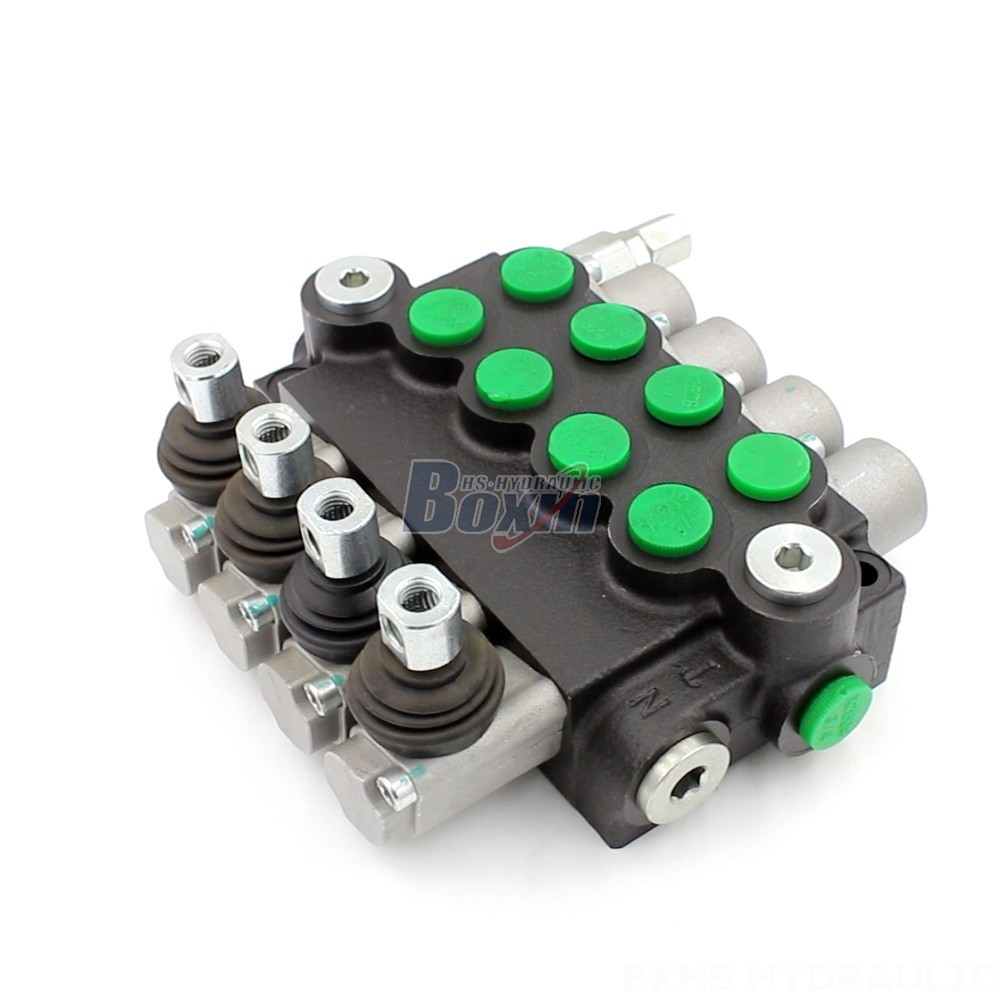

The P40-U34 is a 4-way, 4-section, monoblock directional control valve designed for a wide range of applications in construction, material handling, agriculture, and industrial vehicles. This robust valve features a maximum pressure rating of 250 bar and a rated flow of 40 L/min, making it suitable for demanding hydraulic systems.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-U34 is a high-performance 4-way directional control valve designed for use in hydraulic systems. It features a 4-section monoblock design, manual control, and a rated flow of 40 L/min. This valve is suitable for a wide range of applications in construction, material handling, agriculture, and industrial vehicles. Key features include:
* **Rated Flow:** 40 L/min (10.5 US gpm)
* **Max Pressure:** 250 bar (3600 psi)
* **Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
* **Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
* **Spool:** 4 Spool
* **Series:** P40 Series
* **Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
* **Applicable Model:** TELEHANDLER,FORKLIFT,STACKER,AERIAL PLATFORM,MOTOR GRADER,MIDI-EXCAVATOR,SKID STEER LOADER,WHEEL LOADER,TRACTOR AND FRONT-END LOADER,HARVESTER
