Producción y entrega
Plazo de ejecución de producción de 15 a 30 días
La innovación impulsa el desarrollo; tecnología forja futuro
980 personas están viendo este producto

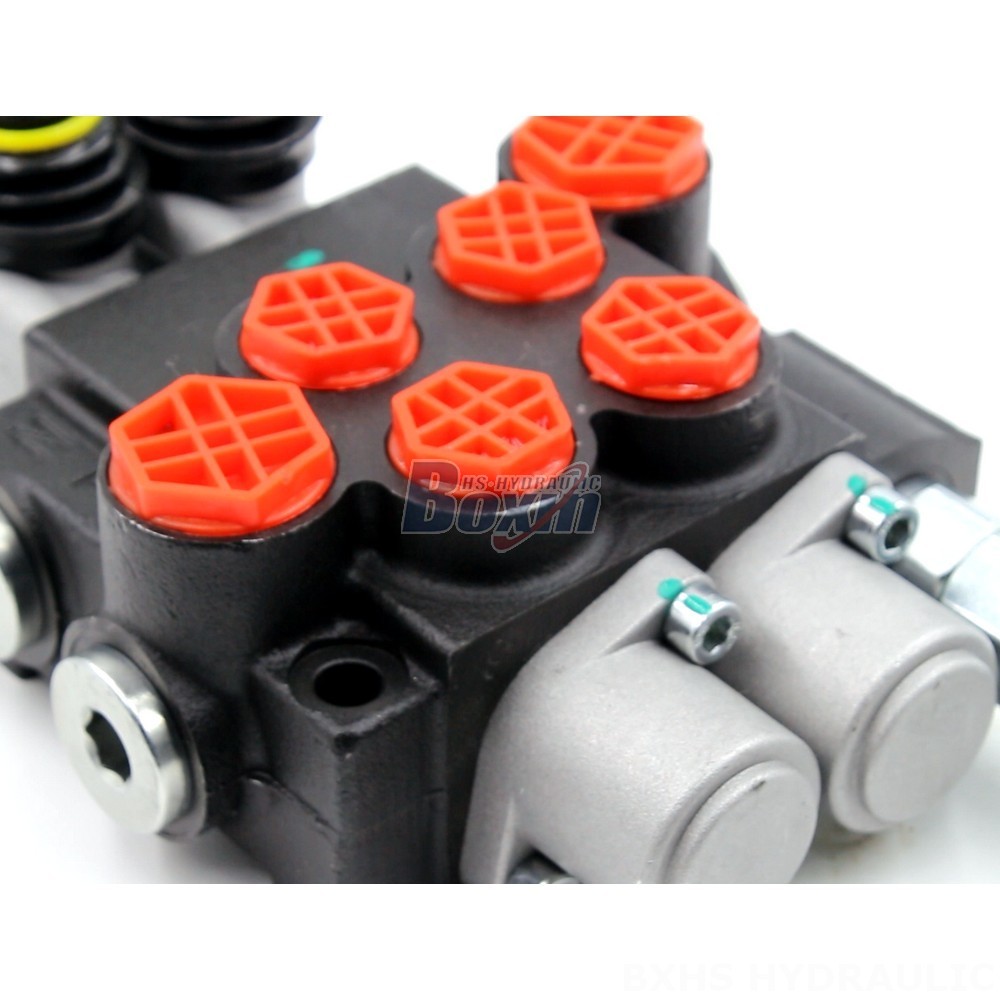

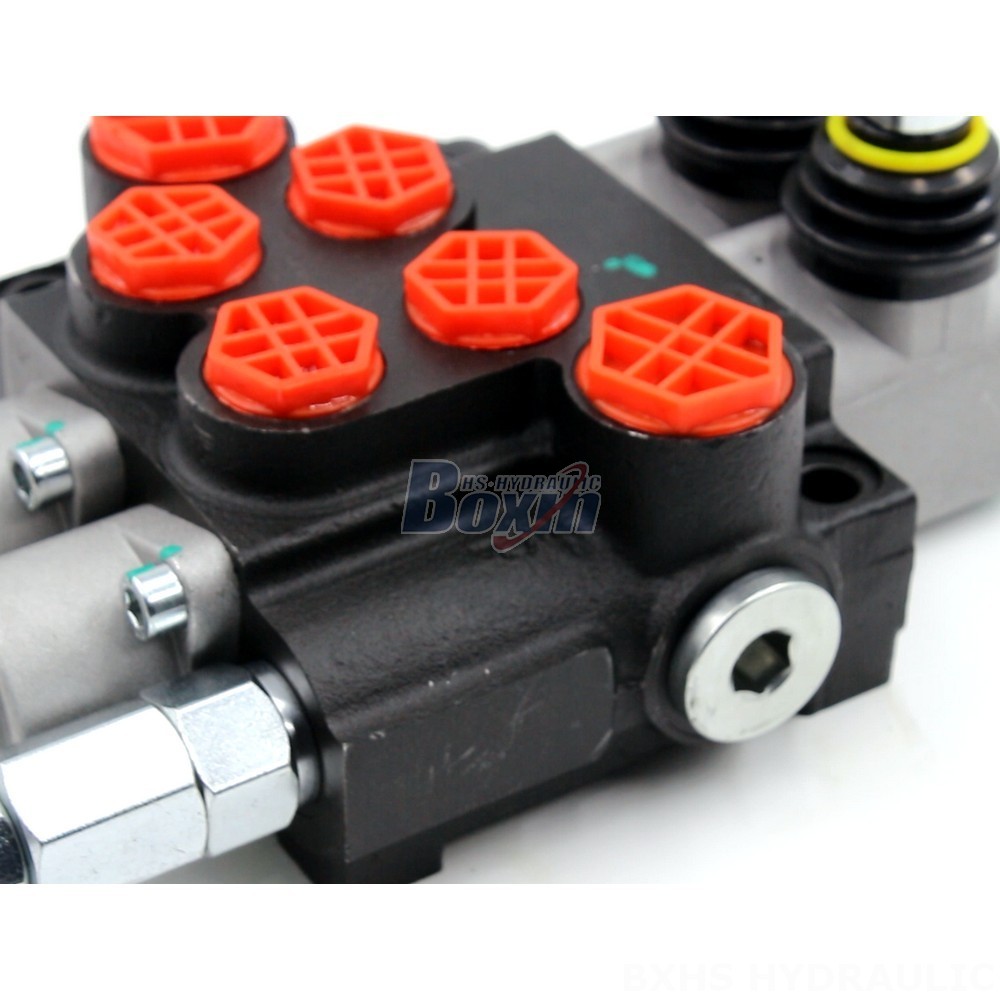

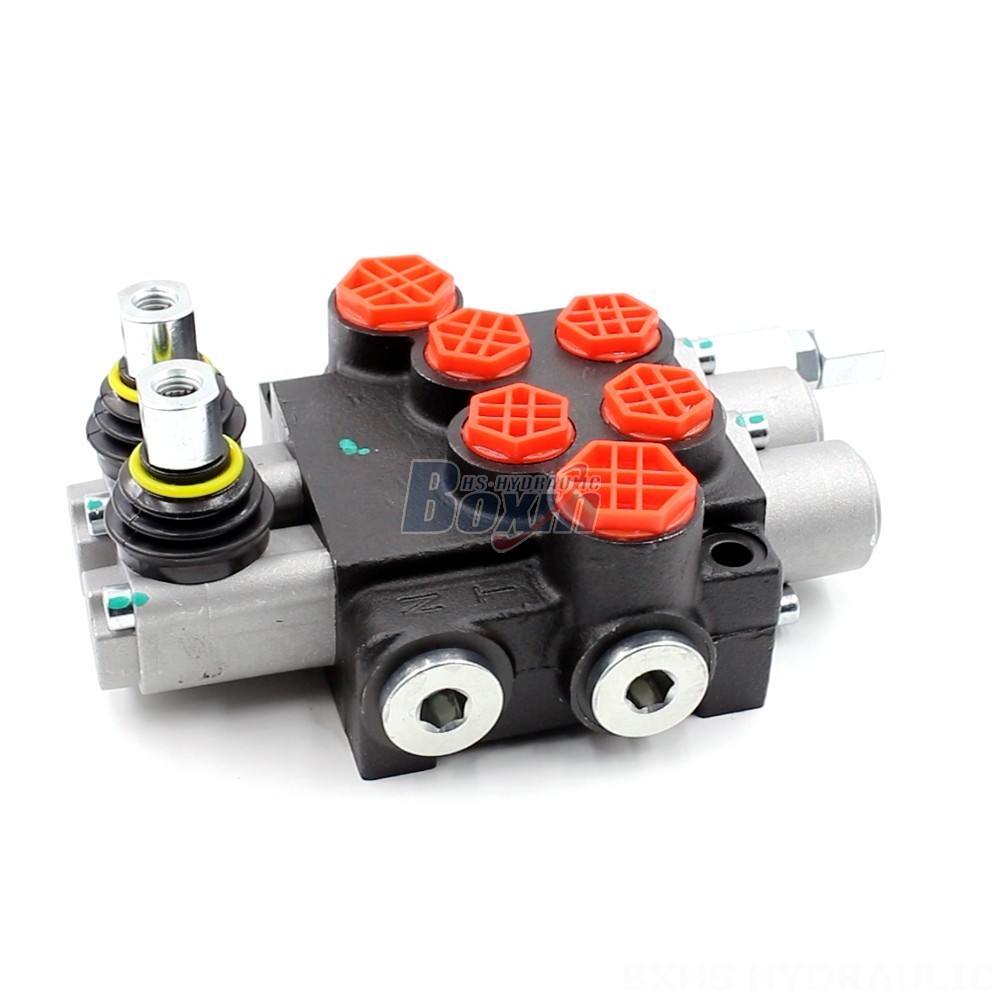

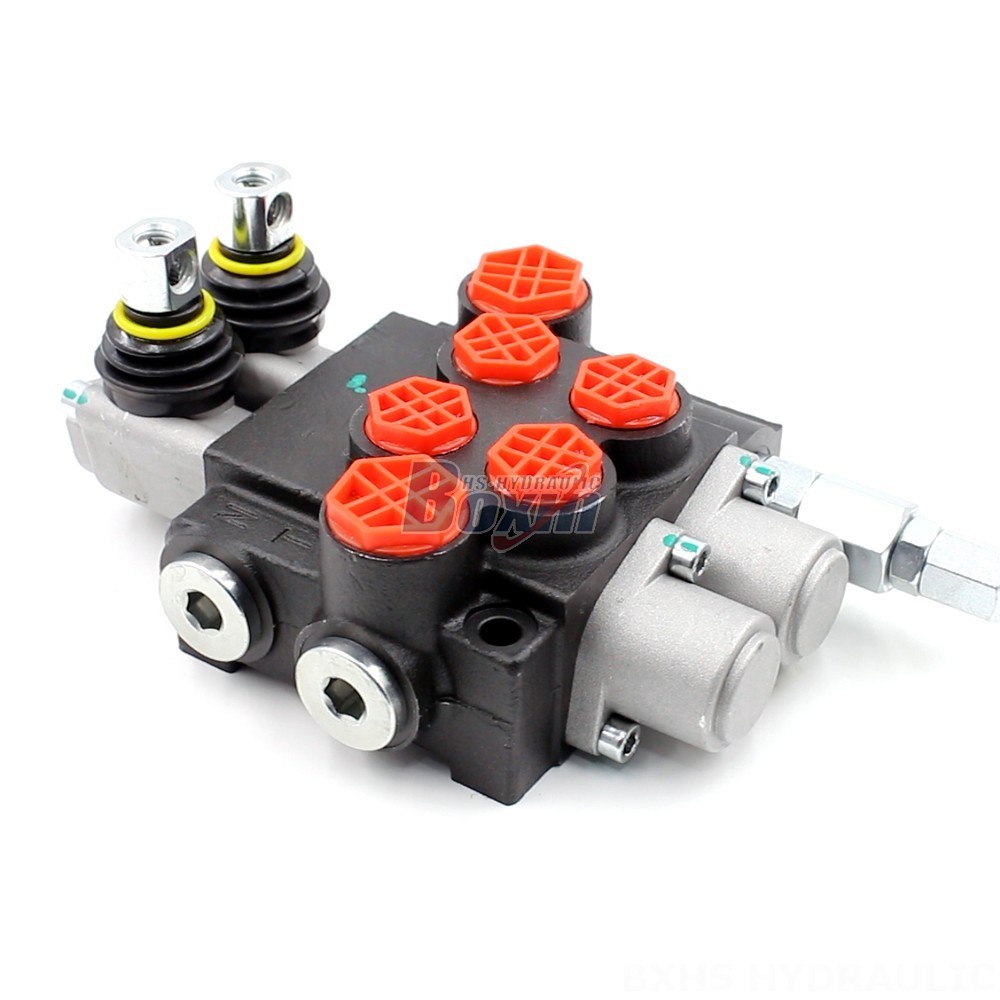

The P40-G12-G38-OW Hydraulic Safety Relief Valve is a reliable and versatile directional valve designed for use in a wide range of applications, including construction equipment, material handling, agriculture, and industrial vehicles. With its robust construction and high flow rate, this valve is ideal for controlling hydraulic systems in heavy-duty equipment.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This adjustable hydraulic safety relief valve is part of the P40 series and features manual control, a 2-section monoblock design, and a rated flow of 40 L/min. It boasts a maximum pressure rating of 250 bar and is suitable for operating viscosities ranging from 15 to 75 mm²/s. The valve operates within a temperature range of -40°C to +80°C, making it suitable for diverse environmental conditions. It is specifically designed for use in various applications, such as telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. The P40-G12-G38-OW valve offers OEM and ODM options, allowing for customization to meet specific requirements. Its high quality and performance make it a valuable component for hydraulic systems in diverse industries.
