Producción y entrega
Plazo de ejecución de producción de 15 a 30 días
La innovación impulsa el desarrollo; tecnología forja futuro
1012 personas están viendo este producto

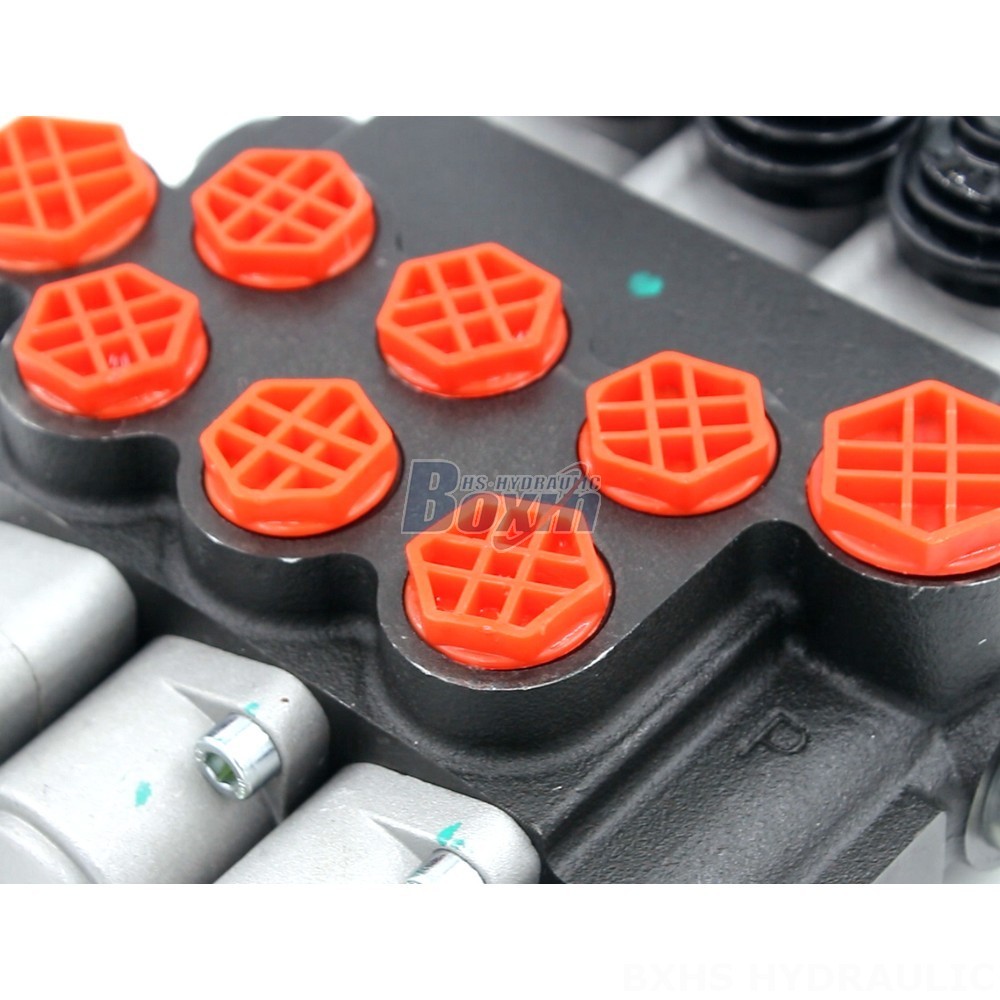

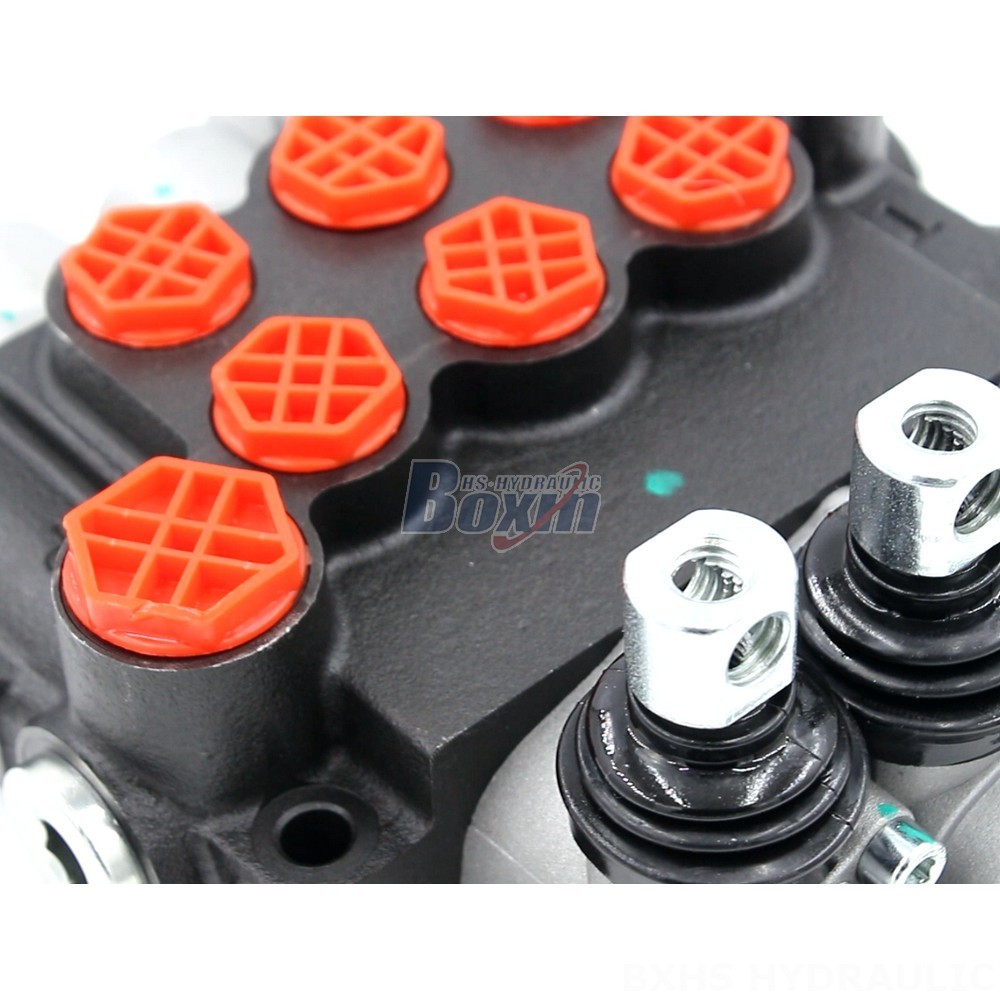

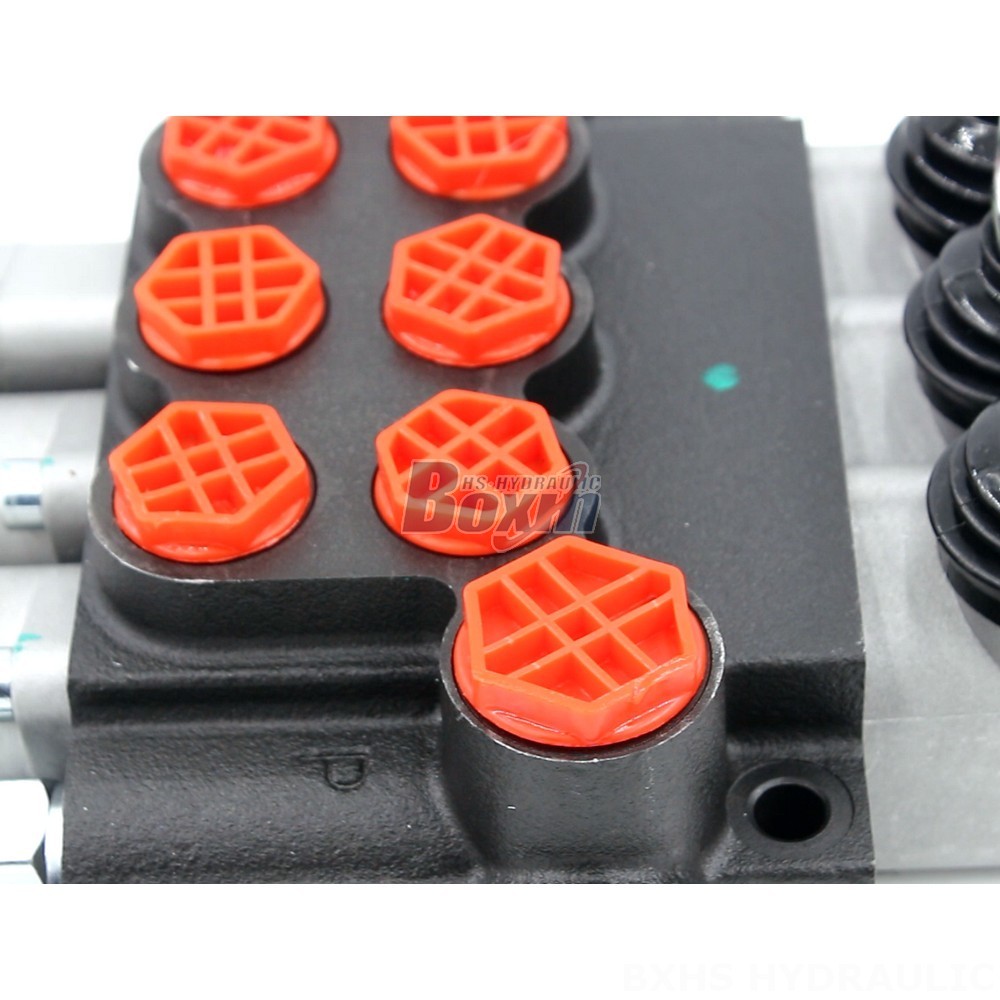

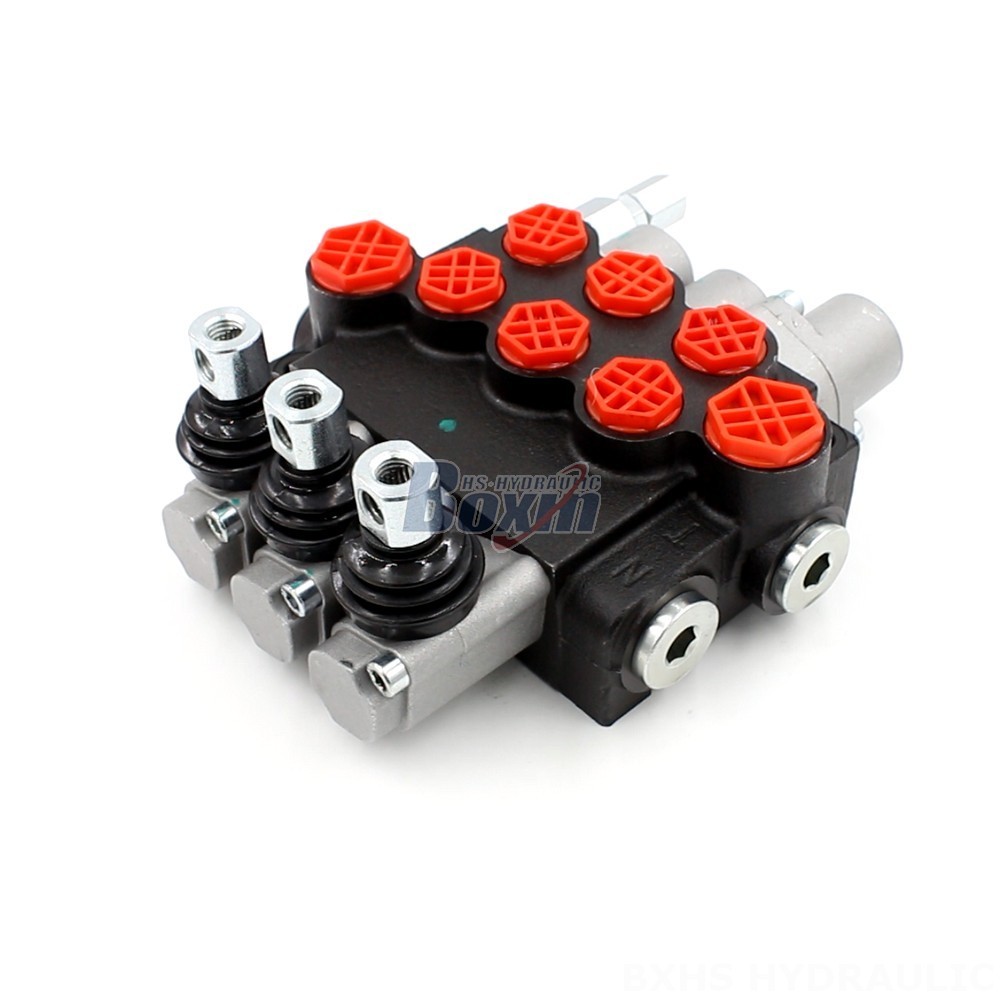

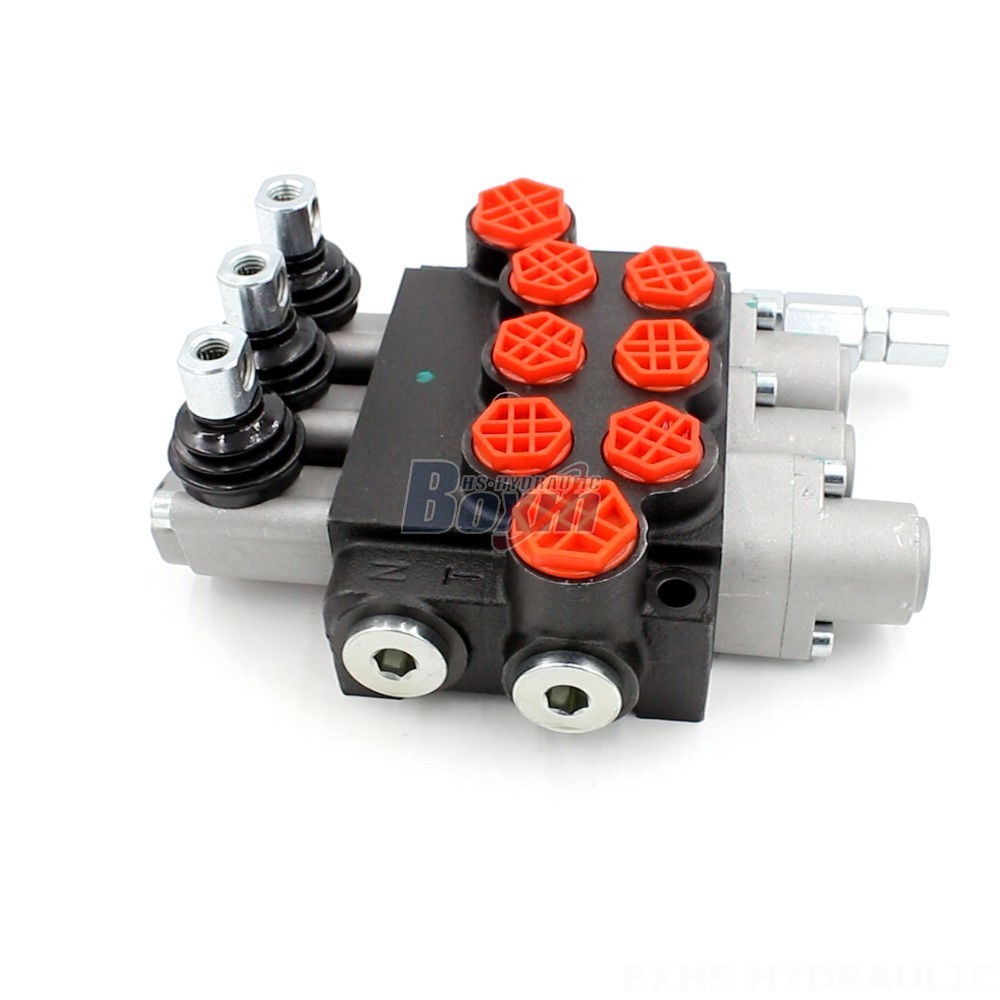

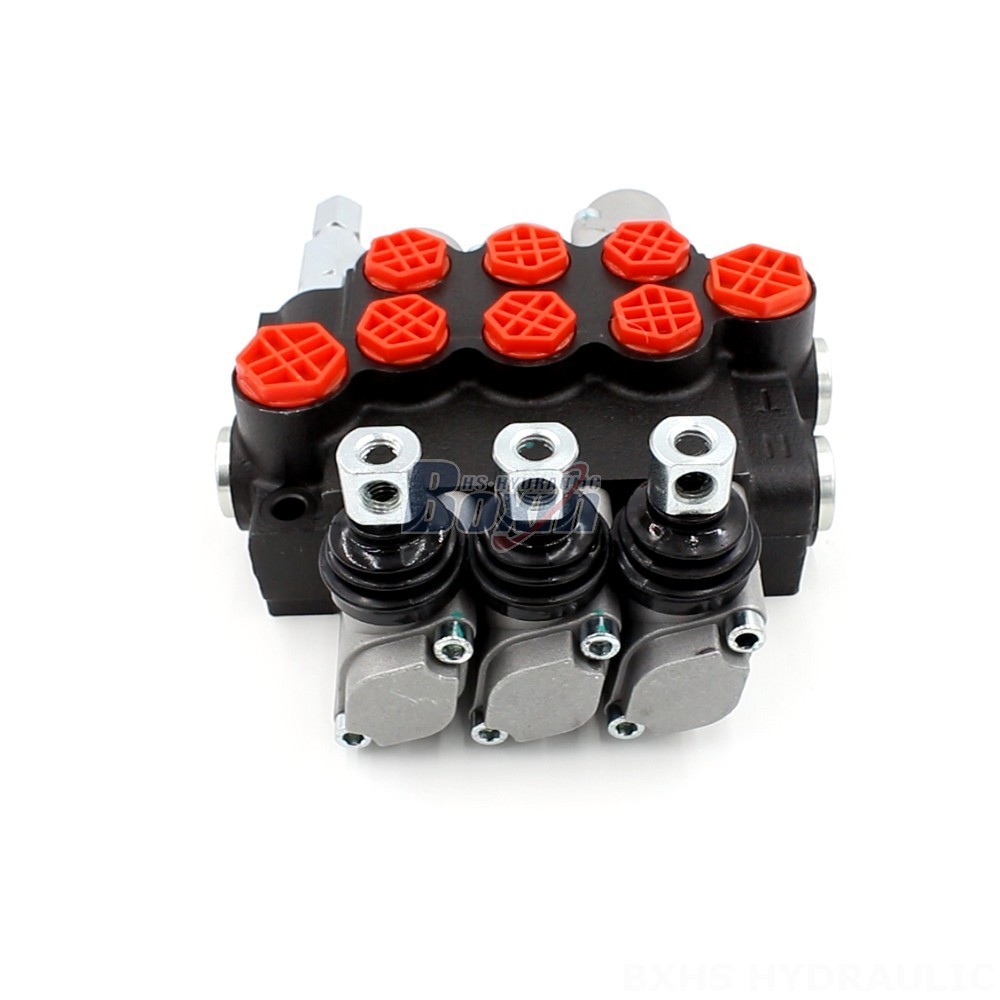

The P40-G12-G38-OT-OT-OT Hydraulic Monoblock Valve is a high-performance directional control valve designed for use in construction, agriculture and material handling applications. This 3-section manual control valve features a rated flow of 40 L/min and a maximum pressure of 250 bar, making it ideal for a variety of mobile equipment.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40 Series hydraulic monoblock valve is a reliable and durable solution for controlling hydraulic systems in various applications. It features a 3-section design with a manual control method and is rated for a flow of 40 L/min at a maximum pressure of 250 bar. This valve is suitable for use in a wide range of temperatures, from -40°C to +80°C, and can handle operating viscosities from 15 to 75 mm²/s. The P40-G12-G38-OT-OT-OT is commonly used in construction equipment such as telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and tractors. It is also widely used in agriculture equipment and material handling applications.
