Producción y entrega
Plazo de ejecución de producción de 15 a 30 días

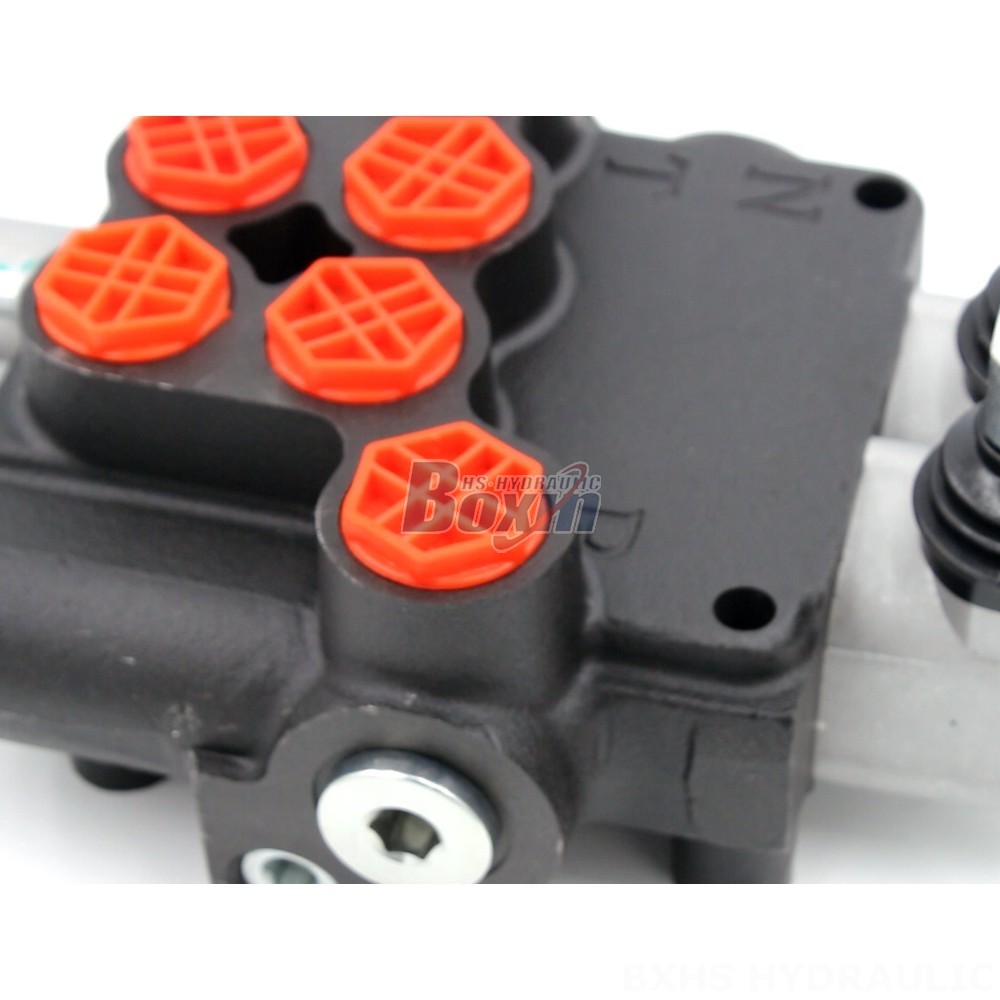

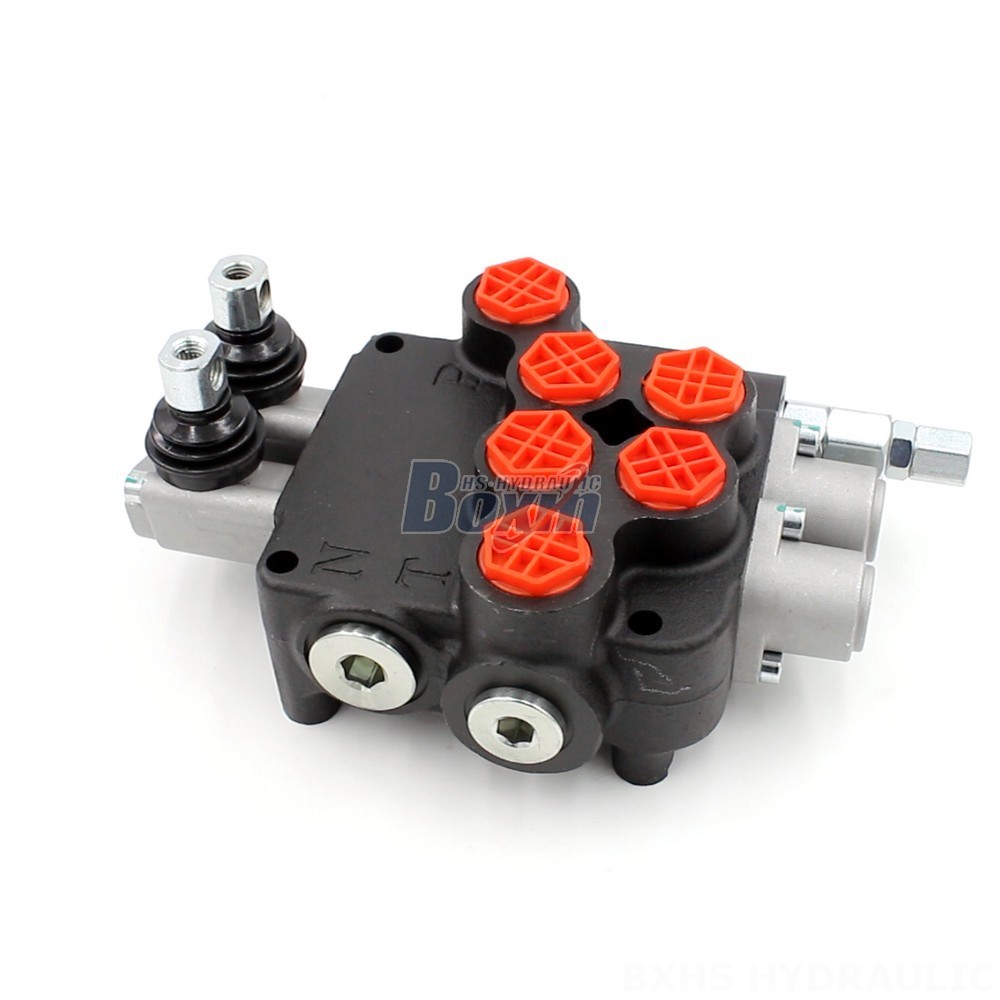

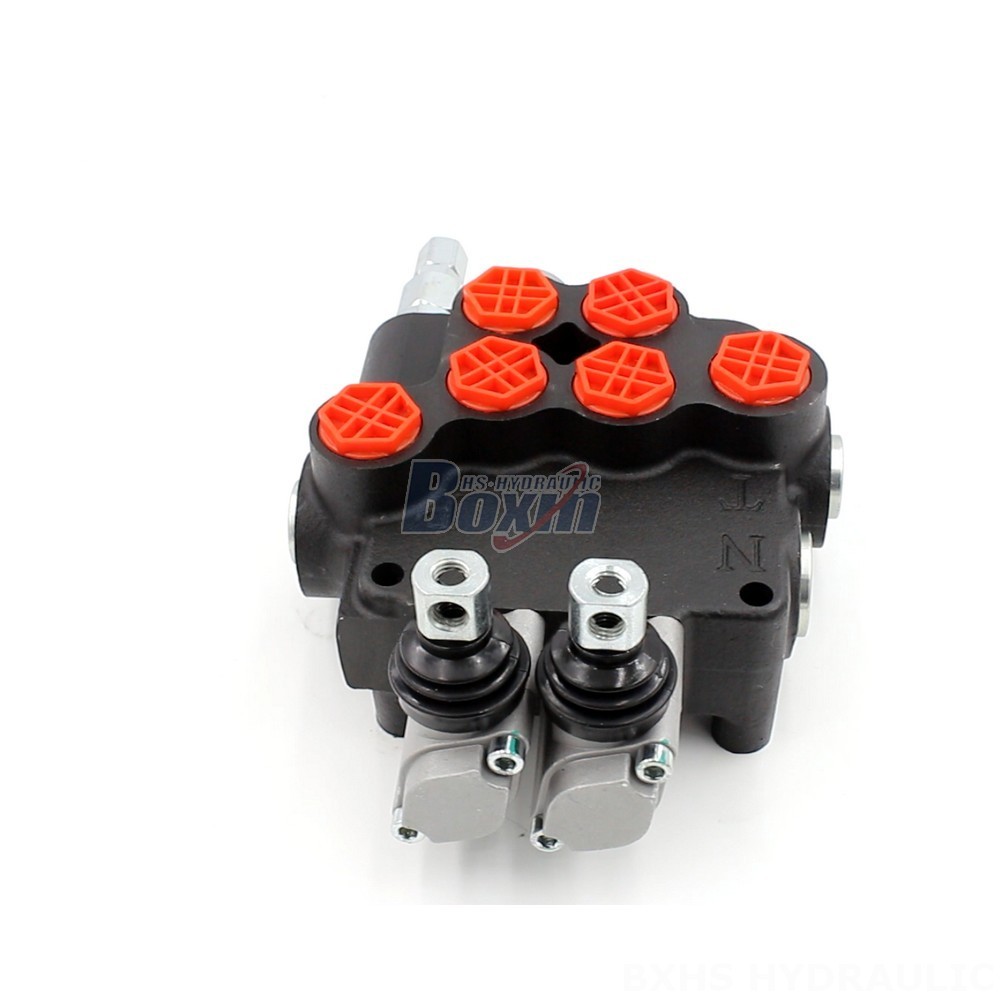

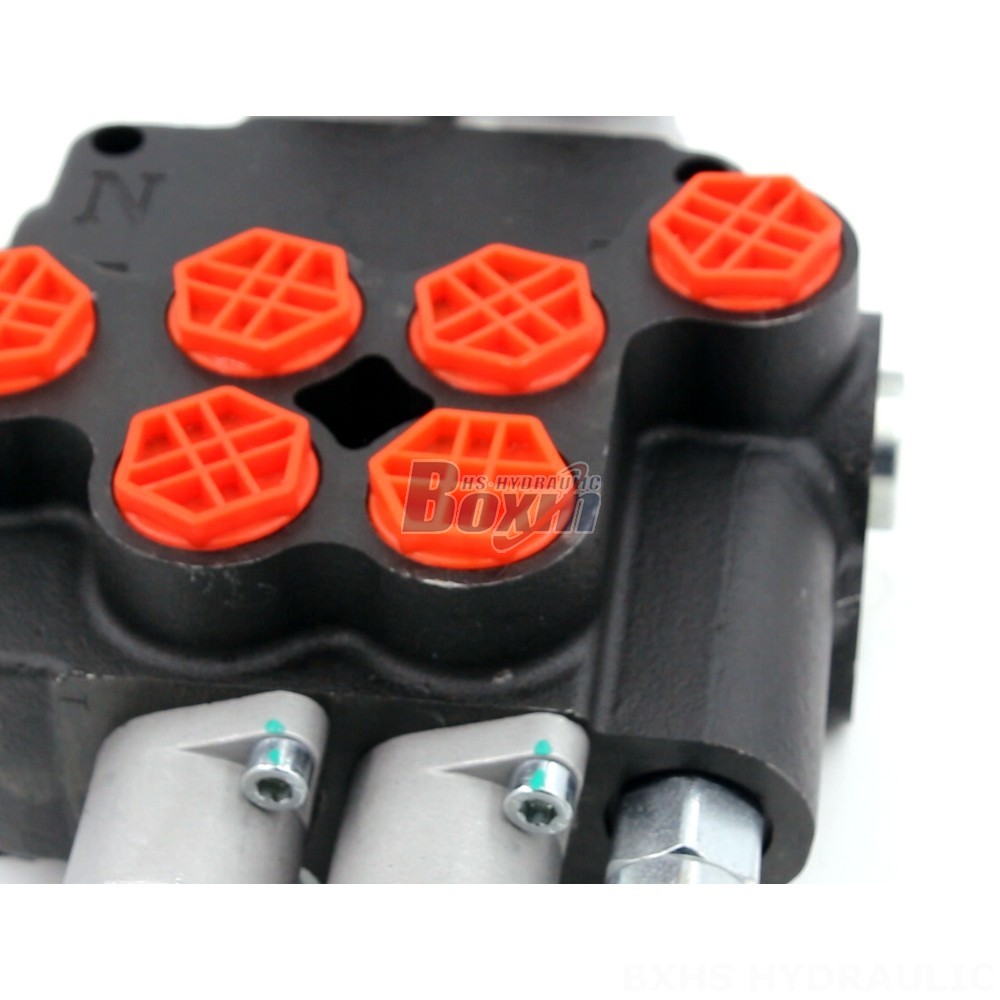

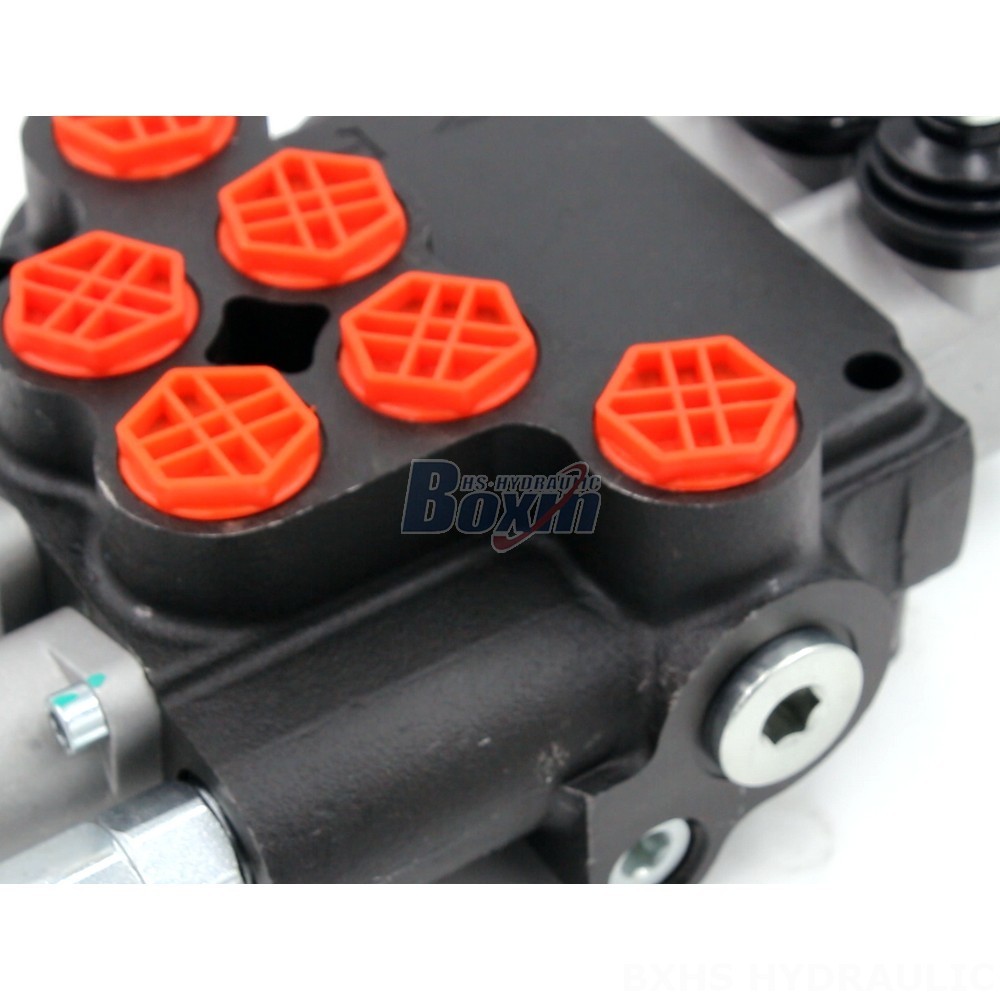

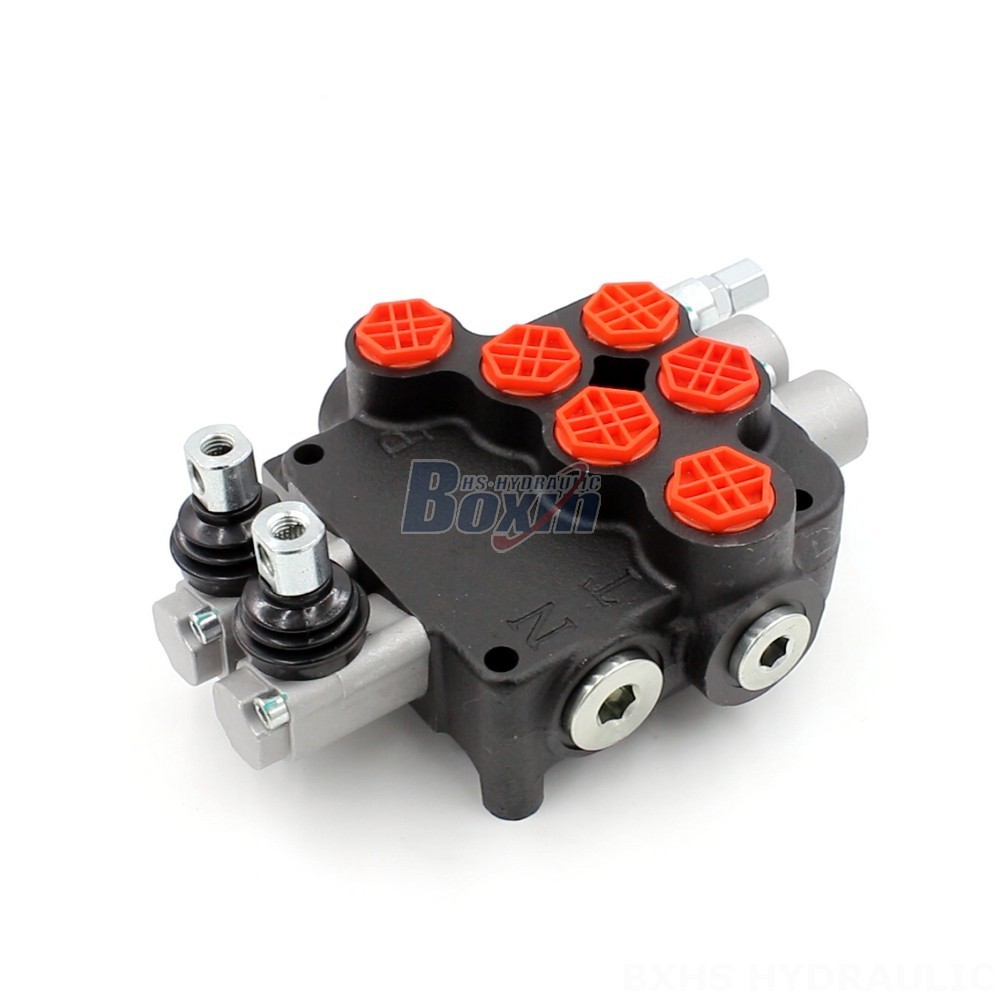

The P80-G34-G12 Air PTO Switch Valve Directional Control Valve is a heavy-duty, manual hydraulic valve designed for construction, material handling, agricultural and industrial vehicle applications. Featuring a 2 section, monoblock design, it boasts a 80 L/min flow rate and a 250 bar maximum pressure rating, making it ideal for a wide range of applications.
| Serie P80 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 80 l/min (21,2 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Puerto de Salida | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamaño de Puerto | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80-G34-G12 is a reliable and durable Air PTO Switch Valve Directional Control Valve designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. Its manual control method ensures user-friendly operation, while its 2 section, monoblock design provides robustness and efficiency. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve is capable of handling high-pressure hydraulic systems. Its operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) allows it to perform reliably in a variety of operating conditions. The P80-G34-G12 is designed for use in a wide range of applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
