The P80-AQF Series Directional Control Valve is a high-performance hydraulic valve designed for diverse applications in industries such as material handling, construction, agriculture, and industrial vehicles. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve offers reliable and precise control of hydraulic systems.
| Serie P80 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 80 l/min (21,2 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Puerto de Salida | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamaño de Puerto | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Product Overview:**

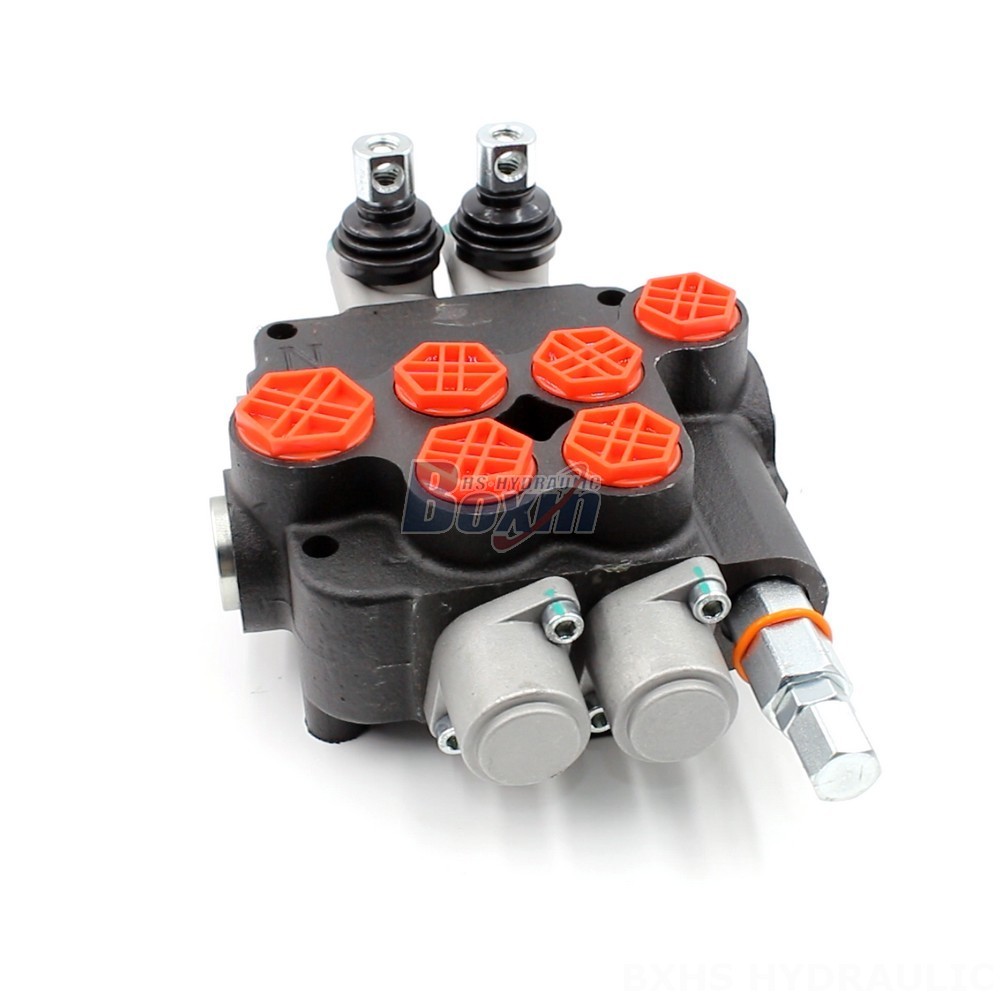

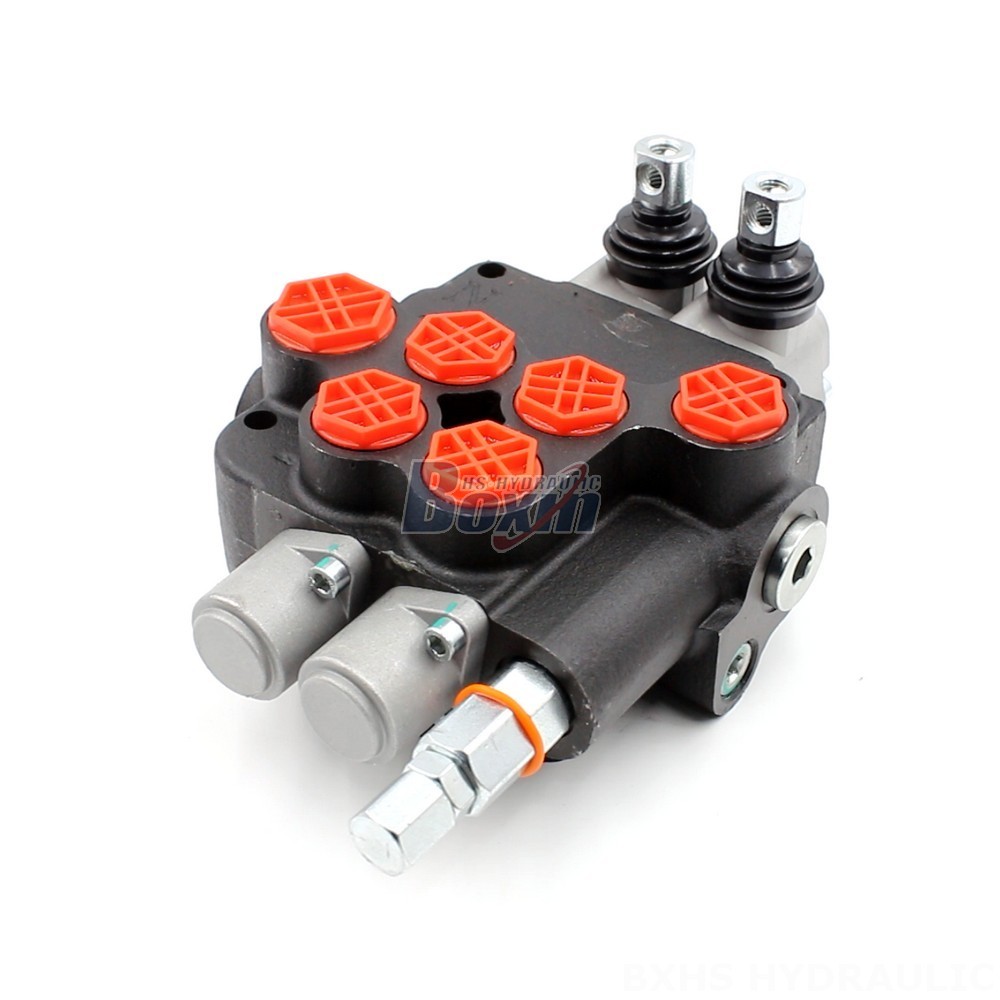

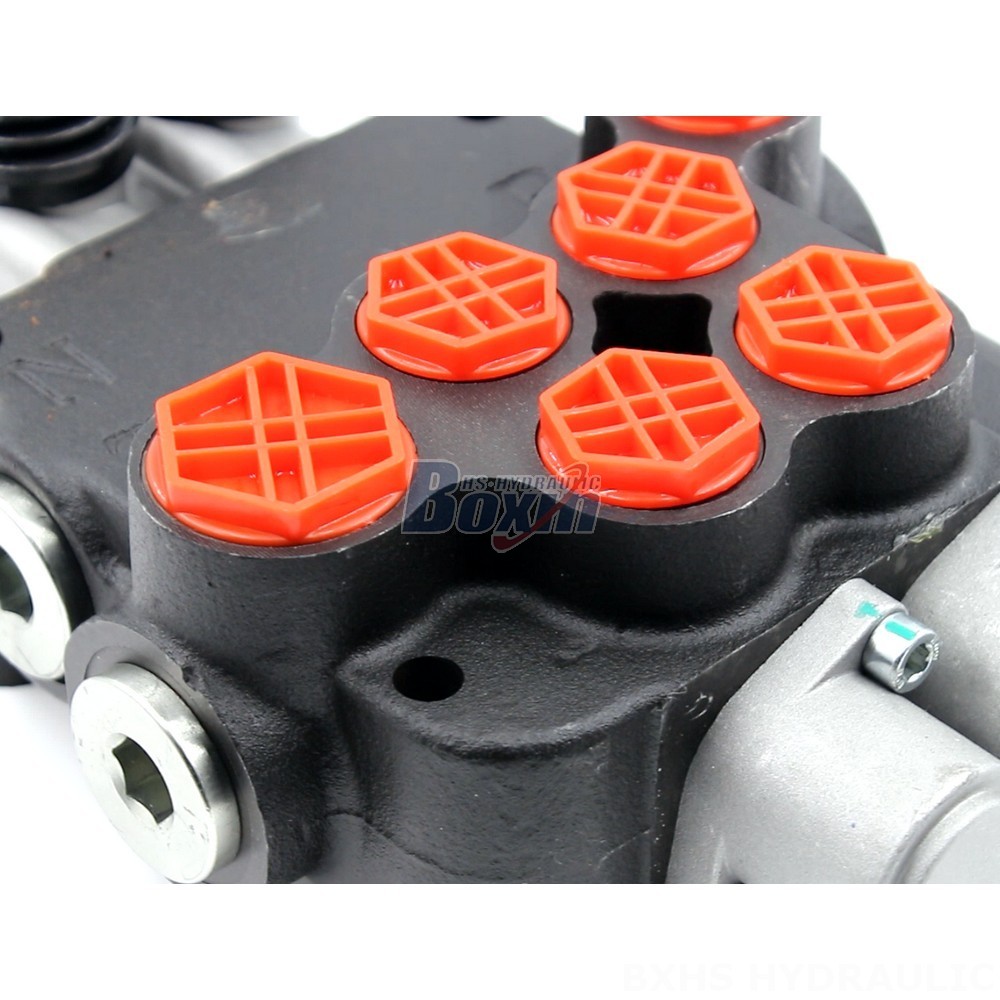

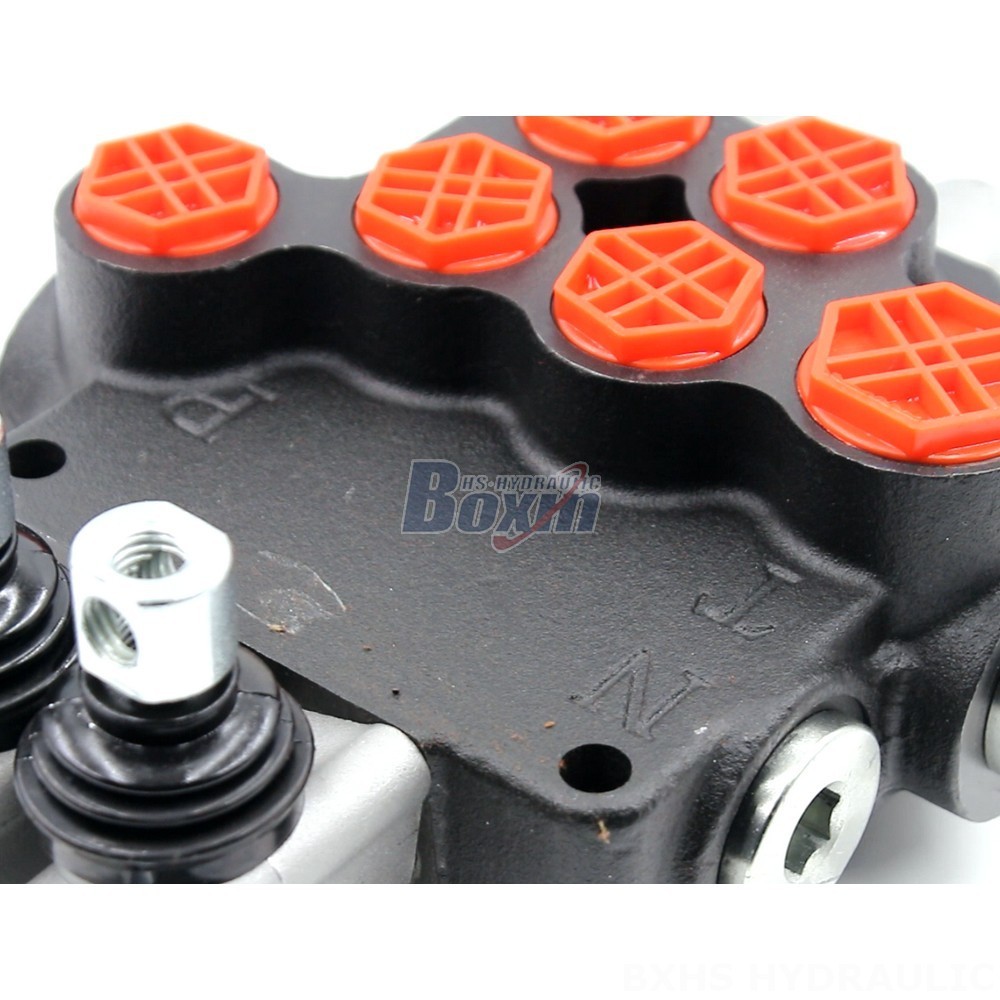

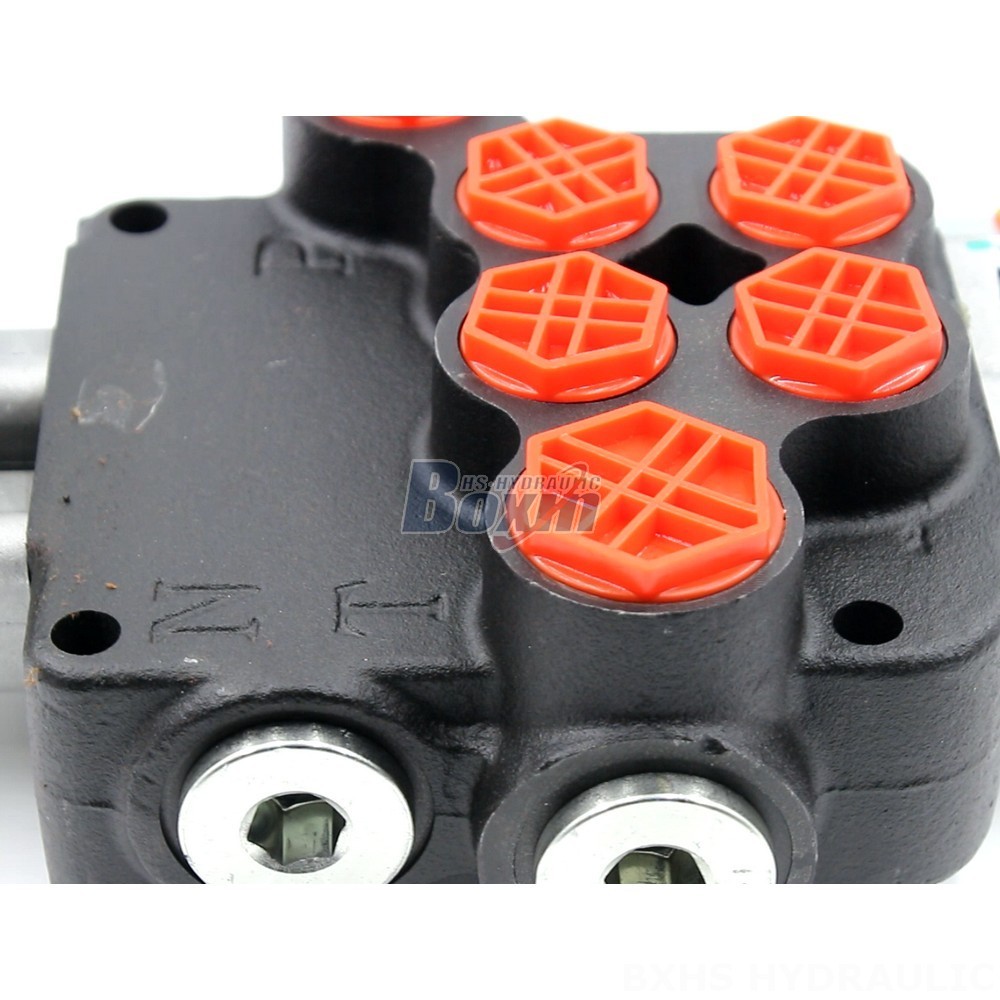

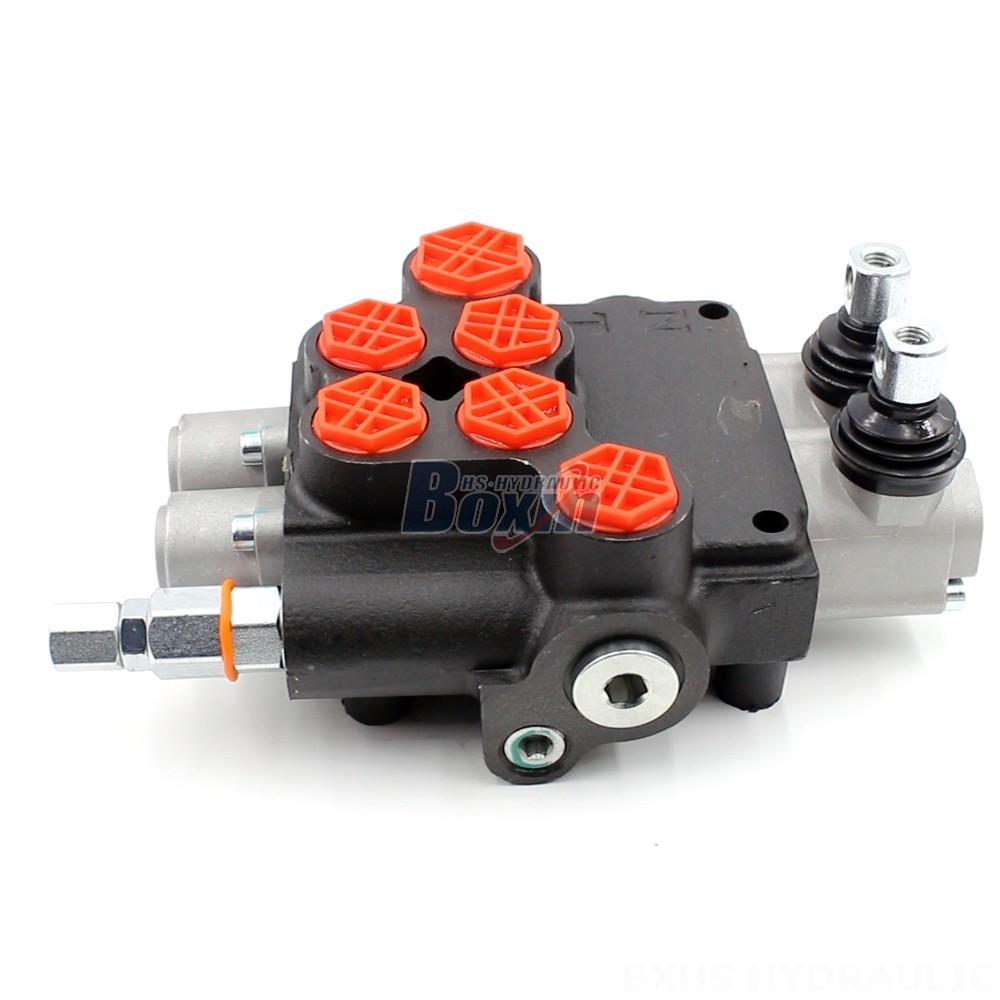

The P80-AQF Series Directional Control Valve is a manually operated, monoblock valve with two sections and two spools. It is designed to handle a wide range of hydraulic applications, including those in harsh environments.
**Key Features:**
* Rated flow: 80 L/min (21.2 US gpm)
* Maximum pressure: 250 bar (3600 psi)
* Operating viscosity range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range: -40°C to +80°C (-40°F to +176°F)
* Manual control
* Monoblock valve construction
* 2 spool design
**Applications:**
The P80-AQF Series Directional Control Valve is suitable for a variety of hydraulic applications, including those in the following industries:
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
**Specific applications include:**
* Telehandlers
* Forklifts
* All terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Mini-excavators
* Skid steer loaders
* Compact wheel loaders
* Tractors and front-end loaders
* Harvesters
* Bale wrappers
* Backhoes
* Seeding machines
* Sprayers
* Balers
