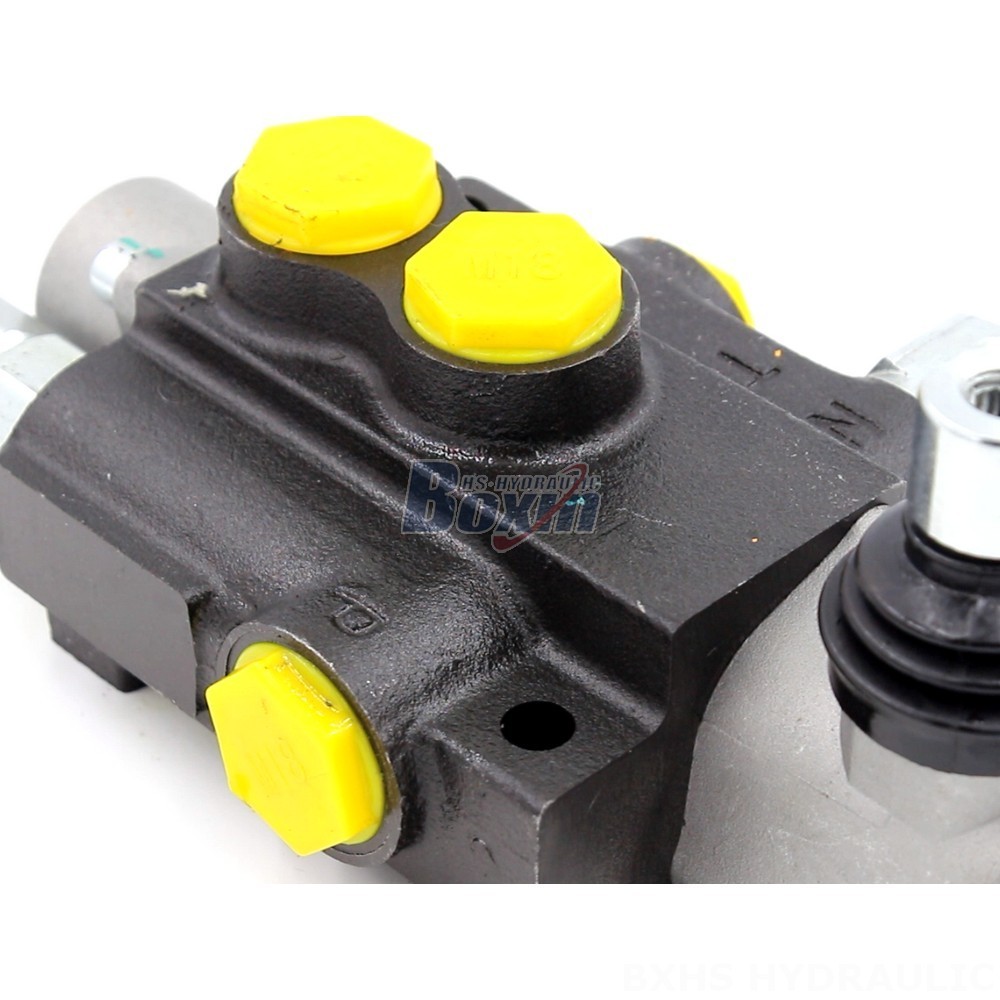

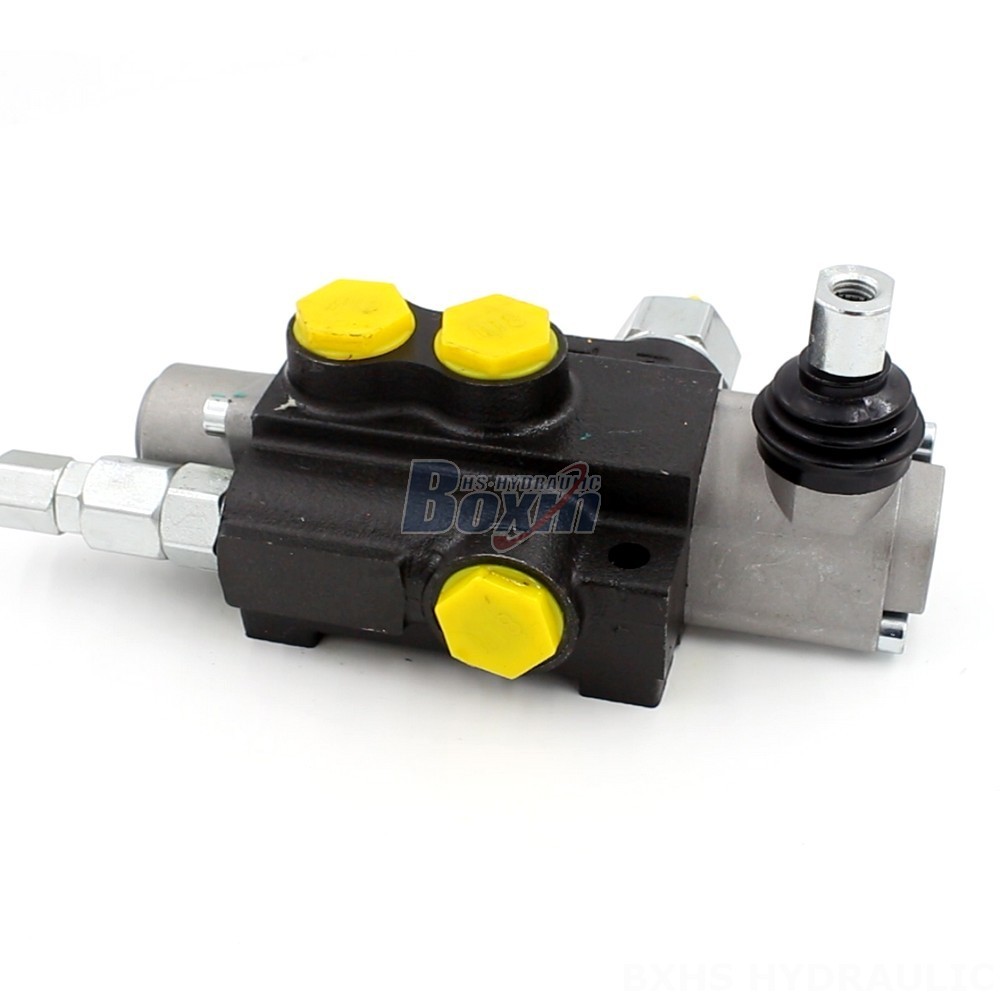

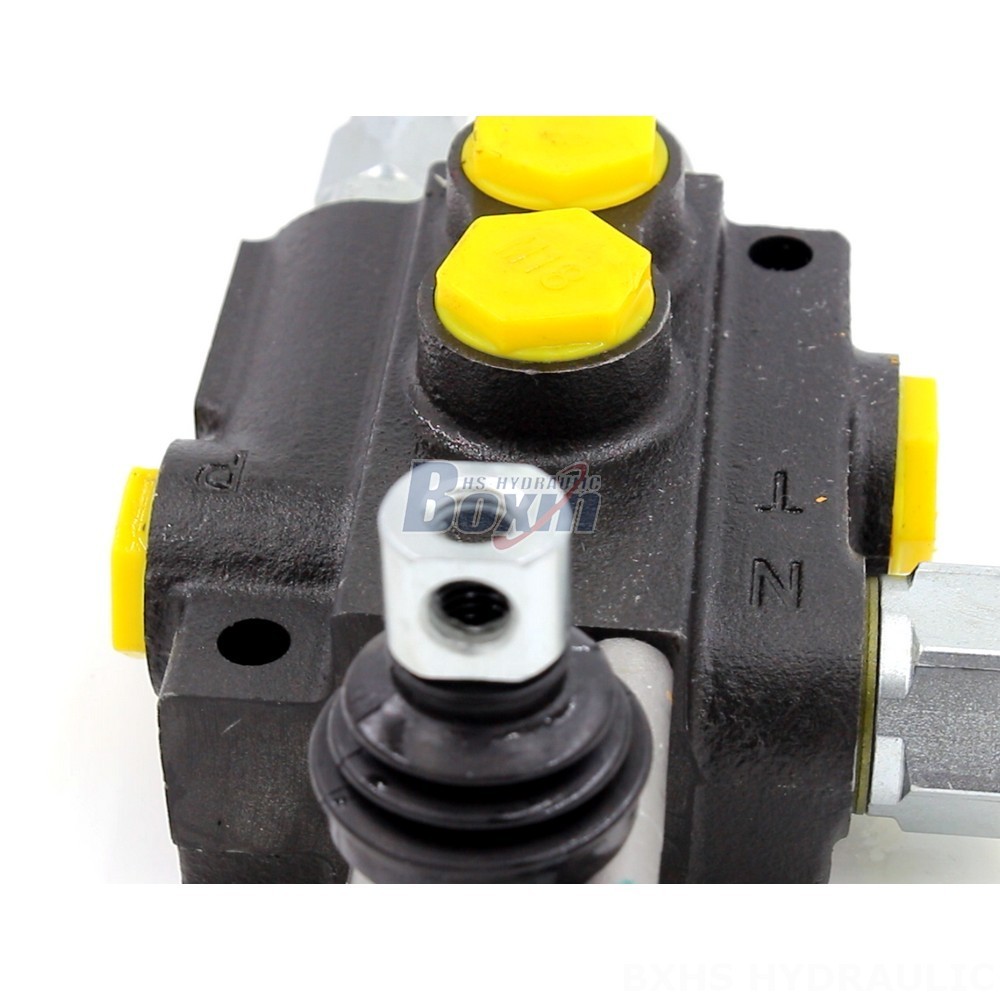

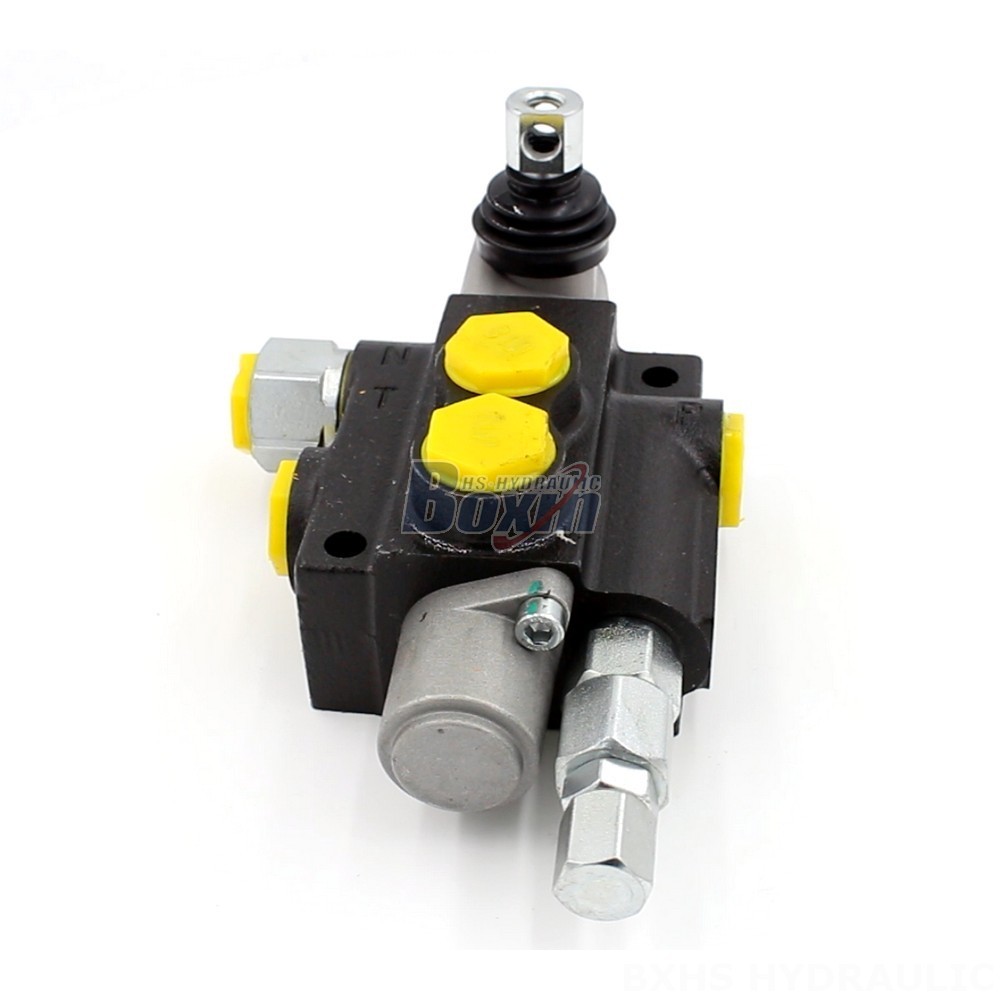

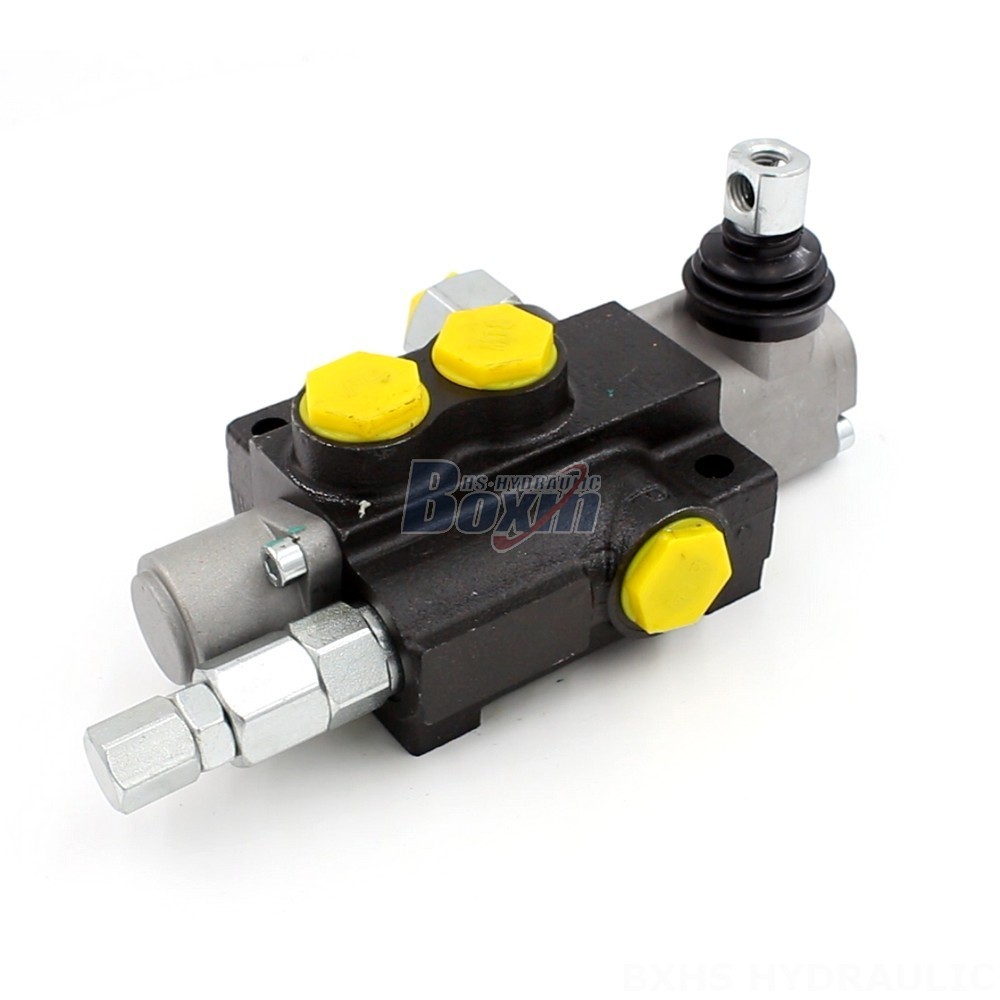

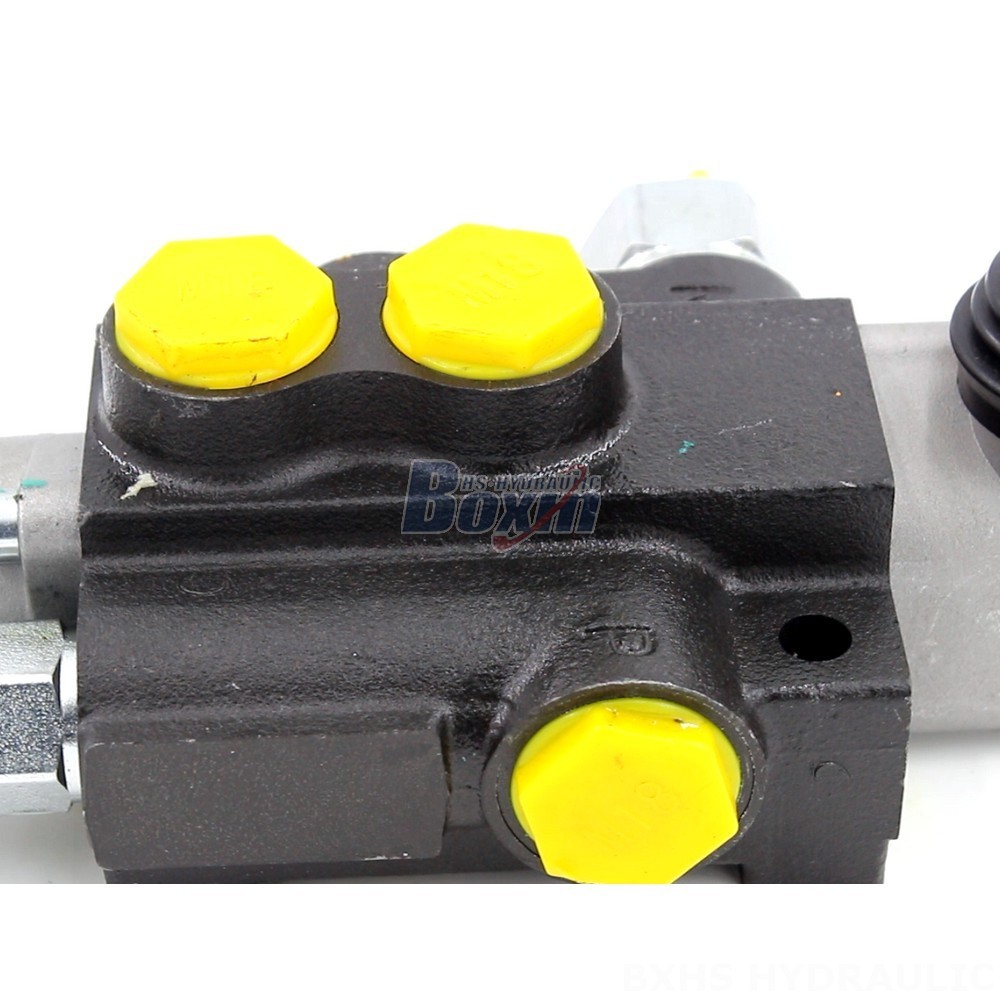

This high-quality hydraulic steering cylinder for tractors is designed for demanding applications in construction, agriculture, and industrial vehicles. We offer direct-from-factory pricing and wholesale options for our P40J series hydraulic valves, ensuring competitive prices for our customers.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
Our Hydraulic Steering Cylinder for Tractor is a robust and reliable solution for a wide range of applications. This product features a monoblock valve design with a rated flow of 40 L/min and a maximum pressure of 250 bar. It is suitable for various operating conditions, with a temperature range of -40°C to +80°C. We offer this product directly from our factory at wholesale prices, making it an ideal choice for distributors, wholesalers, and dealers worldwide. As a manufacturer, we also offer OEM, ODM, and customization services to meet your specific requirements.
