The P80-G12-G34-OT Hydraulic Directional Control Valve is a high-performance valve designed for mobile hydraulic applications. It is a 3-section, 3-spool, monoblock valve with a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). The valve has an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F). The valve is suitable for use in a variety of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.
| Serie P80 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 80 l/min (21,2 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Puerto de Salida | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamaño de Puerto | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

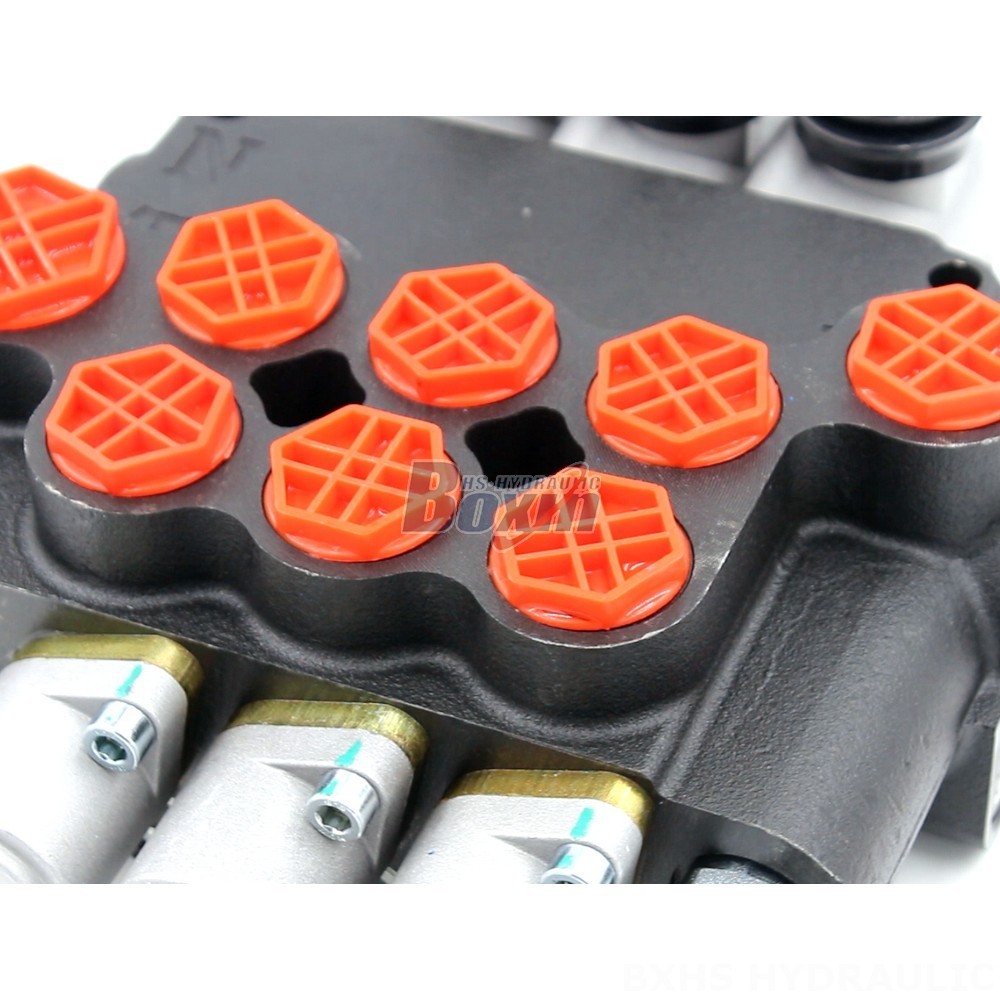

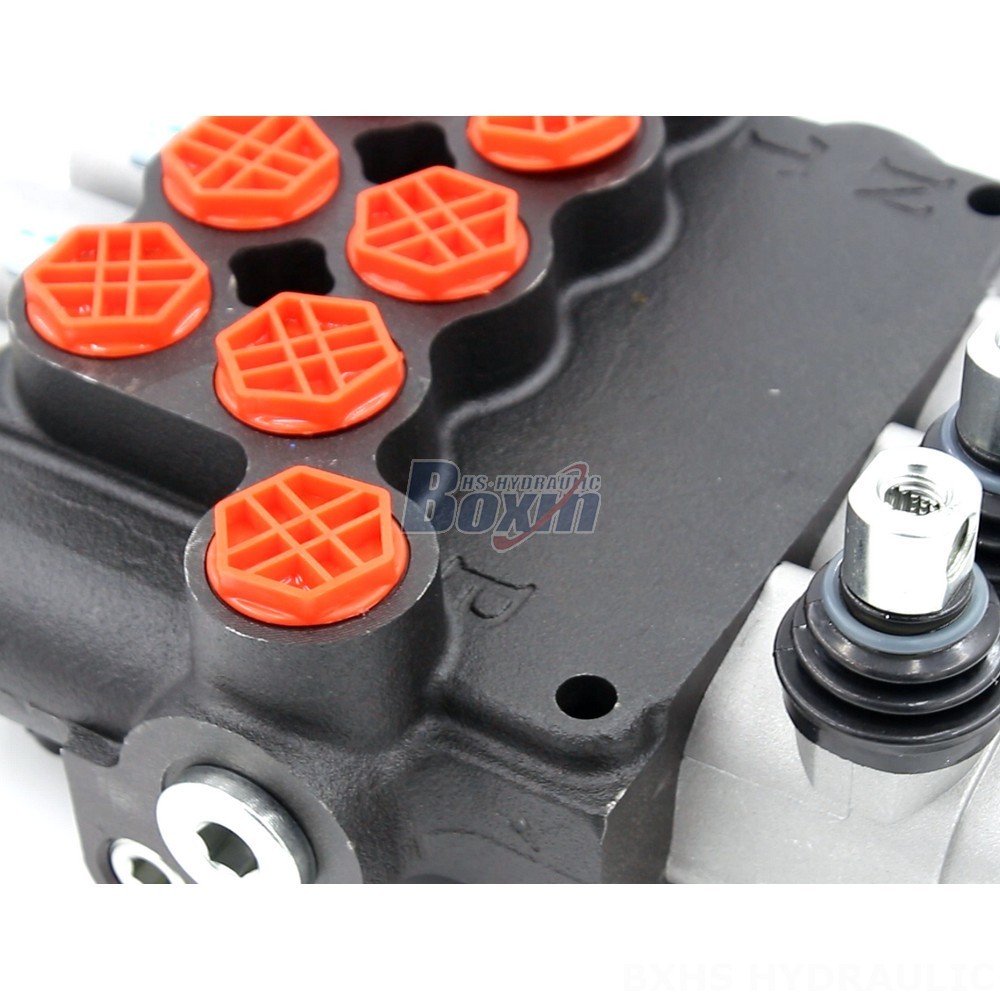

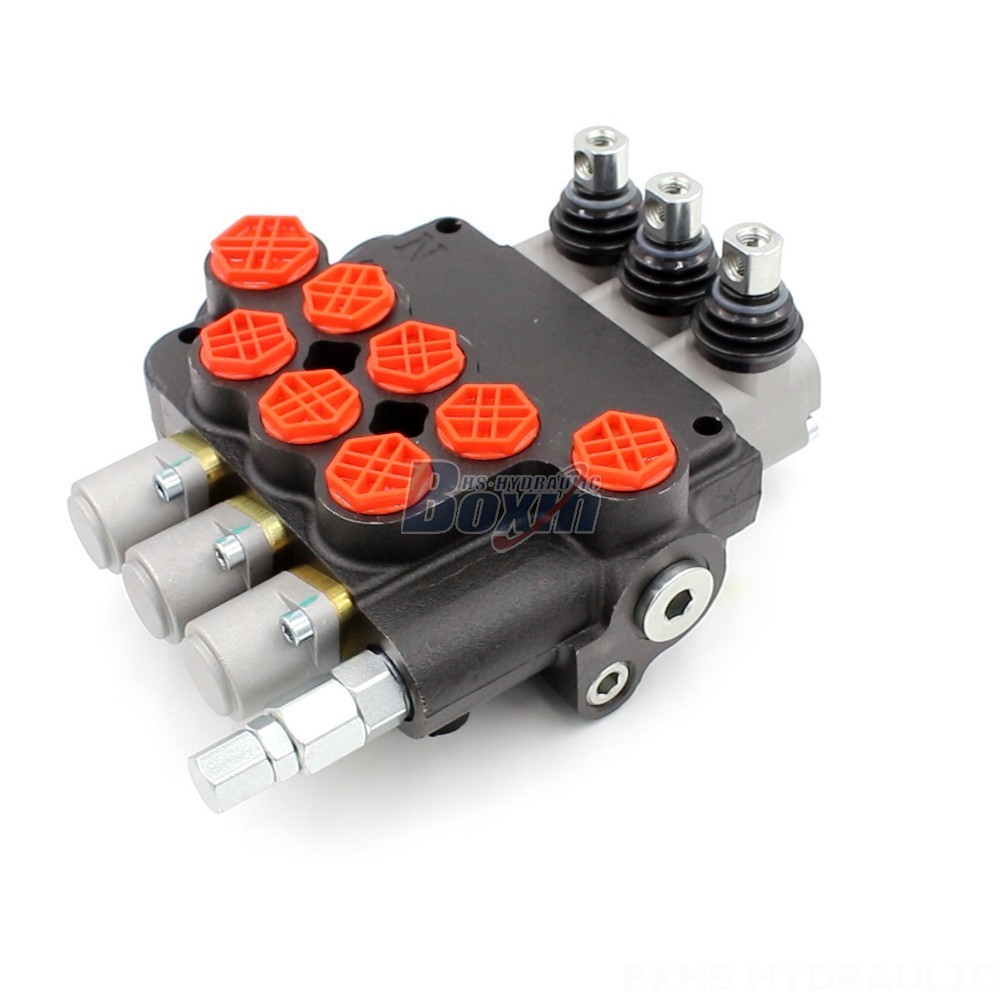

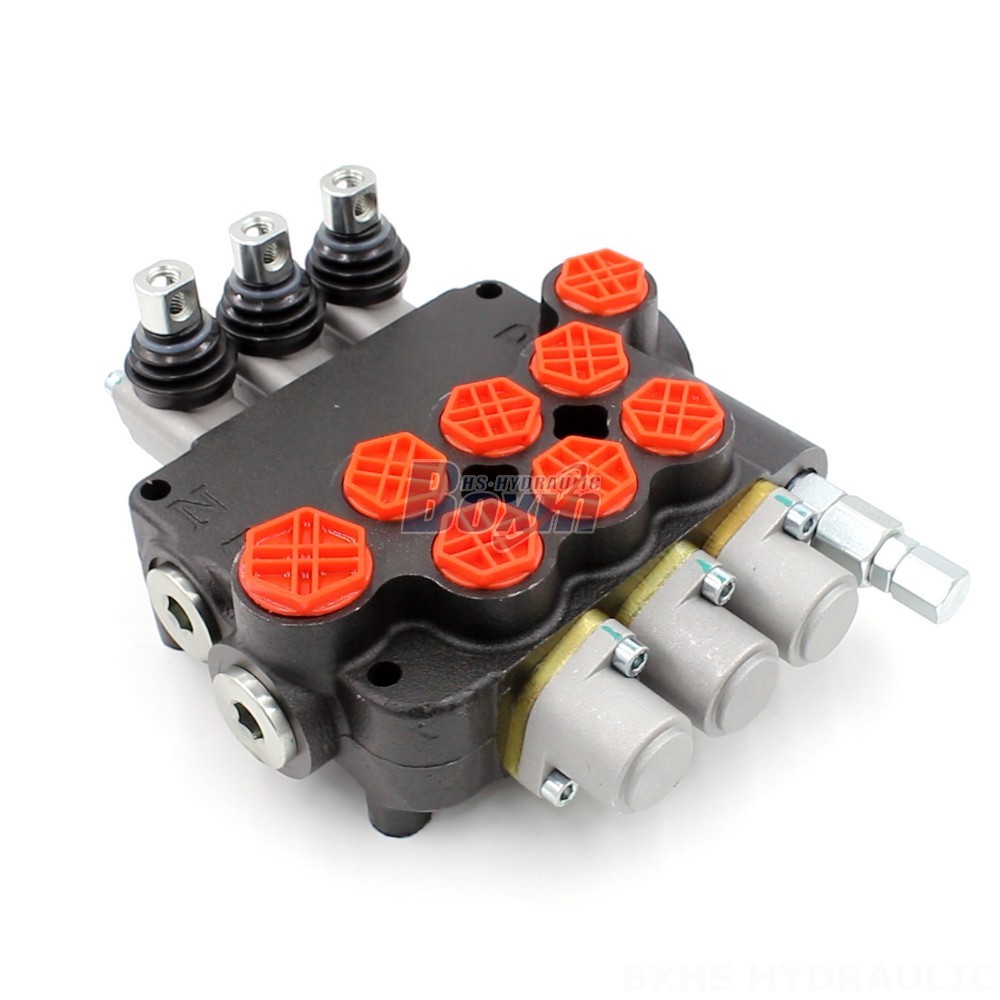

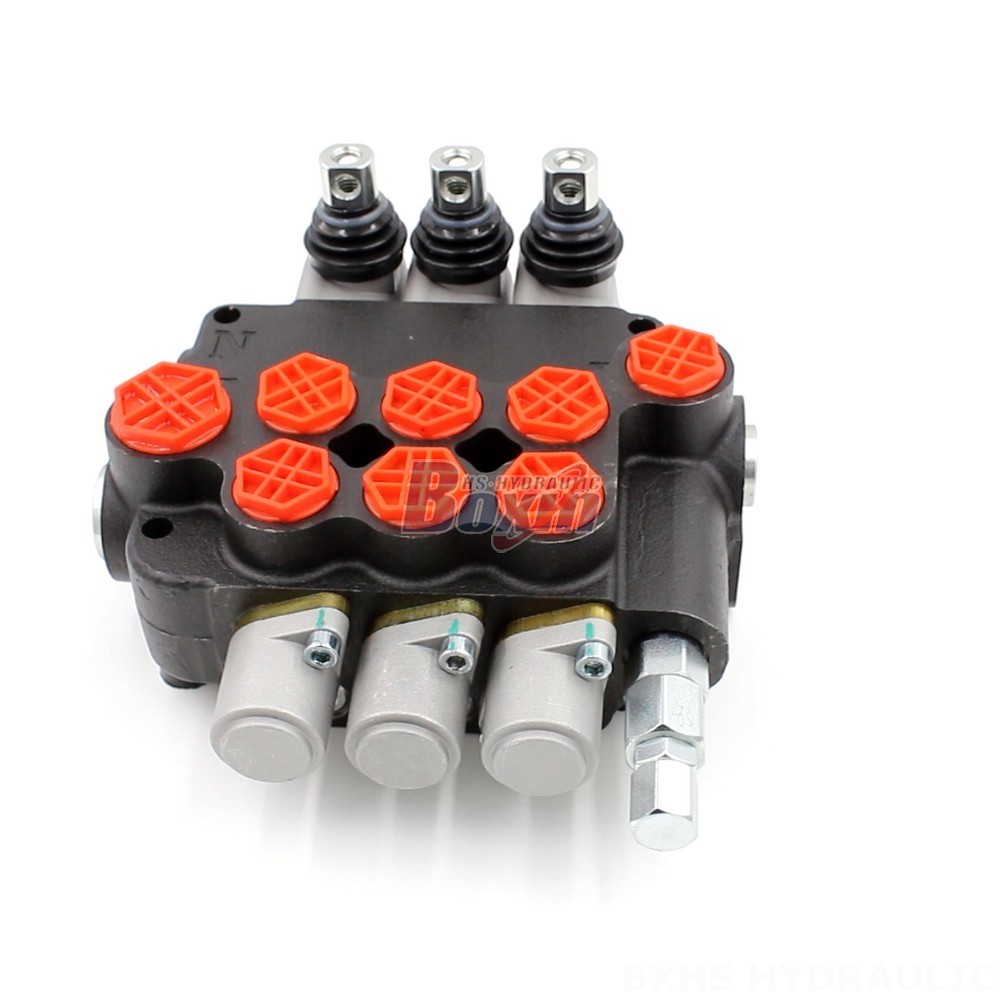

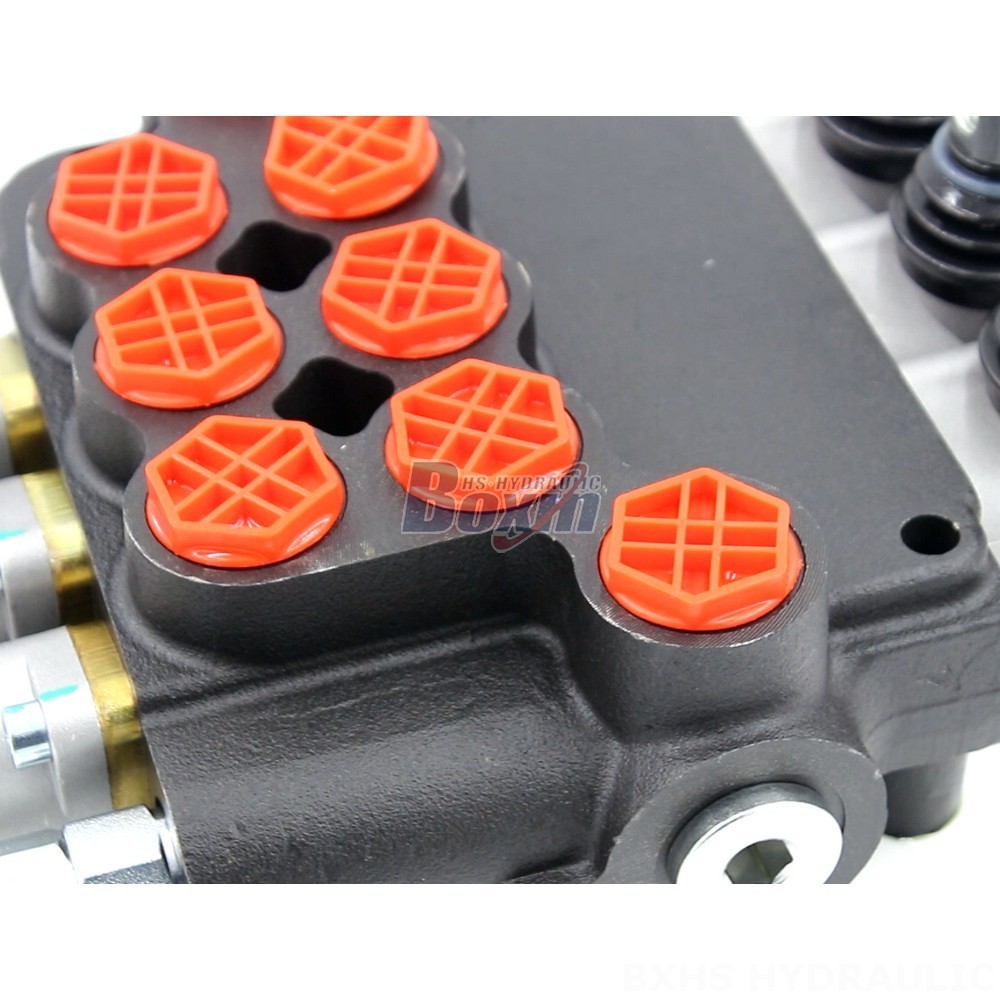

**P80-G12-G34-OT Hydraulic Directional Control Valve**
The P80-G12-G34-OT Hydraulic Directional Control Valve is a high-quality valve manufactured by our company. We are a leading manufacturer of hydraulic products and have been in the industry for many years. Our valves are known for their quality, durability, and performance.
The P80-G12-G34-OT Hydraulic Directional Control Valve is a 3-section, 3-spool, monoblock valve. It has a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). The valve has an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F).
The P80-G12-G34-OT Hydraulic Directional Control Valve is suitable for use in a variety of applications, including:
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
We offer a variety of customization options for the P80-G12-G34-OT Hydraulic Directional Control Valve, including:
* Porting
* Mounting
* Spools
* Seals
We also offer a variety of testing and inspection services to ensure that our valves meet your specifications.
If you are looking for a high-quality, durable, and reliable hydraulic directional control valve, the P80-G12-G34-OT is the perfect choice. Contact us today for more information.
