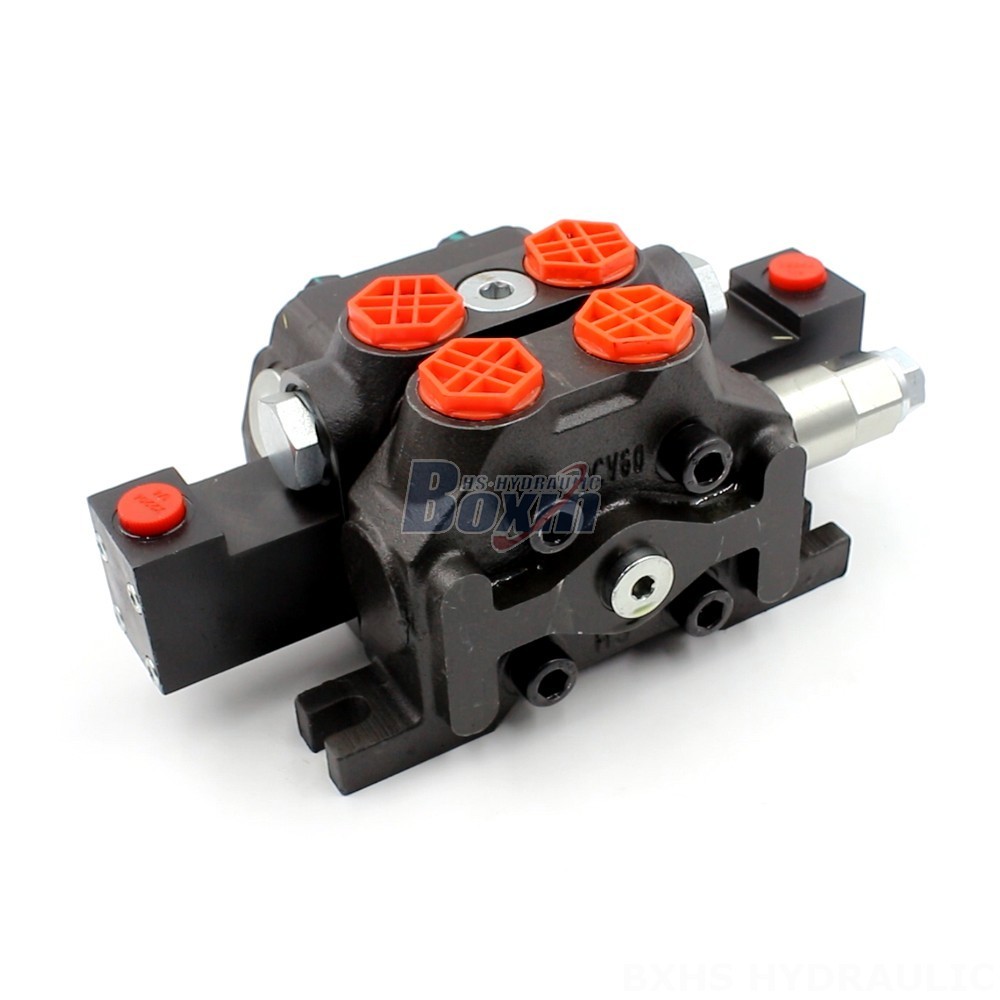

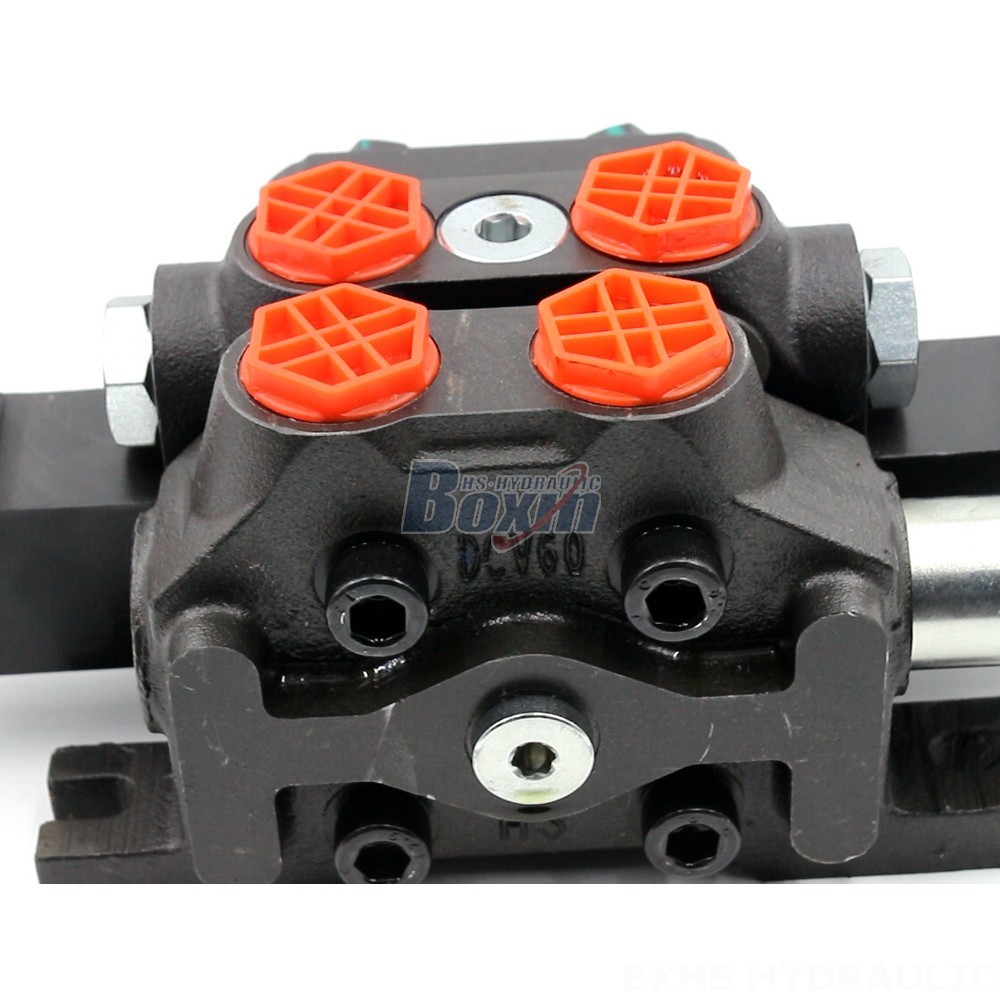

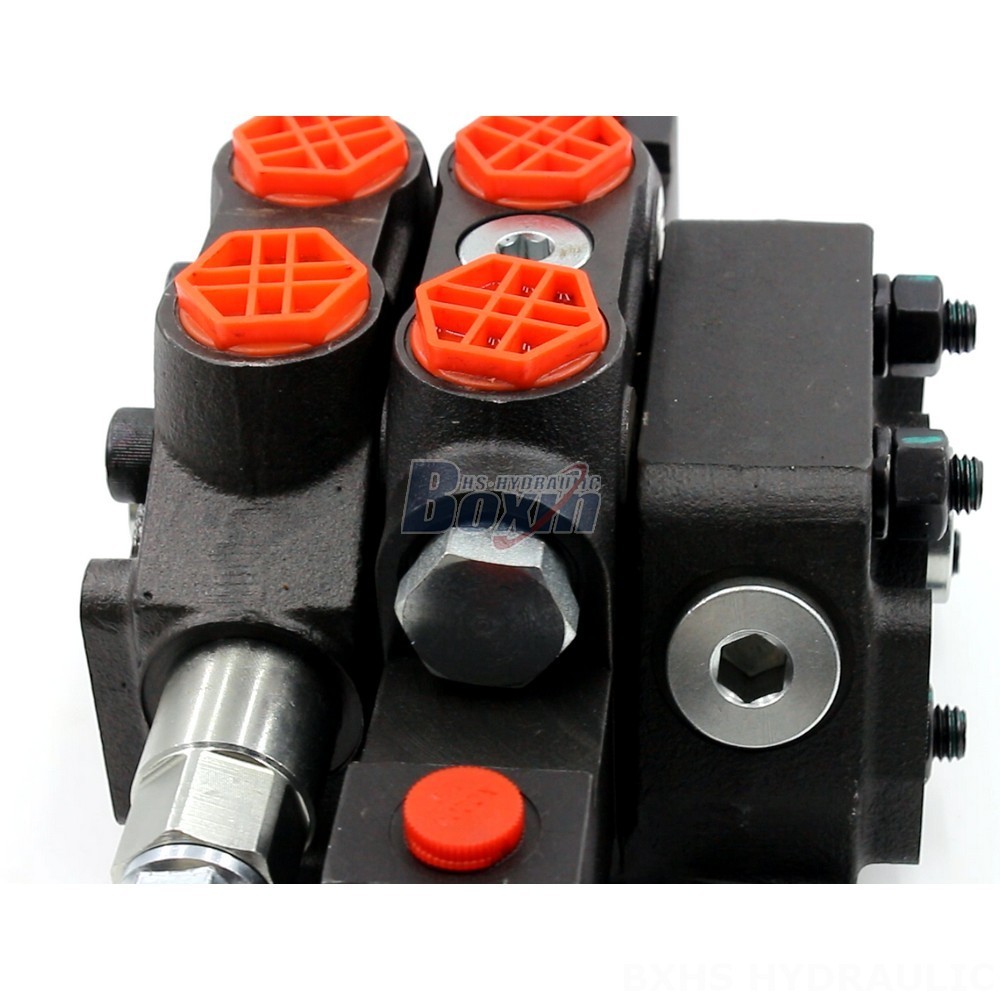

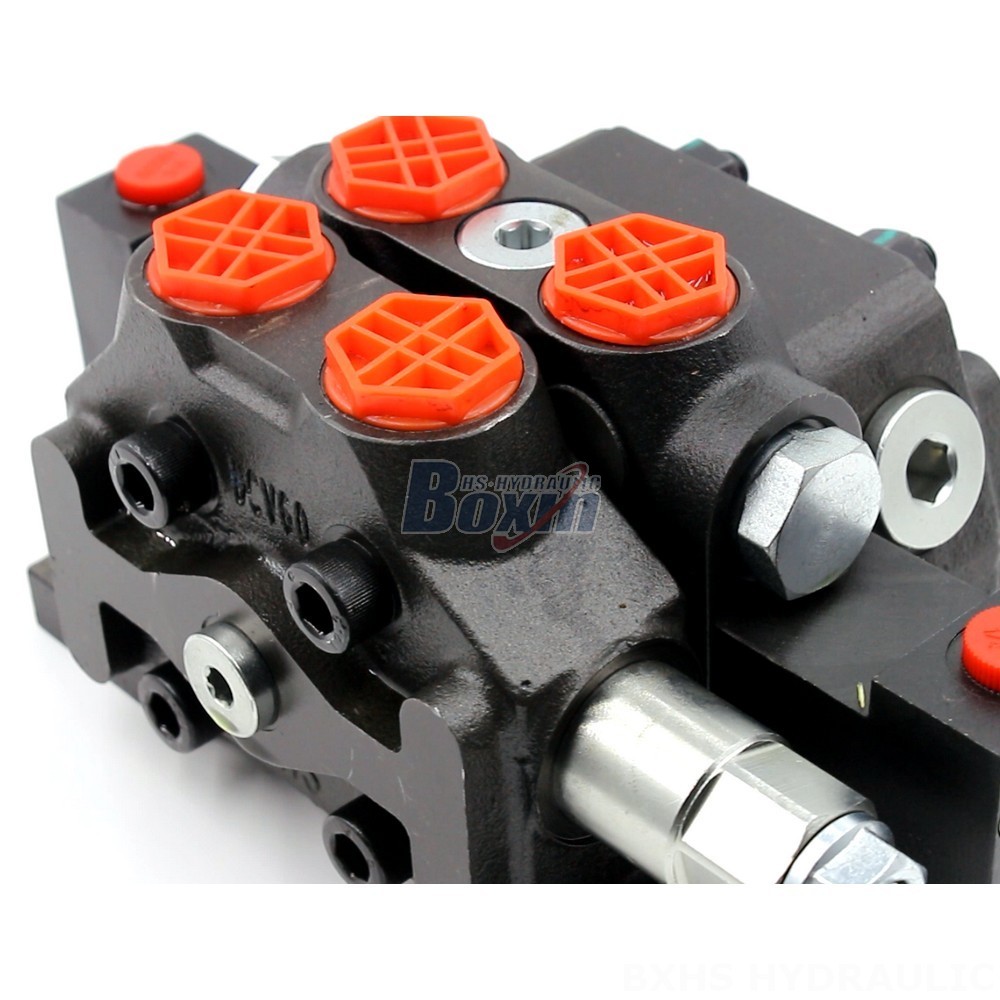

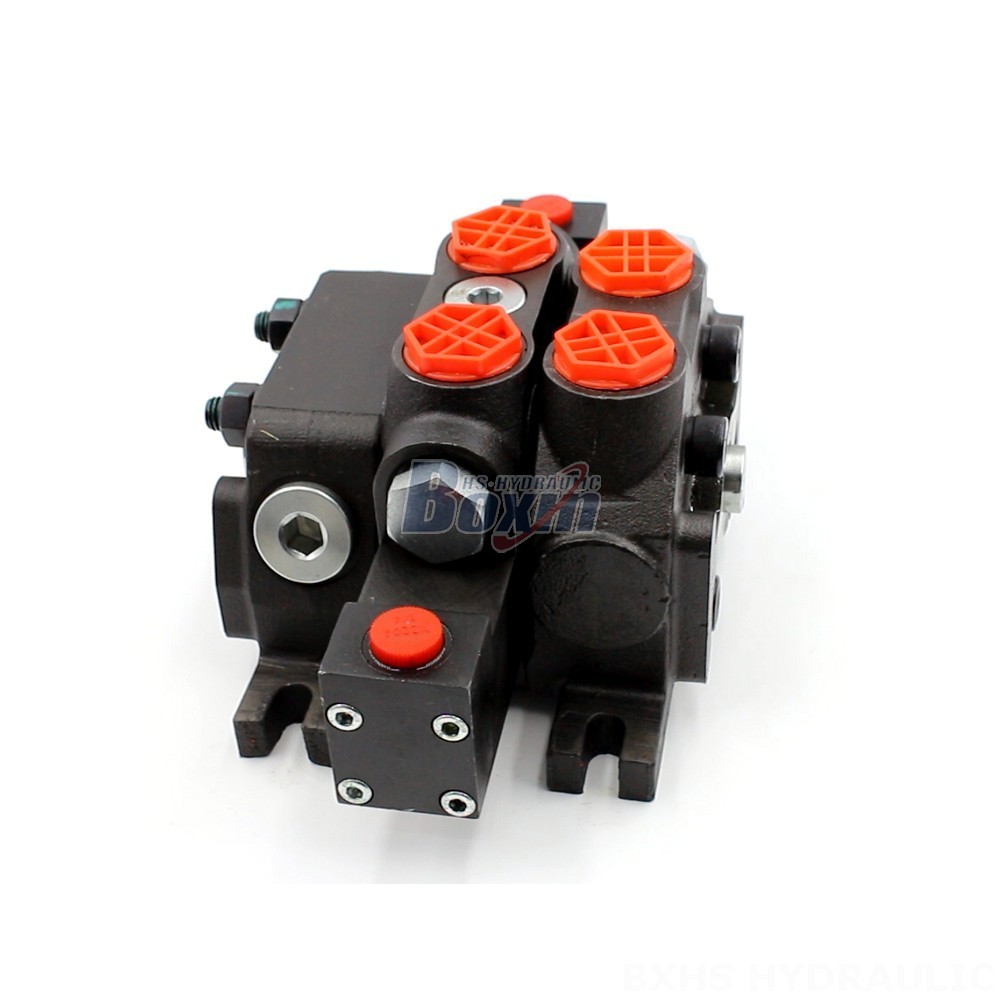

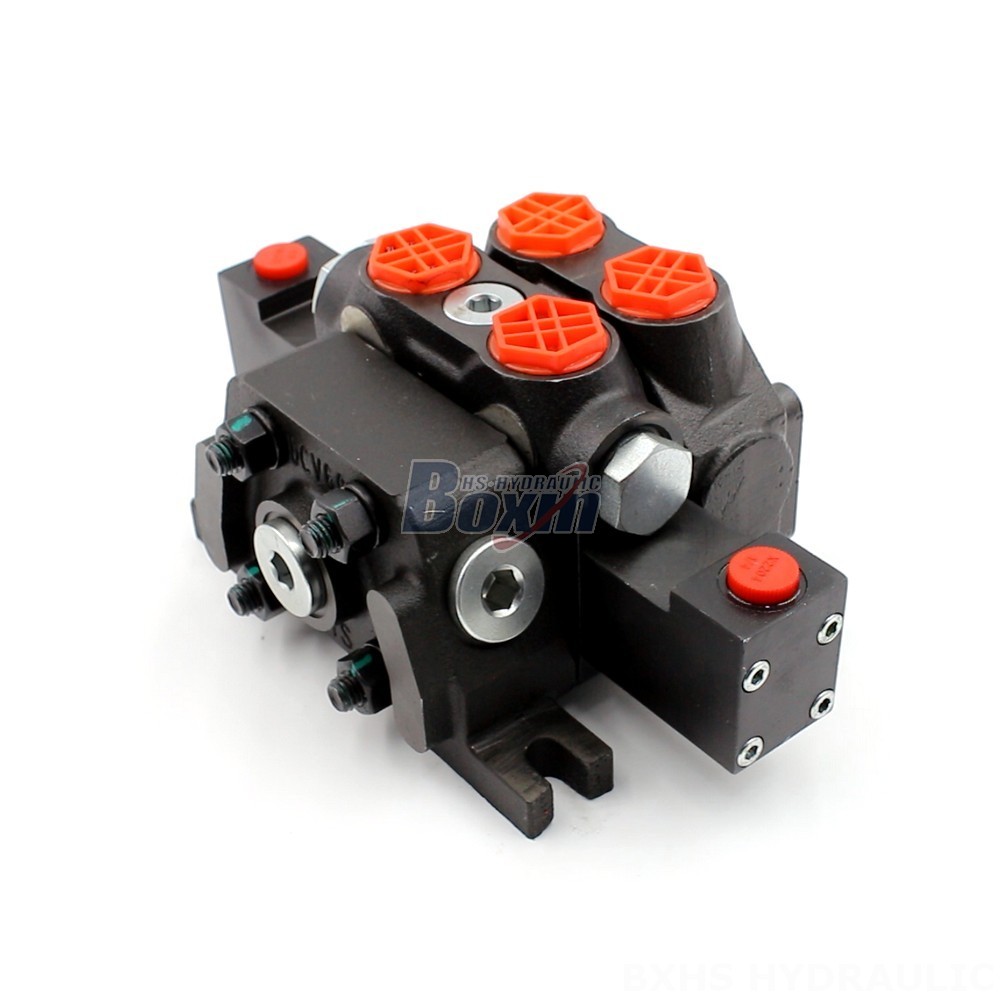

The DCV60-G34 is a high-performance hydraulic directional control valve designed for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. This 1-section sectional valve features a rated flow of 60 L/min, a maximum pressure of 350 bar, and an operating viscosity range of 15-75 mm²/s. It is suitable for use in telehandlers, forklifts, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, harvesters, seeding machines, forestry trailers, and balers.
| Serie DCV60 Válvula direccional seccional Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Hidráulico, Hidráulico y Manual, Cable, Joystick, 在这里输入键名的翻译, Solenoide y joystick, Manual y joystick, Motor eléctrico |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes, 8 carretes, 9 carretes, 10 carretes, 11 carretes, 12 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas seccionales |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones, 8 secciones, 9 secciones, 10 secciones, 11 secciones, 12 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 60 l/min (15,8 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi), 350 bar (5100 psi) |
| Puerto de Entrada | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Puerto de Salida | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamaño de Puerto | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
The DCV60-G34 is a robust and reliable hydraulic directional control valve designed for demanding applications. It features a compact design and a high flow rate, making it ideal for use in heavy-duty equipment. The valve's sectional construction allows for easy maintenance and repair. It is designed to operate in a wide range of ambient temperatures and is compatible with a variety of hydraulic fluids. The DCV60-G34 is available in a variety of configurations to meet the specific needs of your application.
