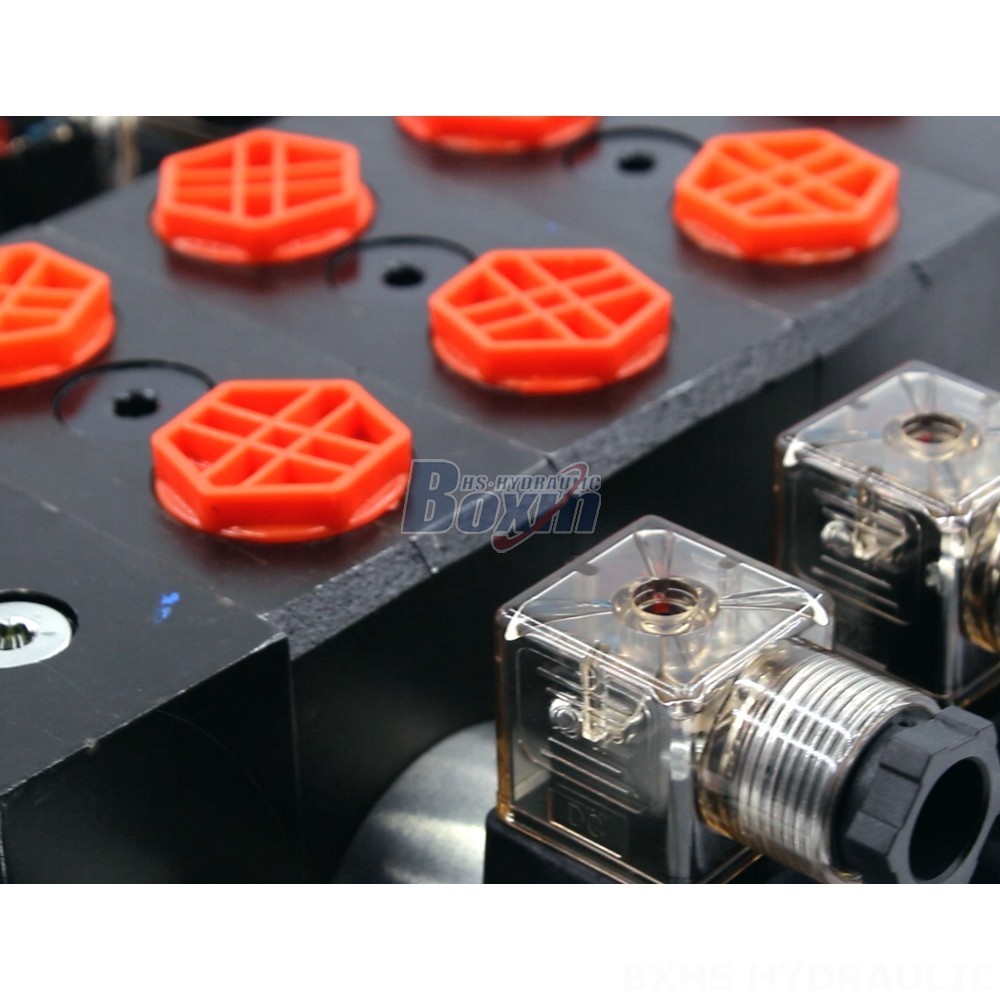

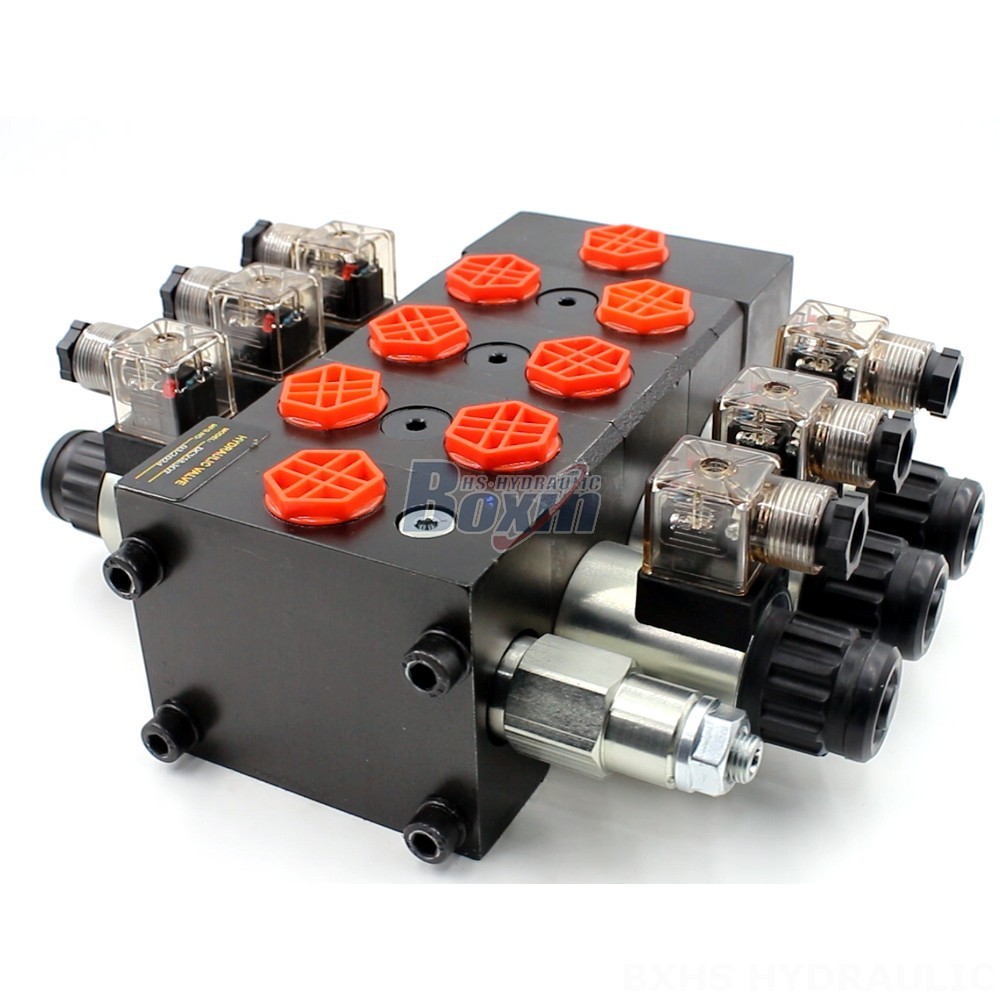

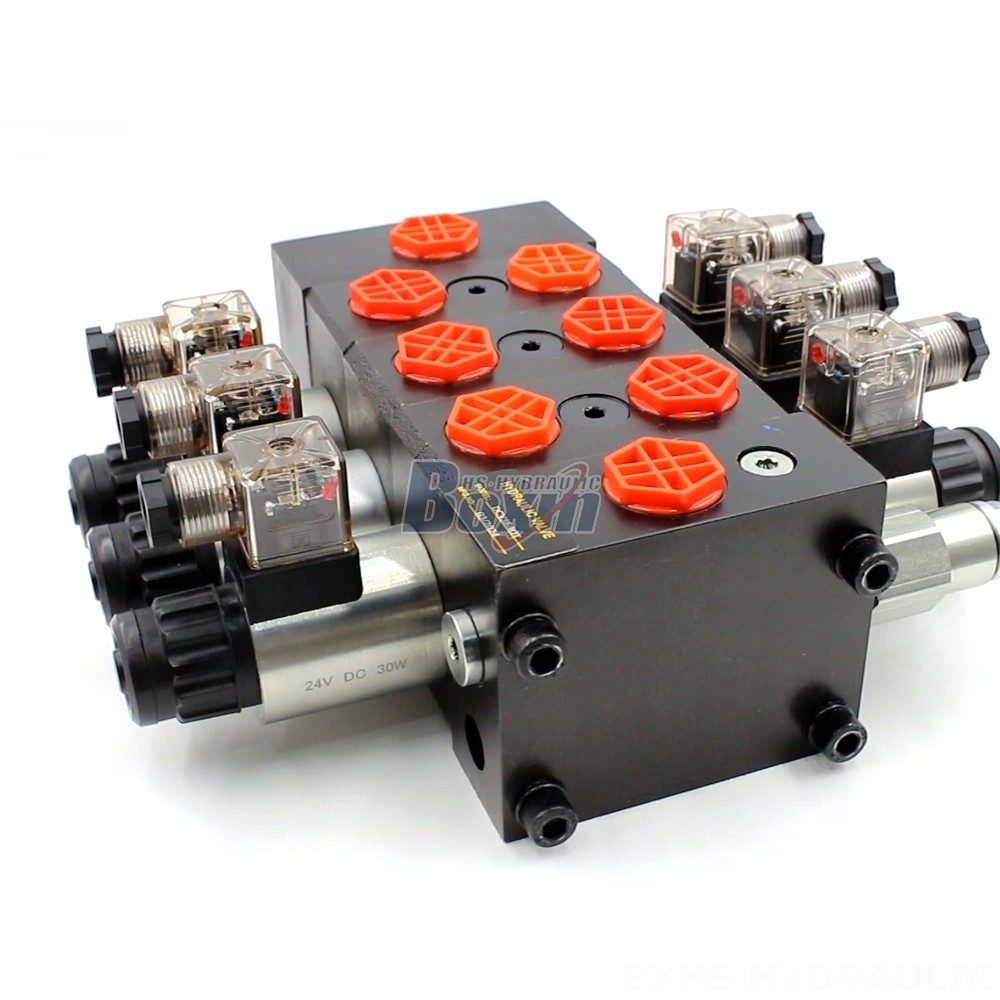

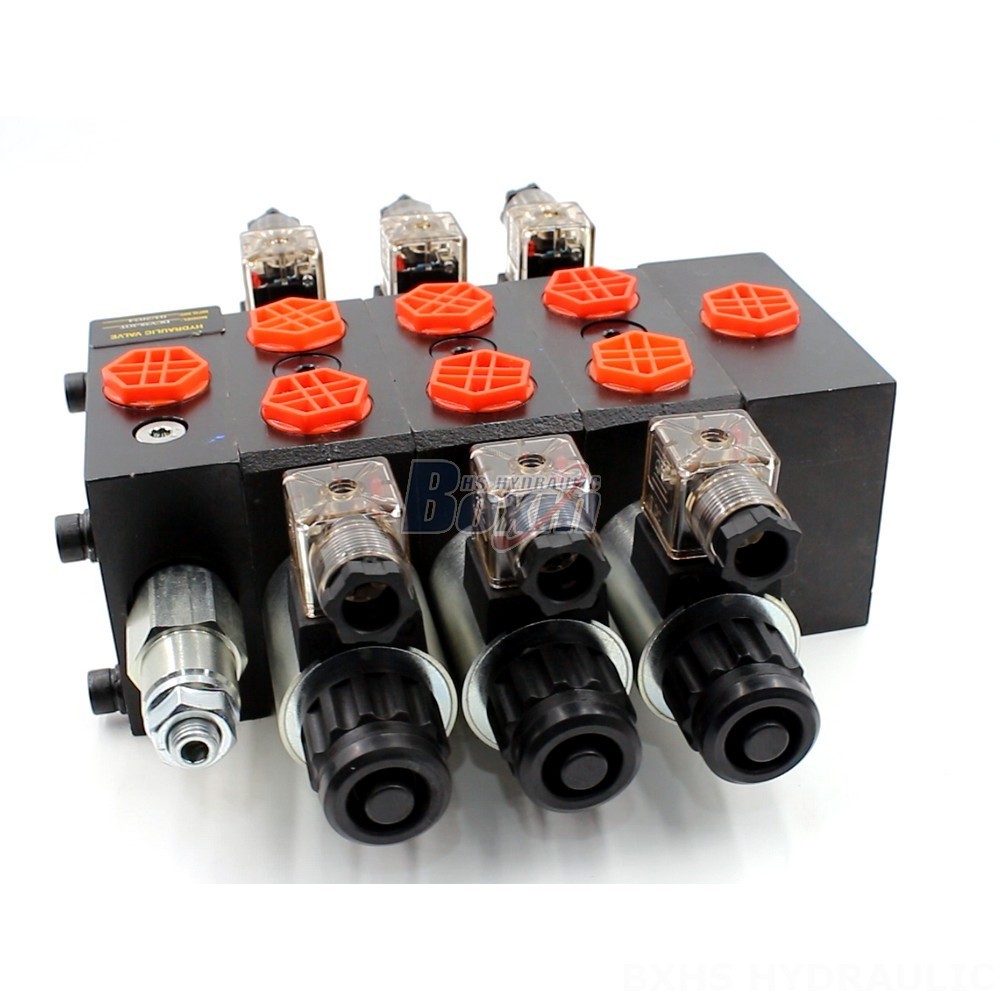

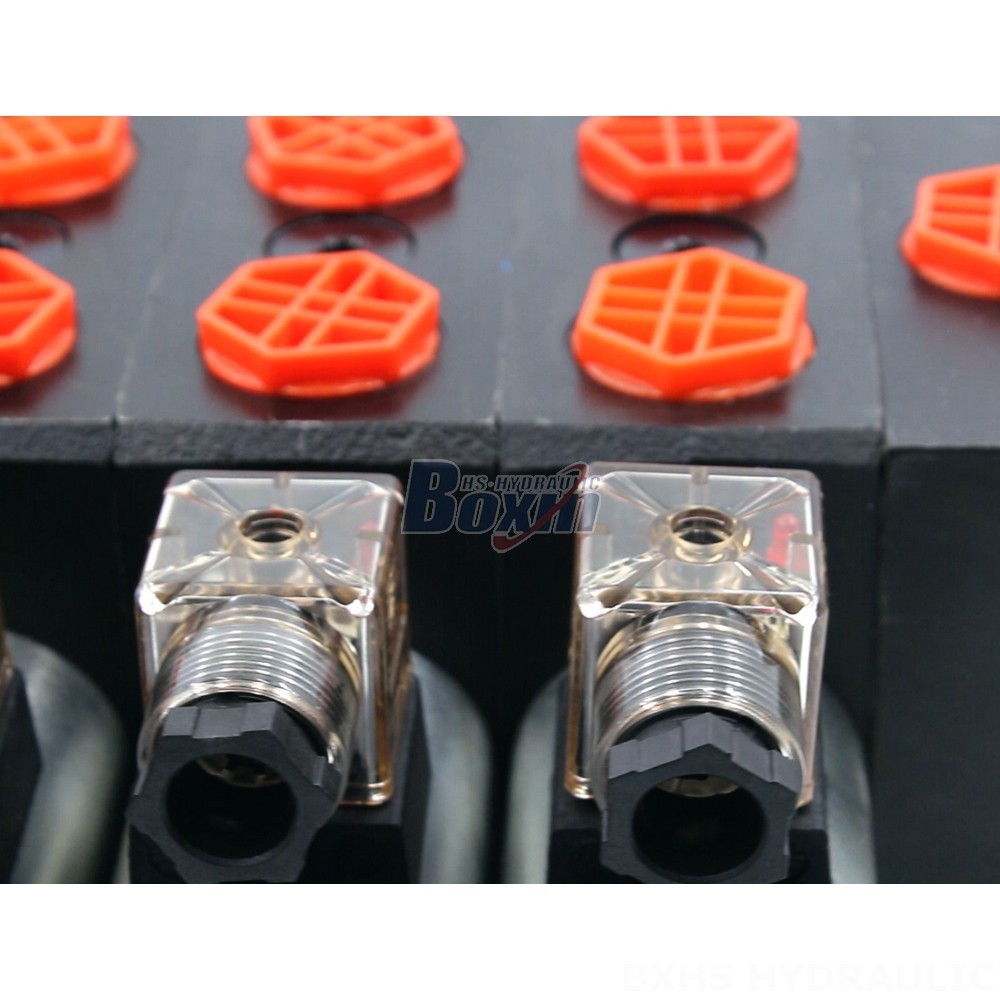

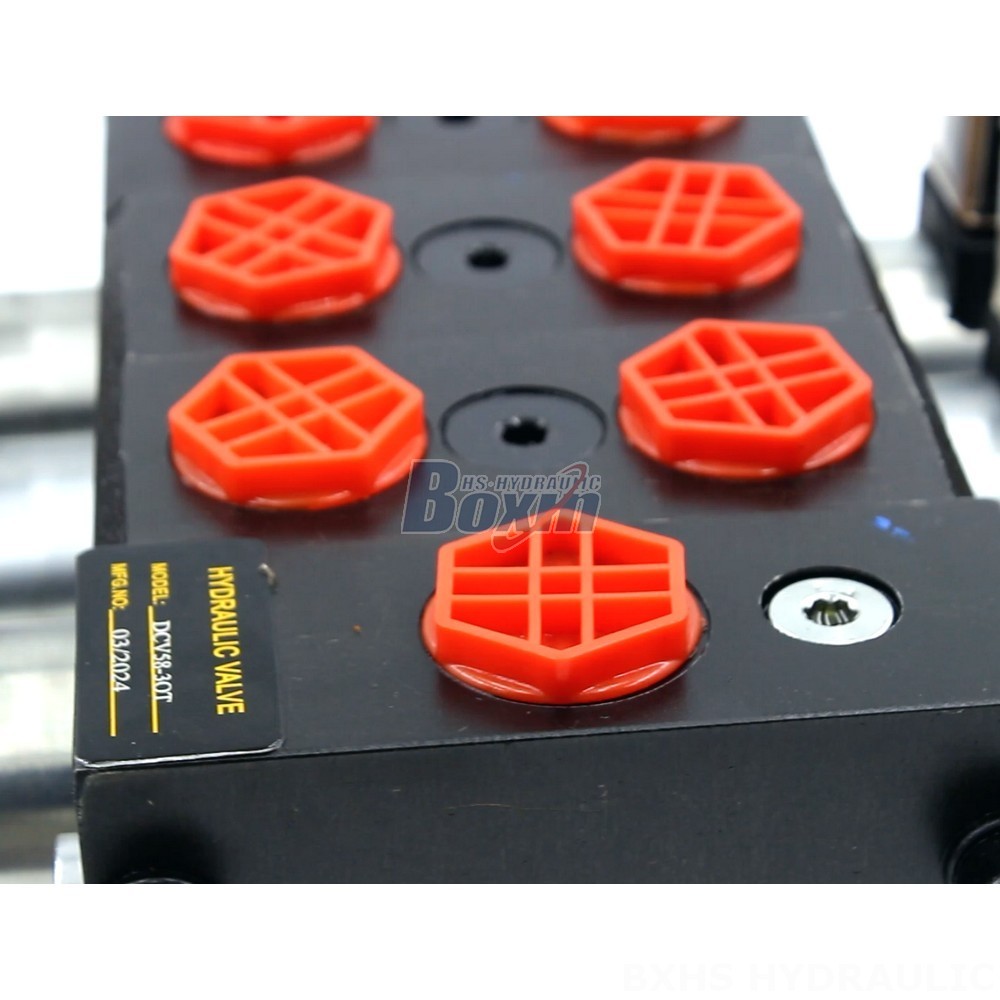

The DCV58 Solenoid 3 Spool Sectional Directional Valve is a high-performance hydraulic valve designed for demanding applications in various industries, including industrial vehicles, construction, agriculture, and material handling. With its advanced solenoid control and sectional design, it offers precise and reliable flow control, making it ideal for complex hydraulic systems requiring multiple spool operations.
| Serie DCV58 Válvula direccional seccional Parámetros | |
|---|---|
| Método de control | Solenoide, 在这里输入键名的翻译 |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes, 8 carretes, 9 carretes, 10 carretes, 11 carretes, 12 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas seccionales |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones, 8 secciones, 9 secciones, 10 secciones, 11 secciones, 12 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 350 bar (5100 psi) |
| Puerto de Entrada | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Puerto de Salida | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Tamaño de Puerto | G1/2, M22×1.5, SAE 10, 1/2 NPT |
**Key Features:**
- Solenoid control for precise and responsive operation
- Sectional design allows for modular configuration and easy maintenance
- 3 spool design provides independent control of multiple hydraulic circuits
- High flow capacity of 60 L/min for efficient system operation
- Maximum pressure rating of 350 bar for demanding applications
- Wide operating viscosity range of 15 - 75 mm²/s for compatibility with various hydraulic fluids
- Durable construction and high-quality components ensure long service life
**Applications:**
- Industrial vehicles: forklifts, telehandlers, aerial platforms
- Construction equipment: excavators, skid steer loaders, motor graders
- Agricultural machinery: tractors, harvesters, sprayers
- Material handling equipment: cranes, stackers, conveyors
