Introducing the DCV58 Solenoid 1 Spool Valve, a high-performance hydraulic component designed to enhance the efficiency and control of your hydraulic systems. With a rated flow of 60 L/min and a maximum pressure of 350 bar, this valve ensures optimal flow and pressure regulation in various applications.
| Serie DCV58 Válvula direccional seccional Parámetros | |
|---|---|
| Método de control | Solenoide, 在这里输入键名的翻译 |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes, 8 carretes, 9 carretes, 10 carretes, 11 carretes, 12 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas seccionales |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones, 8 secciones, 9 secciones, 10 secciones, 11 secciones, 12 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 350 bar (5100 psi) |
| Puerto de Entrada | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Puerto de Salida | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Tamaño de Puerto | G1/2, M22×1.5, SAE 10, 1/2 NPT |

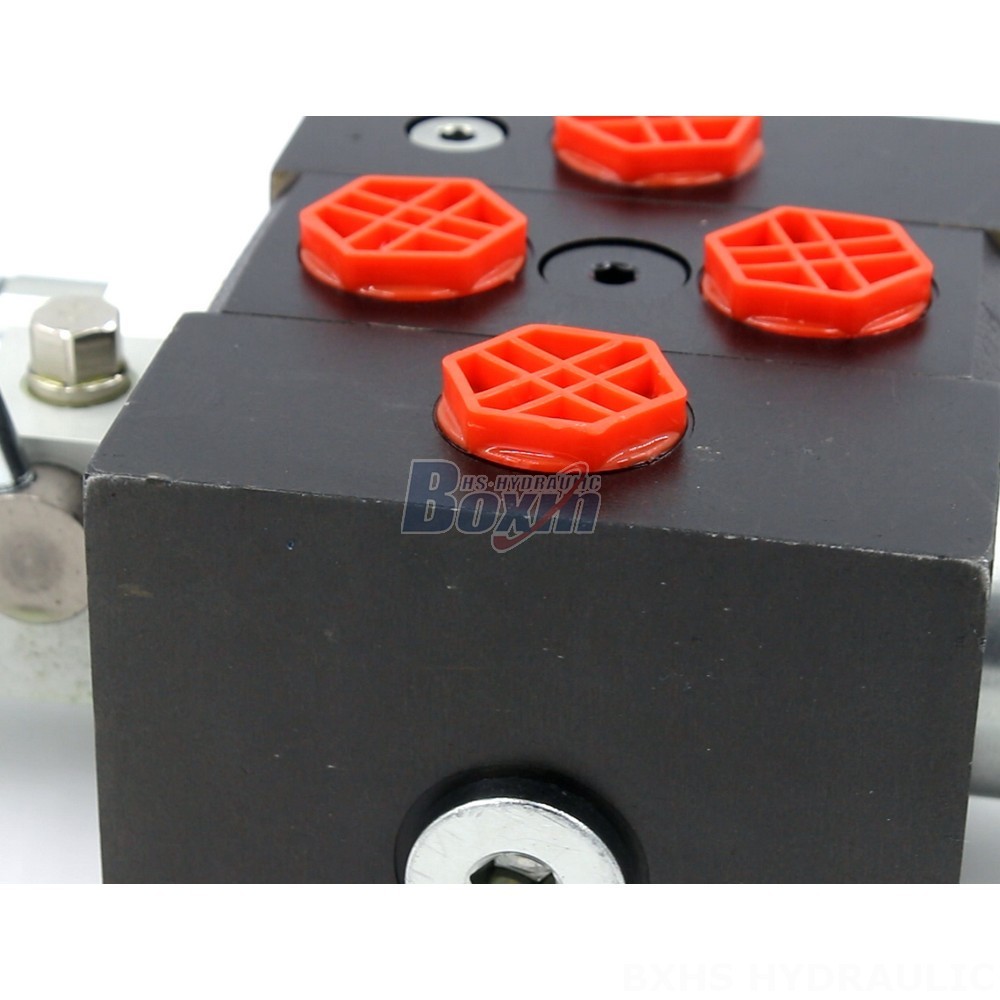

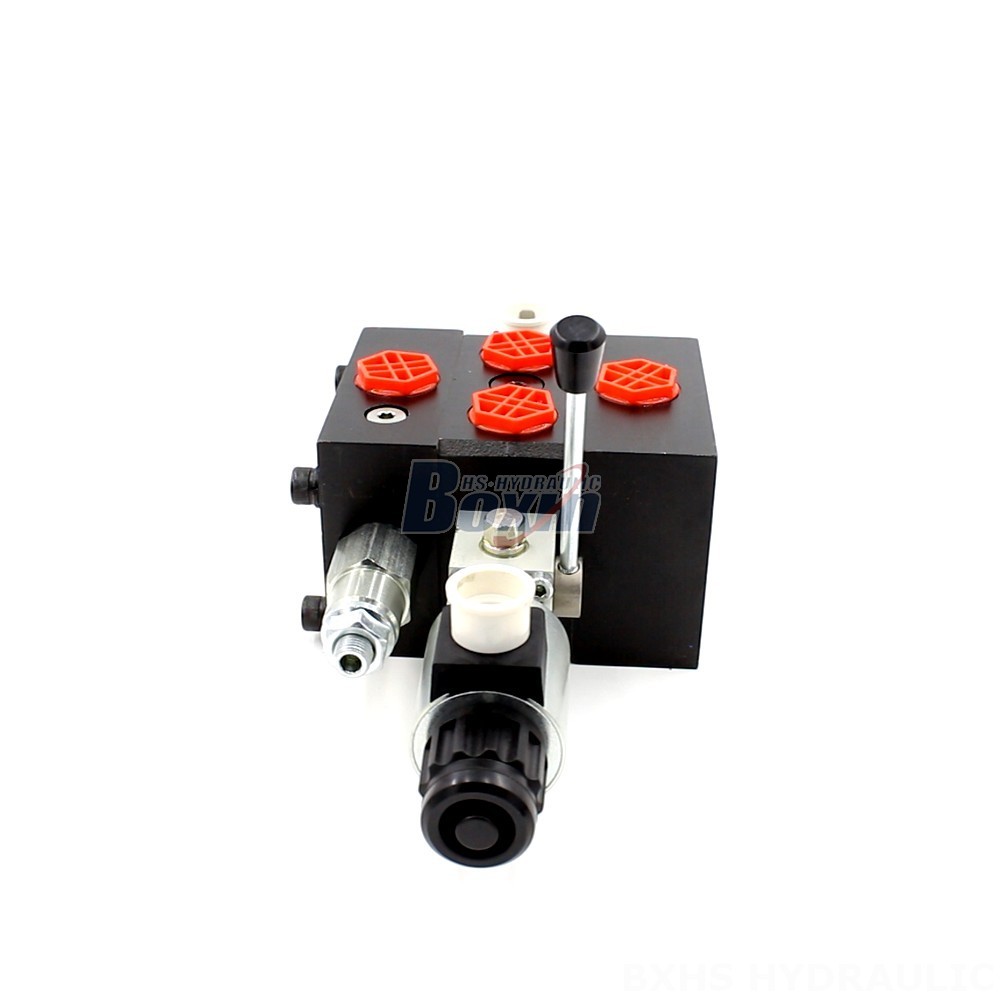

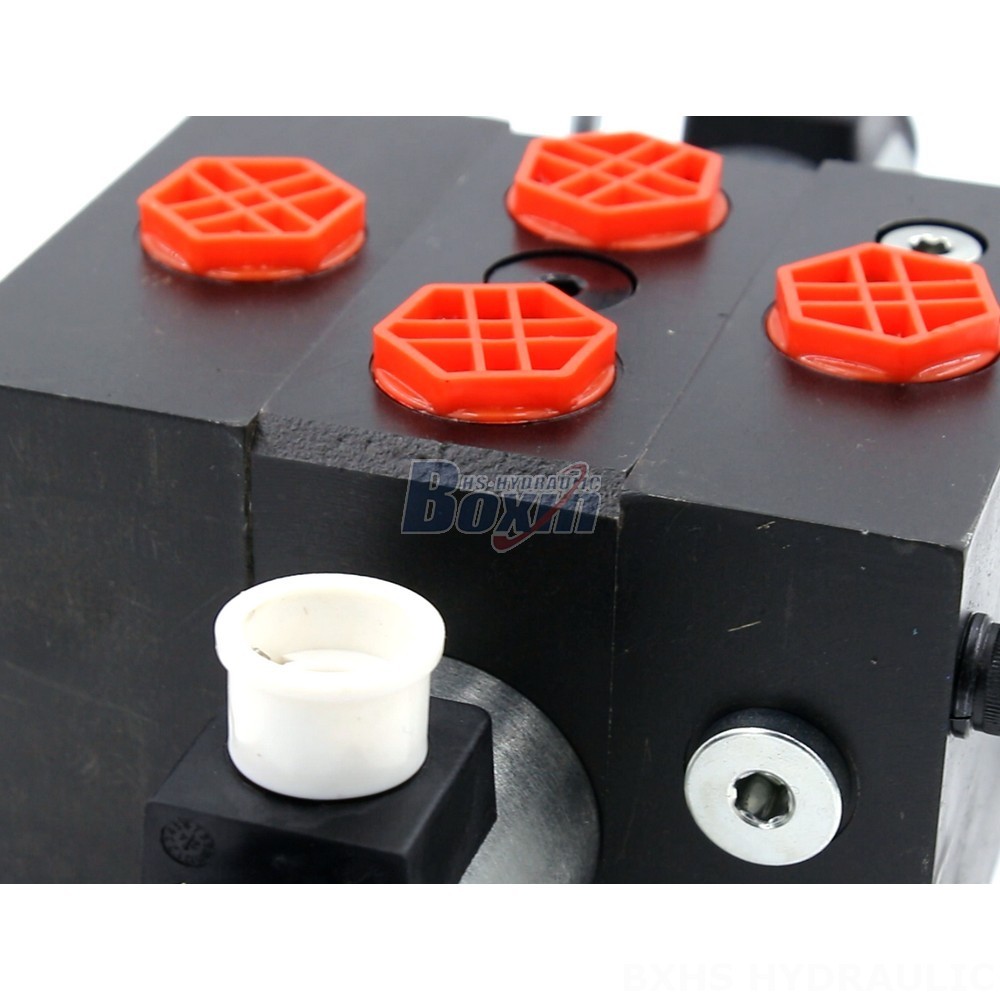

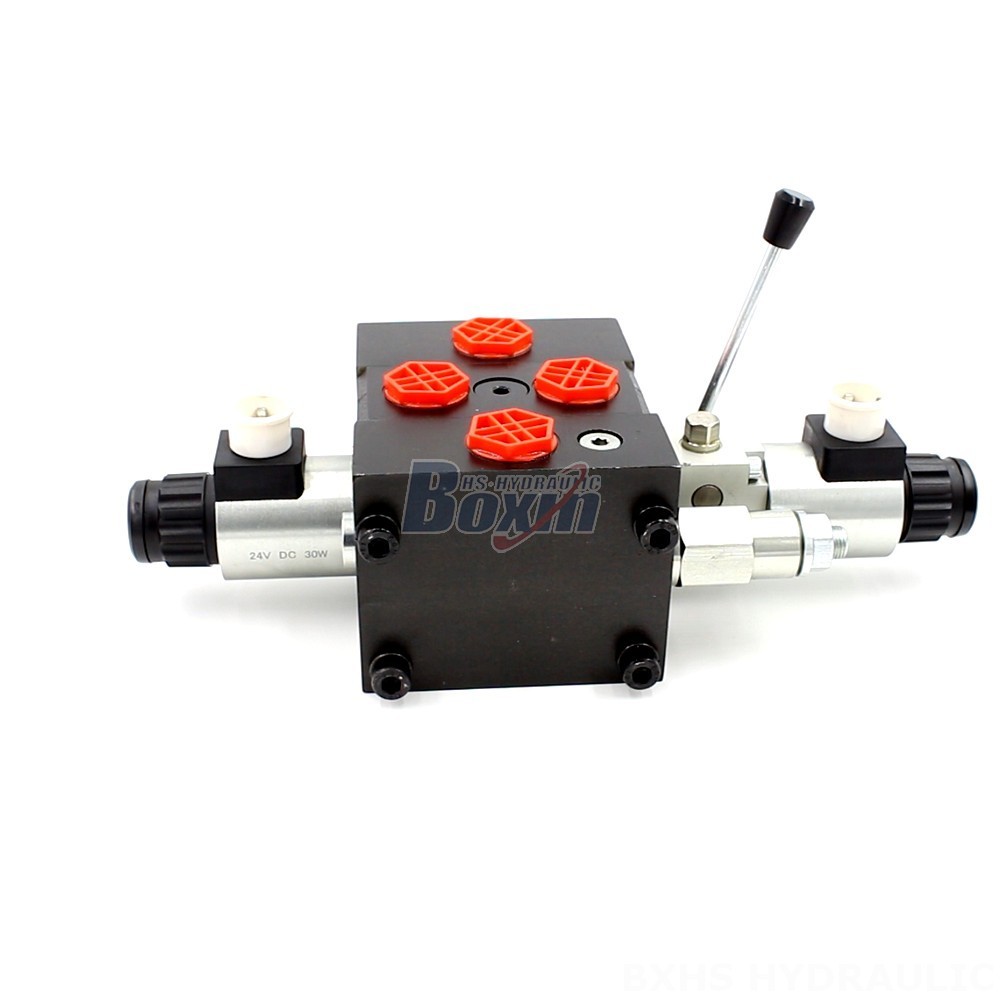

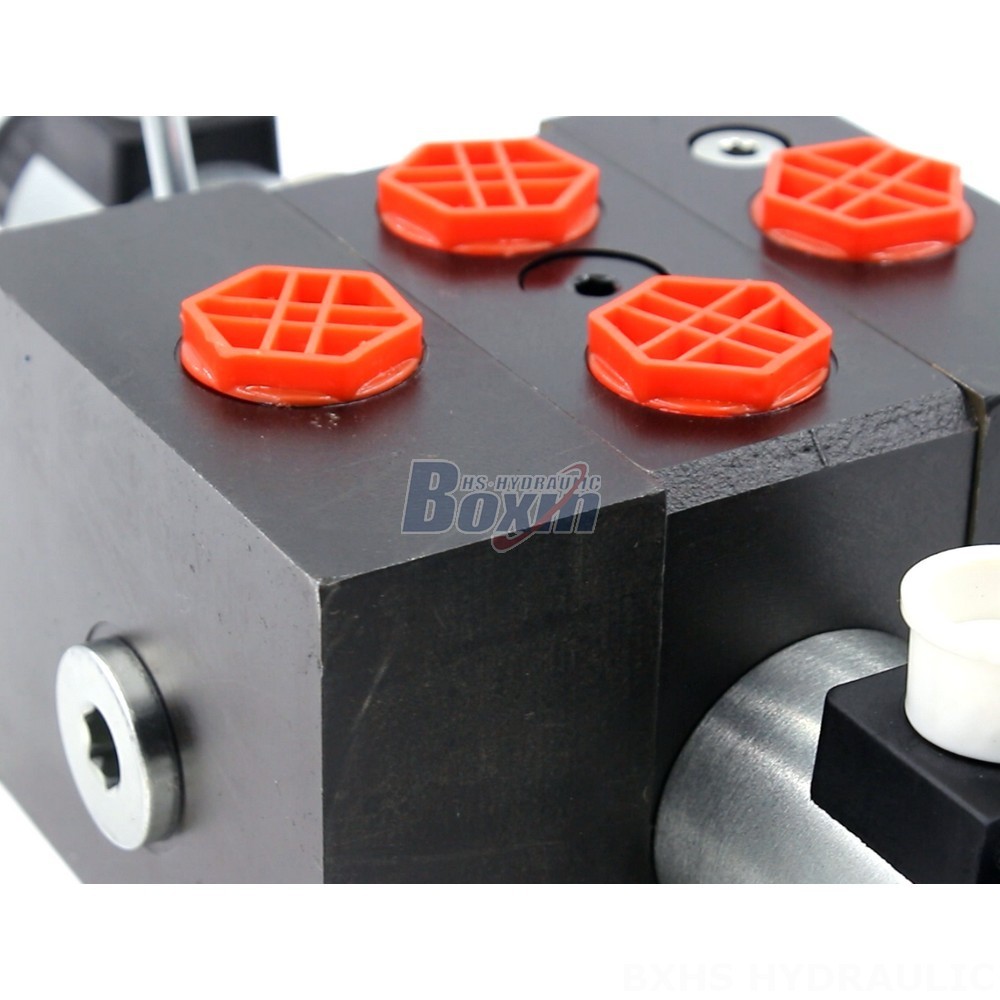

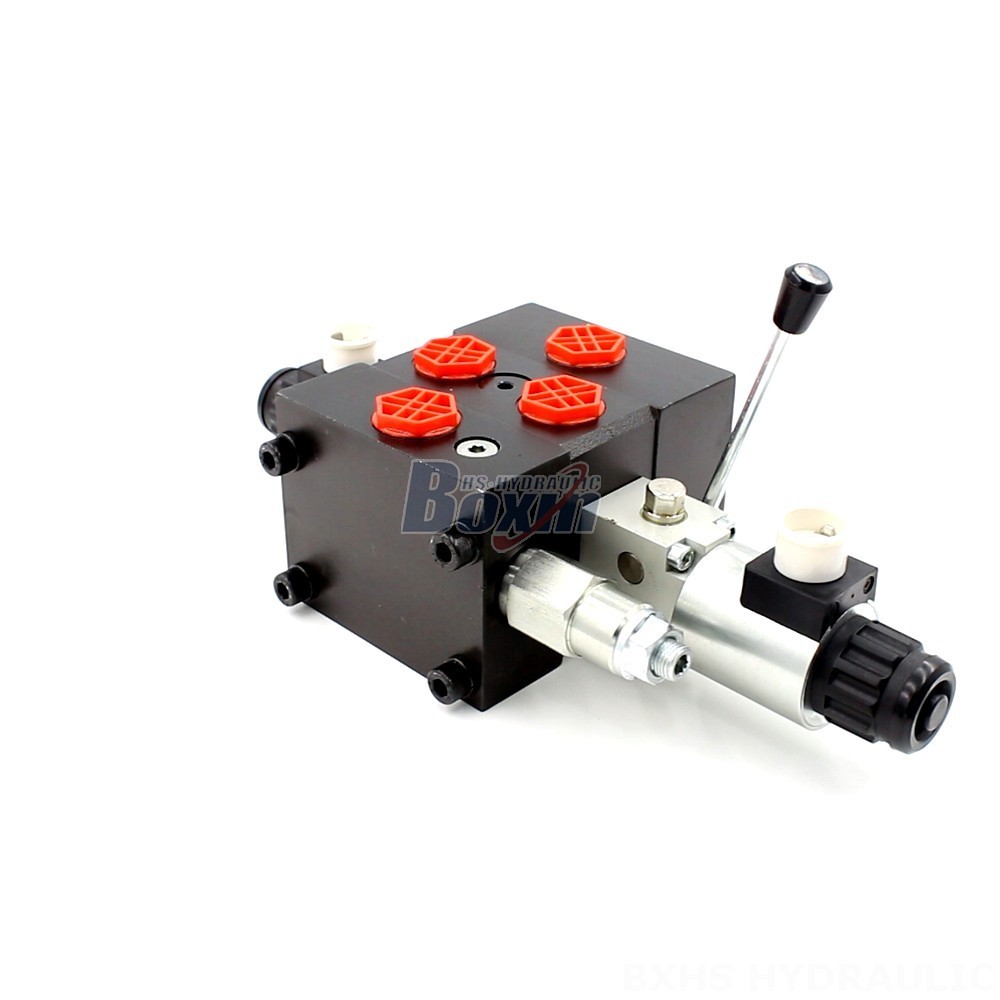

**DCV58 Solenoid 1 Spool Valve**
The DCV58 Solenoid 1 Spool Valve is a sectional valve featuring solenoid control for precise and reliable operation. It is ideally suited for applications in construction machinery, industrial vehicles, and agriculture. With its robust construction and high-quality materials, this valve ensures long-lasting performance and durability.
**Key Features:**
* Control Method: Solenoid
* Section: 1 Section
* Structure Type: Sectional valve
* Rated Flow: 60 L/min (15.8 US gpm)
* Max Pressure: 350 bar (5100 psi)
* Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
* Spool: 1 Spool
* Series: DCV58 Series
* Application Area: MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
* Applicable Model: TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER
The DCV58 Solenoid 1 Spool Valve is a versatile and efficient hydraulic component that offers exceptional control and performance. It is meticulously designed to meet the demands of modern hydraulic systems in various industries.
